iWOW iTegno 39XX User manual

iTegno 39XX GPRS Modem
Hardware User Guide
Date
:
287 July 2010
Document Version
:
1.2
Our Reference
:
02000C18

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein this document. It may
not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
Document History
Revision
Date
Document History
Associated Firmware
Version
1.0
9 Mar 2009
Initial Release
-
1.1
14 Oct 2009
Update Type Approvals
AU.001.1.2.0
1.2
27 Jul 2010
Update 3932 Y Cable information
Update GPRS TCP/UDP Server/Client
connection
AU.001.1.2.0

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein this document. It may
not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
GENERAL NOTE
The aim of this document is to support the application and engineering efforts of iWOW’s customers. This
document is intended for testing, evaluation, integration, and information purposes.
iWOW makes every effort to ensure that the quality of the information is available. The content of this
documentation is provided on an “as is” basis and may contain deficiencies or inadequacies.
iWOW disclaims any warranty and all responsibility for the application of the device(s) that is made in relation
to the accuracy, reliability or contents of this document. iWOW is not liable for any injury, loss or damage of
any kind incurred for the use of or reliance upon information.
iWOW reserves the right to make any modifications, additions and deletions to this document due to
typographical errors, inaccurate information, or improvements to products at any time and without notice.

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein this document. It may
not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
TABLE OF CONTENTS
1INTRODUCTION ..................................................................................................................................... 1
1.1 Abbreviations ........................................................................................................................................... 2
1.2 References................................................................................................................................................ 2
1.3 Type Approvals ......................................................................................................................................... 2
2TECHNICAL SPECIFICATIONS .................................................................................................................. 4
2.1 General Features ...................................................................................................................................... 4
2.2 Mechanical Characteristics....................................................................................................................... 5
2.3 Electrical Characteristics .......................................................................................................................... 5
2.4 RF Performance ........................................................................................................................................ 6
2.5 Environmental Characteristics ................................................................................................................. 6
3HARDWARE INTERFACE ......................................................................................................................... 7
3.1 Overview .................................................................................................................................................. 7
3.2 Status Indicator ........................................................................................................................................ 8
3.3 Serial Link Interface Cable ........................................................................................................................ 8
3.3.1 iTegno 3932................................................................................................................................ 8
3.3.2 iTegno 3945................................................................................................................................ 9
3.4 Power Supply Interface .......................................................................................................................... 10
3.4.1 iTegno 3932.............................................................................................................................. 10
3.4.2 iTegno 3945.............................................................................................................................. 11
3.5 RJ-45 to RS-232 Link Interface............................................................................................................... 12
3.6 SIM Interface .......................................................................................................................................... 13
3.7 GSM Antenna Interface.......................................................................................................................... 13
3.7.1 Recommended Antenna Specifications ................................................................................... 14
3.8 Mounting Option.................................................................................................................................... 15
4GETTING STARTED ............................................................................................................................... 16
4.1 Setting up the modem............................................................................................................................ 16
4.2 Interfacing Modem with HyperTerminal Software ................................................................................ 17
4.2.1 Configuring HyperTerminal for Modem................................................................................... 17
4.2.2 Sending Short Messages (SMS) ................................................................................................ 19
4.2.3 Receiving Short Messages (SMS) ............................................................................................. 20
4.2.4 GPRS TCP Client - Command-Mode Sending ........................................................................... 21

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein this document. It may
not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
4.2.5 GPRS TCP Client - Data-Mode Sending..................................................................................... 23
4.2.6 GPRS TCP Listening Server - Command-Mode Sending ........................................................... 25
4.2.7 GPRS UDP Client - Command-Mode Sending........................................................................... 28
4.2.8 GPRS UDP Client - Data-Mode Sending.................................................................................... 30
5TROUBLESHOOTING ............................................................................................................................ 33
5.1 Is my modem powered up?.................................................................................................................... 33
5.2 Is my SIM card SIM Lock enabled? ......................................................................................................... 33
5.3 What is my SIM card PIN code? ............................................................................................................. 33
5.4 Unable to register to the network.......................................................................................................... 33
5.5 Cannot enter AT Commands or no communication between device and modem ................................ 33
5.6 Cannot send SMS using AT+CMGS command ........................................................................................ 34
5.7 Cannot connect to GPRS ........................................................................................................................ 34
6SAFETY INFORMATION ........................................................................................................................ 35
6.1 SAR Requirement ................................................................................................................................... 35
6.2 General Safety ........................................................................................................................................ 35
6.3 Vehicle Safety ......................................................................................................................................... 36
6.4 Care and Maintenance ........................................................................................................................... 36
7PACKAGING & RECOMMENDED ACCESSORIES..................................................................................... 37
7.1 Standard Package ................................................................................................................................... 37
7.2 Accessories ............................................................................................................................................. 37
8TEST GRAPH OF RADIATED EMISSIONS ................................................................................................ 38
9SUPPORT/ CONTACT US....................................................................................................................... 38

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
1
1INTRODUCTION
iTegno 39XX GPRS Modem is designed for reliable communication over GPRS and GSM for industrial usage. It
provides the wireless communication link for applications such as remote control purposes and remote data
monitoring and acquisition. This durable and high performing modem can be deployed in myriad Machine-to-
Machine (M2M) applications including automotive systems, fleet management, automated meter reading,
vending and retail, security and surveillance, industrial systems, information display, etc.
This manual provides an overview of the operation of iTegno 39XX. It includes technical information on
configuring the modem using a Windows-based PC via the PC’s serial port (RJ-45-to-DB9 adaptor required).

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
2
1.1 Abbreviations
The following abbreviations are used in this document:
Abbreviation
Description
DC
Direct Current
V
Voltage
LED
Light Emitting Diode
DTE
Data Terminal Equipment (refers to the host terminal/ application in control)
DCE
Data Communication Equipment (refers to the device controlled by the host)
1.2 References
S/N
Document
Our Reference
1
iTegno 39XX AT Commands Guide
02000C17
1.3 Type Approvals
The iTegno 39XX Modem is a fully certified GSM/GPRS modem. iTegno 39XX has been certified for compliance
with the directives and standards listed below:
Directive
Description
99/05/EC
“Directive of the European Parliament and of the council of 9 March 1999 on
radio equipment and telecommunications terminal equipment and the
mutual recognition of their conformity”, in short referred to as R&TTE
Directive 1999/5/EC
EN301 489-7 V1.3.1 (2005-
11)
Candidate Harmonized European Standard (Telecommunications series)
Electro Magnetic Compatibility and Radio spectrum Matters (ERM); Electro
Magnetic Compatibility (EMC) Standard for Radio Equipment and Services;
Common Technical Requirements

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
3
Directive
Description
Part 7: Specific conditions for mobile and portable radio and ancillary
equipment of digital cellular radio telecommunications systems (GSM and
DCS)
EN 55022 (2006)
Information technology equipment - Radio disturbance characteristics -
Limits and methods of measurement
EN 61000-4-3 (2006)
Electromagnetic compatibility (EMC) -- Part 4-3: Testing and measurement
techniques - Radiated, radio-frequency, electromagnetic field immunity test
EN 61000-4-2 (2001)
Electromagnetic compatibility (EMC) -- Part 4-2: Testing and measurement
techniques - Electrostatic discharge immunity test
ETSI EN 301 511 V9.0.2
“V7.0.1 (2000-12) Candidate Harmonized European Standard
(Telecommunications series) Global System for Mobile communications
(GSM); Harmonized standard for mobile stations in the GSM 900 and DCS
1800 bands covering essential requirements under article 3.2 of the R&TTE
directive (1999/5/EC) (GSM 13.11 version 7.0.1 Release 1998)”
EN60950-1:2006
Safety of information technology equipment
EN 50385:2002
Basic standard for the calculation and measurement of electromagnetic field
strength and SAR related to human exposure from radio base stations and
fixed terminal stations for wireless telecommunications system
Product Standard to Demonstrate the Compliances of Radio Base Stations
and Fixed Terminal Stations for Wireless Telecommunication Systems with
the Basic Restrictions or the Reference Levels Related to Human Exposure to
Radio Frequency Electromagnetic Fields (110 MHz - 40 GHz)
2002/95/EC
RoHS Directive –Compliance
3GPP TS 51.010-1
“Digital cellular telecommunications system (Phase 2); Mobile Station (MS)
conformance specification”
FCC
Code of Federal Regulations (CFR Title 47), Part 15, Part 22 and Part 24; US
Equipment Authorization FCC
IEC 60068
Environmental testing
DIN EN 60529
IP codes

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
4
2TECHNICAL SPECIFICATIONS
2.1 General Features
Feature
Specification
Standard
Quad-band: GSM 850/ EGSM900/ DCS1800/ PCS1900
Compliant to ETSI GSM Phase 2+
Data
Asynchronous, transparent and non-transparent
Maximum speed: up to 14.4kbps
Point-to-point (MO/MT)
Text /PDU
Cell Broadcast
GPRS
Terminal Class B
Multi-slot Class 10
Coding Schemes CS1 –CS4
PBCCH support
PCCCH support
PPP stack
Data rates: Downlink –up to 85.6 kbps
Uplink –up to 42.8 kbps
Fax
Group 3
Fax 2.0
Max speed (kbps): up to 9.6kbps
Host Protocol
AT Commands compliant to GSM 07.07, 07.05
iWOW Proprietary AT Commands
Firmware Stack
TCP/IP
UDP/IP

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
5
2.2 Mechanical Characteristics
Feature
Specification
Dimension (mm)
90.0 x 50.0 x 20.0
Weight (g)
60
Lead-free
Yes
Power Supply Interface
Via interface cable
Communication Port
RJ-45 interface cable/ RS-232 serial interface
Baud rates from 110 to 115200 bps
SIM Support
3V / 1.8V
External Antenna Interface
SMA Connector
Enclosure Protection
IP 54 / 56 rating
2.3 Electrical Characteristics
Current Consumption
Operating Mode
Conditions
Inom
Imax
Unit
Modem OFF
45
60
uA
Modem Sleep
< 2.5
-
mA
GSM
EGSM –PCL 5 (Ave)
241
242
mA
DCS/ PCS –PCL 0 (Ave)
181
183
mA
GPRS Data (Class 10)
EGSM –PCL 5 (Ave)
420
443
mA
DCS/ PCS –PCL 0 (Ave)
285
287
mA
Above values taken at 25 oC
Power Supply
Operating Voltage Range
5V to 32V DC

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
6
2.4 RF Performance
Feature
Specification
Frequency Band
GSM 850/ EGSM 900/ DCS 1800/ PCS 1900
Sensitivity
GSM 850: -104dBm
EGSM 900: -104dBm
DCS 1800: -102dBm
PCS 1900: -102dBm
Output power
GSM 850: Class 4, 2W
EGSM 900: Class 4, 2W
DCS 1800: Class 1, 1W
PCS 1900: Class 1, 1W
2.5 Environmental Characteristics
Feature
Specification
Operating Temperature Range
-20ºC to +55ºC
Extended Temperature Range
-40ºC to +85ºC
Relative Humidity
5% to 95% (non-condensing)

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
7
3HARDWARE INTERFACE

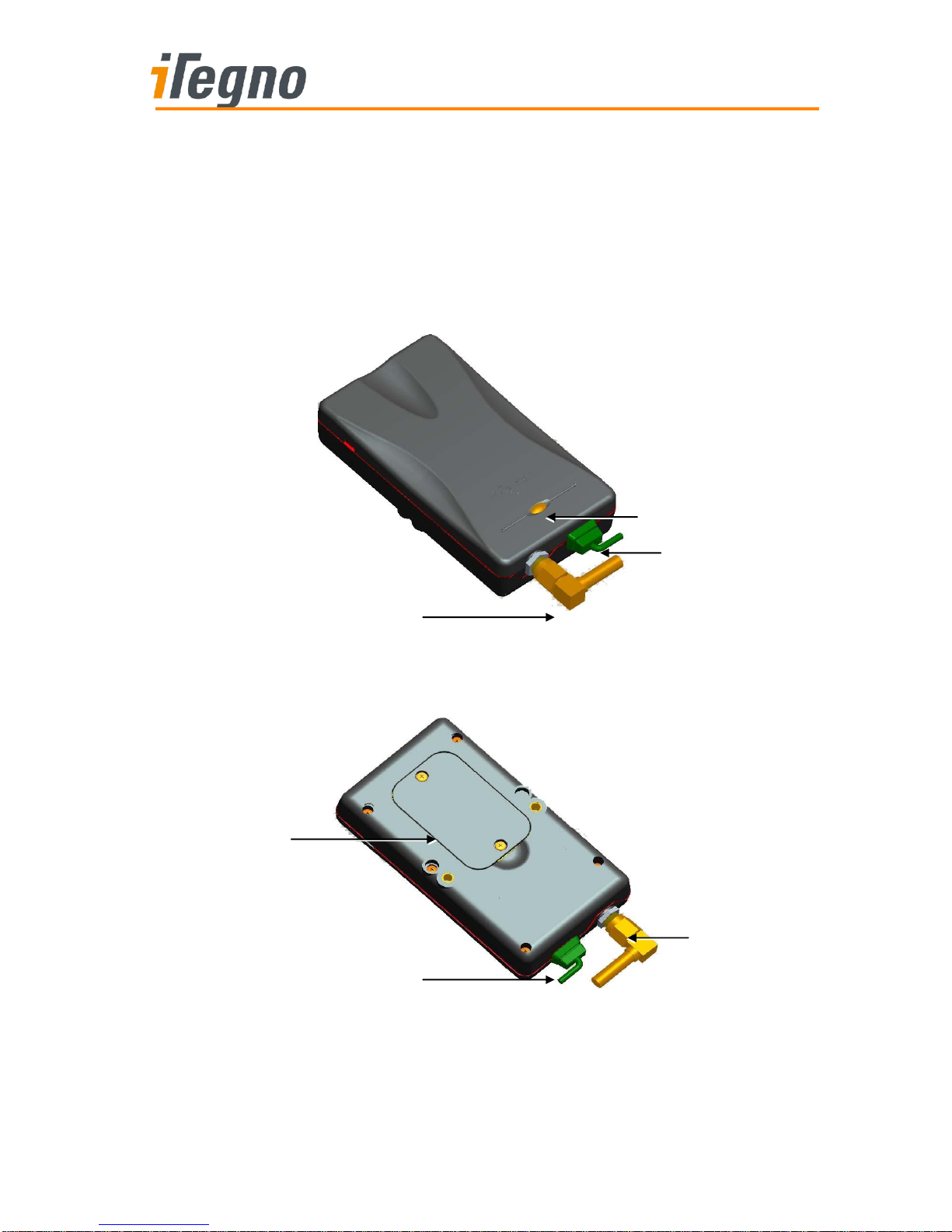

3.1 Overview
The general interfaces are shown in the figure below:
Modem Interface Overview
SMA Connector
SIM Door
LED Status Indicator
SMA Connector
(Antenna)
Wire Piglet Point for RS-232
or RJ-45 interface
Connection to RJ-45 cable

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
8
3.2 Status Indicator
The status indicator indicates the operational status of the modem. The table below describes the modem’s
operational status in various LED light status:
LED Light Status
Modem Status
LED ON permanently
Modem is switched on but is not registered on the network
LED ON and flashing slowly
Modem is switched on and registered to the network. However, there
is no active communication in progress.
LED ON and flashing quickly
Modem is switched on and registered to the network with active
communication in progress.
LED OFF
Modem is switched off.
3.3 Serial Link Interface Cable
3.3.1 iTegno 3932
The iTegno 3932 communicates with other devices via the RS-232 serial link cable. The diagram below shows
the pin assignment of the DB9 connector.
RS-232 DB9 Pin Assignments
Pin#
Signal
I/O
Description
1
DCD
O
RS-232
Data Carrier Detect
2
RXD
O
RS-232
Receive Serial Data
3
TXD
I
RS-232
Transmit Serial Data
4
DTR
I
RS-232
Data Terminal Ready
5
Ground
-
Signal Ground (SG)
6
DSR
O
RS-232
Data Set Ready
7
RTS
I
RS-232
Request To Send
8
CTS
O
RS-232
Clear To Send
9
RI
O
RS-232
Ring Indicator
5 4 3 2 1
9 8 7 6
Pin #:
Pin #:

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
9
3.3.2 iTegno 3945
The iTegno 3945 communicates with other devices via the RJ-45 cable. The 8-pin RJ-45 plug consists of:
Power input and Ground
RJ-45 (RS-232) serial link connection
Pin#
Signal
I/O
Description
1
V+
I
DC Power Input
2
DCD
O
RS-232
Data Carrier Detect
3
DTR
I
RS-232
Data Terminal Ready
4
GND
-
Ground
5
RXD
I
RS-232
Receive Serial Data
6
TXD
O
RS-232
Transmit Serial Data
7
CTS
O
RS-232
Clear To Send
8
RTS
I
RS-232
Request To Send
RJ-45 Pin Assignments
1 8
Pin #:

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
10
3.4 Power Supply Interface
3.4.1 iTegno 3932
The iTegno 3932 modem DC IN terminal is via a Y-cable, connecting the open ending of the power cord to a DC
supply and standard D-sub 9-pin (female) connector from the modem.
The power supply rating is:
Power Supply
Voltage
Minimum Voltage Input
5V
Maximum Voltage Input
32V
A regulated 5V DC input voltage is recommended for operating the modem. A power voltage exceeding 32V
supplied to the modem may result in permanent damage.
A 2A fuse is connected in series with the DC IN, when there is a surge, it protects the circuit.
iTegno 3932 cable termination
Fuse holder +2Amp Fuse (AC 250V)
D-SUB 9PIN Connector

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
11
3.4.2 iTegno 3945
The table below shows the power supply pin assignment from the iTegno 3945 modem interface cable.
Pin
Description
1
DC Power Input
4
Ground
The power supply rating is:
Power Supply
Voltage
Minimum Voltage Input
5V
Maximum Voltage Input
32V
A regulated 5V DC input voltage is recommended for operating the modem. A power voltage exceeding 32V
supplied to the modem may result in permanent damage.

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
12
3.5 RJ-45 to RS-232 Link Interface
The default RJ-45 link settings for the modem are:
Item
Settings
Baud Rate
115200 bps
Data bits
8
Parity
None
Stop bits
1
Flow Control
Hardware
To interface iTegno 39XX to a DTE device via standard DB 9 Pin RS-232 serial port connector, map the interface
cable pins as follow:
PC DB9 Pinout (Male)
RJ-45 Pin#
PC DB 9 Pin# (Male)
Signal
2
1
DCD
3
4
DTR
4
5
Ground
5
2
RXD
6
3
TXD
7
8
CTS
8
7
RTS
RS-232 Link Mapping

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
13
3.6 SIM Interface
The SIM interface is intended for 1.8 / 3V SIM cards in accordance with GSM 11.12 Phase 2. A SIM detect pin is
added to indicate whether or not a SIM card is inserted.
The following steps describe the insertion of SIM Card to the Modem:
Step 1: Remove the SIM door as shown below.
Step 2: Insert the SIM card with the metallic part facing down and secure the SIM holder.
Step 3: Replace the SIM door accordingly and secure with the screws provided, as shown below.
3.7 GSM Antenna Interface
The GSM antenna interface uses a SMA connector. Attach the external antenna to the modem and tighten the
connection.

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
14
Recommended antenna connector
3.7.1 Recommended Antenna Specifications
For your application it is recommended to use an antenna with an SMA (female) connector. Below are the
recommended specifications for the antenna.
Frequency Band
EGSM 900
DCS 1800
GSM 850
PCS 1900
Tx Frequency
880-915 MHz
1710-1785 MHz
824-849 MHz
1850-1910 MHz
Rx Frequency
925-960 MHz
1805-1880 MHz
869-894 MHz
1930-1990 MHz
Impedance
50 ohm
VSWR Rx max
1.5 : 1
VSWR Tx max
1.5 : 1
Typical Radiated Gain
0 dBi in one direction at least
The optimum operating frequency depends on the application. A dual-band or a quad band antenna must
operate in the above frequency bands.

iTegno 39XX GPRS Modem
Hardware User Guide
02000C18 • v1.2
Confidential
All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein
this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd.
© 2010 iWOW Connections Pte Ltd
15
Mounting Hole for M3 Screws
(For DIN rail or other fixing
bracket)
3.8 Mounting Option
iTegno 39XX can be mounted onto your application by attaching it to the back of the modem using two M3
screws.
Mounting Application onto iTegno 39XX
