J. A. Roby Mystere User manual

1
March 9th, 2009 Reviewed
MYSTERE
wood burning stove
490, rue de l'Argon
Québec (Québec G2N 2C9
Phone: [phone] Fax : [phone]
www.jaroby.com
CAN/ULC S627-M00

2
CONTENTS
WARNING ......................................................................................................................... 4
NOTICE.............................................................................................................................. 6
C
REOSOTE ........................................................................................................................ 6
MYSTERE - CHARACTERISTICS .................................................................................. 7
CHIMNEY.......................................................................................................................... 8
INSTALLATION ............................................................................................................... 8
V
ERTICAL INSTALLATION INSIDE A MASONRY CHIMNEY .................................................. 9
E XTERIOR VERTICAL INSTALLATION ................................................................................ 9
V ERTICAL INSTALLATION ON A CATHEDRAL ROOF ......................................................... 10
C ROSS STYLE INSTALLATION .......................................................................................... 10
V ERTICAL INSTALLATION .............................................................................................. 11
CLEARANCES ................................................................................................................ 12
SEATING ......................................................................................................................... 13

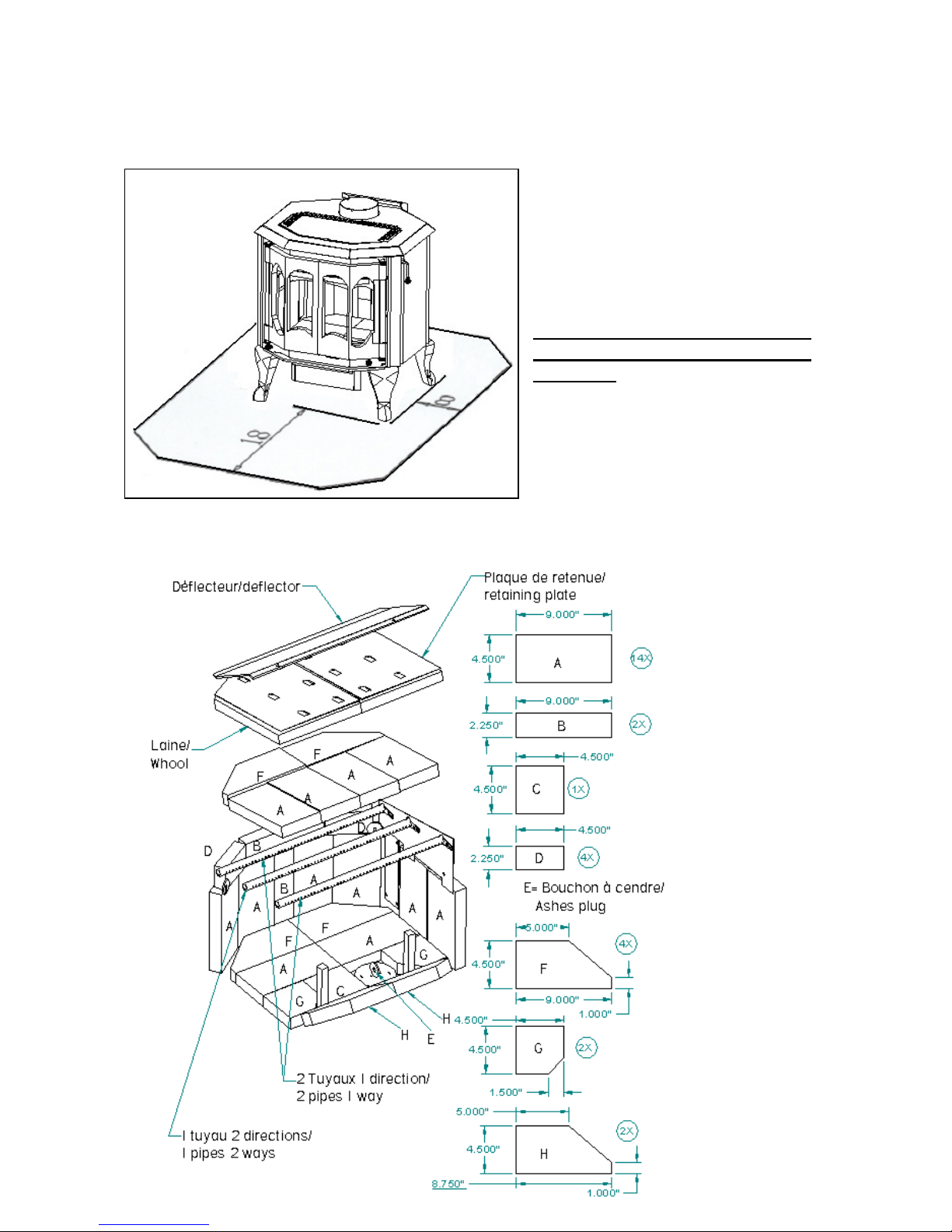

FIREBRICKS ................................................................................................................... 13
FANS AND THERMODISC............................................................................................ 14
LIGHTING ....................................................................................................................... 15
PREVENTIVE MEASURES AND MAINTENANCE.................................................... 15
INTERCHANGEABLES PARTS LIST........................................................................... 16
LIMITED LIFE WARRANTY...................................................................................... 17

3
CAREFULLY READ THIS MANUAL AND KEEP IT FOR FURTHER
REFERENCES
INSTALLATION OF THIS APPLIANCE MUST BE DONE BY A QUALIFY
CERTIFIED TECHNICIAN AND IN CONFORMITY WITH THE OWNER'S
MANUAL GUIDE GIVEN WITH THIS APPLIANCE. THE INSTALLATION MUST
BE IN AGREEMENT WITH LOCAL AND NATIONAL REGULATIONS
APPLICABLE FOR SOLID FUEL BURNING APPLIANCES AND CONNEX
EQUIPMENT (CAN/CSA-B365, NFPA211(USA AND THE APPLICABLE
BUILDING CODE .
WARNING! NEVER MODIFY THIS APPLIANCE !

4
WARNING
Before installing, please take a few minutes to read this handbook. Keep it in a sure place
and easily reachable for future references. Not following these instructions could be a
cause of property damages, injuries or death. If this appliance is not properly installed, it
could cause fire damages to the property, injuries and death. To reduce fire hazards,
follow instructions contained in this handbook.
Contact an official inspector (ex: a fireman or your insurance company for installation
permit. Always respect the provincial and municipal building codes of your region.
Do not connect this appliance to a chimney that already serves for another wood
appliance.
Do not install th applianc in a mobil hous .
The existing chimney should be well inspected before any installation. In doubt, consult a
specialist.
The room where the appliance must be installed must measure a minimum of 64 ft
2
and
must be very well ventilated.
Minimum clearances found in this manual must be observed.
Never use a non-isolated exterior conduct or a single wall flue pipe as an exterior exit.
Put in place the firebricks before lighting the appliance (if they are not in place yet .
WARNING : V ry hot whil in function
 Keep children far away from the appliance.
 Never let the appliance without supervision when the door is open.
 Always close the doors after the lighting period.
 Do not use chemical products or other liquid to light the fire.
 Do not burn waste or inflammable fluids like gas, naphtha or motor oil.
 Always keep combustible material (clothes, furnitures, wood, matches, plastics,
etc... at a minimal distance of 91,5 cm (3 feet from the appliance.
This applianc is c rtifi d to burn wood. Do not us any oth r combustibl .
Wood should not be stocked within the recommended minimums clearances or in the
necessary space for the loading and the ashes evacuation.
Always use dried wood. Do not burn green or wet wood. Do not use construction debris
such as pieces of 2x4, plywood...

5
If the appliance starts to blush, it's because it is too charged. Do not add fuel.
Immediately close the doors and the air intake of the appliance until everything becomes
normal again.
Do not load th applianc b yond th fir bricks h ight.
Ashes must be evacuated frequently, put in a steel container provided with a tight cap and
be placed outside at once. You must never place other waste in this container.
Considering the need of air for the combustion, a window or a door must be half opened
sometimes (fresh air drainage to balance the pressure in the house, especially if:
- A fan already evacuates air towards outside (kitchen, bathroom.
- You want to avoid a repression of smoke when lighting the appliance and when
reloading the wood.
It is recommended to have a smoke detector near the appliance.
You should contact your municipal or provincial fir d partm nt to hav knowl dg
of th proc dur to b follow d in cas of a chimn y fir . Think of an m rg ncy
plan.
In case of a chimney fire:
- Hermetically close the doors and the air intakes.
- Water the combustible material adjacent to the chimney.
- Ring the alarm, evacuate the house if necessary and call the firemen.
- Never touch the pipes until the fire is not completely extinct.
- Do not use the chimney until it has been inspected or repaired.
Keep all the doors closed while the appliance is in function. Frequently verify the
ceramics cords, they must always be in good condition.
The chimney pipe should not pass close to water, gas or oil pipes, nor close to electric
wire or other types of conduits, of combustible materials in the roofs, the attics, the walls
or the floors. If you have to make it pass through a wall or a part of combustible
construction, do not forget that the installation must be in accordance with the
CAN/CSA-B365. Use at least 12 feet of a 6 inches diameter vertical chimney.
NOTE:
FOLLOW THESE INSTRUCTIONS IN ORDER TO AVOID FIRE HAZARDS,
WOUNDS AND PROPERTY DAMAGES.

6
NOTICE
The Mystere was conceived to safely function the doors closed and only when burning
firewood. Any change, modification or unauthorized installation will automatically
cancel the certification of the appliance, its guarantee, its homologation and the appliance
might become dangerous.
During the first hours of operation, you must heat it gradually. In order to allow an
appropriate cooking of the paint and in order to facilitate its adhesion with metal, do not
heat the appliance with a strong fire. It will also avoid thermal shock which could lift up
the paint or make it whiten.
Make sure that the room is ventilated enough in order to eliminate the odours and the
smoke coming from the paint during the first hours of utilization. It is normal that a light
smoke is released from the paint during the first hours of use.
Even if this nuisance is temporary, open the windows and the doors in order to ensure a
good ventilation. This special paint is conceived to tolerate temperatures until 1200°F
(650°C .
CREOSOTE
The wood burning slowly produces tar and other organic steams, which forms a whole
called “creosote”. The steam condenses in the cool chimney when the wood is burning
slowly. In this way, creosote residues are formed on the walls. Creosote can take several
forms: tarry liquid, soot dust or deposits in crystal form. When in fire, the creosote
releases a very strong heat and can be the cause of a chimney fire.
- Do not knock on th glass s or viol ntly clos th doors.
- Do not us th applianc wh n a glass is brok n or damag d.
- Do not build th fir too clos of th glass s.
- K p th doors clos d wh n using th applianc .
- Do not conn ct th Mystere with a chimn y or a flu s rving anoth r h ating
applianc

7

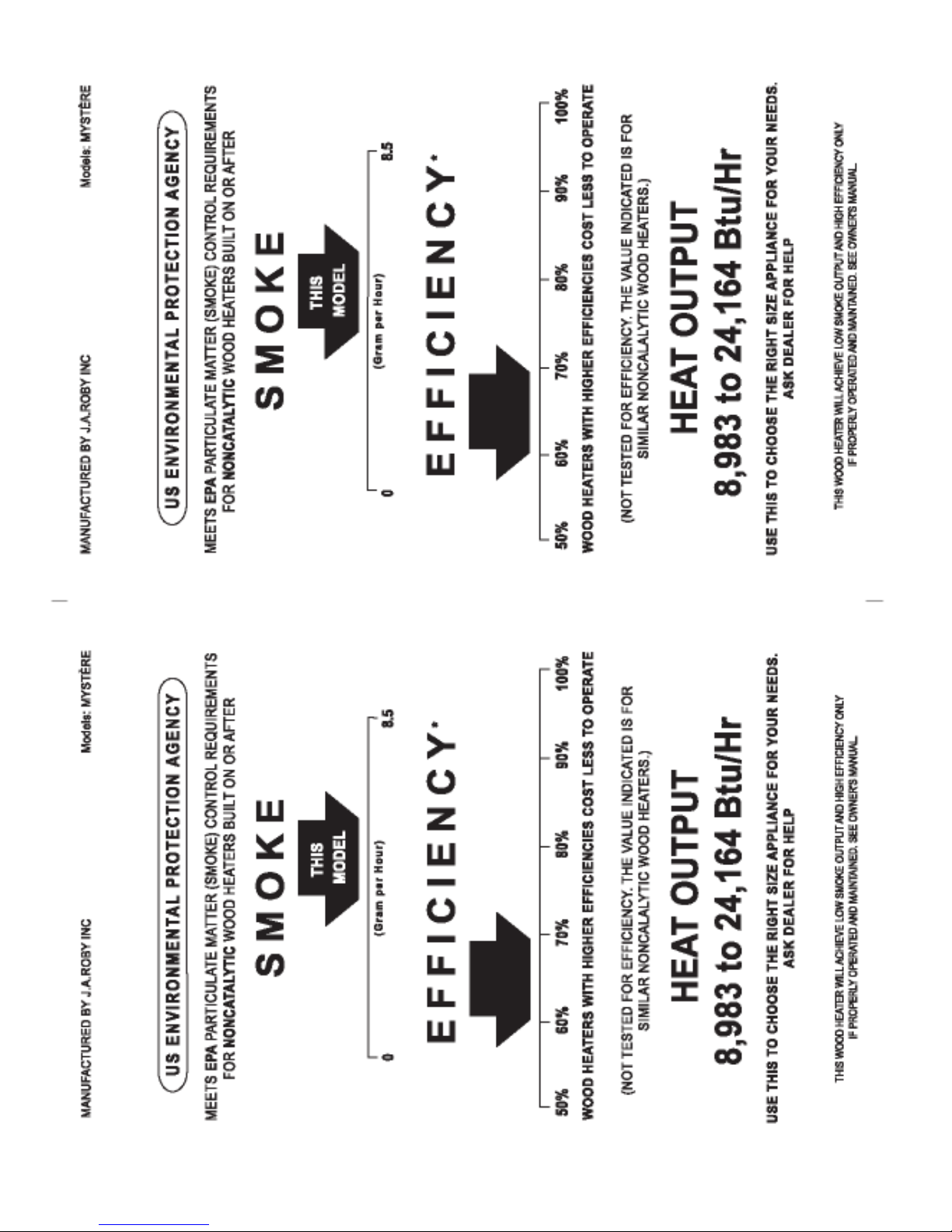

MYSTERE - CHARACTERISTICS
OPTION
WITH OVEN WITHOUT OVEN
Combustible WOOD WOOD
Recommended surface 500ft
2
à 1850ft
2
(46m
2
à 172m
2
)
500ft
2
à 1850ft
2
(46m
2
à 172m
2
)
Capacity 52 000 BTU/h 52 000 BTU/h
Evacuation pipe diameter 6” 15cm) 6” (15cm)
Chimney minimal height 12ft (8,91m) 12ft (8,91m)
Exterior height 46” (117cm) 31” (79cm)
Exterior width 26” (66cm) 26“ (66cm)
Exterior depth 27 ¾” (70cm) 27 ¾” (70cm)
Door opening 17 ½” X 9 ½”
(45cm X 24cm)
17 ½” X 9 ½”
(45cm X 24cm)
Interior height 12” (31cm) 12” (31cm)
Interior width 18” (46cm) 18” (46cm)
Interior depth 17 ¾” (45cm) 17 ¾” (45cm)
Maximum log length 16” (40,6cm) 16” (40,6cm)
Combustion duration 3 to 5 hours 3 to 5 hours
Weight 400 lbs (181kg) 380lbs (172kg)
CLEARANCES
Back 8” (20,32cm) 8” (20,32cm)
Lateral 12” (30,5cm) 12” (30,5cm)
Ceiling 84” (2,14m) 84” (2,14m)

8
CHIMNEY
Only use approved chimneys of the same dimensions as the appliance exit. Therefore,
you should use 6 inches diameter chimneys for your Mystere. Chimneys must be tested
upon the CAN/ULC S629 M87. The Mystere wood appliance can be installed onto a
masonry chimney following the ULC S635, ULC S640 and UL 1777 norms. Do not
forget to plan a place for the sweeping of the chimney.
When possible, it is preferable to avoid an outside chimney or built on an exterior wall,
and this is even more important for colder areas. Outside chimneys generally have a less
efficient draught. They can even have an inverse draught because it is hard to heat them
enough so that they can reach their operating temperature. A greater accumulation of
creosote, a less efficient draught and a lesser performance are some characteristics of cold
chimneys. Draught is proportional to the total chimney height as well as its temperature.
It is therefore possible to get a better draught by increasing the chimney's height and by
reducing the heat loss with an insulated lining. The chimney has to be installed with a
stainless steel lining. Make sure that all smoke pipe joints are really airtight. A leak
reduces the efficiency of the appliance and could even make its utilization dangerous.
INSTALLATION
A good installation is extremely important for a safe and efficient use of your J.A.
Roby Inc. appliance. If you doubt on the way to install the appliance correctly, seek for
professional installation service. We suggest you to call masters fitters.
1. Withdraw firebricks placed inside the appliance in order to reduce the weight and
to facilitate the installation.
2. You must install a fireproof plate under the appliance, which must exceed of 18
inches at the front and of 8 inches at each side and at the back.
3. The free space shall not be reduced except under the approval of the authorities
responsible for the application of the building code.
4. Install the chimney and an insulated wall firebreak for an installation passing
through a wall according to the instructions from the chimney manufacturer.
5. Install the firebricks in accordance with the recommended instructions for your
model.
6. The appliance should not be connected to an hot air conduct.

9
VERTICAL INSTALLATION INSIDE A MASONRY CHIMNEY
The Mystere wood appliance must be installed in
accordance with the applicable local laws or the ULC S635,
ULC S640, NFPA211 ( USA norms. Install the chimney
following the manufacturer’s instructions.
EXTERIOR VERTICAL INSTALLATION
The Mystere wood appliance must be installed in
accordance with the applicable local laws or the
CAN/CSA-B365, NFPA211 ( USA norms. Install
the chimney following the manufacturer’s
instructions.

10

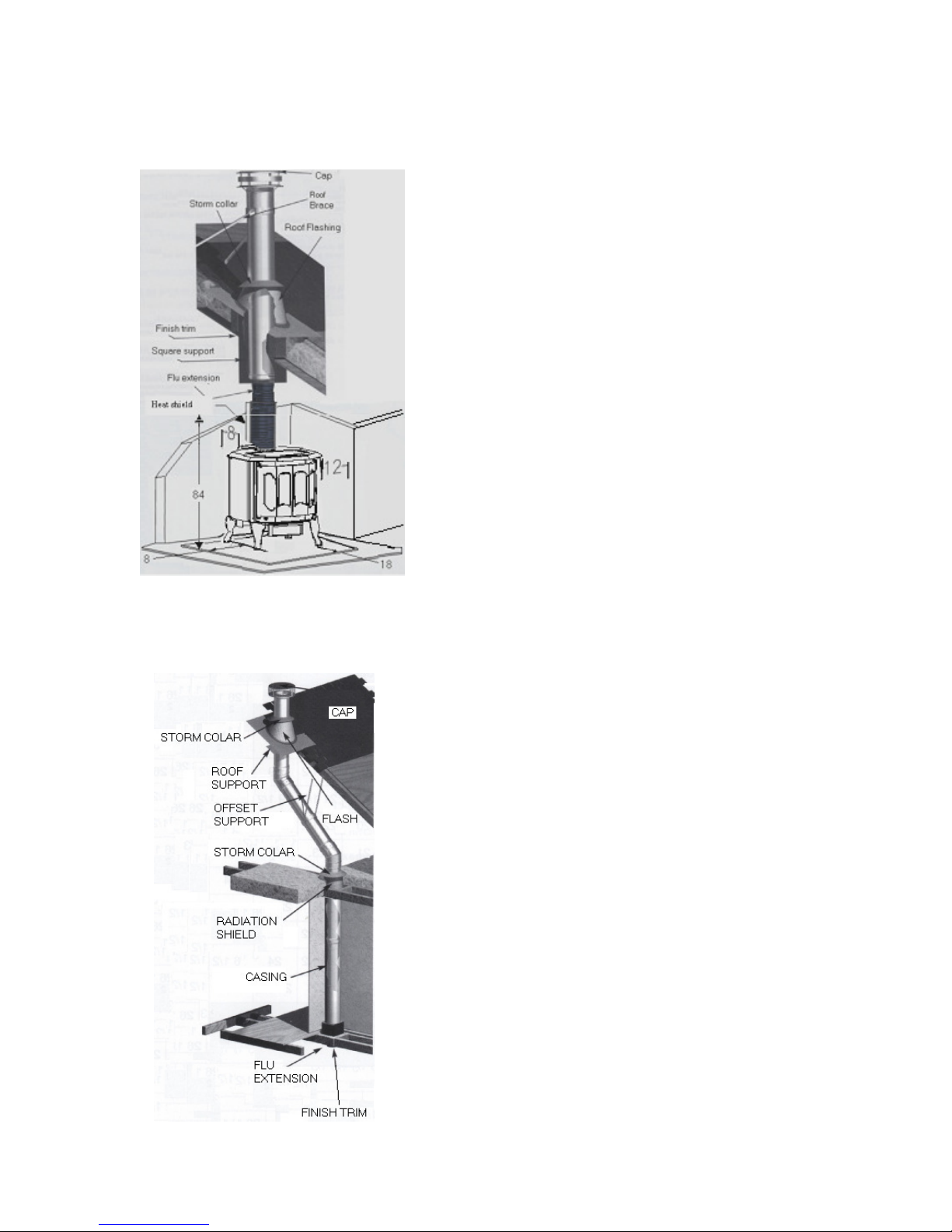

VERTICAL INSTALLATION ON A CATHEDRAL ROOF
The Mystere wood appliance must be installed in
accordance with the applicable local laws or the
CAN/CSA-B365, NFPA211 ( USA norms. Install
the chimney following the manufacturer’s
instructions.
CROSS STYLE INSTALLATION
The Mystere wood appliance must be installed in
accordance with the applicable local laws or the
CAN/CSA-B365, NFPA211 ( USA norms. Install the
chimney following the manufacturer’s instructions.

11
VERTICAL INSTALLATION
The Mystere wood appliance must be installed in accordance with the applicable local
laws or the CAN/CSA-B365, NFPA211 ( USA norms. Install the chimney following the
manufacturer’s instructions.

12

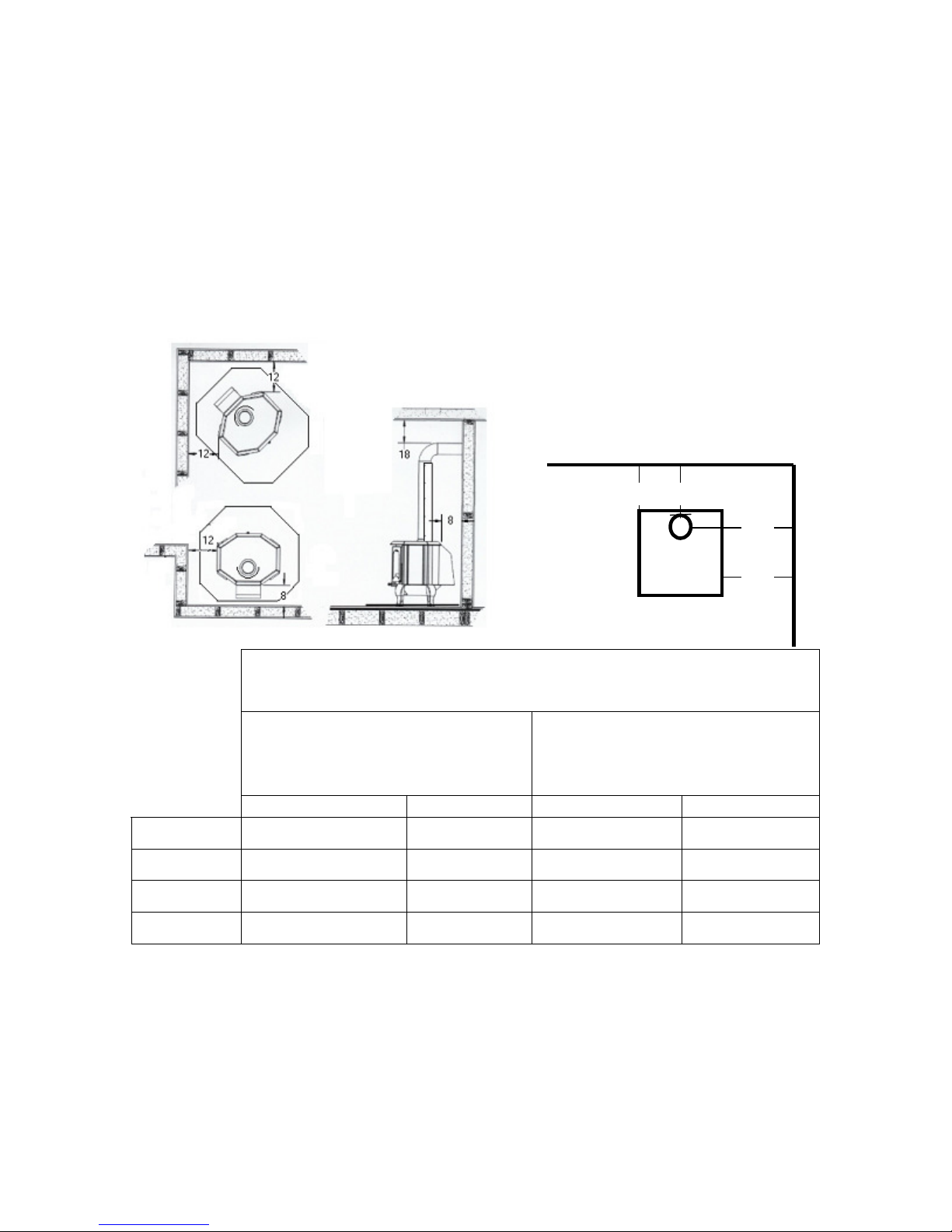

CLEARANCES
Due to its reduced clearances, this appliance occupies a minimum of space in the room
where it is installed. No matter where you install it, this appliance will perfectly complete
your decoration by its originality and its heat. This appliance only needs 8 inches
clearance at its back and 12 inches from the lateral walls when installed with a single wall
pipe and a certified CAN/ULC S641 heat shield.
C LEARANCES FROM COMBUSTIBLE MATERIALS
(Measured from the top of the appliance
Single wall pipe Single wall pipe with certified
Can/ULC S 641 heat shield at the
back
Inches Centimeters Inches Centimeters
A 18 45.7 8 20.3
B 12 30.5 12 30.5
D 20.5 52.0 10.5 26.7
E 22 55.9 22 55.9
B
E
D
A

13
SEATING
You must install a fireproof plate
under the appliance, which must
exceed it of 18 inches at the front, of
8 inches at the sides and of 8 inches
at the back.
***Us only non-combustibl
mat rials such as c ramics, marbl
or granit .
FIREBRICKS
Place the
firebricks as
illustrated.
They are
identified by
the letters A to
H and the seal
cap is
identified by
the letter E.
Install the
firebricks on
the sides and
then, the ones
on the back of
the appliance.
To finish with,
put the
firebricks of
the top.

14
FANS AND THERMODISC
The 115 volts fans must be screwed with the grids under the ventilation conduct. The
protection thermodisc box must be on the back of the ventilation conduct. Plug the
terminal. When the appliance is in function, the heat reaching a temperature of 120
o
C
activates the thermodisc. At this moment, the thermodisc activates the fans for a better
distribution of heat in your home. As soon as the heat goes under 120
o
C, the thermodisc
automatically stops the fans.
Th l ctrical cord of th fans must n v r touch th applianc surfac s or pass
und r th applianc in ord r to avoid l ctrical shock or fir .

15
LIGHTING
Now that you have completed the installation of the appliance according to the
recommendations, you are ready for the lighting!
1. Place papers and small wood in the appliance.
2. Before lighting, be sure that the chimney is warm enough.
3. When the fire is well lit, gradually add bigger wood logs until an ember bed is
formed.
4. You can then control combustion by closing or opening the air intakes (a rod
pulled down indicates a closed air intake . The wood will burn more quickly if the
air intakes are opened to the maximum and more slowly if they are only slightly
open.
Do not charg th applianc b yond th bricks .
PREVENTIVE MEASURES AND MAINTENANCE
We recommend to open the air intakes completely and to maintain an intense fire from 10
to 20 minutes per day.
Verify the accumulation of creosote every week that you use the appliance until you
know at which frequency it must be cleaned (minimum once per year . Remove every
creosote deposit in order to prevent chimney fires.
The cleaning of the heat exchanger, of the chimney flue pipe and of the pulling fan, if
necessary, is particularly important at the end of each winter season in order to reduce the
corrosion made during the summer months and caused by the accumulation of ashes
(they must always be in good condition. To clean the heat exchanger, remove the top
bricks, clean them and then replace the bricks at their place. Do not remove the stainless
steel pipes.
Do not alter or modify the air intakes of the appliance in order to get a stronger fire.
To clean the glasses, J.A. Roby Inc. recommends using products sold for this purpose or
an oven cleaner. Avoid cleaning with abrasives or when the glass is hot.

16
The Mystere wood appliance is provided with an ashtray under the door. To empty it,
remove the steel cap (in the middle of the appliance and glide the ashes into the ashtray.
Do not forget to replace the steel cap.
Before lighting the first fire, clean the gold plated surfaces using a very soft rag
moistened with water. Do not use a paper towel to clean it. If they are not erased before
the first fire, the fingerprints and other marks could stain these surfaces permanently.
In cas of a glass r plac m nt:
Remove the screws that retain the glasses and then, the fragments of glasses. Check if the
seal cords are damaged.
If so, replace them by a ½ inch ceramics cord and replace the broken glasses by
VITROCERAMICS glasses of 5mm.
Cut the glass edge 3mm smaller on each side, so that the asbestos cord can be slipped on
the edge of the glass at the time of its installation. Fix the glass by screwing it.
Contact your r tail r to obtain any information you might n d for th r plac m nt
of th glass s.
DO NOT USE SUBSTITUTES.
INTERCHANGEABLES PARTS LIST
 FIREBRICKS
 GLASSES
 DOOR’S HANDLE
 APPLIANCE’S DOOR
 FANS
 CORDS
 CAP
 BRICKS SUPPORT
*TO ORDER PARTS, PLEASE CONTACT YOUR AUTHORIZED RETAILER.

17
LIMITED LIFE WARRANTY
J.A. ROBY INC. warrants for life (following conditions written in the present manual its high
quality appliances against all manufacturing defectiveness. This warranty is only valid for the
first buyer of the appliance with a purchase proof and the serial number of the appliance.
This warranty is valid only for a normal residential utilisation. All damages caused by a misuse, a
wrong installation, a wrong maintenance, a negligence or an accident during transportation are
not covered by this warranty.
This warranty does not cover scratches, corrosion or discoloration caused by excessive heat,
abrasives and chemical cleaners. All defectiveness or damage caused by the use of parts other
than the manufacturer's original parts will automatically cancel this warranty.
This warranty is subject to the following exceptions: glass, paint, firebricks, door's plating,
decorations, ceramic cord and installation. The fans and electrical parts are covered by a 90 days
warranty (from invoice date .
The 1
st
y ar, J.A. Roby Inc. engages to undertake the necessary repairs without additional
charges. The appliance must be sent to our manufacture, located at 490, rue de l'Argon, Québec
(Québec G2N 2C9. The owner must prepay transportation charges. J.A. Roby inc. will NOT
acc pt any transportation charg s.
Th 2
nd
y ar, J.A. ROBY Inc. assume 50% of repairs according to the above conditions.
Th 3
rd
y ar, J.A. ROBY Inc. assume 45% of repairs according to the above conditions.
Th 4
th
y ar, J.A.ROBY Inc. assume 40% of repairs according to the above conditions.
Subs qu nt y ars, J.A.ROBY Inc. assume 30% of repairs according to the above conditions.
You MUST return this card in order to register your appliance or the Warranty.
If your appliance has defectiveness, contact immediately your J.A. Roby distributor whom will
guide you.
Before sending a product or a part at our manufacture, you must receive an authorization number
from your sale representative or your J.A. Roby distributor. All merchandise sent without
authorization will not be accepted and will be returned to the shipper.
WARRANTY CARD
APPLIANCE MODEL: ___________________________________________________
DATE OF PURCHASE: ___________________________________________________
STORE: ________________________________________________________________
INSTALLATION DATE: _____________________ SERIAL #: __________________
NAME: ________________________________________________________________
ADDRESS: _____________________________________________________________

18
PROVINCE: ___________________________POSTAL CODE: _________________
INSTALLED BY: _______________________________________________________
BUYER'S SIGNATURE: _________________________________________________

19
