Jackson Grills Classic PG-50403SRL User manual

ASSEMBLY, USE AND CARE MANUAL
MODEL NO: PG-50403SRL
MODEL NAME: Classic Series Pedestal Grill
FOR OUTDOOR
USE ONLY
This manual is available on Item #:
-JSCART-2
-JCSCART-NG (with side burner)
-JCSCART-2NG
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
WARNING
1. Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.

TABLE OF CONTENTS
Messages to Our Users -----------------------2 Installer Final Check List-------------------19
Important ------------------------------------------4 Grill Lighting Instructions-------------------20
Installation Safety Precautions---------------5 Operation Instructions----------------------22
Exploded View ----------------------------------6 Care & Maintenance------------------------24
Parts List------------------------------------------7 Trouble Shooting-----------------------------25
Assemble Instruction---------------------------8 Grilling Tips------------------------------------26
Gas Connections-------------------------------14 Placement of Grill----------------------------26
Leaking Test-------------------------------------18 Limited Warranty-----------------------------27
MESSAGE TO OUR USERS
Thank you for purchasing your new Jackson Grill. We hope you will have great enjoyment
in using our fine product.
Do not attempt to assemble and use this grill unless you read this entire manual thoroughly.
Keep the manual in a handy place as it has answers for questions that may occur in your
future use. Please record the serial number of your grill in your owner’s manual.
Any questions please feel free to contact our service center, we will be glad to assist you;
please refer to this model No. PG-50403SRL (Classic Series) whenever you contact us.
Thank you.
VERY IMPORTANT: ANY PROBLEM, PLEASE CONTACT OUR SERVICE CENTER AT
888-287-3333.
NOTE: THIS APPLIANCE IS NOT INTENDED TO INSTALL IN OR ON RECREATIONAL
VEHICLES OR BOATS.
THIS APPLIANCE IS FOR OUTDOOR USE ONLY.
DEAR INSTALLER / ASSEMBLER: PLEASE LEAVE THIS MANUAL WITH THE
CONSUMER.
DEAR CONSUMER: PLEASE KEEP THIS MANUAL FOR FUTURE USE.
！！！WARNING！！！
Failure to follow all manufacturer’s instructions could result in serious
body injury and/or property damage.
！！！CAUTION！！！
Someparts of this grill may have sharp edges—especiallyas mentioned
in this manual! Wear suitable protective gloves if necessary.
2

2
A special message to our customers:
Thank you for choosing the Jackson Grill for your new gas grill. This appliance is
designed with quality components and we are confident that it will provide you with years of
excellent operation. Please take the time to read the whole manual and familiarize
yourself with all of the features of the Jackson Grill. This manual also contains important
safety information and operation instructions. Ensure that this manual remains handy to
the barbeque for quick reference. If you need to obtain replacement parts for your
Jackson Grill, contact your local dealer.
NOTE: It is normal for stainless steel surfaces to discolor due to high heat given off from
the barbeque burners.
Please take the time to fill out and return the Ownership and Registration Card below. It
can be mailed to:
Jackson Grills Inc.
106-2480 Mt. Lehman Road, Abbotsford, BC
V4X 2N3
Or Fax: [phone]
Please complete and return within 10 days. Thank you.
Mr. Mrs. Ms.Miss
First Name: Initial: Last Name:
Street:
Apt. #:
City:
State/Province:
Zip/Postal:
Phone:
Email:
Date of Purchase:
Dealer:
Model: Item #: Serial #:
Comments:
Thank you for taking the time to fill out this Ownership and Registration Card
3

2
IMPORTANT
The symbols and boxes shown below explain what each symbol means.
Read and follow every message found in this manual.
!!!DANGER !!!
DANGER: Indicates an imminently hazardous situation which will result in death or
serious body injury if not followed.
!!!WARNING !!!
WARNING: Warn the possibility of serious body injury if the instructions are not
followed strictly. Be sure to always read and follow all of the messages.
!!!CAUTION !!!
CAUTION: Indicates a potentially hazardous situation which may result in minor or
moderate body injury if not followed.
！！！WARNING！！！
FOR YOUR SAFETY
1. Shut off the gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your gas supplier or your fire
department.
！！！WARNING！！！
FOR YOUR SAFETY
1. Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
2. An L.P. cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
4

2
INSTALLATION SAFETY PRECAUTIONS
!!!WARNING!!!
Do not try to install this appliance without reading the “INSTALLATION
SAFETY PRECAUTIONS” section of this manual.
1. This grill is designed to operate using only the gas specified on the rating plate. Do
not attempt to operate your grill with other gases. Failure to follow this warning may
result in a fire hazard and bodily harm, and we will void your warranty.
2. The installation of this appliance must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code, ANSI Z223. 1, or CAN/CGA-B149.2
Propane Installation Code.
3. The L.P. tank used must conform with the specification for L.P.-gas cylinders of the
U.S. Department of Transportation (DOT) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of
Dangerous Goods.
4. The motor must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70-1990, or
the Canadian Electrical Code, CSA C22.1. Keep the power cord of the motor away
from the hot surfaces of the grill while in use. Remove and store the motor in a dry
place when not in use.
5. This grill is safety certified for use in the United States and Canada only. Never
modify to use in other places. Modification may cause serious body injury or property
loss.
5

EXPLODEDVIEW
6

MODEL PG-50403SRL PARTS
REF#
DESCRIPTION
Q’TY
REF#
DESCRIPTION
Q’TY
01
Rear Panel
1
38
Gas Valves, Main Burner
4
02
Cooking Grids
2
39
Valve Bracket
1
03
FlameTamers
4
40
Firebox
1
04
Tube Main Burners
4
41
Bracket C, Side Burner
1
05
Rotisserie Motor
1
42
Side Burner
1
06
Motor Bracket
1
43
Side Burner Brass Ring
1
07
Left Side Shelf
1
44
Gas Valve, Side Burner
1
08
Back Panel, Cart
1
45
Ignition Electrode, Side Burner
1
09
Left Panel, Cart
1
46
Side Burner Hose
1
10
Bottom Panel, Cart
1
47
Knob, Side Burner
1
11
Cross Bars, Bottom Panel
2
48
Knob Seat, Side Burner
1
12
CastersWithout Brakes
2
49
Side Burner Housing
1
13
CastersWith Brakes
2
50
Bracket B, Side Burner
1
14
Door Handles
2
51
Bracket A, Side Burner
1
15
Right Door
1
52
Side Burner Base
1
16
Left Door
1
53
Cooking Grid, Side Burner
1
17
Lighting Rod
1
54
Hinge, Side Burner Lid
1
18
Lighting Rod Screw
1
55
Handle, Side Burner Lid
1
19
Door Hinges
2
56
Lid, Side Burner
1
20
Tank Holder
1
57
Right Side Shelf
1
21
NG Hole Bushing
1
58
Push Bar
1
22
Tank Holder Rubber Strap
1
59
Prongs
2
23
Right Panel
1
60
Rotisserie Rod
1
24
Door Magnets
4
61
Shaft Collar
1
25
Welding Plate, Door Bracket
2
62
Rotisserie Handle
1
26
Door Bracket
1
63
Lid Handle
1
27
GreaseTray
1
64
Insulation Spacers
2
28
Knobs, Main Burners
4
65
Name Plate
1
29
Knob Seats, Main Burners
4
66
Temp. Gauge
1
30
Knob, Rear Burner
1
67
Lid
1
31
Knob Seat, Rear Burner
1
68
Spark Electrode, Rear Burner
1
32
Control Panel
1
69
ThermocoupleProtection Cover
1
33
Gas Valve, Rear Burner
1
70
ThermocoupleBracket
1
34
Manifold
1
71
Infrared Cover
1
35
Safety Valve, Rear Burner
1
72
Rear Burner
1
36
LP Gas Regulator
1
73
Warming Rack
1
37
Rear Burner Thermocouple
1
74
NG Gas Hose
1
Note:
1. Part # 41-56 and Part # 74 are not available on ITEM # JCSCART-2;
2. Part # 36 is not available on ITEM # JCSCART-NG;
3. Part # 41-56 and Part # 36 are not available on ITEM # JCSCART-2NG.
7

ASSEMBLY INSTRUCTION
PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP.
TOOLS REQUIRED:
Philips head screwdriver (not provided), hexagon / Allen wrench (provided).
The following hardware is provided.
Item
Description
Specification
Quantity
1
With Split lock And Washer
1/4-20x1/2inch
14pcs
2
Truss head screw
With Split lock And Washer
3/16-24X3/8inch
2pcs
3
Truss head screw
With Split lock And Washer
5/32-32X3/8inch
2pcs
4
Hexagon/wrench
1pc
Step I:

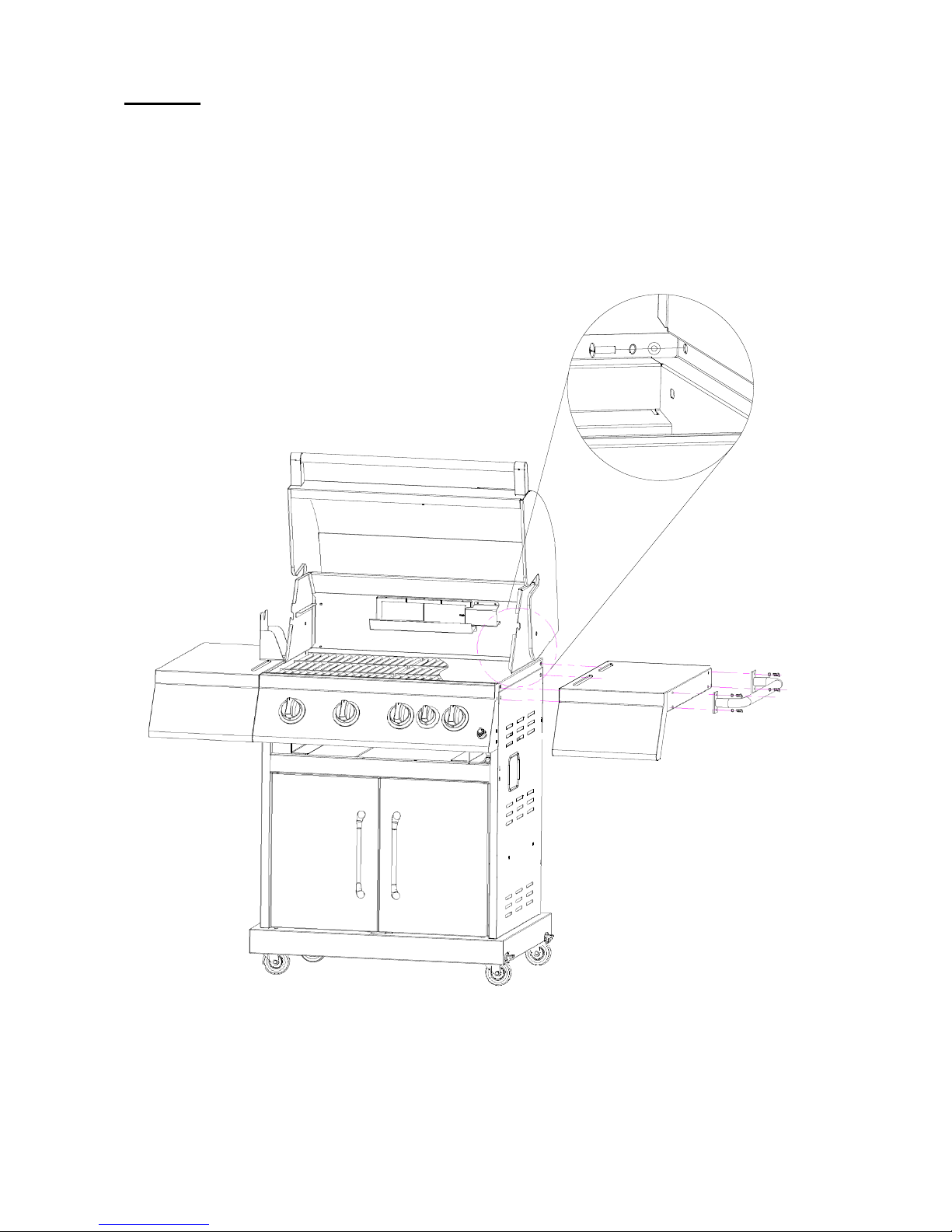

1. Use 2 pcs of truss head 1/4-20 x 1/2” screws to attach the left shelf from the inside of the
firebox. Use 2 pcs of truss head 1/4-20 x 1/2” screws to attach the left shelf from the outside
of the grill firebox.
2. Use 1 pc of 5/32-32 x 3/8” screw to attach the left side shelf bracket to left side panel,
3. Behind the front panel of left side shelf, use 1 pc of 3/16-24x3/8” screw to attach the left side
shelf to control panel.
4. Use 2 pcs of truss head 1/4-20 x 1/2” screws to install the motor bracket on the left side shelf.
5. Slide the motor into the motor bracket.
8

Step II:
1. Use 4 pcs of truss head 1/4-20 x 1/2” screws to attach the push bar to the right shelf.
2. Use 2 pcs of truss head 1/4-20 x 1/2” screws to attach the right shelf from the inside of the
firebox. Use 2 pcs of truss head 1/4-20 x 1/2” screws to attach the right shelf from the outside
of the grill firebox.
3. Use 1 pc of 5/32-32 x 3/8” screw to attach the right side shelf bracket to left side panel,
4. Behind the front panel of right side shelf, use 1 pc of 3/16-24x3/8” screw to attach the right side
shelf to control panel.
9

Step III:
(This step is only available for ITEM# JCSCART-NG)
1. Take out the side burner valve from the square hole of right side panel.
2. Remove the packing materials. Use the hexagon wrench to unscrew (don’t remove) the set
screw of control knob, and pull out the knob.
3. Unscrew two M4*6 screws from gas valve.
4. Unscrew the 4 screws on side burner bracketA & B which fix side burner.
5. Place side burner valve in back of side burner control panel.
6. Secure gas valve to panel using the M4*6 screws.
7. Make sure valve stem comes through large hole of the panel. Valve orifice should be in center
of burner tube.
8. Tighten the screws of side burner bracketA& B.
9. Beneath right side shelf, attach side burner igniter wire to valve electrode.
10. Press control knob onto valve stem, and tighten the set screw of knob.
1 2
3 4
10

5 6
7 8
9 10
11

Step IV:

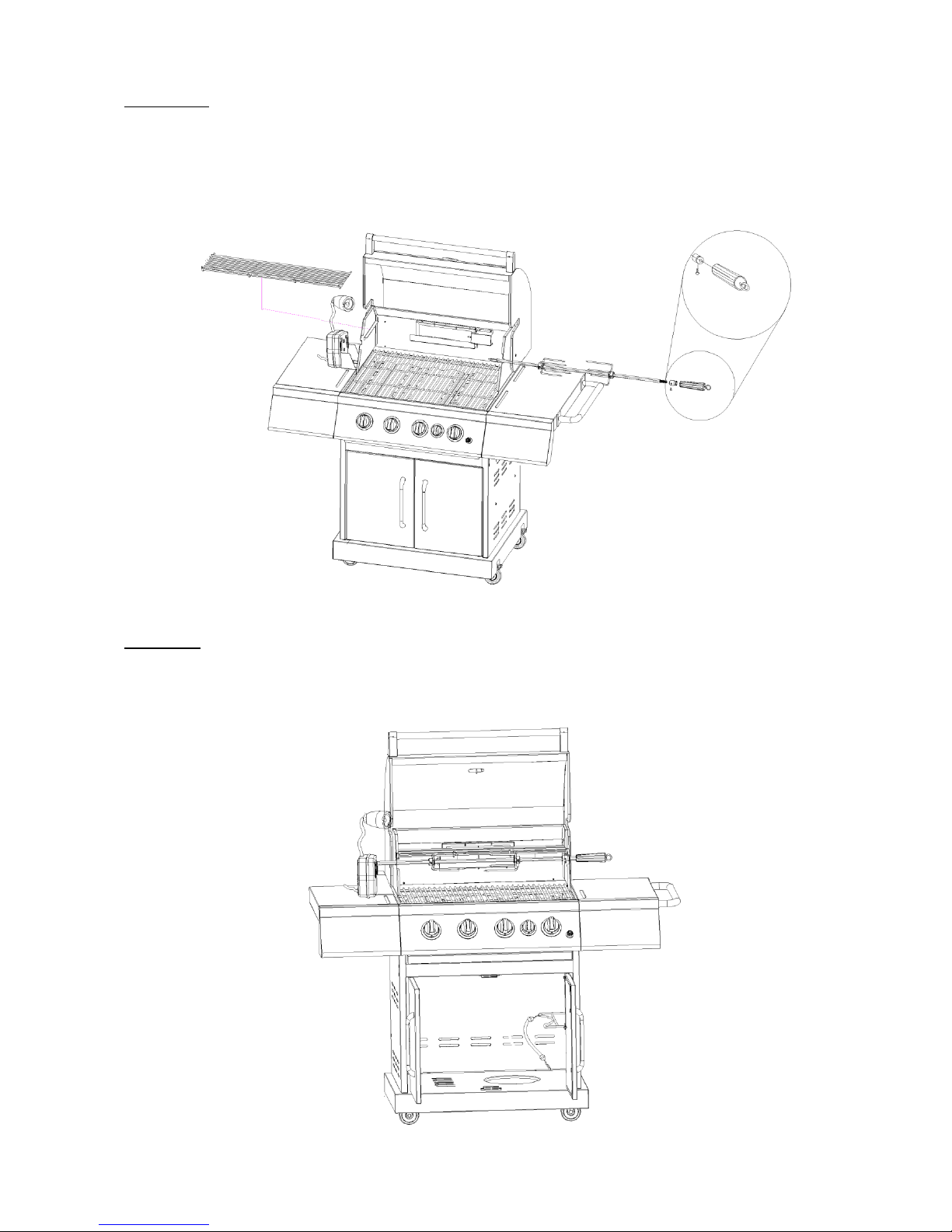

1. Take out rotisserie rod from bottom panel packing foam, also handle and forks from motor
bracket carton.
2. Slide the shaft collar onto the rod followed by the two forks (forks should be pointing toward
each other). Next, screw handle onto rod. Tighten thumbscrews of shaft collar and forks.
3. Remove packing material from flame tamers, cooking grids, warming rack, then place them in
the proper positions shown below.
Step V:

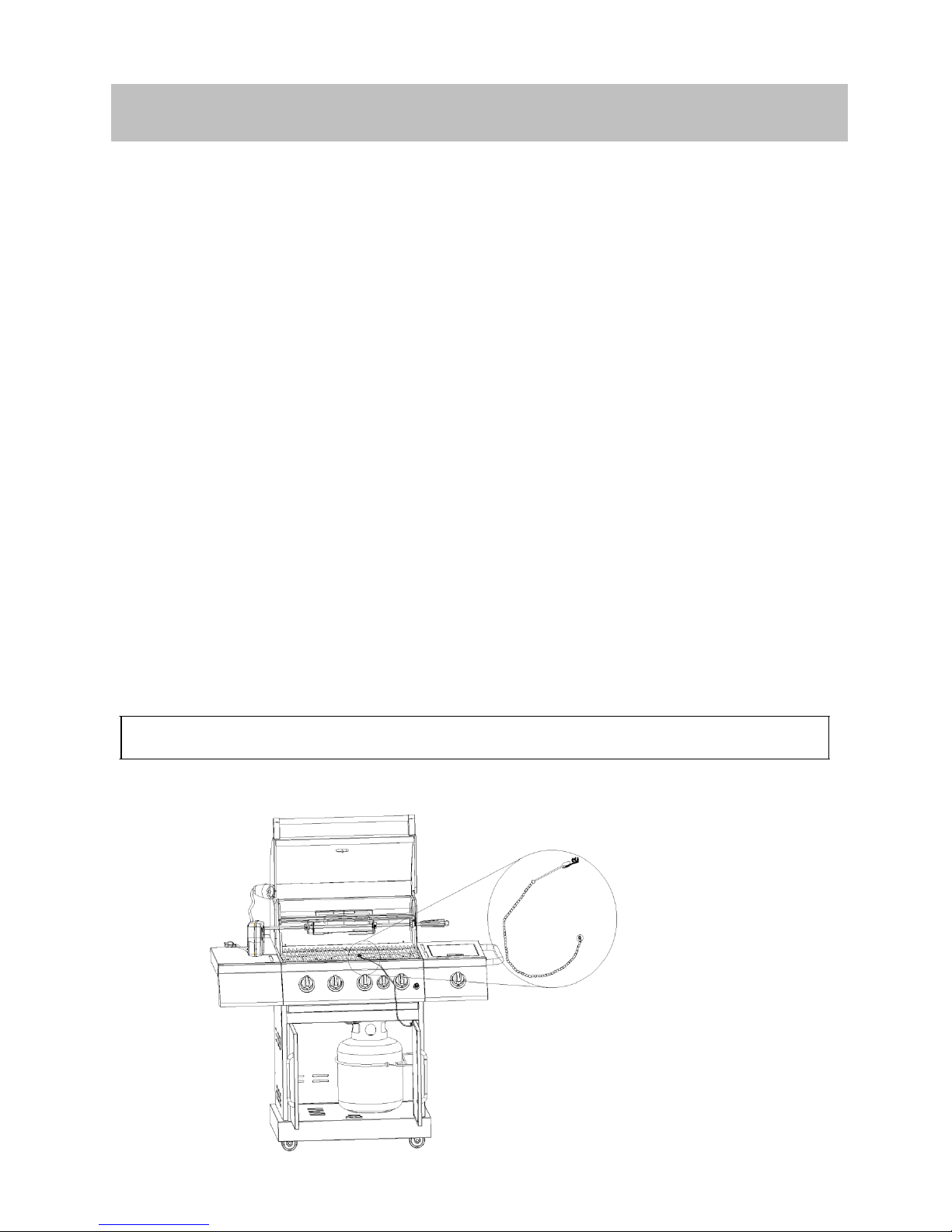

1. Place tank into tank hole in bottom panel. Make sure tank valve is facing front of grill.
2. Hook the end of tank strap to tank holder bracket.
12

Step VI:

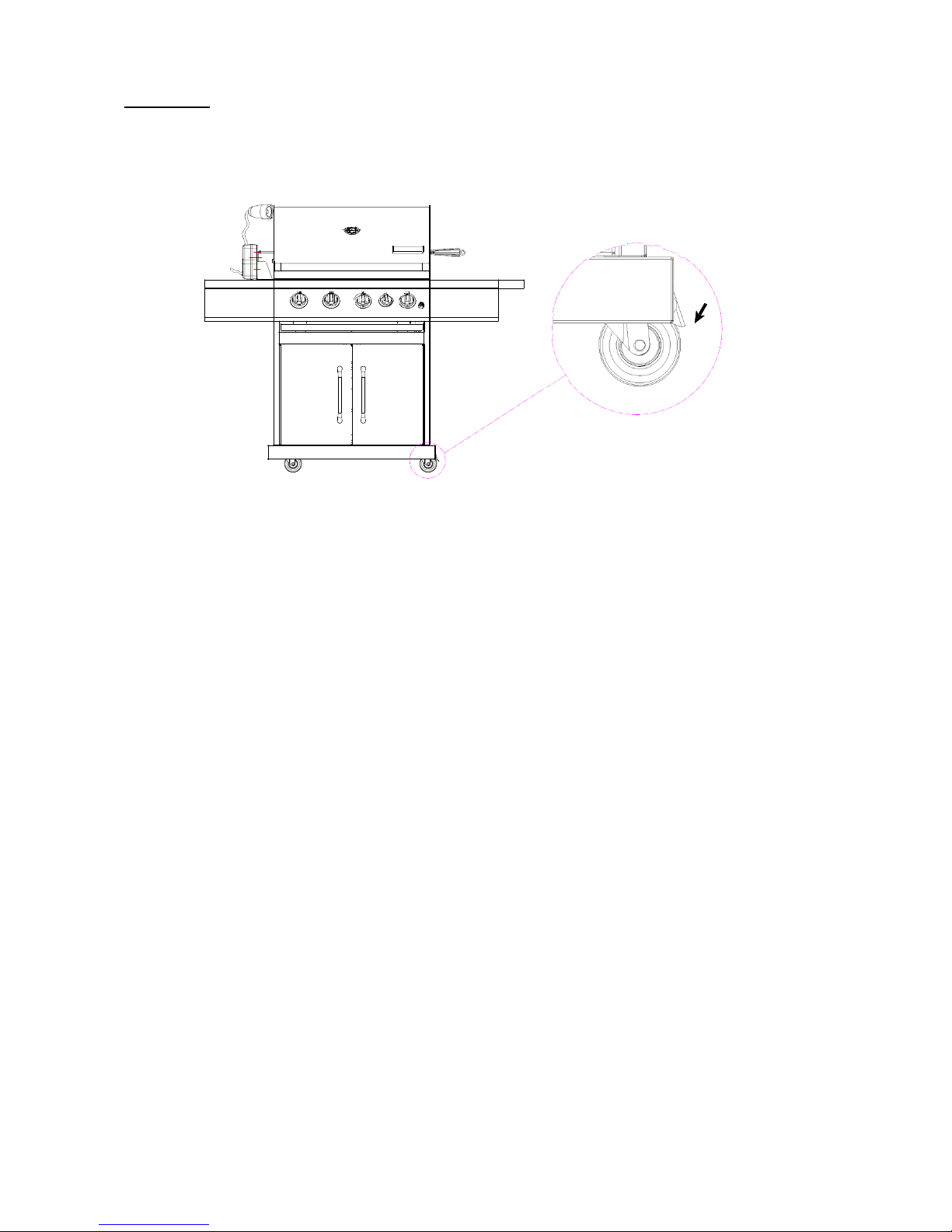

When the grill is in the location, step on the brakes of the casters by foot for hold still.
13

GASCONNECTION
！！！WARNING！！！
IMPORTANT: Your grill has been designed to operate using only the gas specified on
the rating plate. Do not attempt to operate your grill with other gases. Failure to
follow this warning may result in a fire hazard and bodily harm.
C
CO ON NN NE EC CT TI IO ON N
F
FO OR R
P
PR RO OP PA AN NE E
G
GA AS S( (L LP PG G) )
I
IT TE EM MS S: :
ONLY USE THE REGULATOR AND HOSE ASSEMBLY PROVIDED WITH THIS GRILL.
REPLACEMENT PRESSURE REGULATORS AND HOSE ASSEMBLIES MUST BE
THOSE SPECIFIED BY THE MANUFACTURER.
Your LP gas grill is factory built to operate using liquid propane gas only. Never attempt to operate your
grill on gases other than the type specified on the grill rating plates.
Your regulator supplied with your liquid propane gas grill is set for 11inch water column pressure and is
for use with propane gas only. The regulator and factory supplied hose assembly must be used when
operating your grill with a 20lbs LP gas cylinder. If replacement of the hose and/or regulator becomes
necessary, factory specified parts are required.
„ L.P. tank Requirements:
The L.P. tank used with your grill must meet the following requirements:
1. Measurement: 12’’(30.5cm) (Diameter) X 18’’ (45.7cm) (Tall)
2. Maximum Capacity: 20lbs. (9Kg)
3. Constructed and marked in accordance with the specification for L.P.-gas cylinders of the U.S.
Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339,
Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods. See L.P. tank collar
for marking.
4. Be arranged for vapor withdrawal.
5. Has a collar to protect the tank valve.
6. No dent or rust. A dented or rusty L.P. tank may be hazardous.
„ L.P. tank valve used must meet the following requirements:
1. Have type I outlet compatible with regulator provided.
2. Have safety relief valve.
3. UL listed Overfill Protection Device (OPD), This OPD safety feature is identified by a unique
triangular hand wheel. Only use tanks equipped with this type of valve. (as the figure shown
below)
For your safety:
Ensure that the black plastic grommets of the regulator provided are in place and that the hose does not
come into contact with the heat shield or the grill head.
„ Connect the regulator to the L.P. tank:
VERY IMPORTANT:
a. THE REGULATOR SHALL INCORPORATE IN SUCH A LOCATION THAT IT WILL NOT ATTAIN A
TEMPERATURE ABOVE 140℉（60℃）.
b. THE REGULATOR SHALL INCORPORATE A PRESSURE RELIEF VALVE OR OVERPRESSURE
DEVICE.
c. THE INLET OF THE PRESSURE REGULATOR SHALL BE FITTED TO CONNECT THE TYPE I
14

CONNECTION OF THE TANK VALVE PER ANSIZ21.81.
1. Make sure tank valve is in its full off position (turn clockwise to stop).
2. Check tank valve to assure it has proper external male threads (type I connection per ANSIZ21.81).
3. Make sure all burner knobs are in their off position.
4. Remove the protective cap from L.P. tank valve. Always use cap and strap supplied with valve.
5. Inspect valve connection port and regulator assembly. Look for any damage or debris. Remove
any debris. Inspect hose for damage. Never attempt to use damaged or plugged equipment.
Contact your local L.P. gas dealer for repair.
6. When connect regulator assembly to the valve, hand tighten nut clockwise to a positive stop. Do
not use a wrench to tighten. Use of a wrench may damage quick coupling nut and result in a
hazardous condition. (as the figure shown below)
7. Open tank valve fully (counterclockwise). Use a soapy water solution to check all connections for
leaks before attempting to light grill. If a leak is found, turn tank valve off and do not use grill until a
local L.P. gas dealer can make repairs.
OPD HAND WHEEL
g
！！！WARNING！！！
2. Never insert any foreign objects into the valve outlet. It may damage the valve
and cause leak, leaking gas may result in fire, explosion, heavy body injury, or
even death.
3. Do not connect this grill to the self-contained L.P. gas system of a motor home or
camper trailer.
4. Do not use the grill until leak tested.
5. Stop and call the fire department if any leak detected.
6. If you cannot stop a gas leak, close the L.P. tank valve IMMEDIATELY, call L.P.
supplier or the fire department.
！！！DANGER！！！
1. NEVER store a spare L.P. tank under or near grill or in an enclosed area.
2. NEVER fill the tank beyond 80% full. An overfilled spare L.P. tank is dangerous
because surplus gas may leak from safety relief valve. The safety relief valve on
a L.P. tank could activate to release gas and cause a fire.
3. The spare L.P. tank must have safety caps installed on the L.P. tank outlet.
4. If any gas leak found on the spare L.P. tank, immediately go away from it and call
the fire department.
15

VERY IMPORTANT: DISCONNECTED THE TANK WHEN THIS GRILL IS NOT IN USE.
„ To disconnect L.P. gas tank:
1. Turn all the knobs off.
2. Turn the tank valve off fully (turn clockwise to stop).
3. Detach the regulator assembly from tank valve by turning the quick coupling nut counterclockwise.
Install the protective cap back L.P. tank valve.
C
CO ON NN NE EC CT TI IO ON N
F
FO OR R
N
NA AT TU UR RA AL L
G
GA AS S( (N NG G) )
I
IT TE EM MS S: :
Your natural gas grill is factory built to operate using natural gas only. Never attempt to operate your
grill on gases other than the type specified on the grill rating plates.
Your grill operates at 7 inch water column pressure. Verify supply pressure with your local gas
company. If supply pressure is different than 7 inch, contact a certified plumber for assistance. Not
for use with LP gas.
„ Before connection:
The natural gas hose and assemble are supplied with this grill.
Hose and assembly are CSA listed for natural gas, manufacturer gas, mixed gas and for liquefied
petroleum and for LP Gas-Air mixtures on basis of 0.64 specific gravity for 1000 BTU’s per cubic foot of
gas at 0.3 inch water column pressure drop. Only ANSI Z21.54 approved hoses should be used with
this grill.
The appliance and its individual shut off valve must be disconnected from the gas supply piping system
during any pressure testing on that system at test pressures in excess of 1/2 psi (3.5Kpa).
The appliance must be isolated from the gas supply piping system by closing its individual manual shut
off valve during any pressure testing of the gas supply piping system at test pressure equal to or less
than 1/2 psi (3.5Kpa).
！！！WARNING！！！
Do not use hard metal piping of any kind to connect this type of grill to natural gas
source. Use only hose specified by reputable dealer. Using hard metal piping or
convoluted metal tubing is an unsafe practice. Movement of the grill can cause
breakage of metal pipe.
！！！DANGER！！！
Connection should be made by a certified plumber. Supply the plumber with a copy
of these instructions. Incorrect connection can result in a gas leak with possibility
of fire.
„ Connect your grill to natural gas source:
1. Insert the inlet connection to grill cabinet from back of grill. Tighten it to gas manifold with wrench.
Make sure to put natural gas hose through U shape bracket.
16

2. Coat pipe nipple with gas resistant teflon tape or pipe dope. Tighten quick- disconnect coupler onto
pipe nipple that leads to natural gas supply.
3. After grill is completely assembled, make sure natural gas supply valve is “OFF” and then connect
natural gas hose to socket. Push sleeve back on socket and insert plug until sleeve snaps forward,
locking plug into socket. Be sure to leak test these connections prior to use.
„ Disconnect your grill from natural gas source:
1. Turn natural gas supply valve to “OFF ”position.
2. Push sleeve back and pull plug out of sleeve.
17

LEAKTESTING
„ GENERAL
Although all gas connections on the grill are leak tested at the factory prior to shipment, a complete gas
tightness check must be performed at the installation site due to possible mishandling in shipment, or
excessive pressure unknowingly being applied to the unit. Periodically check the whole system for leaks,
or immediately check if the smell of gas is detected.
„ BEFORE TEST
1. Make sure that all packing material is removed from the grill including the burner tie-down straps.
2. Do not smoke while leak testing.
3. Never leak test with an open flame.
4. Make a soap solution with one part liquid detergent and one part water. Prepare a spray bottle,
brush, or rag to apply the solution to the connections. For the initial leak test, make sure the L.P.
cylinder is full.
5. Grill must be leak tested outdoors in well-ventilated area, away from ignition sources such as gas
fired or electrical appliances, and flammable materials.
6. Keep grill away from open flames and/or sparks while testing.
„ TO TEST ON PROPANE GRILL (ITEM# JCSCART-2):
1. Make sure all control knobs are in the “OFF” position.
2. Make sure the regulator is connected to the L.P. tank tightly.
3. Completely open L.P. tank valve by turning counter clockwise. If you hear a “POP” sound, turn gas
off IMMEDIATELY, it indicates a heavy leak at the connection. Call your gas dealer or fire
department.
4. Check every connection from the L.P. tank up to and including the connection to the manifold pipe
assembly (the pipe that goes to the burner) by brushing or spraying the soapy solution on the
connections.
5. If soap bubbles appear, there is a leak. Turn off L.P. tank valve IMMEDIATELY and retighten
connections. Open L.P. tank valve again, and recheck.
6. Always close the L.P. tank valve after leak test by turning clockwise.
Only those parts recommended by the manufacturer should be used on the grill. Substitution can void
the warranty. Do not use the grill until all connections have been checked and do not leak.
„ TO TEST ON NATURAL GAS GRILL (ITEM# JCSCART-NG / JCSCART-2NG):
1. Make sure all control knobs are in the “OFF ”position.
2. Turn on the natural gas supply. If you hear a rushing sound, turn gas off immediately. There is a
major leak at the connection. Correct before proceeding.
3. Create a mixture of half water and half liquid dishwashing soap. Brush soapy solution onto the
following:
A. Quick-disconnect coupler
B. The full length of gas supply hose
C. Gas supply connection to gas manifold.
C
A
B
18

„ SAFETY TIPS
1. ALWAYS CHECK FOR LEAKS AFTER EVERY GAS TANK CHANGE.
2. ALWAYS CHECK FOR LEAKS OF EVERY CONNECTIONS BEFORE EACH USE.
3. IF ANY GREASE OR HOT ITEMS FALLING FROM THE GRILL ONTO THE VALVE, REGULATOR,
HOSE, ANYTHING CONVEYING THE GAS, CLOSE THE GAS IMMEDIATELY. CHECK THE
CAUSE,AND REMOVE THE CAUSE. REPERFORM THE LEAK TEST BEFORE CONTINUING.
4. DO NOT REMOVE THE GREASE TRAY IF THE GRILL HASN’T COMPLETELY COOLED.
5. CLOSE ALL CONTROL KNOBS AND L.P. TANK VALVE WHEN THE GRILL IS NOT IN USE.
6. NEVER MOVE THE GRILL WHILE IN USE OR STILL HOT.
7. PUSH THE GRILL FORWARD, DO NOT PULL WHEN MOVING IT.
8. CHECK ALL GAS SUPPLY FITTINGS FOR LEAKS BEFORE EACH USE. IT IS HANDY TO KEEP
A SPRAY BOTTLE OF SOAPY WATER NEAR THE SHUT-OFF VALVE OF VALVE OF THE GAS
SUPPLY LINE. SPRAY ALL THE FITTINGS. BUBBLES INDICATE LEAKS.
9. DISCONNECTED L.P. TANK IN STORAGE OR BEING TRANSPORTED MUST HAVE A SAFETY
CAP INSTALLED. DO NOT STORE AN L.P. TANK IN ENCLOSED SPACES LIKE CARPORT,
COVERED PATIO, PORCH, GARAGE OR OTHER BUILDINGS.
10. NEVER LEAVE A GAS TANK IN A RECREATIONAL VEHICLE OR BOAT WHICH MAY BECOME
OVERHEATED BY THE SUN.
11. DO NOT STORE L.P. TANK IN OR NEAR AN AREAWHERE CHILDREN PLAY.
12. DISCONNECTED THE TANK AND REMOVE FROM THE GRILL IF THE GRILL IS STORED
INDOORS.
13. ANY OTHER PROBLEM, SEE “TROUBLESHOOTING” OR CONTACT JACKSON GRILLS AT
888-287-3333.
INSTALLER FINAL CHECK LIST
！！！WARNING！！！
PRE-START CHECKLIST:
Property damage, bodily harm, severe burns, and death could result from failure to
follow these safety steps. These steps should be performed after the grill has been
assembled, stored, moved, cleaned, or repaired, DO NOT operate this grill until you have
read and understand ALL of the warning and instructions in this manual.
ˆ Ensure that the grill is properly assembled.
ˆ The LP regulator & hose connected to grill are provided by the manufacturer.
ˆ Inspect the natural gas supply hose for burns, chaffing, kinks, and proper routing before each use. If it
is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior the grill being used.
ˆ Leak check all gas connections and hose,
ˆ All internal packaging removed.
ˆ Burners are sitting properly on orifices.
ˆ Knobs turn freely.
ˆ Properly place the empty grease tray onto grease tray brackets to catch grease during use.
ˆ User informed of gas supply shut off valve location.
ˆ Position your grill on lever ground in a well- ventilated location, at least 36” clearance maintained
from combustible materials, buildings and overhangs.
ˆ Ensure that all electrical supply cords are properly grounded. Keep any electrical supply cord and the
fuel supply hose away from any heated surfaces. Hose should be at least 3 inches from hot surfaces.
ˆ There is no unprotected combustible construction material over the grill
ˆ Do not obstruct the flow of combustion and ventilation air.
19

20
GRILL LIGHTING INSTRUCTIONS
„ BEFORE LIGHTING:
Finally inspect the gas supply hose before turning the gas “ON”. If there is evidence of cuts, wear, or
abrasion, it must be replaced before use, the replacement hose assembly shall be that specified by the
manufacturer.
VERY IMPORTANT: ALWAYS INSPECT THE HOSE BEFORE EACH USE OF THIS GRILL.
„ TO LIGHT MAIN AND SIDE BURNERS OF THE GRILL:
1. Read instructions before lighting.
2. Turn all knobs to “OFF” then open the L.P. tank valve. Always keep your face and body as far from
the grill as possible when lighting.
3. Open lid during lighting.
4. Push and turn any control knob slowly to “HI” position. The built-in igniter will click and spark
simultaneously to light the pilot and burner in sequence. Turn the control knob to OFF
IMMEDIATELY if the burner does not light within 5 seconds, wait 5 minutes for gas to dispel, then
repeat the lighting procedure.
5. Follow match lighting instructions if burner can’t be lit after repeated 3-4 times.
„ TO LIGHT THE MAIN AND SIDE BURNERS BY MATCH (AS THE ABOVE FIGURE SHOWN):
If the burner will not light after several attempts then the burner can be match lit.
Tools:
Lighting rod (hanging behind the right door)
Usage:
1. Read instructions before lighting.
2. Open the lid during lighting.
3. Simply place a lighted match between the coils on the end of the lighting rod and hold next to the
burner to ignite.
4. Push and turn the knob to “HI” position, make sure the burner lights and stays lighted.
5. Repeat 3.4 to light other burners.
Keep a spray bottle of soapy water near the gas supply valve and check the connections
before each use. Do not light the grill if odor of gas is present, call our service center.
