Jackson 1524-53-JI User manual

ASSEMBLY INSTRUCTIONS
ITEM NO :1524 Jackson Manual
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may
have come loose inside the carton during shipment.
Make sure to read the instructions below before assembling your manual sofa
The sofa requires two power transformers. Power transformer(A) for the reading lights and wireless charging pod can be
found attached to the bottom inside of the center dropdown table back with a red wire tie. The second power
transformer(B) is attached to the LAF mechanism post with red wire tie for shipment.The two read lights (C) can be
found packaged together in the magazine pouch of the drop down table back. Remove them from there packaging and set
them aside to be used later in step 3
NO TOOLS REQUIRED
PART LIST MANUAL SOFA
MANUAL
LOVESEAT
W/CONSOLE
MANUAL
RECLINER
A
Power Transformer
for reading lights and
wireless charging pod
(pre attached)
1 / /
B
Power Transformer
for the cup holders
and base light
T 1 1 1
C Reading light 2 / /
D LAF Back 1 1 /
ECenter Dropdown
Table Back 1 / /
F RAF Back 1 1 /
G Recliner Back / / 1
H Console Back / 1 /
IThreaded Bolt
（console back) / 3 /
JWing Nuts
(console back ) / 3 /
K Plastic Washer / 3 /
L Sofa Body 1 / /
MLoveseat w/Console
Body / 1 /
N Recliner Body / / 1
Step 1
* Attached the KD backs : Position each KD back with the KD receivers positioned over the mechanism post on the body
as pictured below .
*Check to assure both sides of the mechanism are positioned inside of the KD receivers on the back frame, pushing in a
downward motion from the top of the back frame until a clicking sound is heard.
Care should be taken with the Sofa center dropdown table back as it may try and open during this step

Step 2
*Attach outside backs across the bottom rear of each seat rail with the pre attached velcro
Step 3
*After attaching KD backs as noted in steps 1 &2, attach power transformer (B) to the matching
plug found in the center of the rear mechanism baserail
Step 4
*Loveseat Only: Attach the console back(H) with the hardware provided (I,J & K). Position the
console back over the rear of the console. Align the holes and start all wing nuts before completely
tightening. To prevent damage becareful not to overtighten
After assembly is complete your product should look as seen below.
1 SOFA/LOVESEAT W/CONSOLE /CHAIR
Notes:
Do Not plug either power transformers into a power outlet until your product is completely assembled and in the location
of its intended use
The two USB lights are intended to be used with the USB ports located in the center dropdown table back only. When
not in use we recommend you store them in the magazine pouch or the hidden storage under the arm pads
To help prevent shock and or damage to your product only plug the power transformers into a grounded outlet .
MADE IN CHINA

Operating Instructions for Jackson Manual Reclining Sku’s
1524-53-JI/54-JI/50-JI (Sofa/Loveseat with Console & Recliner)
Caution: Read the Important instructions below before operating your mechanized product
Do not allow children to play on or operate this mechanized product

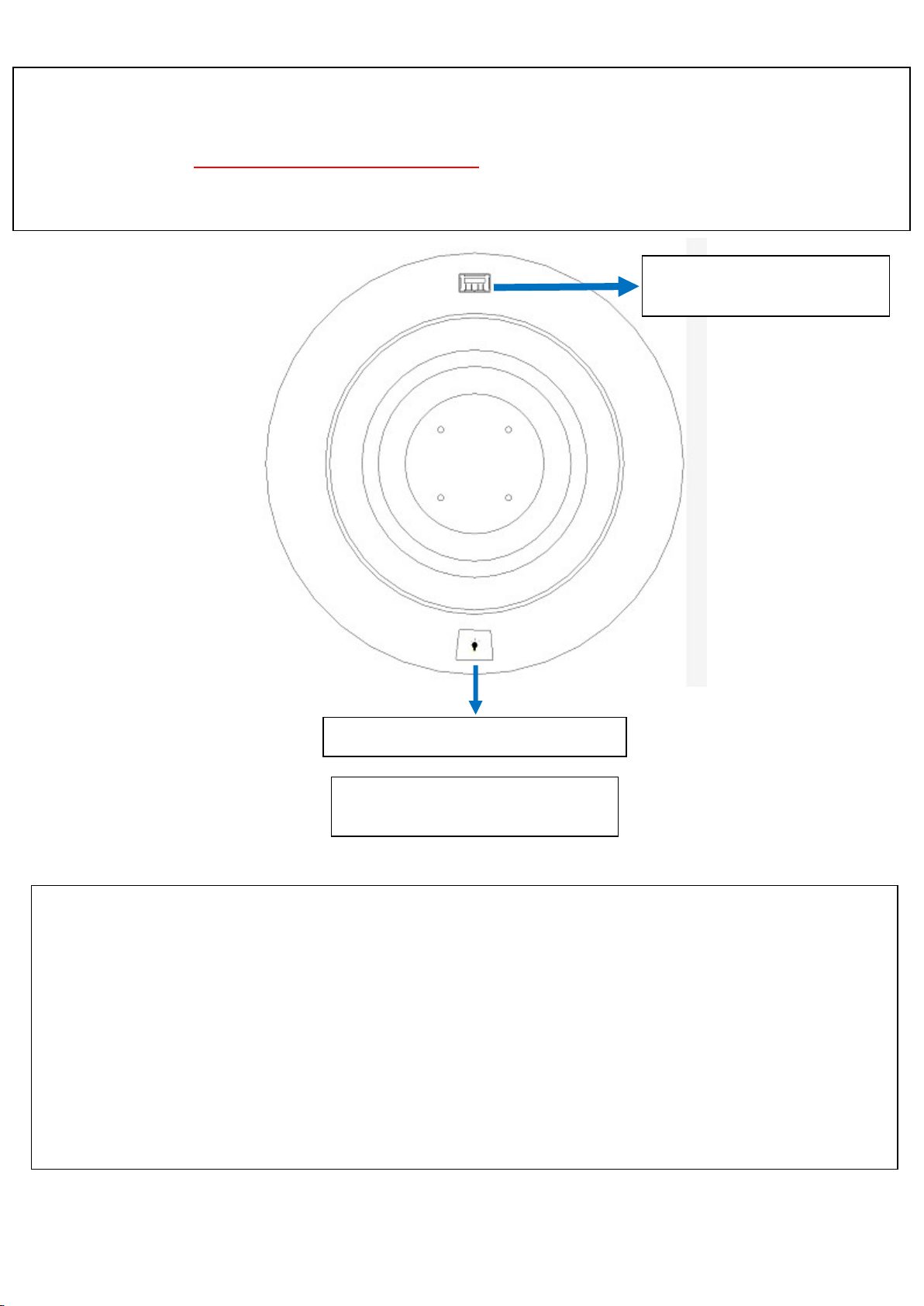

USB Power Outlet will charge
most electronic devices
Note: Only the LAF cup holder light
button controls the base light
Care should always be taken to assure there is nothing in the path of the mechanism before and during operation
Light Button
Sofa, Loveseat with Console & Recliner LAF Cup Holder Only: The light button controls the light in the cup holder and
the base light found across the bottom front of your product. Touching the button will turn the light on and off.
Recliner LAF Cup Holder Only: The light button in the LAF cup holder turns the light on and off in both the LAF & RAF
cup holder as well as the base light
Sofa & Loveseat with Console RAF Cup Holder Only: The light button controls the light in the cup holder only
1/2/2019 Rev
Jackson 1524
Cup Holder and Base Light On / Off
