Jacuzzi 2003+ User manual

2003+ ProTech
TM
LED Series Owner’s Manual

Attention New Spa Owner!
Congratulations on the purchase of your new Jacuzzi Premium spa!
Listed below are important maintenance recommendations you
should observe on a regular basis to protect your new investment.
Filter Maintenance
Your new spa is equipped with an advanced 2-stage water filtration
system that provides unsurpassed water quality! To ensure maxi-
mum water quality at all times, you should clean and reuse the
skimmer bag and both filter cartridges every month. See page 30-
31 for detailed filter cleaning/replacement instructions.
Water Maintenance
You will want to replace the spa’s water every 3 to 6 months. The
frequency depends on a number of variables including the frequency
of use, number of users, attention paid to water quality mainte-
nance, etc. You will know it is time for a change when you cannot
control sudsing and/or you can no longer get the normal feel or
sparkle to the water, even though the key water balance measure-
ments are all within the proper parameters. See page 35 for addi-
tional information.

Table of Contents
1.0 Important Spa Owner Information ..........................................1
2.0 FCC Notice......................................................................................1
3.0 Important Safety Instructions...................................................2
3.1 Important CSA Safety Information (Canada Only)............................3
3.2 Hyperthermia....................................................................................................4
3.3 Cautions ..............................................................................................................4
3.4 General Electrical Safety Instructions.....................................................5
4.0 Choosing A Location....................................................................6
4.1 Outdoor Location ............................................................................................6
4.2 Indoor Location................................................................................................7
5.0 Power Requirements....................................................................8

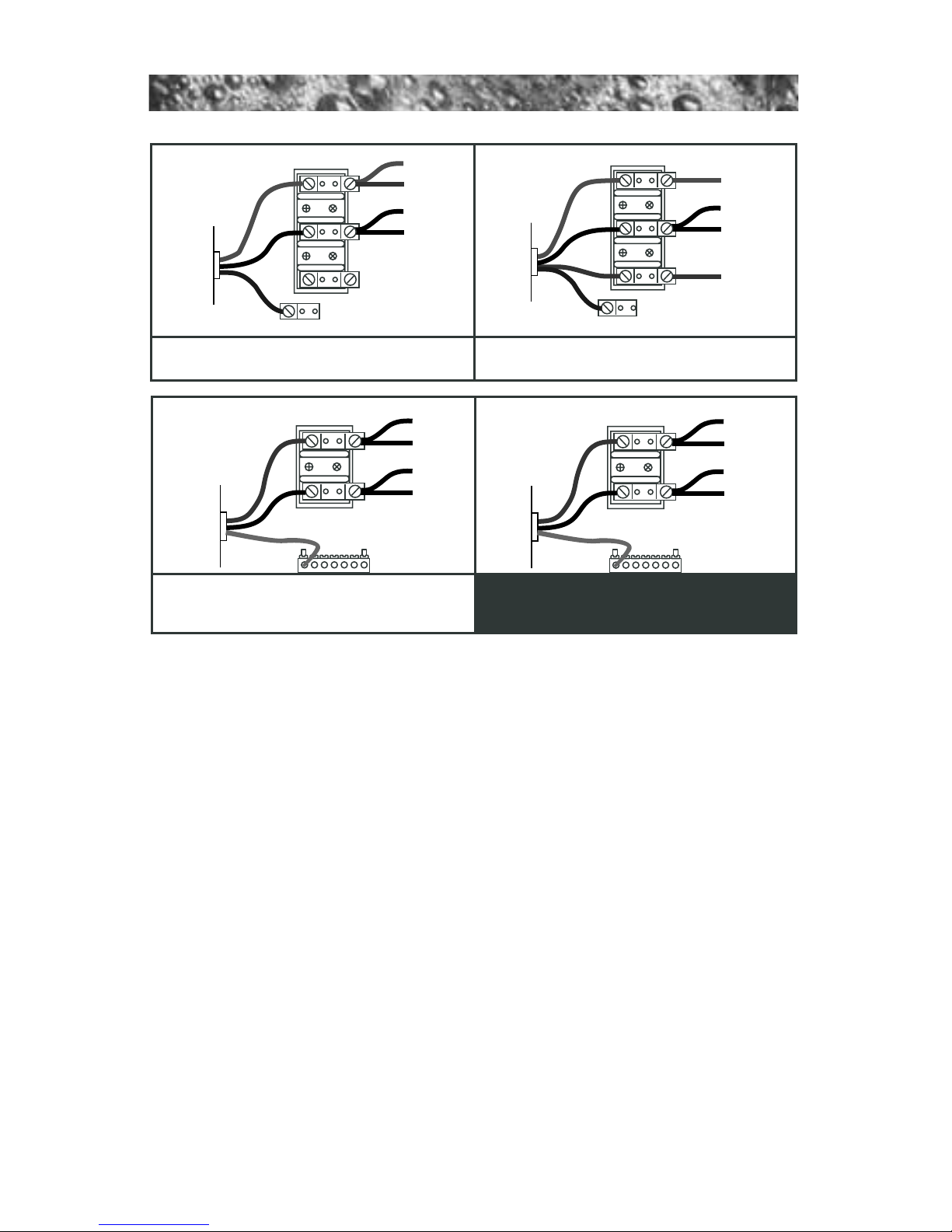

6.0 Electrical Wiring Instructions ..................................................10
7.0Start-Up Instructions .................................................................12
7. 1 Filling The Spa ...............................................................................................12
7. 2 Safety Check...................................................................................................13
7. 3Turn on Power................................................................................................13
7. 4 Initiate Water Circulation...........................................................................13
7. 5Add Start-Up Chemicals............................................................................13
7. 6 Place Cover on Spa .....................................................................................13
8.0 Control Functions........................................................................14

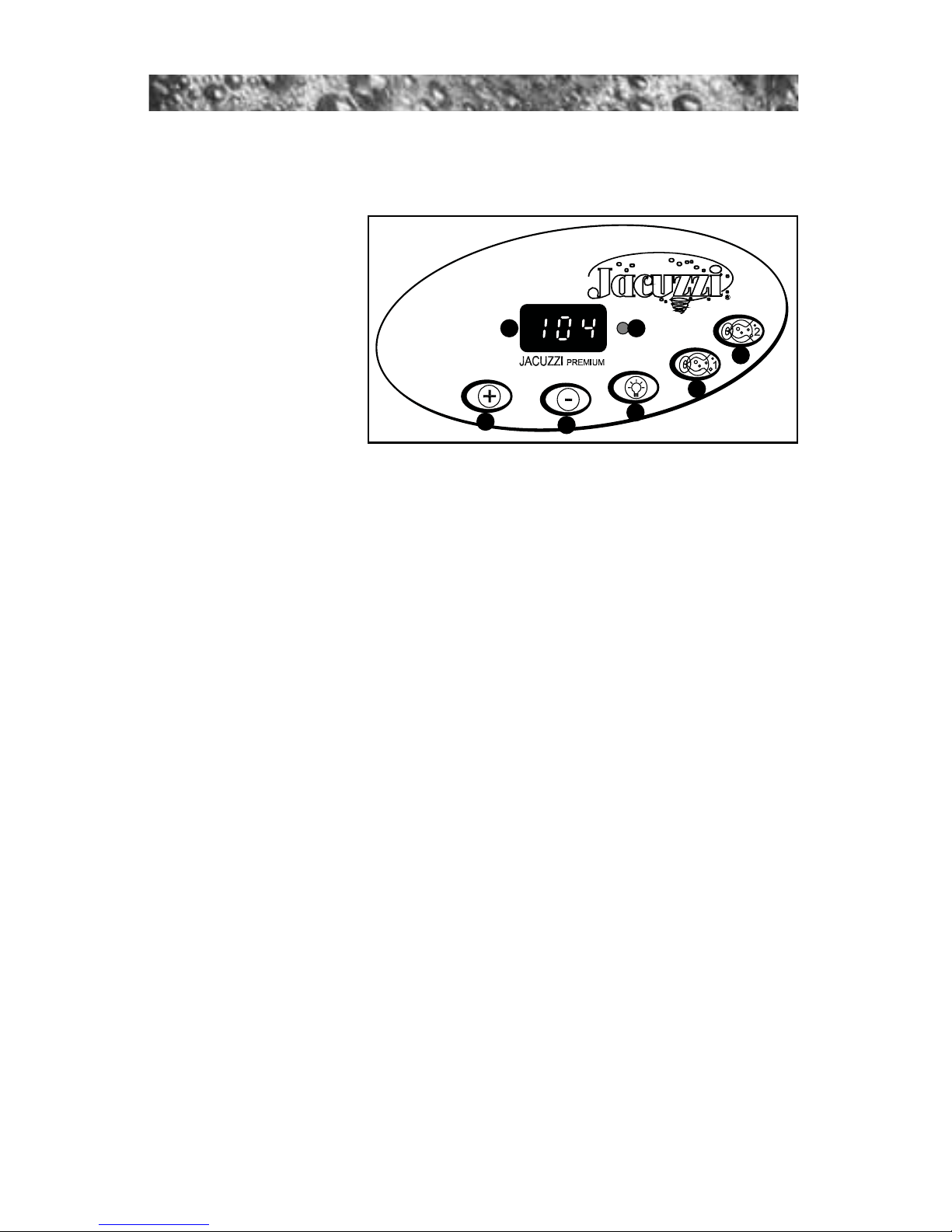

8.1 Control Panel...................................................................................................14
8.2 Spa Features And Controls.......................................................................15

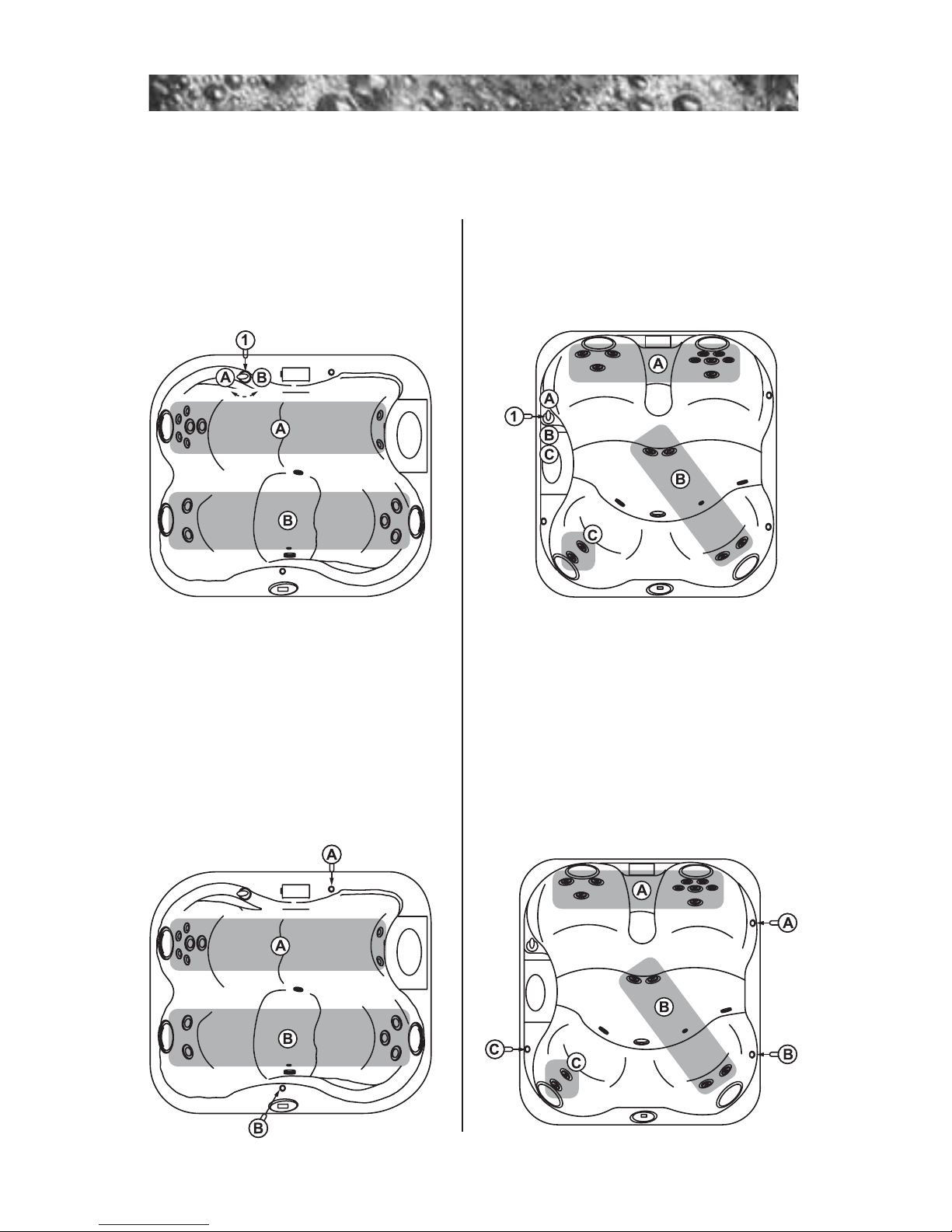

8.3 Jet/Air Controls Diagram (J-310 & J-320 Models)........................16
8.4 Jet/Air Controls Diagram (J-330 & J-340 Models) .......................17
9.0 Operating Instructions ..............................................................18
9.1 Setting Water Temperature.......................................................................18
9.2 Activate Pumps..............................................................................................18
9.3 Light Button ....................................................................................................18
9.4 Selecting Desired Massage Action.......................................................18
9.5 Adjusting Individual Jet Flow...................................................................19
9.6 Adjusting PowerPro Jets............................................................................19
9.7 Waterfall Feature...........................................................................................19
9.8 Air Controls......................................................................................................19
9.9 Optional Audio System (J-340 Model Only).....................................19

10.0 Automatic Filtration Cycles .....................................................28
10.1 Standard Skimming/Heating Modes (F0 - F3) ...............................28
10.2 Economy Skimming/Heating Modes (F4 - F6)...............................28
10.3 Lock Modes (L1 - L2).................................................................................28
10.4 Selecting The Skimming/Heating Mode ...........................................28
11.0 Spa Maintenance .......................................................................30
11.1Cleaning The Filters ....................................................................................30
11.2Draining and Refilling .................................................................................32
11.3Cleaning The Spa Interior.........................................................................33
11.4 Pillow Care ......................................................................................................33
11.5 Maintaining The Cover...............................................................................33
11.6 Maintaining The Wood Cabinet.............................................................33
11.7 Maintaining The Optional Synthetic Cabinet....................................34
11.8Winterizing ......................................................................................................34
11.9Restarting Your Spa in Cold Weather .................................................35
12.0 Water Quality Maintenance.....................................................35
12 .1 pH Control.......................................................................................................36
12 .2 Sanitizing .........................................................................................................36
12 .3 Optional CD Ozone Water Maintenance System...........................36
13.0 Error Conditions/Error Messages ..........................................36
13 .1 Summer Logic...............................................................................................36
13 .2 Overheat Condition......................................................................................37
13 .3 Panel Displays SN1......................................................................................37
13 .4 Panel Displays SN2......................................................................................37
13 .5 Panel Displays FL1 or FL2 .......................................................................37
13 .6 Panel Displays COL .....................................................................................38
13 .7 Panel Displays ICE .......................................................................................38
13 .8 Panel Displays - - - - ...................................................................................38
14.0 Troubleshooting Procedures....................................................39
14 .1 None of The Components Operate......................................................39
14 .2 Pump Does Not Operate but Light Does ..........................................39
14 .3 Poor Jet Action..............................................................................................39
14 .4 Water is Too Hot...........................................................................................39
14 .5 No Heat ............................................................................................................39
15.0 J-310 Convertible Circuit Diagram (60Hz) ...........................41
16.0 J-320/J-330/J-340 Circuit Diagram (60Hz)........................42
17.0 J-310 Circuit Diagram (50Hz)..................................................43
18.0 J-320/J-330/J-340 Circuit Diagram (50Hz)........................44

1.0 Important Spa Owner Information
Your Jacuzzi® Premium spa is constructed to the highest standards and is
capable of providing many years of trouble-free use. However, because heat
retentive materials are utilized to insulate the spa for efficient operation, an
uncovered spa surface directly exposed to sunlight and high temperatures for
an extended period is subject to permanent damage. Damage caused by
exposing the spa to this abuse is not covered by warranty. We recommend
that you always keep the spa full of water when it is exposed to direct sun-
light and that you keep the Jacuzzi Premium insulating cover in place at all
times when the spa is not in use. Read and carefully follow the requirements
for your spa’s support base found in section 4.0 titled, “Choosing a Location”
(Page 6).
Jacuzzi Premium constantly strives to offer the finest spas available, therefore
modifications and enhancements may be made which affect the specifica-
tions, illustrations and/or instructions contained herein.
2.0 FCC Notice
This equipment has been tested and found to comply with the limits
for a Class B Digital Device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
1. Rearrange or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver
3. Connect the equipment into an outlet on a circuit different from the
circuit connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
FCC compliance could void the user’s authority to operate this equipment.
Page 1

3.0 Important Safety Instructions
When installing and using this electrical equipment, basic safety pre-
cautions should always be followed, including:
1. READ AND FOLLOW ALL INSTRUCTIONS BEFORE OPERATING THE
SPA!
2. WARNING: To reduce the risk of injury, do not permit children to use this
product unless they are closely supervised at all times.
3. WARNING: A grounding wire connector is provided on this unit to con-
nect a minimum No. 8 AWG (8.4mm2) solid copper conductor between
this unit and any metal equipment, metal enclosures of electrical equip-
ment, metal water pipe, or conduit within 5 feet (1.5m) of the unit.
4. DANGER: Risk of Accidental Drowning. Extreme caution must be exer-
cised to prevent unauthorized access by children. To avoid accidents,
ensure that children cannot use this spa unless they are supervised at all
times.
5. DANGER: Risk of Injury. The suction fittings in this spa are sized to match
the specific water flow created by the pump. Should the need arise to
replace the suction fittings or the pump, be sure that the flow rates are
compatible. Never operate the spa if the suction fittings are broken or
missing. Never replace a suction fitting with one rated less than the flow
rate marked on the original suction fitting.
6. DANGER: Risk of Electric Shock. Install at least 5 feet (1.5m) from all metal
surfaces. As an alternative, a spa may be installed within 5 feet (1.5m) of
metal surfaces if each metal surface is permanently connected
(bonded) by a minimum No. 8 AWG (8.4mm2) solid copper conductor
attached to the wire connector on the grounding lug, inside the equip-
ment compartment on the equipment box.
7. DANGER: Risk of Electric Shock. Do not permit any electrical appliance,
such as a light, telephone, radio, television, etc. within 5 feet (1.5m) of a
spa, unless such appliances are built-in by the manufacturer.
8. ELECTRICAL SUPPLY: The electrical supply for this product must include
a suitably rated switch or circuit breaker to open all ungrounded supply
conductors to comply with section 422-20 of the National Electrical Code,
ANSI/NFPA 70. The disconnect must be readily accessible and visible to
the spa occupant but installed at least 5 feet (1.5m) from the spa water.
9. WARNING: To Reduce the Risk of Injury:
A. The water in a spa should never exceed 104 °F (40 °C). Water tempera-
tures between 100 °F (38 °C) and 104 °F (40°C) are considered safe for
a healthy adult. Lower water temperatures are recommended for young
children and when spa use exceeds 10 minutes.
Page 2

B. Since excessive water temperatures have a high potential for causing fetal
damage during the early months of pregnancy, pregnant or possibly preg-
nant women should limit spa water temperatures to 100 °F (38 °C). If
pregnant, please consult your physician before using a spa.
C. Before entering the spa, the user should measure the water temperature
with an accurate thermometer since the tolerance of water temperature-
regulating devices may vary as much as +/- 5 °F (2 °C).
D. The use of alcohol, drugs, or medication before or during spa use may
lead to unconsciousness with the possibility of drowning. Persons using
medication should consult a physician before using a spa since some
medication may induce drowsiness, while other medication may affect
heart rate, blood pressure, and circulation.
E. Persons suffering from obesity or a medical history of heart disease, low
or high blood pressure, circulatory system problems, or diabetes should
consult a physician before using a spa.
3.1 IMPORTANT CSA SAFETY INSTRUCTIONS (CANADA ONLY)
When using this electrical equipment, basic safety precautions
should always be followed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. A green colored terminal or a terminal marked G, Gr, Ground, Grounding
or the symbol*is located inside the supply terminal box or compart-
ment. To reduce the risk of electric shock, this terminal must be con-
nected to the grounding means provided in the electric supply service
panel with a continuous copper wire equivalent in size to the circuit
conductors that supply this equipment (*IEC Publication 417, Symbol
5019 ) .
3. At least two lugs marked “Bonding Lugs” are provided on the external
surface or on the inside of the supply terminal box/compartment. To
reduce the risk of electric shock, connect the local common bonding grid
in the area of the spa to these terminals with an insulated or bare
copper conductor not smaller than No. 6 AWG (10mm2).
4. All field-installed metal components such as rails, ladders, drains or other
similar hardware within 10 feet (3m) of the spa shall be bonded to
the equipment grounding buss with copper conductors not smaller than
No. 6 AWG (10mm2).
5. Save These Instructions:
A. WARNING: Children should not use spas without adult supervision.
B. WARNING: Do not use spas unless all suction guards are installed to
prevent body and hair entrapment.
Page 3

C. WARNING: People with infectious diseases should not use a spa.
D. WARNING: To avoid injury, exercise care when entering or exiting the
spa.
E. WARNING: Do not use drugs or alcohol before or during the use of a
spa to avoid unconsciousness and possible drowning.
F. WARNING: Pregnant or possibly pregnant women should consult a
physician before using a spa.
G. WARNING: Water temperature in excess of 38 °C (104 °F) may be
injurious to your health.
H. WARNING: Before entering the spa, measure the water temperature
with an accurate thermometer.
I. WARNING: Do not use a spa immediately following strenuous exercise.
J. WARNING: Prolonged immersion in a spa may be injurious to your
health.
K. WARNING: Do not permit electric appliances (such as light, telephone,
radio, television, etc.) within 5 feet (1.5m) of this spa unless factory
installed.
L. CAUTION: Maintain water chemistry in accordance with manufacturer’s
instructions.
M. WARNING: The use of alcohol or drugs can greatly increase the risk of
fatal hyperthermia in spas.
3.2 HYPERTHERMIA
Prolonged immersion in hot water may induce hyperthermia. A description of
the causes, symptoms, and effects of hyperthermia are as follows:
Hyperthermia occurs when the internal temperature of the body reaches a
level several degrees above the normal body temperature of 98.6 °F (37 °C).
The symptoms of hyperthermia include drowsiness, lethargy, and an increase
in the internal temperature of the body. The effects of hyperthermia include:
AUnawareness of impending hazard;
B. Failure to perceive heat;
C. Failure to recognize the need to exit spa;
D. Physical inability to exit spa;
E. Fetal damage in pregnant women; and
F. Unconsciousness and danger of drowning.
3.3 CAUTIONS
1. Persons suffering from heart disease, diabetes, high or low blood pres-
sure, and any condition requiring medical treatment, pregnant women,
the elderly, or infants should consult with a physician before using a spa.
Page 4

2. The Consumer Products Safety Commission has stated that the water
temperature in a spa should not exceed 104 °F (40 °C). Immersion in
water in excess of 104 °F (40 °C) can be hazardous to your health.
3. Observe a reasonable time limit when using the spa. Long exposures at
higher temperatures can cause high body temperature. Symptoms may
include dizziness, nausea, fainting, drowsiness, and reduced awareness.
These effects could possibly result in drowning.
4. Do not use the spa under the influence of alcohol, narcotics, or other
drugs. Use of the spa under these conditions may lead to serious conse-
quences.
5. Always test the spa water temperature before entering the spa. Enter and
exit the spa slowly. Wet surfaces can be very slippery.
6. Never bring any electrical appliances into or near the spa. Never operate
any electrical appliances from inside the spa or when you are wet unless
such appliances are built-in by the manufacturer.
7. Proper chemical maintenance of spa water is necessary to maintain
safe water and prevent possible damage to spa components.
8. Use the straps and clip tie downs to secure the cover when not in use.
This will help to discourage unsupervised children from entering the spa
and keep the spa cover secure in high-wind conditions. There is no rep-
resentation that the cover, clip tie-downs, or actual locks will prevent
access to the spa.
3.4 GENERAL ELECTRICAL SAFETY INSTRUCTIONS
Your new Jacuzzi Premium spa is equipped with a "state-of-the-art" equip-
ment system. It contains the most advanced safety and self-protective equip-
ment in the industry. Nonetheless, this spa must be installed properly to
insure dependable usage. Please contact your dealer or local building
department should you have any questions regarding your installation.

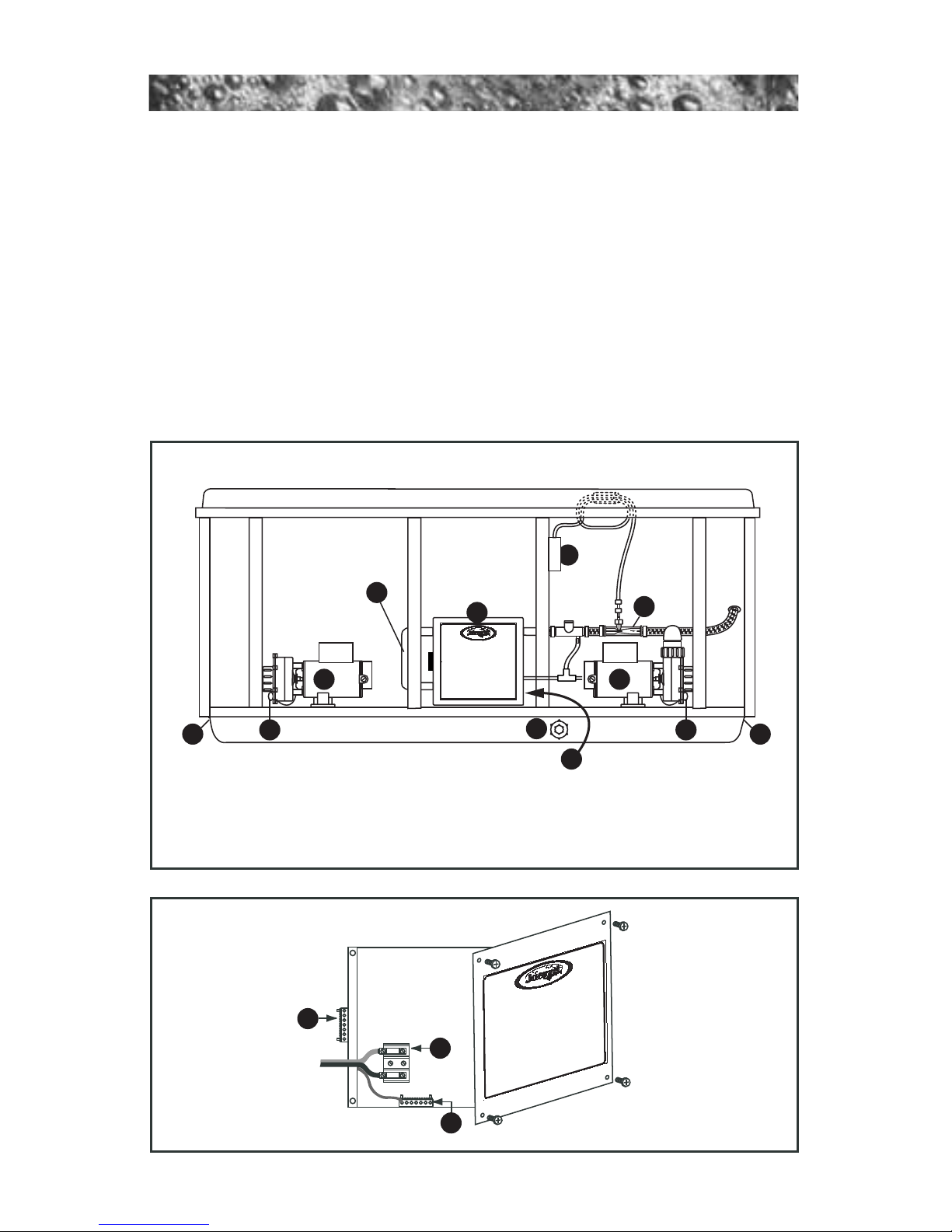

Proper grounding is extremely important. Jacuzzi Premium spas are equipped
with a current collector system. A pressure wire connector is provided on the
surface of the control box, located outside the equipment door (Figure B, Page
11) to permit connection of a bonding wire between this point and any ground
metal equipment, metal water pipe or conduit within 5 feet (1.5m) of the spa,
or copper clad grounding rod buried within 5 feet (1.5m) of the spa. Bonding
wire must be at least No. 8 AWG (8.4mm2) solid copper wire. This is a most
important safety assurance feature. Before installing this spa, check with the
local building department to insure installation conforms to local building
codes.
Page 5

120/240 Volt Convertible Models
A spa connected to a 120 VAC electrical service must be located close
enough to a grounded, grounding-type electrical outlet so that the included
power cord can be plugged directly into it. DO NOT USE AN EXTENSION
CORD as this could cause damage to the spa’s equipment due to
insufficient voltage. The power supplied to this spa must be a dedicated
circuit with no other appliances or lights sharing the power provided by the
circuit.
4.0 Choosing A Location
IMPORTANT: Because of the combined weight of the spa, water
and users, it is extremely important that the base upon which the
spa rests be smooth, flat, level and capable of uniformly supporting
this weight, without shifting or settling, for the entire time the spa is in
place. If the spa is placed on a surface which does not meet these require-
ments, damage to the skirt and/or the spa shell may result. Damage
caused by improper support is not covered under warranty. It is the respon-
sibility of the spa owner to assure the integrity of the support over time.
We recommend a poured, reinforced concrete slab with a minimum thick-
ness of 4 inches (10cm). Wood decking is also acceptable provided it is
constructed so that it meets the requirements outlined above. The spa
must be installed in such a manner as to provide drainage away from the
spa. Placing the spa in a depression without provisions for proper drainage
could allow rain, overflow and other casual water to flood the equipment
and create a wet condition in which it would sit. For spas which will be
recessed into a floor or deck, install so as to permit access to the equip-
ment, either from above or below, for servicing. Make certain that there are
no obstructions which would prevent removal of the cabinet side panels and
access to the jets components, especially on the side with the equipment
bay doors.
4.1 Outdoor Location
In selecting the ideal outdoor location for your spa, we suggest that you
take into consideration:
1. The proximity to changing area and shelter (especially in colder weather).
2. The pathway to and from your spa (this should be free of debris so that
dirt and leaves are not easily tracked into the spa).
Page 6

3. The closeness to trees and shrubbery (remember that leaves and birds
could create extra work in keeping the spa clean).
4. A sheltered environment (less wind and weather exposure can result in
lowered operation and maintenance costs).
5. The overall enhancement of your environment. It is preferable not to
place the spa under an unguttered roof overhang since run-off water will
shorten the life expectancy of the spa cover.
4.2 Indoor Location
For indoor installations, be certain to make provisions for proper ventilation.
When the spa is in use, considerable amounts of moisture will escape. This
can damage certain surfaces over time. If you have any questions regarding
the placement or installation of your spa, consult your authorized Jacuzzi
Premium Dealer.
Page 7

US / Canada J-310 1-Pump Convertible Model (60Hz)
120V/15A* 240V/30A* 240V/40A**
Voltage: 120 VAC 240 VAC 240 VAC
# of Wires: 3 (15A GFCI Cord) 4 4
Frequency: 60Hz 60Hz 60Hz
Current Draw: 12A 21A 30A
Circuit Breaker: 15A, 1-Pole 30A, 2-Pole 40A, 2-Pole
For 240 VAC Heater Operation: Move the red wire on the main terminal
strip (TB1) from position #1 to position #3. Make certain wires are connect-
ed exactly as shown in Figure-D (Page 12) before applying power. Failure to
do so will result in damage to the circuit board and/or related components
and void the manufacturer’s warranty.
*In the 15A/30A configuration, the heater will not operate at the same
time as the high-speed jets pump. The factory setting is 120V/15A.
** If the spa is to be operated on 40A service, remove the jumper JP1
#1-2 on the circuit board to allow the heater to operate at the same
time as the high-speed jets pump (Page 44).
US / Canada J-320 / J-330 1-Pump Models (60Hz)
240V/50A*240V/30A**
Voltage: 240 VAC 240 VAC
# of Wires: 3 3
Frequency: 60Hz 60Hz
Current Draw: 34A 24A
Circuit Breaker: 50A, 2-Pole 30A, 2-Pole
*In the 50A configuration, the heater will operate at the same time as the
high-speed jets pump. This is the factory setting.
** In the 30A configuration, the heater will not operate at the same time as
the high-speed jets pump.
5.0 Power Requirements
Jacuzzi Premium spas are designed to provide optimum performance and flex-
ibility of use when connected to the maximum electrical service listed in the
tables below. If you prefer, your dealer can perform a minor circuit board
modification to allow your spa to accept an electrical service other than the
factory setting.
Page 8

Export J-310 / J-320 / J-330 1-Pump Models (50Hz)
230V/20A*230V/30A**
Voltage: 230 VAC 230 VAC
# of Wires: 3 3
Frequency: 50Hz 50Hz
Current Draw: 15A 21A
Circuit Breaker: 20A 30A
*In the 20A configuration, the heater will not operate at the same time
as the main jets pump. This is the factory setting.
** In the 30A configuration, the heater will operate at the same time as
the main jets pump.
Export J-340 2-Pump Model (50Hz)
230V/20A* 230V/30A** 230V/40A***
Voltage: 230 VAC 230 VAC 230 VAC
# of Wires: 3 3 3
Frequency: 50Hz 50Hz 50Hz
Current Draw: 15A 23A 29A
Circuit Breaker: 20A 30A 40A
*In 20A configuration, the heater will not operate while either jets pump
is running in high speed. This is the factory setting.Note: pump 2
runs only in high speed.
** In 30A configuration, the heater will not operate while both jets pumps
are running in high speed. Note: pump 2 runs only in high speed.
*** In 40A configuration, the heater will operate while either jets pump is
running in high speed. Note: pump 2 runs only in high speed.
US / Canada J-340 2-Pump Model (60Hz)
240V/50A* 240V/30A** 240V/60A***
Voltage: 240 VAC 240 VAC 240 VAC
# of Wires: 3 3 3
Frequency: 60Hz 60Hz 60Hz
Current Draw: 36A 24A 43A
Circuit Breaker: 50A, 2-Pole 30A, 2-Pole 60A, 2-Pole
*In 50A configuration, the heater will not operate while both jets pumps
are running in high speed. Note: pump 2 runs only in high speed.
This is the factory setting.
** In 30A configuration, the heater will not operate while either jets pump
is running in high speed. Note: pump 2 runs only in high speed.
*** In 60A configuration, the heater will operate while both jets pumps are
running in high speed. Note: pump 2 runs only in high speed.
Page 9

6.0 Electrical Wiring Instructions
IMPORTANT NOTICE: The electrical wiring of this spa must meet
the requirements of the National Electrical Code (NEC) and any
applicable state or local codes. The electrical circuit must be
installed by a qualified electrician and approved by a local build-
ing/electrical inspection authority.
1. Convertible 120/240V Power Models
A. 120V “Plug-in” Operation: This spa must operate on the supplied 120V
GFCI cord at its original length or must be hard-wired for longer runs.
Never use an extension cord for any reason!
B. Convertible 120/240V Operation: The included 120V GFCI cord
must be discarded for 240V operation. This spa must be hard-wired.
Supplying power to either configuration above which is not in accordance
with these instructions will void both the independent testing agency
listing and the manufacturer’s warranty.
2. Dedicated 230-240V Power Models: This spa must be permanently
connected (hard-wired) to the power supply. No plug-in connections or
extension cords are to be used in conjunction with the operation
of this spa. Supplying power to the spa which is not in accordance with
these instructions will void both the independent testing agency listing
and the manufacturer’s warranty.
3. The power supplied to this spa must be a dedicated circuit with no
other appliances or lights sharing the power provided by the circuit.
4. To determine the current, voltage and wire size required, refer to section
5.0 “Power Requirements” (Page 8-9).
• Wire size must be appropriate per NEC and/or local codes.
• We recommend type THHN wire.
•All wiring must be copper to ensure proper connections. Do not use
aluminum wire.
• When using wire larger than #6 (10mm2), add a junction box near the
spa and reduce to short lengths of #6 (10mm2) wire to connect to the
spa.
5. The electrical supply for this product must include a suitably rated switch
or circuit breaker to open all ungrounded supply conductors to comply
with Section 422-20 of the National Electrical Code, ANSI/NFPA 70. The
disconnecting means must be readily accessible to the spa’s occupant
but installed at least 5 feet (1.5m) from spa water.
6. The electrical circuit supplied for the spa must include a suitable
ground fault circuit interruptor (GFCI) as required by NEC Article 680-42.
7. To gain access to the spa’s power terminal block, remove the screws
securing the cabinet panel on the side of the spa under the controls.
Then remove the four control box door screws and door (Figure B
Page 10

Page 11
Figure-B - Control Box
1. Terminal Block
2. Bonding Lug
3. Grounding Terminal
TB1
3
2
1
9
10
4
37
1
2 2
Figure-A 
Equipment Area
1. Control Box
2. Power Supply Entrance(s)
3. 2-Speed Pump #1
4. Heater
5. Spa Drain Valve
6. Pump Drain Plug(s)
7. 1-Speed Pump #2
8. Circulation Pump
9. Optional CD Ozonator (Purchased Separately)
10.Optional Mazzei Injector (Required for CD Ozonator
Use - Purchased Separately)
Flow
Note: Pump Locations Vary by Model
Circulation Pump
Behind Load Box
8
5
6 6
8. Select the power supply inlet you want to use (Figure A). Feed power
cable to control box, then install it through the large opening provided in
the bottom side of the box.
9. Connect wires, color to color, on terminal blocks TB1 and TB3 (Figures
C-F, Page 12). TIGHTEN SECURELY! All wires must be hooked up secure-
ly or damage could result.
10. Install control box door and screws and reinstall the cabinet side panels.

7.0 Start-Up Instructions
Congratulations! You are now all set to get your new spa ready to use. Simply
follow this step-by-step procedure and, before long, you will be enjoying your
first glorious experience in your Jacuzzi Premium spa. For best results, read
each step in its entirety before proceeding with that step.
7.1 Filling the Spa
Clear all debris from the spa. Although the spa shell has been polished at
the factory, you may want to treat it with a specially formulated spa cleaner
and wax available from your dealer prior to filling the first time.
Remove the filter cover, then remove both filter cartridges as outlined in
section 11.1 (Page 30). Place the end of your garden hose into the exposed
pump #1 filter wall fitting without a mesh grill. Fill the spa half way, then
place the end of your garden hose into the circulation pump filter wall fitting
with the mesh grill. Continue filling spa until the water level is 1 inch below
the lowest pillow and and above all jets. Do not overfill. Never fill with
water from a water softener.
Page 12
BLUE
BLUE
BROWN
BROWN
1
2
US/Canada J-320 / J-330 / J-340 Models:
240 VAC, 3-Wire Connection (60Hz)
Figure-F TB1
All Export J-310 / J-320 / J-330 / J-340 Models:
230 VAC, 3-Wire (50Hz)
to Circuit
Board
BLK
RED
Power In
RED
RED
BLK
BLK
1
2
Figure-E TB1
to Circuit
Board
Power In
Green
TB3
Green
TB3
GRN
WHT
WHT
BLK
BLK
BLK
RED
1
2
3
Figure-C TB1
to Circuit
Board
Power In
GRN
WHT WHT
BLK BLK
BLK
RED RED
1
2
3
All US/Canada J-310 Convertible Models:
120/240 VAC, 4-Wire Connection (60Hz)
Figure-D TB1
to Circuit
Board
Power In
All US/Canada J-310 Convertible Models:
120 VAC, 3-Wire Connection (60Hz)

If your water is extremely “hard”, it is preferable to fill half-way with hard
water and the rest of the way with softened water. Or, you may fill entirely
with hard water if you use a special water additive available from your
Jacuzzi Premium dealer. Always refill spa half way through both filter wall
fittings to purge trapped air from pump intakes. Failure to do so may cause
air to be trapped in either pump 1 or the circulation pump’s intake (air lock),
preventing either pump from circulating water. After filling, make sure both
filters are installed properly before applying power to the spa. Refer to sec-
tion 11.1 (Page 30) “Cleaning the Filters” for specific cleaning and
installation instructions.
7.2 Safety Check
Open the wood cabinet access panel and check all pump unions to make sure
they are hand tight. Loosening can occur during shipping and handling.
7.3Turn on Power
Turn on power to spa at the home’s circuit breaker. The heater and low speed
pump 1 automatically activate and the control panel LED display flashes water
temperature and “COL” or “ICE” (page 38).
7.4Initiate Water Circulation
Depress the JETS 1 sensor pad on the control panel twice to activate
pump 1 in high speed and initiate maximum water flow to certain jets.
7.5 Add Start-Up Chemicals
Add the spa water chemicals as recommended by your Jacuzzi Premium
dealer. Refer to section 12.2 (page 36) for general guidance.
7.6 Place Cover On Spa
Keeping the insulating cover in place anytime the spa is not in use will
reduce the time required for heating, thereby minimizing operating costs.
The time required for initial heat-up will vary depending on the starting water
temperature and the capacity of your spa. Smaller spas heat at a rate of
approximately 8 to 10 degrees per hour (based on 240V operation); large
spas heat at about 4 to 6 degrees per hour.
WARNING: RISK OF INJURY. Always check water temperature
carefully before entering spa.
Page 13

8.0 Control Functions
8.1 Control Panel
A. LED Display: can
display current
water temperature
(default display),
water temperature
setpoint, selected
skimming/heating
mode, and error
messages.
B. Warmer ( + ) Button: increases water temperature setpoint.
C. Cooler ( - ) Button: decreases water temperature setpoint.
D. Light Button: turns underwater light on and off.
E. Jets 1 Button: turns jets pump #1 on and off. Press once for low
speed; press a second time for high speed; press a third time to turn
pump off.
F. Jets 2 Button: turns high-speed jets pump #2 on and off. Press once to
turn on; press a second time to turn pump off (2-pump models only).
G. Heat Indicator: lit when heater is on.
Operation Details
•Temperature Adjustment: 65 to 104 °F (18 to 40 °C). Factory
default setting is 100 °F (38 °C).
•Underwater Light Operation: light runs for 1 hour then shuts
off for increased bulb life.
•Jets 1/Jets 2 Button Operation: jets run for 20 minutes after
activated, then turn off automatically to conserve energy. Simply
press either jets button to continue operation for an additional 20
minutes.
Page 14
GA
BCDE
F

Page 15
8.2 Spa Features And Controls
1. Control Panel
2. Air Controls
3. Filter/Skimmer Grill
4. Maxx PowerPro Jets
5. Therapy Jets
6. Diverter Valve
7. Therapy Seat
8. Spa Light
9 Vertical Jets (Foot Jets)
10. Footwell Suction Fittings
and Filters.
11. Waterfall Feature
12 . Heater Return Fitting
13 .Optional Audio System
Speakers (Available on
J-340 Model Only).
14 .Optional Audio System
Receiver (Available on J-340
Model Only)
J-340 model illustrated - Location of Features Varies by Model

Page 16
J-310
Massage Selector Operation
Rotate Massage Selector 1
to Divert Water Between Jet
Groups A-B.
Massage Selector #1 Controls
the Main Pump’s Water Flow.
Massage Selector #1 Controls
the Main Pump’s Water Flow.
Air Control Operation
Depress Air Controls A or B to
Open or Close Air Inlet to
Designated Jet Groups.
Air Control Operation
Depress Air Controls A-C to
Open or Close Air Inlet to
Designated Jet Groups.
J-320
Massage Selector Operation
Rotate Massage Selector 1 to
Divert Water Between Jet Groups
A or B&C.
8.3 Jet/Air Controls Diagram
(J-310 & J-320 Models)
