OWNER’S MANUAL
6530-274G Rev B

Attention New Spa Owner!
Congratulations on the purchase of your new Jacuzzi® spa! The
following is a list of automated functions performed by your spa. These
functions are listed below in an attempt to suppress any operational
concerns you may have during the rst 24 hours of ownership! Also listed
below are important maintenance recommendations you should observe
on a regular basis to protect your new investment.
Maintain Healthy Spa Water
Always maintain your spa’s water chemistry within the following
parameters:
With CLEARRAY®Without CLEARRAY®
pH 7.4-7.6 7.4-7.6
Free chlorine no less than 1.0 ppm 3.0-4.0 ppm
Free bromine no less than 2.0 ppm 2.0-4.0 ppm
Total Alkalinity 100-150 ppm 100-150 ppm
Calcium Hardness 150-250 ppm 150-250 ppm
IMPORTANT: CLEARRAY® Water Purication System is factory
installed. If the CLEARRAY® system is altered or is not operating
efciently then follow the “without CLEARRAY®” water chemistry
parameters as dened by the Association of Pool and Spa Professionals.
CLEARRAY® requires an annual bulb replacement to properly sanitize
your water.
!TO DECREASE RISK OF INFECTION OR DISEASE! Always
maintain your spa lter as outlined below to ensure healthy spa water.
Refer to pages 59-62 (Sec. 13.0) for additional information.
Required Filter Maintenance
Your new spa is equipped with an advanced water ltration system that
provides unsurpassed water quality! To ensure maximum water quality at
all times, you should clean the skimming lter cartridge every 3 months,
or as necessary. See pages 59-62 (Sec. 13.0) for detailed lter
cartridge cleaning instructions.
Required Water Replacement
!TO DECREASE RISK OF INFECTION OR DISEASE! You
should replace the spa’s water every 3 months. The frequency depends
on a number of variables including frequency of use, number of users
and attention paid to water quality maintenance. You will know it is time
for a change when you cannot control sudsing and/or you can no longer
get the normal feel or sparkle to the water, even though the key water
balance measurements are all within the proper parameters. See pages
68-70 (Sec. 14.0) for additional information.
**** Spa operations and functions subject to change without notice ****
©Jacuzzi Hot Tubs, Inc. All Rights Reserved

Table of Contents
1.0 Important Spa Owner Information.............................................. 1
2.0 FCC Notice.................................................................................... 1
2.1 Industry Canada (IC) Information .................................................. 1
3.0 Important Safety Instructions for all Spa Owners .................... 2
3.1 Entrapment Risk ............................................................................ 7
3.2 Hyperthermia ................................................................................. 8
3.3 Important safety instructions.......................................................... 9
4.0 Choosing a Location.................................................................... 9
4.1 Outdoor Location ......................................................................... 10
4.2 Indoor Location............................................................................ 11
5.0 General Electrical Safety Instructions ..................................... 12
6.0 Electrical Installation Instructions
(240V Service) ............................................................................ 12
7.0 Power Requirements ................................................................. 15
8.0 Spa Fill Up Procedure................................................................ 16
9.0 Spa Features .............................................................................. 20
9.1 J-495™ Spa Features.................................................................. 20
9.2 J-495 Massage/Waterfall Selector Diagram ................................ 21
9.3 J-495 Air Controls Diagram.......................................................... 22
9.4 J-485™ Spa Features.................................................................. 23
9.5 J-485 Massage/Waterfall Selector Diagram ................................ 24
9.6 J-485 Air Controls Diagram.......................................................... 25
9.7 J-475™ Spa Features.................................................................. 26
9.8 J-475 Massage/Waterfall Selector Diagram ................................ 27
9.9 J-475 Air Controls Diagram.......................................................... 28
9.10 J-445™ Spa Features.................................................................. 29
9.11 J-445 Massage/Waterfall Selector Diagram ................................ 30
9.12 J-445 Air Controls Diagram.......................................................... 31
9.13 J-435™ Spa Features.................................................................. 32
9.14 J-435 Massage/Waterfall Selector Diagram ................................ 33
9.15 J-435 Air Controls Diagram.......................................................... 34
9.16 J-425™ Spa Features.................................................................. 35
9.17 J-425 Massage/Waterfall Selector Diagram ................................ 36
9.18 J-425 Air Controls Diagram.......................................................... 37
10.0 Registration and Start-up.......................................................... 38
10.1 Start-up Sequence....................................................................... 38
10.2 Register Your New Spa................................................................ 38
10.3 ProTouch™ Control Panel ........................................................... 39

11.0 Operating Instructions............................................................... 40
11.1 ProTouch™ Control Panel ........................................................... 40
11.2 Activating the Jets Pumps ........................................................... 40
11.3 Lights Menu ................................................................................. 41
11.4 Music Menu ................................................................................. 42
11.5 Connecting to the BLUEWAVE 2.0 Wireless Audio System ........ 44
11.6 Audio Settings Menu.................................................................... 44
11.7 CLEARRAY on Demand.............................................................. 45
11.8 Adjusting Jet Flow........................................................................ 45
11.9 Adjusting PowerPro™ MX2 Jets.................................................. 45
11.10 Adjusting RX Jets ........................................................................ 45
11.11 Waterfall Control .......................................................................... 46
11.12 Air Controls .................................................................................. 46
11.13 Selecting the Desired Massage Action ........................................ 46
11.14 Indicator Light .............................................................................. 46
11.15 Optional Exterior Lights ............................................................... 46
11.16 Optional SmartTub™ System ...................................................... 47
12.0 Programming and Operation Instructions............................... 48
12.1 Programming the Heating Mode.................................................. 49
12.2 Programming the Primary Filter................................................... 50
12.3 Programming the Secondary Filter.............................................. 51
12.4 Cleanup Cycle ............................................................................. 52
12.5 Blow-Out Cycle............................................................................ 52
12.6 Water Care Programming............................................................ 52
12.7 Optional Wi-Fi Setup (not applicable if
the optional SmartTub™ system is installed) .............................. 55
12.8 Locking the Spa........................................................................... 56
12.9 Programming the Time and Date................................................. 57
12.10 Programming the Language ........................................................ 58
12.11 Units Display................................................................................ 58
12.12 System Information...................................................................... 58
13.0 Spa Maintenance........................................................................ 59
13.1 Cleaning the Filter Cartridges...................................................... 59
13.2 Draining and Relling................................................................... 62
13.3 Cleaning the Spa Interior............................................................. 65
13.4 Pillow Care................................................................................... 65
13.5 Maintaining the Synthetic Cabinet ............................................... 65
13.6 Cleaning the Control Panel.......................................................... 65
13.7 Cover Care and Maintenance...................................................... 65
13.8 Winterizing................................................................................... 66
13.9 Restarting Your Spa in Cold Weather .......................................... 67

14.0 Water Quality Maintenance ....................................................... 68
14.1 pH Control.................................................................................... 68
14.2 Sanitizing ..................................................................................... 68
14.3 Other Additives ............................................................................ 69
14.4 CLEARRAY® (Ultraviolet) Water Purication System ................. 69
14.5 CLEARRAY® Bulb Replacement and Quartz
Tube Maintenance ....................................................................... 70
15.0 Error/Display Messages ............................................................ 73
16.0 Troubleshooting Procedures .................................................... 77
17.0 Typical Spa Wiring Diagrams.................................................... 79
17.1 Wiring diagram for North American 60 Hz Models Only .............. 79
18.0 Circuit Board Wiring Diagrams................................................. 80
18.1 2-Pump Domestic 60Hz Wiring Diagram..................................... 80
18.2 3-Pump Domestic 60Hz Wiring Diagram..................................... 81
18.3 Dip Switch Settings...................................................................... 82

1
J-400
1.0 Important Spa Owner Information
Your Jacuzzi®spa is constructed to the highest standards and is capable
of providing many years of trouble-free use. However, because heat reten-
tive materials are utilized to insulate the spa for efcient operation, an
uncovered spa surface and wall ttings directly exposed to sunlight and
high temperatures for an extended period are subject to permanent dam-
age or discoloration. Damage caused by exposing the spa to this abuse
is not covered under warranty. We recommend that you always keep the
spa full of water when it is exposed to direct sunlight and that you keep the
Jacuzzi insulating cover in place at all times when the spa is not in use.
Read and carefully follow the requirements for your spa’s support base
found in the Section 4.0 titled, “Choosing a Location” (page 9).
Jacuzzi® Hot Tubs constantly strives to offer the nest hot tubs
available, therefore, modications and enhancements may be made
which affect the specications, illustrations and/or instructions
contained herein.
2.0 FCC Notice
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
1. Rearrange or relocate the receiving antenna;
2. Increase the separation between the equipment and receiver;
3. Connect the equipment into an outlet on a circuit different from the
circuit connected;
4. Consult the dealer or an experienced radio/TV technician for help.
(Changes or modications not expressly approved by the party
responsible for FCC compliance could void the user’s authority to
operate this equipment.)
2.1 Industry Canada (IC) Information
The installer of this radio equipment must ensure that the antenna
is located or pointed such that it does not emit RF eld in excess of
Health Canada limits for the general population; consult Safety Code 6,
obtainable from Health Canada’s website: www.hc-sc.gc.ca.

2
J-400
3.0 Important Safety Instructions for all Spa Owners
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY!
This spa was manufactured to meet the standards and specications
outlined in the “Virginia Graeme Baker Pool and Spa Safety Act” (VGB
Safety Act). When installing and using this spa, basic safety precautions
should always be followed, including:
1. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
• Extreme caution must be exercised to prevent unauthorized access
by children.
• To avoid accidents, ensure that children do not use this spa unless
supervised at all times. Adult supervision is a critical safety factor in
preventing children from drowning.
• Use the straps and clip tie downs to secure the spa cover when not
in use. This will help discourage unsupervised children from entering
the spa. Keep the spa cover secure in high-wind conditions.
• There is no representation that the cover, clip tie-downs, or actual
locks will prevent access to the spa.
2. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
• Keep hair, loose articles of clothing or hanging jewelry away from
suction ttings, rotating jets or other moving components to avoid
entrapment that could lead to drowning or severe injury.
• Never use the spa unless all suction guards, lter, lter lid, or
skimmer assembly are installed to prevent body and/or hair
entrapment.
• Never operate or use the spa if the lter, lter lid, or skimmer
assembly are broken or any part of the skimmer assembly is missing.
Please contact your dealer or nearest service center for service.
• The suction ttings and suction covers in this spa are sized to match
the specic water ow created by the pump(s). If it is necessary to
replace the suction ttings, suction covers or pump(s), be sure that
the ow rates are compatible and are in compliance with the VGB
Safety Act.
• Never replace a suction tting or suction cover with one rated less
than the ow rate marked on the original suction tting. Using
improper suction ttings or suction covers can create a body or hair
suction entrapment hazard that may lead to drowning or severe
injury.
3. !DANGER: RISK OF SEVERE INJURY FROM ELECTRIC
SHOCK OR DEATH FROM ELECTROCUTION!
• Install the spa at least 5 feet (1.5m), from all metal surfaces. As an
alternative, a spa may be installed within 5 feet of metal surfaces
if each metal surface is permanently connected (bonded) by a
minimum No. 8 AWG (8.4 mm²) solid copper conductor attached
to the wire connector on the grounding lug, inside the equipment
compartment on the equipment box.

3
J-400
• A grounding wire connector is provided on this unit to connect a
minimum No. 8 AWG (8.4 mm²) solid copper conductor between
this unit and any metal equipment, metal enclosures of electrical
equipment, metal water pipe, or conduit within 5 feet (1.5m) of the
unit.
• Never permit any electrical appliance, such as a light, telephone,
radio, television, etc. within 5 feet (1.5m) of a spa unless such
appliances are built-in by the manufacturer.
• Never bring any electrical appliances into or near the spa.
• Never operate any electrical appliances from inside the spa or when
you are wet.
• The electrical supply for this product must include a suitably rated
switch or circuit breaker to open all ungrounded supply conductors
to comply with Section 422-20 of the National Electrical Code/USA,
ANSI/NFPA 70. The disconnecting means must be readily accessible
and visible to the spa occupant but installed at least 5 feet (1.5m),
from the spa.
• The electrical circuit supplied for the hot tub must include a suitable
ground fault circuit interrupter (GFCI) as required by NEC Article
680-42.
4. !WARNING: RISK OF SEVERE INJURY OR DEATH!
• Extreme caution must be exercised to prevent diving or jumping
into the spa or slipping and falling, which could result in
unconsciousness, drowning, or serious injury. Remember that wet
surfaces can be very slippery.
• Never stand, walk or sit on the top railing of the spa.
5. !WARNING: RISK OF HYPERTHERMIA (OVER-HEATING)
CAUSING SEVERE INJURY, BURNS, WELTS OR DEATH!
• Water temperature in excess of 104°F (40°C) may be injurious to
your health.
• Refer to Section 3.2 Hyperthermia for specic causes and symptoms
of this condition.
• The water in the spa should never exceed 104°F (40°C). Water
temperatures between 100°F (38°C) and 104°F (40°C) are
considered safe for a healthy adult.
• Lower water temperatures are recommended for young children
(children are especially sensitive to hot water) and when spa use
may exceed 10 minutes.
• The Consumer Products Safety Commission/USA has stated that the
water temperature in a spa should not exceed 104°F (40°C).
• Always test the spa water temperature before entering the spa.
The user should measure the water temperature with an accurate
thermometer since the tolerance of water temperature-regulating
devices may vary as much as +/- 5°F (2°C).

4
J-400
6. !WARNING: RISK OF SEVERE INJURY OR DEATH!
• Since excessive water temperatures have a high potential for causing
fetal damage during the early months of pregnancy, if pregnant or
possibly pregnant, consult your physician before using a spa.
• Pregnant or possibly pregnant women should limit spa water
temperatures to 100°F (38°C).
• Persons suffering from obesity or a medical history of heart disease,
low or high blood pressure, circulatory system problems, diabetes,
infectious diseases or immune deciency syndromes should consult a
physician before using a spa.
• If you experience breathing difculties in association with using or
operating your spa, discontinue use and consult your physician.
• Persons using medication should consult a physician before using
a spa since some medication may induce drowsiness, while other
medication may affect heart rate, blood pressure, and circulation.
• Persons suffering from any condition requiring medical treatment, the
elderly, or infants should consult with a physician before using a spa.
• The use of alcohol, drugs, or medication before or during spa use may
lead to unconsciousness with the possibility of drowning.
7. !WARNING: RISK OF SEVERE INJURY OR DEATH!
• Prolonged immersion in a spa may be injurious to your health.
• Observe a reasonable time limit when using the spa. Exposures at
higher temperatures can cause high body temperature (over-heating).
Symptoms may include dizziness, nausea, fainting, drowsiness, and
reduced awareness. These effects could possibly result in drowning or
serious injury.
• Never use a spa immediately following strenuous exercise. Enter and
exit the spa slowly. Wet surfaces can be slippery.
8. !WARNING: TO DECREASE RISK OF INFECTION OR DIS-
EASE!
• To reduce the risk of contracting a waterborne illness (e.g. an infection,
bacteria or virus) and/or respiratory ailments , maintain water chemistry
within the parameters listed on the inside cover of this manual and
consult with a licensed engineer regarding proper ventilation if installed
indoors or in an enclosed area.
• People with infectious diseases should not use a spa to avoid water
contamination, which could result in spreading infections to others.
• Always shower before and after using your spa. Maintain water chem-
istry in accordance with manufacturer’s instructions. Failure to do
so may result in contracting a waterborne illness (e.g. an infection,
bacteria or virus).

5
J-400
9. !WARNING: In addition to maintenance of lters and water
chemistry, proper ventilation is recommended to reduce the risk of
contracting a waterborne illness (e.g. an infection, bacteria or virus)
and/or respiratory ailments that could be present in the air or water.
Consult a licensed architect or building contractor to determine your
specic needs if installing your hot tub indoors.
10. CAUTION: TO DECREASE RISK OF PRODUCT DAMAGE.
• Maintain water chemistry in accordance with manufacturer’s
instructions.
• Proper chemical maintenance of spa water is necessary to maintain
safe water and prevent possible damage to spa components.
11. !WARNING: RISK OF SEVERE INJURY OR DEATH! The
appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experi-
ence or knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible
for their safety.
12. NOTE: This spa is not intended nor designed to be used in a com-
mercial or public application. The spa buyer shall determine whether
there are any code restrictions on the use or installation of this spa
since local code requirements vary from one locality to another.
Hot Tub Safety Literature
To ensure you have a safe and enjoyable hot tub experience,
learn all you can about hot tub safety and emergency procedures.
Especially useful are the brochures listed below:
• Children Aren’t Waterproof
• Pool and Spa Emergency Procedures For Infants and Children
• Layers of Protection
• The Sensible Way to Enjoy Your Spa or Hot Tub
The Association of Pool and Spa Professionals publishes these
brochures. To acquire a brochure:
• Ask your hot tub dealer (they may have copies)
• Go to http://apsp.org
• Conduct your own search on the internet
• Write to the following address:
The Association of Pool and Spa Professionals
2111 Eisenhower Avenue
Alexandria VA 22314
703.838.0083

6
J-400
6530-460 Rev A (12/18)
FOR CALIFORNIA RESIDENTS ONLY
NUR FÜR EINWOHNER KALIFORNIENS
POUR LES RÉSIDENTS DE LA CALIFORNIE SEULEMENT
PARA RESIDENTES DE CALIFORNIA ÚNICAMENTE
WARNING: Drilling, sawing, sanding or machining wood products
can expose you to wood dust, a substance known to the State of
California to cause cancer. Avoid inhaling wood dust or use a dust
mask or other safeguards for personal protection. For more infor-
mation go to www.p65Warnings.ca.gov/wood
ACHTUNG: Das Bohren, Sägen, Schleifen oder Zerspanen von
Holzprodukten kann Stäube freisetzen. Diese Substanz gilt im
US-Bundesstaat Kalifornien als krebserregend. Möglichst keinen
Holzstaub einatmen bzw. eine Staubmaske oder anderweitige
persönliche Schutzmaßnahmen einsetzen. Weitere Informationen
finden Sie auf www.P65Warnings.ca.gov/wood
ADVERTENCIA: Perforar, cortar, lijar o usar máquinas con pro-
ductos de madera le puede exponer a polvo de madera, una sub-
stancia reconocida por el Estado de California como causante de
cáncer. Evite inhalar polvo de madera o utilice una máscara antipol-
vo u otros resguardos para protección personal. Para más infor-
mación, visite www.P65Warnings.ca.gov/wood
AVERTISSEMENT: Le forage, le sciage, le ponçage ou l'usinage
des produits du bois peuvent vous exposer à la poussière de bois,
une substance connue dans l'État de Californie pour causer le
cancer. Éviter d'inhaler la poussière de bois ou utiliser un masque
antipoussières ou d'autres mesures de protection personnelle. Pour
de plus amples renseignements, consulter le site www.P65Warn-
ings.ca.gov/wood
FOR CALIFORNIA RESIDENTS ONLY
NUR FÜR EINWOHNER KALIFORNIENS
POUR LES RÉSIDENTS DE LA CALIFORNIE SEULEMENT
PARA RESIDENTES DE CALIFORNIA ÚNICAMENTE
WARNING: Cancer and Reproductive Harm
www.p65Warnings.ca.gov
ACHTUNG: Krebserregend und mit fortpflanzungsschä-
digender Wirkung-www.p65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo
www.p65Warnings.ca.gov
AVERTISSEMENT: Cancer et danger pour la reproduction
www.p65Warnings.ca.gov
6530-464 Rev A (12/18)

7
J-400
3.1 Entrapment Risk
The Consumer Products Safety Commission/USA has reported that
users of pools and spas have become entrapped (stuck) to drain and/or
suction ttings causing death, drowning, or serious injury (see diagram
below). This spa was manufactured to meet the standards and specica-
tions outlined in the “Virginia Graeme Baker Pool and Spa Safety Act”
(VGB Safety Act). Entrapment risk can be minimized if proper precau-
tions are taken.
DANGER: RISK OF PERSONAL INJURY OR DEATH!
Never operate the spa if a suction tting, suction cover,
lter, lter lid or skimmer assembly are broken, damaged or
missing.
!
Note: Suction covers must be replaced every 7 years.
1. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Hair entrapment: May occur if hair is entangled, knotted or snagged
in a drain suction or skimmer assembly. This has been reported in
persons who when submerge themselves underwater, allowing hair
to come close and/or within the reach of the suction fittings, suction
covers or skimmer assembly.
• Keep hair away from suction ttings, suction covers, lter, lter lid or
skimmer assembly.
• Children are at risk for hair entrapment if swimming under water.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
2. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Limb entrapment: May occur when a limb becomes entrapped,
inserted or sucked into a suction or outlet opening.
• Always keep suction ttings, suction covers, lter, lter lid or skimmer
assembly in place when operating to avoid limb entrapment.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.

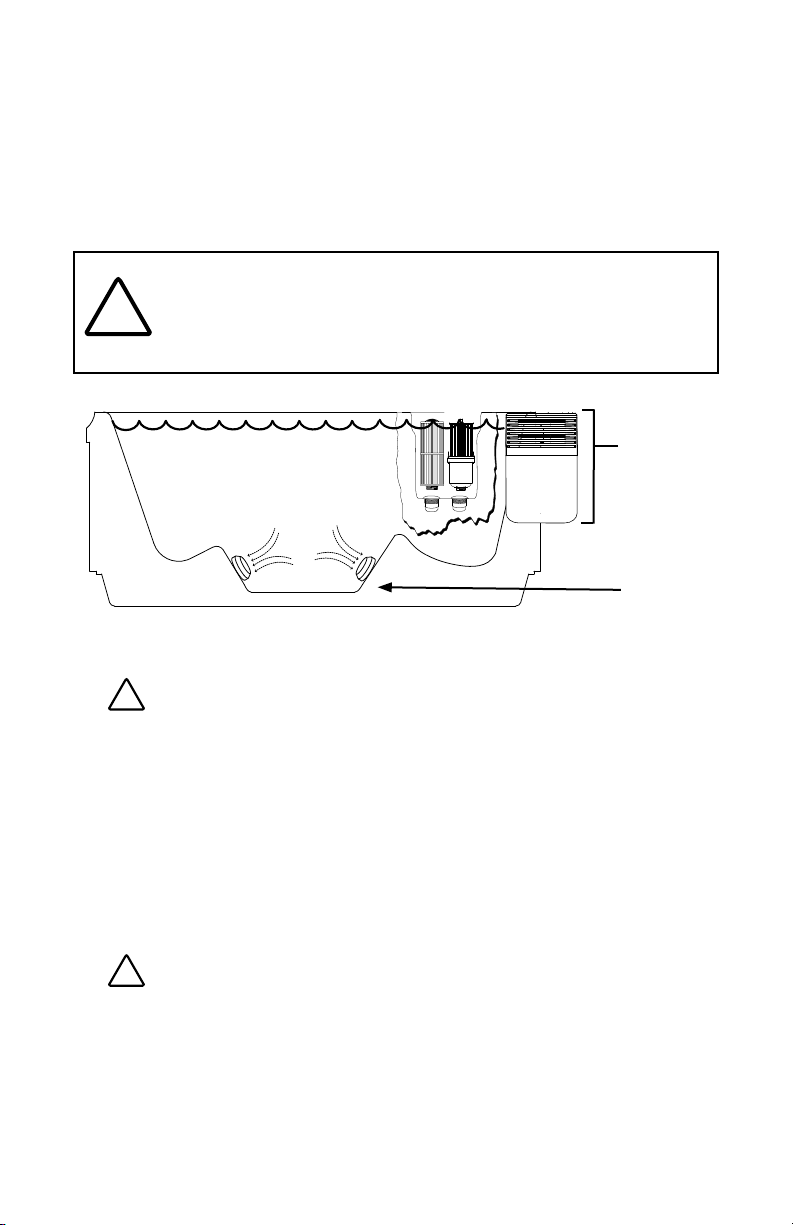

Suction Fittings,
Suction Covers
(locations vary
by models)
Filter, Filter
Lid, Skimmer
Assembly
(location and
style vary by
models)

8
J-400
3. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Body entrapment: May occur when part of the torso becomes
entrapped, inserted or sucked into a suction or outlet opening.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
4. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Evisceration (disembowelment) entrapment: May occur when the
buttocks becomes entrapped, inserted or sucked into a suction or
outlet opening.
• Never sit on suction ttings, suction covers, lter, lter lid or skimmer
assembly.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
5. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Mechanical entrapment: May occur when jewelry, swimsuit, or
hair accessories become entangled, knotted or snagged in a drain
suction or skimmer assembly.
• Never allow your jewelry, swimsuit, or hair accessories to come close
to the suction ttings, suction covers or skimmer assembly.
• Never allow children to play or get near the suction ttings, suction
covers, lter, lter lid or skimmer assembly.
3.2 Hyperthermia
Prolonged immersion in hot water may induce hyperthermia (over-
heating). The use of alcohol or drugs can greatly increase the risk of fatal
hyperthermia in spas. A description of the causes, symptoms, and effects
of hyperthermia are as follows:
Hyperthermia occurs when the internal temperature of the body reaches
a level several degrees above the normal body temperature of 98.6°F
(37°C). The symptoms of hyperthermia include drowsiness, lethargy
(fatigue), and an increase in the internal temperature of the body (feeling
of being too hot). The effects of hyperthermia include:
• Unawareness of impending hazard;
• Failure to perceive heat;
• Failure to recognize the need to exit spa;
• Physical inability to exit spa;
• Fetal damage in pregnant women; and
• Unconsciousness and danger of drowning.
A Warning Sign is provided in your warranty packet. Please install at
a location near your spa, where it is visible to users of the spa. For
additional or replacement Warning Signs please contact your local
Jacuzzi dealer and reference item number #6530-082.

9
J-400
3.3 Important safety instructions
When using this electrical equipment, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. A green colored terminal or a terminal marked G, Gr, Ground,
Grounding or the symbol* is located inside the supply terminal box
or compartment. To reduce the risk of electric shock, this terminal
must be connected to the grounding means provided in the electric
supply service panel with a continuous copper wire equivalent in size
to the circuit conductors that supply this equipment. *IEC Publication
417, Symbol 5019.
3. At least two lugs marked “Bonding Lugs” are provided on the
external surface or on the inside of the supply terminal box/
compartment. To reduce the risk of electric shock, connect the local
common bonding grid in the area of the spa to these terminals with
an insulated or bare copper conductor not smaller than No. 6 AWG
(10 mm²).
4. All eld-installed metal components such as rails, ladders, drains or
other similar hardware within 10 feet (3m) of the spa shall be bonded
to the equipment grounding buss with copper conductors not smaller
than No. 6 AWG (10 mm²).
5. SAVE THESE INSTRUCTIONS.
4.0 Choosing a Location
IMPORTANT: Because of the combined weight of the spa, water
and users, it is extremely important that the base upon which the
spa rests be smooth, at, level and capable of uniformly supporting
this weight, without shifting or settling, for the entire time the spa is
in place. Visit www.Jacuzzi.com for weight information. If the spa
is placed on a surface, which does not meet these requirements,
damage to the skirt and/or the spa shell may result. Damage
caused by improper support is not covered under warranty. It is the
responsibility of the spa owner to assure the integrity of the support
at all times. We recommend a poured, reinforced concrete slab with
a minimum thickness of 4 inches (10 cm). Wood decking is also
acceptable provided it is constructed so that it meets the require-
ments outlined above.
WARNING: For spas that are to rest on balconies, roofs
or other platforms not specically tied into main structural
support, consult a professional Structural Engineer with
experience in this type of application.
!

10
J-400
WARNING: Proper drainage is required. The installation
must not allow the spa equipment bay to become ooded
or wetted (by external water). It is your responsibility, and
the responsibility of any installation contractor you hire, to
make sure that all applicable codes and/or local construction
requirements are met. If in doubt, refer to the building authority
responsible for approving the proposed installation site.
!
The spa must be installed in such a manner as to provide drainage away
from it. Placing the spa in a depression without provisions for proper
drainage could allow rain, overow, leaks from spa plumbing, and other
casual water to ood the equipment and create a wet condition in which it
would sit in. For spas which will be installed below grade or recessed into
a oor or deck, install so as to permit access to the equipment, either from
above or below, for servicing. Make certain that there are no obstructions,
which would prevent removal of all side cabinet side panels and access
to the jet components, especially on the side with the equipment bay, and
sufcient ventilation for the spa’s components.
CAUTION: If the spa is indoors or located in an enclosed area,
proper ventilation should be discussed with an Engineer or authority
competent enough to understand the necessary provisions needed
to vent moist or heated air and air associated with chemical odors
outdoors. When the spa is in use considerable amounts of
moisture will escape potentially causing mold and mildew. This
can cause health risk. Over time, this can damage certain surfaces,
surroundings, and equipment.
4.1 Outdoor Location
In selecting the ideal outdoor location for your spa, we suggest that you
take into consideration:
• The proximity to changing area and shelter (especially in colder
weather).
• The pathway to and from your spa (this should be free of debris so
that dirt and leaves are not easily tracked into the spa).
• The closeness to trees and shrubbery (remember that leaves and
birds could create extra work in keeping the spa clean).
• A sheltered environment (less wind and weather exposure can result
in lowered operation and maintenance costs).
• The overall enhancement of your environment. It is preferable not to
place the spa under an unguttered roof overhang since run-off water
will shorten the life expectancy of the spa cover.
• For spas that are to rest on balconies, roofs or other platforms not
specically tied into main structural support, consult a professional
Structural Engineer with experience in this type of application.
• In the unlikely event that you should ever need to access or gain
entry to any portion of the spa for servicing, it is highly recommended
that you plan your outdoor installation to provide full access to the
entire spa. Please take this into consideration when placing the spa
in a deck or enclosed by a surrounding.
!

11
J-400
• Consider locating your spa away from any reective surface or glass
to prevent any damage to the synthetic skirt.
• Do not shim the spa. To ensure proper support the spa must sit at
on the intended foundation.
4.2 Indoor Location
For indoor installations many factors need to be considered before
installing a spa indoors.
WARNING: In addition to maintenance of lters and water
chemistry, proper ventilation is recommended to reduce the
risk of contracting a waterborne illness (e.g. an infection, bac-
teria or virus) and/or respiratory ailments that could be pres-
ent in the air or water. Consult a licensed architect or building
contractor to determine your specic needs if installing your
hot tub indoors.
!
• Proper Foundation: Consult a Structural Engineer when
considering a foundation that will adequately support the spa
the entire time it is in place. Proper support is critical especially
if the spa is to rest on a second story or higher. For spas that are
to rest on balconies, roofs or other platforms not specically tied
into the main structural support, you should consult a professional
Structural Engineer with experience in this type of application.
• Proper Drainage: It is extremely important to have in place
measures to sufciently handle excessive water spillage. Be
sure the ooring in which the spa rests on has adequate drainage
and can handle the entire contents of the spa. Be sure to make
provisions for ceilings and other structures that may be below the
spas installation. Areas around your spa can become wet or moist so
all ooring and subsequent furniture, walls and adjacent structures
should be able to withstand or resist water and moisture.
• Proper Ventilation: Proper ventilation should be discussed with
an Engineer or authority competent enough to understand the
necessary provisions needed to vent moist or heated air and air
associated with chemical odors outdoors. When the spa is in use
considerable amounts of moisture will escape, potentially causing
mold and mildew over time, which can damage certain surfaces and/
or surroundings.
• Sufcient Access: In the unlikely event that you should ever need
to access or gain entry to any portion of the spa for servicing, it is
highly recommended that you plan your indoor installation to provide
full access to the entire spa.
• Warranty: Damage caused by not following these guidelines or any
improper installation not in accordance to local codes or authorities is
not covered under the spas warranty. Please consult your local state
or city building ordinances.
• Do not shim the spa. To ensure proper support the spa must sit at
on the intended foundation.

12
J-400
5.0 General Electrical Safety Instructions
Your new Jacuzzi® spa is equipped with the ProTouch™
system. It contains the most advanced safety and self-
protective equipment in the industry. Nonetheless, this spa
must be installed properly to ensure dependable usage.
Please contact your local Jacuzzi dealer or local building department
should you have any questions regarding your installation. Proper
grounding is extremely important. Jacuzzi spas are equipped with a
current collector system. A pressure wire connector is provided on the
surface of the control box, located inside the equipment door (page
14) to permit connection of a bonding wire between this point and any
ground metal equipment, metal water pipe or conduit within 5 feet (1.5m)
of the spa, or copper clad grounding rod buried within 5 feet (1.5m) of the
spa. Bonding wire must be at least No. 8 AWG (8.4 mm²) solid copper
wire. This is a most important safety assurance feature. Before installing
your spa, check with your local building department to ensure installation
conforms to local building codes.
6.0 Electrical Installation Instructions
(240V Service)
IMPORTANT NOTICE: The electrical wiring of this spa must
meet the requirements of the National Electrical Code/USA
(NEC) and any applicable state or local codes. The electrical circuit must
be installed by a qualied electrician and approved by a local building/
electrical inspection authority.
1. !DANGER: TO DECREASE THE RISK OF SHOCK,
PRODUCT DAMAGE OR ELECTRICAL FIRE.
This spa must be permanently connected (hard-wired) to the power
supply. No plug-in connections or extension cords are to be
used in conjunction with the operation of this spa. Supplying
power to the spa, which is not in accordance with these instructions,
will void both the independent testing agency listing and the
manufacturer’s warranty.
2. The power supplied to this spa must be a dedicated circuit with no
other appliances or lights sharing the power provided by the circuit.
3. To determine the current, voltage and wire size required, refer to Section
7.0 “Power Requirements” (page 15) for your specic spa model.
• Wire size must be appropriate per NEC and/or local codes.
• The spa controller’s terminal block will accept a maximum wire size
of 6 AWG.
4. The electrical supply for this product must include a suitably rated
switch or circuit breaker to open all ungrounded supply conductors
to comply with Section 422-20 of the National Electrical Code/USA,
ANSI/NFPA 70. The disconnecting means must be readily accessible
to the spa’s occupant but installed at least 5 feet (1.5m) from spa
water.

13
J-400
5. The electrical circuit supplied for the spa must include a suitable
ground fault circuit interrupter (GFCI) as required by NEC Article
680-42/USA.

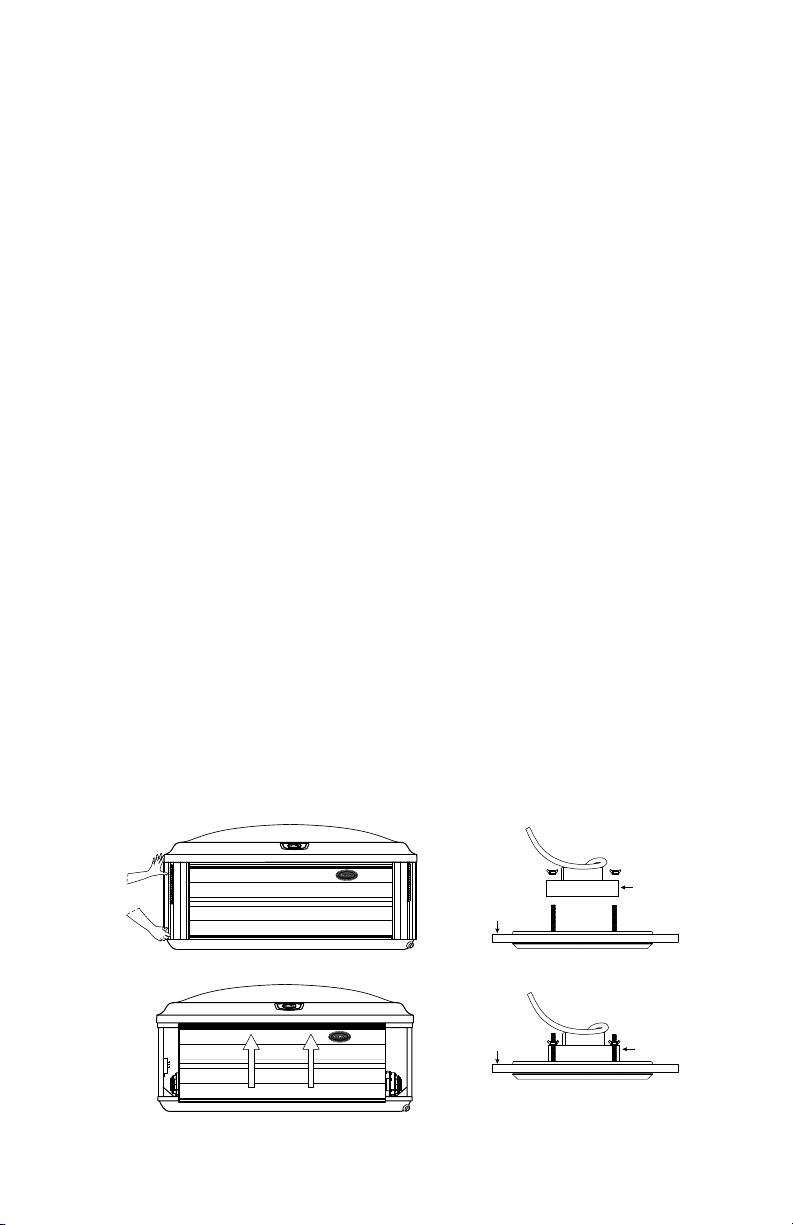

6. To gain access to the spa’s power terminal block:
• Grab one of the corner panels, from the bottom, where it touches
the bottom pan. Then gently pull the panel forward to unsnap it
from the holding clip then pull down to remove, Figure A. Place the
panel in a safe location to prevent from damaging it. Repeat the
steps to remove the other corner panel. Note: The optional corner
exterior lights on the panels are connected to the light harness.
Take care when removing the corner panels to avoid damaging
the wires or lights.
• Grab the bottom of the front panel and slightly lift to release it from
the top mount. Tilt the panel and pull down to remove. Place the
panel in a safe location to prevent from damaging it.
• The Jacuzzi indicator light is installed on the front panel. Take
care when removing the panel to avoid damaging the wires or
light. Remove the wing nuts from the indicator light to remove the
light housing. Once the light housing is removed, reinstall the wing
nuts or place them in a safe location, Figure A.
7. Select the power supply entrance you want to use, Figure B. Make
sure to install a 3/4" electrical tting and conduit through the large
opening provided in the bottom of the control box so you can feed
the cable through to the terminal block.
8. Connect wires to the terminal block (Figure D). ALL WIRES MUST
BE SECURELY CONNECTED or equipment damage could result!
Note: Exposure of the cabinet to heat could cause the cabinet to warp.
Should the cabinet warp, once it is installed, the warping is not visible.
However, it does make the removal and replacement a little more
challenging.
Figure A
100
6:45p
FRONT
PANEL
FRONT
PANEL
LIGHT
HOUSING
LIGHT
HOUSING
100
6:45p

14
J-400
Figure B

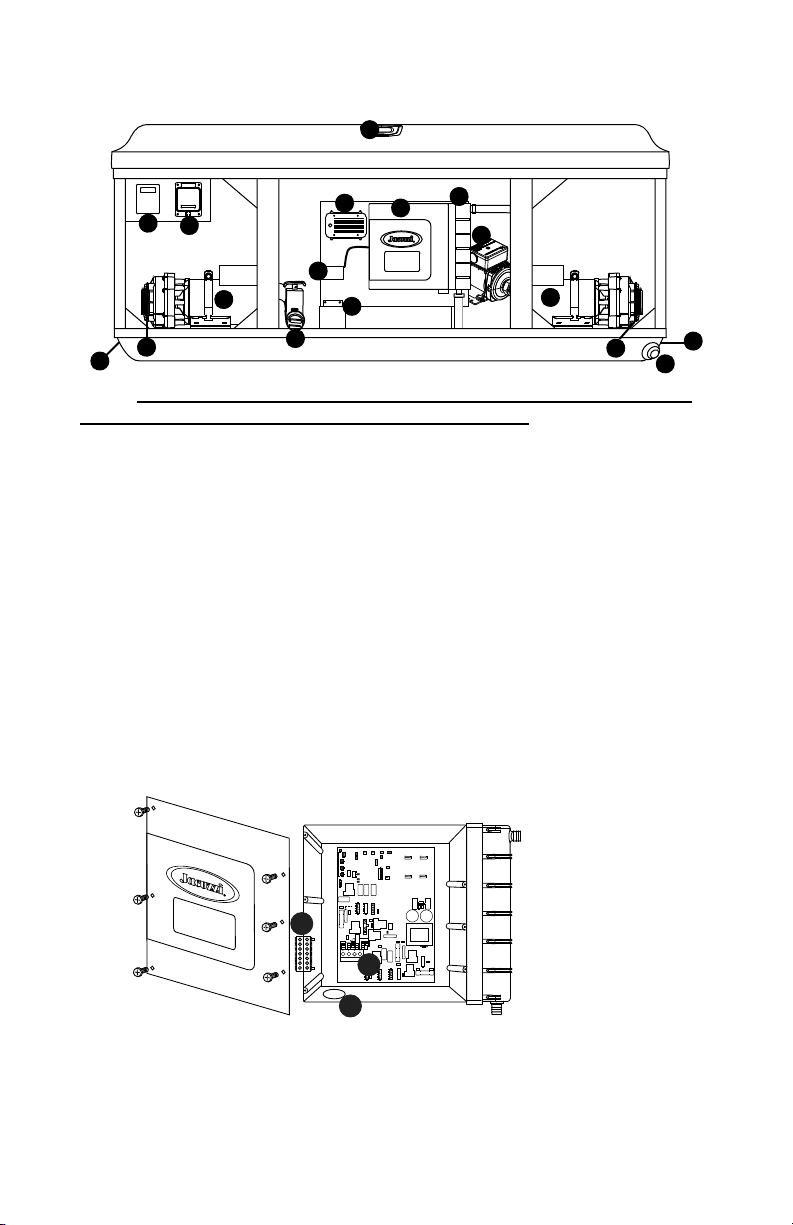

Equipment Area
Figure C
Control Box Connection
10 910
6
2
3
1
5
11
11
12
7
15
14
4
13
8
Note: Equipment location and quantity (such as pumps, CLEARRAY
system, stereo, drain, heater etc.) varies by model.
1. ProTouch™ Control Panel
2. ProTouch™ Control Box
3. Heater
4. Filter/Circulation Pump
5. Jets Pump
6. Jets Pump
7. CLEARRAY® Water
Purication System
8. CLEARRAY® Water
Purication System
Ballast
9. QuickDrain™
10. Pump Drain Plugs(s)
11. Power Supply Entrance(s)
12. Drain
13. BLUEWAVE® 2.0 Wireless
Stereo (Optional)
14. SmartTub™ System
(Optional)
15. Bridge (optional for
SmartTub System)
F110A 250VAC
F7 30A
30A
F6
K12
K1
K9
K15
K14
T1
TB1
4 3 2 1
K5
J22
N/A
N/A
J43
J2
K13
J65
J51 J3
J52
J4
J61
J62
J49
K11
K10 J59
J44
J48
J39
2A250VAC
F5
30A
F4
J28
J30
J27
J34 J29
J50 J56
J57
J63
J37
K8
K4
K6 K7
1/4AT250VAC
F2
J16
J17
J18
ON
J1
J6
J9
J20
J21
J19 J67
J12
K3
J11 J13 J14 J15
J10
J24
ZONE2 J25
ZONE3
J23
ZONE1
J26
ZONE4
C58 C57
K2
GFCI TRIP
J8
Q32
J60
J66
J55
J54
J38
J53
J45
J46
J47
J41
J58
J42
J31
J32
J33
J40
J64
J36
J35
1
2
3
4
S1
J7 J69 J68
1
2
3
1. Main Terminal Block
2. Bonding Lug/Grounding Terminal
3. Power wires Entrance (Electrical tting and conduit
must be installed)
