Jacuzzi Finestra FL61000 Installation instructions

FINESTRA WALK-IN BATH
INSTALLATION / OPERATION INSTRUCTIONS
Installer: Leave this manual for homeowner.
Homeowner: Read this manual and keep for future reference.
ALSO FIND MANUAL ON-LINE AT JACUZZI.COM
Copyright © 2007 by Jacuzzi Whirlpool Bath FL61000B • October 2007
Save These Instructions for Future Use.
Complete and mail in the product registration card provided with your unit.
Write and save the model and serial number of your unit below.
Owner's Record
Date Purchased _________________________________________________________
Purchased From _________________________________________________________
Installed By _____________________________________________________________
Serial Number ___________________________________________________________
Model__________________________________________________________________

Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 2 FL61000B • 10/07
WARNING: When using this unit, basic precautions should always be followed, including the following.
WARNING: Use this unit only for its intended use as described in this manual. Do not use attachments not recommended by the
manufacturer.
DANGER: To reduce the risk of injury, do not permit children to use this unit unless they are closely supervised at all times.
WARNING: Never drop or insert any object into any opening.
CAUTION: Risk of Electric Shock: The Finestra Bath may have two power sources in which case two disconnect switches are
required to de-energize the unit before servicing.
INSTALLATION
NOTE: This is a professional grade product. A knowledge of construction techniques, plumbing and electrical installation
according to codes are required for proper installation and user satisfaction. We recommend that a licensed contractor perform the
installation of all Jacuzzi Whirlpool Bath products. Our warranty does not cover improper installation related problems.
NOTE: Install this unit in accordance with the Canadian Electrical Code, Part 1.
CAUTION: This equipment is intended for indoor use only. Install the equipment in accordance with these instructions. Use supply
wires that are suitable for 75°C, including the temperature rating of the supply conductors to be used.
This unit should be electrically grounded and installed by a licensed contractor, electrician, and plumber.
Building materials and wiring should be routed away from the motor/pump or blower or other heat producing components of this
unit.
A pressure wire connector is provided on the exterior of the motor/pump and heater to permit connection of an No. 8 AWG (8.4
mm) solid copper bonding conductor between this unit and all other electric equipment and exposed metal in the vicinity, as needed
to comply with local requirements.
WARNING: This unit must be connected only to a supply circuit that is protected by a 15 A ground fault circuit interrupter (GFCI).
Such a GFCI should be provided by the installer and should be tested on a routine basis. To test the GFCI, push the test button.
The GFCI should interrupt power. Push the reset button. Power should be restored. If the GFCI fails to operate in this manner,
the GFCI is defective. If the GFCI interrupts power to the bathtub without the test button being pushed, a ground current owing,
indicating a possibility of an electric shock. Do not use this hydromassage bathtub. Disconnect the hydromassage bathtub and
have the problem corrected by a qualied service representative before using.
WARNING: (For permanently connected units) A green-colored terminal (or a wire connector) marked “G,” “GR,” “GROUND,”
or “GROUNDING”) is provided within the terminal compartment. To reduce the risk of electric shock, connect the terminal or
connector to the grounding terminal of your electric service or supply panel with a conductor equivalent in size to the circuit
conductors supplying the equipment.
For built-in and drop-in units, install to permit access for servicing.
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS

Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 3 FL61000B • 10/07
OPERATION
CAUTION: Test the ground fault circuit interrupter protecting this appliance periodically in accordance with manufacturer’s
instructions.
WARNING: Risk of hyperthermia and possible drowning: Water temperature in excess of 104°F (40°C) may be injurious to your
health. Check and adjust water temperature before use.
WARNING: Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs when the internal temperature of
the body reaches a level several degrees above the normal body temperature of 98.6°F. The symptoms of hyperthermia include an
increase in the internal temperature of the body, dizziness, lethargy, drowsiness and fainting. The effects of hyperthermia include:
• Failure to perceive heat
• Failure to recognize the need to exit the spa or hot tub
• Unawareness of impending hazard
• Fetal damage in pregnant women
• Physical inability to exit the spa or hot tub
• Unconsciousness resulting in danger of drowning
WARNING: Risk of fetal injury: Pregnant or possibly pregnant women should consult a physician before using a hydromassage
bathtub equipped with a heater.
WARNING: The use of alcohol, drugs or medication can greatly increase the risk of fatal hyperthermia. People using medications
or having an adverse medical history should consult a physician before using a hydromassage bathtub equipped with a heater.
WARNING: Risk of hyperthermia and possible drowning: Do not use a hydromassage bathtub equipped with a heater immediately
following strenuous exercise.
WARNING: Do not operate this unit without the guard over the suction tting.
WARNING: Keep body and hair a minimum of 6” (152 mm) away from suction tting at all times when the hydromassage system is
operating. Hair longer than shoulder length should be secured close to the head.
WARNING: Do not tamper with user-operated controls or such devices.
WARNING: Use this unit only for its intended use as described in this manual. Do not use attachments not recommended by the
manufacturers.
WARNING: To avoid injury, exercise caution when entering or exiting the hydromassage bathtub.
WARNING: Risk of electrical shock: Do not permit electrical appliances such as a hair dryer, lamp, telephone, radio or television)
within 60” (1.5 m) of this hydromassage bathtub.

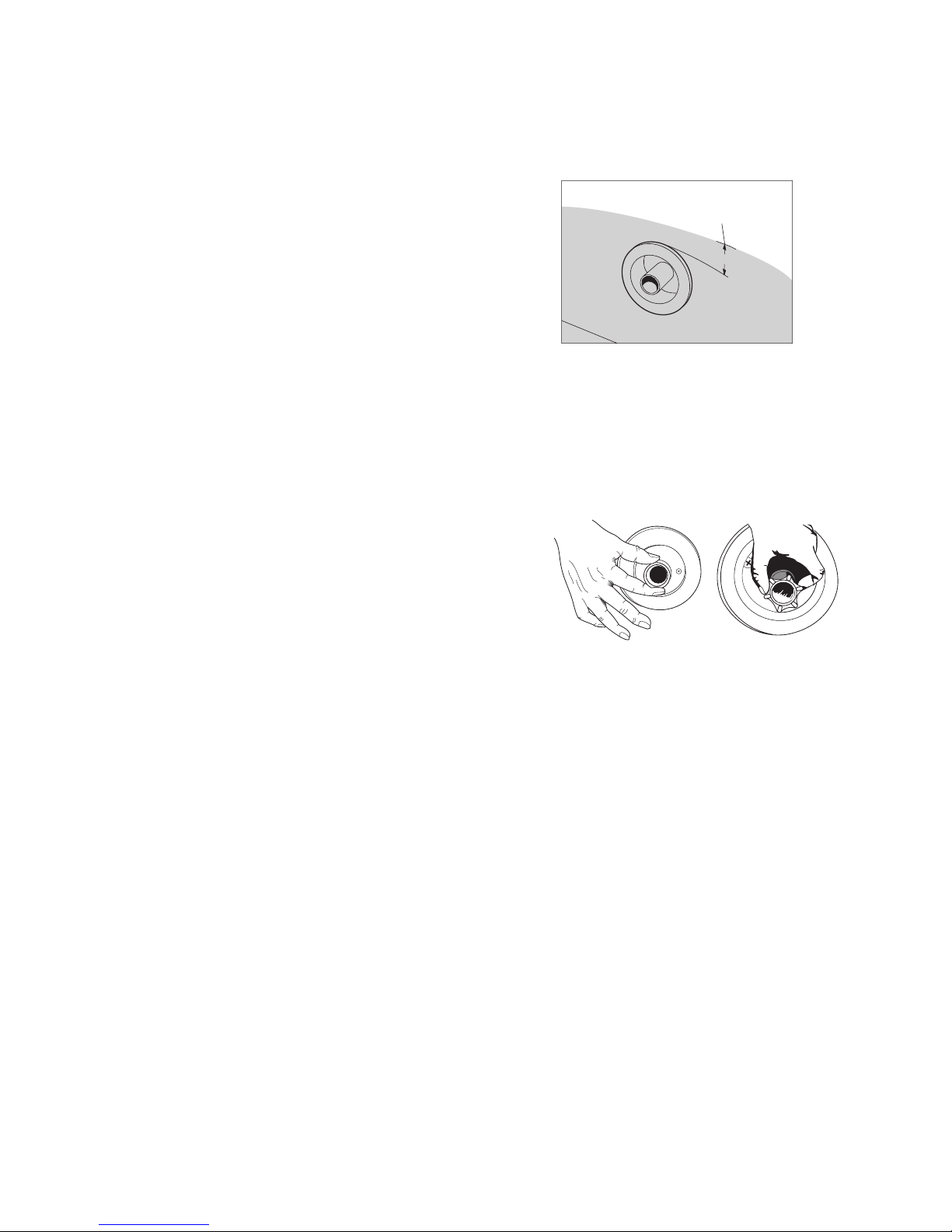

• Do not operate hydromassage system unless the bath is lled with water to at least 1-2” (25-51 mm) above highest jet
• Do not immerse the control panel by overlling the bath
• Do not use oil-based bath additives in your hydromassage bath
• When cleaning your bath, do not use abrasive substances which will damage the bath’s surface
• To prevent discoloration of the acrylic nish, do not ll the bath with water in excess of 140°F (60°C)
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
USE INSTALLATION INSTRUCTIONS SUPPLIED WITH PRODUCT.
The Company has obtained applicable code (standards) listings generally available on a national basis for products
of this type. It is the responsibility of the installer/owner to determine specic local code compliance prior to installation of the
product. The Company makes no representation or warranty regarding, and will not be responsible for any code compliance.

Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 4 FL61000B • 10/07
CONTENTS
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Framing and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Service Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Level Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Plumbing and Water Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Water Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Controlling Whirlpool Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Control Panel Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Proper Door Closure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Rapid Heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Vacuum Pressure Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
High Limit Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Pro3Ozone Sanitation System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning the Bath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Repairs to the Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Bath Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Purging the Whirlpool System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Systems Clean™ Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Ozone Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Suction/Intake Cover/Strainer Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Airbath Interconnection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Whirlpool Bath Interconnection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Salon Bath Interconnection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Authorized Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Warranty

Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 5 FL61000B • 10/07
SPECIFICATIONS
Important: Read complete instructions before beginning installation.
Each whirlpool bath arrives ready for installation, completely equipped with motor/pump assembly, heater, plumbing, and ttings
necessary for whirlpool operation. A rotary drain/overow kit is provided for installation on the bath, and an optional remote drain/
overow assembly is also available.
Remove the bath from the carton. Retain the shipping carton until satisfactory inspection of the product has been made. Do not lift
the bath by the plumbing at any time; handle by the shell only or the aluminum handles provided at the ends of the unit.
Immediately upon receipt, inspect the shell before installing. Should inspection reveal any damage or defect in the nish, do not
install the bath. Damage or defect to the nish claimed after the bath is installed is excluded from the warranty. Jacuzzi Whirlpool
Bath’s responsibility for shipping damage ceases upon delivery of the products in good order to the carrier. Refer any claims for
damage to the carrier. For denitions of warranty coverage and limitations, refer to the published warranty information packed with
the product.
All bath units are factory tested for proper operation and watertight connections prior to shipping.
NOTE: Prior to installation, the bath must be lled with water and operated to check for leaks that may have resulted from shipping
damage or mishandling. Jacuzzi Whirlpool Bath is not responsible for any defect that could have been discovered, repaired, or
avoided by following this inspection and testing procedure.
* Add 1/4" to this dimension when roughing-in for 3-wall niche.
FOR ALL UNITS: Electrical Service Requirements: All require a dedicated GFCI protected separate circuit (See page 7 to 12).
NOTE: 1. Measurements inside each unit represent cutout in oor to allow for drain/overow.
2. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
3. Service access dimensions given are minimum size.
4. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6.4 mm).
Model Dimensions
Drain/Overow
Dimensions Cutout
Total Weight/Floor
Loading
Operating
Gallonage
Product
Weight
Skirt/
Mounting Heater
Finestra™ 6030
LH, RH
60” (1524 mm) L
30” (762 mm) W
38-1/2” (952.5) H
15” (381 mm) A
11-11/16” (297 mm) B
See
below
1038 lb (472 kg),
41.5 lb/ft2(202 kg/m2)
55 gal (208 liter) min,
75 gal (284 liter) max
See pages
6 to 11
Integral Factory
installed
Finestra™ 6036
LH, RH
60” (1524 mm) L
36” (914 mm) W
38-1/2” (952.5) H
18” (457 mm) A
11-11/16” (297 mm) B
See
below
1177 lb (535 kg),
47.1 lb/ft2(229 kg/m2)
55 gal (208 liter) min,
85 gal (321 liter) max
See pages
6 to 11
Integral Factory
installed
DRAIN/OVERFLOW
A
B
BACK FRONTLEFT END RIGHT END
L
H
W
14"
1-1/2"
2"
6-1/2"
29-1/2"
16-3/4"
17-1/2"
13-3/4"
Service Access
Service
Access
SPECIFICATIONS LH=Left Hand, RH=Right Hand
11-11/16" 11-11/16"

Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 6 FL61000B • 10/07
SPECIFICATIONS
Technical Specifications
Dimensions
60” L x 30” W x 38-1/2” H
(1524 mm) L x (762 mm) W x (977.9 mm) H
Drain/Overflow
A: 31-1/2” (800 mm) B: 11-11/16” (297 mm)
Cutout
NA
Total Weight
EU50, EU55: 340 lb. (154.5 kg)
EY10, EY15: 340 lb. (154.5 kg)
EV85, EV90: 310 lb. (141 kg)
EY00, EY05: 310 lb. (141 kg)
Operating Gallonage
Max: 75 U.S. Gal. (284 liters)
Min: 55 U.S. Gal. (208 liters)
Product Weight
EU50, EU55: 280 lb. (127 kg)
EY10, EY15: 280 lb. (127 kg)
EV85, EV90: 260 lb. (118 kg)
EY00, EY05: 260 lb. (118 kg)
Skirt Mounting
NA
Electrical Specifications (Models EU50, EU55, EY10, EY15 only)
Motor/Pump and RapidHeat™: 120 VAC, 20 AMP, 60 Hz.
Heater
RapidHeat™: (P/N BN60000) comes standard on;
*(Models EU50, EU55, EY10, and EY15 only)
Installation Notes
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
Ordering Information
Product Code:
EU50 Finestra™ 6030 Walk-In 14" Seat Whirlpool Bath, LH
EU55 Finestra™ 6030 Walk-In 14" Seat Whirlpool Bath, RH
EY10 Finestra™ 6030 Walk-In 17” Seat Whirlpool Bath, LH
EY15 Finestra™ 6030 Walk-In 17” Seat Whirlpool Bath, RH
EV85 Finestra™ 6030 Walk-In 14" Seat Bath, LH
EV90 Finestra™ 6030 Walk-In 14" Seat Bath, RH
EY00 Finestra™ 6030 Walk-In 17” Seat Bath, LH
EY05 Finestra™ 6030 Walk-In 17” Seat Bath, RH
• Left and Right Hand drain locations
• Standard drain kit, No. FB48827
• Accessories / Hardware:
Remote Drain Kit: #FC30XXX
Pillow: #EK91959
• Trim Kit Finishes Available:
Standard Part No. BN21XXX
(827) – Chrome
(829) – Bright Brass
(898) – Brushed Chrome
(826) – Brushed Nickel
(845) – Oil-Rubbed Bronze
(805) – Platinum
(815) – Satin Nickel
DRAIN/OVERFLOW
A
B
BACK FRONTLEFT END RIGHT END
L
H
W
14" or 17"
1-1/2"
2"
6-1/2"
29-1/2"
16-3/4"
17-1/2"
13-3/4"
Service Access
Service
Access
60"
30"
17-1/2"
5"
15"
6-5/8"
37"
13-3/4"
20"
4" x 16"
27" H x 24" L
Service Access
Motor
SeatFloor
FINESTRA™ 6030
*Heater
27" H x 9" L
Service Access
Door
Finestra™ 6030 Walk-In 14" Seat Whirlpool Bath Left Hand (EU50) shown.
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum service access dimensions given.

Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 7 FL61000B • 10/07
SPECIFICATIONS
Technical Specifications
Dimensions
60” L x 30” W x 38-1/2” H
(1524 mm) L x (762 mm) W x (977.9 mm) H
Drain/Overflow
A: 31-1/2” (800 mm) B: 11-11/16” (297 mm)
Cutout
NA
Total Weight
EW05, EW10: 360 lb. (163.5 kg)
EY30, EY35: 360 lb. (163.5 kg)
Operating Gallonage
Max: 75 U.S. Gal. (284 liters)
Min: 55 U.S. Gal. (208 liters)
Product Weight
EW05, EW10: 310 lb. (141 kg)
EY30, EY35: 310 lb. (141 kg)
Skirt Mounting
NA
Electrical Specifications
Requires two seperate GFCI protected circuits.
Motor/Pump and RapidHeat™: 240 VAC, 20 AMP, 60 Hz.
Blower: 120 VAC, 20 AMP, 60 Hz.
Heater (Standard)
RapidHeat™: P/N BN60000
Installation Notes
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
Ordering Information
Product Code:
EW05 Finestra™ 6030 Walk-In 14" Seat Salon™ Spa
Bath, Left Hand
EW10 Finestra™ 6030 Walk-In 14" Seat Salon™ Spa
Bath, Right Hand
EY30 Finestra™ 6030 Walk-In 17" Seat Salon™ Spa
Bath, Left Hand
EY35 Finestra™ 6030 Walk-In 17" Seat Salon™ Spa
Bath, Right Hand
• Left and Right Hand drain locations
• Standard drain kit, No. FB48827
• Accessories / Hardware:
Remote Drain Kit: #FC30XXX
Pillow: #EK91959
• Trim Kit Finishes Available:
Standard Part No. BN21XXX
(827) – Chrome
(829) – Bright Brass
(898) – Brushed Chrome
(826) – Brushed Nickel
(845) – Oil-Rubbed Bronze
(805) – Platinum
(815) – Satin Nickel
DRAIN/OVERFLOW
A
B
BACK FRONTLEFT END RIGHT END
L
H
W
14" or 17"
1-1/2"
2"
6-1/2"
29-1/2"
16-3/4"
17-1/2"
13-3/4"
Service Access
Service
Access
60"
30"
17-1/2"
5"
15"
6-5/8”
37"
13-3/4"
20"
4" x 16"
Motor
SeatFloor
FINESTRA™ 6030
Blower
Heater
27" H x 24" L
Service Access
27" H x 9" L
Service Access
Door
Finestra™ 6030 Walk-In 14" Seat Salon™ Spa Bath Left Hand (EW05) shown.
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum service access dimensions given.

Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 8 FL61000B • 10/07
SPECIFICATIONS
Technical Specifications
Dimensions
60” L x 30” W x 38-1/2” H
(1524 mm) L x (762 mm) W x (977.9 mm) H
Drain/Overflow
A: 31-1/2” (800 mm) B: 11-11/16” (297 mm)
Cutout
NA
Total Weight
EV95, EW00: 320 lb. (145 kg)
EY20, EY25: 320 lb. (145 kg)
Operating Gallonage
Max: 75 U.S. Gal. (284 liters)
Min: 55 U.S. Gal. (208 liters)
Product Weight
EV95, EW00: 270 lb. (122 kg)
EY20, EY25: 270 lb. (122 kg)
Skirt Mounting
NA
Electrical Specifications
Requires a dedicated GFCI protected separate circuit.
Blower: 115 VAC, 15 AMP, 60 Hz.
Installation Notes
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
Ordering Information
Product Code:
EV95 Finestra™ 6030 Walk-In 14" Seat Pure Air Bath,
Left Hand
EW00 Finestra™ 6030 Walk-In 14" Seat Pure Air Bath,
Right Hand
EY20 Finestra™ 6030 Walk-In 17" Seat Pure Air Bath,
Left Hand
EY25 Finestra™ 6030 Walk-In 17" Seat Pure Air Bath,
Right Hand
• Left and Right Hand drain locations
• Standard drain kit, No. FB48827
• Accessories / Hardware:
Remote Drain Kit: #FC30XXX
Pillow: #EK91959
• Trim Kit Finishes Available:
Standard Part No. BN21XXX
(827) – Chrome
(829) – Bright Brass
(898) – Brushed Chrome
(826) – Brushed Nickel
(845) – Oil-Rubbed Bronze
(805) – Platinum
(815) – Satin Nickel
DRAIN/OVERFLOW
A
B
BACK FRONTLEFT END RIGHT END
L
H
W
14" or 17"
1-1/2"
2"
6-1/2"
29-1/2"
16-3/4"
17-1/2"
13-3/4"
Service Access
Service
Access
60"
30"
17-1/2"
5"
15"
6-5/8"
37"
13-3/4"
20"
4" x 16"
SeatFloor
FINESTRA™ 6030
Blower
27" H x 24" L
Service Access
27" H x 9" L
Service Access
Door
Finestra™ 6030 Walk-In 14" Seat Pure Air Bath Left Hand (EV95) shown.
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum service access dimensions given.

Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 9 FL61000B • 10/07
SPECIFICATIONS
Technical Specifications
Dimensions
60” L x 30” W x 38-1/2” H
(1524 mm) L x (762 mm) W x (977.9 mm) H
Drain/Overflow
A: 31-1/2” (800 mm) B: 11-11/16” (297 mm)
Cutout
NA
Total Weight
EU60, EU65: 360 lb. (163.5 kg)
EY50, EY55: 360 lb. (163.5 kg)
EW15, EW20: 340 lb. (154.5 kg)
EY40, EY45: 340 lb. (154.5 kg)
Operating Gallonage
Max: 85 U.S. Gal. (322 liters)
Min: 70 U.S. Gal. (265 liters)
Product Weight
EU60, EU65: 310 lb. (141 kg)
EY50, EY55: 310 lb. (141 kg)
EW15, EW20: 290 lb. (132 kg)
EY40, EY45: 290 lb. (132 kg)
Skirt Mounting
NA
Electrical Specifications (Models EU60, EU65, EY50, EY55 only)
Motor/Pump and RapidHeat™: 120 VAC, 20 AMP, 60 Hz.
Heater
RapidHeat™: P/N BN60000
*(Models EU60, EU65, EY50, EY55 only)
Installation Notes
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
Ordering Information
Product Code:
EU60 Finestra™ 6036 Walk-In 14" Seat Whirlpool Bath, LH
EU65 Finestra™ 6036 Walk-In 14" Seat Whirlpool Bath,
RH
EY50 Finestra™ 6036 Walk-In 17" Seat Whirlpool Bath, LH
EY55 Finestra™ 6036 Walk-In 17" Seat Whirlpool Bath, RH
EW15 Finestra™ 6036 Walk-In 14" Seat Bath, LH
EW20 Finestra™ 6036 Walk-In 14" Seat Bath, RH
EY40 Finestra™ 6036 Walk-In 17" Seat Bath, LH
EY45 Finestra™ 6036 Walk-In 17" Seat Bath, RH
• Left and Right Hand drain locations
• Standard drain kit, No. FB48827
• Accessories / Hardware:
Remote Drain Kit: #FC30XXX
Pillow: #EK91959
• Trim Kit Finishes Available:
Standard Part No. BN21XXX
(827) – Chrome
(829) – Bright Brass
(898) – Brushed Chrome
(826) – Brushed Nickel
(845) – Oil-Rubbed Bronze
(805) – Platinum
(815) – Satin Nickel
DRAIN/OVERFLOW
A
B
BACK FRONTLEFT END RIGHT END
L
H
W
14" or 17"
1-1/2"
2"
6-1/2"
29-1/2"
16-3/4"
17-1/2"
13-3/4"
Service Access
Service
Access
60"
36"
17-1/2"
5"
18"
6-5/8"
37"
13-3/4"
26"
4" x 16"
Motor
SeatFloor
FINESTRA™ 6036
*Heater
27" H x 24" L
Service Access
27" H x 9" L
Service Access
Door
Finestra™ 6036 Walk-In 14" Seat Whirlpool Bath Left Hand (EU60) shown.
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum service access dimensions given.

Jacuzzi Whirlpool Bath: Finestra Walk-in Bath Page 10 FL61000B • 10/07
SPECIFICATIONS
Technical Specifications
Dimensions
60” L x 30” W x 38-1/2” H
(1524 mm) L x (762 mm) W x (977.9 mm) H
Drain/Overflow
A: 31-1/2” (800 mm) B: 11-11/16” (297 mm)
Cutout
NA
Total Weight
EW35, EW40: 370 lb. (168 kg)
EY70, EY75: 370 lb. (168 kg)
Operating Gallonage
Max: 85 U.S. Gal. (322 liters)
Min: 70 U.S. Gal. (265 liters)
Product Weight
EW35, EW40: 320 lb. (145 kg)
EY70, EY75: 320 lb. (145 kg)
Skirt Mounting
NA
Electrical Specifications
Requires two seperate GFCI protected circuits.
Motor/Pump and RapidHeat™: 230 VAC, 20 AMP, 60 Hz.
Blower: 120 VAC, 15 AMP, 60 Hz.
Heater (Standard)
RapidHeat™: P/N BN60000
Installation Notes
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO
CHANGE WITHOUT NOTICE.
Ordering Information
Product Code:
EW35 Finestra™ 6036 Walk-In 14" Seat Salon™ Spa
Bath, Left Hand
EW40 Finestra™ 6036 Walk-In 14" Seat Salon™ Spa
Bath, Right Hand
EY70 Finestra™ 6036 Walk-In 17" Seat Salon™ Spa
Bath, Left Hand
EY75 Finestra™ 6036 Walk-In 17" Seat Salon™ Spa
Bath, Right Hand
• Left and Right Hand drain locations
• Standard drain kit, No. FB48827
• Accessories / Hardware:
Remote Drain Kit: #FC30XXX
Pillow: #EK91959
• Trim Kit Finishes Available:
Standard Part No. BN21XXX
(827) – Chrome
(829) – Bright Brass
(898) – Brushed Chrome
(826) – Brushed Nickel
(845) – Oil-Rubbed Bronze
(805) – Platinum
(815) – Satin Nickel
DRAIN/OVERFLOW
A
B
BACK FRONTLEFT END RIGHT END
L
H
W
14" or 17"
1-1/2"
2"
6-1/2"
29-1/2"
16-3/4"
17-1/2"
13-3/4"
Service Access
Service
Access
60"
36"
17-1/2"
5"
18"
6-5/8"
37"
13-3/4"
26"
4" x 16" Motor
SeatFloor
FINESTRA™ 6036
Blower
Heater
27" H x 24" L
Service Access
27" H x 9" L
Service Access
Door
Finestra™ 6036 Walk-In 14" Seat Salon™ Spa Bath Left Hand (EW35) shown.
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum service access dimensions given.
