signa® 5 whirlpool bath and soaking bath
the signa®whirlpool bath takes its name from the medieval central Italian walled city, lastra a signa.
Like the walled city for which it is named,
Signa
®
5 was specially developed and
designed for walled surround spaces.
features:
• Contoured backrest.
• 4 Fully adjustable TheraPro™ jets
• 2 AccuPro™ foot jets.
• Exclusive Tru-Level™ base system.
• Slip-resistant bottom.
• Patented Silent Air™ Induction system.
• Electronic controls
• Drain included on whirlpool baths
signa®5 soaking bath
model number: 9625
exterior dimensions:
60" long x 42" wide x 22" high
interior dimensions:
41" long x 25" wide
signa®5 whirlpool bath
model number: 6880 – RH pump,
C540 – LH pump
exterior dimensions:
60" long x 42" wide x 22" high
interior dimensions:
41" long x 25" wide
# of Jets/type of Jets:
4 TheraPro™ Jets
2 AccuPro™ Foot Jets
operating gallons:
42 gallons

Signa™ 5 Whirlpool Bath
Model: C540, 6880
Signa™ 5 Bath
Model: 9625
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifications do not apply to non-jetted baths.
Ordering Information
Product Code:
6880 Signa™ 5 Whirlpool Bath Right
Hand
C540 Signa™ 5 Whirlpool Bath Left
Hand
9625 Signa™ 5 Bath
• Center Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
4 X HTC Jet Trim Kit: #D095
2 X BMH Jet Trim Kit: #J869
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Technical Specifications
Dimensions
60” L x 42” W x 22” H
(1524 mm) L x (1067 mm) W x (559 mm) H
Drain/Overflow
A: 17-1/2” (445 mm) B: 12-1/2” (318 mm)
Cutout
58” x 40”
Total Weight
C540, 6880: 708 lb (321 kg) / 40 lb/sq. ft. (197 kg/m2)
9625: 667 lb (303 kg) / 38 lb/sq. ft. (186 kg/m2)
Operating Gallonage
42 U.S. Gal. (159 Liters)
Max. 82 U.S. Gal. (310 Liters)
Product Weight
C540, 6880: 108 lb (49 kg)
9625: 67 lb (30 kg)
Skirt Mounting
Optional, U-Frame
Electrical Specifications Models C540, 6880 only
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Optional) Models C540, 6880 only
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000

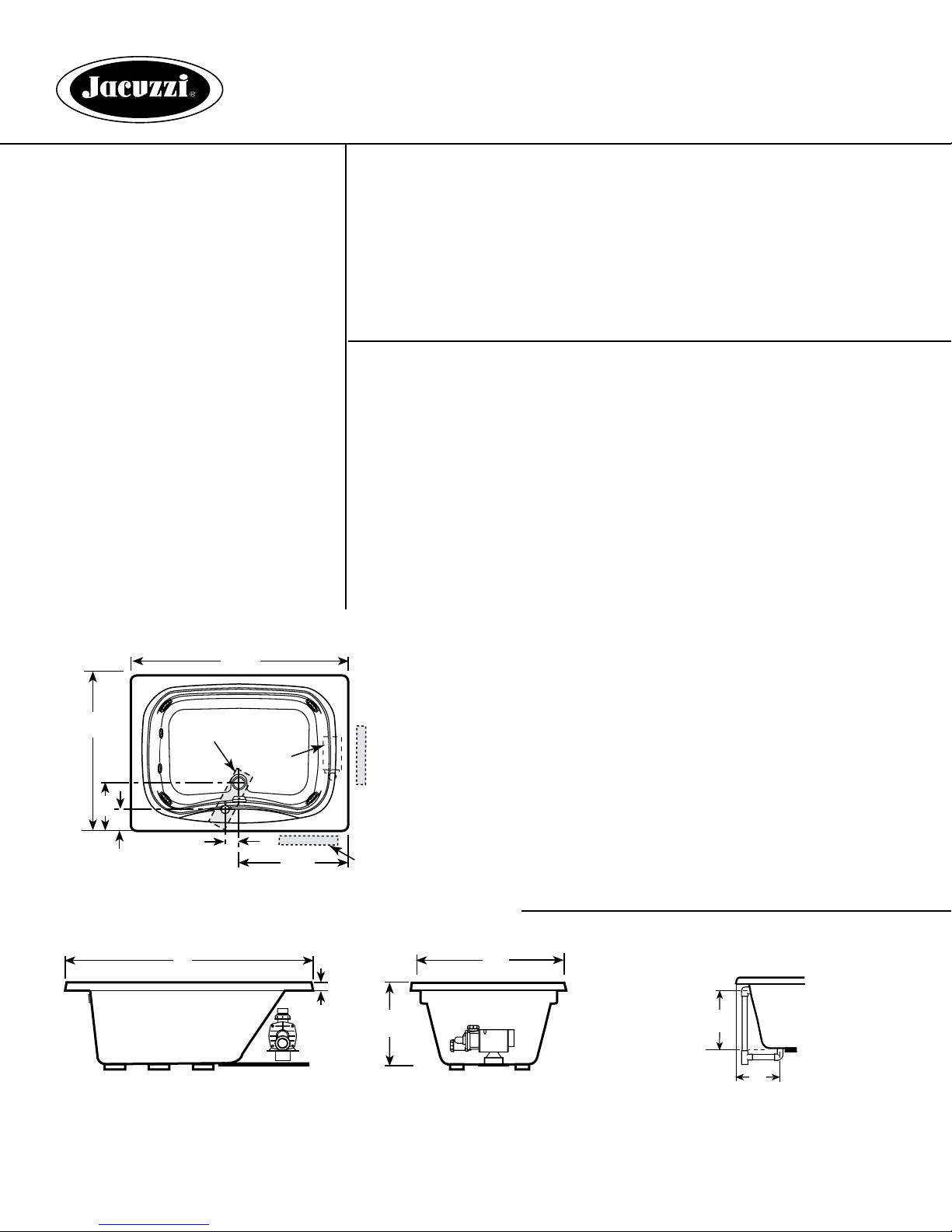

*60"
42"
5" 4-1/4"
13" x 5"
30"
Motor
12" H x 18" L Service Access
Opt.
Service
Access
12"
© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
END VIEW
H
W
SIDE VIEW
L
2"
#FS16 12/06
DRAIN/OVERFLOW
A
B
Product Shown: Signa™ 5 Whirlpool Bath Right Hand Model: 6880
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
