Jacuzzi HD85000 User manual

TECHNICAL SPECIFICATIONS MANUAL
HD85000
Jacuzzi®Luxury Bath
14525 Monte Vista Avenue
Chino, CA 91710
1-800-288-4002
www.jacuzzi.com
WHIRLPOOL BATH SERIES

Technical Specifications Manual
Page 2 www.jacuzzi.com Technical Specifications
English

Technical Specifications Manual
Technical Specifications www.jacuzzi.com Page 3
English
Product Information
Technical Specifications
Save these instructions for future use. Use the form below to record your model and serial number for future
reference.
Date Purchased
Purchased From
Installed By
Serial Number
Model
Installer: Leave the manual for the homeowner.
Homeowner: Read this manual and keep for future reference.
Read complete instructions before beginning installation.
Each bathtub arrives ready for installation, completely equipped with blower motor, pump/motor assembly, heater, and
plumbing necessary for operation.
Remove the bathtub from the carton. Retain the shipping carton until satisfactory inspection of the product has been
made. Do not lift the bathtub by the plumbing or wiring at any time; handle by the shell only.
Immediately upon receipt, inspect the shell before installing. Should inspection reveal any damage or defect in the
finish, do not install the bathtub. Damage or defect to the finish claimed after the bathtub is installed is excluded from
the warranty.
Jacuzzi Luxury Bath's responsibility for shipping damage ceases upon delivery of the products in good order to the
carrier. Refer any claims for damage to the carrier. For definitions of warranty coverage and limitations, refer to the
published warranty information packed with the product.
All bathtub units are factory tested for proper operation and watertight connections prior to shipping.
Prior to installation, the bathtub must be filled with water and operated to check for leaks that may have resulted
from shipping damage or mishandling. Jacuzzi Luxury Bath is not responsible for any defect that could have
been discovered, repaired, or avoided by following this inspection and testing procedure.

Technical Specifications Manual
Page 4 www.jacuzzi.com Technical Specifications
English

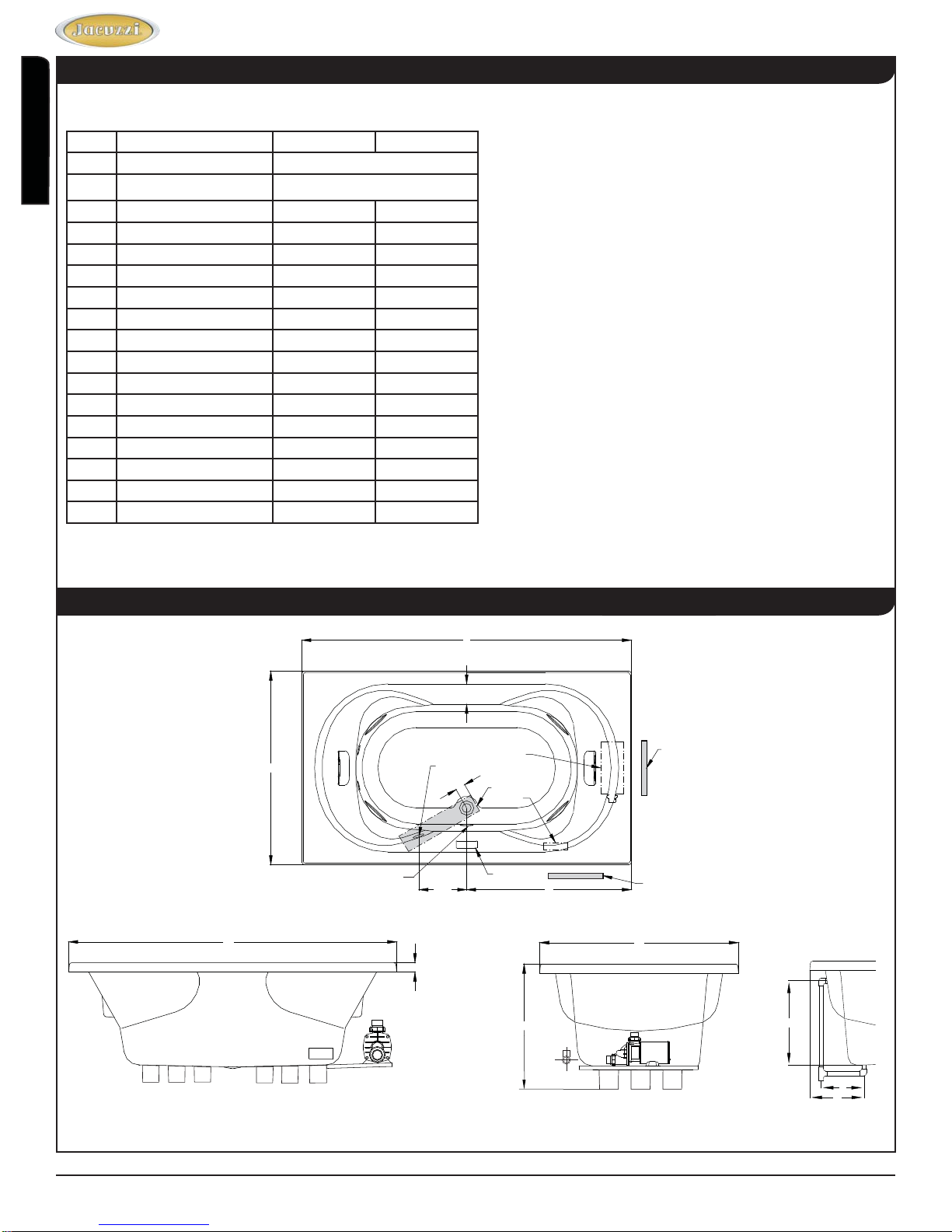

Acero™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 6636 and 7242
Letter Description English Metric English Metric
-Drain/Motor Location Center drain/Right end motor Center drain/Right end motor
-Cutout Template Provided P/N HQ06000
64" x 34" Drop-In Cutout
Template Provided P/N HQ46000
70" x 40" Drop-In Cutout
-Total Weight 1042 lbs 474 kg 1266 lbs 574 kg
-Floor Loading 63.4 lb/ft2309 kg/m260.3 lb/ft2294.4 kg/m2
-Operating Gallons (Min/Max) 44G/ 78G 166.7L / 295L 57G/104G 216L/394L
-Product Weight 142 lbs 65 kg 150 lbs 68 kg
LOuter Length 65¾" 1670mm 72" 1829mm
WOuter Width 36" 914mm 42" 1067mm
HOverall Height 25" 635mm 25" 635mm
AOverflow Height 17⅞" 454mm 17⅞" 454mm
BLong Edge to Drain Center 11
/
/
16
16
15
15
"303mm 11
/
/
16
16
15
15
"303mm
CShort Edge to Drain Center 33" 838mm 36" 915mm
DDrain Shoe Length 7⅞" 200mm 7⅞" 200mm
EDeck Height 2" 51mm 2" 51mm
FDeck Width 4" 102mm 4" 102mm
GService Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 12" x 4" 305mm x 102mm 12" x 4" 356mm x 102mm
6636 7242
Side View End View Drain/Overflow
Control Panel
Overflow
Motor
Suction
Fitting
Heater
(G) Service
Access
3"
I
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
L
W
C
F
(Heater)
(Motor)
L
E
A
D
B
(Motor)
(Heater)
H
W
Note: Drain installation
is non-standard. Vertical
overflow connection
requires offset.

Technical Specifications Manual
Technical Specifications www.jacuzzi.com Page 5
English
Side View End View Drain/Overflow

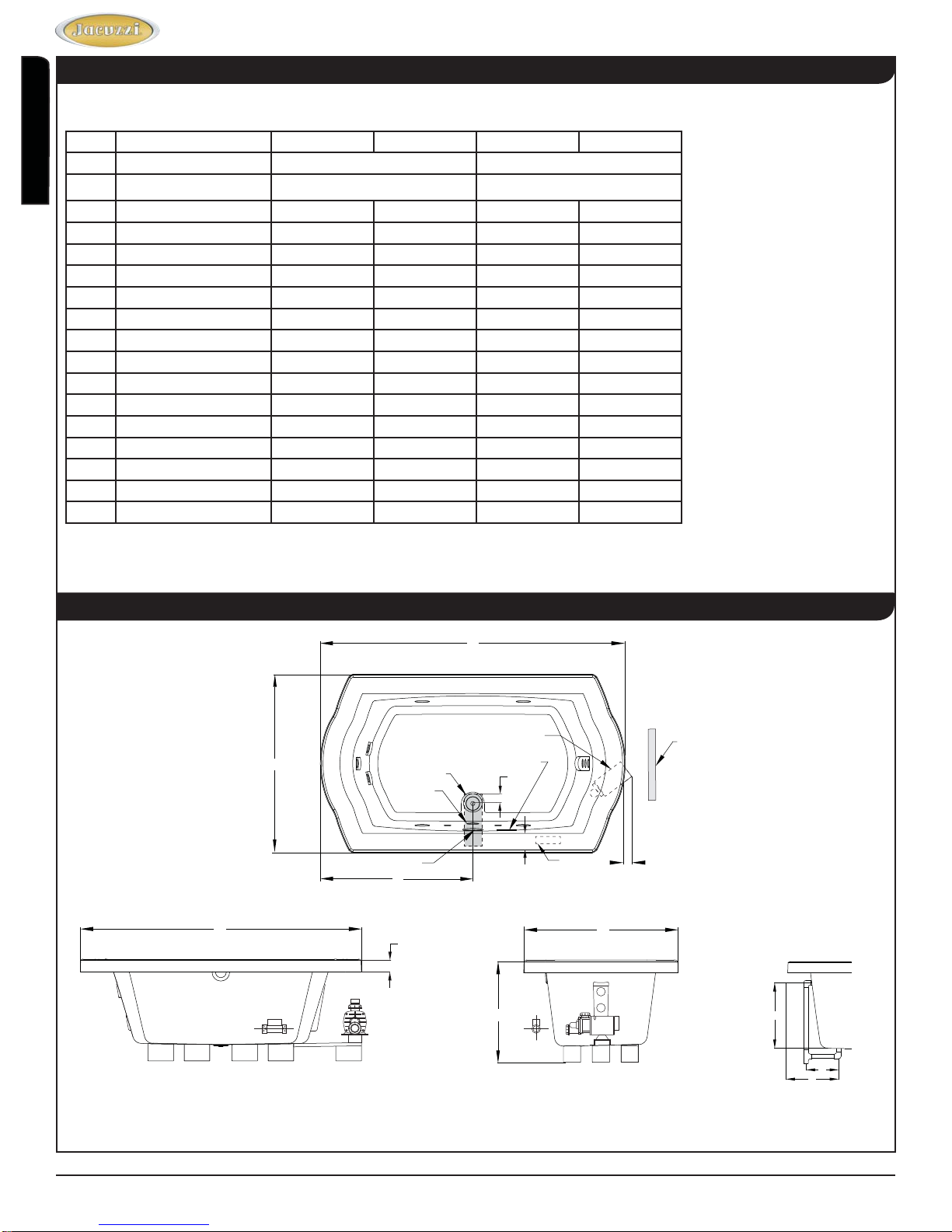

Allusion™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 6636, 7236 and 7242
Letter Description English Metric English Metric English Metric
-Drain/Motor Location Center drain/Right end motor Center drain/Right end motor Center drain/Right end motor
-Cutout Template Template provided P/N BY20000 Template provided P/N BY20000 Template provided P/N BY20000
-Total Weight 1015 lbs 461 kg 1138 lbs 517 kg 1251 lbs 588 kg
-Floor Loading 61.5 lb/ft2300 kg/m263.2 lb/ft2308 kg/m259.6 lb/ft2301.1 kg/m2
-Operating Gallons (Min/Max) 56G / 75G 208L / 284L 61G / 83G 231L / 314L 74G / 95G 280L / 360L
-Product Weight 140 lbs 64 kg 147 lbs 67 kg 160 lbs 73 kg
LOuter Length 66" 1676mm 72" 1829mm 72" 1829mm
WOuter Width 36" 914mm 36" 915mm 42" 1067mm
HOverall Height 26" 660mm 26" 660mm 26" 660mm
AOverflow Height 17⅜" 441mm 17⅜" 441mm 17⅜" 441mm
BLong Edge to Drain Center 11
/
/
16
16
15
15
"302mm 11
/
/
16
16
15
15
"305mm 11
/
/
16
16
15
15
"305mm
CShort Edge to Drain Center 33" 838mm 36" 914mm 36" 914mm
DDrain Shoe Length 6" 152mm 6" 152mm 6" 152mm
EDeck Height 4" 102mm 4" 102mm 4" 102mm
FDeck Width 3⅞" 97mm 3⅞" 97mm 3⅞" 97mm
GService Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm
6636 7236 7242
(G) Primary
Service Access
Suction Fitting
(G) Secondary
Service Access
Heater
Control
Panel
Overflow
3"
Motor
(Motor)
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
I
L
F
W
4" C
L
E
(Motor)
(Heater)
H
W
A
D
B
Motor Extends
2" Beyond Lip

Technical Specifications Manual
Page 6 www.jacuzzi.com Technical Specifications
English
Side View End View Drain/Overflow

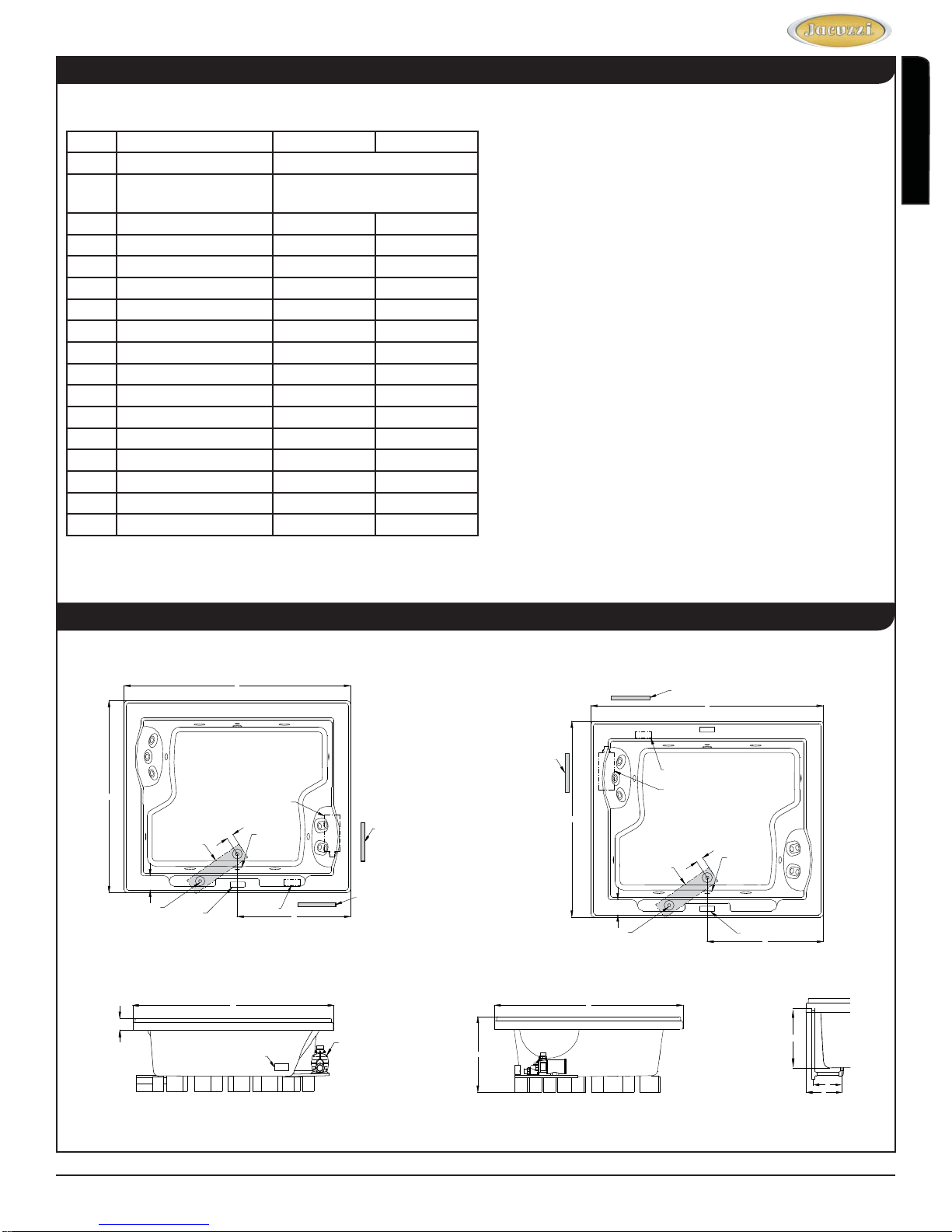

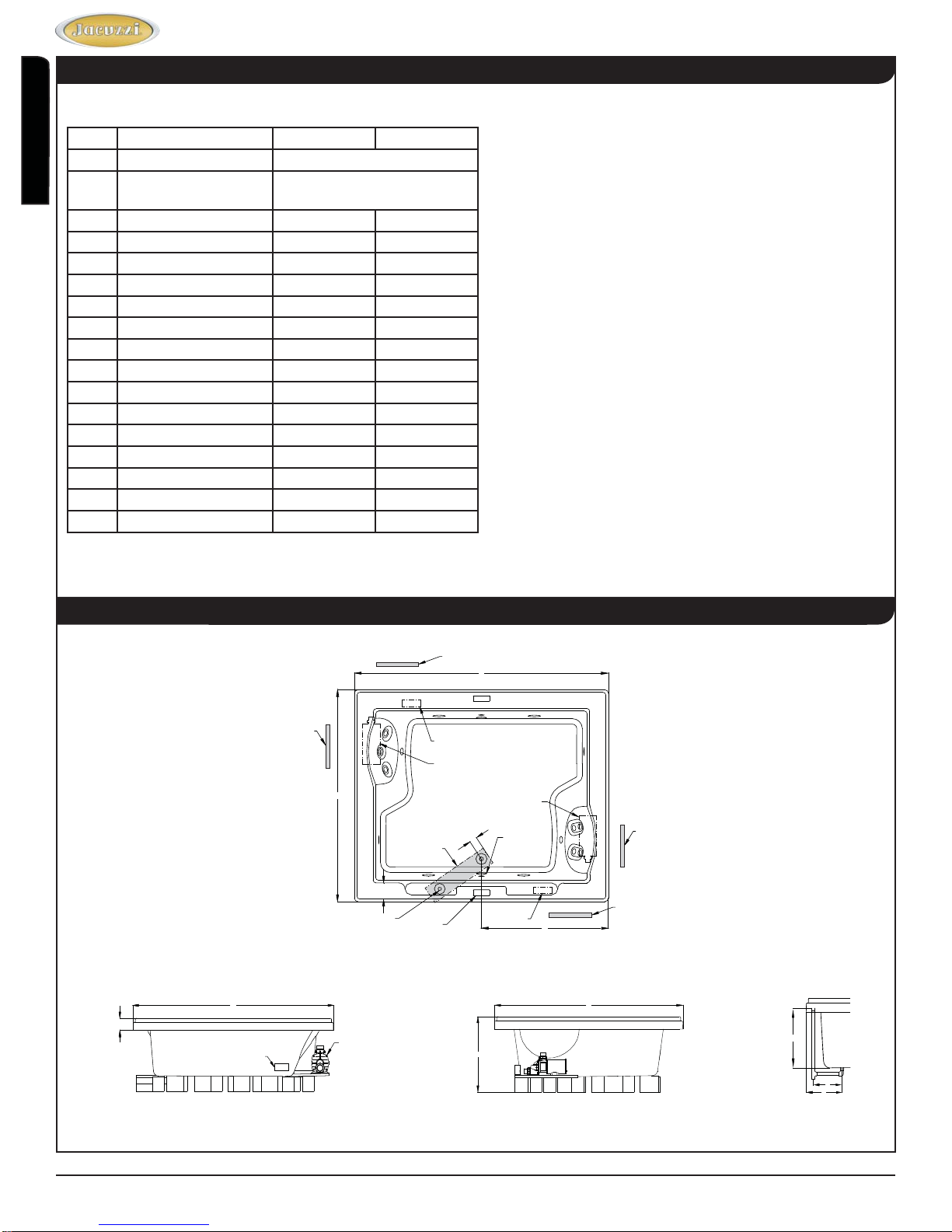

Bellavista™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 6042, 6642 and 7242
Letter Description English Metric English Metric English Metric
-Drain/Motor
Location
Center drain/Right end motor Center drain/Right end motor Center drain/Right or Left end motor
-Cutout Template Template Provided P/N P187000 Template Provided P/N P187000 Template Provided P/N P187000
-Total Weight 1041 lbs 473 kg 1113 lbs 506 kg 1233 lbs 560 kg
-Floor Loading 60.1 lb/ft2293 kg/m257.8 lb/ft2282 kg/m258.7 lb/ft2286 kg/m2
-Operating Gallons
(Min/Max)
63G / 78G 238.5L / 295L 69G / 88G 261.2L / 333L 84G / 95G 318L / 360L
-Product Weight 141 lbs 64 kg 130 lbs 59 kg 142 lbs 65 kg
LOuter Length 59¾" 1518mm 66" 1676mm 72" 1829mm
WOuter Width 41¾"1060mm 42" 1067mm 42" 1067mm
HOverall Height 26"660mm 26" 660mm 26" 660mm
AOverflow Height 20"508mm 20"508mm 20"508mm
BLong Edge to
Drain Center
11¾"298mm 11¾"298mm 11¾"298mm
CShort Edge to
Drain Center
32½"826mm 35½" 902mm 36" 914mm
DDrain Shoe Length 6"152mm 6"152mm 6"152mm
EDeck Height 2"51mm 2"51mm 2"51mm
FDeck Width 3"76mm 3"76mm 3"76mm
GService Access
Dimensions
12"x 18"305mm x 457mm 12"x 18"305mm x 457mm 12"x 18"305mm x 457mm
IFloor Cutout for
Drain
17"x 4"432mm x 102mm 17"x 4"432mm x 102mm 17"x 4"432mm x 102mm
6042 6642 7242
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
Overflow
Motor
Suction Fitting
(G) Primary
Service Access
(G) Secondary
Service Access
Control
Panel
Heater
3" I
F
C
10.5"
W
L
(Heater)
(Motor)
E
L
(Motor)
W
HA
D
B
Side View End View Drain/Overflow
A
D
B
Bellavista RH 7242
Bellavista LH 7242
Overflow
Motor
Heater
I
3"
Suction Fitting
(G) Primary
Service
10.5" C
Control
Panel
L
F
W
L
F
W
C
Overflow
Motor
Heater
Suction
Fitting 3" I
(G) Secondary
Service Access
(G) Primary
Service Access
Control
Panel 10.5"
(Heater)
(Motor)
L
E
H
(Motor)
W
A
D
B
(Heater)
(Motor)
L
E
H(Motor)
W
Bellavista RH 6042 & 6646
Bellavista LH 7242
Bellavista RH 7242
Access
(G) Secondary
Service
Access
Bellavista RH 6042 & 6646

Technical Specifications Manual
Technical Specifications www.jacuzzi.com Page 7
English
Front View Side View Drain/Overflow
Bellavista™ Whirlpool Bath
KEY DIMENSIONS

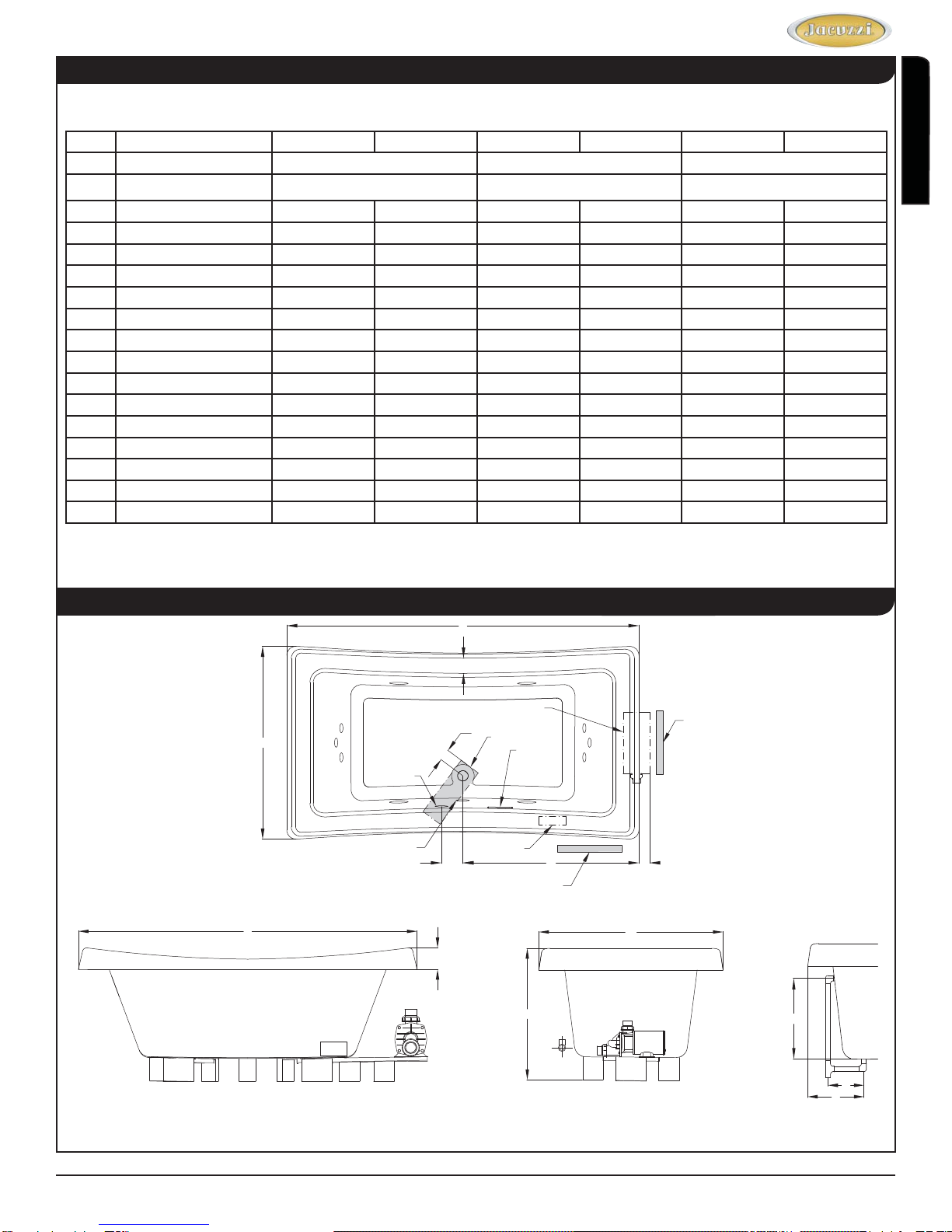

Specifications for 60606060
(Heater)
(Motor)
(Motor)
(Heater)
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
A
D
B
L
E
W
H
Letter Description English Metric
-Drain/Motor
Location
Center drain/Right or Left side motor
-Cutout Template Template Provided P/N P654000
-Total Weight 1226 lbs 557 kg
-Floor Loading 49.5 lb/ft2242 kg/m2
-Operating Gallons
(Min/Max)
80G / 92G 302.8L / 348L
-Product Weight 160 lbs 73 kg
LOuter Length 59¾" 1518mm
WOuter Width 59¾" 1518mm
HOverall Height 25" 635mm
AOverflow Height 18⅞"479mm
BLong Edge to
Drain Center
14"356mm
CShort Edge to
Drain Center
34 " 879mm
DDrain Shoe Length 7½"191mm
EDeck Height 2"51mm
FDeck Width 6"152mm
GService Access
Dimensions
12"x 18"305mm x 457mm
IFloor Cutout for
Drain
12"x 4"305mm x 102mm
Suction
Motor
Overflow Heater
3" I
F
3"
Fitting
A
D
BDrain/Overflow
A
D
B
W
H(Heater)
(Motor)
E
L
(Motor)
(Motor) H
W
(Heater)
L
(Heater)
(Motor)
E
Bellavista RH 6060 Bellavista LH 6060 Bellavista RFM 6060
Bellavista LH 6060
Bellavista RH 6060
Bellavista RFM 6060
Control
Panel
W
L
C
(G) Secondary
Service Access
(G) Primary
Service Access
Control
Panel
LW
C
Suction
Fitting
Heater
I
3"
F
Overflow
(G) Service Access
Motor
/ 16
9
Motor
Heater
Suction
Fitting
3"
I
F
3"
WL
C
Control
Panel
Overflow

Technical Specifications Manual
Page 8 www.jacuzzi.com Technical Specifications
English

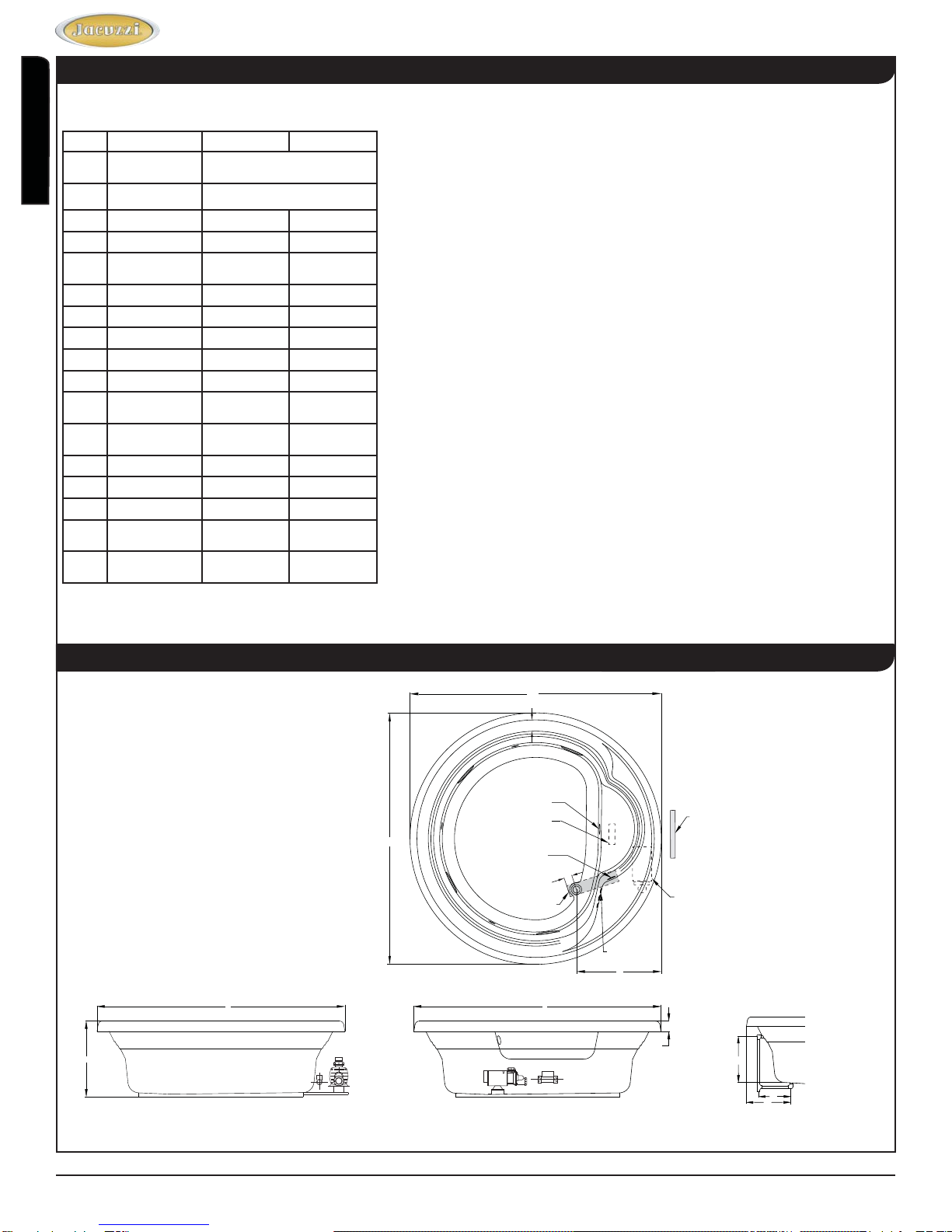

Cortina™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 7272
Letter Description English Metric
-Drain/Motor
Location
Center drain/Right motor
-Cutout 70" Dia. Drop-In Cutout
-Total Weight 1485 lbs 674 kg
-Floor Loading 41.2 lb/ft2201.1 kg/m2
-Operating Gallons
(Min/Max)
87G / 117G 329L / 443L
-Product Weight 210 lbs 95 kg
LOuter Length 72" 1829mm
WOuter Width 72" 1829mm
HOverall Height 22¼" 565mm
AOverflow Height 16¾" 425mm
BLong Edge to
Drain Center
19¼" 489mm
CShort Edge to
Drain Center
24½" 622mm
DDrain Shoe Length 5" 127mm
EDeck Height 2½" 64mm
FDeck Width 6½" 165mm
GService Access
Dimensions
12" x 18" 305mm x 457mm
IFloor Cutout for
Drain
14" x 4" 356mm x 102mm
7272
Side View End View Drain/Overflow
(Motor)
(Heater)
(Motor)
(Heater)
Heater
Overflow
(G) Service
Access
Motor
3"
I
Control
Panel
F
Suction
Fitting
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
C
W
L
L
H
E
L
A
D
B

Technical Specifications Manual
Technical Specifications www.jacuzzi.com Page 9
English

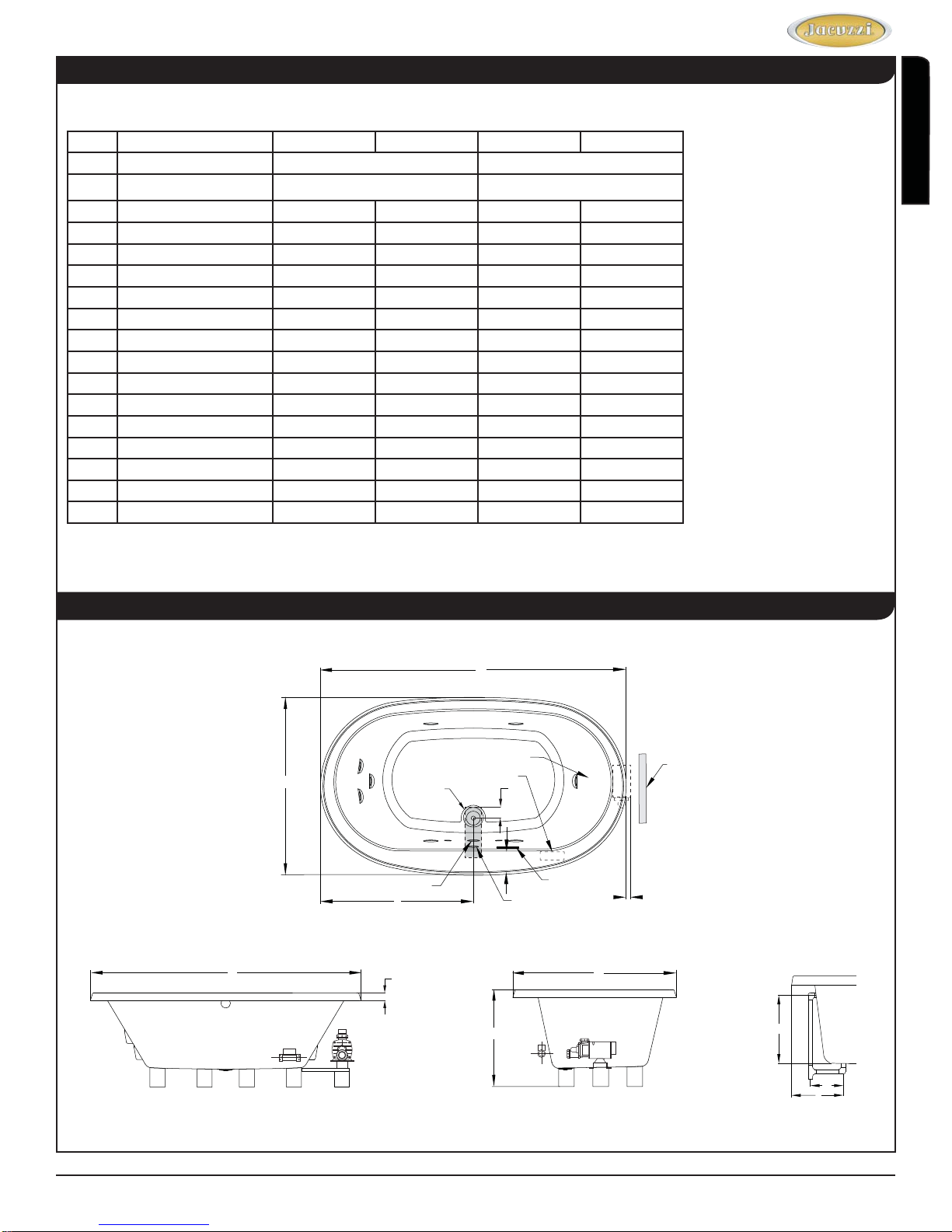

Duetta™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 6042, 6636, 6642 and 7242
Letter Description English Metric English Metric English Metric English Metric
-Drain/Motor
Location
Center drain/Right end motor Center drain/Right end motor Center drain/Right end motor Center drain/Right end motor
-Cutout Template Template Provided P/N DA09000 Template Provided P/N DA08000 Template Provided P/N DA07000 Template Provided P/N DA06000
-Total Weight 1077 lbs 490 kg 1044 lbs 475 kg 1195 lbs 543 kg 1293 lbs 588 kg
-Floor Loading 61.6 lb/ft2301 kg/m263.3 lb/ft2309 kg/m262.1 lb/ft2303 kg/m261.6 lb/ft2301 kg/m2
-Operating Gallons
(Min/Max)
70G / 83G 265L / 314L 75G / 79G 283.9L / 299L 90G / 97G 340.7L / 367L 97G / 108G 367.2L / 409L
-Product Weight 136 lbs 62 kg 136 lbs 62 kg 137 lbs 62 kg 143 lbs 65 kg
LOuter Length 60" 1524mm 66" 1676mm 66" 1829mm 72" 1829mm
WOuter Width 42" 1067mm 36" 915mm 42" 1067mm 42" 1067mm
HOverall Height 26" 660mm 26" 660mm 26" 660mm 26" 660mm
AOverflow Height 18⅜" 467mm 18⅜" 467mm 18⅜" 467mm 18⅜" 467mm
BLong Edge to
Drain Center
11" 279mm 11" 279mm 11" 279mm 11" 279mm
CShort Edge to
Drain Center
30" 762mm 33" 838mm 33" 838mm 36" 915mm
DDrain Shoe Length 7¼" 183mm 7¼" 183mm 7¼" 183mm 7¼" 183mm
EDeck Height ½" 13mm ½" 13mm ½" 13mm ½" 13mm
FDeck Width 3⅞" 98mm 3⅞" 98mm 3⅞" 98mm 3⅞" 98mm
GService Access
Dimensions
12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
IFloor Cutout for
Drain
13" x 4" 330mm x 102mm 13" x 4" 330mm x 102mm 13" x 4" 330mm x 102mm 13" x 4" 330mm x 102mm
6042 6636 72426642
Heater
Suction Fitting
Control
Panel
3"
I
F
(G) Service
Access
Motor
(G) Service
Access
Motor
Heater
Overflow
F
I
3"
Suction Fitting
Control
Panel
Side View End View Drain/Overflow Side View End View Drain/Overflow
(Heater)
(Motor)
(Motor)
(Heater)
(Motor)
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
Overflow
C
W
L
C
W
L
L
E
W
HA
D
B
L
E
A
D
B
Motor Extends
3" Beyond Lip
Motor Extends
3" Beyond Lip
(Heater)
(Motor)
W
H
(Heater)
Duetta 6042 & 6642 Duetta 6636 & 7242
Note: Drain installation
is non-standard. Vertical
overflow connection
requires offset.

Technical Specifications Manual
Page 10 www.jacuzzi.com Technical Specifications
English
Elara™ Whirlpool Bath

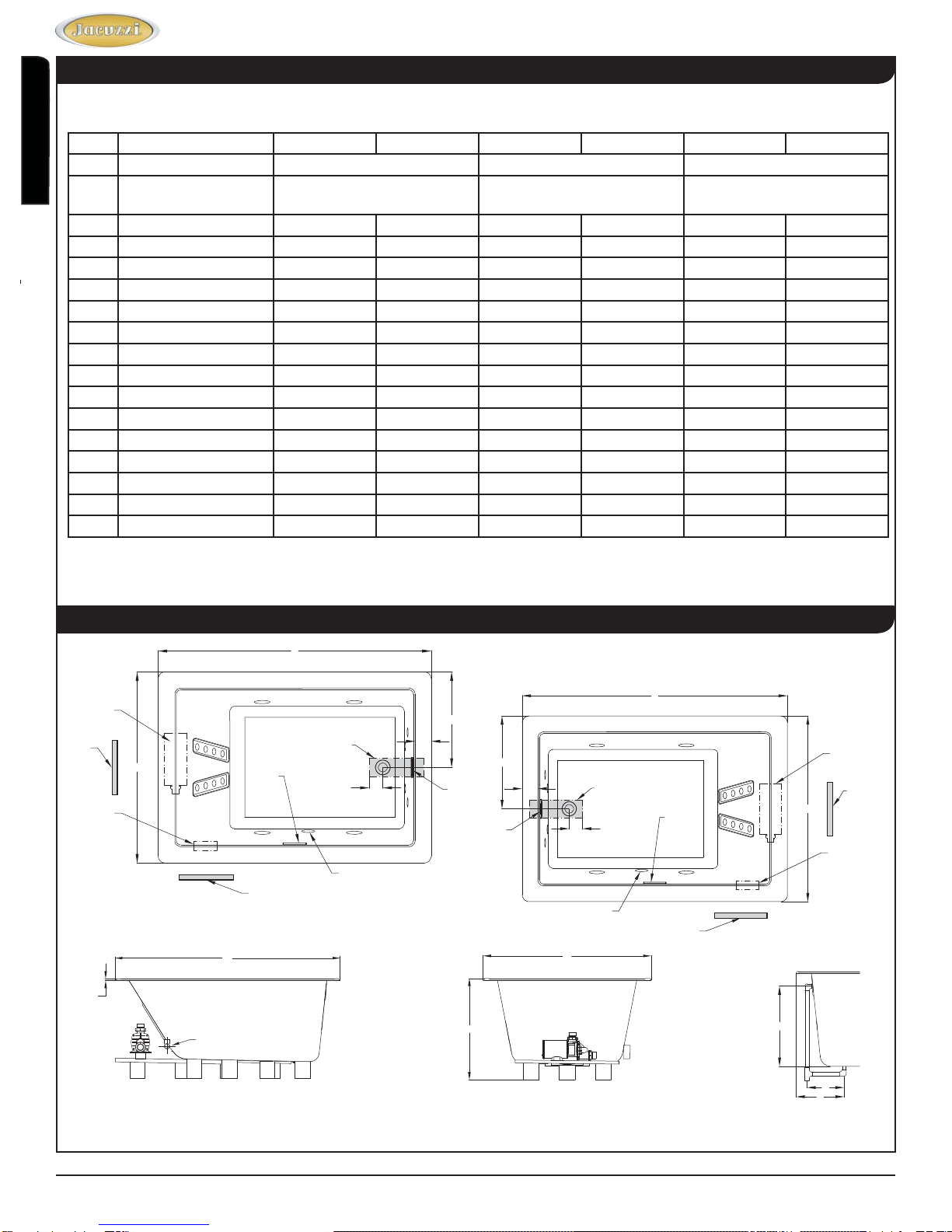

KEY DIMENSIONS
Specifications for 6042, 6636 and 7242
Letter Description English Metric English Metric English Metric
-Drain/Motor Location End drain/Right or Left end motor End drain/Right or Left end motor End drain/Right or Left end motor
-Cutout Template Provided P/N DQ50000
58" x 40" Drop-In Cutout
Template Provided P/N DQ51000
64" x 34" Drop-In Cutout
Template Provided P/N BZ50000
70" x 40" Drop-In Cutout
-Total Weight 1168 lbs 531 kg 1133 lbs 515 kg 1388 lbs 631 kg
-Floor Loading 66.7 lb/ft2325 kg/m268.7 lb/ft2335 kg/m266.1 lb/ft2323 kg/m2
-Operating Gallons (Min/Max) 83G/ 94G 314.2L / 356L 78G/ 89G 295.3L / 337L 107G/ 117G 405L / 443L
-Product Weight 135 lbs 61 kg 142 lbs 65 kg 163 lbs 74 kg
LOuter Length 60" 1524mm 66" 1676mm 72" 1829mm
WOuter Width 42" 1067mm 36" 915mm 42" 1067mm
HOverall Height 26" 660mm 26˝660mm 26˝660mm
AOverflow Height 18½" 470mm 18½" 470mm 18½" 470mm
BLong Edge to Drain Center 10⅝" 269mm 10⅝" 269mm 10⅝" 269mm
CShort Edge to Drain Center 21" 533mm 18" 457mm 21" 533mm
DDrain Shoe Length 6" 152mm 6" 152mm 6" 152mm
EDeck Height ½" 13mm ½" 13mm ½" 13mm
FDeck Width 4¼" 107mm 4¼" 107mm 4¼" 107mm
GService Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm
6636 7242
6042
Side View Drain/OverflowEnd View
Overflow
F
I
Suction Fitting
Control
Panel
(G) Primary
Service
Motor
3"
(Heater)
(Motor)
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
Heater
(G) Secondary
Service Access
L
W
C
L
E
Access
Overflow
Control
Panel
Suction Fitting
Motor
(G) Primary
Service
Access
Heater
Elara RH
Elara LH
(G) Secondary
Service Access
F
L
C
I
3"
W
(Motor)
(Heater)
W
HA
D
B

Technical Specifications Manual
Technical Specifications www.jacuzzi.com Page 11
English
Fuzion™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 7236 and 7242
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
7236 7242
Letter Description English Metric English Metric
-Drain/Motor Location End drain/Right or Left end motor Center drain/Right end motor
-Cutout Template Provided P/N DD42000
69" x 33" Drop-In Cutout
Template Provided P/N GR23000
70" x 40" Drop-In Cutout
-Total Weight 1210 lbs 550 kg 1324 lbs 602 kg
-Floor Loading 69.6 lb/ft2340 kg/m263 lb/ft2307 kg/m2
-Operating Gallons (Min/Max) 77G / 99G 291.5L / 375L 82G / 108G 310.4L / 409L
-Product Weight 135 lbs 61 kg 174 lbs 79 kg
LOuter Length 70¾" 1797mm 72" 1829mm
WOuter Width 35½" 902mm 42" 1067mm
H** Overall Height 24" 610mm 24" 610mm
AOverflow Height 17" 432mm 17" 432mm
BLong Edge to Drain Center 10¼" 260mm 10¼" 260mm
CShort Edge to Drain Center 17 " 447mm 36" 914mm
DDrain Shoe Length 7" 178mm 8½" 216mm
E** Deck Height 4" 102mm 4" 102mm
FDeck Width 3" 76mm 3½" 89mm
GService Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 12" x 4" 305mm x 102mm 18½" x 4" 470mm x 102mm
/ 16
11
Drain/Overflow
A
D
B
A
D
B
Fuzion 7242
Fuzion LH 7236
Fuzion RH 7236
Overflow
Suction Fitting
(G) Service
Access
(G) Service
Access
Heater
C
Motor
Control
Panel
L
W
3"
I
F
Motor
Suction Fitting
L
W
C
F
3"
I
Overflow
Control
Panel
Heater
End ViewSide View
Overflow Control
Panel
Heater
C
F
W
L
I
3"
Suction
Fitting
Motor
(G) Service
Access
L
(Motor)
(Heater)
(Motor)
W
H**
End View Drain/OverflowSide View
E
H**
W
(Motor)
(Heater)
(Motor)
(Motor)
L
E
**Height of tub only, optional wood frame adds 1.25"
Fuzion LH 7236
Note: Drain included.
Non-standard installation,
refer to manual.

Technical Specifications Manual
Page 12 www.jacuzzi.com Technical Specifications
English
Fuzion™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 6666 6666
Suction Fitting Control
Panel
Heater Overflow
(G) Service
Access
Motor
F
3"
I
C
LW
Side View Drain/OverflowEnd View
(Motor) (Motor)
(Heater)
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
/ 16
15
1
/ 8
/ 16
13
Letter Description English Metric
-Drain/Motor Location Center drain/Right or Left side motor
-Cutout Template Provided P/N DD43000
See Drop-In Diagram
-Total Weight 1773 lbs 806 kg
-Floor Loading 59.1 lb/ft2288 kg/m2
-Operating Gallons (Min/Max) 119G / 148G 451L / 560L
-Product Weight 190 lbs 86 kg
LOuter Length 65¾" 1670mm
WOuter Width 65¾" 1670mm
H** Overall Height 24" 610mm
AOverflow Height 16 " 427mm
BLong Edge to Drain Center 12 " 308mm
CShort Edge to Drain Center 40 " 1039mm
DDrain Shoe Length 9¼" 234mm
E** Deck Height 4" 102mm
FDeck Width 3½" 89mm
GService Access Dimensions 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 20" x 4" 508mm x 102mm
L
E
W
H** A
D
B
Suction Fitting
F
3"
I
Motor
Control Panel
(G) Service
Access
Overflow Heater
W
C
L
Fuzion RH 6666 Fuzion LH 6666
Fuzion 6666 Drop-In Cutout
11 1/2"
31 9/16"
63 3/4" 63 3/4"
45 1/2"
C
L
**Height of tub only, optional wood frame adds 1.25"
Note: Drain included.
Non-standard installation,
refer to manual.

Technical Specifications Manual
Technical Specifications www.jacuzzi.com Page 13
English
Fuzion™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 7260
Letter Description English Metric
-Drain/Motor Location Center drain/Right or left side motor
-Cutout Template Provided P/N DD44000
70" x 58" Drop-In Cutout
-Total Weight 1790 lbs 811 kg
-Floor Loading 60.1 lb/ft2293 kg/m2
-Operating Gallons (Min/Max) 110G/ 148G 417L / 560L
-Product Weight 207 lbs 94 kg
LOuter Length 71¾" 1822mm
WOuter Width 59¾" 1518mm
H** Overall Height 24" 610mm
AOverflow Height 16¾" 425mm
BLong Edge to Drain Center 12 " 306mm
CShort Edge to Drain Center 36" 915mm
DDrain Shoe Length 8½" 216mm
E** Deck Height 4" 102mm
FDeck Width 3½" 89mm
GService Access Dimensions 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 18½" x 4" 470mm x 102mm
7260
Side View Drain/Overflow
/ 16
1
End View
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
Fuzion RH 7260
(Motor)
(Heater)
H**
W
(Heater)
(Motor)
L
E
A
D
B
Fuzion LH 7260
L
W
F
3"
I
C
Control
Panel
Overflow Heater
(G) Secondary
Service Access
(G) Primary
Service Access
Suction
Fitting
Motor
(G) Primary
Service Access
(G) Secondary
Service Access
Heater
Motor
Suction
Fitting
Overflow
F
W
L
C
Control Panel
**Height of tub only, optional wood frame adds 1.25"
Fuzion RH 7260
3"
I
Note: Drain included.
Non-standard installation,
refer to manual.

Technical Specifications Manual
Page 14 www.jacuzzi.com Technical Specifications
English
Fuzion™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 7260 DUAL ZONE
Letter Description English Metric
-Drain/Motor Location Center drain/Right and left side motor
-Cutout Template Provided P/N DD44000
70" x 58" Drop-In Cutout
-Total Weight 1825 lbs 829 kg
-Floor Loading 61.3 lb/ft2299.1 kg/m2
-Operating Gallons (Min/Max) 110G/ 148G 417L / 560L
-Product Weight 242 lbs 110 kg
LOuter Length 71¾" 1822mm
WOuter Width 59¾" 1518mm
H** Overall Height 24" 610mm
AOverflow Height 16¾" 425mm
BLong Edge to Drain Center 12 " 306mm
CShort Edge to Drain Center 36" 915mm
DDrain Shoe Length 8½" 216mm
E** Deck Height 4" 102mm
FDeck Width 3½" 89mm
GService Access Dimensions 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 18½" x 4" 470mm x 102mm
7260
Side View Drain/Overflow
/ 16
1
End View
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 230V 20A 60HZ (2X)
Heater 120V 15A 60HZ (2X)
(Motor)
(Heater)
H**
W
(Heater)
(Motor)
L
E
A
D
B
Fuzion Dual 7260
(G) Primary
Service Access
(G) Secondary
Service Access
(G) Secondary
Service Access
(G) Secondary
Service Access
Motor
Heater
Motor
Heater
Control
Panel
Overflow
F
W
L
C
Fitting
Suction
3"
I
**Height of tub only, optional wood frame adds 1.25"
Note: Drain included.
Non-standard installation,
refer to manual.

Technical Specifications Manual
Technical Specifications www.jacuzzi.com Page 15
English
Mio™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 6636 and 7242
Letter Description English Metric English Metric
-Drain/Motor Location Center drain/Right end motor Center drain/Right end motor
-Cutout Template Template Provided P/N HQ96000 Template Provided P/N HR36000
-Total Weight 961 lbs 436 kg 1125 lbs 511 kg
-Floor Loading 58.2 lb/ft2284 kg/m253.6 lb/ft2261.5 kg/m2
-Operating Gallons (Min/Max) 48G/ 70G 181.7L / 265L 54G/ 87G 204L/ 329L
-Product Weight 128 lbs 58 kg 150 lbs 68 kg
LOuter Length 66" 1676mm 72" 1829mm
WOuter Width 36" 915mm 42" 1067mm
HOverall Height 25" 635mm 25" 635mm
AOverflow Height 17⅞" 454mm 17⅞" 454mm
BLong Edge to Drain Center 13 " 340mm 13 " 340mm
CShort Edge to Drain Center 33" 838mm 36" 915mm
DDrain Shoe Length 6⅞" 173mm 6⅞" 173mm
EDeck Height 2" 51mm 2" 51mm
FDeck Width 6⅝" 168mm 6⅝" 168mm
GService Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm
7242
6636
Side View Drain/Overflow
/ 16
7
/ 16
7
End View
(Motor)
(Heater)
(Motor)
Overflow
Control Panel
Motor (G) Service
Access
Heater
I
3"
Suction Fitting
F
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
L
C
W
E
LW
HA
D
B
Motor Extends
3" Beyond Lip
Note: Drain installation
is non-standard. Vertical
overflow connection
requires offset.

Technical Specifications Manual
Page 16 www.jacuzzi.com Technical Specifications
English
Reàl™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 7242
Letter Description English Metric
-Drain/Motor Location Center drain/Right end motor
-Cutout 70" x 40" Drop-In Cutout
-Total Weight 1180 lbs 536 kg
-Floor Loading 56.2 lb/ft2274 kg/m2
-Operating Gallons (Min/Max) 84G/ 95G 318L / 360L
-Product Weight 139 lbs 63 kg
LOuter Length 72" 1829mm
WOuter Width 42" 1067mm
HOverall Height 26" 660mm
AOverflow Height 20" 508mm
BLong Edge to Drain Center 14" 356mm
CShort Edge to Drain Center 36" 914mm
DDrain Shoe Length 8¾" 222mm
EDeck Height 2" 51mm
FDeck Width 3" 76mm
GService Access Dimensions 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 18" x 4" 457mm x 102mm
7242
Side View End View
Drain/Overflow
(Heater)
(Motor)
Overflow
F
Motor
Heater
Control
Panel (G) Secondary
Service Access
(G) Primary
Service Access
I
3"
Suction Fitting
(Motor)
(Heater)
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
L
W
C10.5"
L
E
W
HA
D
B

Technical Specifications Manual
Technical Specifications www.jacuzzi.com Page 17
English
Sabella™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 7247
Letter Description English Metric
-Drain/Motor Location Center drain/Right end motor
-Cutout Template Template Provided P/N P187000
-Total Weight 1320 lbs 600 kg
-Floor Loading 56.2 lb/ft2274 kg/m2
-Operating Gallons (Min/Max) 97G / 109G 368L / 413L
-Product Weight 162 lbs 74 kg
LOuter Length 72" 1829mm
WOuter Width 47" 1194mm
HOverall Height 26½" 673mm
AOverflow Height 20" 508mm
BLong Edge to Drain Center 14" 356mm
CShort Edge to Drain Center 36" 915mm
DDrain Shoe Length 6¾" 171mm
EDeck Height 2" 51mm
FDeck Width 3" 76mm
GService Access Dimensions 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 18" x 4" 457mm x 102mm
7247
Drain/OverflowEnd ViewSide View
C
(G) Service
Access
Motor
Heater
Control Panel
Overflow
I
3"
Suction
Fitting
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
10.5"
F
W
L
L
E
(Heater)
(Motor)
(Motor)
(Heater)
W
H
A
D
B

Technical Specifications Manual
Page 18 www.jacuzzi.com Technical Specifications
English
Salerno™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 6636 and 7242
Letter Description English Metric English Metric
-Drain/Motor Location Center drain/Right end motor Center drain/Right end motor
-Cutout Template Template Provided P/N GX46000 Template Provided P/N HA76000
-Total Weight 920 lbs 418 kg 1160 lbs 527 kg
-Floor Loading 55.8 lb/ft2272 kg/m255.3 lb/ft2270 kg/m2
-Operating Gallons (Min/Max) 59G / 62G 223.3L / 235L 84G / 89G 318L / 337L
-Product Weight 154 lbs 70 kg 169 lbs 77 kg
LOuter Length 66" 1676mm 72" 1829mm
WOuter Width 36" 915mm 42" 1067mm
HOverall Height 25" 635mm 25" 635mm
AOverflow Height 17 " 443mm 17 " 443mm
BLong Edge to Drain Center 11 " 294mm 11 " 294mm
CShort Edge to Drain Center 33" 838mm 36" 915mm
DDrain Shoe Length 6½" 165mm 6½" 165mm
EDeck Height 3" 76mm 3" 76mm
FDeck Width 5" 127mm 5" 127mm
GService Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm
7242
6636
Drain/OverflowEnd View
Side View
/ 16
7
/ 16
7
/ 16
9
/ 16
9
(Heater)
(Motor)
(Heater)
(Motor)
Suction
Fitting
I3"
Control
Panel
F
Overflow
(G) Service
Access
Motor
Heater
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
L
W
C
Motor Extends
3" Beyond Lip
E
LW
HA
D
B
Note: Drain installation
is non-standard. Vertical
overflow connection
requires offset.

Technical Specifications Manual
Technical Specifications www.jacuzzi.com Page 19
English
Sia™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 6636 and 7242
Letter Description English Metric English Metric
-Drain/Motor Location Center drain/Right end motor Center drain/Right end motor
-Cutout Template Provided P/N GU50000
64" x 34" Drop-In Cutout
Template Provided P/N GU50000
70" x 40" Drop-In Cutout
-Total Weight 1033 lbs 470 kg 1312 lbs 596 kg
-Floor Loading 62.6 lb/ft2305 kg/m262.5 lb/ft2305 kg/m2
-Operating Gallons (Min/Max) 65G/ 76G 246.1L / 288L 89G/ 102G 337L / 386L
-Product Weight 150 lbs 68 kg 162 lbs 74 kg
LOuter Length 66" 1676mm 72" 1829mm
WOuter Width 36" 915mm 42" 1067mm
HOverall Height 24" 610mm 24" 610mm
AOverflow Height 17¾" 451mm 17¾" 451mm
BLong Edge to Drain Center 11½" 292mm 11½" 292mm
CShort Edge to Drain Center 33" 838mm 36" 915mm
DDrain Shoe Length 6½" 165mm 6½" 165mm
EDeck Height 2" 51mm 2" 51mm
FDeck Width 5" 127mm 5" 127mm
GService Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 14" x 4" 356mm x 102mm 14" x 4" 356mm x 102mm
7242
6636
Side View End View Drain/Overflow
(G) Service
Access
Motor
Heater
Control
Panel
F
Suction
Fitting
3"
I
Overflow
6"
E
(Motor)
(Heater)
(Heater) (Motor)
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
L
W
C
LW
H
A
D
B

Technical Specifications Manual
Page 20 www.jacuzzi.com Technical Specifications
English
Venicia™ Whirlpool Bath
KEY DIMENSIONS
Specifications for 7242
Letter Description English Metric
-Drain/Motor Location Center drain/Right end motor
-Cutout Template Template Provided P/N P187000
-Total Weight 1198 lbs 545 kg
-Floor Loading 57 lb/ft2278 kg/m2
-Operating Gallons (Min/Max) 85G / 97G 322L / 368L
-Product Weight 140 lbs 64 kg
LOuter Length 72" 1829mm
WOuter Width 42" 1067mm
HOverall Height 26" 660mm
AOverflow Height 20" 508mm
BLong Edge to Drain Center 14" 356mm
CShort Edge to Drain Center 36" 915mm
DDrain Shoe Length 6⅞" 175mm
EDeck Height 2" 51mm
FDeck Width 5" 127mm
GService Access Dimensions 12" x 18" 305mm x 457mm
IFloor Cutout for Drain 18" x 4" 457mm x 102mm
7242
Drain/OverflowEnd View
Side view
10.5"
(G) Service
Access
F
3"
I
Motor
Suction
Fitting
Heater
Control
Panel
Overflow
(Motor)
(Heater)
(Heater)
(Motor)
E
Electrical Specifications Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
L
W
LW
HA
D
B
