amiga™ plus whirlpool bath
Your best friend at the end of any
long day, the Amiga™ a simple,
enveloping form.
features:
• 4 fully adjustable TheraPro™ jets
• 4 directionally adjustable AccuPro™ jets
• RapidHeat™ in-line heater
• Electronic on/off control with temperature
readout
• Patented Adjustable Silent Air™ Induction System
• Optional Chromatherapy underwater lighting
• Sculpted armrest and contoured backrest
• PrO
3
™
Ozone Sanitation System standard
amiga™ plus whirlpool bath
model number: BP69 - LH
EM80 - RH
exterior dimensions:
72" long x 36" wide x 20¾" high
interior dimensions:
45" long x 22" wide
# of Jets/type of Jets:
4 TheraPro™ Jets,
4 AccuPro™ Back Jets
operating gallons:
63 gallons
never has there been a friend—an “amiga”—so comforting, so indulging: the amiga™ whirlpool bath.
Detail: The Amiga™ Plus whirlpool bath includes three
exclusive Jacuzzi®TheraPro™ massaging jets and a
sculpted armrest.

Amiga™ Plus Whirlpool Bath
Model: BP69 - LH, EM80 - RH
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
BP69 Amiga™ Plus Whirlpool Bath
Left Hand
EM80 Amiga™ Plus Whirlpool Bath
Right Hand
• Left Hand Drain Location
• Accessories / Hardware:
TheraPro™ Jet Rings Kit: #D095
AccuPro™ Jet Rings Kit (2Req’d): #P556
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
Technical Specifications
Dimensions
72” L x 36” W x 20-3/4” H
(1829 mm) L x (914 mm) W x (527 mm) H
Drain/Overflow
A: 16-7/8” (429 mm) B: 14” (356 mm)
Cutout
70” x 34”
Total Weight
772 lb. (350 kg) / 49 lb/sq. ft. (240 kg/m2)
Operating Gallonage
63 U.S. Gal. (238 Liters)
Min. 54 U.S. Gal. (204 Liters)
Max. 72 U.S. Gal. (273 Liters)
Product Weight
105 lb. (48 kg)
Skirt Mounting
Optional U-Frame
Electrical Specifications
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Standard)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000

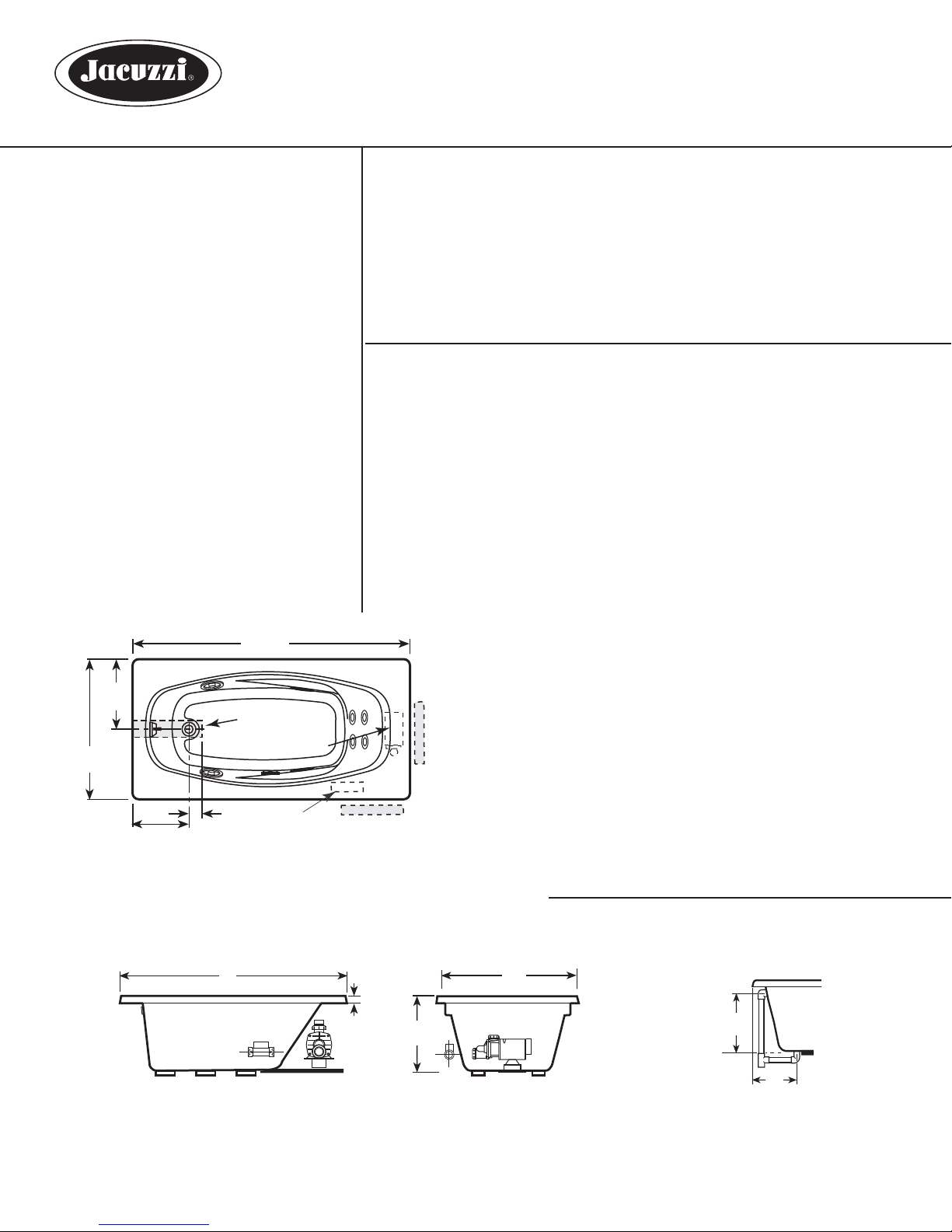

72''
18''
36''
2''
16'' x 4''*
14''
Motor
Opt. Service
Access
12" H x 18" L Service Access
Heater
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
END VIEW
H
W
SIDE VIEW
L
2"
(Suction
Heater)
#FR06 06/07
DRAIN/OVERFLOW
A
B
Product Shown: Amiga™ Plus Whirlpool Bath Left Hand Shown Model: BP69
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
