era™ elongated PerfectHeight™ complete toilet set
era™ toilet bowl and tank
model number: BK37
dimensions:
28" L x 16³/8" W x 32¼" H
bowl height:
16½" PerfectHeight™
bowl:
elongated front

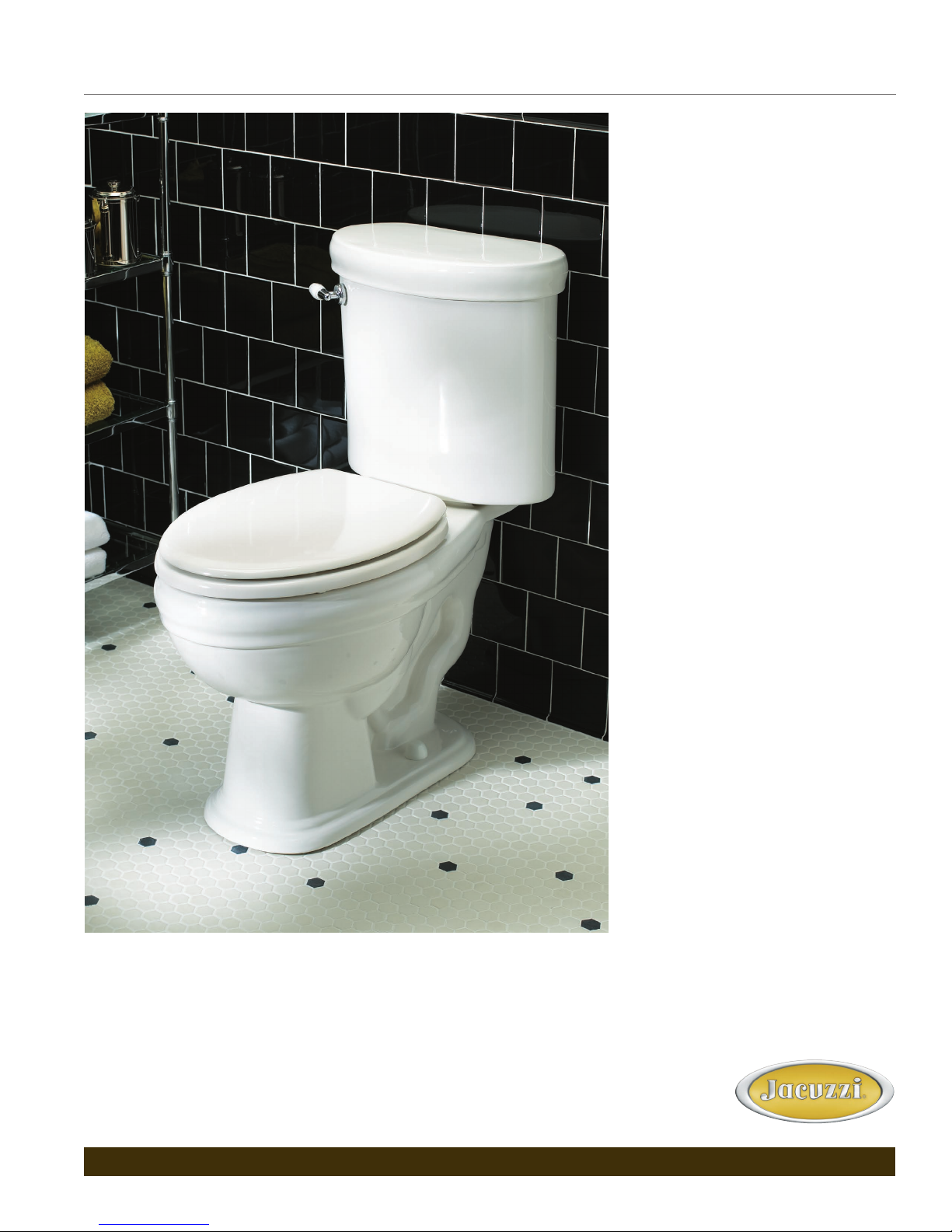

Era™ Elongated PerfectHeight™ toilet
bowl and tank with Jacuzzi® Propulsion™
Flushing System for superior waste
removal and minimal clogging.
Classic and versatile, the Era™ toilet features
Jacuzzi Propulsion™ Advanced Flushing
System with a 3” flush valve for greater
flushing power.
Features:
• Jacuzzi® Propulsion™ Advanced Flushing
System for exceptional flushing
and reliability :
– 3” flush valve provides improved flushing
power to standard 2” flush valves.
– 2 1/8” fully glazed trapway helps
reduce clogging.
– Powerful rim jets offers better bowl cleansing.
– Siphon jet assists in the complete removal
of waste.
– Pilot fill valve for consistent and quiet refills.
• Ergonomic, 16.5” PerfectHeight™ elongated
bowl for greater comfort.
• Classic design to complement traditional to
modern décor.
• Complete toilet set comes with everything
you need for easy installation:
Toilet, seat, wax ring kit and brass hardware.

Era™ Elongated Perfect Height™ Complete Toilet Set
Model: BK37
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITH-
OUT NOTICE.
Suite Components
Era™ 4” Pedestal/Console Lavatory .....BK38
Era™ 8” Pedestal/Console Lavatory .....BK39
Era™ Pedestal .............................................BK40
Era™ Metal Console Base .......................BK41
Era™ 4” Countertop Lavatory ..................BK45
Era™ 8” Countertop lavatory ..................BK46
Era™ Two piece elongated toilet set ......BK47
Era™ One piece elongated toilet ............BM06
Specifications
Water Use: 1.6 GPF/6.0LPF
Flush System: Power Flo™
Trap Diameter: 2” Dia.
Rough In: 12” rough in
Warranty: Five Year Limited Warranty
Overall: 28” L x 16-3/8” W x 32-1/4” H
Bowl Height: 16-1/2” Perfect Height™
Material: Two piece vitreous china
bowl and tank
Shipping Weight: 93.0 lbs - Toilet
Shipping Dimensions: 29.1 L x 17.3 W x 25.8 H - CTS
1/2”
©2006 Jacuzzi Bath Division • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
#BW90 01/06
5-1/2"
15"
16-3/8"
8-1/4"
19"
15-1/8"
11-3/8"
28"
Meets the Americans with Disabilities Act Guidelines
and ANSI A117.1 requirements where installed so
top of seat is 17” from the finished floor.
These dimensions and specifications are subject to
change without notice.
