Jacuzzi Comet User manual

COMET
Robotic Pool Cleaner
Operating Manual
Jacuzzi®
Safety and Warnings
Specifications
Prior to Installation
InstallingYour Cleaner
Cleaner Maintenance
Helpful Tips
Troubleshooting
Warranty
2
3
4
5
9
11
12
13

SAFETY AND WARNINGS2
2
IMPORTANT PRECAUTIONS - Read Prior to Use
1.This model applies to swimming pools with flat floors.
2. This model applies to small pools that are compatible with the cleaner’s cable length. Cleaner may be pulled
upside down while working in larger pools.
3. DO NOT power on the unit when it is outside of the water.
4. Ensure the power cord is connected to a leakage protective device and appropriate earth socket.
5. DO NOT operate the cleaner while people are in pool.
6. DO NOT attempt to move floaters along the electric cable.Always leave floaters in their original positions.
7. BEFORE POWER ON, ensure the cable is fully released to avoid any winding, which could affect the cleaner’s
performance or cause damage.
8. Clean the filter tray after each use.A dirty filter tray will affect the normal operation of the cleaner.
9. Cleaner should be stored in cool, ventilated storage, away from direct sunlight.
10. Power supply unit should be placed in a shaded area.To avoid overheating and potential damage of components,
never cover the power supply unit.
11. Only authorized personnel should open the cleaner’s motor assembly and power supply unit. Failure to comply
will void warranty.
12.To avoid accidents or damage, the power supply unit should be steadily placed at a minimum distance of 3.5m
(appr. 12 ft) from the pools edge.
13. DO NOT use the cleaner beyond the working environment/conditions stated in this manual.
14. DO NOT uncover the button film on the power supply unit.
15. Close the filtering system of your pool while cleaner is in use.
16. Ensure the power unit is properly positioned for the cleaner to cover full pool surface.
17. For safe operation, the cleaner works on DC 24V
CONGRATULATIONS
Congratulations on your purchase of the Jacuzzi® Comet Robotic Pool Cleaner, an innovative and highly efficient
pool cleaner.Through its advanced computer-controlled program, the Comet can clean the pool floor
automatically without draining pool water, while also filtering and ridding your pool of particles and sediments.

SPECIFICATIONS 3
3
1.This model applies to swimming pools with flat floors.
2. This model applies to small pools that are compatible with the cleaner’s cable length. Cleaner may be pulled
upside down while working in larger pools.
3. DO NOT power on the unit when it is outside of the water.
4. Ensure the power cord is connected to a leakage protective device and appropriate earth socket.
5. DO NOT operate the cleaner while people are in pool.
6. DO NOT attempt to move floaters along the electric cable.Always leave floaters in their original positions.
7. BEFORE POWER ON, ensure the cable is fully released to avoid any winding, which could affect the cleaner’s
performance or cause damage.
8. Clean the filter tray after each use.A dirty filter tray will affect the normal operation of the cleaner.
9. Cleaner should be stored in cool, ventilated storage, away from direct sunlight.
10. Power supply unit should be placed in a shaded area.To avoid overheating and potential damage of components,
never cover the power supply unit.
11. Only authorized personnel should open the cleaner’s motor assembly and power supply unit. Failure to comply
will void warranty.
12.To avoid accidents or damage, the power supply unit should be steadily placed at a minimum distance of 3.5m
(appr. 12 ft) from the pools edge.
13. DO NOT use the cleaner beyond the working environment/conditions stated in this manual.
14. DO NOT uncover the button film on the power supply unit.
15. Close the filtering system of your pool while cleaner is in use.
16. Ensure the power unit is properly positioned for the cleaner to cover full pool surface.
17. For safe operation, the cleaner works on DC 24V
PRIOR TO USE: Ensure the cleaner corresponds to your local voltage and
frequency (Hz)
CLEANER STRUCTURE:
Rated Input Voltage and Frequency
110V/60Hz
Output Voltage
DC24V
Rated Output Power
150W
Working Cycle
1h/1.5h/2h
Cable Length
39.37(12m)
Maximum Cleaning Area
646 sq(60m2) (for 12m cable in rectangle pool)
Filtering Capacity
5283 gal / (20m3/h)
Filter Density
180 µm
Water Temperature Of Use (For Cleaner)
10°C - 35°C / 50°F - 95°F
Creeping Speed
65.66 (20m)/min
IP Grade
Cleaner-IPX8 -- Power supply unit-IPX5
Working Environmental Temperature
(For Power Unit)
10°C - 40°C / 50°F - 104°F
Maximum Pool Depth
6.56 /2m
Climbing Slope
Maximum 25 Degree
TOP COVER
FILTER TRAY
CHASSIS

PRIOR TO INSTALLATION4
4
Carefully read and follow all instructions contained in this operating manual. Failure to do so may cause
injury, inhibit the operation of the pool cleaner, or damage your pool.
This cleaner was not designed to be the first clean at the beginning of the season. If you have a vinyl
pool, check for wear and tear, creases in the vinyl, or any obstructions under the liner. If your pool has
any of the previously mentioned defects, please consult a pool professional prior to use of cleaner. Pool
must be cleaned of algae or debris prior to the cleaner’s first use.
PRIOR TO USE: Install the brush before use to avoid possible dirt leaks.
PREPARINGYOUR POOL:
1. Make sure the chemical balance in your pool water is correct.
2. Brush your pool and let any debris settle.
3.Vacuum your pool using a manual vacuum cleaner.Your pool should be free of heavy debris and algae
prior to first use. It is not meant for initial pool start-up or opening.
4. Clean your pool filter, skimmer basket, and pump strainer basket.
5. Close the pool main drain (if your pool has one).
CHECK CONTENTS:
ITEM
NAME
QUANTITY
1
Cable
1
2
Power Supply Unit
1
3
Manual & Certificate
1
4
Brush
1
5
Safety Rope
1

INSTALLINGYOUR CLEANER 5
5
1.1 CABLE CONNECTION
1.1.1 Plug the cable line into the socket on the power supply unit
NOTE: Be sure to plug it in the correct direction and position, and fasten the nuts on both sides of
the plug.
Plug or unplug the cable by holding this position Figure 1.1.1
1.2 OPERATING PANEL
1.2.1 Plug the operating panel into a secure power socket
1.2.2 The operating panel contains three (3) primary features - the ON/OFF Button, the CYCLE Button,
and the CYCLE INDICATORS. Please refer to Table 1.2.1 on page 6 for a detailed guide on these features.
Figure 1.2.1
Figure 1.2.2
See Table 1.2.1
1
2
3

INSTALLINGYOUR CLEANER6
6
Table 1.2.1
Item Name Function Detail
1 ON / OFF Power on or off Power on or off
2 CYCLE
“1H” –1-Hour Cycle
Direction of travel reverses every
20 seconds. Suited for small pools.
“1.5H”--1.5-Hour Cycle
Direction of travel reverses every
25 seconds. Suited for medium
pools.
“2H”-- 2-Hour Cycle
Direction of travel reverses every
35 seconds. Suited for large pools.
3 INDICATOR All indicators flash once cycle is
completed.

INSTALLINGYOUR CLEANER 7
7
1.3 FUNCTION & ADJUSTMENT OF NOZZLE
1.3.1 The COMET features two nozzles, one of which opens while the other closes.Water flows out
through the opened nozzle to drive the cleaner forward.Adjust the direction of travel by rotating the
nozzle.
1.3.2 The nozzle may be adjusted based on the desired route of the cleaner.
Cleaner will move in a straight line when nozzles are positioned at 0°.
Cleaner will move in an arc when set up to 0° to 60°.
NOTE: While the COMET will clean freeform pools, some manual cleaning may be required for
harder-to-reach places.
Figure 1.3.1
Figure 1.3.2

INSTALLINGYOUR CLEANER8
8
1.3.3 Recommended cycle and nozzle settings:
Nozzle Setting Moving Path
0 /45 
0 /30 
0 /60 
30 /30 

INSTALLINGYOUR CLEANER 8
8

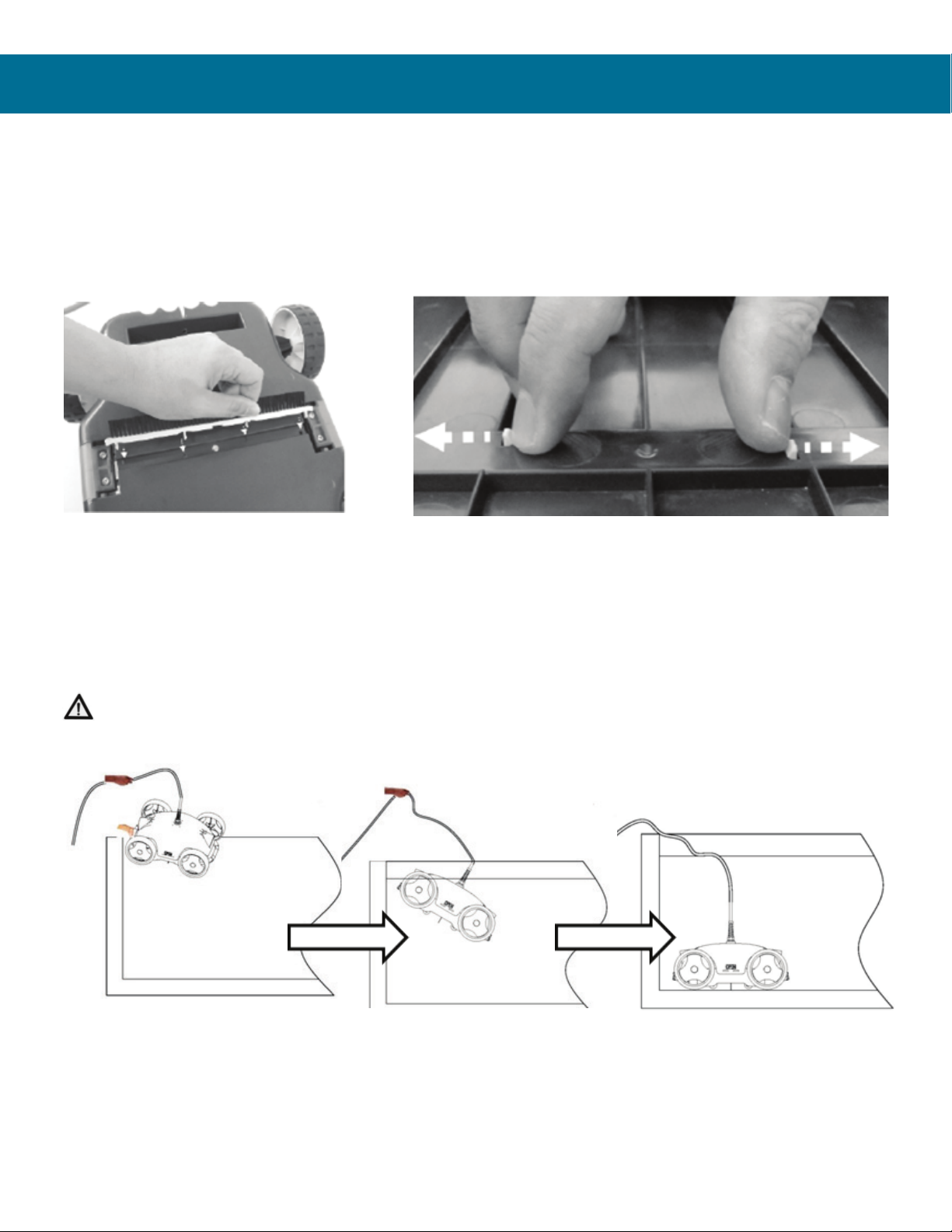

1.4 BRUSH INSTALLATION
1.5 PLACING & REMOVING CLEANER FROM POOL
IMPORTANT: To avoid damage to cleaner, do not drop cleaner into pool without controling its rate of
descent.
TO REMOVE: Slowly pull the COMET from your pool by the cable, ensuring the wheels of the cleaner
are facing the walls of your pool. Grasp the handle of the cleaner and allow water to fully drain.
1.4.1 Align the hooks on the bar with the holes on the underside of the cleaner as shown. Press each
hook into the holes until they are secured.
To release the line of bristles, press on the hooks to release them from the hole.
1.5.1 With one hand, firmly grasp the cable approximately 2 ft of length from cleaner.With the other
hand, firmly grasp cleaner handle. Gradually submerge cleaner into pool while slowly guiding
cleaner to the bottom of the pool.
Figure 1.4.1
Figure 1.5.1

CLEANER MAINTENANCE9
9
2.1 CLEANING THE FILTER TRAY
2.1.1 To clean the filter tray, open the cleaner from both sides by unlatching the top cover.
Remove the filter tray.
Clean the filter tray with a steady stream of warm water.
Reassemble the cleaner when finished.

CLEANER MAINTENANCE 10
10

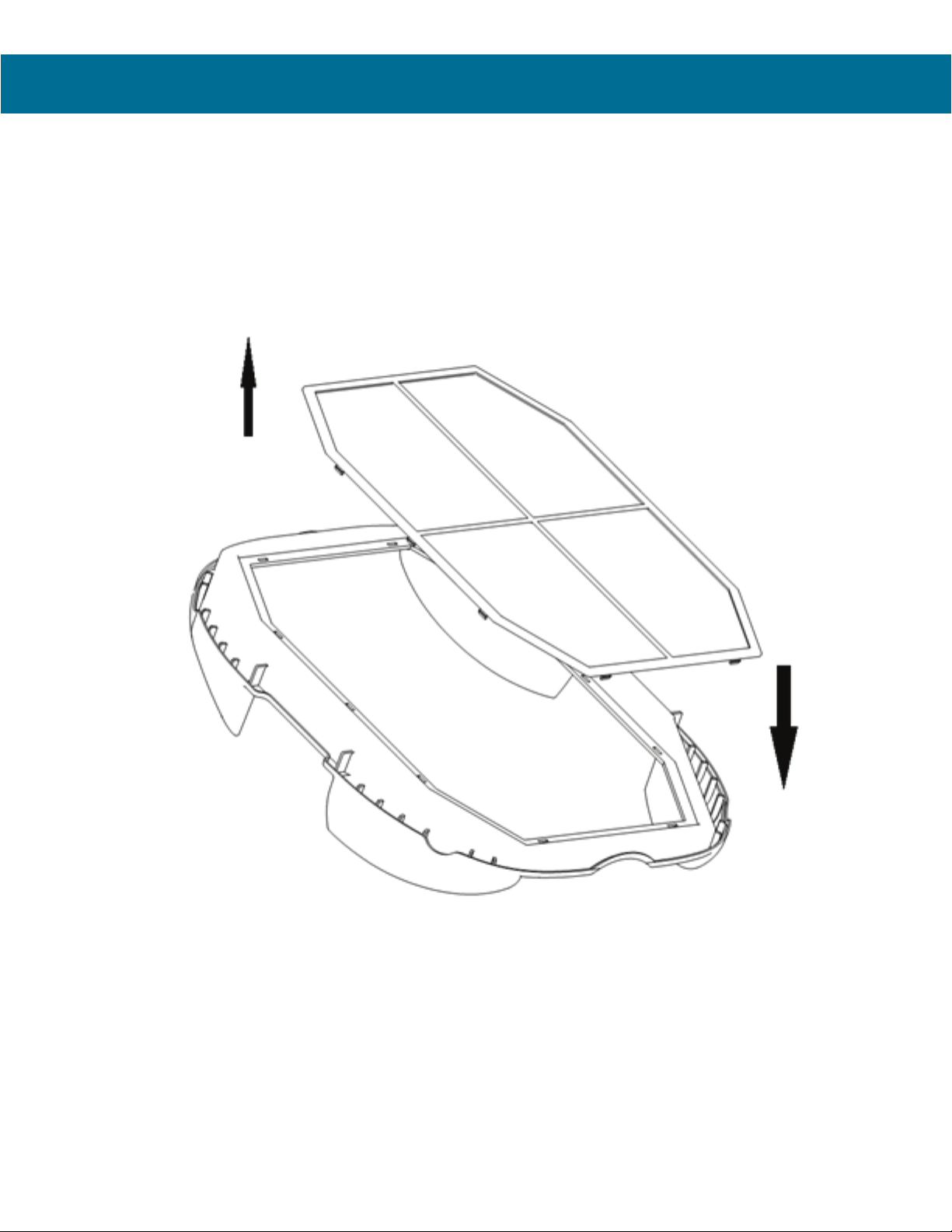

2.2 REPLACING THE FILTER NET
2.2.1 To replace the filter net, press buckle to disassemble.
Replace filter net and press to reassemble
Figure 2.2.1

HELPFUL TIPS11
11
3.1 SWEEPING MODE
3.2 HELPFUL HINTS
3.1.1 For optimal cleaning performance, direct nozzle parallel to pool surface so that jet stream does
not disturb uncollected debris.
3.1.2 Sweeping mode may be utilized in freeform pools in conjunction with main filter system to clean
hard-to-reach areas of pool.
1. Unplug power connection immediately after use (Do not do with wet hand or bare feet).
2.While removing cleaner from pool, avoid damage to pool walls by ensuring wheels are facing the wall.
Avoid scratching or dragging cleaner against walls.
3. Before completely removing cleaner from pool, allow water to drain from cleaner for 10-15 seconds.
4. Slowly pull cleaner from pool with cable, then grasp cleaner handle to fully remove from pool.
5. Clean pool with pump & filter before using the Jacuzzi Comet. If pool is heavily contaminated, use main
filtration system before using cleaner.
Figure 3.1.1
Figure 3.2.1

TROUBLESHOOTING 12
12
Symptom Possible reason Corrective action
Cable twists or coils
up
Cable not fully released Unplug power line and release cable
Nozzle in extra angle Adjust water outlet into proper angle
Obstruction in pool Remove obstruction in pool
Stuck on main drain outlet of
the pool Turn off pool filter system
Cleaner does not reach
all pool area
Power supply unit improperly
positioned
Place power supply in proper position so that
cleaner can reach all area
Nozzle in improper direction Adjust nozzle into proper direction
Customized pool shape Adjust the nozzle to lead to bigger moving
radius
Pool filter system and pump
open Turn off pool filter system
Cable not long enough in pool Release cable
Cleaner does not work
Power cord not connected
well Plug power cord and cable line
Damaged during
transportation Contact local vendor
Cleaner does not match local
rated voltage Contact local vendor
Staying on outside of
pool Improper nozzle setting Try to adjust nozzle position

COMET
Robotic Pool Cleaner
Jacuzzi®
Warranty:
Before using the cleaner, review the owner’s manual completely. Failure to read the owner’s manual completely
could result in pool damage caused by an improper installation of the cleaner.This product has passed all
quality control and safety tests conducted by the technical department of the factory. Warranty extends only
to manufacturing defects and does not cover any damage resulting from mishandling of the product by the
owner.This warranty is void if the product has been altered, misused, or has been repaired by unauthorized
personnel.Warranty period is one (1) year from date of purchase.Warranty covers the motor kit and the PCB.
Proof of purchase must be provided for any claim or repair during the warranty period.
For questions about the Jacuzzi Comet, or for warranty assistance, please contact Jacuzzi Support at
1-844-615-8994 or via email at [email protected].
www.jacuzzipool.com
