J -D300
Pool Cleaning System
Operator’s Manual
CONTENTS
Safety and Warnings 1
General Information 2
Tips for Usage 3
Assembly Instructions 4
Exploded Parts List 5
Diaphragm 7
In-Pool Installation 9
Warranty Information 13
Before using the cleaner, review the owner’s manual completely. Failure to read
the owner’s manual completely could result in pool damage caused by an
improper installation of the cleaner. This warranty does not cover parts that
are worn, scratched, faded as this is natural during normal operation in the
pool. The warranty does not cover pools that are improperly maintained
including water chemistry, pool surface construction and equipment failures.
Pool plaster or vinyl damage is not covered under warranty of the cleaner.
Misuse of the cleaner in any form is not covered including accidental misuse,
acts of God, or modifications to the cleaner by anyone other than the
manufacturer.
All parts except the Finned Disc (#11), Foot Pad (#12), Plastic Ring for Diaphragm
(#14), Diaphragm (#15), and Hose Sections (#21 and #22) are covered by a One
Year Warranty.
J -D300 Pool Cleaning System
www.jacuzzipool.com
Jacuzzi
Jacuzzi
13

SUCTION HAZARDS AND DROWNING RISKS
MOVING PARTS
STOP PUMP Cleaner must be completely disabled by turning off the pool’s
pump and suction before cleaning or maintaining the cleaner. Moving parts and
suction can injure fingers or body.
⚠⚠If your pool is equipped with one, you MUST cover your dedicated suction
port/vac port/automatic pool cleaner port when not in use by the cleaner.
⚠⚠DO NOT play with cleaner or apply cleaner or hose to body, clothing, or hair.
The hose and cleaner can take hold of your body, hair, or clothing. The suction
from the hose or cleaner, or just the hose or cleaner alone, can trap a swimmer
underwater. NEVER ALLOW ANYONE TO ENTER THE POOL when the cleaner is
in use.
DO NOT allow anyone, especially children, to use or play with or around the
cleaner or hose. Educate the pool users about the dangers of the hose, cleaner,
and suction ports.
STOP PUMP before swimming. The moving pool cleaner, hose, and suction
ports can injure or entrap swimmers. STOP PUMP, detach hose, and move the
cleaner and hose to an unused corner of the pool. If the hose may interfere with
the swimmers, remove it from the pool.
PRIOR TO INSTALLATION
This cleaner was not designed to be the first clean after pool construction or at
the beginning of the season. Check your vinyl pool for wear or tear, or for
roots, branches, rocks, or other obstructions under the liner. Gunite, plaster,
and tile pools must be free of deterioration, cracked or loose tiles, or other
conditions that could damage the cleaner. All pools must be cleaned of algae
and debris prior to the cleaner’s first use.
The entire filter system must be cleaned prior to installation: Clean the filter.
Empty, backwash, and rinse all baskets. The cleaner will not operate properly
with a dirty or clogged filter system.
AFTER INSTALLATION
Carefully assess the cleaner’s operation after installation. Some slight
adjustments may be needed to ensure proper performance and to ensure that
the cleaner does not damage or cause undue wear to the pool surface. Vinyl
pools especially are at risk for abrasion, pattern wear, pattern or ink removal,
or serious scratches from the cleaner running into objects or debris in the
pool. Manufacturer disclaims any liability for damages caused to vinyl pool
patterns or liners.
1 2
Carefully follow all instructions contained in this manual. Failure to do so may
inhibit the cleaner’s operation or damage your pool. The manufacturer disclaims
any liability for repairs or replacement to any structures or components in the
customer’s pool.
WARNINGS AND SAFETY INFORMATION GENERAL INFORMATION

TIPS FOR USAGE ASSEMBLY INSTRUCTIONS
This pool cleaner was made to assist you in keeping your pool clean and
well maintained. Here are ten important tips:
1. Once installed, your cleaner is designed to run for 4-6 hours and should
be able to clean an average sized pool in that time.
2. Your pool needs to be in good condition in order to use this cleaner. If
there are broken tiles or plaster, or tears in the vinyl, the cleaner may
damage your pool further.
3. The cleaner is not designed to clean pool features, waterfalls, steps or
ladders. Those will need to be cleaned manually with a brush.
4. The cleaner is not designed to run and clean under a solar cover.
5. Run your cleaner 2-3 times a week.
6. Do not wait until your pool is filthy to run the cleaner. The cleaner should
be considered a preventative maintenance for a clean pool.
7. The cleaner is meant to vacuum small debris and dirt from your pool.
Large debris and fallen objects will need to be removed manually.
8. This cleaner is not meant to replace chemical treatments. Continue
chemical treatments; remove the cleaner during shock treatments.
9. Before swimmers enter the pool, turn off the pump, unplug the hose,
cover the intake, and then move the cleaner and hose to an unused side
of the pool.
10. Your cleaner should stay in the pool at all times, EXCEPT when it may
endanger swimmers. Dry storage will wear the cleaner/hose more quickly
than storage in a correctly balanced pool.
CLEANER ASSEMBLY
1.
2.

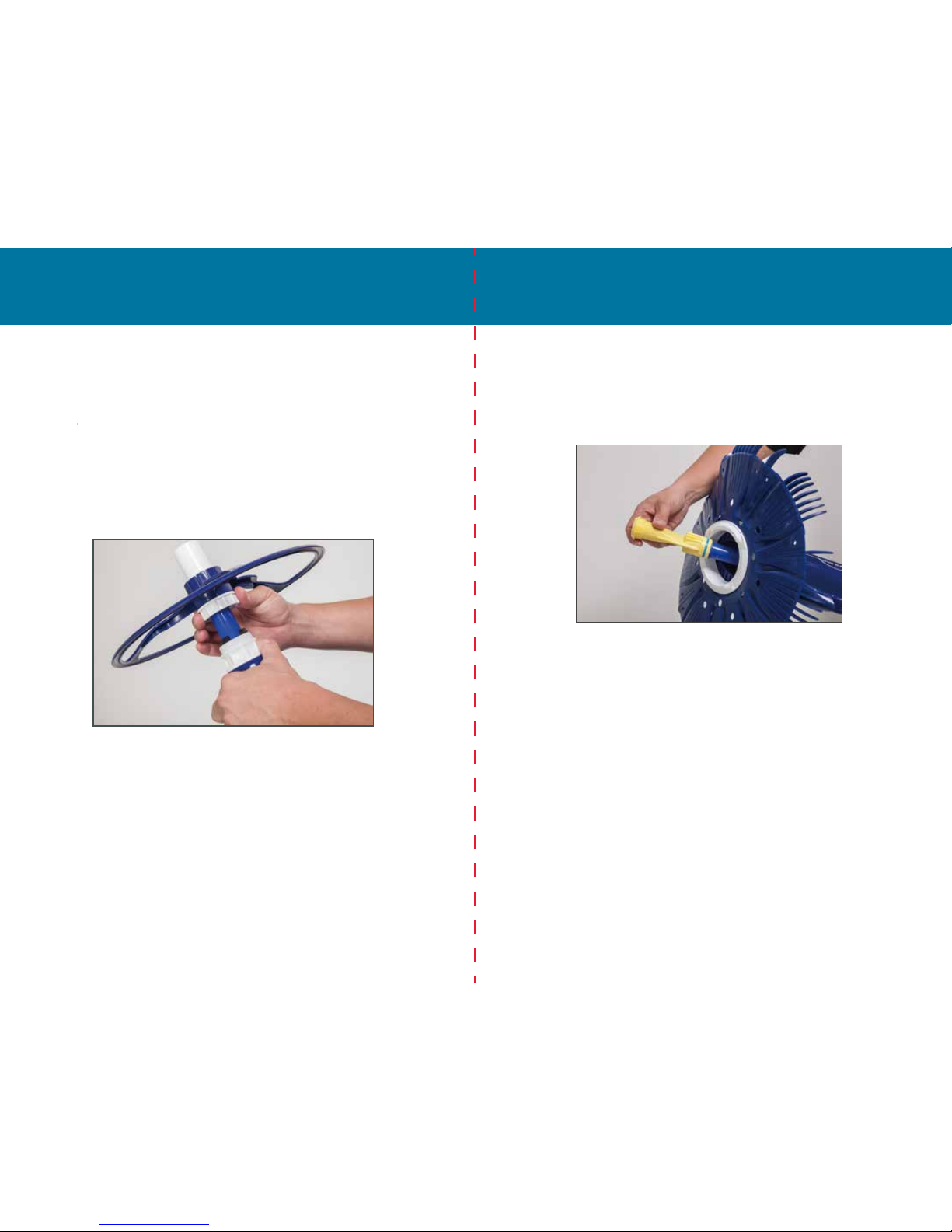

3. Attach the bumper ring (#2) by pushing the flanged end of the hose
connector (#1) onto the top hose opening of the cleaner body.
3 4
Attach the finned disc (#11) to the bottom lip of the cleaner by sliding it
around and over the lipped circular opening. The word “TOP” should be facing op-
posite the floor. The finned disc should spin freely after it is attached.
If not already installed, insert the long tube, ring, and diaphragm (#13, #14,
and #15) assembly into the center of the cleaner with the yellow diaphragm
towards the bottom of the cleaner.

Pool Cleaning System PARTS LIST
CLEANER BODY ASSEMBLY HOSE AND POOL CONNECTION
1 Hose Connector 16 Automatic Regulator Valve
2 Bumper Ring 17 Hose Weight
3 Plastic Ring 18 Elbow Connectors
4 Chamber Assembly 19 Intake Adaptor
5 Left Cleaner Body 20 Hose Protector Sleeve
6 Right Cleaner Body 21 (11) Female/Male Hose Sections
7 Float 22 Female/Female Hose Section
8 Weight
9 Back Housing
10 Front Housing
11 Finned Disc
12 Foot Pad
13 Long Tube
14 Plastic Ring for Diaphragm
15 Diaphragm
5 6
1
3
4
6
218
20
16
22
21
19
17
8
9
7
10
5
11
12
15
14
13
J -D300
Jacuzzi

DIAPHRAGM CLEANING DIAPHRAGM REPLACEMENT
Your cleaner’s diaphragm (#15) may become clogged or damaged over time. If
you notice decreased performance, check the diaphragm for debris or damage.
1. Remove the cleaner from the pool and unhook the hose from the top of the
2.
3.
4. If the diaphragm is dirty, but not damaged, clean the valve by rubbing it
with a rag under warm water.
5.
6.
7. Screw the bumper ring assembly onto the top of the main cleaner body.
7 8
Pool Cleaning System.
J-D300
To remove the yellow diaphragm, unscrew the bumper ring (#2) and hose
connector (#1) by twisting the white ring directly beneath the blue bumper ring
in a counterclockwise direction while holding still the white ring closest to the
cleaner body. Unscrew the assembly until you can remove it from the cleaner.
Set the bumper ring assembly to the side.
You will now see a chamber assembly (#4) that sits inside the main
cleaner body. Forcefully push the protruding blue long hose downward until
the yellow diaphragm (#15) and the attached blue long tube (#13) come
out of the chamber assembly. You may need to pull on the old diaphragm
to release the tube and diaphragm from the main cleaner body.
If the diaphragm is damaged, replace it with a new diaphragm. Pull the
yellow diaphragm off of the bottom of the blue chamber assembly and
remove the blue plastic locking ring (#14) from the old diaphragm.
Place the blue locking ring on the new diaphragm. Slide the new
diaphragm over the blue tube until it sits tightly against the ridge on
the blue tube.
Slide the blue tube into the chamber assembly with the diaphragm at the
bottom. Push the diaphragm into the cleaner until the long blue tube and
diaphragm are secure.
Jacuzzi

IN-POOL INSTALLATION
1. Make sure the pool is generally clean, free from debris, and the entire pump and
TROUBLESHOOTING TIP: If your cleaner does not have enough power, stays in
one area, or does not move at all, clean the pump and filtration system.
2.
TROUBLESHOOTING TIP: If one area of your pool is not being cleaned, your hose
may not be long enough.
DEDICATED CLEANER INTAKE INSTALLATION
9 10
filtration system is clean. Empty your skimmer and pump baskets.
Place the hose weight (#17) on the hose. You will need one hose weight
if your pool depth is less than 8 feet, two if the pool depth is more.
TROUBLESHOOTING TIP: With correct hose weights, your cleaner should
sit at a 45 degree angle on the bottom of the pool. If your cleaner isn’t
working correctly, the hose is sinking, or the cleaner is stuck in one area,
adjust the hose weights’ location, or add/decrease the number of hose
weights.
If you are using the dedicated cleaner intake in your pool’s sidewall you
may need to install the intake adapter (#19) if the hose does not fit snugly
in the dedicated cleaner port. Push one elbow connector (#18) into the port
to angle the hose upward.
Attach the hose to the cleaner’s top, lower the cleaner into the pool, feeding
the hose slowly into the pool so that it can fill with water. Make sure there
is not excessive air in the hose: the hose should mostly sink. Attach the
female hose end to the elbow connector. Turn the pump on and make
sure the system runs smoothly.
TROUBLESHOOTING TIP: If your cleaner is not covering the whole pool,
stays in one area, or does not clean well enough, adjust your valves.
Assemble the hose pieces together. Determine the proper amount of hoses
needed. Start at where cleaner is hooked into the wall or skimmer then
go to farthest point of pool and add one extra section. The female/female
end should be
at the end where the hose will attach to the intake of the
pool.
3.
4.
5.
IN-POOL INSTALLATION IN-POOL INSTALLATION

IN-POOL INSTALLATION IN-POOL INSTALLATION
SKIMMER INTAKE INSTALLATION
6.
TROUBLESHOOTING TIP: If your cleaner stays at the surface or pulls in air
from the surface, install or check the automatic regulator valve.
7.
8.
9.
TROUBLESHOOTING TIP: If the return line pushes the cleaner away from
that area of the pool, adjust or install an eyeball diverter.
11 12
If you are using the skimmer intake, then install the automatic regulator
valve (#16) by pulling on the threaded section of the valve until it comes away
from the main part of the regulator valve. Screw this threaded section into the
skimmer intake port. Snap the rest of the automatic regulator valve into the
threaded section.
Connect the elbow connectors (#18) to each other so they angle the hose
out the skimmer door, then slide the female end over the top of the Automatic
Regulator Valve.
Slide the hose protector sleeve (#20) over the hose where the hose will
meet the side of the pool at the skimmer opening. This will protect the
pool wall and skimmer door from the agitation of the hose.
Attach the hose to the cleaner’s top, lower the cleaner into the pool, feeding
the hose slowly into the pool so that it can fill with water, and attach the
female end through the skimmer to the elbow connector. Make sure there is
not excessive air in the hose: the hose should mostly sink. Turn the pump
on and make sure the system runs smoothly.

In-Pool Installation
Cleaner Body Assembly
QUICK USE GUIDE
  























CLEANER BODY ASSEMBLY
HOSE AND POOL CONNECTION
1 Hose Connector
16 Automatic Regulator Valve
2 Bumper Ring
17 Hose Weight
3 Plastic Ring
18 Elbow Connectors
4 Chamber Assembly
19 Intake Adaptor
5 Left Cleaner Body
20 Hose Protector Sleeve
6 Right Cleaner Body
21 (11) Female/Male Hose Sections
7 Float
22 Female/Female Hose Section
8 Weight
9 Back Housing
10 Front Housing
11 Finned Disc
12 Foot Pad
13 Long Tube
14 Plastic Ring for Diaphragm
15 Diaphragm
18
20
16
22
21
19
17
1
3
4
6
2
8
9
7
10
5
11
12
15
14
13
J -D300 Pool Cleaning System
1.
2.
3.
3.
Attach the finned disc (#11) to the bottom lip of the cleaner by sliding it around and over the lipped circular opening.
The word “TOP” should be facing opposite the floor. The finned disc should spin freely after it is attached.
If not already installed, insert the long tube, ring, and diaphragm (#13, #14, and #15) assembly into the center of the
cleaner withthe yellow diaphragm towards the bottom of the cleaner.
Attach the bumper ring (#2) by pushing the flanged end of the hose connector (#1)onto the top hose opening.
Make sure the pool is generally clean and free from debris. The entire pump and filtration system must be working prop -
erly. Empty your skimmer andpump baskets.
Assemble the hose pieces together (#21 & #22) . Determine the proper amount of hoses needed by adding one more
hose section than the furthestdistance from the suction port.
Place hose weights (#17) on the hose: one hose weight if your pool depth is less than 6 feet, two if the pool depth is
between 6-9 ft. If deeper, contact your local pool store to purchase more. The weights should keep the cleaner’s skirt
pad flat on the pool bottom. If not, adjust placement of weights.
Adjust your valve(s) to allow for proper suctionto cleanerif youare plugging the cleanerinto the wall.
If you are using the skimmer, install the automatic regulator valve (#16) by placing it into the skimmer intake port and
then installing the hose into the automatic regulator valve. Place the hose protector (#20) over the hose where the hose
will meet the side of the pool at the skimmer opening.
Attach the hose to the cleaner’s top (#1), lower the cleaner into the pool, feeding the hose slowly into the pool so that
it can fill with water. Make sure there is not excessive air in the hose by submerging the hose. The hose should not
float.
Attach the hose end to the intake valve in the pool wall. Or, go in through the skimmer door and attach to the installed
valve. Turn on the pump and make sure the system runs smoothly.
Jacuzzi

TROUBLESHOOTING
TIPS FOR USAGE
MOVING PARTS
SUCTION AND DROWNING RISKS
SAFETY, TIPS AND
TROUBLESHOOTING
 








STOP PUMP before swimming. The movingpoolcleaner,
hose, and suction ports can injure or entrap swimmers.
STOP PUMP, detach hose, and move the cleaner and hose
to an unused corner of the pool. If the hose may interfere
with the swimmers, remove it from the pool.

PRIOR TO INSTALLATION
MAINTENANCE

Does Not Clean Whole Pool or Stays in One Place
Check that hose is long enough. Add hose sections.


Make sure the main drain is not interfering with cleaner.



Does Not Clean Well Enough
Ensure pump and filtration system are completely clean.
Adjust pump valves.
Reinstall skimmer automatic regulator valve.


Check the diaphragm for wear; replace if necessary.
Check the skirt pad for wear; replace if necessary.

Hose Floats or Cleaner Stays at Surface
Check automatic regulator valve



If your pool is equipped with one, you MUST cover your
dedicated suction port/vac port/automatic pool cleaner
port when not in use by the cleaner.
DO NOTplay with cleaner or apply cleaner or hose to
body, clothing, or hair. The hose and cleaner can take hold
of your body, hair, or clothing and cause serious injury. The
suction from the hose or cleaner can trap a swimmer
underwater. NEVER ALLOW ANYONE TO ENTER THE
POOL when the cleaner is in use.
DO NOTallow anyone, especially children, to use or play
with or around the cleaner or hose. Educate the pool users
about the dangers of the hose, cleaner, and suction ports.
STOP PUMP The cleaner must be completely disabled by
turning off the pool’s pump and suction before cleaning or
maintaining the cleaner. Moving parts and suction can
injure fingers or body.
All pools must be cleaned of algae and debris prior to the
cleaner’s first use.
This cleaner was not designed to be the first clean after pool
construction or at the beginning of the season.
Check your vinyl pool for wear or tear, or for roots, branches,
rocks, or other obstructions under the liner.
Gunite, plaster, and tile pools must be free of deterioration,
cracked or loose tiles, or other conditions that could damage
the cleaner.
The entire filter system must be cleaned prior to installation.
Clean the filter. Empty, backwash, and rinse all baskets. The
cleaner will not operate properly with a dirty or clogged filter
system.

Carefully assess the cleaner’s operation after installation. Some
slight adjustments may be needed to ensure proper performance
and to ensure that the cleaner does not damage or cause undue
wear to the pool
surface.



The cleaner is not designed to run or clean under a cover.
Run your cleaner 2-3 times a week.


Vinyl pools are especially at risk for abrasion, pattern wear, pattern
or ink removal, or serious scratches from the cleaner running
into objects or debris in the pool. Manufacturer disclaims any
liability for damages caused to vinyl pool patterns or liners.
Once installed, your cleaner is designed to run for 4-6 hours and
should clean an average sized pool in that time.
Your pool needs to be in good condition in order to use this
cleaner. If there are broken tiles, crumbling plaster, or tears in the
vinyl, the cleaner may damage your pool further as well as be
damaged itself.
The cleaner is not designed to clean pool features, waterfalls, steps
or ladders. Those will need to be cleaned manually with a brush.
Do not wait until your pool is filthy to run the cleaner. The
cleaner is meant to vacuum small debris and dirt from your pool.
Large debris and fallen objects will need to be removed manually.
The cleaner should be considered a preventative maintenance for
a clean pool.
This cleaner is not meant to replace chemical treatments.
Continue regular chemical treatments, and remove the cleaner
during chemical shock treatments.
Before swimmers enter the pool, turn off the pump, unplug the
hose, cover the intake, and then move the cleaner and hose to
an unused side of the pool.
Your cleaner should stay in the pool at all times, EXCEPT
when it may endanger or entangle swimmers OR during shock
treatments. Dry storage will wear the cleaner/hose more quickly
than storage in a correctly balanced pool.
Remove cleaner and lower it into pool again, making sure air is
forced from hose before attaching the hose to the intake. Adjust
hose weights so cleaner is flat to bottom.
Adjust the pool’s return line eyeball diverter or install the included
eyeball diverter and outer washer ring.
Check that cleaner sits at a 45 degree° angle and the skirt pad is
flat against the pool floor; adjust hose weights as needed.
Turn off pump, remove cleaner, and clear the underside and
diaphragm of debris, leaves, dirt, etc.
J -D300 Pool Cleaning System
Jacuzzi
