GLR2701/GLR43301 GIGALINK™RECEIVER SETUP INSTRUCTIONS
Single Code Programming
Single code programming can be achieved by following the steps below:
Step 1: Connect power to the GIGALINK™receiver. Make sure all switches on the mode dipswitch
are off.
Step 2: Momentarily short the two CC pins on the receiver board. (This sets all the channels to a
random code. If there are transmitters previously programmed, they will have to be re-
programmed when CC pins are shorted.)
Step 3: Connect the transmitter to the receiver by inserting the GIGALINK™cable into the transmitter
and receiver 2.5-mm socket. (This will activate the programming mode and is indicated by the
red light (LED) on the transmitter that must remain “on”)
Step 4: Activate one of the selected channels on the transmitter for approximately one second, LED
should blink twice to confirm code programming and then switch “off”.
Step 5: Disconnect GIGALINK™cable.
Repeat steps 3 to 5 to program another transmitter channel.
Mode Setting
The 4-way dip switch functions as a mode selector for the relay. User should set the receiver mode correctly.
See below table for different mode setting.
GLR2701/GLR43301 Mode Settings
DIP Switch Mode Settings
The output relay will respond in the following manner when receiving the correct
signal from a transmitter
"Momentary": Relay on, only while correct signal is received
"Flip-Flop": Relay alternates at every correct incoming signal
"Delayed Off 1": Relay on, but delayed off for 1-10 seconds, adjustable
by trimpot
"Delayed Off 2": Relay on, but delayed off for 10-300 seconds,
adjustable by trimpot
"Pulsing": Relay will pulse at 1Hz for 10-300 seconds, adjustable by
trimpot
"Latching On": Relay will energize until supply to receiver is
momentarily interrupted

ELSEMA
Enter the world of wireless

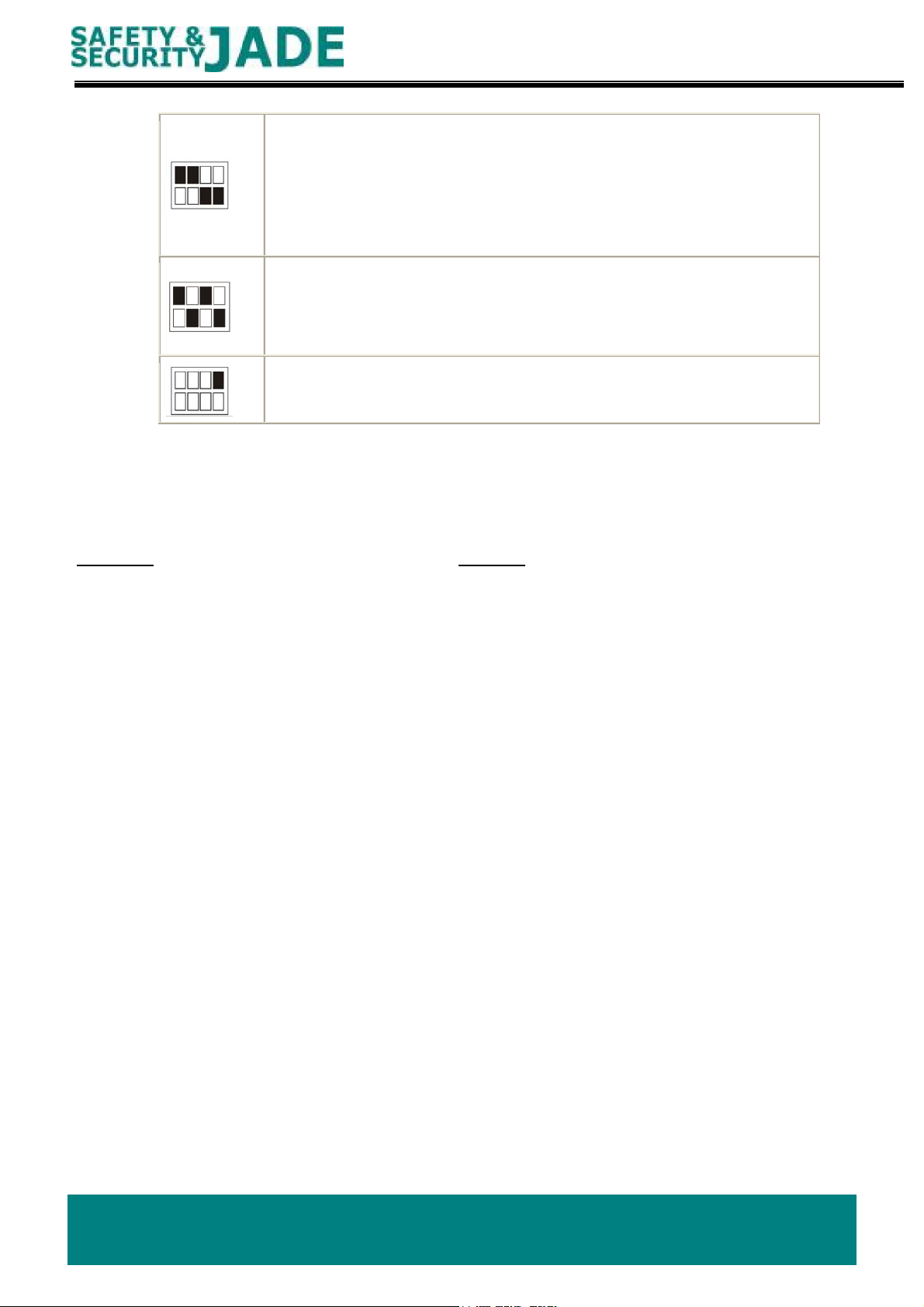

"On-Off": This mode requires a 2-channel Tx.
Channel 1 will always energize the relay
Channel 2 will always de-energize the relay
You must press both buttons at the same time during programming
(channelised code programming). Pressing one channel only will not
get the on/off function.
"On-Off": This mode requires a 4-channel Tx.
Channel 3 will always energize the relay
Channel 4 will always de-energize the relay
(Mode added November 2006)
"Test": Relay is energized, for test purpose only
Troubleshooting
This section contains helpful troubleshooting tips and solution.
Symptom Solution
Receiver not responding to transmitter after
programming.
Try to program the transmitter again, but this
time connect battery to the transmitter.
If transmitter only programs when the battery is
connected, return transmitter to Elsema.
Check if GIGALINK™cable is inserted
correctly
Transmitter activates wrong channel on a multi-
channel receiver.
Wrong dip switch setting while programming
the receiver. Use the dip switch table and
program again
Transmitter has short range. Check receiver antenna connection. If you are
using a shielded coax cable, check that the
shield and core are connected properly.
Led is flashing on the transmitter. Replace battery.
