Jamestown J1000B User manual

Pellet Stove Owner’s Manual
Models J1000B and J2000T
Listed by OMNI-Test Laboratories, Inc.
to
UL 1482-1994, ASTM E 1509-95, ULC-S627-M93 and ULC-S628-M93
E.P.A. Rated
For use with 1/4 in. (6mm.) to 3/8 in. (10 mm.) Wood Pellet Fuel
Also For Use In Mobile Homes
Please read this entire manual before installation and use of this pellet fuel-
burning room heater. Failure to follow these instructions could result in property
damage, bodily injury or even death.
Contact local building or fire officials about restrictions and installation inspection
requirements in your area.
Save this manual for future reference.
Pellet Stoves
First in Quality, First in Value
2006
EDITION
P.O. Box 400, Vermilion Bay, Ontario, Canada POV 2V0
Phone: [phone] Fax: [phone]
www.jamestownpelletstoves.ca
Certified for Canada and USA

Page i
1998-2006 Edition
FOREWORD
Dear Valued Customer:
Welcome to the Jamestown family of quality heating. Your Jamestown stove has been carefully
engineered and crafted from the highest quality materials to provide you with the most efficient heat
today's technology can provide. Experienced and highly trained craftsmen give individual attention
to each appliance as it is assembled and finished. Every detail and function is checked, tested and
rechecked. You can depend on your Jamestown appliance to provide you with the ultimate in
advanced solid fuel burning technology, function, durability and decor.
The OMNI mark is your assurance that the Jamestown appliance meets the highest quality and safety
standards in the industry. Additional quality tests are conducted to maintain the highest standards
on every stove we manufacture.
Because of the high quality of craftsmanship and materials used, the Jamestown company is able to
provide all Jamestown models with an easy to understand limited five year warranty as stated in the
Limited Five Year Warranty policy in this manual.
We are confident that many years of heating satisfaction will accompany you with your Jamestown
solid fuel burning appliance. Your local Jamestown Dealer will be available to assist you with any
additional questions or concerns. We commend you on your decision to choose Jamestown.
Warm Regards !

Page ii
1998-2006 Edition
JAMESTOWN PELLET STOVES SPECIFICATIONS iv
STOVE EXTERIOR PARTS IDENTIFICATION DIAGRAMS
J1000B and J2000T v
J20001T vi
CHAPTER I: SAFETY FIRST, ALWAYS! 1
Caution 1
Safety Notices 2
CHAPTER II: INSTALLATION REQUIREMENTS 3
General Requirements 3
Manufactured (Mobile) Home Installation Requirements 4
CHAPTER III: CLEARANCESTO COMBUSTIBLES REQUIREMENTS FOR J1000B & J2000T 5
Floor Protection Requirement 5
Installing On Carpet Or Other Combustible Floor 5
Alcove Installation 6
Corner Installation 6
Vertical Clearances 7
Clearances for Insert 8
CHAPTER IV: CLEARANCESTO COMBUSTIBLES REQUIREMENTS FOR J2001T INSERT 9
Installation in a Pre-Manufactured Wood Burning Fireplace 9
Installation inWood Framed Enclosure/Chase 9
Floor Protection Pad Requirement for All Installations 9
Clearances to Combustibles Requirement Diagrams 10
CHAPTERV: GENERALVENT SYSTEM INFORMATION 11
Warning 11
Using an Existing Chimney toVent a Pellet Stove 11
Installations Requiring a Complete New Chimney System 11
CHAPTERVI: VENT SYSTEM CONFIGURATION OPTIONS 13
Coaxial DirectThrough-the-Wall HorizontalVent Termination - J3020A 13
J3020A Kit Installation Instructions 14
Conventional DirectThrough-the-Wall HorizontalVent Termination 18
CoaxialThrough-the-Wall 45° HorizontalVent Termination 20
ConventionalThrough-the-Wall 45° HorizontalTermination 24
Vertical Venting Using an Existing Chimney 25
Vertical Venting Outside Roof Line - Unit Back Parallel to Outside Wall 26
Vertical Venting Inside Roof Line - Unit Back Parallel to Outside Wall 27
CHAPTERVII: INSTRUCTIONS FOR FRAMINGTHE J2001T OR J1001B FIREPLACE INSERT 29
InsideThe Room and Recessed in an Interior Chase 30
Recessed in an Exterior Chase 30
Corner Installation 31
Vertical Venting 32
TABLE OF CONTENTS

Page iii
1998-2006 Edition
CHAPTERVIII: OPERATING INSTRUCTIONS FOR ALL MODELS 33
Introduction to Efficiencies/ Achieving an Efficient Burn 33
Efficient Flame Characteristics 34
Pellet Fuel Quality 35
Jamestown Control Panel 36
Introduction to the Control Panel 37
WallThermostat and Thermostatic Control/Automatic Mode 38
Semi-automatic Mode 39
Starting a Fire ForThe FirstTime. Automatic and Semiautomatic Modes 41
Starting a Fire ForThe FirstTime. Manual Modes 43
Turning off the Stove 44
Power Inverter Requirement Specifications 44
CHAPTER IX: MAINTENANCE AND CARE 45
Periodic Cleaning Requirements 45
MaintenanceTool Tip 45
Every time before you light a fire 46
Once or twice a week 46
After every one ton of pellets 47
Once a year 48
Auger System Care/Auger Jams 49
Gasket Materials Maintenance Recommendations 50
Proper Firepot Alignment 51
Airwash System Diagram 52
Heat Exchanger Scraper Diagram 52
Firebox and Exhaust Channels Diagram 53
CHAPTER X: ELECTRICAL SYSTEM INFORMATION 55
Introduction to the SCS300T Control Board 55
Control Board Program ParametersTables 56
Program Selection Information For all Models 57
Definition ofThe Three Control Modes 57
SCS300T Control BoardWiring Diagram 59
CHAPTER Xl: TROUBLE SHOOTING GUIDE 61
APPENDIXES J2001T Pellet Stove A
Cast Legs J2067T & Gold Legs J2068T B
Combustion Fan Assembly C
Exhaust Blower Assembly D
Auger Motor & Bracket E
KWM Relay Kit #03DAA F
3 Piece Mitered Glass Kit G
J1000 Crossflow Fan #07EEG H
Exhaust Blower Assembly Model J1000 I
Warnings J
SERVICE RECORD AND NOTES OPPOSITE INSIDE BACK COVER
WARRANTY REGISTRATION CARD INSIDE BACK COVER
JAMESTOWN LIMITED FIVEYEAR WARRANTY POLICY BACK COVER
TABLE OF CONTENTS

Page iv
1998-2006 Edition
JAMESTOWN PELLET STOVES SPECIFICATIONS
J1000B
Without Leg,
Pedestal O Rise
J2000T
With Standa d
Pedestal
J2001T
Without Rise
Standa d Colo METALLIC
CHARCOAL
METALLIC
CHARCOAL
METALLIC
CHARCOAL
Maximum BTU Input 34,000 42,000 42,000
Vent Pipe Diamete 3" (76 mm) o
4" (101 mm)
3" (76 mm) o
4" (101 mm)
3" (76 mm) o
4" (101 mm)
Elect ical Ampe e Rating with Auto Ignition
(without Auto Ignition)
5.2
(2.2)
7.5
(2.5)
7.5
(2.5)
Vent Pipe Type TYPE L TYPE L TYPE L o SS Flex
Height [in./mm.] 24/610 30/762 22.5/572
Width [in./mm.] 23/584 26/660 26/660
Depth [in./mm.] 13.5/343 24.5/622 24.5/622
Weight (lb./ kg.) 175/80 220/100 220/100
Sh oud Size ( Width" X Height")
Standa d
La ge
29" X 42"
35" X 50"
NA
NA
29" X 41.5"
35" X 49.5"
Fuel Hoppe Capacity (Lb./Kg.) 37/16.8 58/26.4 58/26.4
Minimum Fi eplace Depth (in./ mm.) NA NA 16.5/419
Minimum Fi eplace Rea Width (in./ mm.) NA NA 26/660
Minimum Fi eplace Rea Height (in./ mm.) NA NA 22.5/572
Maximum Ve tical Vent Length (Ft./M.) 35/10.5 35/10.5 35/10.5
Maximum Ho izontal Vent Length (Ft./M.) 25/7.5 25/7.5 25/7.5
CLEARANCES TO COMBUSTIBLES REQUIREMENTS
J1000B J2000T J2001T
Stove Back To Back Wall (in./mm.) 1/25 1/25 1/25
Stove Side Panel To Standa d Side Wall
(in./mm.)
3/76 3/76 3/76
Stove Side Panel To Alcove Side Wall (in./mm.) 5/127 5/127 5/127
Stove Rea Co ne s To Standa d Side Wall
(in./mm.)
1/25 1/25 1/25
Stove Rea Co ne s To Alcove Side Wall
(in./mm.)
5/127 5/127 5/127
Stove F ont To Ca pet O Any Combustible
Floo (in./mm.)
6/152 6/152 6/152
Manufacturer reserves the right to change all or some of the specifications without prior written notice.

Page v
1998-2006 Edition
Notes:
Drawing is not to Scale or Proportion.
*Ash Pan (6) and Ash Pan Latch (7)
are on models J2000 AND J2001T ONLY.
REFERENCES TO THE ASH PAN AND THE ASH PAN
LATCH THROUGHOUT THIS MANUAL REFER TO
MODELS J2000 AND J2001T ONLY.
MODEL J1000 DOES NOT HAVE AN ASH PAN.

Page vi
1998-2006 Edition

Page 1
1998-2006 Edition
I. SAFETY FIRST ALWAYS
1. (a) DO NOT ATTEMPT TO INSTALL THIS PELLET STOVE YOURSELF. HAVE THE JAMESTOWN
DEALER OR A CERTIFIED TECHNICIAN INSTALL THE PELLET STOVE TO MEET ALL LOCAL AND
NATIONAL SAFETY STANDARDS.
(b) IN CANADA INSTALL IN ACCORDANCE WITH CAN/CSA-B365, INSTALLATION CODE FOR
SOLID-FUEL-BURNING APPLIANCES AND EQUIPMENT.
(c) IN THE USA FOLLOW NFPA 211, STANDARD FOR CHIMNEYS, FIREPLACES, VENTS, AND
SOLID FUEL BURNING APPLIANCES.
2. IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE MAY
RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH AND WILL VOID ALL
WARRANTY OR ANY OTHER CLAIMS MADE TOWARDS THE MANUFACTURER. FOR ASSISTANCE
OR ADDITIONAL INFORMATION, CONTACT YOUR JAMESTOWN DEALER, CERTIFIED INSTALLER
OR LOCAL SERVICE AGENCY.
3. DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
4. NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER
FLUID OR SIMILAR LIQUIDS TO START OR FRESHEN UP A FIRE IN THIS HEATER. KEEP ALL
SUCH LIQUIDS WELL AWAY FROM THE HEATER WHILE IT IS IN USE.
5. (a) DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM OF THIS UNIT.
(b) WHERE PASSAGE THROUGH A WALL, OR PARTITION OF COMBUSTIBLE CONSTRUCTION IS
DESIRED, THE INSTALLATION SHALL CONFORM TO CAN/CSA-B365, INSTALLATION CODE FOR
SOLID-FUEL BURNING APPLIANCES AND EQUIPMENT IN CANADA.
6. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
7. INSTALL VENT SYSTEM COMPONENTS AT CLEARANCES SPECIFIED BY THE VENT
MANUFACTURER.
8. IF INSTALLING IN A MANUFACTURED HOME, THE STRUCTURAL INTEGRITY OF THE
MANUFACTURED HOME FLOOR, WALL, CEILING AND ROOF MUST BE MAINTAINED. REFER TO
PAGE 4 OF THIS MANUAL.
Caution
Warning
IF INSTALLING THIS UNIT IN A MANUFACTURED HOME, DO NOT INSTALL IN SLEEPING ROOM.
This Jamestown pellet burning stove or insert was designed to provide many years of trouble free enjoyment in
your home. It is up to you, however, to learn how to safely operate this new stove. All Jamestown stoves and
replace inserts must be installed correctly to assure safe and ecient operation. We have no control over the
installation or operation of your stove or insert, we grant no warranty, implied or stated, for the installation or
maintenance and assumes no responsibility for any consequential damage(s).

Page 2
1998-2006 Edition
1. This pellet stove should be inspected before use and at least annually by a qualified service person.More
frequent cleaning of ash collection areas and compartments is required due to the nature of fuel being used.
It is imperative that control compartments, combustion areas and circulation air passageways of the appliance
be kept clean.
2. If this stove is not installed properly, a house fire may result. For your safety, follow the installation
directions. Contact local building or fire officials about restrictions and installation inspection requirements in
your area.
3. Contact your local building officials for appropriate permits and information on possible restrictions or
requirements on installation in your area.
4. ReadthisInstallationandOperatingInstructionsManualthoroughlybeforeattemptingtoinstalland/orburn
your new stove.
5. Always follow the lighting instructions in this owner's manual. Shortcuts of any kind can be dangerous!
6. Follow the installation and maintenance instructions outlined in this Owner's Manual exactly.
7. Burn 1/4" diameter (6.35mm) pelletized bio-mass fuel which meets or exceeds APFI Standards only. Poor
quality fuel will directly and adversely affect the efficiency and cleanliness of this stove. The local Jamestown
Dealer can help you make the proper fuel choice in your area.
8. Always keep flammable liquids away from this stove.
9. SOOTANDFLY ASH: FORMATION AND NEED FORREMOVAL:Theproductsofcombustionwill contain
small particles of fly ash. The fly ash will collect in the exhaust venting system and restrict the flow of the flue
gases. Incomplete combustion, which occurs during startup and shutdown or due to incorrect operation of the
room heater, will lead to some soot formation that will collect in the exhaust venting system. The exhaust
venting system should be inspectedat least onceeveryyeartodetermine if cleaningis necessary. WARNING:
When wood is burned slowly, it produces tar and other organic vapors and these combine with expelled
moisture to form creosote. The creosote vapors condense in the relatively cool chimney flue associated with
a slow burning fire. As a result, creosote residue accumulates on the flue lining. When ignited, this creosote
can result in an extremely hot fire.
10. When removing fly ash accumulations from the stove, always place them in a metal container with a tight
fitting lid. The closed container must be placed on a non-combustible surface, well away from all combustible
materials, pending final disposal. If the ashes are disposed of by burial in soil or otherwise locally dispersed,
they should be retained in the closed container until all cinders have thoroughly cooled. Important:Keep firing
and de-ashing doors closed and maintain all seals in good condition.
11. The power supply cord must be routed away from hot or sharp surfaces and objects plugged into a
grounded three pronged outlet meeting all applicable local and national electrical safety codes.
12. Never place a combustible object on the stove top or trivet.
13. Failure to follow the instructions in this manual may result in property damage, bodily injury or even death.
Inattention to these points or other violations of any kind will constitute sufficient cause for the voiding of all
applicable warranty and will also void all claims made towards the Manufacturer.
WARNING: DO NOT STORE ANYTHING INTHE SPACE BENEATHYOUR STOVE.
Safety Notices
Please Note

Page 3
1998-2006 Edition
1. Thefloor protection pad referred tothroughout this manual must be safety listed, unless it is constructed
from a non-combustible material.
2. Outside air must be supplied for combustion. A 1-5/8" (41mm) minimum interior diameter metallic 0.16”
(4mm) thick wall air supply hose must be installed between the combustion air intake stub (located on the
back panel) and the outside of the home to provide outside combustion air. Failure to do so may cause
exhaust gases and soot particles to leak into the home under certain conditions. Any claims made for
damages caused by the use of interior room air for combustion will be voided.
3. Any installation incorporating an existing chimney must include a re-lining of the existing chimney. All
existing chimneys must be relined using flexible galvanized or stainless steel vent pipe.
4. Installation of the J2001T Insert in a wood framed chase or other wood framed enclosure that does not
have an existing chimney system requires the use of rigid L-type pellet vent pipe. A minimum 3" (76mm)
clearance to combustible materials must be maintained from the outer surface of the L-type vent pipe used.
5. Galvanized or stainless steel flex vent pipe is required for installation of the J2001T Insert in
prefabricated wood-burning fireplaces with an existing chimney system.
6. Caution should be exercised when installing the J2001T in an old masonry fireplace. The flue tile may
be weak, broken or have large globs of mortar obstructing the exhaust flow. It is important to clean the
chimney and fireplace cavities thoroughly and completely before installing the insert. No short cuts should
be taken in cleaning the fireplace cavity before installing the fireplace insert. If the fireplace is not cleaned
property, the convection blower will pick up the existing soot and fly ash and blow it into the home causing
soot damage to the walls, draperies, carpeting and such.
7. A12" (305mm) minimumdistance must be maintainedat alltimes between the outlet of theexhaustrain
cap and the inlet opening of the air intake rain cap.
8. The required exhaust pipe diameter depends on the distance from the stove or insert to the termination
point of the vent pipe (chimney cap) and the number of elbows along the length of the vent system. As a
rule, if the total vent pipe length is 11 feet (3.4m) or more use 4" (102mm) diameter pipe. If the total length
is less than 11 feet (3.4m), use 3" (76mm) diameter pipe. If more than one 90 degree elbow is to be used,
increase the vent pipe diameter to 4" (102mm). No more than a total of 180 degrees of bends should be
used throughout the length of the vent system.
9. When assembling the chimney system, ensure that all pipe connections are sealed completely using
RTV high temperature silicone and high temperature foil tape. All connections, including twist-lock type
connections, must be sealed using RTV. If any of the connections are not sealed property, carbon monoxide
and ash will filter through these connections into the fireplace cavity, be picked up by the convection blower
and dispersed throughout the house. Any claims made for damages caused by improperly sealed vent pipe
joints will be voided.
10. Installation of a clean-out "T" at the first elbow of the vent pipe system, if possible, is recommended for
ease of cleaning and maintaining your chimney. Annual inspection and cleaning of the vent system is an
absolute requirement.
11. Use of "B" vent pipe (gas appliance vent pipe) with any Jamestown pellet stove or insert is strictly
prohibited.
General Requirements
II. INSTALLATION REQUIREMENTS

Page 4
1998-2006 Edition
1. All manufactured home installations require the unit to be secured, permanently, to the floor or fireplace
hearth. See Figure A1, below. Units installed on top of sheet steel or cast iron legs will require an alternate
fastening method. A specific Jamestown Mobile Home Attachment kit is available through the local
Jamestown dealer. Please contact your local Jamestown dealer.
2. If installing in a manufactured home, the structural integrity of the manufactured home floor, wall, ceiling
and roof must be maintained.
3. Outside air must be supplied for combustion. A 1-5/8" (41mm) minimum interior diameter air supply
hose must be installed between the combustion air intake stub (located on the back panel) and the outside
of the home to provide outside combustion air. Failure to do so may cause exhaust gases and soot particles
to leak into the home under certain conditions. Any claims made for damages caused by the use of interior
room air for combustion will be voided.
4. Do not install this unit in a sleeping room.
5. The appliance must be grounded in accordance with local codes or, in the absence of local codes, with
thecurrentNationalElectricalCodeANSI/NFPA70in theUSAorthecurrentCSAC22.1Canadian Electrical
Code. Use copper lugs to mechanically fasten a #8 grounding wire to the stove body or pedestal and the
steel frame of the manufactured home. Should you have questions, please consult the local building code
enforcing official in your area.
Manufactured (Mobile) Home Installation Requirements
SECURE TO FLOOR
Must meet requirements under UL1482 Section 52.2.3 e.

Clearances to combustible materials must be strictly adhered to. Compromising these clearances will lead to
severe fire hazards and will result in a house fire. If ever in doubt about the classification of a building material
located near this pellet stove, contact the Jamestown dealer or the local fire Marshall to determine if that
particular material has been classified as a non-combustible material. Failure to adhere to the clearances
requirements will void all applicable warranty and/or claims against the manufacturer..
A. Floor Protection Requirement
III. CLEARANCES TO COMBUSTIBLES
REQUIREMENTS
for J1000B, J2000T
Page 5
1998-2006 Edition
B. Installing on Carpet or Other Combustible Floor Surfaces
All Jamestown free-standing stoves must be installed on a non-combustible floor pad or
a masonry hearth. The hearth or floor pad must extend the full width and depth of the
stove and also extend a minimum of 6" (152mm) from the front of the stove face. Please
refer to Figure 1. The standard pedestal base, available through a Jamestown dealer,
for the J1000B and J2000T model stoves meets this floor protection requirement.
Installation of a Freestanding Stove on carpeting or other combustible floor surfaces requires the installation of a Floor Protection
Pad in addition to a pedestal or legs. The standard pedestal bases (Bases #J1065B and J1065T-1 for Model J1000B and Base
#J2030 for Model J2000T) qualify as standard floor protection pads and may be used when installing the Freestanding Stoves on
carpeting or combustible floor surfaces.
J1000B RISER REQUIREMENT
When installing the J1000B pellet stove as a hearth model without pedestal or legs, a riser (part # J1065B) must
be securely attached to the stove bottom in order to provide adequate clearance to the floor surface under the
stove. This riser must be used even when the floor under the stove is constructed of a non-combustible material.

Page 6
1998-2006 Edition
C. Alcove Installation
D. Corner Installation
If installing a free-standing stove inside
an alcove, please refer to Figure 2. A
minimum of 5" (127mm) must be
maintained from the side panel of the
stovetoanycombustible wallextending
past the front face of the stove. A
minimum of 3" (76mm) must be
maintained from the side panel of the
stove to any combustible wall which is
to the side of the stove and does not
extend past the front face of the stove.
A minimum of 1" (25mm) must be
maintained from the rear most part of
the stove to any combustible material
or wall.
If installing a free-standing stove in a
corner, please refer to Figure 3. A
minimum of 1" (25mm) clearance must
be maintained from the rear corners of
the stove to any adjacent walls.

E. Vertical Clearances
Page 7
1998-2006 Edition
Minimum clearances to venting and top of unit to ceiling
must meet requirements under UL1482 Section 52.2.3 f.
HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE BURNS.
Caution
Ifplanningtoinstallaceiling, shelf,mantleorthelikeconstructedfromcombustiblematerialsorifoneisalready
installed above the area where the stove is to be situated, a minimum distance of 18" (457mm) between the
ceiling, shelf, mantle or combustible object and the top of the stove must be maintained. See Figure 4.

Page 8
1998-2006 Edition

A. Installation In A Pre-ManufacturedWood Burning Fireplace (See Figure 6)
B. Installation In AWood Framed Enclosure/Chase (See Figure 6)
IV. CLEARANCES TO COMBUSTIBLES
REQUIREMENTS
J2001T INSERT
Page 9
1998-2006 Edition
The J2001T fireplace insert can be installed inside two types of enclosures:
A. A pre-manufactured wood burning fireplace, either masonry or sheet metal, that has not been
modified in any way that may reduce the original fire protection capability of that fireplace.
B. A wood framed enclosure such as a chase or other form of wooden enclosure with the appropriate
clearances as specified below.
1. If this Insert is installed in a pre-manufactured wood burning fireplace, the minimum clearances to
combustibles affect only the portion of this Insert which protrudes into the room from the front face of
the existing fireplace.
2. This type of installation must include an approved non-combustible floor protection pad equivalent to
a 3/8" (9.5mm) millboard (Backer Board™) minimum or a masonry hearth which extends a minimum
of 6" (152mm) from the front face of the Insert (where the door gasket touches when closed) and
5" (127mm) from either side. See Figure 6.
3. The minimum distance from the top of the Insert (trivet surface) to the bottom of a mantel, shelf, or
other combustible overhang extending over this unit is 18" (457mm). See Figure 7.
4. The minimum distance from this insert's side panels to any combustible material or surface adjacent
to the side panel must be 3" (76mm).
1. Minimum clearances to combustibles affects all parts of this Insert.
2. The installation must include, as a minimum, an approved non-combustible floor protection pad
equivalent to a 3/8" (9.5mm) millboard (Backer Board™) or a masonry hearth which extends a
minimum of 6" (152mm) from the front face of the Insert (where the door gasket touches when
closed), 5" (127mm) from either side and 1" (25mm) from the back panel. See Figure 5.
3. The minimum distance from the top of the Insert (trivet surface) to the bottom of a mantel, shelf, or
other combustible overhang extending over this unit is 18”(457mm).
4. The minimum distance from the fuel hopper top to the ceiling inside the wood framed enclosure must
be 36" (914mm).
5. The minimum distance from this insert's side panels to any combustible material or surface adjacent
to the side panel must be 5" (127mm).
C. Floor Protection Pad for all Installations (See Figure 5 & 6)
All installations of the J2001T Insert must include an approved non-combustible floor protection pad equivalent to
a 3/8" (9.5mm) millboard minimum or a masonry hearth which extends a minimum of 6" (152mm) from the front
face of the Insert (where the door gasket touches when closed) and 5" (127mm) from either side. If installing this
Insert on a combustible floor (constructed of wood framing, wafer board, particle board or the like) the floor
protection pad must also extend 1" (25mm) beyond the back panel of the stove. The floor protection pad selected
(unless installing on a masonry hearth) must be safety approved. Consult local building or fire code enforcement
officials before selecting the floor protection pad material.
Important
Install in accordance with CAN/CSA-B365 Installation Code for Solid Burning Appliances and Equipment.

D. Clearances to Combustible Materials Requirements
for J2001T Insert -VerticalVenting Using an Existing Chimney
Page 10
1998-2006 Edition
Clearance to Shelf of Mantle
Whenusinganexistingchimneyto install the ventsystemforthepelletstove,besuretolinetheentirelength
of the chimney with three (3) inch or four (4) inch (76mm or 102mm) listed galvanized or stainless steel flex
pipe. Use four (4) inch diameter (102mm) flex pipe if the chimney has a prior history of bad draft or if you
have a chimney exceeding eleven (11) feet (3.4m) in height.
Contactlocal chimneyinstallationexperts fortheproper procedures that are required to install a flexible vent
system for your particular vent configuration. Remember to clean the existing fireplace cavity and chimney
pipe of all soot and creosote deposits before attempting to install the flexible vent system.
PARTS LIST
1. 3" or 4" (76mm or 102mm) Stainless Steel Flex Pipe
2. 1-5/8" ID (41mm) Rigid or Flex Hose
3. Air Intake end cap / rodent screen
4. Existing Flashing
5. Existing Storm Collar
6. 3" or 4" (76mm or 102mm) Rain Cap
7. ExistingVent Pipe.
Note:If the vertical length of the existing chimney is greater than 11 feet (3.4m),
use 4" (102mm) Stainless Steel Flex Pipe to line the entire length of the chimney.

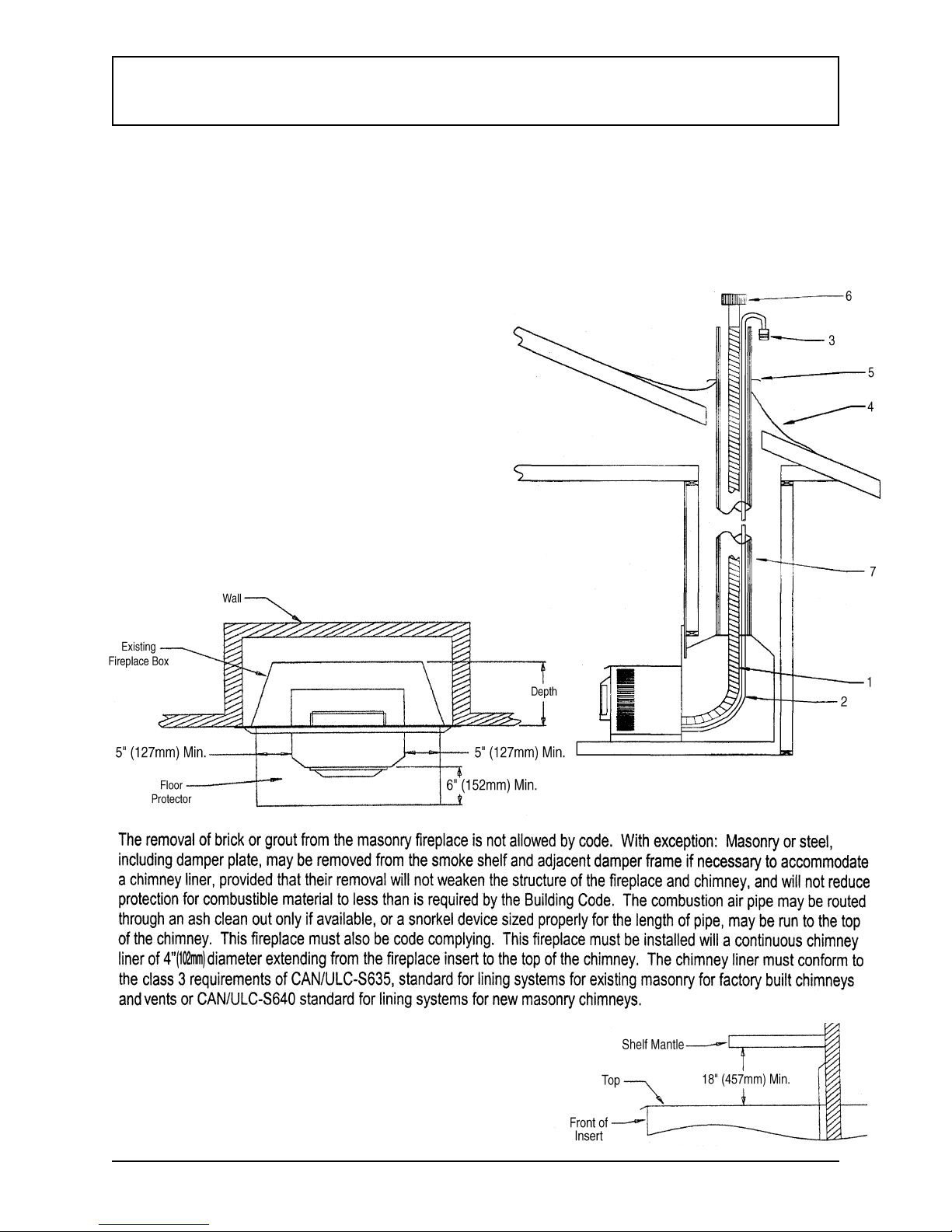

FIGURE 12: Relining an existing chimney
Installation in Existing Fireplace

Warning
V. GENERAL VENT SYSTEM INFORMATION
Page 11
1998-2006 Edition
Using an Existing Chimney toVent a Pellet Stove
Installations Requiring A Complete New Chimney System
When using an existing chimney to install the vent system for this pellet stove, be sure to line the entire length
of the chimney with three (3) inch or four (4) inch (76mm or 102mm) listed galvanized or stainless steel flexible
pipe if the chimney has a prior history of bad draft or if the chimney exceeds eleven (11) feet (3.4m) in height.
1. All complete new chimney systems must use listed L-type pellet vent pipe for all components of the vent
system. Usethree(3)inch(76mm)diameterpipewhenthetotalchimneylengthisundereleven(11)feet (3.4m)
and four (4) inch (102mm) diameter pipe when the total chimney length is over eleven (11) feet (3.4m).
2. The exit terminal must be located not less than 60" (1.5m) from any opening through which combustion
products could enter the building (i.e. doors, windows, vents), nor less than 24" (610mm) to an adjacent
building and not less than 7" (178mm) above grade when located adjacent to public walkways. It must be
soarrangedthat fluegasesarenotdirectedsoastojeopardizepeople,overheatcombustiblestructures,orenter
a building.
3. For horizontal venting, the exhaust pipe must be terminated by employing a listed end cap or 45 degree
elbow with a rodent screen cap that prevents rain or wind from entering the exhaust pipe. For termination
above the roof line, a listed rain cap must be used.
4. Each "L" Type joint must be completely sealed using High Temperature Silicone ("RTV"), three sheet
metal screws, and HighTemperature FoilTape.
OnlyuseventcomponentsthatarelistedforaNationalproductsafetycertificationagency. Allventingcomponents
used must be listed“PL”Vent or in existing chimney lined with listed solid fuel burning chimney lines (UL1482 and
ASTME1509standards). Useof inferiorcomponentscanleadtofireandcarbonmonoxidehazardsandwillvoid
all applicable warranty and any claims made towards the manufacturer.
1. Allexistingchimneys largerthanTEN (10) inches (254mm) in diameter or exceeding eleven(11)feet (3.4m) in
total length must be relined through their entire lengths using either a three (3) inch or four (4) inch (76mm or
102mm) stainless steel or galvanized flex pipe with a spark arrester/rain cap at the termination point.
2. Any chimney exceeding eleven (11) feet (3.4m) in height must be relined using a four (4) inch (102mm)
stainless steel or galvanized flex pipe with a spark arrestor/rain cap at the termination point.
3. Maximum vertical vent system length is 35 feet (10.7m). Maximum horizontal vent system length is 10
feet (3m).
4. When using listed "L" type vent pipes and components, allow a minimum of twelve (12) inches (305mm)
between the exhaust termination and the outside air intake tube termination. Failure to maintain the required 12"
(305mm) separation may cause some exhaust gases to draw into the system resulting in an inefficient burn (lazy
fire). WheninstallingtheJamestownJ3020AortheJ3030Bventsystems,however,itisnotnecessarytomaintain
this 12" (305mm) distance between the exhaust termination and the outside air intake tube-termination. These
twoventkitshavebeentestedandcertifiedtobeinstalledinvariationtothis12"(305mm)separationrequirement.
5. "L" Type pellet vent may be installed directly through a combustible wall, ceiling, or roof, using a listed wall
thimble,firestop,or roof flashing. Clearanceusing a listed wallthimblewillbeaminimumof11/2"(38mm)toany
combustible material; using a ceiling fire stop or roof flashing requires 3" (76mm) minimum clearance to any
combustible.
6. Check the spark arrestor or rain cap and ensure that the screens or louvers do not restrict exhaust flow.
7. Check the spark arrestor/rain cap on a regular basis to see if it is plugged with soot or flying debris such
as leaves.

Page 12
1998-2006 Edition
