OPERATING INSTRUCTIONS FOR THE
GAS BARBECUE GRILL
Description: Gas Barbecue Grill
Type of Gas: Butane, Propane, LPG
WARNING
FOR YOUR SAFETY
FOR OUTDOOR USE ONLY
(OUTSIDE ANY ENCLOSURE)
UK
14
13
15
11
12
13
14
15
16
17
18
Home3 burner +S Operating manual for CE.indd 1 06-12-13 16:43

Read this instruction carefully and ensure that your grill is properly installed, assembled, maintained and serviced
in accordance to these instructions. Failure to follow these instructions may result in serious bodily injury and/
or property damage. If you have any questions concerning the assembly or operation of this barbecue, please
consult your dealer, your gas supplier, the manufacturer or agent.
Notes to the user:
“USE OUTDOORS ONLY”.
“READ THE INSTRUCTIONS BEFORE USING THE APPLIANCE”.
“WARNING: ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY.”
“DO NOT MOVE THE APPLIANCE DURING USE”.
“TURN OFF THE GAS SUPPLY AT THE GAS CYLINDER AFTER USE.”
TECHNICAL INFORMATION
MODEL NO.: HOME SUPER (3 burner + SB)
DESCRIPTION: THREE BURNERS WITH SIDE BURNER GAS BARBECUE GRILL
TOTAL HEAT INPUT:
(ALL GAS CATEGORIES) 13.3kW (950g/h)
GAS CATEGORY: □I3+(28-30/37) □I3B/P(30) □I3B/P(50) □I3B/P(37)
TYPES OF GAS: Butane Propane LPG GAS MIXTURES
GAS PRESSURE: 28-30 mbar 37 mbar 30 mbar 50mbar 37 mbar
INJECTOR SIZE main: 0.92 mm 0.92 mm 0.82 mm 0.88mm
INJECTOR SIZE side: 0.76 mm 0.76 mm 0.67 mm 0.72 mm
USE OUTDOORS ONLY.
READ THE INSTRUCTIONS BEFORE USING THE APPLIANCE.
WARNING: ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY.
THIS APPLIANCE MUST BE KEPT AWAY FROM FLAMMABLE MATERIALS DURING USE.
DO NOT MOVE THE APPLIANCE DURING USE.
TURN OFF THE GAS SUPPLY AT THE GAS CYLINDER AFTER USE.
DO NOT MODIFY THE APPLIANCE.
Country of Destination:
□I3+(28-30/37) BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, SI.
□I3B/P(30) BE, CY, DK, EE, FI,FR, HU, IT, LT, NL, NO, SE, SI, SK, RO, HR, TR, BG, IS, LU, MT, CZ.
□I3B/P(50) AT, CH, DE, SK, CZ.
□I3B/P(37) PL
Produced by Guangdong Everteam Electric and Gas Industrial Co.,Ltd
No.11 Huatian Road, Huakou, Ronggui, Shunde Area, Foshan City, Guangdong, China
Home3 burner +S Operating manual for CE.indd 2 06-12-13 16:43

IMPORTANT:
Read the following instruction carefully and be sure your barbecue is properly installed, assembled and cared
for. Failure to follow these instructions may result in serious bodily injury and/or property damage.
If you have any questions concerning assembly or operation, consult your dealer or LPG Company.
Never fit the cylinder right to next the barbecue. Always place the cylinder at the left hand rear of the appliance.
The cylinder should be sited as far away from the appliance as possible without straining the hose.
Never light the grill with the lid closed.
The appliance and cylinder must be placed on level surface and must not be carried/ transferred whilst
alight.
NOTE FOR CONSUMER: Retain for future Reference.
USE AND CHARACTERISTICS
The barbecue grill is safe and easy to use. The specified gases for use are butane at 28 to 30 mbar, or propane
at 37 mbar, or butane/propane mixtures at 30 mbar, or butane/propane mixtures at 37 mbar, or butane/
propane mixtures at 50 mbar. Please ensure you only use your barbecue at the correct pressure the appliance
is designed for.
The wheels have been fitted to this unit for easy manoeuvrability.
Food can be barbecued on the cooking grid either with or without the lid being closed. When the lid is closed
for 5 minutes, the lid must be open for 1 minute to release heat.
With grease tray under the case.
Adequate ventilation is vital for combustion and efficiency performance of the barbecue. This will ensure the
safety of the user and other people in the vicinity of the area where the appliance is being used. Never use the
appliance in any enclosed covered area.
When the wind speed is above 2m/s, don’t use gas grill facing to the wind.
The appliance is designed for use outdoors only.
Turn off the appliance at the cylinder valve or regulator after use.
Any modification to the appliance may be dangerous and may cause injury or property
damage.
Any unauthorised modification of the appliance will invalidate the guarantee on this
appliance.
Never mount the cylinder under the barbecue on the base shelf as this could result in
serious injury to the user, other people and/or property.
The appliance must not have any overhead obstruction. E.g. trees, shrubs, lean to roofs. The appliance must be
installed with a clearance of 1 m around the appliance.
This appliance must be kept away from flammable materials during use. (Petroleum based products, thinners or
any other solid object that carries a flammable warning label.)
The use of this appliance in enclosed areas can be dangerous and is PROHIBITED.
Home3 burner +S Operating manual for CE.indd 3 06-12-13 16:43

INSTRUCTIONS FOR USE
Follow these instructions carefully to avoid seriously damaging your barbecue and causing injury to yourself
and to property.
1. Assemble the barbecue following the assembly instructions carefully.
2. Connect the gas hose to the barbecue. Connect the regulator to the hose.
3. Connect the regulator to the cylinder valve following the regulator instructions supplied with the regulator.
4. Turn all of the control knobs to the ‘OFF’ position before turning on the gas supply to the appliance.
5. Operate the regulator in accordance with the instructions supplied with the regulator.
LIGHTING YOUR BARBECUE
Lighting Instructions: Main Burners
1. Open the lid before lighting.
2. Connect the gas cylinder to the barbecue following the instructions supplied with the regulator.
3. Turn all the control knobs to the ‘OFF’ position.
4. Turn ‘ON’ the gas supply at the cylinder or regulator switch following the regulator connection and operating
instructions. Check the cylinder to regulator connection and hose to barbecue hose inlet connection for
leakage using soapy water. Any leakage will show as bubbles in the area of the leak. If leak is found, do not
use the barbecue. Consult your gas or barbecue supplier for advice.
5. To light the left hand burner, push down and turn the left burner control knob anti-clockwise to the 90°
position (full rate position). An audible click will be heard, this should light the burner. Check that the burner
is alight. If the burner has not lit, repeat this process.
6. If the burner has not lit after two attempts, turn ‘OFF’ the gas tap and wait 5 minutes before retrying the
ignition sequence.
7. When the burner has lit, the burner rate can be adjusted by push down and turn the knob anti-clockwise to
any position between the full and low rate position.
8. Light the remaining burners from left to right in sequence.
9. To turn ‘OFF’ the barbecue, turn the cylinder valve handle or regulator switch to the ‘OFF’ position by
following the regulator instructions. Once the burners have extinguished turn all the control knobs to the
‘OFF’ position.
Warning: If any burner fails to ignite, turn the control knob off (clockwise) and also turn the cylinder
valve off. Wait five minutes before attempting to relight with ignition sequence.
Side burner lighting instructions (If applicable):
1. Once the grill burner has been lit, the side burner can be lit by following the instructions below.
2. Open the side burner lid before lighting the side burner and turn the side burner control knob to the ‘OFF’
position.
3. Push down the side burner control knob and keep pressing whilst turning anti-clockwise to the full rate
position, an audible click will be heard, this will light the burner. If the burner does not light, repeat this
process.
4. If the burner has not lit after two attempts, turn off the gas tap, wait 5 minutes and then repeat step 3 in main
burner lighting instructions.
5. When the burner has lit, the burner rate can be adjusted by push down and turn the knob anti-clockwise to
any position between the full and low rate position.
6. To turn the barbecue ‘OFF’, turn the cylinder valve or regulator switch to the ‘OFF’ position and then turn
all of the control knobs on the appliance clockwise to the ‘OFF’ position when the flame have extinguished.
Warning: If the burner fails to ignite, turn the control knob off (clockwise) and also turn the cylinder
valve off. Wait five minutes before attempting to relight with ignition sequence.
Home3 burner +S Operating manual for CE.indd 4 06-12-13 16:43

MANUAL IGNITION
If necessary this barbecue can be lit manually.
Main Burners
1. Open the lid before lighting.
2. Light a 90mm barbecue match and hold adjacent to light hold at the left end of the barbecue.
3. Turn the left burner control knob to the full rate position. The burner will light from the match.
4. Once the left burner is lit, the burner next to it can be turned on and will light off the lit burner.
5. Light remain burners from left to right by the cross-lighting channel.
6. When the burner has lit, the burner rate can be adjusted by push down and turn the knob anti-clockwise to
any position between the full and low rate position.
Side burner (If applicable):
1. Open the lid before lighting.
2. If igniter fails to spark, use a match to light burner.
After use, close the gas supply by either turning ‘OFF’ the switch on the regulator or turning ‘OFF’ the cylinder
valve.
In the event of light back whilst the appliance is in use. Turn all the controls, cylinder valve and regulator switch
to the ‘OFF’ position. Wait 5 minutes before attempting to relight the appliance. If the problem persists after
relighting, consult your gas dealer, or the store where you purchased the barbecue, or a qualified gas engineer
for assistance or repair. Never try to rectify the problem yourself as this could result in serious injury and/or
property damage.
The diameter of the pot should be around 180~220mm.
Clean the appliance of excess fat, before storage, with a damp cloth using a mild detergent solution as the
cleaning agent.
Store the appliance in a clean dry environment.
Do not store your gas cylinder indoors. Store in a well ventilated area away from direct sunlight
CONNECTING THE GAS CYLINDER TO THE APPLIANCE
This appliance is only suitable for use with low-pressure butane or propane gas and fitted with the appropriate
low-pressure regulator via a flexible hose. The hose should be secured to the regulator and the appliance with
hose clips/nut. This barbecue is set to operate a 28 mbar regulator with butane gas or a 37mbar regulator
with propane gas or a regulator with butane/propane mixture at 37mbar or a regulator with butane/propane
mixture at 50mbar or a regulator with butane/propane mixture at 30mbar. Use a suitable regulator certified to
BSEN 12864. Please consult your LPG dealer for information regarding a suitable regulator for the gas cylinder.
BEFORE USE PLEASE CHECK FOR LEAKS
Never check for leaks with a naked flame, always use a soapy water solution
TO CHECK FOR LEAKS
Make 2-3 fluid ounces of leak detecting solution by mixing one part washing up liquid with 3 parts water.Ensure
the control valve is “OFF”.
Connect the regulator to the cylinder and ON/OFF valve to the burner, ensure the connections are secure then
turn ON the gas.
Brush the soapy solution on to the hose and all joints. If bubbles appear you have a leak, which must be rectified
before use.
Home3 burner +S Operating manual for CE.indd 5 06-12-13 16:43

Retest after fixing the fault. Turn OFF the gas at the cylinder after testing.
If detected leakage can not be rectified, do not attempt to cure leakage but consult your gas dealer.
REGULATOR AND HOSE
Use only regulators and hose approved for LPG at the above pressures (See Page 2). The life expectancy of the
regulator is estimated as 10 years. It is recommended that the regulator is changed within 10 years of the date
of manufacture.
The use of the wrong regulator or hose is unsafe; always check that you have the correct items before operating
the barbecue.
The hose used must conform to the relevant standard for the country of use. The length of the hose must be 1.5
meters (maximum). Worn or damaged hose must be replaced. Ensure that the hose is not obstructed, kinked, or
in contact with any part of the barbecue other than at its connection.
The hose should not be twisted or kinked when attached to the gas cylinder. No part of the hose should touch
any part of the appliance. So site the cylinder out to the left hand side of the appliance at the maximum distant
permitted by the hose length.
STORAGE OF THE APPLIANCE
Storage of an appliance indoors is only permissible if the cylinder is disconnected and removed from the
appliance. When the appliance is not to be used for a period of time it should be stored in its original packaging
in a dry dust free environment.
GAS CYLINDER
The maximum diameter and the maximum height of the cylinder is 310 mm and 500 mm as shown in (Fig.1).

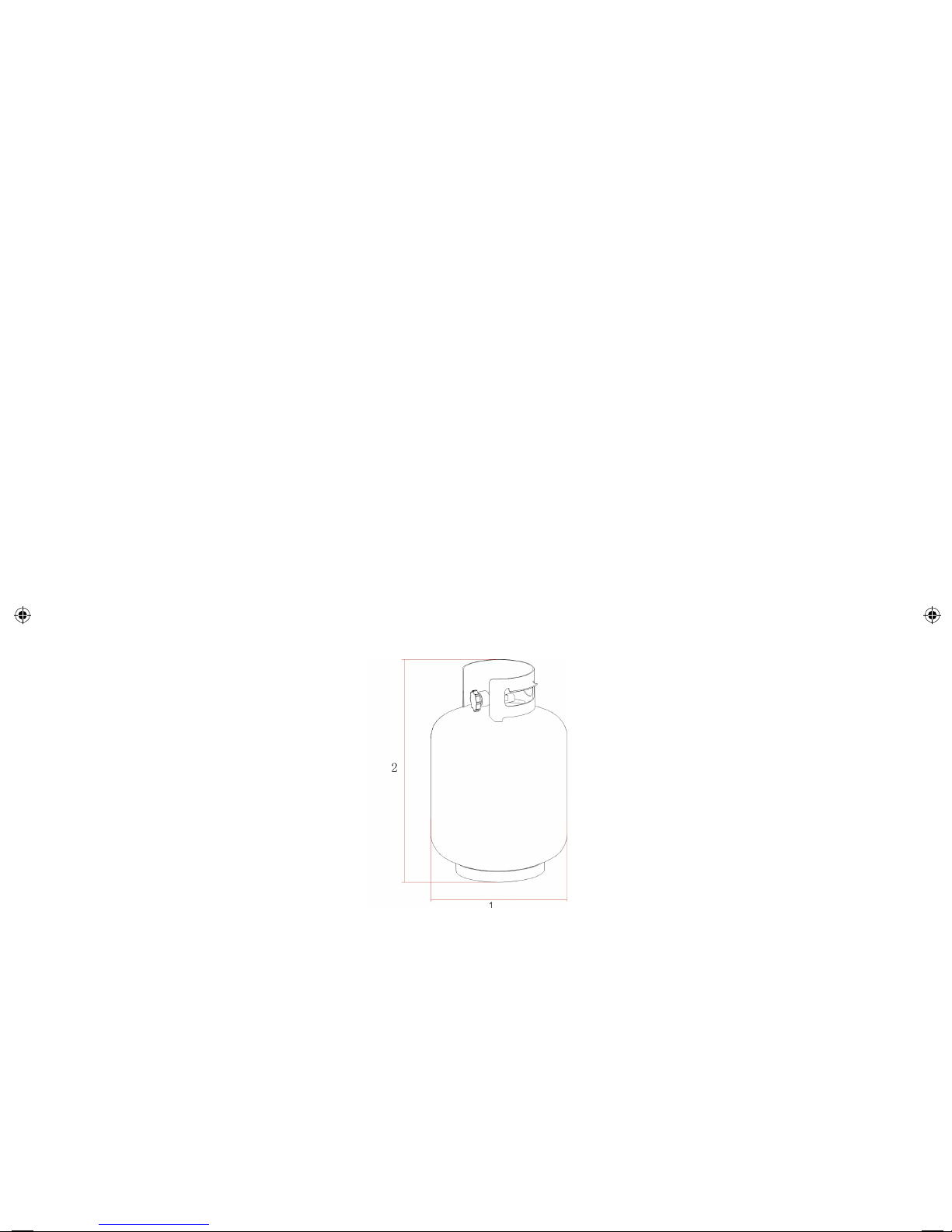

Fig.1
Key
1: maximum diameter
2: maximum height
The gas cylinder should not be dropped or handled roughly! If the appliance is not in use, the cylinder must be
disconnected. Replace the protective cap on the cylinder after disconnecting the cylinder from the appliance.
Cylinders must be stored outdoors in an upright position and out of the reach of children. The cylinder must
never be stored where temperatures can reach over 50°C. Do not store the cylinder near flames, pilot lights or
other sources of ignition. DO NOT SMOKE.
Pay attention when put the cylinder to the cylinder hole, ensure the hose connect to the cylinder not touch the hot
surface--heat-resisted plate. Keep the cylinder stay in place during operation. Never put spare cylinder in the
same cylinder enclosure. Never block the way of shut off the cylinder valve. 
Warning: Shut off the gas cylinder when you smell gas.
Home3 burner +S Operating manual for CE.indd 6 06-12-13 16:43

CLEANING AND CARE
CAUTION: All cleaning and maintenance should be carried out when the barbecue is cool and with the fuel
supply turned OFF at the gas cylinder.
CLEANING
“Burning off” the barbecue after every use (for approx 15 minutes) will keep excessive food residue to a
minimum.
OUTSIDE SURFACE
Use mild detergent or baking soda and hot water solution. Non-abrasive scouring powder can be used on
stubborn stains, then rinse with water.
If the inside surface of the barbecue lid has the appearance of pealing paint, baked on grease build up has
turned to carbon and is flaking off. Clean thoroughly with strong hot soapy water solution. Rinse with water and
allow to completely dry. NEVER USE OVEN CLEANER
INTERIOR OF BARBECUE BOTTOM
Remove residue using brush, scraper and/or cleaning pad then wash with a soapy water solution. Rinse with
water and allow dry it.
PLASTIC SURFACES
Wash with a soft cloth and hot soapy water solution. Rinse with water. Do not use abrasive cleaners, degreasers
or a concentrated barbecue cleaner on plastic parts.
COOKING GRID
Use a mild soapy water solution. Non-abrasive scouring powder can be used on stubborn stains then rinse with
water.
GREASE TRAY
Please do not open the grease tray during use.
When clean the grease tray, pull out the grease tray first.
Please check the grease cup on time and take away the oil when 1/3 full.
CLEANING THE BURNER ASSEMBLY
Turn the gas OFF at the control knob and disconnect the cylinder.
Remove cooling grate.
Clean the burner with a soft brush or blow clean with compressed air and wipe with a cloth.
Clean any clogged ports with a pipe cleaner or stiff wire (such as an opened paper clip).
Inspect burner for any damage (cracks or holes). If damage is found, replace with a new burner. Reinstall the
burner, check to ensure that the Gas valve orifices are correctly positioned and secured inside the burner inlet
(venturi).
In some cases your barbecue will light back because of an insect crawling inside the burner venturi or a spider
spinning its web inside the burner. This can be rectified by using a bottle brush inserted through the burner
venturi and pushing it into the burner over the burner length. If condition persists consult your gas dealer.
SERVICING
Your gas barbecue should be serviced annually by a competent registered person.
Home3 burner +S Operating manual for CE.indd 7 06-12-13 16:43

Home3 burner +S Operating manual for CE.indd 8 06-12-13 16:43

GEBRUIKSAANWIJZING
VOOR DE GASBARBECUE EN GRILL
Beschrijving: Gasbarbecue en grill
Type gas: Butaan, propaan, LPG
WAARSCHUWING
VOOR UW VEILIGHEID
UITSLUITEND VOOR GEBRUIK BUITENSHUIS
(NOOIT IN EEN OVERDEKTE RUIMTE OF BINNEN)
NL
14
13
15
11
12
13
14
15
16
17
18
Home3 burner +S Operating manual for CE.indd 9 06-12-13 16:43

Lees deze gebruiksaanwijzing zorgvuldig door en zorg ervoor dat de grill goed volgens deze instructies wordt
geïnstalleerd, geassembleerd, onderhouden en geservicet. Het niet volgen van deze instructies kan leiden tot
ernstig lichamelijk letsel en/of beschadiging van eigendommen. Als u vragen hebt over de assemblage of het
gebruik van deze barbecue, neem dan contact op met uw gasleverancier, de fabrikant of agent.
Opmerkingen voor de gebruiker:
“ALLEEN VOOR GEBRUIK BUITENSHUIS.”
“LEES DE INSTRUCTIES ALVORENS HET TOESTEL TE GEBRUIKEN.”
“WAARSCHUWING: ONDERDELEN DIE AANGERAAKT KUNNEN WORDEN, KUNNEN ERG HEET ZIJN.
HOUD JONGE KINDEREN OP AFSTAND.”
“ VERPLAATS HET APPARAAT NIET TIJDENS GEBRUIK.”
“DRAAI NA GEBRUIK DE TOEVOER VAN DE GASFLES DICHT.”
TECHNISCHE INFORMATIE
MODELNR.: HOME SUPER (3-pits + zijbrander)
BESCHRIJVING: GASBARBECUE EN -GRILL MET DRIE BRANDERS EN ZIJBRANDER
TOTAAL THERMISCH
VERMOGEN:
(ALLE GASCATEGORIEËN) 13.3kW (950g/h)
GASCATEGORIE: □I3+(28-30/37) □I3B/P(30) □I3B/P(50) □I3B/P(37)
GASSOORTEN: Butaan Propaan LPG-GASMENGSELS
GASDRUK: 28-30 mbar 37 mbar 30 mbar 50mbar 37 mbar
MAAT INJECTOR hoofd: 0.92 mm 0.92 mm 0.82 mm 0.88mm
MAAT INJECTOR zij: 0.76 mm 0.76 mm 0.67 mm 0.72 mm
ALLEEN VOOR GEBRUIK BUITEN.
LEES VOOR GEBRUIK DE INSTRUCTIES.
WAARSCHUWING: TOEGANKELIJKE DELEN KUNNEN ZEER HEET ZIJN. HOUD
JONGE KINDEREN OP AFSTAND.
HOUD ONTVLAMBARE MATERIALEN UIT DE BUURT VAN HET APPARAAT ALS HET IN
GEBRUIK IS. VERPLAATS HET APPARAAT NIET TIJDENS HET GEBRUIK.
DRAAI NA GEBRUIK DE GASTOEVOER OP DE GASFLES DICHT.
BRENG GEEN VERANDERINGEN AAN IN HET APPARAAT.
Land van bestemming:
□I3+(28-30/37) BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, SI.
□I3B/P(30) BE, CY, DK, EE, FI,FR, HU, IT, LT, NL, NO, SE, SI, SK, RO, HR, TR, BG, IS, LU, MT, CZ.
□I3B/P(50) AT, CH, DE, SK, CZ.
□I3B/P(37) PL
Gefabriceerd door Guangdong Everteam Electric and Gas Industrial Co.,Ltd
No.11 Huatian Road, Huakou, Ronggui, Shunde Area, Foshan City, Guangdong, China
Home3 burner +S Operating manual for CE.indd 10 06-12-13 16:43
