Jaquet DualTach T501 User manual

Instruction Manual T501 JAQUET AG
Version 2.00E 1/59
Frequency Measurement and Switching Instrument
DualTach T501
Instruction Manual
Version 2.00E
T501 : 2 Channel Tachometer with 4 Relays and 2 Analog Outputs 0/4-20mA
T501.50: Part No.: 384Z-05600 (AC Version)
T501.10: Part No.: 384Z-05601 (DC Version)

Instruction Manual T501 JAQUET AG
Version 2.00E 2/59
Contents
1 SAFETY NOTICE 5
2 PRODUCT FEATURES 6
3 SPECIFICATIONS 7
3.1 General 7
3.2 Inputs 7
3.2.1 Sensor Inputs 7
3.3 Binary Inputs 10
3.4 Outputs 10
3.4.1 Analog Outputs 10
3.4.2 Relays Outputs 11
3.4.3 Open Collector Outputs 12
3.5 Data communication 12
3.5.1 Ethernet 12
3.6 Environment 12
3.6.1 Climatic Conditions 12
3.6.2 Electromagnetic immunity 12
3.6.3 Other Standards 13
4 PRINCIPLE OF OPERATION 14
4.1 General 14
4.2 Machine factor 16
4.2.1 Measured 16
4.2.2 Calculated 16
4.2.3 Other physical parameters 16
5 INSTALLATION 17
6 CONNECTIONS 18
6.1 Front view 18
6.1.1 Front view T501 18
6.1.2 Terminal A 19
6.1.3 Terminal B 21
7 CONFIGURATION VIA PC SOFTWARE 22
7.1 Software Concept 22
7.2 PC Settings 22
7.3 Download configuration software 23

Instruction Manual T501 JAQUET AG
Version 2.00E 3/59
7.4
Configuration software 24
7.4.2 Log in 24
7.4.3 Main window and System Limit Matrix 24
7.4.4 Logging in and out 25
7.5 Configuration file… 26
7.5.1 … creating new 26
7.5.2 … resetting to factory default 26
7.5.3 … loading 26
7.5.4 … saving 27
7.5.5 … printout 27
7.6 Communication with the Tachometer 28
7.6.1 Read measured data 28
7.6.2 Reading configuration from the T501 28
7.6.3 Writing a configuration to the T501 29
7.6.4 Compare data 29
7.7 Configuring 30
7.7.1 Speed sensors 30
7.7.2 Binary input configuration 31
7.7.3 Set Measurement Interval 31
7.7.4 Sensor alarm 32
7.7.5 Machine factor 32
7.7.6 Dynamic Error 33
7.7.7 Math function 34
7.7.8 System Limit 35
7.7.9 Relay outputs 36
7.7.10 Open Collector Outputs 37
7.7.11 Analog output 38
7.7.12 Copy Parameter Set 39
7.7.13 Change-over delay 39
7.8 Settings 40
7.8.1 Ethernet Interface 40
7.8.2 Changing the Password 40
7.9 Info 41
8 OPERATING BEHAVIOUR 42
8.1 Power on 42
8.1.1 Analog Output 42
8.1.2 Relay Output 42
8.1.3 Open Collector Output 42
8.2 Frequency Measurement 43
8.2.1 The Adaptive Trigger Level 43
8.2.2 Signal failure 44
8.3 Functions 44
8.3.1 “Exec“ Push button 44
8.3.2 Parameter sets A, B, C and D 44
8.3.3 Limits 44
8.3.4 Window Function 45
8.3.5 Frequency x2 and x4 46
8.3.6 Relay and Open Collector Latch Function 46
8.3.7 Analog Output 46
8.3.8 Interpretation of system limit inputs 47

Instruction Manual T501 JAQUET AG
Version 2.00E 4/59
8.4
Fault behaviour 47
8.4.1 Sensor error 47
8.4.2 System alarm 47
8.5 Power failure 47
8.6 Behaviour during Configuration 47
9 MECHANICAL CONSTRUCTION / HOUSING 48
9.1 Tachometer 48
9.2 Mounting 49
10 ACCESSORIES 50
11 MAINTENANCE / REPAIR 50
12 SOFTWARE-VERSION 50
12.1 Configurations software 50
12.2 Firmware 50
13 WARRANTY 50
APPENDIX 51
A: Declaration of Conformity 51
B: Possible Problems 52

Instruction Manual T501 JAQUET AG
Version 2.00E 5/59
1 Safety notice
T501 Series tachometers may only be connected by competent personnel.
T501 tachometers do not generate dangerous potentials but as soon as circuits
exhibiting dangerous potentials are connected, then these may be present in the
tachometer circuits.
The Tachometers may only be opened for repair by trained personnel.
These Instruments correspond to protection class I. The PE terminal must therefore
be earthed.
The instructions in this manual must be strictly adhered to.
Not following these instructions could result in damage to equipment or plant and injury to personnel, as well
as negating warranty claims!
Units that have suffered electrical over load, mechanical stress or been operated outside of specification
must be immediately switched off and returned to the manufacturer for repair.

Instruction Manual T501 JAQUET AG
Version 2.00E 6/59
2 Product features
Series T501 tachometers measure and monitor frequency signals (speed proportional values) in the range
0.025Hz to 50,000Hz.
Available are:
•2 Frequency Inputs (Speed sensors)
•2 Analog outputs
•2 Binary input
•4 Relays
•2 Open Collector Outputs
•4 Parameter sets each having 6 System limits with 4 Limit values
•Sensor monitoring
•System monitoring
The Tachometers are configured via Computer (PC) using resident operating software.
2 models are available:
T501: 2 channel Tachometer with 4 Relays and 2 Analog outputs 0/4-20mA
T501.50: Part No.: 384Z-05600 (AC Version)
T501.10: Part No.: 384Z-05601 (DC Version)

Instruction Manual T501 JAQUET AG
Version 2.00E 7/59
3 Specifications
Reference temp: + 20 °C
3.1 General
Measurement time 2ms / 5ms / 10ms / 20ms / 50ms / 100ms / 200ms / 500ms / 1s / 2s / 5s
(Frequency measurements might take longer than the predefined measurement
time)
Supply voltage AC Version
90…264 VAC (47...63 Hz) / 120VDC … 370VDC
DC Version 18…36 VDC
Isolation voltage AC Version 3000 VAC (from AC/DC power supply)
AC Version 1500 VDC (from DC/DC converter)
Isolation
Galvanic isolation between:
•Supply
•Sensor input incl. sensor supply
•Binary input 1
•Binary input 2
•Analog output 1
•Analog output 2
•Relay outputs
•Open Collector output 1
•Open Collector output 2
•Ethernet interface
Power consumption P Min. (W) P Max. (W)
DC Version
18 VDC
3.3 6.6
24 VDC
3.4 6.7
36 VDC
3.5 6.8
AC Version
110 VAC 5.0 11.0
230 VAC 8.0 14.0
Power supply bridging DC Version
18 VDC
> 20ms 24 VDC
36 VDC
AC Version
110 VAC
> 20ms
230 VAC
Operating temperature AC Version -25°C…+50°C
DC Version -40°C…+70°C
Storage temperature AC Version -40°C…+85°C
DC Version
Weight AC Version 430g
DC Version 390g
Sealing to DIN
EN 60529 IP 20
3.2 Inputs
3.2.1 Sensor Inputs
An overview how different sensor can be connected is in chapter 6.1.2 Terminal A
Number 2
Frequency range (-3dB) 0.025 Hz … 50 KHz
Measurement range Programmable within the frequency range
Measurement accuracy 0.002 %
Resolution
(Frequency) 10 ns

Instruction Manual T501 JAQUET AG
Version 2.00E 8/59
Input impedance > 11.5 kΩ
(0.1 Hz
 80 k Ω , 1 KHz  18.5 k Ω , 10 KHz  16 k Ω , 50 KHz  11.6 k Ω )
Input signal for fixed 3V
trigger (+/-15%) •Max. Voltage: 80V
RMS
(226V
pp
)
•Best suited to digital signals
•Schmitt Trigger Input (Hysteresis > 1V)
•„0“ = Low Level to 1.25V
•„1“ = High level from 3V (+/- 15%)
•Min. Pulse width: 5µs
•NO DC- decoupling

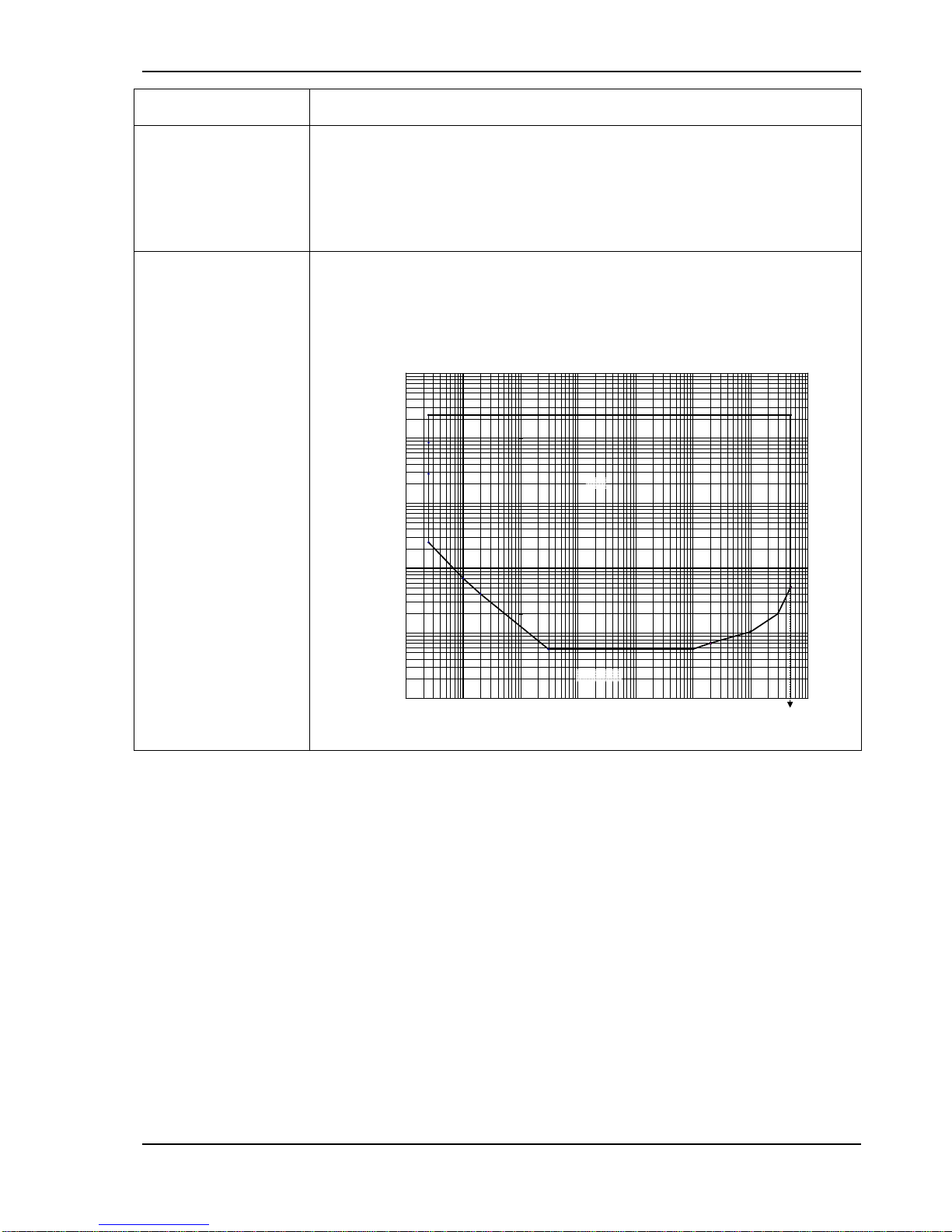

Input signal for adaptive
trigger min. 57mVpp
(+/-10%) 20mV
RMS
•Max. Voltage: 80V
RMS
(226V
pp
)
•DC- decoupling
•The Trigger level automatically adapts itself to the input signal in the range
+28.5mV to +2V. The Adaptive Trigger improves the signal to noise immunity
e.g. where electromagnetic sensors are used.
Min. Trigger level: 57 mVpp +/-10% = 20 mV
RMS
+/-10% U min. = f(Frequency)
0.01
0.10
1.00
10.00
100.00
1000.00
0.01
0.1
1
10
100
1000
10000
100000
Frequency (Hz)
Sensor Signal (Vpp)
O.K
NOT O.K.

Instruction Manual T501 JAQUET AG
Version 2.00E 9/59

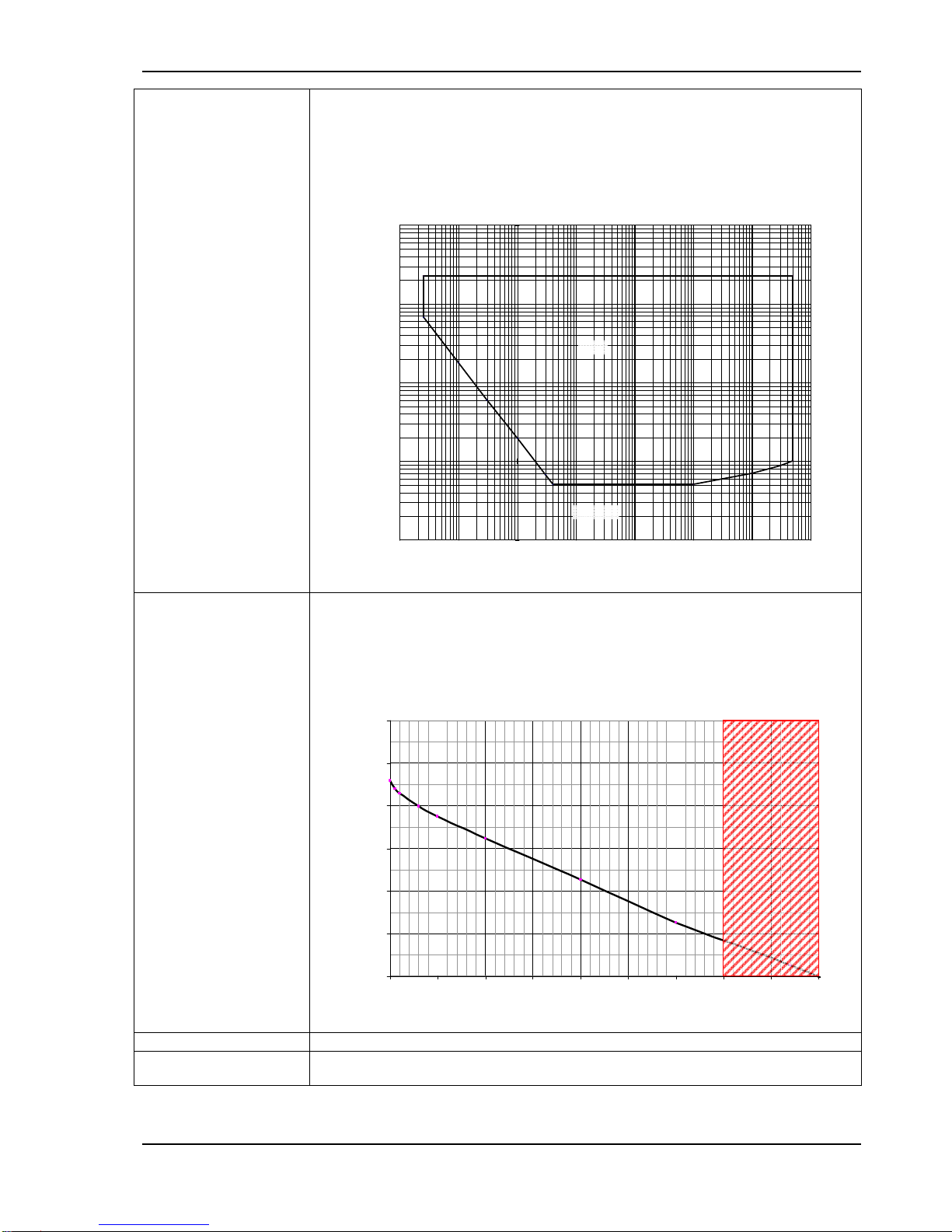

Input signal for adaptive
trigger min. 500mVpp
(+/-10%) 180mV
RMS
•Max. Voltage: 80V
RMS
(226V
pp
)
•DC- decoupling
•The Trigger level automatically adapts itself to the input signal in the range
+250mV to +2V. The Adaptive Trigger improves the signal to noise immunity
e.g. where electromagnetic sensors are used.
Min. Trigger level: 500 mVpp +/-10% = 180 mV
RMS
+/-10% U min. = f(Frequency)
0.1
1.0
10.0
100.0
1000.0
0.01
0.1
1
10
100
1000
10000
100000
Frequency (Hz)
Sensor Signal (V pp)
O.K.
NOT O.K.
Sensor supply •+14V +/- 0.5V, max. 35mA / Short circuit proof
•If the current limit has been activated, then the circuit needs to be
disconnected to reset the protection.
Typical voltage curve as a function of sensor current
Sensor voltage = f (Sensor current)
13.6
13.8
14.0
14.2
14.4
14.6
14.8
0 5 10 15 20 25 30 35 40 45
Sensor current (mA)
Sensor voltage (V)
Integral pull up resistor 1000Ωto +14V (Only for 2 wire active e.g. NAMUR sensors)
Screen Terminals are provided for each sensor cable screen (Sh1 and Sh2). These
terminals are internally connected to the sensor input / supply 0V.

Instruction Manual T501 JAQUET AG
Version 2.00E 10/59
Sensor monitoring 3 sensor monitoring settings are available in the configuration software:
•No Sensor Monitoring
•Monitoring of supplied sensors (active Sensor Types)
[Also for 2 wire sensors that are supplied via the internal Pull-up resistor (1kΩ)
Sensors drawing current outside of I
min
or I
max
are considered to be faulty.
I
min
= 0.5…35mA
I
max
= 0.5…35mA
•Monitoring of non powered sensors (passive Sensor Types)
[For 2 wire sensors such as electromagnetic sensors.]
The sensor is considered to be faulty if the line is broken.
Here the sensor impedance is dynamically measured.
Z < 60 kΩ= OK
Z > 125 kΩ= NOT OK
3.3 Binary Inputs
Number 2 Active Binary Inputs and 1 push button (EXEC – logic OR with Binary input B1)
Level Logic 0 = 0V….+5V
Logic 1 = +15V….+36V
Isolation voltage 1500 V
RMS
Input resistance R
min
= 8.2 kΩ
3.4 Outputs
3.4.1 Analog Outputs
Number 2 Analog outputs
Isolation voltage 1000 VDC
Output type Current (selectable 0…20 / 4…20mA)
Load Max. 500Ω
Open circuit voltage Max. 15V

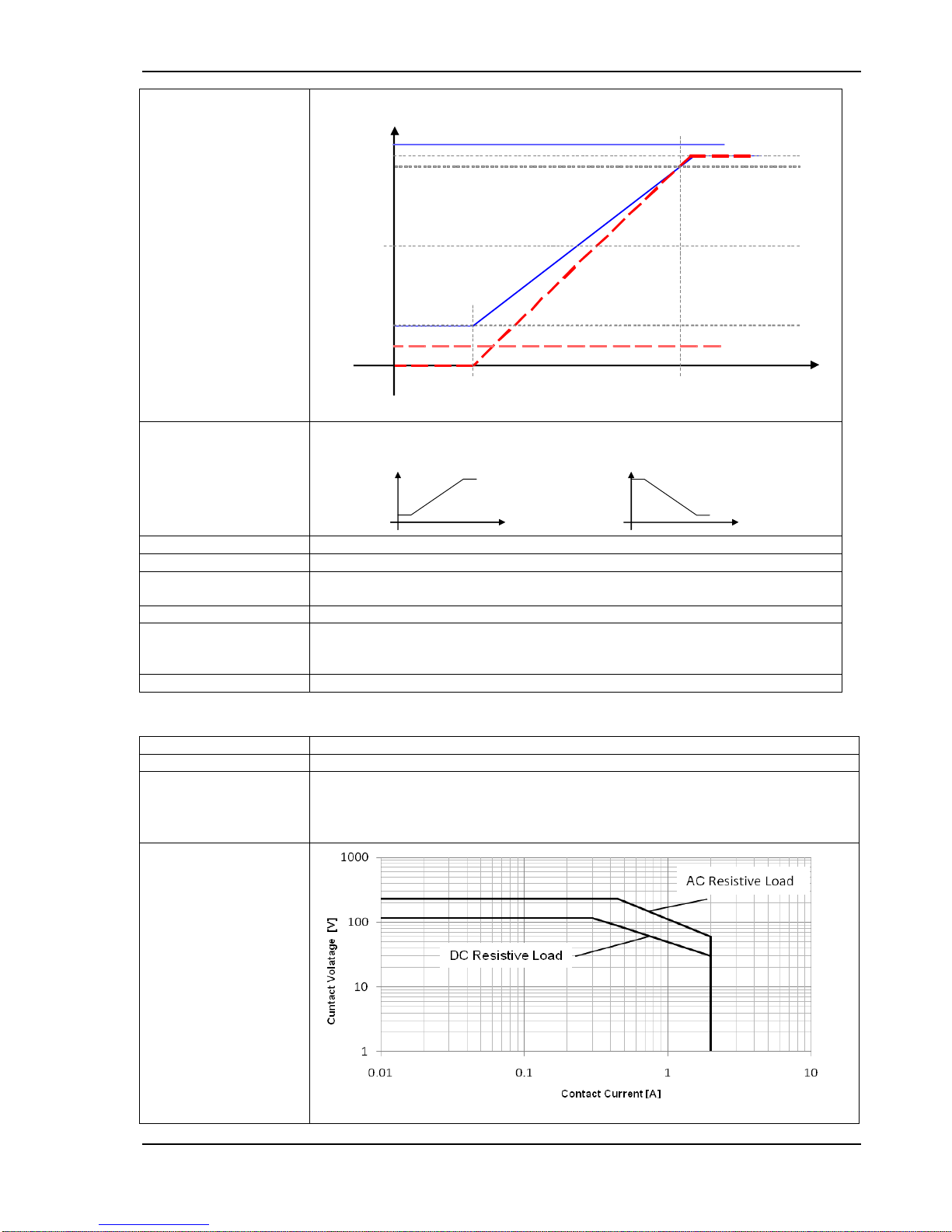

Typical error curve
-1
-0.9
-0.8
-0.7
-0.6
-0.5
-0.4
-0.3
-0.2
-0.1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
0.00E+00
1.00E-03 2.00E-03 3.00E-03 4.00E-03 5.00E-03 6.00E-03 7.00E-03 8.00E-03 9.00E-03 1.00E-02 1.10E-02 1.20E-02 1.30E-02 1.40E-02 1.50E-02 1.60E-02 1.70E-02 1.80E-02 1.90E-02 2.00E-02
I (A)
Measurement error (%)
0.2 % (from measured value) + 2 LSB
CLASS 0.1 % (from End Value)

Instruction Manual T501 JAQUET AG
Version 2.00E 11/59
Mode
2
0
.5
20
12
4
0
Mode
O
u
tput
Value
0...20mA
4...20mA
Startvalue
End
value
[mA]
21
2
Fehlerlevel
4 … 20mA
Failure
level
0… 20mA
Transfer Functions Start value < or > End value
Outputvalue
Output
Startvalue < Endvalue
Output
Startvalue > Endvalue
Outputvalue
Resolution 14 Bit (16384 increments)
Max. Linearity error 2 LSB (Least Significant Bit) ca. 2.7uA
Measuring error Max. 0.15 % f.m.v. + 2 LSB (-25°C +50°C)
Max. 0.20 % f.m.v. + 2 LSB (-40°C +70°C)
Accuracy class 0.1 % of the end value
Damping Hardware time constant T = 4.1 ms
10% 90% = 8.6 ms (Hardware)
Actual time = Hardware time constant + Software setting (configuration)
Temperature Drift Typ.: 50 ppm/K, max. 120 ppm/K
3.4.2 Relays Outputs
Number 4
Type Mono-stable single change-over
Functions •May be assigned to System Limit 1..6, Sensor Alarm, Static error Sensor 1 or
2, dynamic error, always on or off.
•With or without Hold function (Reset via Binary input)
•Fail Safe or Not Fail Safe
Relay - max. switching
current

Instruction Manual T501 JAQUET AG
Version 2.00E 12/59
Reaction time Effective Measurement interval + max 6 ms
Contact resistance 50 mΩMax. (Initial contact)
Contact isolation 1500 VAC (coil to contact)
1000 VAC (between open contacts)
3.4.3 Open Collector Outputs
Number 2 Open Collector outputs
Type Opto-coupler (passive)
External resistance IC nominal = 15mA (R
Pull-up
= V / I) Example: V = 24 V  R = 1.6 k Ω
IC max. = 30mA
Reaction time •As Frequency output: <30 us
•Effective Measurement interval + max 30 us
Load voltage V = 5VDC…36VDC
Isolation voltage 1500 VAC
Functions •May be assigned to System Limit 1..6, Sensor Alarm, Static error Sensor 1 or
2, dynamic error, always on or off.
•With or without Hold function (Reset via Binary input)
•Frequency Sensor 1 or 2, Frequency x2, Frequency x4 (subject to phase shift)
•Fail Safe or Not Fail Safe
Inverting Open collector output frequencies are in phase with the input signal.
3.5 Data communication
3.5.1 Ethernet
Number 1
Physical Layer Ethernet 10Base-T, IEEE 802.3i
Max cable length 100 m
Transmission rate 10 MBit/s
Connection Front panel, 8P8C (RJ45)
Usage Configuration and measurement status
Protocol Peer to Peer
Connecting cable Use a crossover cable
3.6 Environment
3.6.1 Climatic Conditions
Standard DIN 40 040
Operating temperature See 3.1 General
Storage temperature See 3.1 General
Relative Humidity •75% average over 1 year; to 90% for max. 30 days.
•Condensation to be avoided.
3.6.2 Electromagnetic immunity
Electrostatic discharge EN 61000-4-2 Contact 6 kV, air 8 kV
Electromagnetic fields EN 61000-4-3 30 V/m, not modulated and AM 80 % with 1000Hz Sinus
wave
Fast transients
EN 61000-4-4 2 kV, repeated 5 kHz duration 15 ms period 300 ms
Slow transients EN 61000-4-5 Line / line +/- 1kV, earth line +/- 2kV, 1 per minute
Conducted HF EN 61000-4-6 3 V eff (180 dBuV) 10 kHz – 80 MHz
Mains frequency
Magnetic field EN 61000-4-8 50 Hz, 100 A/m 2 minutes
Voltage dips EN 61000-4-11 Voltage dips, short interruptions and voltage variations
immunity tests

Instruction Manual T501 JAQUET AG
Version 2.00E 13/59
3.6.3 Other Standards
Communauté Européenne

Instruction Manual T501 JAQUET AG
Version 2.00E 14/59
4 Principle of Operation
4.1 General
The T501 Series of tachometers are microprocessor controlled and operate in accordance with the period
measurement principle whereby the duration of the input period is measured during the measurement interval.
The reciprocal value based on the average input period corresponds to frequency and hence speed.
The relationship between frequency and speed is determined by the Machine Factor.
The status of System Limits is based on various inputs that can be logically combined AND or OR. System
Limit inputs may be: both speed inputs, a Math function based on the speed inputs and, the 2 binary inputs. A
hysteresis may be set for the speed inputs and Math function individually. The 6 System Limits in each of 4
parameter sets may be individually defined. Parameter sets may be selected via binary inputs. The 4 relays
and 2 open collector outputs may be assigned to any System Limit and will react accordingly. The 2 open
collectors may alternatively be assigned to frequency x1, x2 or x4. Relay and open collector status may be
latched and then reset via binary input.
The system permanently monitors itself. Sensors may in addition be monitored. Sensor error may be used in
the configuration to influence System Limits. System error would influence the relays, open collectors and
Analog outputs and the front panel LED would go out.
Frequency Outputs (Open Collector Outputs) are not influenced by the Machine factor but where so defined
correspond to the input signal. For frequency x2 or x4 the 2 input signals should ideally be phase shifted by 90
degrees.
Parameter input is via resident PC software and the Ethernet Interface. This may also be used to interrogate
the unit, display measurement and unit status.
The Parameters are safely stored in EEPROM.

Instruction Manual T501 JAQUET AG
Version 2.00E 15/59

Instruction Manual T501 JAQUET AG
Version 2.00E 16/59
4.2 Machine factor
The Machine factor determines the relationship between the measured sensor frequency and the
corresponding speed.
There are two means of determining this value:
4.2.1 Measured
Where the Frequency (f) at the Sensor input and the corresponding speed (n) is known:
4.2.2 Calculated
The relationship between Sensor Signal Frequency (f) and speed (n) at a Pole wheel is:
Machine factor is then:
Should a gearbox be present between the pole wheel and drive shaft the formula becomes:
The gearbox ratio is determined as follows:
4.2.3 Other physical parameters
In principle any parameter may be processed as long as it can be translated into a frequency proportional
value. The formulae above may still be applied whereby the required parameter is used in place of speed.
n
f
M=
M = Machine factor
f = Signal frequency at Machine speed n
n = Machine speed
n
f
M=
M = Machine factor
f = Signal frequency at known speed
n = Machine speed at measured Signal frequency
f = Signal frequency in Hz
n = Pole wheel speed in U/min (rpm)
p = Number of teeth
60
pn
f
×
=
60
ip
M
×
=
M = Machine factor
p = Number of teeth
i = Gearbox ratio
1
2
2
1
p
p
n
n
i== i = Gearbox ratio
n
1
= Primary pole wheel speed (Sensor position)
n
2
= Secondary pole wheel speed (Speed to be indicated)
p
1
= Nr. Of teeth – primary pole wheel
p
2
= Nr. Of teeth – secondary pole wheel
60
p
M=
M = Machine factor
p = Number of teeth

Instruction Manual T501 JAQUET AG
Version 2.00E 17/59
5 Installation
Series T501 tachometers may only be installed by competent personnel. Only undamaged and correctly
configured units may be used. Please note the safety instructions in Paragraph 1. They should be connected
to the power supply by means of an isolating switch and correspond to protection class I. The PE terminal
must therefore be earthed.
Before switching on check that the supply is within the permissible range.
The Sensor cable screens must be connected terminals „Sh1“ and „Sh2“ respectively so as to minimize the
effects of signal noise. These terminals are internally connected with 0V (not PE).
Attention: If the password has been changed, there is no way of returning to a factory setup. If the password
is forgotten, you have to send in the tachometer and the Jaquet- Service- Team will set it back.

Instruction Manual T501 JAQUET AG
Version 2.00E 18/59
6 Connections

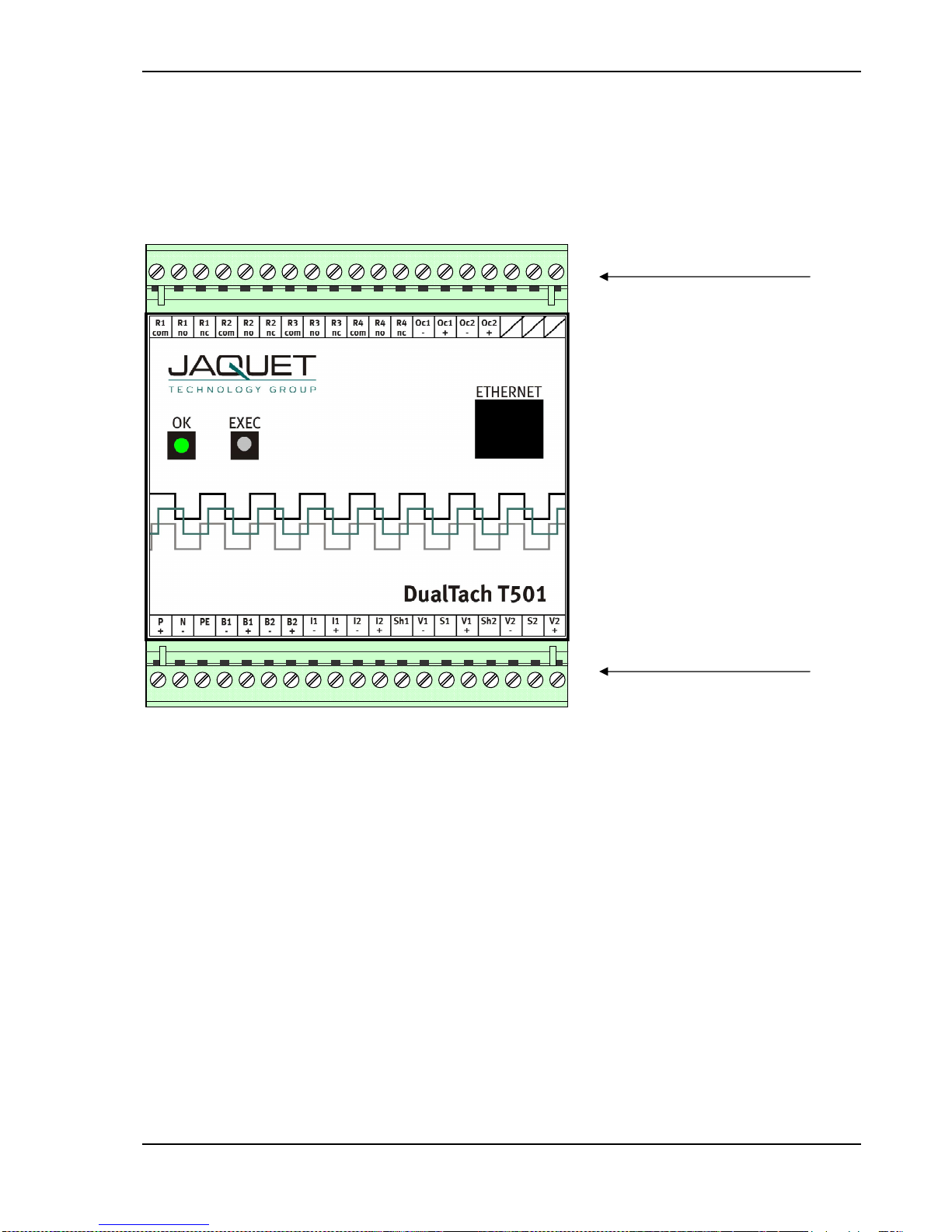

6.1 Front view
6.1.1 Front view T501
The Ethernet Interface, status LED along with the EXEC push buttong are located at the front. For
communications please see Paragraph 7 Configuration via PC Software
Terminal B
Terminal A

Instruction Manual T501 JAQUET AG
Version 2.00E 19/59
6.1.2 Terminal A
Supply
N (-) : Neutral (Return)
P (+) : Live
PE : Earth
Binary Inputs
B1+ : positive B1
B1- : negative B1
B2+ : positive B2
B2- : negative B2
Sensor connections S1 / S2
S1 : Sensor input S1
Sh1 : Screen S1
V1+ : Sensor Supply S1
V1- : 0V S1
S2 : Sensor input S2
Sh2 : Screen S2
V2+ : Sensor Supply S2
V2- : 0V S2
Analog outputs
I1+ : positive I1
I1- : negative I1
I2+ : positive I2
I2- : negative I2
Sh2
V2
-
I2
-
I2
+
Sh1
V1
-
S1
V1
+
I1
-
I1
+
B2
-
B2
+
B1
-
B1
+
PE
P
+
N
-
S
2
V
2
+
+
-
Binary input
Current output
Power supply
+
-
+
-
+
-
I1
I2
B2
B1
Sensor 1
Sensor 2
For connection recommendation see
below

Instruction Manual T501 JAQUET AG
Version 2.00E 20/59
Ferostatische Sensoren (2 Draht)
(DSF..., NAMUR)
Sensors with NPN- output (Open Collector)
(DSF..., DSD...)
electromagnetic 2-wire Sensors
(DSE..., Green Line E...)
Sensors with amplifier and fixed Trigger level at 1,25/3,0 Volt (DC)
(DSF..., DSD..., Greenline F..., D..., Y... )
o
r
Sensor types
or
configuration recommendation of the Software parameters
Connection recommendation
Terminal for Sensor 1
Sh2
V2
-
V1
+
S
2
V
2
+
Sh2
I2
+
Sh1
V1
-
S1
V1
+
+V
S
-
+
-
+
-
MDR
+V
S
-
Terminal for Sensor
2
