Jardine DA626BC User manual

ITEM # 343-8359
MODEL# DA626BC (HONEY PINE) DA627BC (White)
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
Follow warnings on all products in a crib.
WARNING ENTRAPMENT / STRANGULATION HAZARD:
*Infants have died in toddler beds from entrapment and strangulation.
*NEVER use bed with children under 15 months.
*NEVER place bed near windows where cords from blinds or drapes may strangle a child.
*
*
*
*
*
Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE USE.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product model number, color
and a detailed description of the part.
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada H1G 3L1
E-MAIL: [email protected]
WARNING
Failure to follow these warnings and assembly instructions could result in serious injury or death.
Replace teething rail if damaged or loose (if teething rail is provided for this model).
Before each usage or assembly, inspect crib for damaged hardware, loose joints, missing parts or
sharp edges, DO NOT use crib if any parts are missing or broken. Ask your dealer or write to our
customer service representative (address & phone number shown above) for replacement parts and
instructional literature if needed. DO NOT substitute parts.
Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional
padding under an infant.
When child is able to climb out or reaches the height of 35 inches (90 cm), the crib shall no longer be
used.
To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep,
unless otherwise advised by your physician.
DO NOT place crib near window where cords from blinds or drapes may strangle a child.
Strings can cause strangulation! DO NOT place crib with a string around a child's neck, such as hood
strings or pacifier cords. DO NOT suspend strings over a crib or attach strings to toys.
To help prevent strangulation tighten all fasteners. A child can trap parts of the body or clothing on
loose fasteners.
If refinishing, use a non-toxic finish specified for children's products.
When child is able to pull to standing position, set mattress to lowest position and remove bumper
pads, large toys and other objects that could serve as steps for climbing out.
Never use plastic shipping bags or other plastic film as mattress covers because they can cause
suffocation.
DO NOT use a water mattress with this crib.
CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY 51-5/8
INCHES (69CM BY 131CM) WITH A MINIMUM THICKNESS OF 4 INCHES (10CM) BUT NOT
EXCEEDING 6 INCHES (15CM).
Infants can suffocate in gaps between crib sides and a mattress that is too small.
The TODDLER BED or DAY BED is not intended for children under 15 months of age or over 50
If guardrails are used as the mattress containment means, guardrail(s) provided must be used to avoid
the formation of a gap between the mattress and the bed that could cause an entrapment (when
product is used as a TODDLER BED or DAY BED).
DO NOT place DAY BED or TODDLER BED near windows where cords from blinds or drapes may
strangle a child.
DO NOT place items with a string, cord, or ribbon around a child's neck, such as hood strings or
pacifier cords.
DO NOT suspend strings over a TODDLER BED or DAY BED for any reason.

ITEM # 343-8359
MODEL# DA626BC (HONEY PINE) DA627BC (White)
*
*
*
*
*
*
DO NOT use power tools.
NOTES
Ensure all parts and components are present before beginning assembly.
Assemble on soft, smooth surface to prevent damage to product finish.
Phillips head screw driver is not included.
Jardine Enterprise warrants its product to be free from defects in material and workmanship and
agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase.
This warranty is valid only upon presentation of proof of purchase. This is solely limited to the
repair or replacement of defective furniture components and no assembly labor is included. This
warranty does not apply to any product which has been improperly assembled, subjected to misuse
or abuse or which has been altered or repaired in any way. This warranty gives you specific legal
rights and you may also have other rights which vary from State to State.
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used
occasionally to clean surface. Dry immediately. Do not use any abrasives that may damage finish.
Excessive exposure to sunlight and extreme changes in temperature and moisture can damage
wood furniture.
If the crib is to be stored, store in cool dry place and carefully package all original hardware to
protect from loss.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
CAUTION: Adult assembly required.
Assembly will require two people.
WARNING: Should this product become damaged,
and/or components are broken or missing, DO NOT
USE.
CARE AND CLEANING
LIMITED WARRANTY

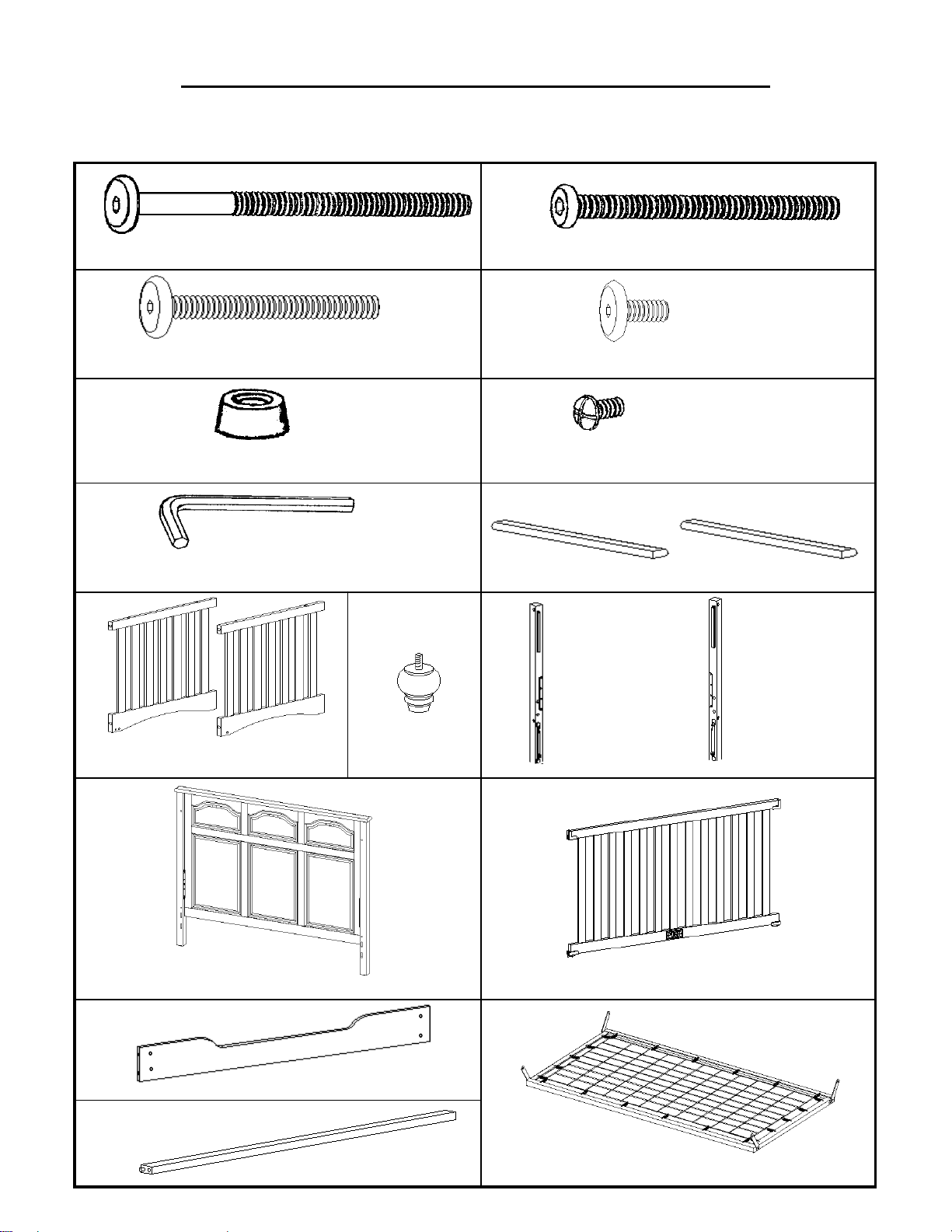

HARDWARE AND PART LIST
A B
BOLT 2-1/4"×1/4"DIA 4PCS
C D
E F
G H
I K
LEFT(K1) 1PC RIGHT(K2) 1PC
FRONT POST
L M
N P
O
MATTRESS SUPPORT 1PC
ASSEMBLY INSTRUCTION FOR "343-8359"CRIB
BOLT 3-1/2"×1/4"DIA 12PCS
DA626BC ( Honey Pine) & DA627BC (White)
HEAD BOARD 1PC
DROP SIDE 1PC
0.3805"×0.1785"DIA
MATTRESS SUPPORT BOLT 16PCS
MACHINE SCREWS 2PCS
LEFT(H1) 1PC
RIGHT(H2) 1PC
GUARD RAIL 1PC
STABLIZING BAR 1PC
SIDE PANEL
BUN FOOT 4PCS
J
TOP PANEL
SMALL ALLEN WRENCH 4MM 1PC
RUBBER BUMPER 2PCS
1/2"×1/4"DIA
BOLT 2"×1/4"DIA 2PCS
RIGHT (I2) 1PC
LEFT (I1) 1PC

Thank you for purchasing this quality product. Be sure to check all packing material carefully
for small parts, which may have some loose inside the carton during shipment. Identify and
count all parts and compare with the parts list below.
NOTE: WHEN INSERTING SCREWS TURN CLOCKWISE UNTIL TIGHT, THEN
LOOSEN 1/2-3/4 OF A TURN, AFTER CRIB IS COMPLETELY ASSEMBLED, RETURN TO
EACH SCREW AND TIGHTEN, USE WAX OR SOAP ON ALL SCREWS TO FACILITATE
ASSEMBLY.
ASSEMBLY INSTRUCTION FOR "343-8359"CRIB
DA626BC ( Honey Pine) & DA627BC (White)
ATTACH THE TOP RIGHT PANEL
(PART H2) TO THE RIGHT SIDE
FRAME USING BOLTS (PART B)
AND WRENCH (PART G) PROVIDED.
REPEAT THIS STEP FOR THE TOP
LEFT PANEL (PART H1) AND THE
LEFT SIDE FRAME (PART I1).
J
K1
K2
G
A
I2
I1
J
H2
B
I2
I1
H1
G
SCREW THE BUN FOOT (PART J) INTO
THE FRONT POST (PART K1 AND K2),
ATTACH THE RIGHT FRONT POST
(PART K2) TO THE RIGHT SIDE FRAME
(PART I2) USING 2 BOLTS (PART A) AND
WRENCH (PART G) PROVIDED, REPEAT
THIS STEP FOR THE LEFT FRONT POST
(PART K1) AND LEFT SIDE FRAME
(PART I1).
STEP 2.
STEP 1.

ASSEMBLY INSTRUCTION FOR "343-8359"CRIB
DA626BC ( Honey Pine) & DA627BC (White)
STEP. 3
SCREW THE BUN FOOT (PART J) INTO POSTS OF HEADBOARD (PART
L).ATTACH THE LEFT SIDE FRAME ASSEMBLY (I1 & K1) ONTO THE
HEADBOARD (PART L). USING 2 BOLTS (PART A) AND WRENCH PROVIDED
(PART G). REPEAT THIS STEP TO ASSEMBLE RIGHT SIDE ASSEMBLY (I2 &
K2). TO ATTACH PART (O) TO PARTS(I), INSERT HARDWARE(C) INTO
PARTS(I)TO LOCK PART(O) IN PLACE BY USING HARDWARE(G).
A
G
L
I1
I2
J
A
C
G
O
K1
K2

STEP 4:
ASSEMBLY INSTRUCTION FOR "343-8359"CRIB
DA626BC ( Honey Pine) & DA627BC (White)
Attach the mattress support to the 4 corner posts with the mattress support bolts (D). Use Allen Key to
tighten bolts. Refer to details 1 and 2 for direction on how to properly attach the mattress support.
INCORRECT-
Tabs on corners
of mattress
support should
point up
INCORRECT-
Raised edge
should face
down -this
photo shows
mattress
support is
upside down
CORRECT
*Tabs to point UP.
*Flat surface of mattress support to face up
- mattress must sit on flat surface.
G
G
G
N

ALIGN AND SLIDE DROP SIDE FROM THE BOTTOM ONTO THE DROP SIDE UPPER AND LOWER TRACKS ON THE LEFT
OF THE LOWER DROP SIDE TRACKS (PULL TOWARDS YOU). RAISE DROPSIDE UNTIL IT IS LOCKED INTO PLACE.
CAUTION: DO NOT FORCE THE DROP SIDE AS YOU MAY BREAK THE LOCKS, GUIDES, OR TRACKS.
ATTACH RUBBER STOPPERS BEFORE OPERATING DROP SIDE.
Note: When moving the crib, DO NOT hold it by the drop side, always use the side frames to move the crib.
WHEN ASSEMBLING THE DROP SIDE, MAKE SURE THE TEETHING RAIL IS ON THE TOP.
PHOTO A PHOTO B
STAND AT THE MIDDLE OF THE DROP SIDE AND HOLD THE TOP RAIL WITH ONE HAND. RAISE THE DROP SIDE
SLIGHTLY TO ENABLE YOU TO RELEASE THE LATCH BY PUSHING ON THE DROP SIDE LOWER RAIL WITH YOUR KNEE.
THE DROP SIDEWILL NOW LOWER. RAISE THE DROP SIDE AND IT WILL AUTOMATICALLY LOCK AT THE UPPER
POSITION.
ALWAYS MAKE SURE DROP SIDE IS PROPERLY SECURED.
The release latch on the lower
guides must be on the outside
of the lower drop side tracks -
pull towards you before sliding
onto the track.
This rubber bumper must be installed prior
to operating drop side - it will prevent drop
side from falling to the floor
NOTE: Photos A & B are to demonstrate how the drop side should be installed.The photos of the wood components of the
crib may differ from the crib purchased and are for reference only.
OPERATING INSTRUCTIONS FOR DROP SIDE.
STEP 5
AND RIGHT FRONT POSTS. MAKE SURE THE RELEASE LATCH ON THE LOWER GUIDES IS TO THE OUTSIDE
ASSEMBLY INSTRUCTION FOR "343-8359"CRIB
DA626BC ( Honey Pine) & DA627BC (White)
Email: [e-mail]
AFTER DROP SIDE IS
INSTALLED ON THE TRACKS
AND LATCHED IN THE "UP"
POSITION, THREAD MACHINE
SCREW INTO A RUBBER
STOPPER AND INSERT INTO
EMPTY HOLE ON LOWER TRACK
ASSEMBLY. USE PHILLIPS
SCREW- DRIVER
(NOT PROVIDED)
TO TIGHTEN BOLT.
Machine Screw (F)
Rubber Stopper
K1
L
M
K2
I
PUSH
RUBBER BUMPER(5)
BOLT (6)
FRONT POST
ALIGN UPPER
GUIDE WITH
UPPER TRACK
LOWER TRACK ASSEMBLY
FACTORY INSTALLED
ALIGN LOWER
GUIDE ASSEMBLY
WITH LOWER
TRACK ASSEMBLY
UPPER GUIDE
(ATTACHED TO
CRIB DROPSIDE (PART C)
BOTTOM EDGE OF
CRIB DROPSIDE(PART C)
LOWER GUIDE
ASSEMBLY
ON DROPSIDE(PART C)
ALLGN BOTH TRACKS FROM
UNDERNEATH THEN PULL UP UNTIL LOWER GULDE LATCHES

DAY BED
WARNINGS:
1. ANY MATTRESS USED IN THIS DAY BED MUST BE AT LEAST
27-1/4" × 51-5/8" (69CM × 131CM) WITH A MINIMUM THICKNESS OF 4"
AND NOT EXCEEDING 6" (15CM).
2. THE DAY BED IS INTENDED FOR USE BY A CHILD NOT LESS THAN 15 MONTHS
OF AGE AND WHO WEIGHTS NO MORE THAN 50LBS (27.7KGS)
NOTE: WHEN INSERTING SCREWS TURN CLOCKWISE UNTIL TIGHT, THEN LOOSEN
1/2-3/4 OF A TURN, AFTER CRIB IS COMPLETELY ASSEMBLED, RETURN TO EACH
SCREW AND TIGHTEN, USE WAX OR SOAP ON ALL SCREWS TO FACILITATE ASSEMBLY.
DAY BED ASSEMBLY INSTRUCTIONS, STARTING FROM CRIB
STEP 1: UNSCREW THE RUBBER BUMPER STOP (PART E) FROM THE LOWER DROPSIDE
TRACK ON THE LEFT (PART K1) AND RIGHT (PART K2) FRONT POSTS.
STEP 2: DETACH THE DROPSIDE (PART M) FROM THE LEFT AND RIGHT POSTS BY SLIDING
THE UPPER AND LOWER GUIDES ON EACH END OF THE DROPSIDE DOWN UNTIL
THEY ARE BELOW THE UPPER AND LOWER DROPSIDE TRACK. ONCE THE
DROPSIDE HITS THE FLOOR, THE GUIDES AND TRACKS CAN BE SEPARATED
FROM EACH OTHER.
STEP 3: UNSCREW AND DETACH THE LOWER TRACKS FROM THE LEFT AND RIGHT FRONT
POSTS.
STEP 4: IF MATTRESS SUPPORT (PART P) IS NOT IN THE LOWEST POSITION,UNSCREW
MATTRESS SUPPORT BOLTS (PART D) FROM POST AND MOVE IT TO THE LOWEST
POSITION.
STEP 5: USING THE WRENCH PROVIDED, ATTACH THE GUARD RAIL (PART N)
USING 4 BOLTS (PART A) BETWEEN THE LEFT AND FIGHT FRONT POSTS.
STEP 6: TIGHTEN ALL SCREWS CLOCKWISE.
STARTING FROM SCRATCH:
STEP 1: FOLLOW STEPS 1 TO 4 OF THE CRIB ASSEMBLY INSTRUCTIONS.
STEP 2: FOLLOW STEPS 3 TO 6 FOR THE DAY BED ASSEMBLY INSTRUCTIONS LOCATED
ABOVE (STARTING FROM CRIB).
PLEASE ENSURE THAT THE HEIGHT ADJUSTMENT HOLES BE FILLED
WITH SCREWS (D) AFTER THE MATTRESS SUPPORT BEEN MOVED TO THE
LOWEST LEVEL,MAKE SURE THAT THESE SCREWS ARE TIGHTLY SECURED.
NOTE:
G
K2
A
L
K1
N
PLEASE ENSURE THAT THE HEIGHT ADJUSTMENT HOLES BE FILLED
WITH SCREWS (D) AFTER THE MATTRESS SUPPORT BEEN MOVED TO THE
LOWEST LEVEL,MAKE SURE THAT THESE SCREWS ARE TIGHTLY SECURED.
NOTE:
G
K2
A
L
K1
N

BED "FULL SIZE"
IMPORTANT: STORE AWAY ALL EXTRA
PARTS TO THIS "CRIB". "DAY BED" OR
"FULL SIZE HEADBOARD FOOTBOARD"
THAT YOU ARE NOT USING FOR
POSSIBLE FUTURE USE AS YOU MAY
WISH TO CONVERT AGAIN. ALWAYS
STORE THE ASSEMBLY DIRECTIONS IN
THE POUCH ATTACHED TO THE
MATTRESS SUPPORT (PART P).
THIS CRIB CAN BE CHANGED TO A FULL
SIZE BED.
USING HEADBOARD (L) TO ATTACH
PURCHASED FULL SIZE BED FRAME
(NOT PROVIDED) AT THE LOCATION
AS DIAGRAM A1 SHOWN.
DIAGRAM A1
