Jauch JES200WHA User manual

USER MANUAL
Jauch Power Station JES200WHA
ENGLISH

Thank you for purchasing this Jauch Power Station. Please read all instructions and cautions
carefully before use to avoid personal injury or damage to the Power Bank and any connected
products.
OBERSERVE ALL INPUTS AND OUTPUTS
To avoid fire or electrical shock hazard, observe all ratings on unit, and products you intend to use;
check manual for more information.
USE IN AN VENTILATED AREA
Ensure proper ventilation while in use and do not obstruct fan openings on unit. Inadequate
ventilation may cause damage to the power bank. Do not stack anything on top of the power bank
in storage or in use.
DO NOT OPERATE IN WET CONDITIONS
In order to avoid short circuits or electric shocks do not allow unit to get wet. Let unit dry
completely before using.
Any manipulation to the unit or its components will void all warranties.
IMPORTANT SAFETY INSTRUCTIONS

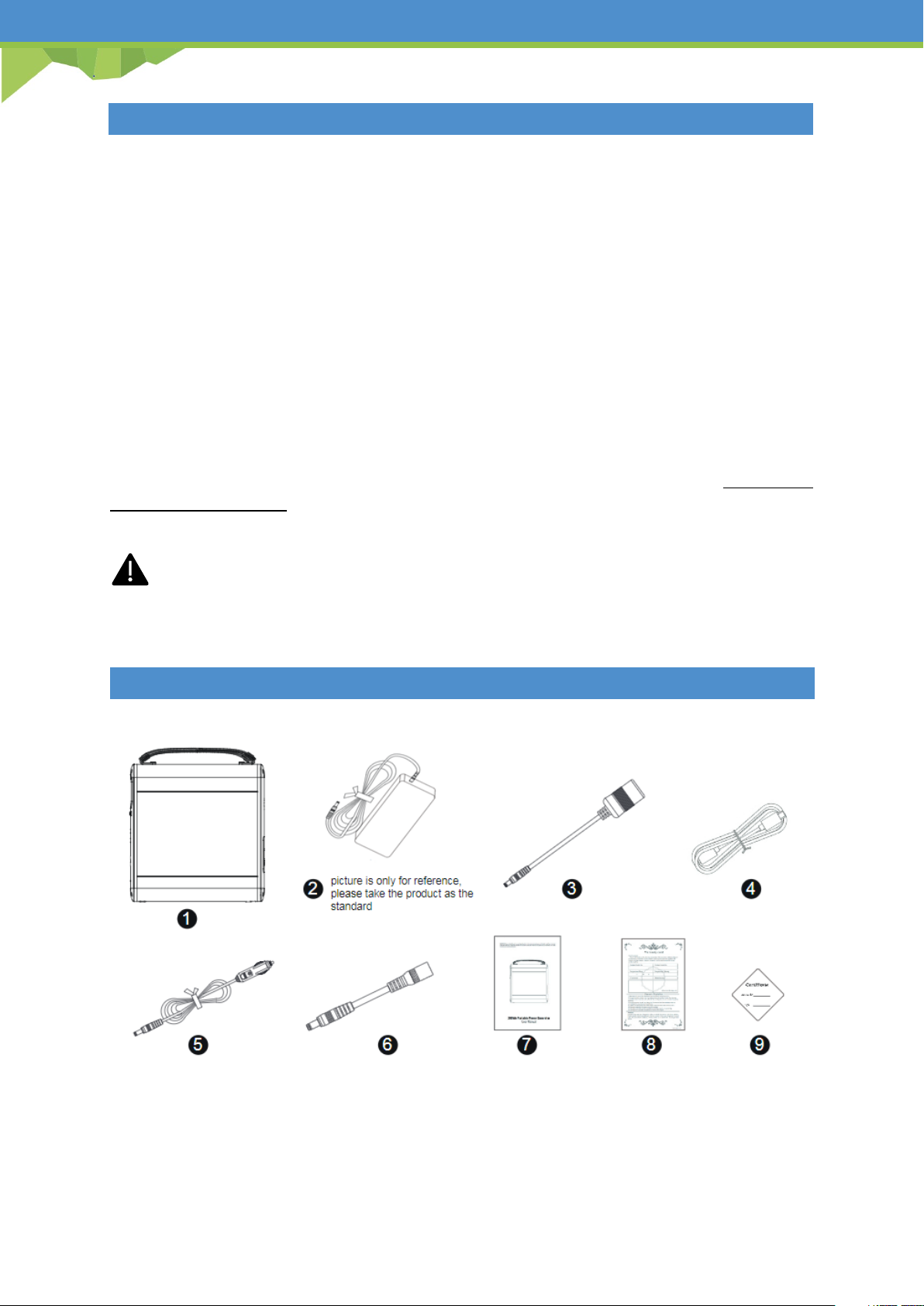

WHAT YOU GET

1
Jauch Power Station JES200WHA
2
Power Supply
3
Cigarette Lighter Cable (6530 to Cigarette Lighter)
4
USB-C Cable
5
DC7090 to Car Charger Cable
6
DC6530 to DC5521 Cable
7
Jauch Manual
8
Warranty Card
9
Certificate of Qualification
A
LCD Display
B
Power Button DC Output
C
Power Button Power Bank
D
Power Button AC Output
E
USB-A Output
F
USB-A QC3.0 Output
G
DC Output
H
USB-C Output
I
PV Adapter
J
AC Output

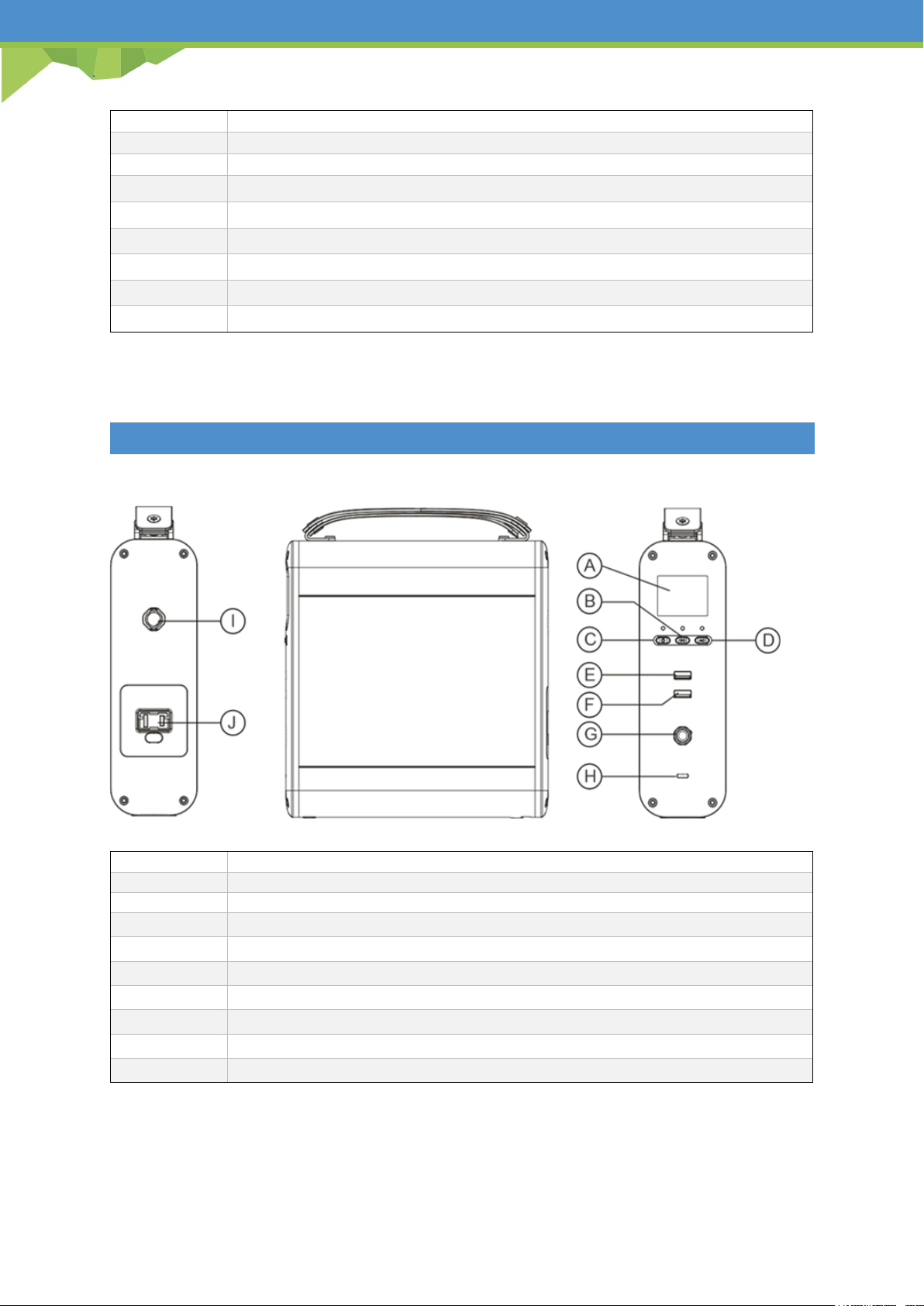

GET TO KNOW YOUR JAUCH POWER STATION

Power Button Power Bank
Power On: Hold the power button for approximately 2 seconds to turn on
the power station. The corresponding indicator light will turn on and the
display will light up
Power Off: Hold the power button for approximately 2 seconds to turn off
the power station.
Power Button DC Output
Turn On DC Output: Hold the DC button for approximately 2 seconds to
turn on DC output. The corresponding indicator light will turn on “DC ON”
will be displayed on the display.
Turn Off DC Output: Hold the DC button for approximately 2 seconds to
turn off DC output. The corresponding indictor light will turn off and “DC
OFF” will be displayed on the display.
Note: When the power station is turned off, the DC Output will be disabled.
When the power station is turned on, DC output is turned off by default.
Please hold the power button to turn on the power station and then hold
the DC power button to turn on the output.
Power Button AC Output
Turn On AC Output: Hold the AC button for approximately 2 seconds to
turn on AC output. The corresponding indicator light will turn on and “AC
ON” will be displayed on the display.
Turn Off AC Output: Hold the AC button for approximately 2 seconds to
turn off AC output. The corresponding indicator light will turn off and “AC
OFF” will be displayed on the display.
Note: When the power station is turned off, the AC Output will be disabled.
When the power station is turned on, AC output is turned off by default.
Please hold the power button to turn on the power station and then hold
the AC power button to turn on the output.

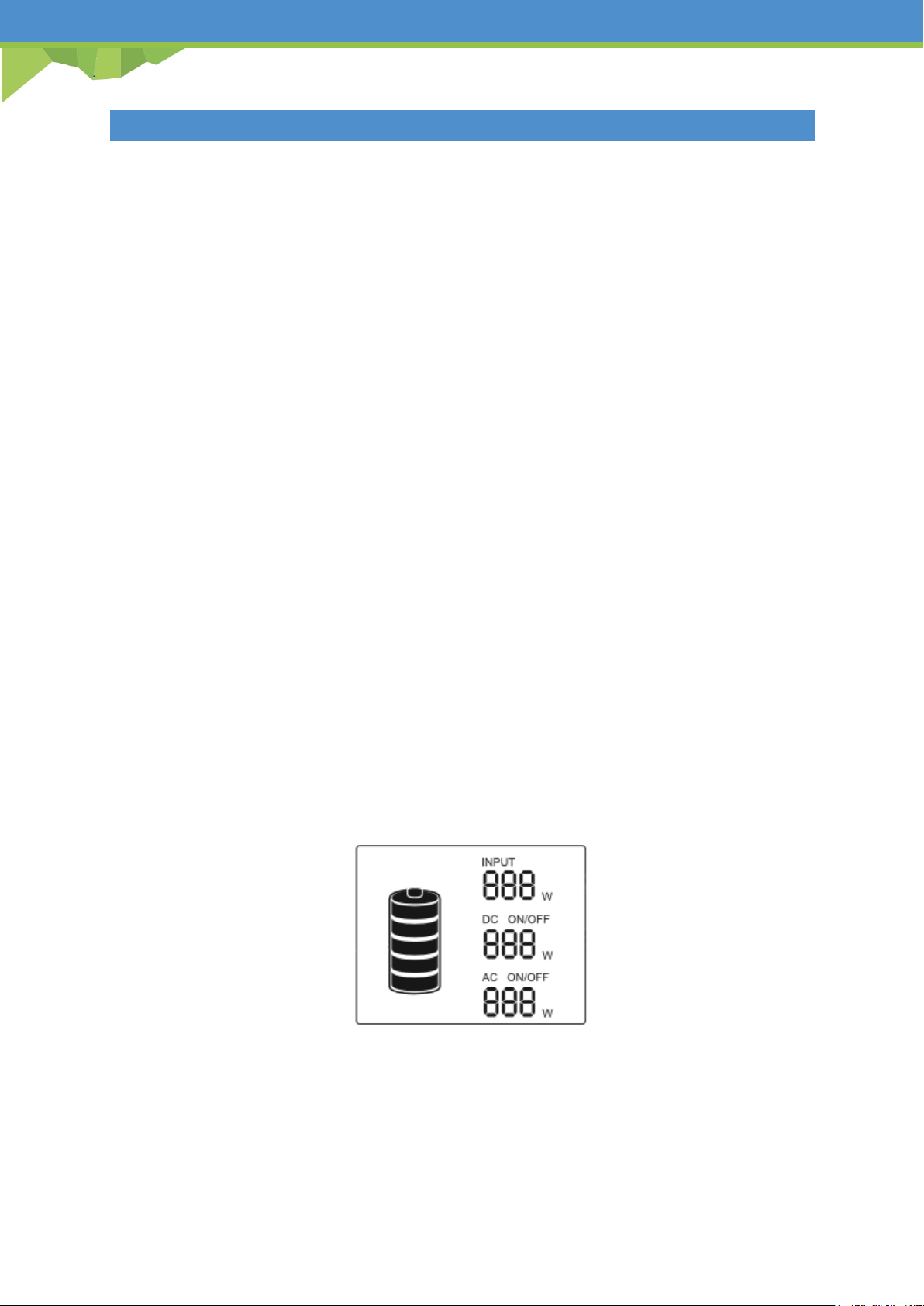

LCD Display
The built-in LCD display indicates three important values:
Inputs
Shows the amount of power (Watts) going into the power station while
charging.
Outputs DC/ AC
Shows the amount of power (Watts) and output your devices will be using
while plugged into the Jauch power station.
EXPLANATION OF THE POWER BUTTONS AND LCD DISPLAY

Battery Level
Shows 5 segments 20%, 40%, 60%, 80%, 100% capacity. As you use your
power station, segments will disappear from the display, indicating the
remaining charge. When charging the power station, you will notice a battery
segment blinking. This indicates the current charge status. One your power
station is fully charged; all battery segments will be lit and remain solid.
Note: The failure code (see table on Page 9) will appear at on the right side of the screen where
you originally can see the Input, DC and AC power.

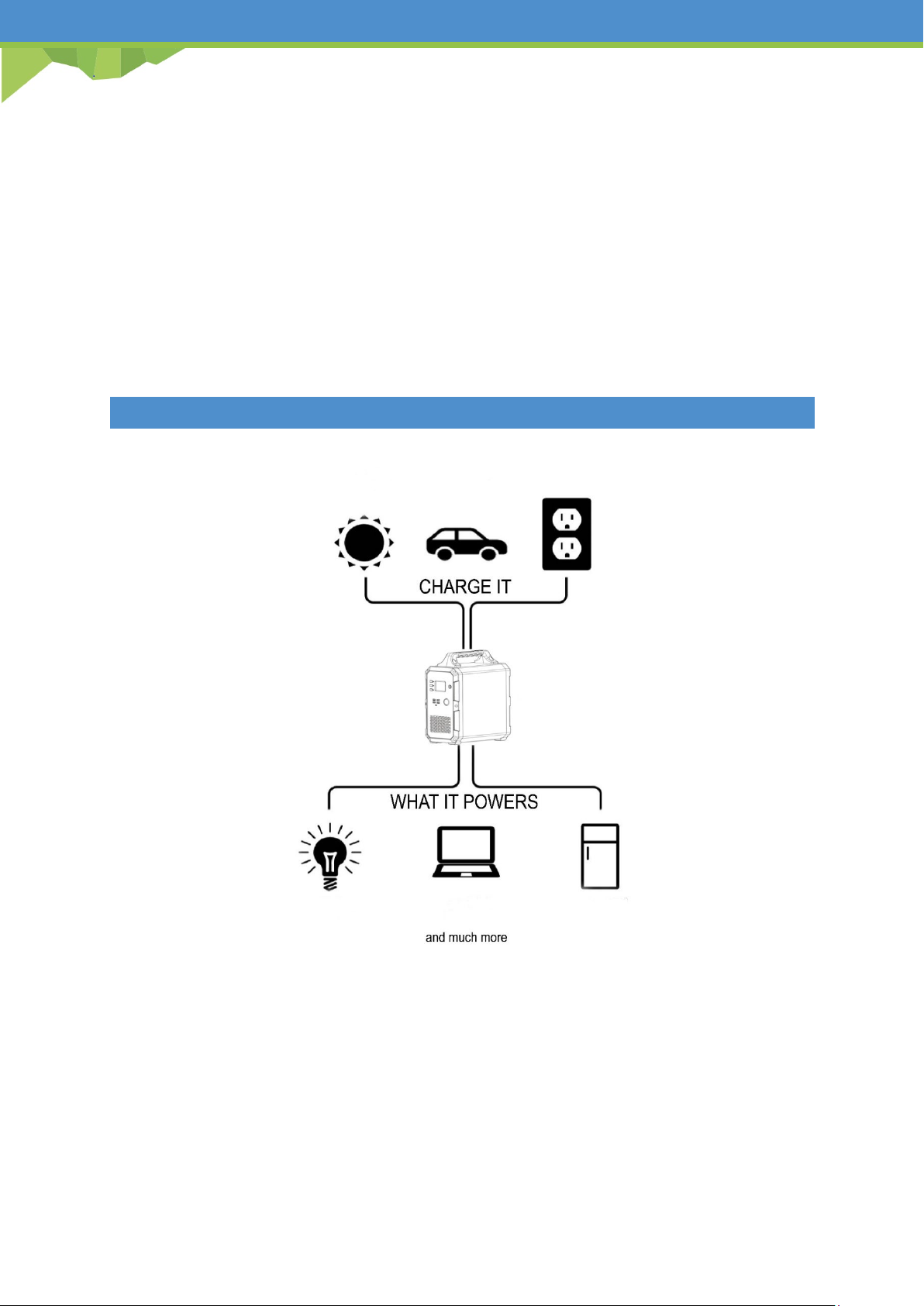

There are three ways to charge this Jauch Power Station.
CHARGING WITH SOLAR PANEL
1. Place the solar panel somewhere where it can receive direct sunlight.
2. Make sure that the open-circuit voltage of the solar panels falls within 16-60V. The maximum
input power of this power station is 600W (Max.)
3. Turn off the power station and connect the solar panel with the DC Input (DC 16-60V/10A). The
screen will light up after the power station is turned on and shows the input power wattage.
4. If you want to use the AC or DC outputs while charging the power station through the solar
panel, please press the AC or DC power button for more than one second.
CHARGING YOUR JAUCH POWER STATION

CHARGING WITH CAR CHARGER
Insert one end of the car charger to the car cigarette lighter receptacle and insert the other end to
the input port of the power station. The battery icon will blink to indicate that the power station is
being charged.
CHARGE WITH AC ADAPTER
To charge this power station with the attached AC adapter insert one end of the adapter into a wall
outlet and insert the other end to the input port of the power station.
When the power bank is charging, you can monitor the battery status by checking the battery icon
on the display.
This power station comes with a built-in advanced control circuit. When the battery is fully charged,
it will stop charging automatically.
THROUGH USB OUTPUT
1. Select the adapter that corresponds with your mobile devices and use it to connect the USB
power cable to the input port of your device:
2. Plug the other end of the USB cable into one of the USB outputs of the power station.
3. Once connected, the power bank will start to charge your mobile devices automatically.
THROUGH DC OUTPUT
1. Connect the DC power cable to the input port of your device.
2. Plug the remaining end of the DC cable into the power station´s DC output port.
3. Once connected, the power station will automatically begin charging the device.
Note: When the power station is turned off, the DC Output will be disabled. When the power station
is turned on, DC output is turned off by default. Please hold the power button to turn on the power
station and then hold the DC power button to turn on the output.
THROUGH USB TYPE C OUTPUT
1. Use the original USB Type-C cable for your device or the one included with the product
accessories.
2. Insert the USB-C cable into the USB-C output port of the power bank and connect the power
station with the device that needs to be charged.
3. The power station will automatically detect the load output and start charging the device.
USING YOUR JAUCH POWER STATION

THROUGH AC OUTPUT
1. Connect the power cable to the input port of your device.
2. Plug the remaining end of the AC cable into the power station´s AC output port.
3. Once connected, the power station will automatically begin charging the device.
Note: When the power station is turned off, the AC Output will be disabled. When the power station
is turned on, AC output is turned off by default. Please hold the power button to turn on the power
station and then hold the AC power button to turn on the output.
Please fully-charge your Jauch Power Station before storage and charge it every 3 months. Keep the
power station away from water, flammable gas, corrosive material, metals, dust and salt.
Failure to maintain your Jauch Power Station by following these steps can result in battery damage
which will void the product warranty.
STORAGE AND MAINTENANCE

Battery Capacity
200Wh
Output Specifications
AC Output
Rated Output Power
120W/ 100-120V
Peak Output Power
200W (1s)
Rated Output Voltage
100-120Vac
Rated Frequency
50/60Hz
Power Factor
1
THDV
<3%
Overload Capacity
125W≤Load<150W@10S;
150W≤Load<180W@5s;
180W≤Load<200W@1s
No-Load Power Consumption
<8W
Max. Efficiency (>70% Load Power)
90%
DC 12V
Output
Output Voltage Range
10~12.6V
Rated Output Power
120W
Overload Power/ Current
The power is larger than 125W or the current is larger than 11A
USB Output A1
Fast Charge Supported Device
BC 1.2, Apple, Samsung
Output Voltage Range
5V±0.25V
Rated Output Current
2.4A
Overload Current
2.8-3.8A
USB Output A2
Communication Protocol (fast charge)
QC3.0
Output Voltage Range
5~12V (5V by default)
Rated Output Current
5V2.5A
、
9V2A
、
12V1.5A
Overload Current
2.8-3.8A
USB
-C
Output
Communication Protocol (fast charge)
PD protocol (Max output: 45W)
Output Voltage Range
5~20V (5V by default)
Rated Output Current
5~20V/2.25A
Overload Current
2.3-3A
Input Specifications
Max. Input Power
60W
Input Voltage Range
14~40Vdc
MTTP Voltage Range
15-40Vdc
Max. Input Efficiency
99.5%
Max. Efficiency
>90%
Solar Charging Mode
MPPT
Battery Specifications
Rated Voltage
11.1V
Rated Power
200Wh
Rated Capacity
18000mAh
Cell Type
Li-Ion
Configuration
3S8P
Working Temperature
0°C-40°C/ 32°F-104°F
General Information
Dimensions
200x67x207 mm/ 8.0x2.6x8.0 in
Net Weight
3.45 kg/ 7.6 LBS
TECHNICAL SPECIFICATIONS

The following guide provides information on how to identify and correct troubleshoot reactions.
E01
Over-temperature protection (system)
Check whether the room temperature is higher than
40°C/104°F. When the temperature cools down, the output
will turn on again.
E02
Over-voltage protection (battery)
Disconnect the power station from the power source to stop
charging and restart it.
E03
Battery damage protection
Contact Customer Service
E10
SOC (State of Charge) protection
Charge the power station and restart it after fully charged.
E11
Battery low-voltage protection
Charge the power station and restart it after fully charged.
E12
Invert over-current protection
Check whether the AC output port is overloaded or short-
circuited.
E13
Invert over-load protection
Check whether the AC output is overloaded, please refer to
the chapter “Technical Specifications” for overload capacity.
E14
Invert short-circuit protection
Check whether the AC output port is overloaded or short
circuited.
E16
Invert over-voltage protection
Check whether the input voltage exceeds the maximum
input voltage.
E17
Charging low-temperature protection
The temperature of the battery is too low. Restore the battery
by increasing its temperature.
E21
12V/ 10A output over-current protection
Check whether the output port is overloaded or short-
circuited.
E22
12V/ 10A output over-load protection
Check whether the output port is overloaded or short-
circuited.
E27
Total output power over-load protection
Reduce the power load.
E28
Charging over-temperature protection
The unit is too hot. Cool down the power station before
charging the power station.
E29
Discharge over-temperature protection
The unit is too hot. Cool down the power station before
charging your device.
If you are still experiencing trouble with your Jauch Power Bank, please call our Customer Service
at 1-360-633-7200 or ([phone] or by email at [e-mail].
This Jauch Power Station is in conformity with all the requirements and essentials
norms that apply to European Directive 2006/66/EC.
Lithium-ion battery: As soon as the Power Station has reached the end of its lifetime,
the entire lithium-ion battery can be recycled.
EU Member States
According to the European Directive 2006/66/EC, which has been transposed into national law in
the respective EU member states, batteries are not allowed to be disposed of with household waste.
Consumers are obliged to take batteries to a suitable collection point. These can be found in the
trade (point of sale), at communities or local authorities, but you can also return the battery to us.
Jauch Quartz GmbH is registered at the Federal Environment Agency with the registration number
21000702.
Electronic devices: Old electrical devices are not allowed to be disposed of with normal household
waste. In accordance with Directive 2012/19/EU, the device must be disposed of in a controlled
manner at the end of its service life. The materials contained in the system must be recycled in
TROUBLE SHOOTING GUIDE
WASTE AND RECYCLING

order to reduce the environmental impact. This power station contains lithium-ion batteries. These
are hazardous goods that are subject to special transport and handling regulations. Lithium-ion
batteries can ignite or explode if handled improperly. To ensure safe disposal of this power station,
contact a collection point or local authority for more information.
Jauch Quartz GmbH is registered in accordance with ElektroG with the number DE49812498.
Packaging: The product packaging consists of recyclable materials. These are to be disposed of in
an environmentally friendly manner, whereby the materials are to be placed separately in the
collection systems provided.
Jauch Quartz GmbH is registered in accordance with the German Packaging Act (VerpackungsG)
under the number DE2423097819895 with the Central Packaging Register Office.
United States of America
Please note, that batteries and electronic devices are not allowed to be disposed of with
household waste. The materials contained in the system must be recycled in order to reduce the
environmental impact. This power bank contains lithium-ion batteries. These are hazardous goods
that are subject to special transport and handling regulations. Lithium-ion batteries can ignite or
explode if handled improperly. To ensure safe disposal of this power bank, contact a collection
point or local authority for more information.
The product packaging consists of recyclable materials. These are to be disposed of I an
environmentally friendly manner, whereby the materials are to be places separately in the
collection systems provided.
1. Complaints due to incomplete or incorrect delivery or complaints due to recognizable
1. Complaints due to incomplete or incorrect delivery or complaints due to recognizable defects
are to be notified to us or your supplying dealer/ distributor in writing immediately, at the
latest however within two weeks after receipt of the goods. Other defects are to be reported to
us or your supplying dealer/ distributor in writing immediately, at the latest within two weeks
after discovery. Warranty claims are excluded if complaints or notifications of defects are not
communicated in due time. In the event of timely notification, we shall be obliged to provide a
warranty in accordance with Section VII.
2. If there is transport damage, a railway or post damage assessment or such from a carrier is to
be provided to us by the customer.
3. Defects being present in only part of the delivered goods do not entitle the customer to
complain about the entire delivery, unless the partial delivery is of no interest to the customer.
COMPLAINTS

1. In the event of defects in the delivered goods, we shall be entitled at our discretion to remedy
the defects or make a replacement delivery within a warranty period of 12 (twelve) months.
This does not apply if the law prescribes longer periods. In the event of rectification of defects,
we shall be obliged in accordance with the statutory provisions to bear the expenses required
for the purpose of rectifying the defects, provided that such expenses are not increased by the
fact that the goods have been transported to a place other than the place of performance.
2. The customer shall grant us enough time and opportunity required at our reasonable discretion
to remedy the defect. Replaced parts become our property.
3. If the subsequent performance fails, or a reasonable period of grace granted to us expires
without delivering again or remedying the defect, or if the subsequent performance is
impossible or is refused by us or your supplying dealer/distributor, the customer shall have the
right to withdraw from the contract or to reduce the purchase price as well as in the event of
our inability to perform the subsequent performance.
4. The warranty does not apply to defects and/or damage resulting from natural wear and tear,
nor to defects and/or damage resulting from faulty or negligent handling, excessive strain,
unsuitable use, incorrect handling, etc., nor to such influences not assumed under the contract,
unless the damage is attributable to our fault.
5. The warranty claim cannot be transferred to third parties without our consent.
6. We shall not be liable for the resulting defects in the event of improper modifications and repair
work on the delivery items carried out by the customer or third parties.
7. Our liability for essential third-party products shall be limited to the assignment of the warranty
claims to which we are entitled against the supplier of the third-party product, unless the
satisfaction of the assigned right fails, or the assigned claim cannot be enforced for other
reasons.
8. Further claims of the customer against us on whatever legal grounds are excluded, unless
otherwise stipulated below, in particular claims for compensation for damages which do not
arise and/or exist on the delivered goods themselves (e.g. loss of profit, consequential
damages, other financial losses). This exemption from liability does not apply if we are
compulsorily liable as a result of intent, gross negligence or a promise of guarantee or if an
essential contractual obligation has been breached or in the event of injury to life, limb or
health.
9. In case of negligence, but not gross negligence, our liability is limited to the compensation of
the typical, foreseeable damage.
10. The above provisions shall apply mutatis mutandis to the delivery of goods other than those
stipulated in the contract.
How to receive service
To obtain warranty service, you must contact our customer service team via telephone at (+1) 360-
633-7200 or ([phone], or via email at [e-mail].
WARRANTY

JAUCH QUARTZ GMBH HEADQUARTERS
In der Lache 24
78056 Villingen-Schwenningen
Germany
JAUCH QUARTZ AMERICA INC.
506 Second Avenue
Suite 1400
Seattle, WA, 98104
USA
[e-mail]
