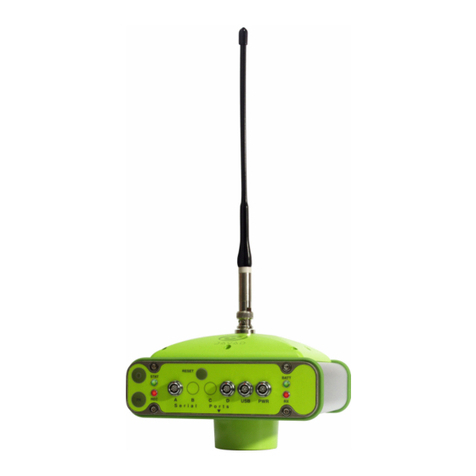

Javad HPT435BT JL Setup guide

How to setup HPT435BT JL to provide RTK data received via
NTRIP Client to UH .
The purpose of this document is to describe how to configure HPT435BT JL to provide RTK data
received via TRIP Client to UHF.
The following are the steps of configuration of JLink LTE:
 Connect to HPT435BT JL via web interface (For more detail see document “HPT435BT JL
User Manual”).
 Cellular (GSM ) configuration
◦In the Communication/GSM tab. Set the PI code and AP parameters (if necessary) (see
Picture 1).
◦Please use tweezers to install or remove micro SIM card see (see Picture 2.a).
◦Insert the SIM card to its slot. The first slot from the green top cover is for micro SIM, the
second slot is for micro SD (see Picture 2.b).
◦In the Communication/Power Management tab activate the GSM interface (see Picture 3).
And wait for registering in the network and Internet access availability . Detailed connection
status you can check in Status/GSM tab (see Picture 4).
It is possible also to connect HPT435BT JL to Internet via LA or Wi-Fi using any Wi-Fi router, MiFi
device or even smart-phone configured in hot spot mode.
Picture 1. HPT435BT JL GSM configura ti o n tab

a) b)
Picture 2. HPT435BT JL micro SIM car installation proce ure
Picture 3. HPT435BT JL Po w er Manage m e n t tab

Picture 4. HPT435BT JL GSM S tatus tab
 Setup UHF
◦In the Communication/UHF Int. tab select Modem parameters (see Picture 5).
◦In the Communication/Power Management tab activate the UHF interface
(see Picture 3).

Picture 5. HPT435BT JL UHF Int. ta b
 Setup Data Router
◦In the Setup/Router tab select following parameters “NTRIP Client” as Source and
“UHF“ as Destination.
Click “Save Setting” button and wait until finish (see Picture 7).

Picture 7. HPT435BT JL NTRIP D ata R out e r tab
 Setup TRIP Client
◦In the Services/NTRIP tab set following parameters:
“Server name/address”, “Port”, “User” , “Password” .
Click “Save Setting” button and wait until finish.
Click '”Update” button and select “Mountpoint” .
Click “Save Setting” button and wait until finish (see Picture 8).
Detailed connection status you can check in Status/NTRIP tab (see Picture 9).

Picture 8. HPT435BT JL NTRIP configur a tio n tab

Picture 9. HPT435BT JL St atus NTRI P tab
