Jazwares FORTNITE CLOUDSTRIKE GLIDER DRONE User manual

USER GUIDE
CNTS:
(2) REPLACMENT
ROTS
(1) GLIDER ONE
Please assemble the rotor guards
securely before flying
(1) REMOT CNTROL
(1) 4” FIGURE
(1) STAND / BASE
(1) SCREWDIVER
(1) 6” MICRO USB CAL
8+
CLOUDSTRIKE GLIDER ONE
Warning: Always operate the glider drone at a distance from face
and body. Use the toy with skill and caution to control the ight and
avoid collisions with the user, objects, or third parties. Do not touch
the rotating rotor. Operate the toy at a maximum distance and avoid
nearing the rotor with loose clothing or hair that could get caught in
the rotor. Observe the conditions where you are using the toy; e.g.,
ying space, indoors or outdoors, no obstacles, and persons within
ying range to keep the toy in line of sight. Attention adult
supervisors: please teach children to y and control the drone safely.
FNT0121
Used with permission. Manufactured and Distributed by:
Jazwares, LLC, Sunrise, FL 33326, USA
Jazwares, 16A Crane Grove, London, N7 8LE, United Kingdom
Jazwares GmbH, Mina-Rees-Str. 8, 64295 Darmstadt, Germany
www.jazwares.com / www.jazwares.de
© 2019 Epic Games, Inc. Fortnite and its logo are registered trademarks of
Epic Games, Inc. in the USA (Reg. U.S. Pat. &Tm. O.) and elsewhere.
All rights reserved.
The toy is only to be connected to class II equipment bearing the following symbol.
Protect the environment by not disposing of this product with household waste (2012/19/EU).
Check your local authority for recycling advice and facilities.
The products can be sold in all EU countries.
Frequency band range:2424-2453 MHz
Maximum radio-frequency power:0.155mW
1

2
WARNIGS & PRECAUTIONS
Important Safety Instructions:
- Read and follow all instructions.
- Keep these instructions for future reference.
- Heed all Warnings.
- Intended for children age 8 and higher. Adult
supervision is required.
- Only use attachments/accessories specified by
the manufacturer.
- Before flying, always check the body, rotors, and
battery for any damage or obstructions.
- Battery should be free from cracks or swelling.
- Keep the rotors clear of any obstructions and
body parts to avoid potential damage and injury.
- Manufacturer and dealer assume no liability for
accidental damages from improper use or
installation of parts, or from damage incurred from
worn or broken parts.
- Pilots are responsible for their actions and any
damage caused by improper use.
- Pilots should keep the craft in sight at all times
during a flight If you lose sight of the craft at any
time, power down and cease flight immediately.
- Fly only in large, open areas that are free from
obstacles or potential hazards, such as trees,
power lines, ceiling fans, and the like.
- Flying over bodies of water is not recommended.
- Flying at night is not recommended.
- Never try to retrieve the craft from areas you
cannot safely reach, such as rooftops or trees.
- Never launch the craft from your hand.
- Never leave the craft unattended while it is
powered on or while the battery is charging.
Add FCC ID: YNIJAZWARES121
FCC Warnings:
Warning: Changes or modifications to this unit
not expressly approved by the party responsible
for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and
found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses, and can radiate radio frequency energy
and, if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
Additional Warnings & Precautions:
- WARNING: To reduce the risk of or electric shock,
do not expose this apparatus to rain, moisture,
dripping, or splashing.
- CAUTION: Use of controls or adjustments or
performance of procedures other than those
specified may result in personal injury.
- WARNING: Changes or modifications to this unit
not expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
- CAUTION: Danger of explosion if the battery is
incorrectly replaced. Replace only with the same or
equivalent type.
- Lithium batteries, like all rechargeable batteries,
are recyclable and should be recycled or disposed
of according to state and local guidelines. They
should never be disposed of in normal household
waste, and they should never be incinerated, as
they might explode. Contact your local government
for disposal or recycling practices in your area.
- WARNING: Shock hazard - Do Not Open.
- Battery shall not be exposed to excessive heat
such as sunshine, or the like.
- Keep new and used batteries away from children.
If the battery compartment does not close securely,
stop using the product and keep it away from
children.
- If you think batteries might have been swallowed
or placed inside any part of the body, seek
immediate medical attention.
- Do not mix old and new batteries.
- Completely replace all old batteries with new ones.
- Do not mix alkaline, standard (carbon-zinc), or
rechargeable (ni-cad, ni-mh, etc.) batteries.
- Batteries should be recycled or disposed of as per
state and local guidelines.

3
TABL OF CNTS
FATURES
PagesFNT0121 Drone Pages
- Features .........................................3
- Includes ..........................................3
- Diagram & Specifications ...............3
RemoteControl
- Functions ........................................4
- Battery Installation ..........................4
Charging the Battery
- Information & Procedure ................5
Features
- 6-Axis Gyroscope
- LED Lights
- 2.4G Long Control: strong anti-interference
- 4 Channels: up/down, forward/backwards,
turn left/right, lean left/right
- Altitude Hold
- Infrared Obstacle Avoidance
- Control Distance: 60-80 meters
- Operating Time: 5-6 minutes
- Charge Time: approx.150 minutes
Diagram & Specifications
- Dimensions: 280*269*209mm(LWH)
- Drone Weight:141g
- Figure Weight: 28g
- Drone + Figure Weight: 169g
Includes
- 1 Glider Drone
- 1 Figure
- 1 2.4GHz Remote Control:
Requires 2 x AAA batteries (Not included)
- 1 Stand / Base
- 1 Screw Driver
- 1 6IN Micro USB Cable
- 2 Backup Replacement Rotors
- 1 Instruction Manual
Flying
- Remote Link & Calibration ............................6
- Flight Controls ...............................................7
- When You’re Finished Flying ........................7
- Trim Adjustment & Countering Drift ..............8
- Gyroscope Recalibration ...............................9
- Tips for Safe Operation ................................9
Parts & Repair
- Rotor Replacement .....................................10
Troubleshooting
- Troubleshooting Guide ...............................11

4
FUNCTIOS
Battery Installation
1. Batteries are to be replaced by an adult.
2. Non-rechargeable batteries are not to be recharged.
3. Rechargeable batteries are to be removed from the
toy before being charged.
4. Rechargeable batteries are only to be charged under
adult supervision.
5. For best performance, only the recommended
batteries or their equivalent are to be used.
6. Batteries must be inserted with correct polarity.
7. Do not mix new and used batteries.
8. Do not mix different types of batteries.
9. Exhausted batteries are to be removed from the toy.
10. The supply terminals are not to be short-circuited.

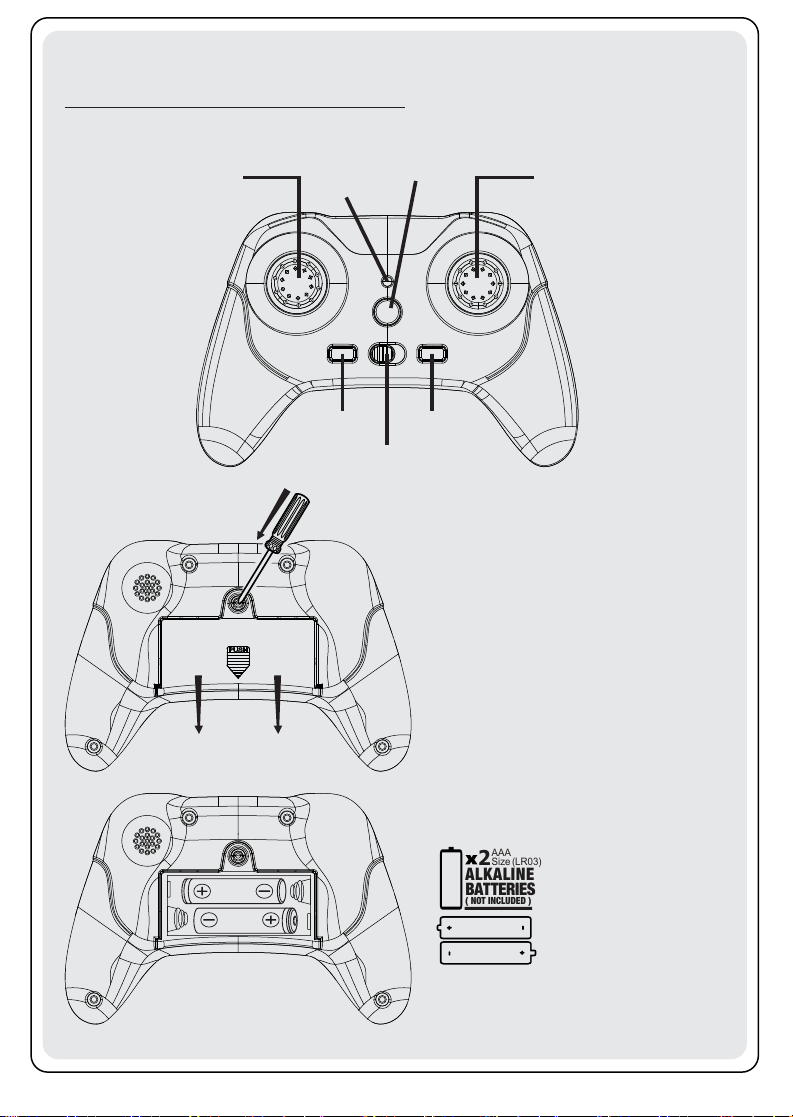

REMOT CNTROL
Emergency
Stop
Take Off /
Landing
Pairing
Status
Trimming
On/Off
Right Control Stick: Direction
Fly Forward / Backward
Fly Left / Right
Left Control Stick: Throttle
Fly Up / Down
Rotate Left / Right
Step 3
Place back cover before use.
ALKALINE
BATTERIES
AAA
Size (LR03)
2
( NOT INCLUDED )
Step 2
Install
Step 1
Push button and slide down
the battery cover

Be sure to correctly match the plug to the charging
port or damage may occur.
REMINDER: Do not charge overnight.
Do not leave unattended while charging.
Drone Port
5
INFORMATION & PROEDUR
Drone PortUSB Port
On/Off Switch
CHARGIN THE BATERY
The drone’s battery must be charged before it can be flown. To avoid risk of injury or damage,
be sure the craft and remote control are both powered OFF. Charging time is approximately
150 minutes. Charge fully before use for best performance.

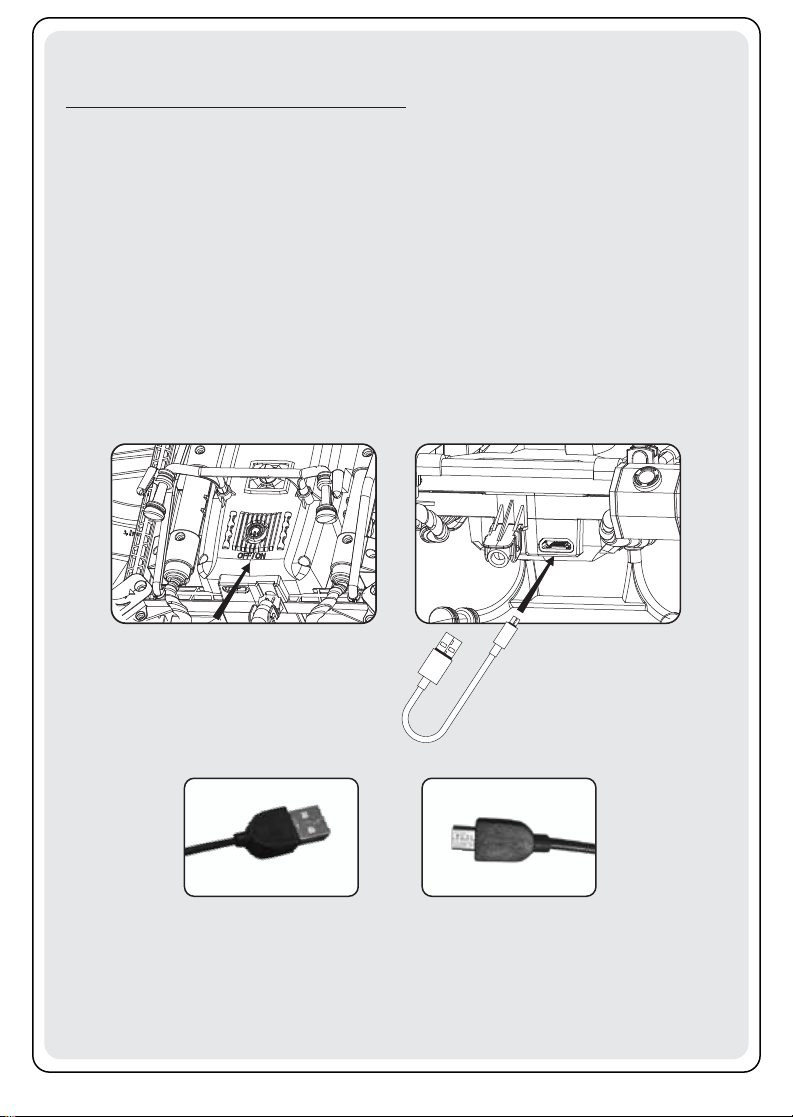

Connect the 6” Micro USB cable (included) to the USB port of a powered ON computer or
USB power adapter (not included), connect the USB charging plug to the battery plug.
While charging, the LED light will display a blue light.
When charging is complete, the LED light will turn OFF.

Take off/
Landing
Emergency
Stop
6
FLYING
REMOT LINK & CALIBRTON
Step 1
Take out the Stand Base and assemble them, forming a
displaying stand.
Step 2
Take out the figure and affix it at the bottom of the drone.
Step 3
After the figure is installed, place the drone and the figure on
the displaying stand. Please note that the black receiving
head at the bottom of the drone should fit into the displaying
stand hole. The figure should be standing flat on its feet,
facing the stand. This will help keep the drone level on the
stand; ready for takeoff. To fly the drone without the figure,
start by placing the drone on a flat surface.
Step 4
Power on the drone, the drone’s LED lights will blink as it
searches for a signal from the remote. Make sure the drone is
on a flat surface. If not, it needs to adjust the drone and the
displaying stand until the drone is on a flat surface.
Drone and pilot should face the same direction.
Step 5
Power on the remote, the remote’s LED light will blink. Push
the Left Control Stick fully forward, wait for a chime to sound,
then pull the stick fully rearward, and wait for a second chime.
When the LED lights of the drone and remote turn solid, the
drone and remote are paired and get ready to fly.
Step 6

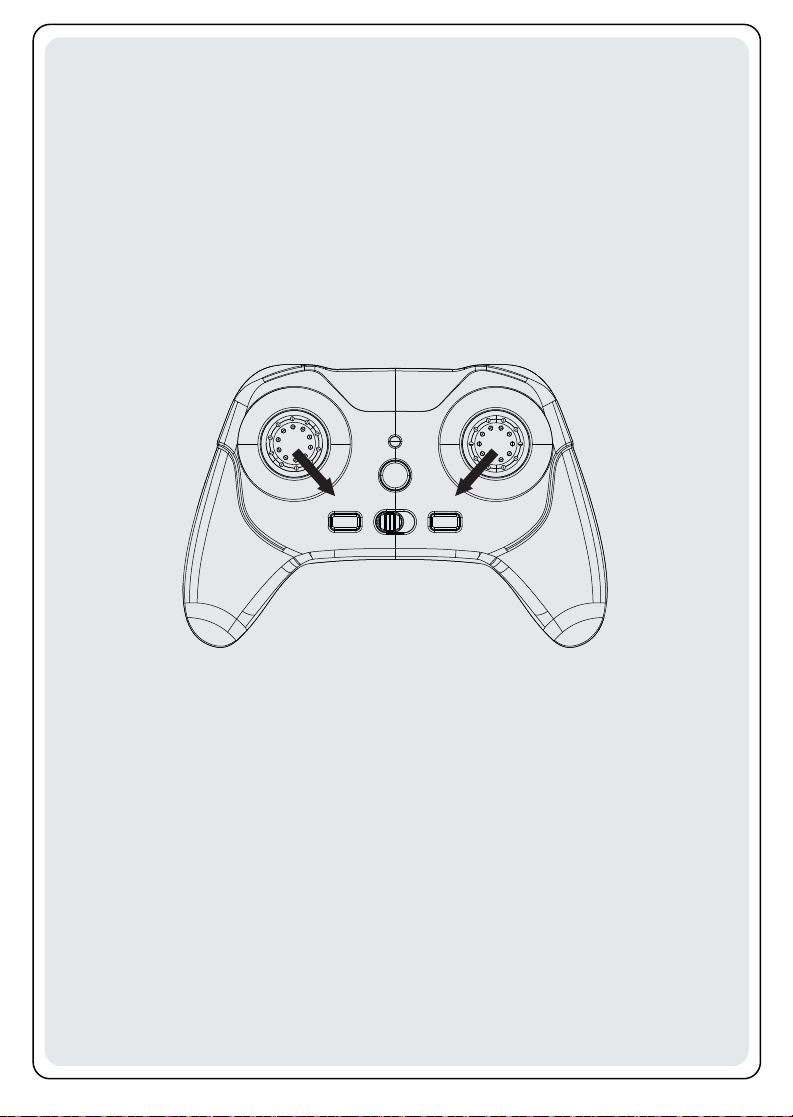

After the drone and remote are paired, pull-down, and
inwards on both control sticks for 2-3 seconds. When the
LED lights have stopped blinking and turn solid, the
calibration is completed, and the drone is ready to fly. (If the
LED lights blink all the time, the drone may not be placed on
a flat surface, and calibration cannot be completed.)
Step 7
After calibration, press ”Take off” button, the drone will take
off to a certain height automatically. Refer to the below “Flight
Controls” to enjoy the flight. When you need to stop flying,
press the “Landing” button, and the drone will automatically
slow down. When the figure lands and the drone tilts to a
certain angle, it will automatically stop rotating. (Please press
the “Emergency Stop” button to stop the drone operation in
case of emergency).
Before flying, the drone and the remote must be linked together and the gyroscopes on the drone must be
allowed to calibrate.
Built-in non-replaceable 3.7V rechargeable battery.

Left Control Stick controls
Up / Down,
Turn Left / Right.
Right Control Stick controls
Forward / Backwards,
Lean Left / Lean Right
7
When You’re Finished Flying
FLIGHT CNROLS
Up
Turn
Right
Down
Turn
Left
Forward
Backwards
Lean
Left Lean
Right
After landing, Power OFF the remote BEFORE powering OFF the drone. This will ensure
that no signals are accidentally sent by the remote, reducing the chance of injury. After this is
done, it is safe to pick up and power OFF the drone.

8
Press to enter and exit
Trimming Mode Indicator Light
FLYING
TRIM ADJUSTMEN & CUNTRIG DRIF
Even after a drone is calibrated, it may still drift while airborne. To counter this effect, you can
adjust the trim for better control. However, adjusting the trim may not entirely eliminate
drifting. Air currents and other factors can still affect the drone’s handling.
Making Trim Adjustments:
Press the Trim button to enter Trimming Mode, indicated by a blinking indicator light on the
remote. While in Trimming Mode, move the Right Control Stick ONCE in the opposite
direction of the drift.
For example, if the drone is drifting forward, enter Trimming Mode and pull backward on the
stick to correct. If the drone is drifting right, pull left. The remote will chime once for each
adjustment. It may take multiple adjustments to set the trim to your liking.
When you are finished, press the Trim button to exit Trimming Mode. You can also wait 3
seconds, and Trimming Mode will finish automatically.
To avoid potential damage, adjust the trim while attempting a stable hover, and adjust one
trim setting at a time to avoid confusion.
Note: While in Trimming Mode, the Right Control Stick only makes trim adjustments
and does not control the direction of the craft. You must exit Trimming Mode to resume
normal flight controls. The Left Control Stick is not affected by Trimming Mode.
Move Right Control Stick to
adjust pitch and roll trim.
Remote will chime once for each
adjustment.

9
Tips for Safe Operation:
GYROSCPE RCALIBRTON
If the drone is having difficulty flying or is behaving erratically, it’s gyroscopes may need to be
recalibrated. Do not attempt to do this while flying, safely land the drone first and place it on a
flat surface.
Note: The drone and the remote should already be linked together.
Pull down and inwards on both control sticks for 2-3 seconds. When the LED lights have
stopped blinking and turn solid, the recalibration is complete, and the drone is ready to fly.
- It is recommended to only fly in large, open spaces that are free of obstacles like power
lines, trees, ceiling fans, etc.
- When flying indoors avoid walls and ceilings, as the drone may be drawn towards them if
closer than 2-3 feet.
- Stand behind the drone when first taking off, so that you and the drone are facing the same
“forward” direction. This will help with orientation when the drone is airborne.
- Novice pilots should move the controls slowly and deliberately to get used to the drone’s
flying characteristics. Try using one control at a time.
- Practice basic flight operations like takeoff, hovering, and landing.
- If you get into trouble or if anything obstructs the rotors, cut power immediately and safely
clear the obstruction. Check for possible damage before flying again.

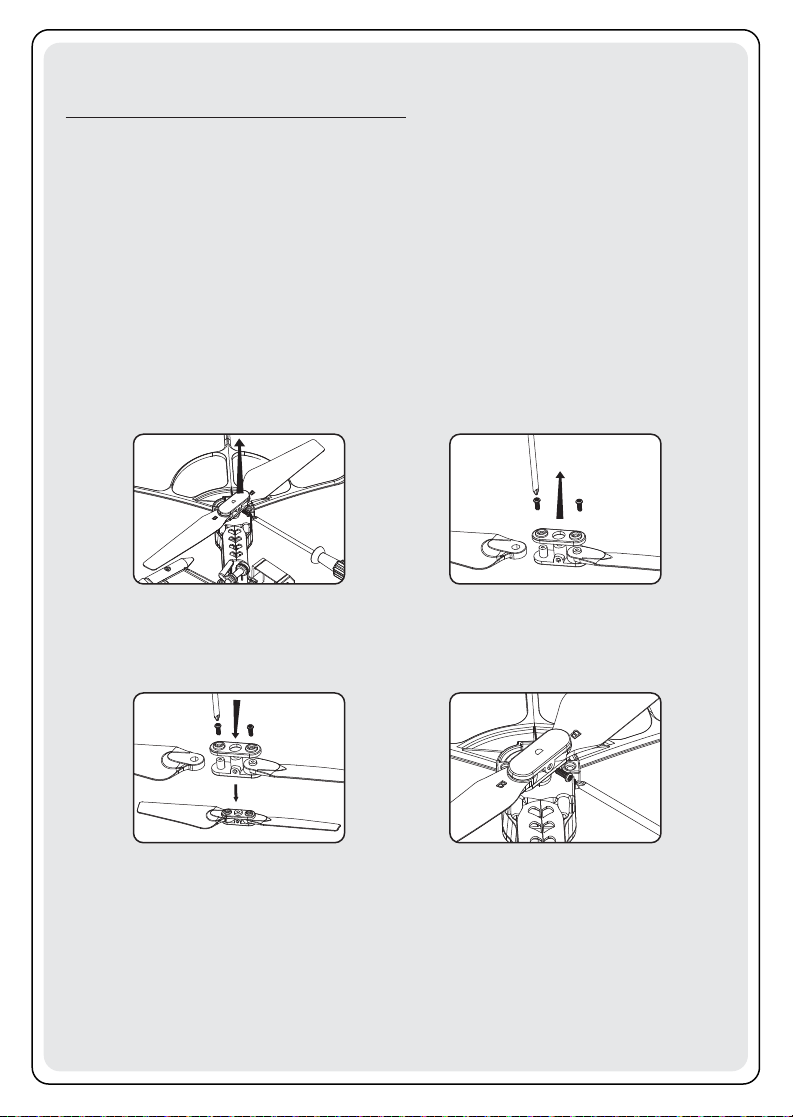

Step 1 Step 2
Step 3 Step 4
Then remove the two screws under
the rotor to release the cap holding
the rotors.
Replace the old rotors by removing
first the rotor screw and pull rotor up.
Insert the new rotors making sure to
use the correct marked A or B and
tight the two screws back. Do not
over tighten.
Secure the rotor back by tightening
the retaining screw firmly, but also,
do not over tighten.
10
REMINDER: Pilots are responsible for any damage caused by improper use.
Cleaning Instruction:
PARTS ND REPAI
The drone comes with replacement rotors if the originals are broken or badly damaged, use
the included screwdriver to remove the rotor retaining screw that holds the rotor to the motor
shaft. Once the retaining screw is out, pull upwards on the rotor to remove it from the motor
shaft. Installation of the new rotor is the reverse of the removal process. Be sure to tighten
the rotor retaining screw firmly, but do not overtighten.
It is extremely important to use the correct rotor (A or B) for replacement. Using the incorrect
rotor will make the drone impossible to control. The marking can be found on the rotor near
the shaft.
ROT REPLACMENT
To clean, wipe excess dirt from toy. Wipe toy clean with damp cloth. Wipe dry.
DO NOT IMMERSE IN WATER and DO NOT CLEAN VEHICLE WITH ANY CHEMICALS.
Let the toy completely dry before playing.

11
TROUBLSHOTING UIDE
Important:
PROBLEM POSSIBLE CAUSES SOLUTION
Rotor A
Rotor B
Rotor B
Rotor A Front of Drone
Back of Drone

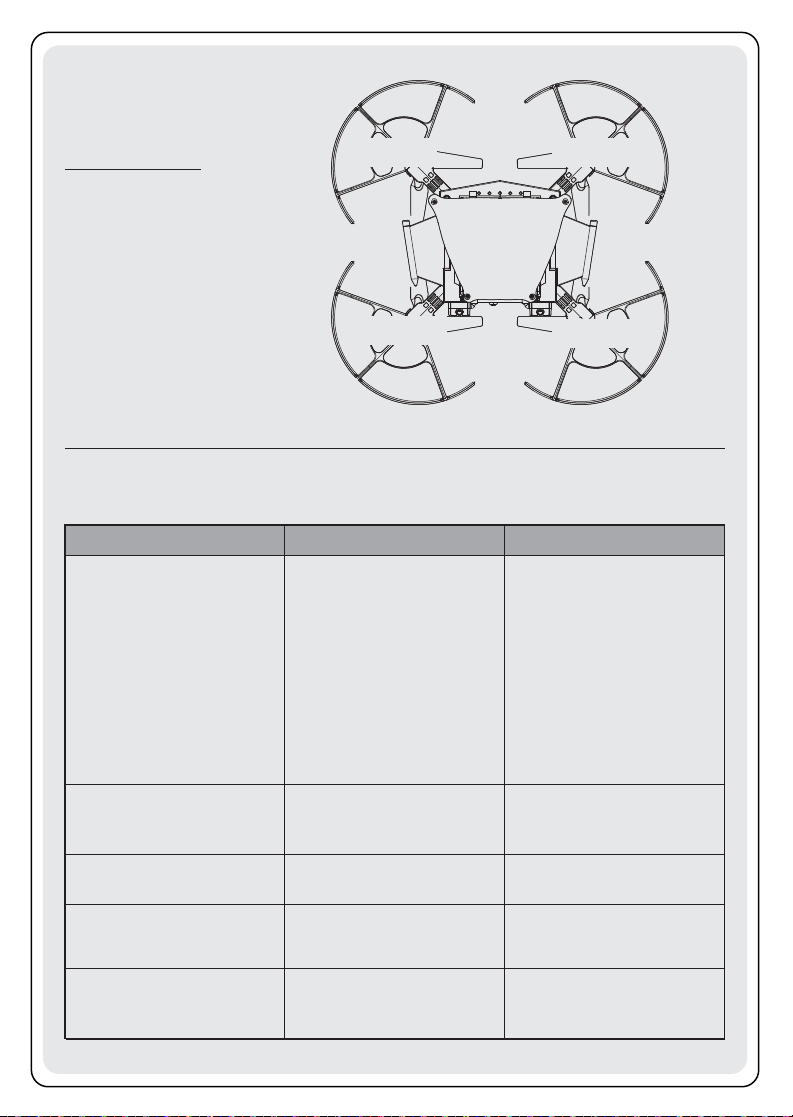

Follow this diagram to
know the correct placement
of the rotors A or B.
Incorrect placement of the
rotors will cause the
craft not to operate properly.
Drone does not respond to
controls.
Drone is difficult to control
or flies erratically.
Drone drifts while in flight.
Drone suffers from
mechanical trouble.
LED light ON but Drone
does not respond to
controls.
Gyroscopes may be
misaligned.
Trim not set or needs
adjustment.
Damage to body, rotors or
other major components.
Low battery power.
Power OFF remote and drone
and reconnect.
Adjust trim settings.
Repair or replace parts as
needed.
Recharge the battery.
- No power to remote or
drone.
- Poor contact between
power plugs.
- Drone is out of range.
- Check remote batteries,
replace if needed.
- Check drone battery, be
sure it is fully charged.
- Be sure the power plugs are
firmly connected.
- Be sure the remote has an
unobstructed line of sight to
the drone.
- Remain within the remote’s
60-80 meters range.
