Jazz HDV146 User manual

0
www.

1
Table of contents
FCC Statement…………………………………………..…………………………………..2
Preface/ Maintenance and precautions for the video recorder ……………………………...3
Maintenance and precautions for SD Memory card ……………………..………………….4
Accessories……………………………………………………………………………5
Know Your Camera………………………………………………..………………………. 6
Buttons and Function Indicators………………………………………………………... 7
Getting Started ……………………………………………………………………8
Basic Functions……………………………………………………………………..10
Advanced Functions……………………………………………….……………... 11
Setting Date and Time ……………………………………………..…………………... 12
Video Recording available options…………………………..…………………………… 16
Still Photo available options …………………………………………………………..…18
Playback MODE, Menu Options……………………………………………….…….. 20
Make connections ……………………………………………………………………..26
Specifications ………………………………………….……………………………..31
Troubleshooting………………………………………………………………… 32

2
FCC statement
This device complies with part 15 of FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.

3
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio TV technician for help.
Pertinent testing documentation is available for verification.
Preface
Thank you for purchasing this Digital Video Recorder. Please read this Manual carefully
and keep in a safe place for further reference.
Note: The product Specifications and these operating instructions are printed based on
latest available information and are subject to change without prior notice. The
specifications of the particular video camera recorder you have purchased may slightly vary
from this printed data.
Maintenance and precautions for the video recorder
Recorder is not waterproof. Keep and store your recorder away from humidity, dust and
harmful chemicals. Do not use any organic solvent to clean lens. Do not store or operate the
camera in extremely hot or cold temperatures. Keep recorder clean and take care to avoid
scratching or damaging the housing and the lens. Blow dust away and use soft cloth if the
lens becomes dirty or contaminated.
Remove batteries if you are not planning to use camera for extended time

4

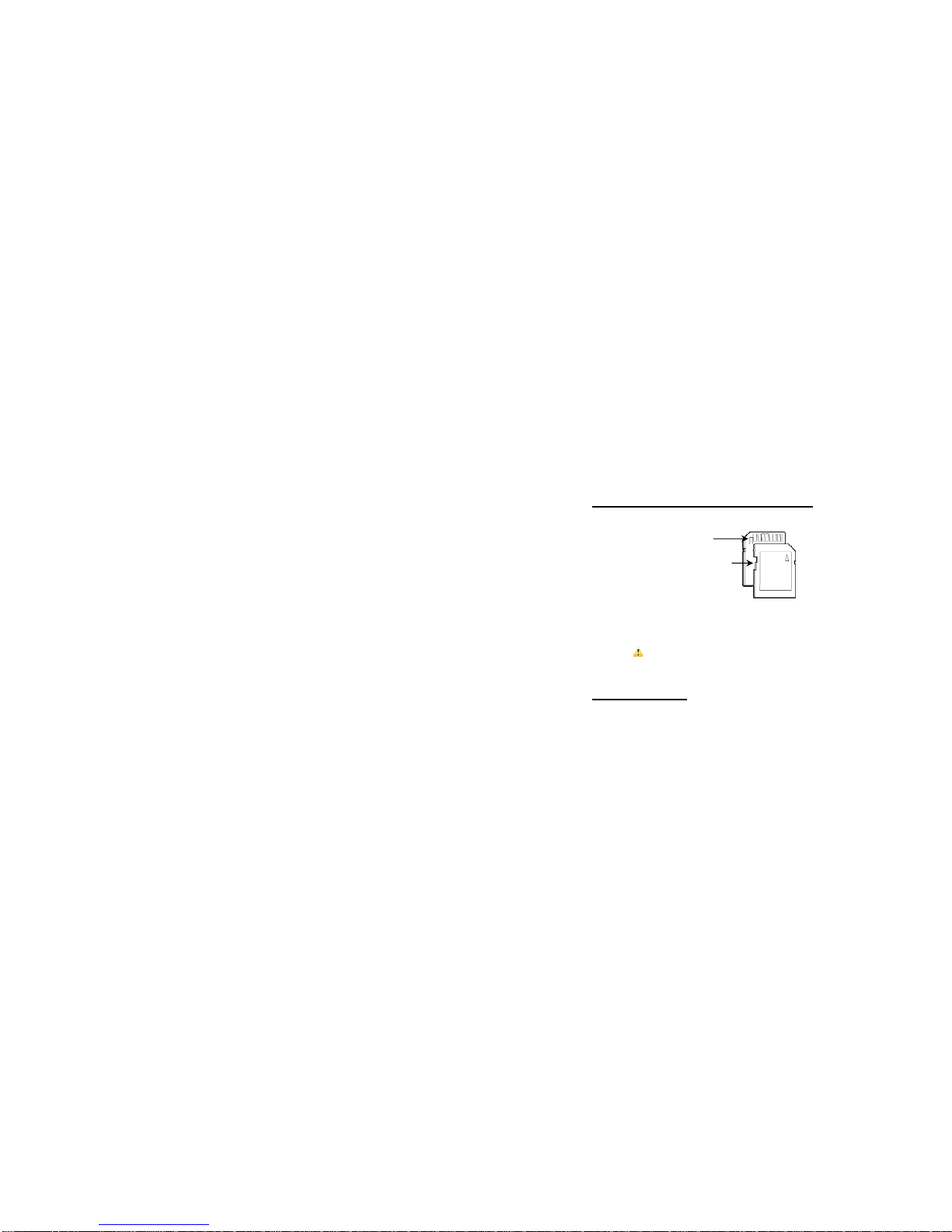

Maintenance and precautions for SD Memory card
SD Memory Card
•Please note the SD card has tiny LOCK slider on the side for write protection of
SD memory card that helps avoid inadvertent deletion of image files. Set slider
to “un-LOCK” position for storing still images or recording video.
•SD card is delicate electronic device; do not open, bend or overheat the card.
•Keep the card away from strong magnetic field and dirty / harsh environment.
• Note: If your SD card has been used previously with other devices / cameras
or is brand new – the card may require to be formatted – please ensure you save
all valuable files before formatting. Refer to page 12 for formatting information.
System Requirements
You may use the computer to download images and video from your camera, edit images,
email or upload to the Internet.
Make sure that your computer complies with (below) minimum requirements:
Contact pins / connectors
Write protection LOCK switch

5
System Requirements
Operating System Microsoft Windows XP, VISTA, 7
CPU Intel Pentium 4 1GHz or above CPU
Memory 512MB or higher
Audio & Video Card Direct X8 Audio & Video Card
Hard Drive space 1GB or higher available memory space
USB port Standard USB1.1 or USB2.0 port
Accessories
The following accessories are packed together with your video recorder:
USB Cable Installation CD Manual, QSG, Warranty Card
AV Cable

6

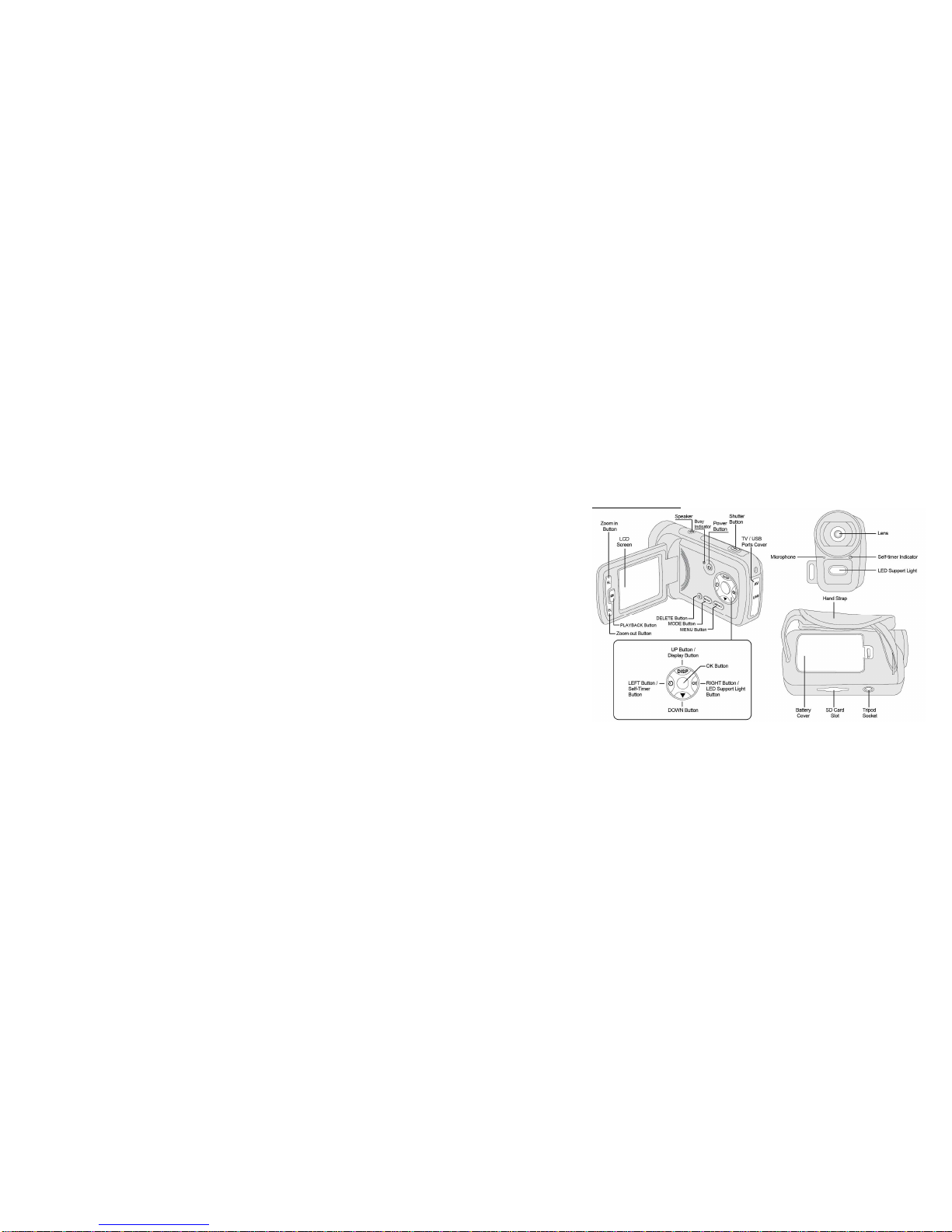

Know Your Camera

7
Buttons and Function Indicators
Buttons/Indicator Function
Power Button Press to turn recorder ON and OFF
SHUTTER button Press to Start / Stop Video recording or Take Still Photo
Zoom IN
Zoom OUT Press to zoom IN Press to zoom OUT
MENU Button Press to OPEN or exit the MENU selection
MODE Button Press to select desired Recording MODE: Video Recording or
Taking Still Photos
PLAYBACK Button
Press to select the PLAYBACK Mode or exit / return to
Recording MODE
UP Button - Recording MODE: press UP to remove icons from LCD screen
or dim the screen.
- MENU selected; press to scroll UP available options.
DOWN Button -MENU selected; press to scroll DOWN available options
LEFT Button Selects files and MENU, moves photos to the left (when the photo
is enlarged and set at Pan mode) and switches to the 10 sec delay
Self-Timer Mode or vice versa.
RIGHT Button Selects files and MENU, moves photos to the right (when the
photo is enlarged and set at Pan mode) and turns LED supporting
light On or OFF in Recording MODE.

8
OK Button Press to confirm MENU / option changes and start and stop
playing video
DELETE Button PLAYBACK Mode - press to delete selected displayed file;
recorded Video or taken Still Photo
Busy Indicator Indicates Recording / Video Playing / Processing Status
Self-Timer Indicator
Flickers during Self-Timer countdown process
Getting Started
Note: Your recorder requires batteries and SD/SDHC Memory Card inserted to operate.
These are not supplied and should be obtained separately. SD/SDHC memory card with
capacity up to 8GB may be used in your camera.
Installing Batteries
- Open the Battery cover and insert three fresh AAA alkaline batteries into the battery
compartment.
- Note batteries plus and minus terminals location; install batteries as indicated. Close the
battery cover.
Installing SD Memory Card
- Position and insert SD Memory card into the SD card slot.

9
- Note the orientation of the card and insert as indicated. Press it down until the card
becomes locked. Do not force card during insertion as the card or card slot could become
damaged.
To remove or replace the SD card, press the card down. The card will pop up and you may
remove card from the video recorder.
Notes：
Note that the card has a tiny “LOCK” slider located on the side. Set this slider to
“non-LOCK” position before inserting and taking video or still images.
Turn OFF the video recorder before inserting / removing or changing the
memory card;
Insert the memory card according to the position mark. Do not force. If the card
cannot be inserted easily please check card alignment and position then repeat
installation.
Turning Video Recorder ON and OFF
- Open the LCD Screen
- Press the Power button to turn video recorder ON.
- LCD screen becomes active and the recorder is ready to operate.
- Press the Power button again to turn recorder OFF.
- Please note that recorder will turn OFF automatically when turned ON and left idle for
1min to save battery power.

10
Select the MODE
When activated the recorder is set to Video Recording mode.
-Press the MODE button to select Still Photo Mode, press MODE button again to return to
Video Recording Mode
- Press the PLAYBACK button to select the playback function. Press the PLAYBACK
button to exit playback mode and return to the Video Recording or Still Photo Mode.
Note that the Video Recording is the default Mode – when you turn the Power ON –
recorder will be set in Video Recording mode.
Basic Functions
Video Recording mode selected
- Press the Shutter Button to start recording the video clip, press the Shutter Button again to
stop recording.
Taking Still Photo selected (Still Photo Mode)
- Keep recorder steady and press the Shutter Button to take a Still Photo.
Playback mode
- Press the PLAYBACK Button to select the Playback mode.
- LCD screen will show latest Photo or Video.
- You can use LEFT / RIGHT buttons to scroll through your files; press OK button and start
playing Video. Press OK button again to STOP playing.

11
Advanced Functions
MENU setup
- Video Recording or Still Photo Mode; press the MENU button to enter available settings
and options for each Mode. Use the UP / DOWN Buttons to scroll and select desired setting.
- Press OK or the Right button to enter available sub-menu.
- Press Up / Down button to scroll to intended option and press OK button to confirm
setting.
- Press the Menu button to exit the Video or Still photo Menu mode and return to Preview /
scene Mode.
See below images showing samples of the MENU screens in Video and Photo taking
Modes;
▲Video Menu ▲Photo Menu
Note: When ‘HD’video resolution is selected, ‘Frame Rate’option is disabled.

12

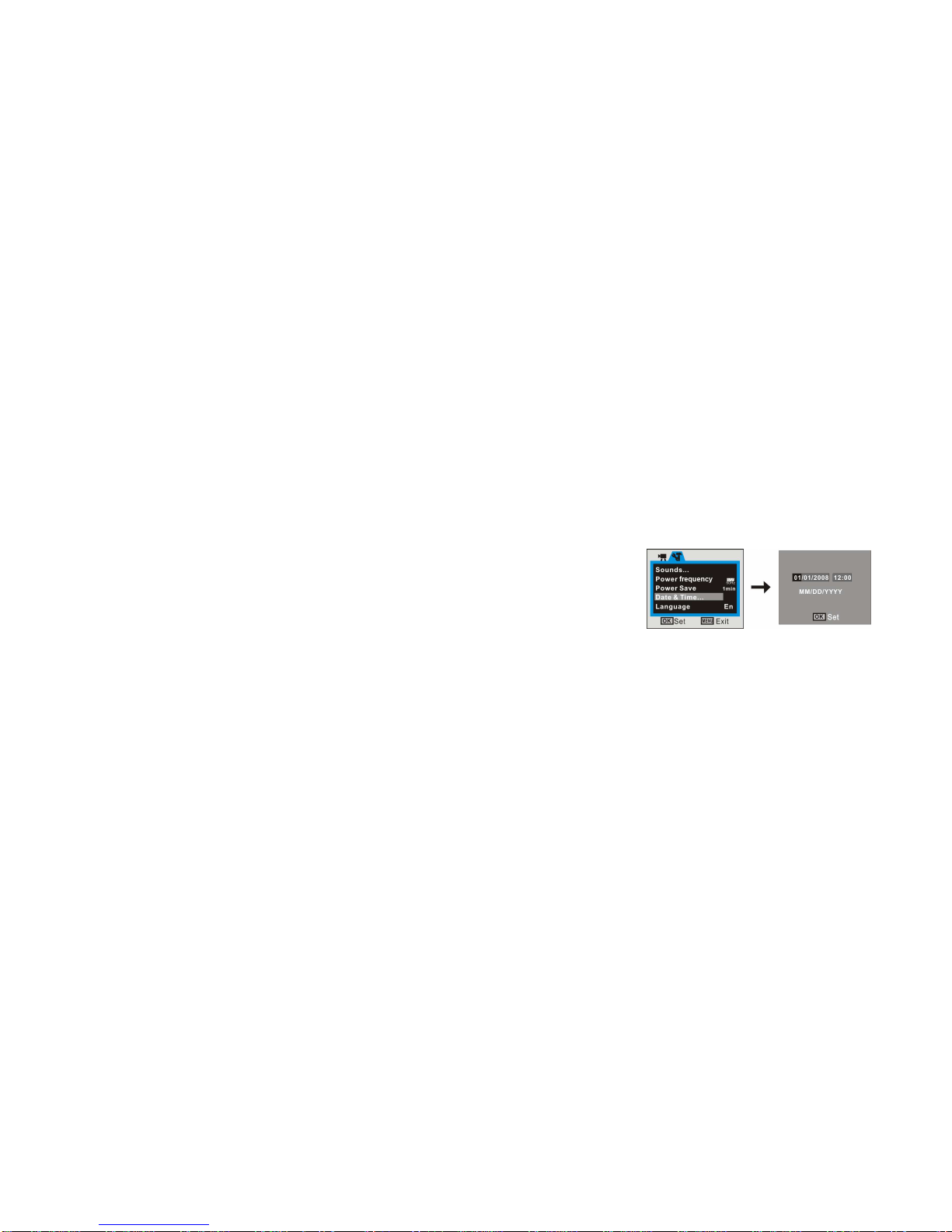

Setting Date and Time
After inserting batteries you can set Date & Time.
- Press the MENU Button then the RIGHT Button to enter Internal Setting.
- Use UP / DOWN Buttons to select Date & Time Setting. Press OK, then the LEFT /
RIGHT Button to enter setting, see below;
- In the setup window, press the LEFT / RIGHT Button to select desired numbers
(date/time), see highlighted digits.
- Press the UP / DOWN button to adjust, then press OK to confirm.
You may press the MENU Button to cancel and exit setting.
- Note that you need to set date & time again after replacing exhausted batteries.
Formatting SD Card
With non-locked SD card inserted into the camera, you can format the card.
- Press the MENU Button then the RIGHT Button to enter Internal Setting.
- Use UP / DOWN Buttons to select Format Setting. Press OK, then UP/ DOWN Button to

13
select ‘Yes’option.
LCD screen information
Below are images of the LCD screen with related icons and information visible when the
recorder is set to Video Recording or the Still Photo Mode.
- Video Recording Mode
◆

14

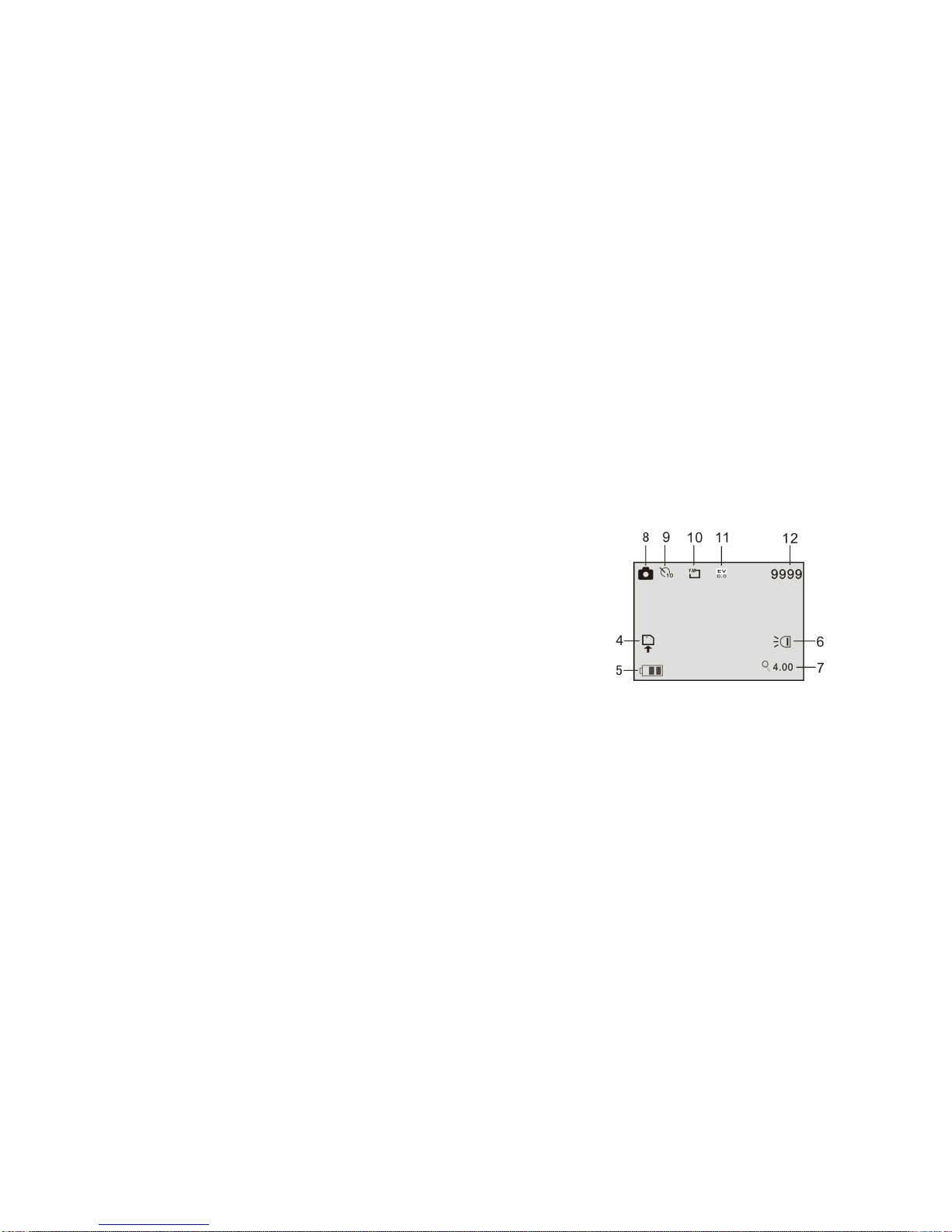

-Still Photo mode

15
Function and explanation of the corresponding icons
1 Video Mode Indicates that the Video Recording mode is set
2 Video Format Indicates the Video Resolution; currently shown as “640”
(VGA Mode)
3 Recording Time Indicates the remaining available Video Recording time
4
SD Card
SD card is inserted
5 Battery status Indicates batteries status; shown “2/3 left”
6 LED Supporting
Lamp
The LED Supporting Lamp is ON (active)
7 Zoom range Indicates the zoom range;
currently “4.00 x” shown
8 Photo Mode The recorder is set at the Still Photo Mode
9 Self-timer
Countdown
Indicates the self-timer countdown mode is set.

16
10 Image Size Indicates the Still Photo resolution; shown “1Mpix”
11 Exposure Indicates the selected exposure value; currently shown “0”
12 No. of available
Still Photos
Indicates the number of remaining Still Photos that may be
taken
Video Recording available options
Select the Video Recording mode and press the MENU Button to select available options.
Press UP / DOWN Buttons to scroll options, press OK or RIGHT to enter sub-menu and
display available settings.
Main Menu Sub-menu Explanation
1280x720 HD Resolution Video format
640x480 VGAResolution Video format
Movie Size
320x240 QVGA Resolution Video format
High Video recorded with high Frame rate.Frame Rate
Low Video recorded with low Frame rate.
Metering Mode Center Exposure is measured in central area of

17
the scene
Multi Exposure is measured in several spots of
the recorded scene (default)
Spot Exposure is measured in central spot of
the recorded scene
Auto Automatic White Balance; suggested for
typical use (default)
Daylight Suitable for a bright, clear sky
Cloudy Suitable for overcast sky
Fluorescent Suitable for fluorescent indoor light
White Balance
Tungsten Suitable for tungsten source light

18
Still Photo available options
Main Menu Sub-menu Explanation
3264x2448
2592x1944
8Mpix Resolution
5Mpix Resolution
2048x1536 3Mpix Resolution
1280X1024 1.3Mpix Resolution
Resolution
640x480 0.3Mpix Resolution
Super Fine Super Fine Image quality
Fine Good Image quality
Quality
Normal Normal Image quality
Center Exposure is measured in central area of the
scene
Multi Exposure is measured in several spots of the
recorded scene (default)
Metering
Spot Exposure is measured in central spot of the
recorded scene

19
Auto Automatic White Balance; suggested for
typical use (default)
Daylight Suitable for a bright, clear sky
Cloudy Suitable for overcast sky
Fluorescent Suitable for fluorescent source light
White Balance
Tungsten Suitable for tungsten source light
Exposure EV Adjusts scene brightness, use LEFT /
RIGHT Buttons
Off Self-timer is off status
Self-timer 2s 2 sec delay self-timer mode
Self-timer 10 10 sec delay self-timer mode
Driver Mode
Burst Takes three photos in quick succession
Playback Mode
Press the PLAYBACK Button to select the Playback Mode.
The LCD screen will display latest Still Photo or Video.
Use LEFT / RIGHT Buttons and scroll through your files; see the Video icon on the left
