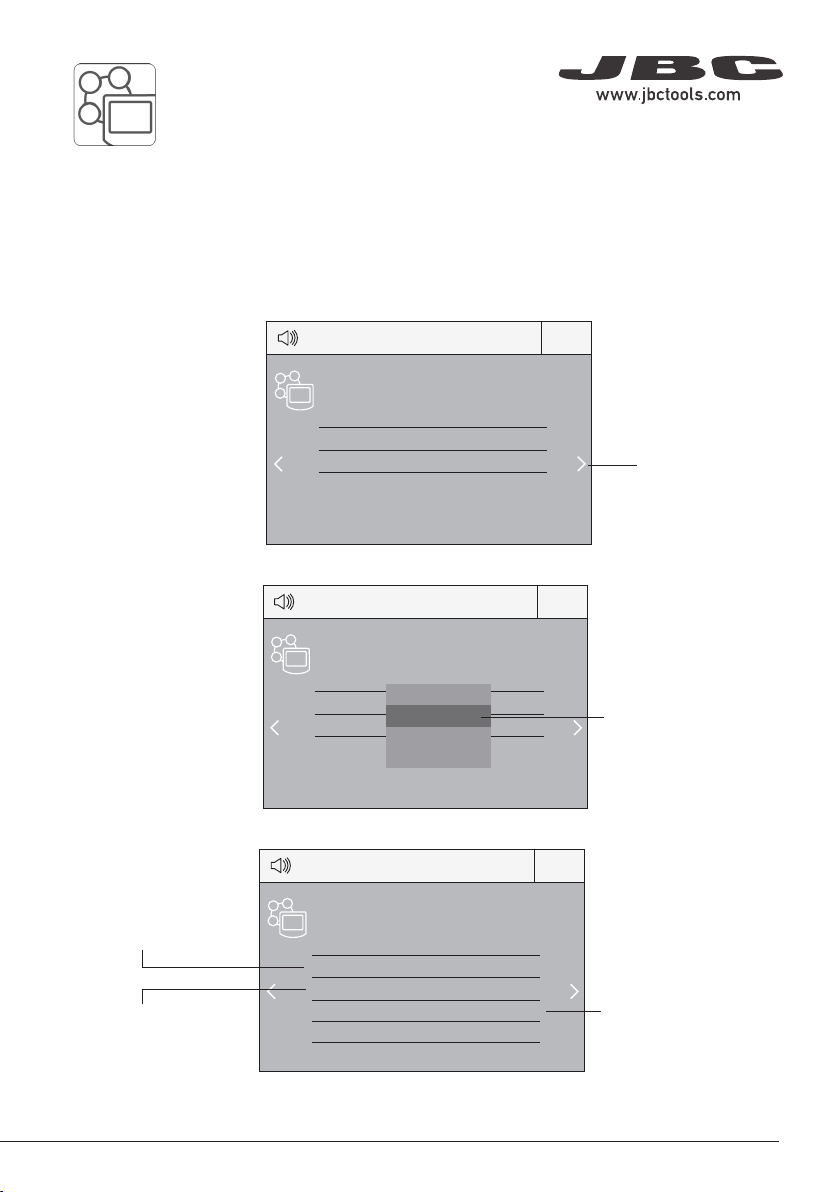

Peripherals
17:14
Port 1 2 3 4
MS a
?
PERIPHERAL
Peripheral 1 plugged:
Electric Suction Module
Setup Postpone
Peripherals
17:14
Port 1 2 3 4
MS a
PD a
?
6
Note: Peripheral moduls - MSE, MVE or MNE - are needed to connect the pedal to DMU.
After connecting one of the mentioned moduls to the station a popup window opens.
2. Select the module from the list of peripheral connections. Remember your first connection is
denoted as “a”, the second being “b”, etc. (e.g. MS_a, MS_b,...). Do the same with the pedal (e.g.
PD_a,...)
3. Select the port of the tool you want to link to the peripheral.
Pedal Set Up for DMU (Control Unit)
1. To configure the module MSE/MVE/MNE press Setup in the popup window.
4. Press Menu or Back to save changes.
Once set up, the module settings can be changed by entering the Peripherals Menu .
