jbc P-405 User manual

INSTRUCTION MANUAL
Pedal
P405

2
Pedal
Ref. P-405
Pedal ..............................................................1 unit Manual .................................................... 1 unit
Ref. 0028917

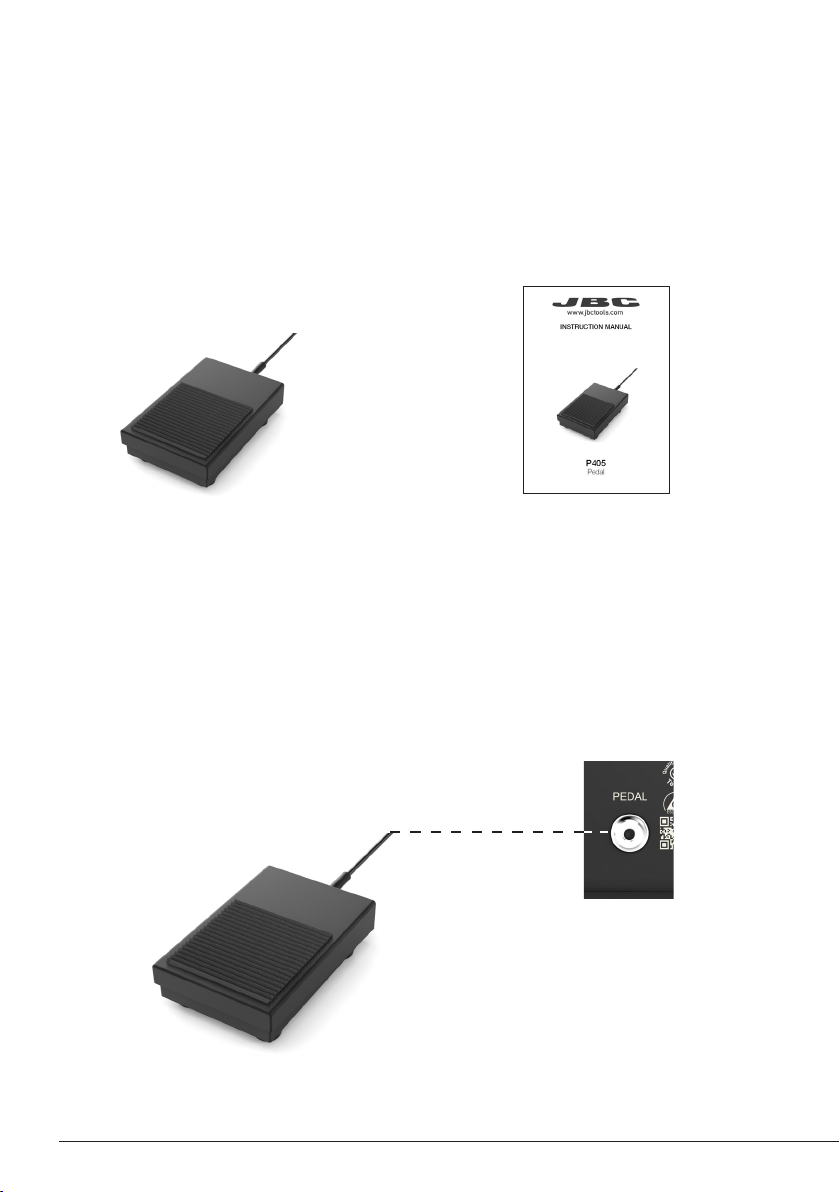

Connections
Packing List
The following items are included:
This manual corresponds to the following references:
P-405
Connect the pedal to JBC station or peripherals. The connector is identified by the designation
“ P E D A L”.

3
Pedal Compatibility
Pedals
P405 P305* P005*
Control
Unit
DIU
DDU
DMU
HDU
JNAU
JTU
WSU
ALU
NAU
Station AL
Module
MSE
MVE
MNE
Preheater
PHNK
PHSK
PHBK
PHXK
Fume
Extractor
FAE1
FAE2
* not included, sold separately
P405 is compatible with JBC devices as shown in the table in the highlighted column.
P305* and P005* is also shown in the table below.
Marked with means pedal P405 cannot be connected directly to JBCs control unit. A module
must be used (See next pages “Pedal Set Up”).
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Peripherals Port 2-PA
17:14
Pedal PD_a
Function Extractor
Mode released
Minimum time 0 sec
Back
Peripherals Port 2-PA
17:14
Pedal PD_a
Module MSE
Pedal
PD_a
PD_b
None
Peripherals Port 2-PA
17:14
Pedal PD_a
Module MSE
4
Select how the pedal
acts: as Sleep,
Extractor (hibernation)
or as a module switch.
Select the activating
mode of the pedal
(pressed/released)

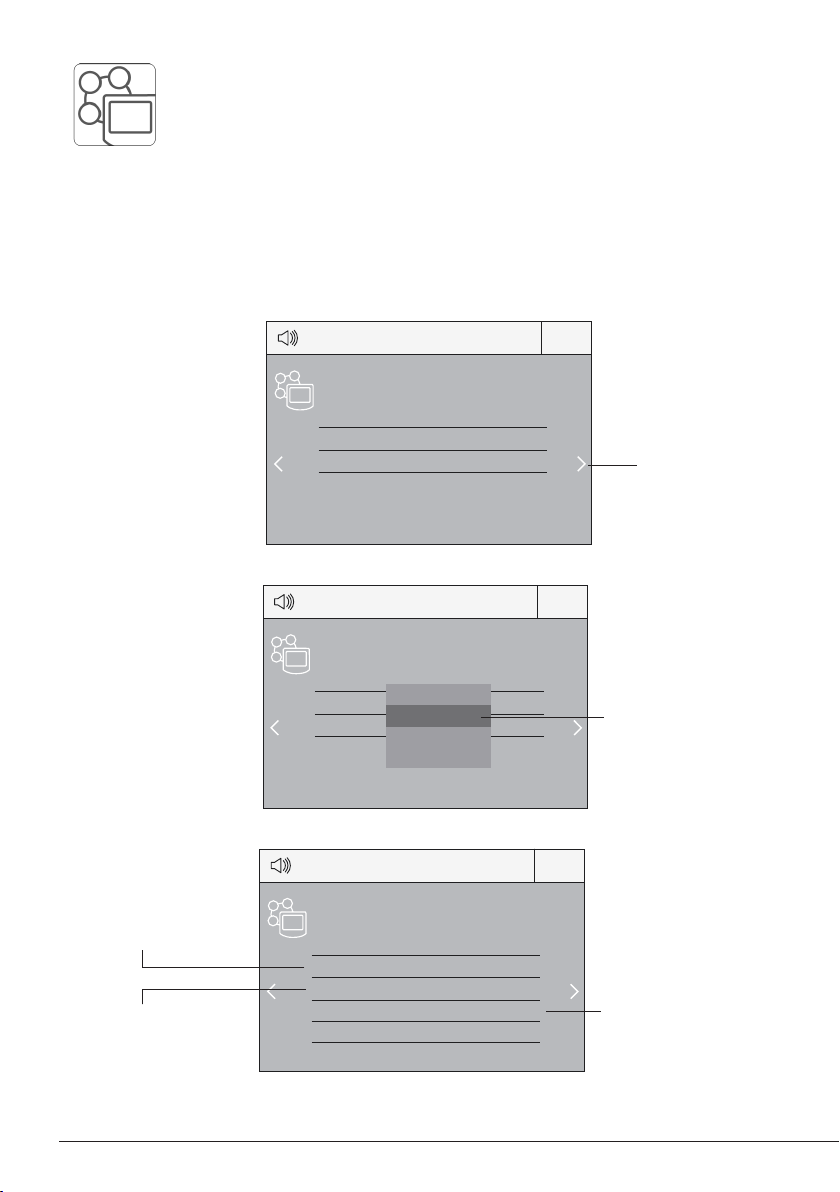

Pedal Set Up for:
- DDU, HDU, NAU, JNAU, JTU, ALU (control units)
- PHNK, PHSK, PHBK, PHXK (preheaters)
Select port
Note that your first
connection is denoted
as “a”, the second
being “b”, etc. (e.g.
PD_ a, PD_ b,...)
Set the duration
of the activation
time when pressing
the pedal once*.
For continuous
functioning keep the
pedal pressed.
*NB: The same can be applied inversely by continually pressing the pedal and releasing to activate.
3. Set the pedal function according to your work needs:
2. Select the pedal from the list.
1. Enter the Peripherals Menu and select the port which you want to join to the pedal.
Note: Peripheral moduls - MSE, MVE or MNE - are needed to connect the pedal to DDU y HDU.

5
Pedal Set Up for FAE1, FAE2 (fume extractors)
Select Port
* One-touch activates the pedal funtion until pressed twice. Continous activates the pedal function
while pressing the pedal.
3. Set the pedal function according to your work needs:
2. At the Port Menu select Pedal.
1. Enter the Main Menu and select Port.
4 Filter set
5 Counters
6 Program version
Main menuMain menu
Exit
1 Reset
2 Unit
3 Port
PortPort
1 Program Ctm - 100%
2 Delay to stop
3 Pedal
BackBack
PedalPedal
1 Activation One-touch
2 Mode Pressed
BackBack
Select Pedal
Shows the activation mode.
Choose between One-
touch* and Continous*.
Select the activating mode of
the pedal. Choose between
Pressed and Released.
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Peripherals
17:14
Port 1 2 3 4
MS a
?
PERIPHERAL
Peripheral 1 plugged:
Electric Suction Module
Setup Postpone
6
Note: Peripheral moduls - MSE, MVE or MNE - are needed to connect the pedal to DMU.
After connecting one of the mentioned moduls to the station a popup window opens.
2. Select the module from the list of peripheral connections. Remember your first connection is
denoted as “a”, the second being “b”, etc. (e.g. MS_a, MS_b,...). Do the same with the pedal (e.g.
PD_a,...)
3. Select the port of the tool you want to link to the peripheral.

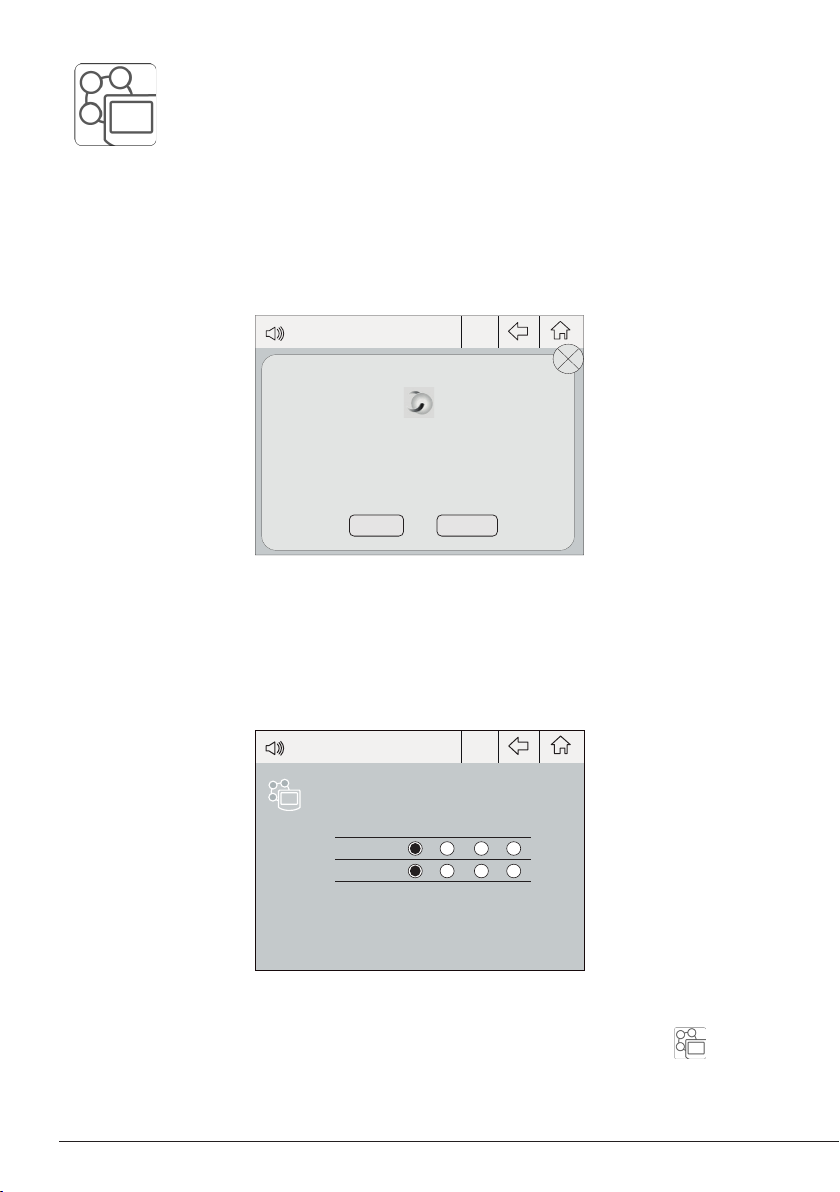

Pedal Set Up for DMU (control unit)
1. To configure the module MSE/MVE/MNE press Setup in the popup window.
4. Press Menu or Back to save changes.
Once set up, the module settings can be changed by entering the Peripherals Menu .
Peripherals
17:14
Port 1 2 3 4
MS a
PD a
?

ROBOT
7
AN115
Ajustable Nano Tweezers
NAS
2-Tool Nano Rework Station
1
Example:
Chip Compoments Rework Process using Tweezers and Pedal
P405
Pedal
Connections
Connect pedal P405 to the same port where
AN115 nano tweezers are connected.
In the peripherals menu for the “Pedal
Activation Mode” choose between “pressed”
and “released”.
The Pedal is frequently used to rework components with tweezers.
AN115 JBCs adjustable nano tweezers is the most effective tool for desoldering chip components
but also it facilitates its rapid placement and soldering by using P405 pedal connected to JBC´s NAS
station.
connect to
the same port
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

8
3
4

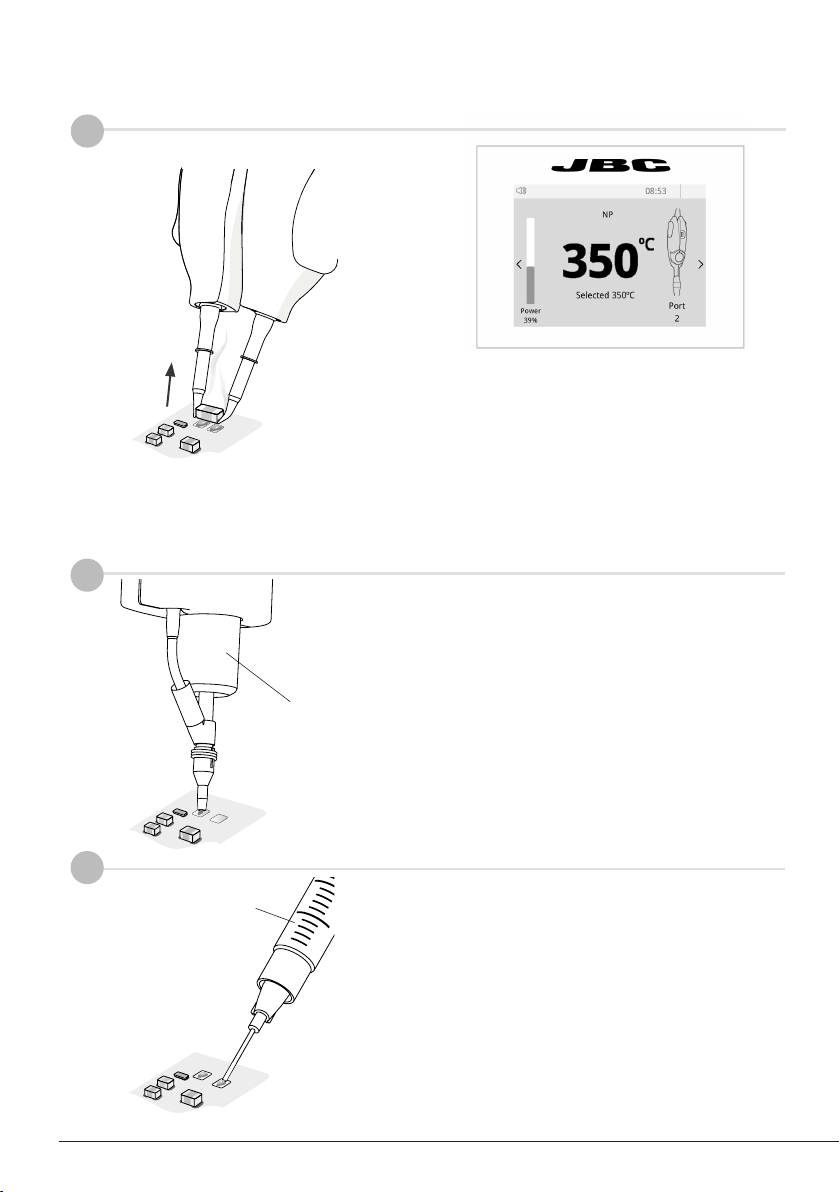

Pad Cleaning
Clean the pads with JBC´s desoldering tool
DS360.
For this operation JBC´s desoldering station
DSS is needed.
Solder Paste Dispensing
Apply the solder paste amount needed to
solder the new chip component.
The use of JBC´s DPM solder paste dispenser
is recommended.
DPM
Manual
Solder Paste Dispenser
DS360
Micro
Desoldering Iron
Desoldering*
Lift the tool from the holder, press and hold
the pedal to activate the tool and desolder the
component.
Once the pedal is released the tool enters in
hibernation mode and cools down.
2
* “Press Mode” previously selected

9
5
6

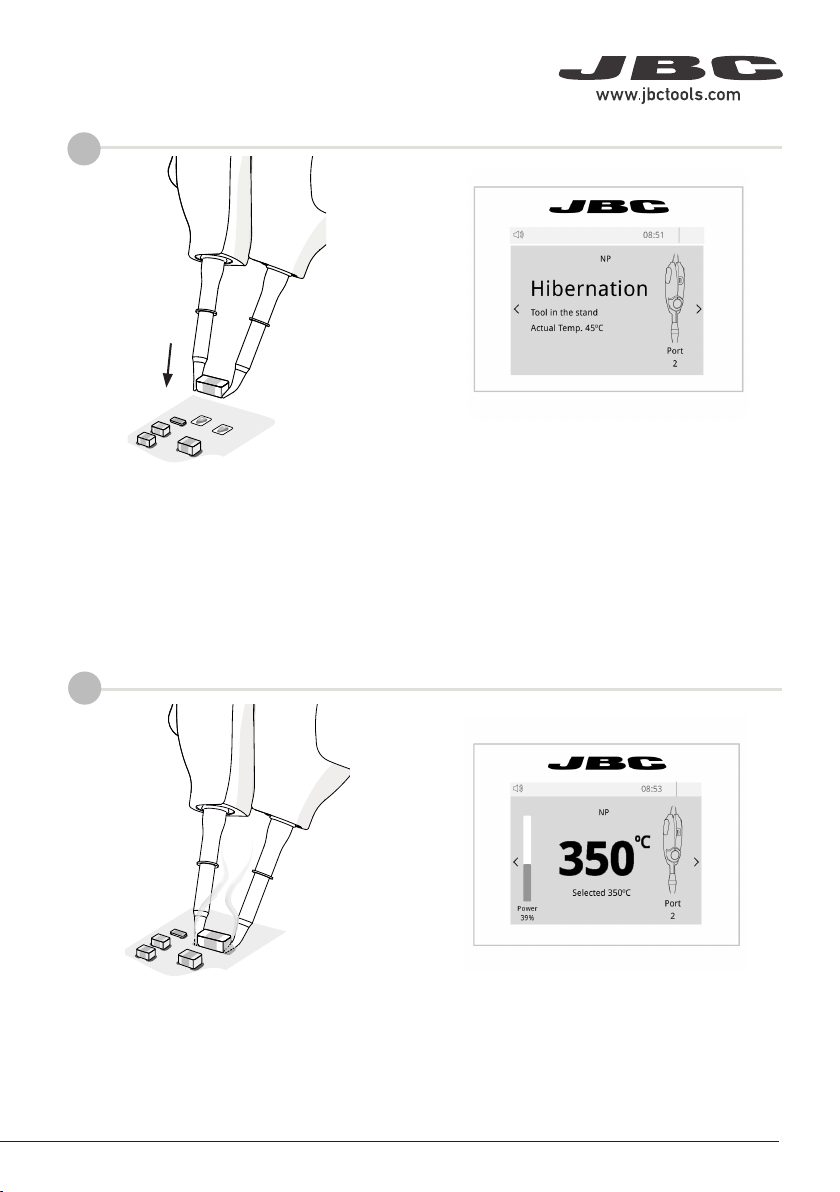

Placing
Do not press the pedal.
Use the tool to position the component on the
previously tinned pad.
Note: The inactive tool prevents the
component from heating up prematurely.
Soldering
Once in position press and hold the pedal to
activate the tool and perform the soldering.
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

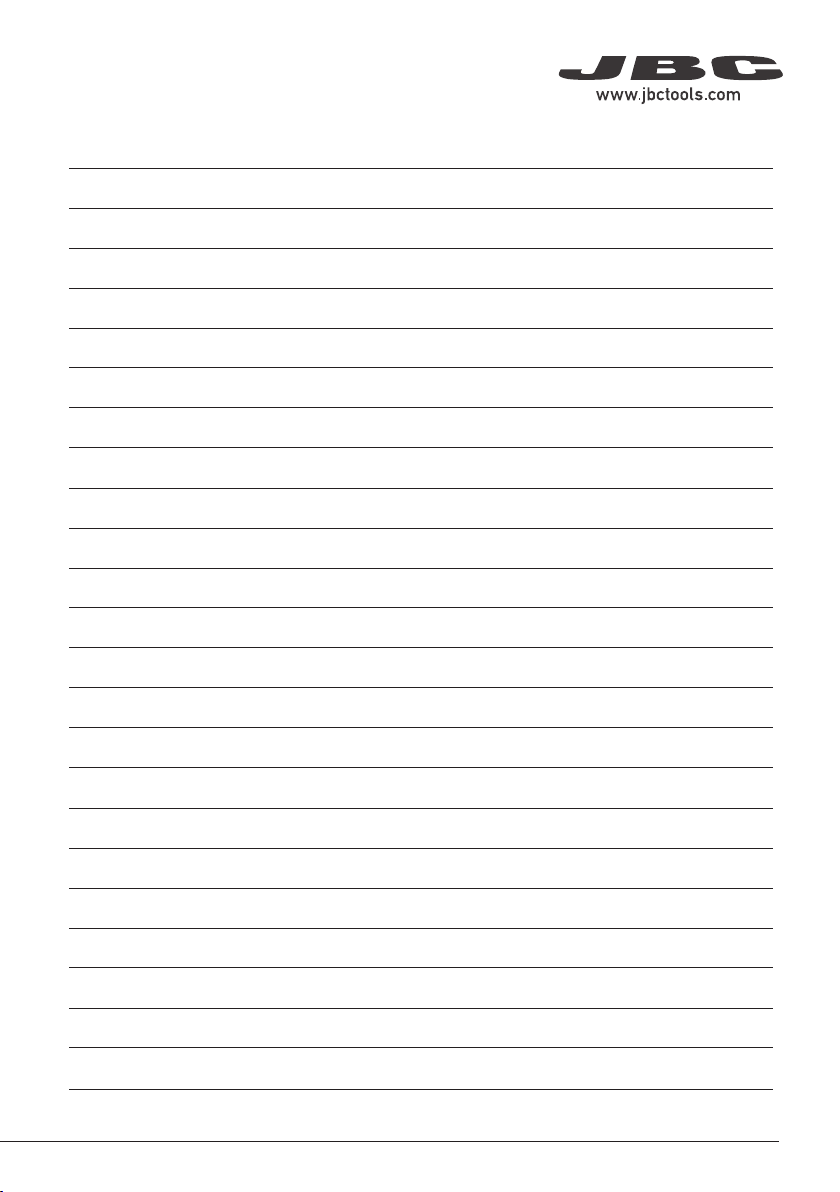

Notes
10

Notes
11
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm
P405
Pedal
Ref. P-405
- Cable length: 1.9 m / 74.80 in
- Total Net weight: 232 g / 0.51 lb
- Total Package Dimension / Weigt: 155 x 85 x 55 mm / 255 g
(L x W x H) 6.10 x 3.35 x 2.17 in / 0.56 lb
Complies with CE standards
ESD safe
Specifications
