JBL Horizon User manual

Service Manual
Released by Global Quality Ver. 1.2 09/2015 harman/kardon, Inc.
HORIZON
Bluetooth clock radio with USB charging and ambient light
CONTENTS
5
Software Version Check &
Upgrade Process
16

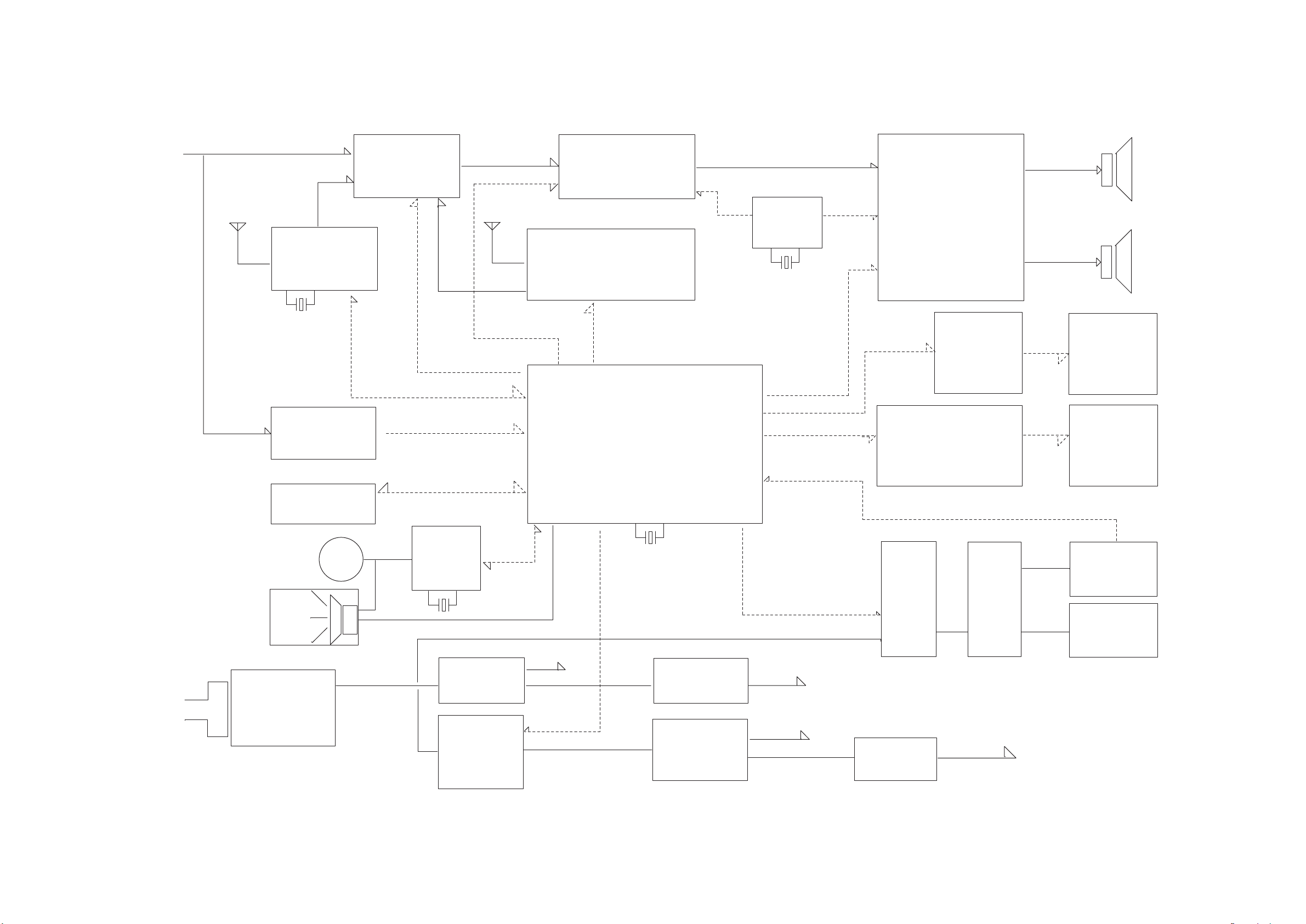

Set Block Diagram
Set Wiring Diagram

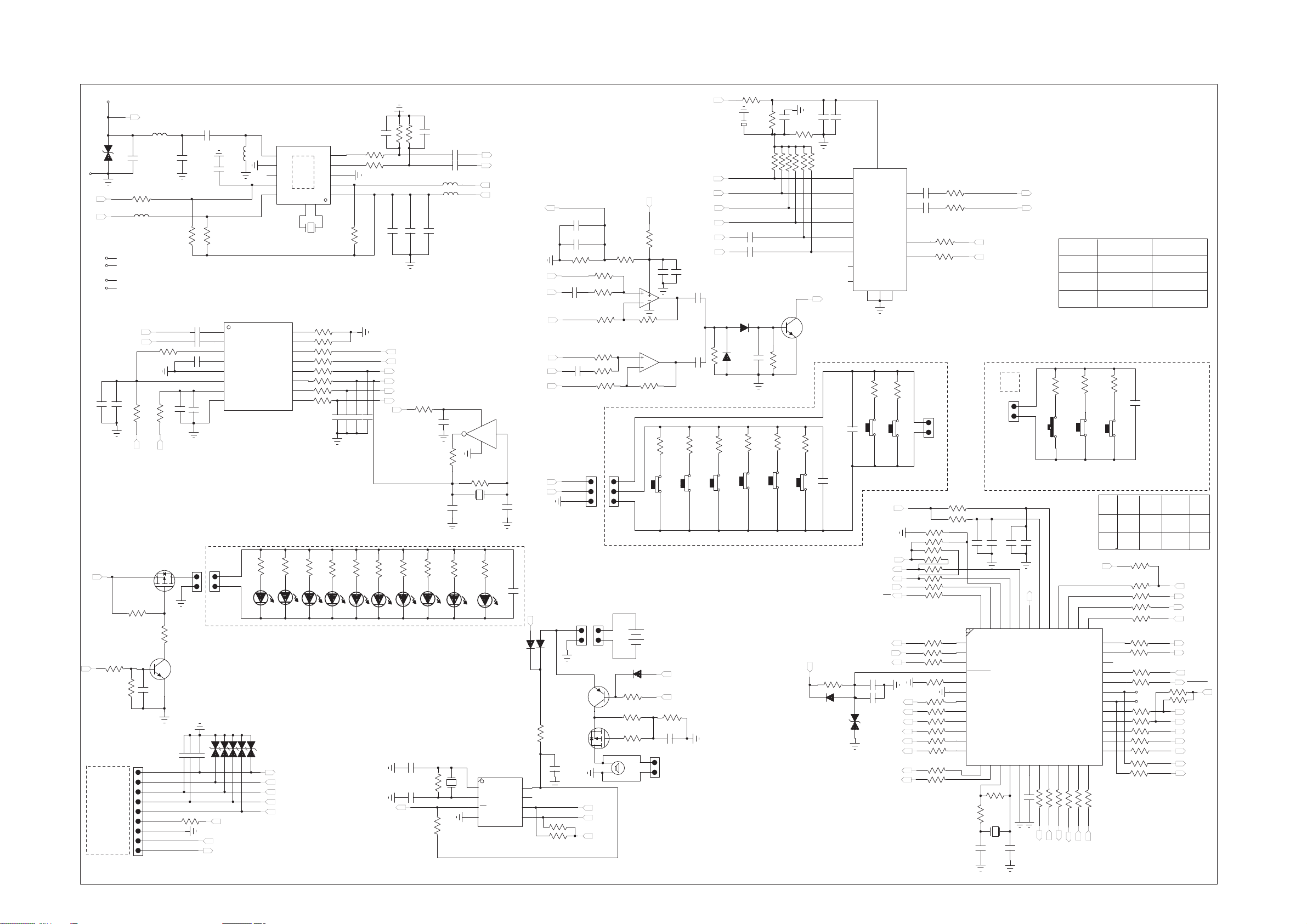

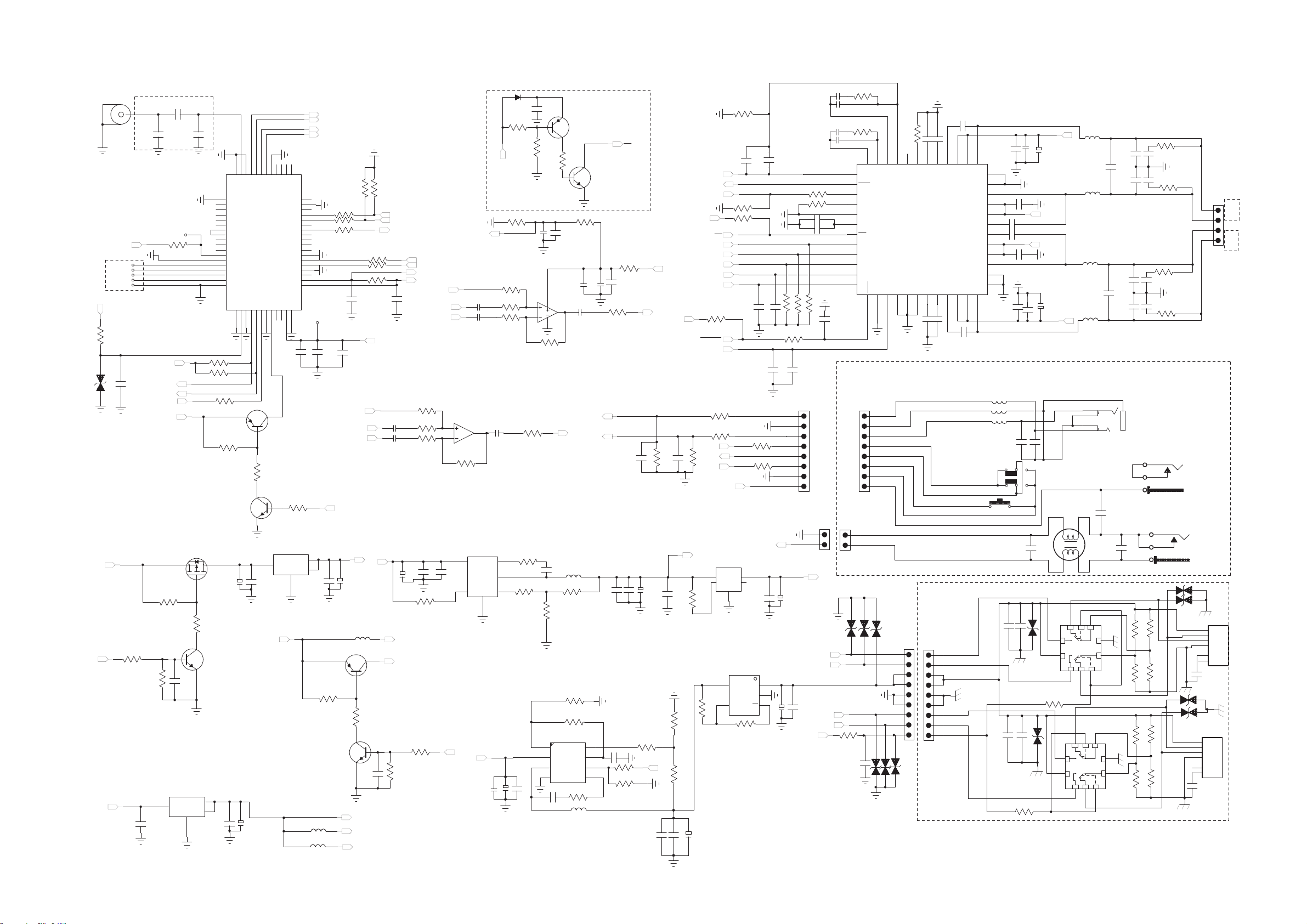

Schematics Diagram

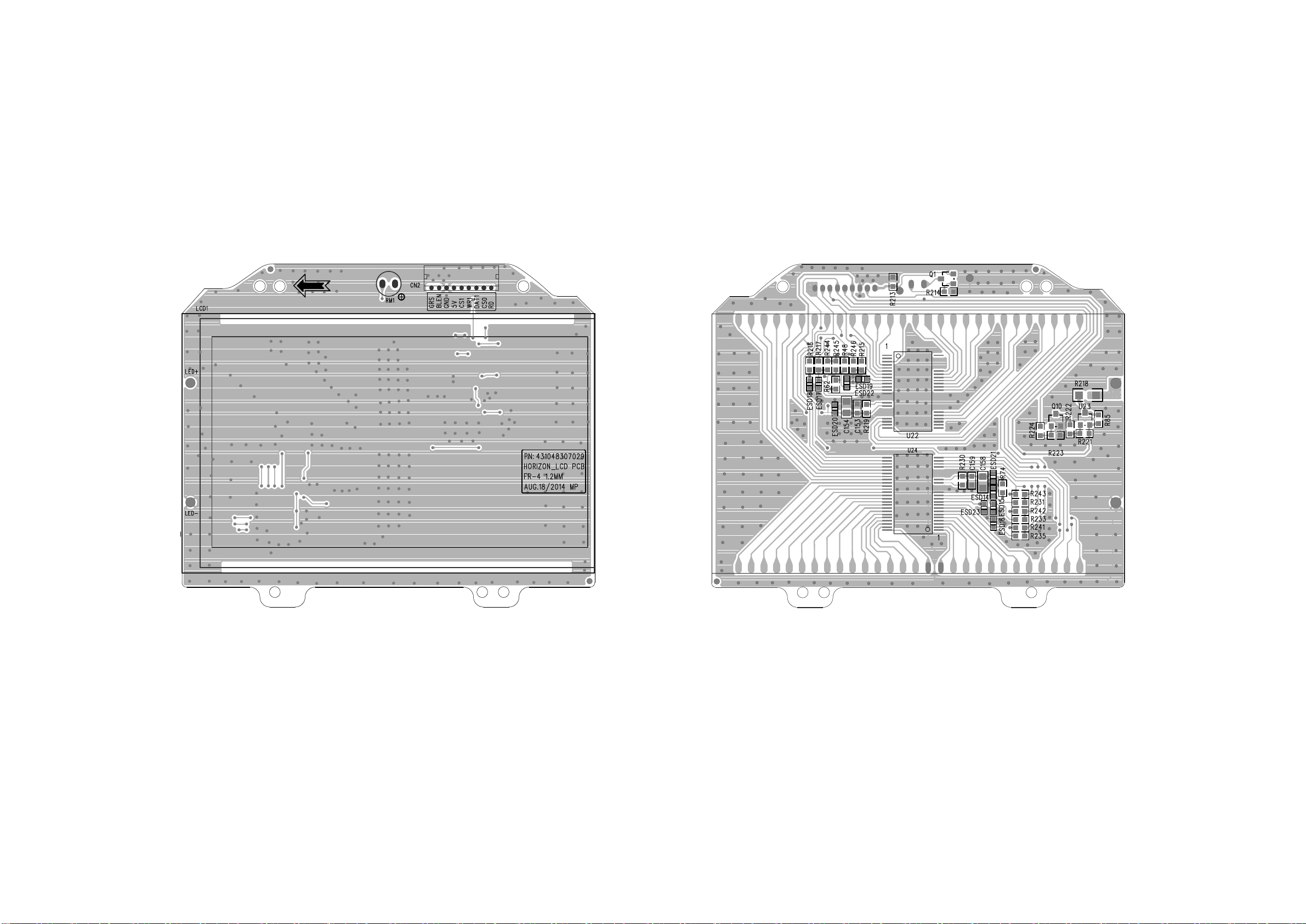

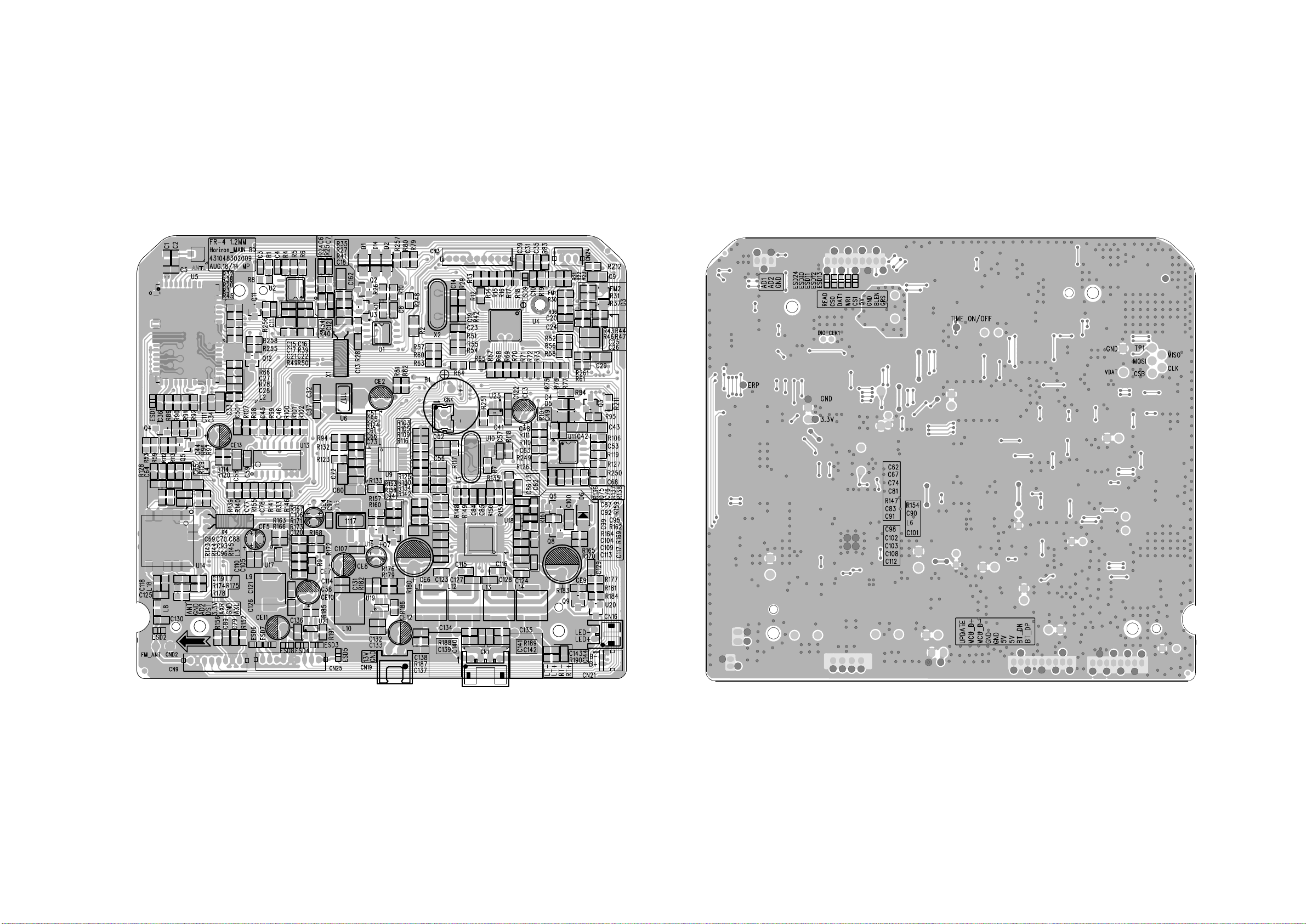

Layout Diagram
Mechanical Exploded View
Quick Start Guide
Safety Information
Dismantling Instructions 7 8
IC Pins Voltage 13
19
23
14
2
15
Packaging Exploded View 24
Packaging Parts List 25
Mech. & Elec. Parts List 27
Revision List 29

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, or the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases,
are placed on the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC
receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
18. Do not expose batteries to excessive heat such as sunshine, fire or the like.
For Products That Transmit and
Receive RF Energy:
FCC Regulations (USA Only)
FCC Information For Users
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device
may not cause harmful interference; and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Radio and Television Interference
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio
or television reception, which can be determined by turning
the equipment off and then on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
•Increase the separation between the equipment and
receiver.
•Connect the equipment to a different outlet so that the
equipment and receiver are on different branch circuits.
•Consult the dealer or an experienced radio/TV technician
for help.
NOTE: Changes or modifications not expressly approved
by Harman could void the user’s authority to operate the
equipment.
IC Statement and Warning (Canada Only)
This Class B digital apparatus complies with Canadian ICES-
003. Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
For Canadian Model
This Class B digital apparatus complies with Canadian
ICES-003.
Modèle pour les Canadien
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
For Products with Radio Receivers
That Can Use an External Antenna:
CATV or Antenna Grounding
If an outside antenna or cable system is connected to this
product, be certain that it is grounded so as to provide some
protection against voltage surges and static charges. Section
810 of the National Electrical Code, ANSI/NFPA No. 70-1984,
provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes and requirements of the grounding electrode.
Note to CATV System Installer:
This reminder is provided to call the CATV (cable TV) system
installer’s attention to article 820-40 of the NEC, which
provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of
cable entry as possible.
For CD/DVD/Blu-ray Disc™Players:
Caution:
This product uses a laser system. To prevent direct exposure
to the laser beam, do not open the cabinet enclosure or defeat
any of the safety mechanisms provided for your protection.
DO NOT STARE INTO THE LASER BEAM. To ensure proper use
of this product, please read the owner’s manual carefully and
retain it for future use. Should the unit require maintenance
or repair, please contact your local Harman Kardon service
center. Refer servicing to qualified personnel only.
For Products That Include Batteries:
Instructions for Users on Removal and Disposal of
Used Batteries.
CAUTION
Risk of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Alkaline batteries are considered nonhazardous.
Rechargeable batteries (i.e., nickel cadmium, nickel metal-
hydride, lithium and lithium-ion) are considered hazardous
household materials and may pose an unnecessary health
and safety risk.
In the European Union and other locations, it is illegal to
dispose of any battery with household trash. All batteries
must be disposed of in an environmentally sound manner.
Contact your local waste management officials for information
regarding the environmentally sound collection, recycling and
disposal of used batteries.
To remove the batteries from your equipment or remote
control, reverse the procedure described for inserting
batteries in the owner’s manual.
For products with a built-in battery that lasts for the lifetime of
the product, removal may not be possible for the user. In this
case, recycling or recovery centers handle the dismantling of
the product and the removal of the battery. If, for any reason, it
becomes necessary to replace such a battery, this procedure
must be performed by authorized service centers.
Important Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
THE LIGHTNING FLASH WITH AN ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S
ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE USER TO
THE PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE PRODUCT.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE.
BDS 270 / BDS 570 harman/kardon
2 of 86
2

Each precaution in this manual should be followed during servicing.
Components identified with the IEC symbol in the parts list are special significance to safety. When replacing a component identified with
, use only the replacement parts designated, or parts with the same ratings or resistance, wattage, or voltage that are designated in the
parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably
insulated from the supply circuit before retuming the product to the customer.
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and
semiconductor "chip" components.
The following techniques should be used to help reduce the incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on
your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to
prevent electrostatic charge build-up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges
sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical change sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement
ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material.)
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the
chassis or circuit assembly into which the device will be installed.
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together
or your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES devices.
CAUTION :
3

SAFETY PRECAUTIONS
The following check should be performed for the continued
protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
between the earth ground and all exposed metal parts of the
appliance (input/output terminals, screwheads, metal
overlays, control shaft, etc.). Plug the AC line cord of the
appliance directly into a 120V AC 60Hz outlet and turn the
AC power switch on. Any current measured must not exceed
o.5mA.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A
POTENTIAL SHOCK HAZARD AND MUST BE
CORRECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)

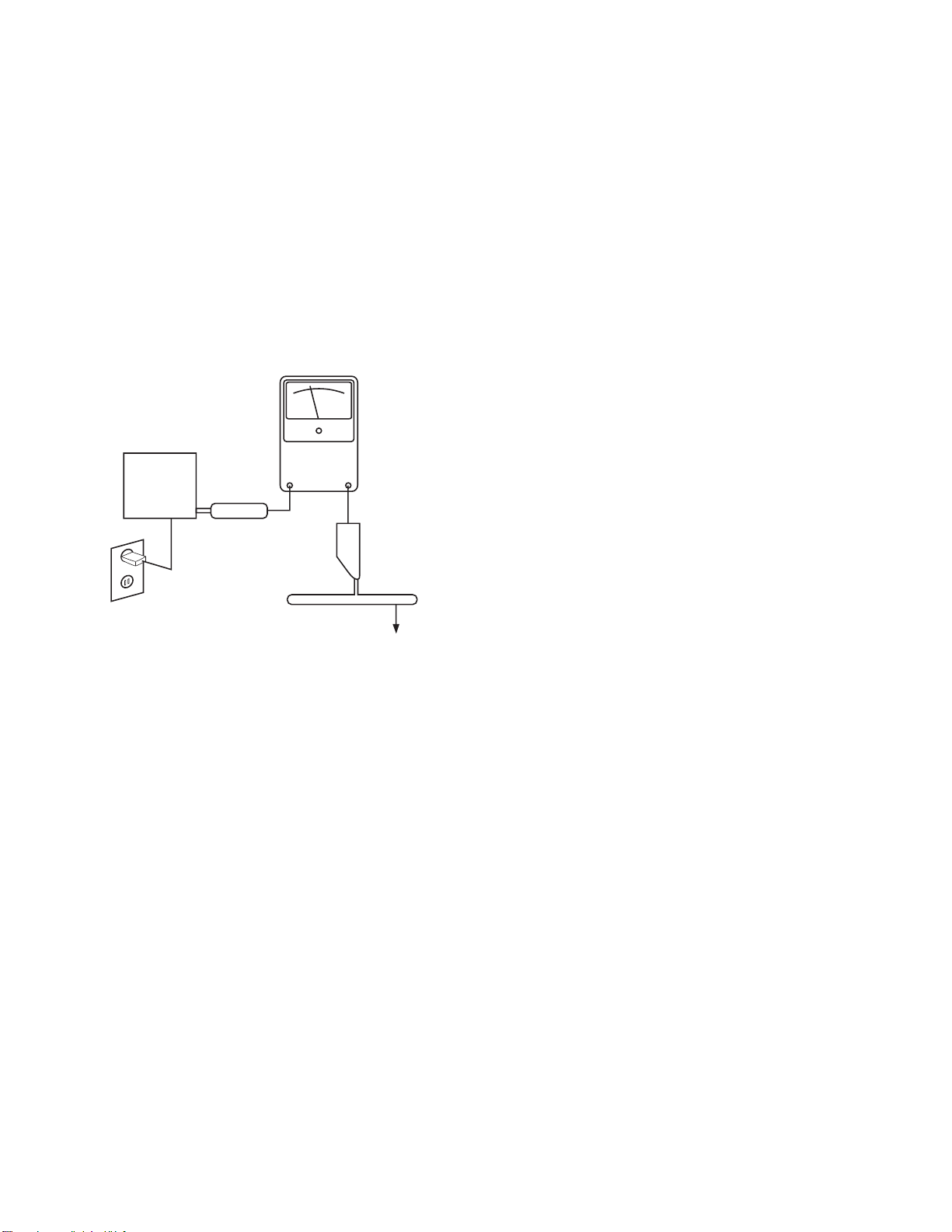

AC Leakage Test
Leakage
current
tester
Reading should
not be above
0.5mA
Earth
ground
4

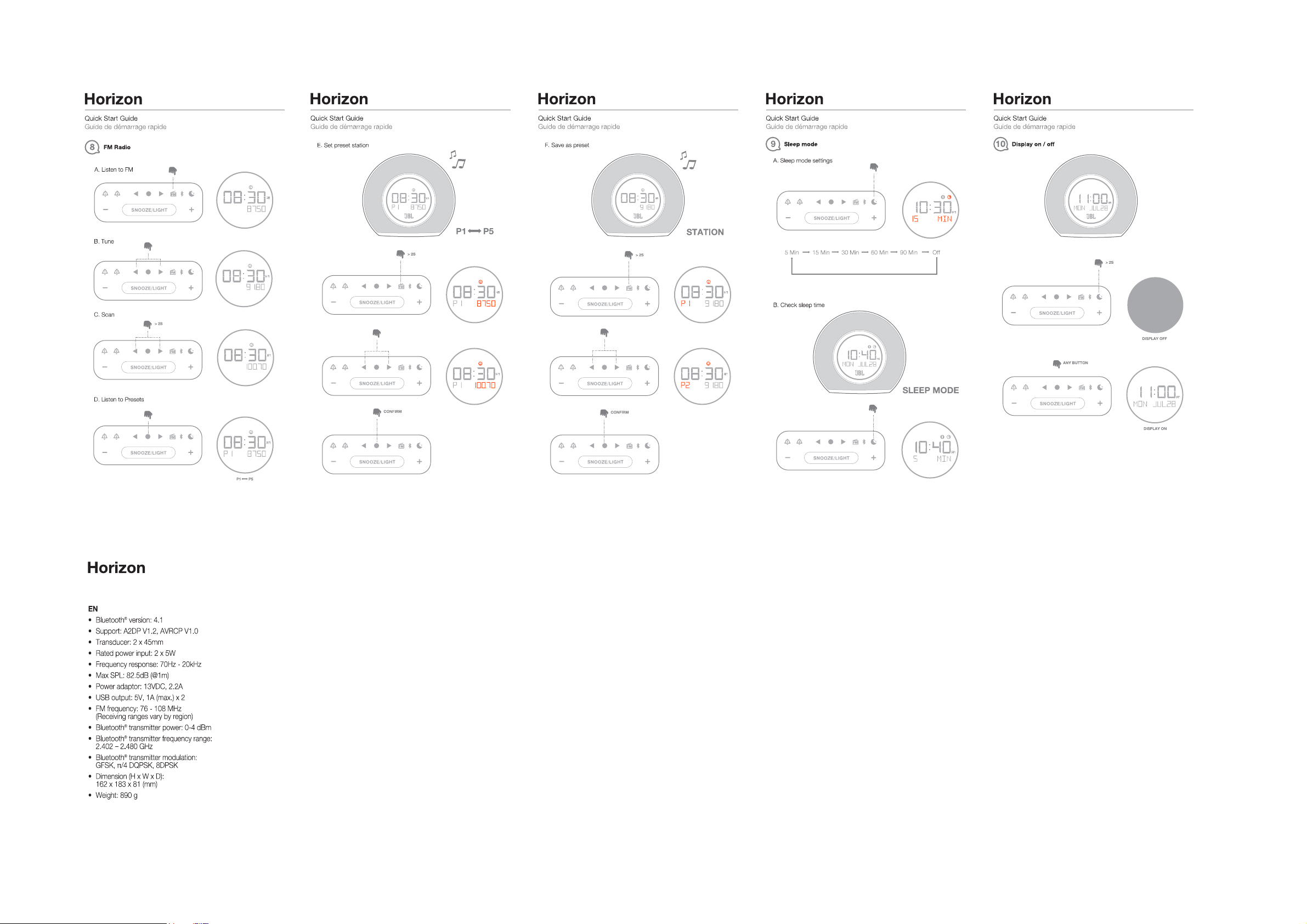

QUILK START GUIDE & SPECIFICATIONS
55

66
QUILK START GUIDE & SPECIFICATIONS
SPECIFICATIONS

7
Software Version Check & Software Upgrade Process, and so on
Duration
1VOL+ & Bluetooth poninoisrevWSwohSS2>edoMlanoitare
2VOL- & Bluetooth S2>lanoitareponehwedomssapybretnE
3VOL+ & FM S2>lanoitareponehwtluafedyrotcafotteseR
4&FM S5>gnidargpuWStratS
5Previous & VOL- S5>ffo/noedomletohelggoT
Item
VOL-
DescriptionOperation

88

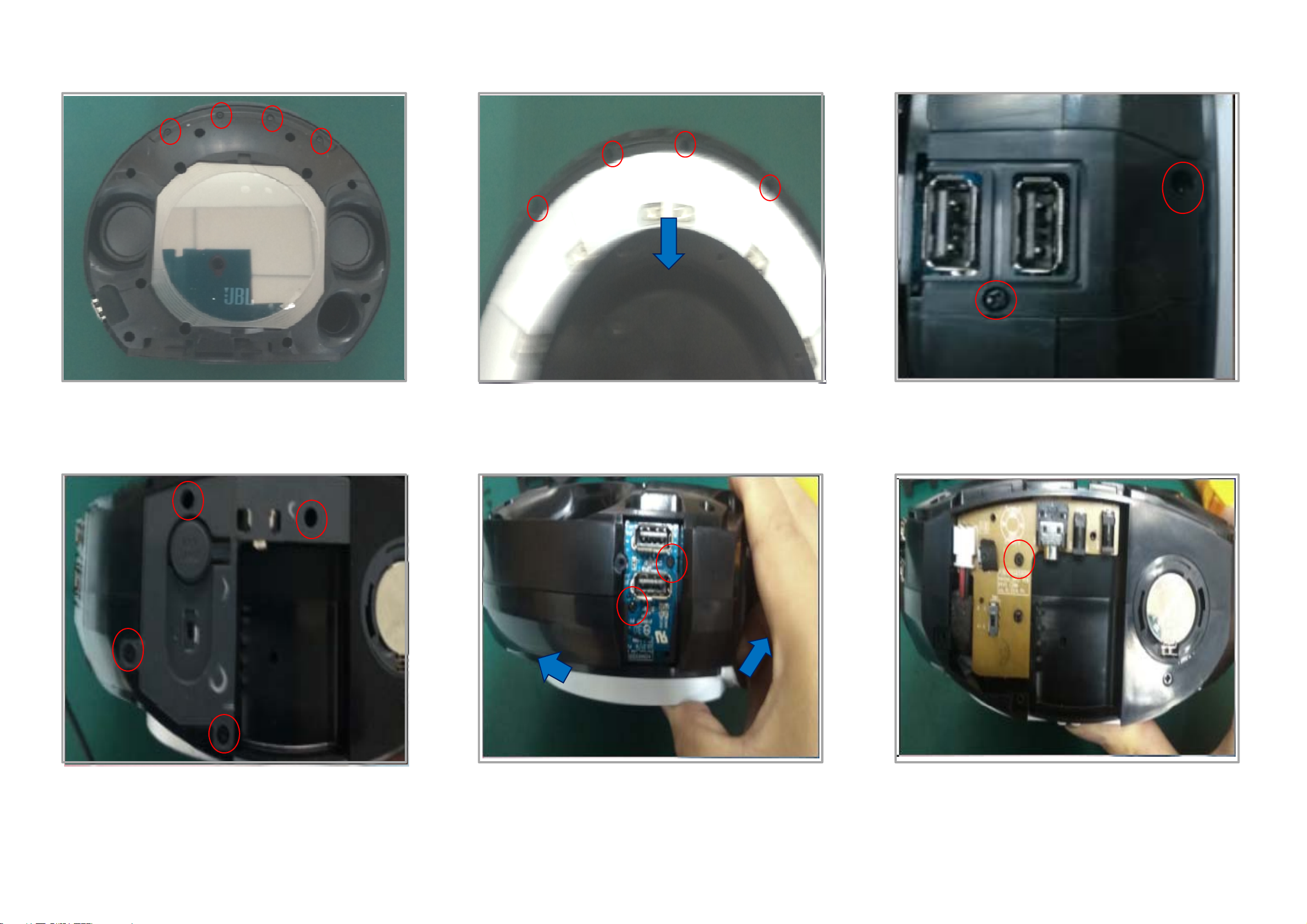

DISMANTLING DIAGRAM
Tools List
Item Tools Remark
1
The head of
20
1
The
head
of
screw driver
2
.
0
The head of
1 2 3
2
The
head
of
screw driver 3.0
3The head of
screw driver 4.0
4Slotted
screwdriver
5 Screw driver 4 5

3.Remove8pcsscrewsusing
screwdriver2.0

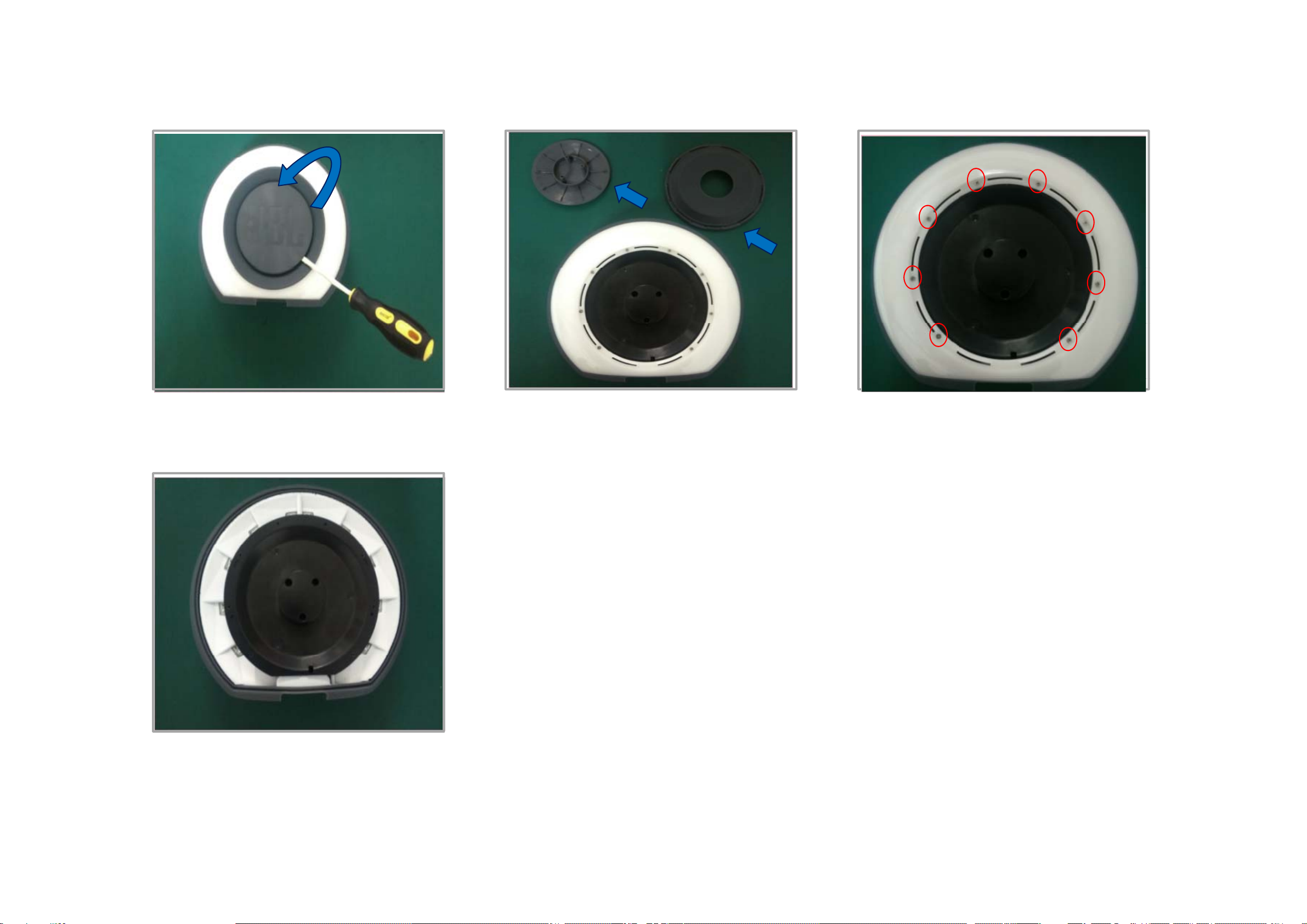

1.Rotateaslottedscrewdriverina
counterclockwisedirection,then
2. Removethelogoplateand
siliconepart
moveupthelogoplate.
4. PutofftheLEDcover
99
DISMANTLING DIAGRAM

DISMANTLING DIAGRAM
1010
7. Removethemainsiliconepart
5. RemoveDSTbuttonandrotate15-
30° forBatterycovercounterclockwise
th b tt i th t l
6. Afterremovebatterycoverand
DSTbutton
on
th
e
b
o
tt
omus
i
ng
th
e
t
oo
l
.
8. Disassemblethesiliconecaseas
above picture
9.Removethegrille&siliconecaseas
abovepicture
10. Takeoutthesiliconecaseofmain
setafterremovinggrille.
above


DISMANTLING DIAGRAM
1111
13. Disassemble2pcsscrewsand
removeUSBcover.
11. Disassemble4pcsscrewsonone
sideofSNOOZEbracket.
12. Disassemble4pcsscrewson
anothersideofSNOOZEbracket.
14. Remove4pcsscrewsforSETbutton 15.Remove2pcsscrewsforUSBboard 16.Remove1pcscrewsofINPUT
Board.

DISMANTLING DIAGRAM
1212
19. Splitintothefrontandtherear
parts.
17. Disassemble9pcsscrews 18. Removeallthecablesasabove
20. Remove4pcsscrewsonmain
board
21. PulloutthecablesonPos.No.
CN9/CN25/CN19/CN24/CN16/CN21
22. Disassemble11pcsscrewsofLED
Board.

13 13
HORIZON VOLTAGE ON IC PINS
U4 PIN12345678910111213141516
ASM32 M016GA V 0 0.31 1.95 3.31 0.669 0 1~1.5 0.9~1.2 1.7~2 2.8~3.2 3.2 0 0 0 1.56 1.47
PIN17181920212223242526272829303132
V 0 1.84 3.26 0 3.28 0 3.31 2.9~0.4 0 3.3-0 0-3.3 2.68 2 2.34 3.27 0
PIN 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
V 0.22 3.3 0 3.1 3.2 3.16 0 3.1 3.31 3.31 0 3.31 3.31 3.31 3.4 2.68
U1 PIN12345678
PCF8563 V 1.18 0.25 3.38 0 3.2 3.31 0 3.26
U14 PIN1234567891011121314
AP420（FM MODE
)
V 3.29 3.3 0 0.73 0.737 00 0 0 0 3.3 3.3 1.52 0.31
U13 PIN12345678910111213141516
74HC4052 V 2.47 2.47 2.47 1.75 2.47 0 0 0 0/3.3 0/3.3 1.72 2.47 2.47 2.47 2.47 4.96
U11 PIN12345678
LM358 V 3.28 2.43 2.43 0 2.43 2.43 2.83 4.93
U9 PIN12345678910111213141516
AK5358A V 2.47 2.47 4.97 2.47 0 4.96 3.29 0 1.4~0.9 1.63 1.13 1.6 3.3 3.28 0 0
PIN12345678910111213141516
V 6.49 13.06 13.06 15.79 10.11 3.27 1.16 0 0 0.67 1.03 1.75 3.28 2.97 1.15 0.92
PIN 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
V 0 1.83 3.3 1.62 1.59 1.3-0.8 3.31 3.31 3.31 0 3.28 0 0 0 3.27 10.36
PIN 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
V 9.62 13.13 13.13 0.471 0 0 0.47 13.13 13.13 9.6 9.6 13.13 13.13 0.46 0 0
U18
TAS5709
PIN12345678910111213141516
V 0 0.38 0 0 0 0 0.017 0.017 0.017 1.78 0 1.765 0 0.43 0.42 0.42
PIN 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
V 1.77 0 0 1.77 0 0 3.31 0 0 0.01 1.97 1.18 3.31 0 1.78 1.78
PIN33343536373839404142434445464748
V 0 0 0.07 0.06 0000000002.07 0 0
PIN495051525354555657585960
V 0.022 0.018 0.015 0.015 0 0 0.037 00000
U15 PIN 1 2 3 4
AS1117-5V 0 4.96 13.11 4.96
U6 PIN 1 2 3 4
0 3.3 4.96 3.3
U19 PIN123456
MP1470 0 4.96 13.11 1.01 6.71 9.84
U25 PIN12345 U21PIN12345
AS2930 V 4.94 0 4.94 0 3.31 G524 5.29 0 5.27 5.27 5.29
U17 PIN12345678
MP1495 V 0.461 13.13 5.29 0 9.33 4.15 4.93 0.942
U7 PIN12345678910
DIO3712 V 5.2 0.12 2.1 0 2.1 0 2.8 0 2.8 0.2
U8 PIN12345678910
DIO3712 V 5.29 3.29 2.82 0 2.8 0 2.1 0 2.1 1.82
U2 PIN12345678
MC4558 V 2.48 2.48 2.48 0 2.48 2.48 2.48 4.96
AS1117-3.3V
U5
BM830
PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
V 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.0~2.3
0
.72~0.7
6
1.5~1.72 1.4~1.9 0 0 4.94 4.4
PIN17181920212223242526272829303132
V 4.95 1.7~2 1.62 1.72 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25
PIN33343536373839404142434445464748
V 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25
PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
V 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.58 1.9~2.3
0
.72~0.7
6
1.5~1.72 1.4~1.9 0 0 4.94 4.4
PIN17181920212223242526272829303132
V 4.95 1.63 1.64 1.33 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25
PIN33343536373839404142434445464748
V 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25 2.25
U24 HT1621B
U22 HT1621B

MCU M016GA
TAS5709 AUDIO
DSP+AMPLIFIER
I2S
ADC AKM5358A
BT MODULE
BM830
FM AP420
(SI4702)
AUDIO DETECT
LM358
ANALOG MUX
HC4052
AUX IN
KEYPAD
LCD DRIVER
LCD DISPLAY
AC IN
ADAPTER
12V/3A
BUTTON BATTERY
PCF85163NC
CLOCK
LDO AS2930
DC TO DC
MP1495
5V/1A
USB CHARGER
USB CHARGER
5V/1A
LIMIT
G524
5V
MCU_3.3V
POWER_EN
P12V
LDO AD1117_5V
P5V
LDO D1117_3.3 P3.3V
HT1621 B
DC TO DC
MP1470
BT2301 LED LIGHT
BUZZ
32.768KHz
32.768KHz
8MHz
SN74LV1G04
12.288MHz
JK5
JK4
MCU UPDATE
BLUETOOTH UPDATE
SET BLOCK DIAGRAM
14 14

SET WIRING DIAGRAM
15 15

AD1
GND
LAMP
KEY2
KEY1
CS0
5V
GND
BACKLIGHT_EN
DATA1
WR1
CS1
GRES
VOL-
VOL+
FM1
FM2 NC
10K
USA JAP
100KHz 76~90MHz
NC
NC
B__9PIN A__10PIN
00 FM
10 AUX
BT 01
10K
EUP
50KHz
10K
READ
SI4702
C119
102
C64
225
C65
225
C118
102
R174
47K
R175
47K R145
47K C93
104
C70
100P
C69
100P
L7
FB1K
L3
FB1K
C88
10U
C59
104
R101
100
R102
100
C77
225
C45
225
10RIN
22RIN
3
R-OUT
43RIN
51RIN
6INH 7VEE 8GND
9
B
10
A
11 3LIN
12 OLIN
13
L-OUT
14 1LIN
15 2LIN
16
VCC
U13
74HC4052
C58
10U
R114
10K
R107
10K
R100 47K
R139 47K R98 47K R140 47K
C50
104
R120
10
1AINR
2AINL
3CKS1
4VCOM
5AGND
6VA
7VD
8DGND 9
SDTO
10
LRCK
11
MCLK
12
SCLK
13
PDN
14
DIF
15
CKS2
16
CKS0
U9
AK5358A
C51
225
C55
225
R94
1K
R132
1K
C46
0
C78
0
R124
47K
C61
225
R123
FB1K
R133
FB1K
C66
104
C72
10U
C73
104
C80
10U
R103
1K
R105
1K
R109
22K
R116
1K
R125
47
R130
47
R134
47
R142
47
1AIN5/P1.5
2AIN6/P1.6
3AIN7/P1.7
4RST/WAKEUP
5ADEXR25K
6AVSS
7RXD0/P3.0
8TXD0/P3.1
9P3.2
10 SDA0/P3.3
11 SCL0/P3.4
12 P3.5
13 CLKT/P3.6 14 P3.7 15 XTAL2 16 XTAL1 17 VSS 18 LDO_CAP 19 CP0A/P2.0 20 CP0B/P2.1 21 CP1A/P2.2 22 P2.3 23 P2.4 24 P4.5
25
RXD2/P2.5
26
TXD2/P2.6
27
P2.7
28
P4.0_SCL1
29
P4.1_SDA1
30
SWCLK
31
SWDIO/P4.2
32
P0.7
33
P0.6
34
P0.5
35
P0.4
36
P4.3
37
P0.3
38
P0.2
39
P0.1
40
P0.0
41
VDD
42
AVDD
43
P1.0
44
P1.1
45
P1.2
46
P1.3
47
P1.4
48
P4.4
U4
ASM32 M016GA
X2
8MHz
R42
1M
C14
22P
C19
22P
R47
FB1K
R46
FB1K
C20
104
C25
10U
C24
104
C26
10U
R31
10K
D3
IN4148
C9
10U
R72
1K
R69
100
R68
100
R67
220
R64
220
R65
1K
R57 1K
R60 1K R63 1K
R54 1K R55 1K R51 1K
R77
1K
R58
1K
R56
1K
R52
1K
R19
1K
R17
1K
R12
10K
R22
1K
R23
3.3K
R30
1K
R36
1K
R106
1M
1 2
D4
IN4148
1
2
D5
IN4148
R95
1M
C43
10U
3
21
48
U11-A
LM358
5
67
U11-B
LM358
R111
6.2M
R110
10K
R119
6.2M
R127
10K
C48
105
C53
105
C63
105
C68
105
R104
10
R137
47K
R136
47K
R126
47K
R138
47K
C76
105
C49
104 C42
10U
1+
2-
B1
FMQ
BUZZ
12
S10
SLEEP R210
3K 1%
12
S4
UP R203
7.5K 1%
12
S6
DOWN R207
13K 1%
12
S11
FM R209
22K 1%
12
S9BT R208
33K 1%
12
S8
ALARM2 R205
7.5K 1%
12
S5
CONFIRM R204
68K 1%
R200
13K 1%
12
S2
VOL +
R199
22K 1%
12
S1
VOL -
R198
33K 1%
R37
22K 1%
R43
22K 1%
X1
32.768KHz
R28
NC
C18
8.2P
C13
6.8P
R10
FB1K
C8
475
12
S7
ALARM1 R206
3K 1%
R143
1K
R144
1K
R117
1M
X3
12.288MHz C52
33P
C56
33P
C57
104
R118
10
R178
1K
L4
FB1K
C10
102
C81
47P
C74
47P
C67
47P
C62
47P
ESD2
ESD
L8
82nH
C130
5.6P
C125
5.6P
C96
102
R71
1K
R70
1K
R13
1K
R14
1K
R73
1K
R15
1K
R16
1K
1
2
CN5
2PIN 1.5MM
C146
103
C152
103
R99 47K R141 47K
1
NC
2A
3
GND
4Y
5
VCC
U10
SN74LVC1G04
Q9
9014
R184
47K
R177
22K
R183
47K
C129
NC
R181
1K
G
D
S
U20
BT2301
1
2
CN16
2PIN 2.0 90
1
2
3
CN8
3PIN WIRE
R202
120
R201
120
12
LED8
WHITE 12
LED7
WHITE
1
2
CN22
2PIN WIRE
-+
12
BAT1
BAT2
1
2
CN6
2PIN WIRE
1
2
CN21
2PIN 1.5 SOCKET
C150
103
1OSC1
2OSC0
3INT
4VSS 5
SDA
6
SCL
7
CLKOUT
8
VDD
U1
PCF8563
R11
510K
D2
B5817
D1
B5817
Q2
BT2301
R26
10K
G
D
S
U3
BT2301
R35
1K
R27
1.5M R41
10M
Q3
9014
R61
100K
C75
104
R128
NC
R129
NC
R18
24.9K
C23 4.7U
R29
1K
R76
1K
R75
1K
R194
120
12
LED3
WHITE
R195
120
12
LED5
WHITE
R196
120
12
LED4
WHITE
R197
120
12
LED6
WHITE
R193
120
12
LED2
WHITE
R192
120
12
LED1
WHITE
C145
NC
DIO
CLK1
FM2
NC
FM1
NC
FM_ANT
GND2
M1
M2
M4
M5
1
2
CN23
2PIN WIRE
1
2
3
CN24
3PIN 1.5 SOCKET
R248
1K
R2 600/100MHz
R7
100
L18
2.7PF
R249
7.5K
R250
7.5K
R252
120
12
LED9
WHITE
R253
120
12
LED10
WHITE
R257
1K
C162
22U/10
+
CE13
100U/16mini
12 S3
SNOOZE
R79 4.7K
R80 4.7K
R81
4.7K
R82
4.7K
D14
B5817
C31
100P
C35
100P
C39
100P
ESD9
ESD
ESD10
NC
ESD11
NC
ESD12
NC
ESD13
NC
R21
1K
1
VDD
2
DAT
3
GND1
4
ROUT
5
LOUT
6ANT
7GND2
8NC
9RST
10 CLK
11 OSC1 12 OSC2
U14
AP420
X4
32.768KHz
R83
1K
1
2
3
4
5
6
7
8
9
CN3
ESD24
NC
1
2
CN4
NC
[1]
FM_CLK
[1]
FM_DAT
[1]
FM_RST
[1] FM_L
[1] FM_R
[2]
FM_3.3V
[1]
4052_B
[1]
FM_L
[1]
FM_R
[1,2]
AUX_R
[1,2]
AUX_L
[1,2]
P5V
[1,2]
P5V
[1,2]
P3.3V
[1] RESET_AD
[2] AD_MCLK
[1,2]
MCU_3.3V
[2]
FN1
[2]
PDN
[1] RESET_AD
[2] AD_SCLK
[2] AD_LRCK
[2] AD_SDTO
[1,2]
AUX_L
[1,2]
AUX_R
[1,2] 5V
[1]
VREF
[1]
VREF
[2] RESET_DSP
[2]
SDA1
[2]
SCL1
[1]
4052_B
[1,2]
MCU_3.3V
[2] DST
[1]
VREF
[1,2]
P3.3V
[1] ERP
[1]
SDA0
[1]
SCL0
[1,2]
MCU_3.3V
[1]
AD2
[1,2]
AD1
[1]
DATA1
[2] POWER_EN
[2]
BT_AUDIO_EN
[2] BKND_ERROR
[2]
MCU_D-
[2]
MCU_D+
[1]
CS1
[1]
WR1
[1,2] P3.3V
[1] 4052_A
[2]
BT_L
[2]
BT_R
[1]
LAMP_EN
[1,2]
5V
[1]
TIME_ON/OFF
[1,2] MCU_3.3V
[1] TIME_ON/OFF
[1,2]
MCU_3.3V
[1] ERP
[1]
BACKLIGHT_EN
[1]
FM_RST
[2]
BT_STATUS
[2]
BT_STATUS_PAIR
[2]
BT_POW_CONTROL
[1]
4052_A
[2] FM_ANT
[1] CS0
[1] BACKLIGHT_EN
[1] DATA1
[1] WR1
[1] CS1
[1]
CS0
[1,2] 5V
[1] FM_DAT
[1] FM_CLK
[1] GRES
[1]
LAMP_EN
[1,2]
AD1
[1]
AD2
[1] SCL0
[1] SDA0
[1]
VREF
[1]
VREF
[2]
BT_UPDATE
[2] UPDT
[1] LCH
[1] RCH
[1]
LCH
[1]
RCH
[1,2] MCU_3.3V
[1,2]
MCU_3.3V
[1,2] MCU_3.3V
[1]
GRES
[2]
FM_EN
[2]
TONE [1]
READ
[1] READ
SCHEMATIC DIAGRAM - KEY & MAIN BOARD (PART 1)
16 16

SCHEMATIC DIAGRAM - USB & MAIN BOARD (PART 2)
RT+
RT-
LT+
LT-
DST
USB
AUX_L
GND
AUX_R
AUX_L
GND
AUX_R
1
OUT_A
2
PVDD_A
3
PVDD_A
4
BST_A
5
GVDD_OUT
6
SSTIMER
7
OC_ADJ
8
NC
9
AVSS
10
PLL_FLTM
11
PLL_FLTP
12
VR_ANA
13 AVDD
14 FAULT
15 MCLK
16 OSC_RES
17 DVSS0
18 VR_DIG
19 PDN
20 LRCLK
21 SCLK
22 SDIN
23 SDA
24 SCL
25 RESET 26 STEST 27 DVDD 28 DVSS 29 GND 30 AGND 31 VREG 32 GVDD_OUT 33 BST_D 34 PVDD_D 35 PVDD_D 36 OUT_D
37
PGND_CD 38
PGND_CD
39
OUT_C
40
PVDD_C
41
PVDD_C
42
BST_C
43
BST_B
44
PVDD_B
45
PVDD_B
46
OUT_B
47
PGND_AB
48
PGND_AB
U18
TAS5709
L12
15UH
L11
15UH
C134
684
C139
104
C138
104
C140
103
C137
103
R188
3.3
R187
3.3
L14
15UH
L13
15UH
C135
684
C143
104
C142
104
C144
103
C141
103
R190
3.3
R189
3.3
C128
104
C117
104
+
CE9
470U/16mini
C124
333
C123
333
C110
104
C108
104
+
CE6
470U/16mini
C113
102
C116
333
C115
333
C127
104
C109
105
C104
222
R164
22.1K
C92
474
C87
472
R159
470
C99
474
C95
472
R162
470
C86
104
R150
18.2K
C84
104
R148
10K
R44
10K
C91
33P
C83
33P
R154
1K
C98
104
C102 104
C103 105
C90
102
D11
ESD
R227 75K
R228 49.9K
R226 49.9K R225 43.2K
C156 10U
1GND
2
SW
3IN
4
FB
5EN
6
BST
U19
MP1470
C132
102
C133
104
R186
100K
R182
0C131
105
L10
6.8uH/5A C122
104 C114
104
+
CE7
100U/10 LESR mini
R179
75K R176 39K
R180
7.5K
+
CE12
100U/16 mini
D8
ESD
R239
43.2K
R240
49.9K
R238
49.9K
R237
75K
C161 10U
R185
47K
R191
100
C37
104
+
CE2
47U/16 MINI
C32
104
1
2
3JK2
DC_JACK
12 34
L1
9*5*3-8.5T
C148
104
C147
102
L5
FB1K
L6
FB1K
R151
47
3IN
1ADJ
2
OUT1 4
OUT2
U15
AS1117_5V
+
CE8
47U/16 mini
+
CE4
47U/16mini
C107
104
C97
104
L15 FB1K
L17 FB600
L16 FB1K
Q7
9014
R160
47K
R153
22K
R158
47K
C94
NC
R157
1K
1
G
2D
3S
U16
BT2301
C38
102 +
CE3
47U/16 mini
C41
104
L2
FB1K
R147
10K
R211 47K
12 S12
SYS_RESET
1 2
R212 68K 1%
D9
ESD
D10
ESD
C149 560P
C151 560P
C157 104
C160 104
R91 10K
MOSI
CLK
CSB
MISO
GND
R89
100K
R90 10K
R78
0
1GND
2AIO0
3PIO14
4PIO15
5PIO16
6PIO17
7PIO10
8SCL
9PIO11
10 PIO12
11 PIO13
12 SPI/PCM
13 GND
14 PIO3/PCM_OUT/MISO
15 PIO2/PCM_IN/MOSI
16 PIO5/PCM_CLK/CLK
17 PIO4/PCM_SYNC/CSB
18 GND
48
MIC_BIAS 47
GND 46
PIO31_LED2 45
PIO18 44
PIO21 43
PIO6 42
PIO7 41
PIO8/UART_RTS 40
PIO1/UART_TX 39
PIO0/UART_RX 38
PIO9/UART_CTS 37
GND 36
USB_DP 35
USB_DN 34
GND 33
3V3_OUT 32
VDD 31
1V8_OUT
49
LINE_AN
50
LINE_AP
51
LINE_BN
52
LINE_BP
53
AGND
54
SPR_RN
55
SPR_RP
56
SPR_LN
57
SPR_LP
58
GND
59
RF
60
GND
30 GND 29 VBAT 28 VBAT_SENSE 27 CHG_EXT 26 VBUS 25 GND 24 VREGENABLE 23 PIO29/LED0 22 PIO30/LED1 21 GND 20 RESET 19 GND
U5
BM830
R92
47K
R66 1K
TP1
ESD1
ESD
R38 1K
R45 1K
C1
5P
C2
NC
C5
NC
C36
105
C27
104
C28
104
C34
104
3
21
48
U2-A
MC4558
5
67
U2-B
MC4558
R25
47K1%
R24
47K1%
C7
105
C6
105
R34
47K1%
C12
225
R6
47K1%
R49
10
C17
104 C21
10UF
R4
47K1%
R1
47K1%
C4
105
C3
105
R8
47K1%
C11
225
R33
24K
R5
47K1%
R40
24K
C15
33P
R50
10K
R39
10K
C22
10UF
C16
104
+
CE5
47U/16 mini
C105
102 R171
22K R172
43K1%
C120
104 R173
10
R168
7.68K1%
C126
104
+
CE10
220U/10 LESRmini
L9 4.7UH/5A
C121
102
C112
D12
ESD
D13
ESD
1AAM
2IN
3SW
4GND 5
BST
6
EN
7
VCC
8
FB
U17
MP1495
R163
91K
R166
10K
C106
104
R53 33
R59 33
R167
33K
+
CE11
100U/16 MINI
C136
104
Q4
9014
R113
47K
R97
22K
R96
47K
C44
NC
R112
1K
Q5
A8550
21
D6
1N4148
Q8
A8550
3
1
2Q6
9014
R165
1K R170
47K R161
10K
C100
10U
1
2
3
JK3
DC_JACK
R169
0
R135
10K
R149
10K
R84
47K
1POWER
2DATA-
3DATA+
4
5GND
6
GND
JK4
POWER
DATA-
DATA+
GND
GND
JK5
C33
10UF
R32
22K
VBAT
C85
475
1ANT
2G1
3G2
ANT1
BTANT
1
2
3
4
5
6SW1
SW_6PIN
3IN
1ADJ
2
OUT1 4
OUT2
U6
AS1117_3.3V
1
OUT
2
GND
3
OC
4EN
5IN
U21
G524
C82
475
C101
10U
1
2
CN19
2PIN 2.5 90
1
2
CN7
2PIN 2.5 90
1VIN
2GND
3EN 4
ADJ
5
VO
U25
AS2930
R251
10K
Q11
9014
R256
22K
R258
1K
Q12
A8550
R255
47K
R259
10K
R260
10K
R261
100K
R152
10K
R156
10K
R155
6.2K
R146
6.2K
C89
100P
C79
100P
1
2
3
4
5
6
7
8
CN14
8PIN 1.5 SMD
C111
102
1
2
3
4
5
6
7
8
CN9
8PIN 1.5 ST
1
2
3
4
CN1
4PIN 2.0 90
R9
10K
C29
10U
1
VCC
2
NO1
3COM1 4IN1 5NC1
6GND
7NC2
8
IN2
9
COM2
10
NO2
U7
DIO3712
1
VCC
2
NO1
3COM1 4IN1 5NC1
6GND
7NC2
8
IN2
9
COM2
10
NO2
U8
DIO3712
1
2
3
4
5
JK1
PJ-306
Z2
ESD
Z1
ESD
1
2
3
4
5
6
7
8
9
CN25
9 PIN 1.5 MM
ESD3
ESD
ESD4
ESD
ESD5
ESD
ESD6
ESD ESD7
ESD ESD8
ESD
1
2
3
4
5
6
7
8
9
CN20
9 PIN 1.5 MM
R3 1K
R20
22K
C30
NC
[2] 12V
[2]
12V
[2] 12V
[2] 12V
[2]
AVDD_3.3V
[1]
AD_MCLK
[1,2]
PDN
[1]
AD_LRCK
[1]
AD_SCLK
[1]
AD_SDTO
[1]
SDA1 [1]
SCL1
[1]
RESET_DSP
[2]
DVDD_3.3V
[2]
12V
[1,2]
P5V
[2] AVDD_3.3V
[2] DVDD_3.3V
[1] P3.3V
[1,2] P5V
[1]
P
OWER_EN
[2]
12V
[1,2] MCU_3.3V
[1]
5V
[2] BT3.3V
[1]
BKND_ERROR
[1,2]
MCU_3.3V
[2]
SPK_LP
[2]
SPK_LN
[2] BT_DP
[2] BT_DN
[2] SPK_RP
[2]
SPK_RN
[1]
BT_POW_CONTROL
[2]
SPK_LN
[2]
SPK_LP
[2]
VREF2
[1,2]
P5V
[2]
SPK_RN
[2]
SPK_RP
[2]
VREF2
[1] BT_L
[1] BT_R
[2]
VREF2
[2]
BT3.3V
[2] VDD_BT
[2]
VDD_BT
[2] 1.8V
[2] 1.8V
[2]
BT3.3V
[2]
BT_DP
[2]
BT_DN
[1]
MCU_D- [1]
MCU_D+
[1,2]
MCU_3.3V
[1]
DST
[1]
AD1
[1]
FM_ANT
[2]
12V
[2]
12V
[1]
FM_EN
[1] FM_3.3V
[1] FN1
[1]
BT_STATUS_PAIR
[1]
BT_STATUS
[1] BT_AUDIO_EN
[1,2]
P5V
[1,2]
PDN
[1,2]
MCU_3.3V
[1,2]
MCU_3.3V
[1,2]
P5V
[1] BT_UPDATE
[1]
UPDT
[1]
AUX_L
[1]
AUX_R
[2] 12V
[1] TONE
17 17

18 18
CS0
5V
GND
BACKLIGHT_EN
DATA1
WR1
CS1
GRES
RD
R217
100
R216
100
R215
100
R231 100
R233 100 R235 100
R219
10K
C154
10U C153
104
R230
10K
C158
10U C159
104
R218
12/1206
Q10
9014
R221
47K
R224
10K
R223
47K
R222
1K
G
D
S
U23
BT2301
LED+
LED-
12
FM
BTBZ
AM PM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
LCD1
LCD_ACS1UP2
12
RM1
LXD_GB5
R214
100K
R213
3.3K
R241 22K
R242 22K
R243 22K
R244 22K
R245 22K
R246 22K
1
SEG7
2
SEG6
3
SEG5
4
SEG4
5
SEG3
6
SEG2
7
SEG1
8
SEG0
9
CS
10
RD
11
WR
12
DATA
13
VSS
14
OSC0
15
OSC1
16
VLCD
17
VDD
18
IRQ
19
BZ
20
BZ
21
COM0
22
COM1
23
COM2
24
COM3
25 SEG31 26 SEG30 27 SEG29 28 SEG28 29 SEG27 30 SEG26 31 SEG25 32 SEG24 33 SEG23 34 SEG22 35 SEG21 36 SEG20 37 SEG19 38 SEG18 39 SEG17 40 SEG16 41 SEG15 42 SEG14 43 SEG13 44 SEG12 45 SEG11 46 SEG10 47 SEG9 48 SEG8
U24
HT1621B
1SEG7
2SEG6
3SEG5
4SEG4
5SEG3
6SEG2
7SEG1
8SEG0
9CS
10 RD
11 WR
12 DATA
13 VSS
14 OSC0
15 OSC1
16 VLCD
17 VDD
18 IRQ
19 BZ
20 BZ
21 COM0
22 COM1
23 COM2
24 COM3 25
SEG31
26
SEG30
27
SEG29
28
SEG28
29
SEG27
30
SEG26
31
SEG25
32
SEG24
33
SEG23
34
SEG22
35
SEG21
36
SEG20
37
SEG19
38
SEG18
39
SEG17
40
SEG16
41
SEG15
42
SEG14
43
SEG13
44
SEG12
45
SEG11
46
SEG10
47
SEG9
48
SEG8
U22
HT1621B
ESD14
ESD
ESD15
ESD
ESD16
ESD
ESD17
ESD
ESD18
ESD
ESD19
ESD
ESD20
NC
ESD21
NC
1
2
3
4
5
6
7
8
9
CN2
R48
100
R62 22K
ESD22
NC
R74 100
ESD23
NC
Q1
9014
M9
M10
R85
NC
[3]
LCD_5V
[3] LCD_5V
[3] COM0
[3] COM1
[3] COM2 [3] COM3
[3]
COM0
[3]
COM1
[3]
COM2
[3]
COM3
[3] LCD_5V
[3] BK_EN
[3]
BK_EN
[3]
LCD_5V
SCHEMATIC DIAGRAM - LCD BOARD

LAYOUT DIAGRAM - MAIN BOARD
19 19

LAYOUT DIAGRAM - LCD BOARD
2020
