Jbl Northridge e series User manual

E30, E50, E60, E80, E90,

E100, EC35

NORTHRIDGE™E SERIES

OWNER’S GUIDE

5–6 ft.

(1.5m–1.8m)

MODELS: E30, E50

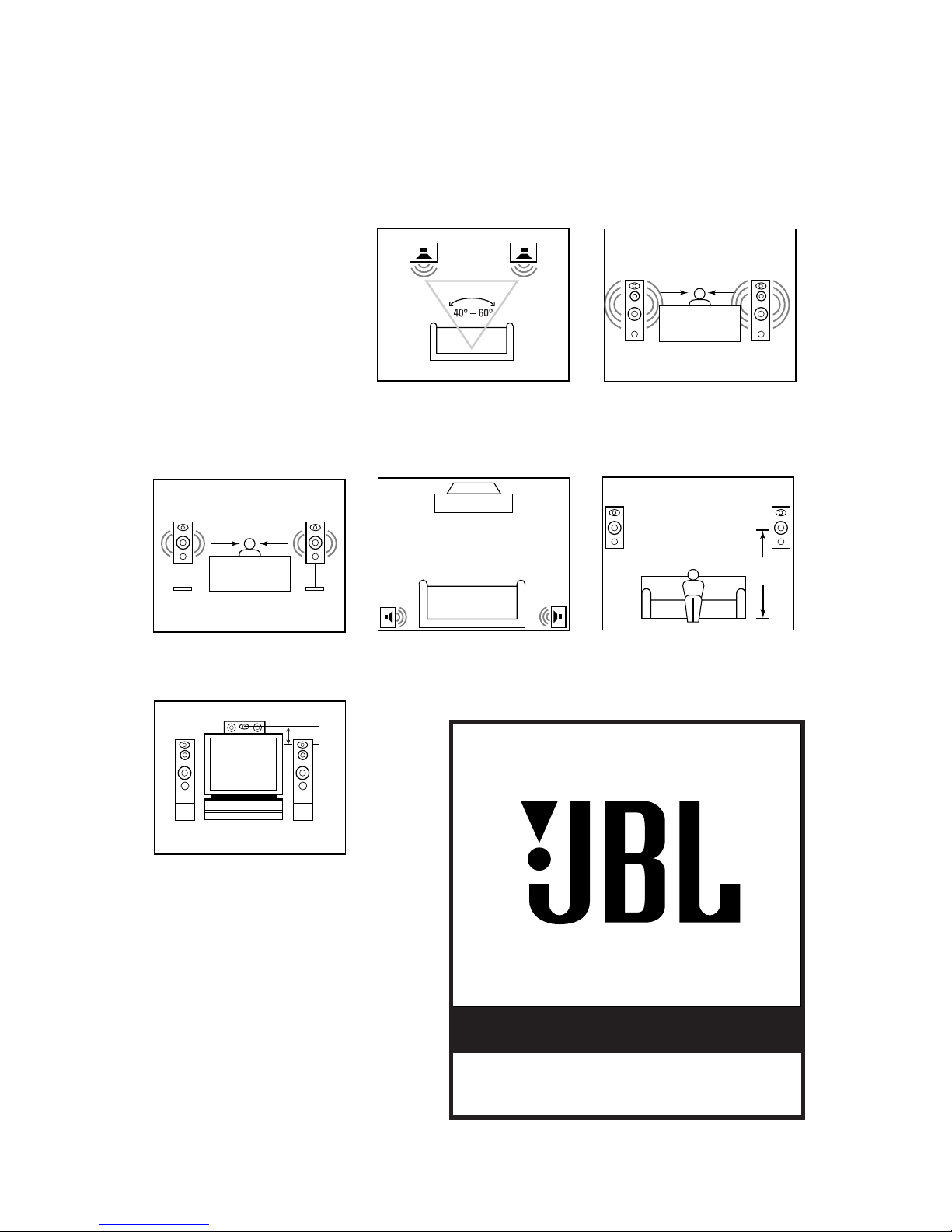

SPEAKER PLACEMENT

Proper placement of the

speakers is an important step

in obtaining the most realistic

soundstage possible. These

recommendations are for the

optimum placement of the

loudspeakers. Use these

placement recommendations

as a guide. Slight variations

will not diminish your listening

pleasure.

All of the Northridge E Series

loudspeakers referred to in

this guide are video shielded

and can safely be placed near

a television.

As front speakers

MODELS: E60, E80, E90, E100

As surround speakers

MODEL: EC35

(0–0,6m)

The EC35 center channel

loudspeaker is designed to

complement all of the

Northridge E Series loud

speakers. It is the ideal way to

re create the cinematic expe

rience in your home.

MODELS: E30,

E50, E60, E80,

E90, E100

MODEL: EC35

Speakers and electronics ter

minals have corresponding (+)

and (–) terminals. It is impor

tant to connect both speakers

identically: (+) on the speaker

to (+) on the amplifier and (–)

on the speaker to (–) on the

amplifier. Wiring “out of

phase” results in thin sound,

weak bass and poor imaging.

To use the binding post

speaker terminals, unscrew

the colored collar until the

pass through hole in the cen

ter post is visible. Insert the

bare end of the wire through

this hole; then screw the collar

down until the connection

is tight.

The hole in the center of each

collar is intended for use with

banana type connectors. To

comply with European CE cer

tification, these holes are

blocked with plastic inserts at

the point of manufacture. To

use banana type connectors

requires the removal of the

inserts. Do not remove these

inserts if you are using the

product in an area covered by

the European CE certification.

BI-WIRING

The bi wire connection

method requires one amplifier

and two sets of speaker wires.

By removing the shorting bars,

connections may be made to

the individual network

sections

using four conductors,

one for

each of the four terminals.

For single wire connection,

leave the shorting bars in

place and connect only a sin

gle set of speaker wires (two

conductors) to the two upper

terminals.

Bi Wire Connections

MODELS: E30, EC35, E50

The supplied self adhesive

rubber feet may be attached

to the bottom corners of your

speakers to protect your

furniture.

MODELS: E60, E80, E90,

E100

These models feature four

rubber feet that enable them to

be placed on a smooth

surfaced floor, such as tile or

hardwood. Four metal spikes

are supplied for use when the

speaker is to be placed on a

carpeted surface, to decouple

the speaker from the floor and

prevent unwanted damping. To

insert the spikes, gently lay the

speaker on its side (not its

front or back) on a soft,

nonabrasive surface. Each

spike screws into the threaded

insert in the center of each

rubber foot. Make sure all

four spikes are screwed in

completely for stability.

NEVER drag the speaker to

move it, as this will damage

the spikes, the feet and/or the

wood cabinet itself. Always lift

the speaker and carry it to its

new location.

CAUTION: Floorstanding

(tower) loudspeakers have a

high center of gravity and may

become unstable and tip over

during earthquakes, or if

rocked, tipped or improperly

positioned. If this is a concern,

these speakers should be

anchored to the wall behind

them, using the same proce

dures and hardware custom

ary for anchoring bookcases

and wall units. The customer is

responsible for proper installa

tion and proper selection of

hardware.

– +

Amplifier

High Frequency

Low Frequency

Receiver

Speaker Outputs

– +

CENTER

– +

–+–+

–+

Receiver’s Speaker Outputs

LEFT

RIGHT

–+

SPEAKER CONNECTIONS

TROUBLESHOOTING

If there is no sound from

any of the speakers:

• Check that receiver/ampli

fier is on and that a source is

playing.

• Review proper operation of

your receiver/amplifier.

If there is no sound com-

ing from one speaker:

• Check the “Balance”

control on your receiver/

amplifier.

• Check all wires and connec

tions between receiver/

amplifier and speakers.

• Make sure no wires are

touching other wires or

terminals and creating a short

circuit.

• Make sure all wires are

connected. Make sure none

of the speaker wires are

frayed, cut or punctured.

• In Dolby* Digital or DTS®

modes, make sure that the

receiver/processor is config

ured so that the speaker in

question is enabled.

• Turn off all electronics and

switch the speaker in ques

tion with one of the other

speakers that is working cor

rectly. Turn everything back

on, and determine whether

the problem has followed the

speakers, or has remained in

the same channel. If the prob

lem is in the same channel,

the source of the problem is

most likely with your receiver

or amplifier, and

you should

consult the owner’s manual for

that product for

further information.

If the prob

lem has followed the speaker,

consult your dealer for further

assistance or, if that is not

possible, visit www.jbl.com

for further

information.

If the system plays at

low volumes but shuts

off as volume is

increased:

• Check all wires and connec

tions between receiver/

amplifier and speakers.

• Make sure all wires are

connected. Make sure none

of the speaker wires are

frayed, cut or punctured.

• If more than one pair of

main speakers is being used,

check the minimum imped

ance requirements of your

receiver/amplifier.

If there is no (or low)

bass output:

• Make sure the polarities

(+ and –) of the left and right

“Speaker Inputs” are

connected properly.

• Consider adding a powered

subwoofer to your system for

use with digital “.1” surround

formats.

If there is no sound from

the surround speakers:

• Check all wires and connec

tions between receiver/

amplifier and speakers. Make

sure all wires are connected.

Make sure none of the

speaker wires are frayed,

cut or punctured.

• Review proper operation of

your receiver/amplifier and its

surround sound features.

• Make sure the movie or TV

show you are watching is

recorded in a surround sound

mode. If it is not, check to see

whether your receiver/ ampli

fier has other surround

modes you may use.

• In Dolby Digital or DTS

modes, make sure your

receiver/processor is config

ured so that the surround

speakers are enabled.

• Review the operation of your

DVD player and the jacket of

your DVD to make sure that the

DVD features the desired

Dolby Digital or DTS mode,

and that you have properly

selected that mode using both

the DVD player’s menu and the

DVD disc’s menu.

Declaration of Conformity

We, Harman Consumer International

2, route de Tours

72 00 Chateau-du-Loir

France

declare in own responsibility that the products

described in this owner’s manual are in compliance

with technical standards:

EN 0081-1:1992

EN 0082-1:1997

Gary Mardell

Harman Consumer International

Chateau-du-Loir, France 8/03

E30 E50 E60 E80 E90 E100 EC35

Description Description Description Description Description Description Description

2 Way 6" bookshelf 3 Way, 8" 3 Way 8" 3 Way dual 3 Way dual 3 Way dual 3 Way dual

horizontal/vertical floorstanding 6" floorstanding 8" floorstanding 10" floorstanding 5" center

mirror image bookshelf

Max. Recommen e Max. Recommen e Max. Recommen e Max. Recommen e Max. Recommen e Max. Recommen e Max. Recommen e

Amplifier Power** Amplifier Power** Amplifier Power** Amplifier Power** Amplifier Power** Amplifier Power** Amplifier Power**

125W 175W 175W 200W 225W 250W 150W

Power Han ling Power Han ling Power Han ling Power Han ling Power Han ling Power Han ling Power Han ling

(Continuous/Peak) (Continuous/Peak) (Continuous/Peak) (Continuous/Peak) (Continuous/Peak) (Continuous/Peak) (Continuous/Peak)

70W/280W 90W/360W 90W/360W 100W/400W 110W/440W 125W/500W 75W/300W

Nominal Impe ance Nominal Impe ance Nominal Impe ance Nominal Impe ance Nominal Impe ance Nominal Impe ance Nominal Impe ance

8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms

Sensitivity (2.83V/1m) Sensitivity (2.83V/1m) Sensitivity (2.83V/1m) Sensitivity (2.83V/1m) Sensitivity (2.83V/1m) Sensitivity (2.83V/1m) Sensitivity (2.83V/1m)

88dB 90dB 90dB 91dB 91dB 91dB 91dB

Frequency Frequency Frequency Frequency Frequency Frequency Frequency

Response (–3 B) Response (–3 B) Response (–3 B) Response (–3 B) Response (–3 B) Response (–3 B) Response (–3 B)

50Hz – 20kHz 45Hz – 20kHz 40Hz – 20kHz 38Hz – 20kHz 36Hz – 20kHz 33Hz – 20kHz 75Hz – 20kHz

Crossover Crossover Crossover Crossover Crossover Crossover Crossover

Frequency Frequencies Frequencies Frequencies Frequencies Frequencies Frequencies

4000Hz 800Hz, 3200Hz 1000Hz, 4000Hz 300Hz, 4000Hz 300Hz, 4000Hz 1000Hz, 5000Hz 800Hz, 3200Hz

High-Frequency High-Frequency High-Frequency High-Frequency High-Frequency High-Frequency High-Frequency

Trans ucer Trans ucer Trans ucer Trans ucer Trans ucer Trans ucer Trans ucer

19mm Titaniumlaminate 19mm Titaniumlaminate 19mm Titaniumlaminate 19mm Titaniumlaminate 19mm Titaniumlaminate 19mm Titaniumlaminate 19mm Titaniumlaminate

dome, shielded dome, shielded dome, shielded dome, shielded dome, shielded dome, shielded dome, shielded

Mi range Trans ucer Mi range Trans ucer Mi range Trans ucer Mi range Trans ucer Mi range Trans ucer Mi range Trans ucer Mi range Trans ucer

NA 100mm PolyPlas,™ 100mm PolyPlas,™ 100mm PolyPlas,™ 100mm PolyPlas,™ 100mm PolyPlas,™ 75mm PolyPlas,™

shielded shielded shielded shielded shielded shielded

Low-Frequency Low-Frequency Low-Frequency Low-Frequency Low-Frequency Low-Frequency Low-Frequency

Trans ucer Trans ucer Trans ucer Trans ucers Trans ucers Trans ucers Trans ucers

170mm PolyPlas,™ 200mm PolyPlas,™ 200mm PolyPlas,™ Dual 170mm PolyPlas,™ Dual 200mm PolyPlas,™ Dual 250mm PolyPlas,™ Dual 133mm PolyPlas,™

shielded shielded shielded shielded shielded shielded shielded

Baffle Baffle Baffle Baffle Baffle Baffle Baffle

Low diffraction, Low diffraction, Low diffraction, Low diffraction, Low diffraction, Low diffraction, Low diffraction,

IsoPower™ IsoPower™ IsoPower™ IsoPower™ IsoPower™ IsoPower™ IsoPower™

Port Ports Port Port Port Port Port

FreeFlow™ flared Dual FreeFlow™ flared FreeFlow™ flared FreeFlow™ flared FreeFlow™ flared FreeFlow™ flared FreeFlow™ flared

Network Network Network Network Network Network Network

Straight Line Straight Line Straight Line Straight Line Straight Line Straight Line Straight Line

Signal Path™ (SSP) Signal Path™ (SSP) Signal Path™ (SSP) Signal Path™ (SSP) Signal Path™ (SSP) Signal Path™ (SSP) Signal Path™ (SSP)

Terminals Terminals Terminals Terminals Terminals Terminals Terminals

Gold plated, 5 way Gold plated, 5 way Gold plated, 5 way Gold plated, 5 way Gold plated, 5 way Gold plated, 5 way Gold plated, 5 way

binding posts, bi wirable binding posts, bi wirable binding posts, bi wirable binding posts, bi wirable binding posts, bi wirable binding posts, bi wirable binding posts, bi wirable

Dimensions (H x W x D) Dimensions (H x W x D) Dimensions (H x W x D) Dimensions (H x W x D) Dimensions (H x W x D) Dimensions (H x W x D) Dimensions (H x W x D)

381mm x 213mm x 305mm 292mm x 445mm x 311mm 927mm x 251mm x 305mm 927mmx 213mm x 343mm 1022mm x 251mm x 368mm 1067mm x 311mm x 368mm185mm x 558mm x 264mm

Weight Per Speaker Weight Per Speaker Weight Per Speaker Weight Per Speaker Weight Per Speaker Weight Per Speaker Weight Per Speaker

16.3 lb/7.4kg 25 lb/11.4kg 35 lb/15.9kg 40 lb/18.2kg 48 lb/21.8kg 55 lb/25kg 22 lb/10kg

SPECIFICATIONS

* Trademarks of Dolby Laboratories.

DTS is a registered trademark of Digital Theater Systems, Inc.

** The maximum recommended amplifier power rating will ensure

proper system headroom to allow for occasional peaks. We do not

recommend sustained operation at these maximum power levels.

All features and specifications are subject to change without notice.

All dimensions include grilles and feet, but not spikes.

JBL is a registered trademark of Harman International Industries, Incorporated.
