Overview

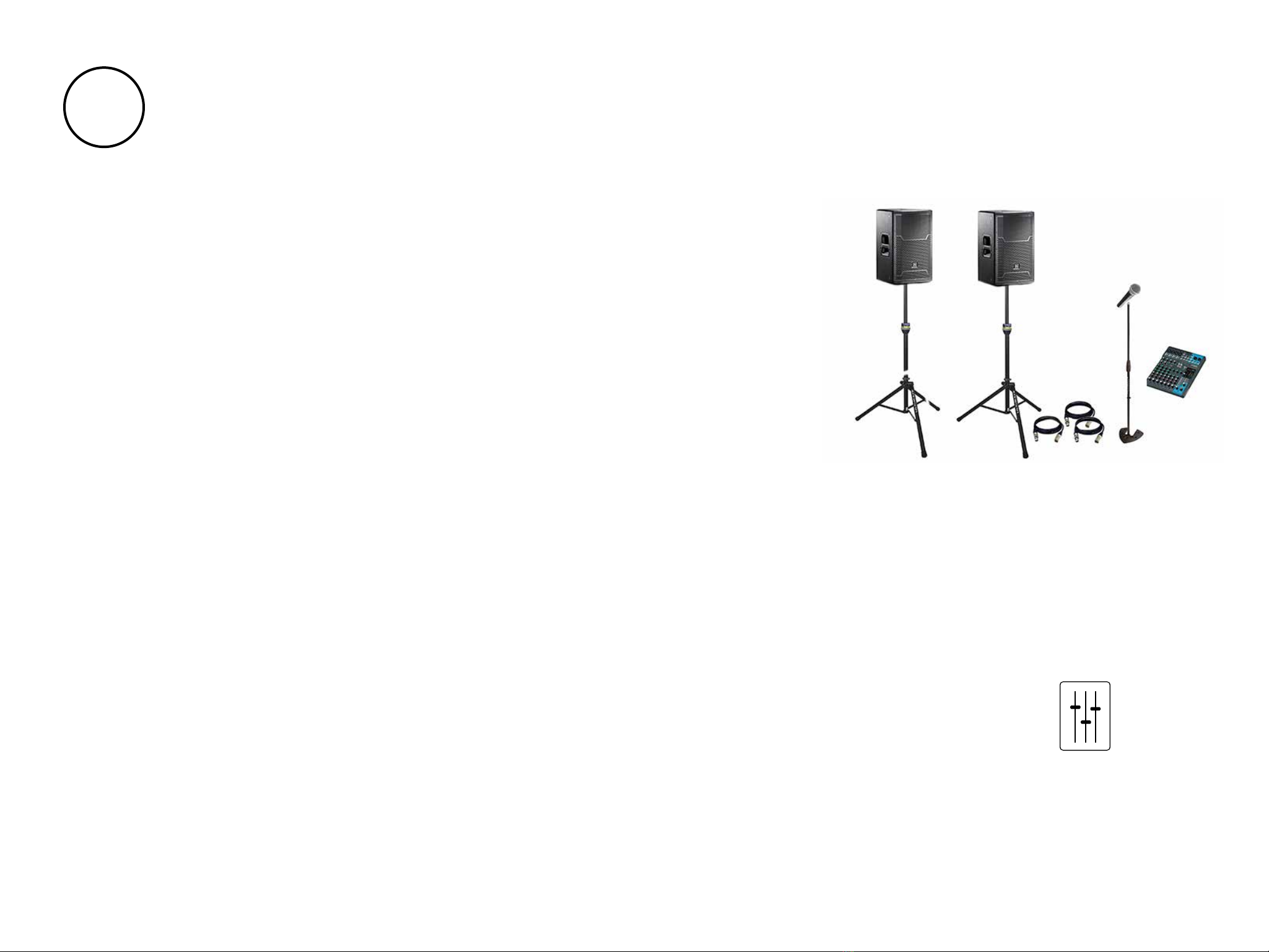

This simple sound system package includes two powered speakers, a small mixer,
a wired mic, along with all speaker, mic, and power cables needed.
Read on for helpful
hints in putting the
sound system together.

WAGER AUDIO
text: 503-799-5964
email: [e-mail]
1 Speaker stands
Determine best speaker placement for your audience. Expand the tripod
to a safe, wide stance.
The silver tube should be
out and secured in place.
This is where the speaker
mounts to the pole.
Twist to raise, lower, or
lock the stand in place.
Secure the silver bar

WAGER AUDIO
text: 503-799-5964
email: [e-mail]
2 For each speaker
Carefully place
each speaker on
tripod stand.
Connect Input 1
cable with mixer,
using “left” and
“right” respective to
each speaker
SAFETY TIP: Ask a
friend to help!
Connect power
cable (may
need provided
extension cord)
NOTE: Keep the
power switched off
until set up complete

WAGER AUDIO
text: 503-799-5964
email: [e-mail]
3 Mixer
Plug in mic cable(s)
starting with Channel 1
Connect power cable
Power switch
Plug cable from speakers
to “left” and “right”
Plug cable
from music
source, if
any (iPod,
etc)
Master volume
(red knob)

WAGER AUDIO
text: 503-799-5964
email: [e-mail]
4 Microphone(s)
WIRED MIC
Plug in the
power cable
Plug one end to mic
and the opposite end
of a mic cable to the
mixer (see previous
page)
WIRELESS MIC
minimum one included optional add-on
Plug in the opposite
end of a mic cable
to the mixer (see
previous page)

WAGER AUDIO
text: 503-799-5964
email: [e-mail]
5 Powering up
1. Conrm the volume controls on mixer and
speakers are turned all the way down.
2. Power up the mixer.
3.AFTER turning on mixer, set these three knobs on
the back of the speakers to 12:00 position
3. Next, turn on power switches on the speakers.
(and wireless mic unit if you have one.)

WAGER AUDIO
text: 503-799-5964
email: [e-mail]
6 Sound check
At this point, you should have cables connected
and power to each piece of equipment.
Play a track on your iPod, laptop, etc. to test you
have music playback.
Speak into each mic you have to ensure there is
signal and sound.
TROUBLESHOOTING
• Check that cable connections are secure to and
from equipment
• Check that mixer’s Master volume (red knob) is up
• Check three signal knobs on the back of the speaker
are set to 12:00 position. (May adjust if needed but
start there)
• Check that music is playing on your device and
check the volume setting
