JBL SCS 135 User manual

JBL Consumer Products
250 Crossways Park Drive, Woodbury, NY 11797
8500 Balboa Boulevard, Northridge, CA 91329
800-336-4JBL (4525) (USA only)
www.jbl.com
©2000 JBL, Incorporated.
JBL is a registered trademark of JBL, Incorporated.
Part No.
ai5075
Refinements may be made on occasion to existing products without notice, but will always meet
or exceed original specifications unless otherwise stated.
Simply Cinema is a registered trademark of JBL, Incorporated.
* Dolby and Pro Logic are trademarks of Dolby Laboratories.
DTS is a registered trademark of Digital Theater Systems, Inc.
SCS135 System
Frequency Response
35Hz – 20kHz (–6dB)
Satellites
Recommended Power:
10 – 50 watts
Impedance:
8 ohms nominal
Sensitivity:
86dB @ 1 watt/1 meter
Tweeter:
One 13mm (1/2") titanium-lami-
nate dome, video-shielded
Midrange:
One 76mm (3") driver,
video-shielded
Dimensions (H x W x D):
111mm x 81mm x 95mm
4-3/8" x 3-3/16" x 3-3/4"
Weight:
0.5kg/1.1 lb
Center
Recommended Power:
10 – 50 watts
Impedance:
8 ohms nominal
Sensitivity:
86dB @ 1 watt/1 meter
Tweeter:
One 13mm (1/2") titanium-lami-
nate dome, video-shielded
Midrange:
Dual 76mm (3") drivers,
video-shielded
Dimensions (H x W x D):
83mm x 194mm x 95mm
3-1/4" x 7-5/8" x 3-3/4"
Weight:
0.86kg/1.89 lb
Subwoofer
Amplifier:
100 watts RMS
Bass:
203mm (8") woofer, bass-reflex
enclosure
Dimensions (H x W x D):
381mm x 330mm x 356mm
15" x 13" x 14"
Weight:
13.6kg/30 lb
OWNER’S GUIDE
PRODUCT LINE:
SCS135 (220-240V)
DESIGN GOAL: Bring the thrill of live performance and movie sound to the
home environment by calling on JBL’s professional engineering leadership.
SATELLITE TYPE: Titanium-laminate-dome tweeter, sealed enclosure
SUBWOOFER TYPE:Bass-reflex enclosure
PORT DESIGN: FreeFlow™ flared
PROFESSIONAL REFERENCE: Cinema Loudspeaker Series
®
MODEL
NUMBER:
PRO SOUND
COMES HOME™
SPECIFICATIONS

X + 0 + Y
2
0M
HZ
OWNER’S GUIDE
PRODUCT LINE:
SCS135 (220-240V)
DESIGN GOAL: Bring the thrill of live performance and movie sound to the
home environment by calling on JBL’s professional engineering leadership.
SATELLITE TYPE: Titanium-laminate-dome tweeter, sealed enclosure
SUBWOOFER TYPE:Bass-reflex enclosure
PORT DESIGN: FreeFlow™ flared
PROFESSIONAL REFERENCE: Cinema Loudspeaker Series
®
MODEL
NUMBER:

2
READ THIS! Important Safety Precautions!
1. Read Instructions. All the safety and
operating instructions should be read
before the product is operated.
2. Retain Instructions. The safety and
operating instructions should be retained
for future reference.
3. Heed Warnings. All warnings on the
product and in the operating instructions
should be adhered to.
4. Follow Instructions. All operating and
use instructions should be followed.
5. Water and Moisture. The product
should not be used near water – for
example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet base-
ment, or near a swimming pool, and the
like.
6. Accessories. Do not place this product
on an unstable cart, stand, tripod, brack-
et, or table. The product may fall, causing
serious injury to a child or adult, and seri-
ous damage to the product. Use only with
a cart, stand, tripod, bracket, or table rec-
ommended by the manufacturer, or sold
with the product. Any mounting of the
product should follow the manufacturer’s
instructions, and should use a mounting
accessory recommended by the manu-
facturer.
7. Wall or Ceiling Mounting. The product
should be mounted on a wall or ceiling
only when and as recommended by the
manufacturer.
8. Ventilation. Slots and openings in the
cabinet are provided for ventilation and
to ensure reliable operation of the prod-
uct and to protect it from overheating,
and these openings must not be blocked
or covered. The openings should never
be blocked by placing the product on a
bed, sofa, rug, or other similar surface.
This product should not be placed in a
built-in installation such as a bookcase or
rack unless proper ventilation is provided
or the manufacturer’s instructions have
been adhered to.
9. Heat. The product should be situated
away from heat sources such as radia-
tors, heat registers, stoves, or other prod-
ucts that produce heat. If placed near an
amplifier, check with the manufacturer
for applicability.
10. Power Sources. This product should
be operated only from the type of power
source indicated on the marking label. If
you are not sure of the type of power
supply to your home, consult your prod-
uct dealer or local power company. For
products intended to operate from bat-
tery power, or other sources, refer to the
operating instructions.
11. Grounding or Polarization. This prod-
uct may be equipped with a polarized
alternating-current line plug (a plug hav-
ing one blade wider than the other). This
plug will fit into the power outlet only one
way. This is a safety feature. If you are
unable to insert the plug fully into the out-
let, try reversing the plug. If the plug
should still fail to fit, contact your electri-
cian to replace your obsolete outlet. Do
not defeat the safety purpose of the
polarized plug.
12. Power-Cord Protection. Power-supply
cords should be routed so that they are
not likely to be walked on or pinched by
items placed upon or against them, pay-
ing particular attention to cords at plugs,
convenience receptacles, and the point
where they exit from the product.
13. Cleaning. Unplug this product from
the wall outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
14. Nonuse Periods. The power cord of
the product should be unplugged from
the outlet when left unused for long peri-
ods of time.
15. Lightning. For added protection for
this product during a lightning storm, or
when it is left unattended and unused for
long periods of time, unplug it from the
wall outlet and disconnect the antenna or
cable system. This will prevent damage
to the product due to lightning and
power-line surges.
16. Overloading. Do not overload wall
outlets, extension cords, or integral con-
venience receptacles, as this can result
in a risk of fire or electric shock.
17. Object and Liquid Entry. Never push
objects of any kind into this product
through openings, as they may touch
dangerous voltage points or short-out
parts that could result in a fire or electric
shock. Never spill liquid of any kind on
the product.
18. Damage Requiring Service. Unplug
this product from the wall outlet and refer
servicing to qualified service personnel
under the following conditions:
a. The power-supply cord or the plug has
been damaged; or
b. Objects have fallen, or liquid has been
spilled into, the product; or
c. The product has been exposed to rain
or water; or
d. The product does not operate normally
when following the operating instruc-
tions. Adjust only those controls that
are covered by the operating instruc-
tions, as an improper adjustment of
other controls may result in damage
and will often require extensive work
by a qualified technician to restore the
product to its normal operation; or
e. The product has been dropped, or the
enclosure damaged; or
f. The product does not appear to oper-
ate normally or exhibits a marked
change in performance.
19. Attachments. Do not use attachments
not recommended by the product manu-
facturer, as they may cause hazards.
20. Replacement Parts. When replace-
ment parts are required, be sure the ser-
vice technician has used replacement
parts specified by the manufacturer or
that have the same characteristics as the
original part. Unauthorized substitutions
may result in fire, electric shock or other
hazards.
21. Safety Check. Upon completion of any
service or repairs to this product, ask the
service technician to perform safety
checks to determine that the product is in
proper operating condition.
22. Servicing. Do not attempt to service
this product yourself, as opening or
removing covers may expose you to dan-
gerous voltage or other hazards. Refer all
servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To prevent electric shock,
do not remove the grounding plug
on the power cord, or use any plug
or extension cord that does not have
a grounding plug provided.
Make certain that the
AC outlet is properly grounded.
Do not use an adapter plug
with this product.
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
Declaration of Conformity
We, Harman Consumer International
2, route de Tours
72500 Château-du-Loir
France
declare in own responsibility, that the product
described in this owner’s manual is in compli-
ance with technical standards:
EN 60065:1993
EN 55013/A12/8.1994
EN 55020/12.1994
EN 61000-3-2/4.1995
EN 61000-3-3/1.1995
Steen Michaelsen
JBL Europe A/S
Harman Consumer International
France, 4/00

3
INCLUDED
Four satellites for left, right and
surrounds. Wall-mount brackets.
One center-channel speaker with
adjustable support leg.
Powered subwoofer.
For more than 50 years, JBL
has been involved in every
aspect of music and film
recording and reproduction,
from live performances to the
recordings you play in your
home, car or office.
We’re confident that the JBL
system you have chosen will
provide every note of enjoment
that you expected – and that
when you think about purchas-
ing additional audio equipment
for your home, car or office,
you will once again choose
JBL.
Please take a moment to com-
plete the enclosed profile card.
It enables us to keep you post-
ed on our latest advancements,
and helps us to better under-
stand our customers and build
products that meet their needs
and expectations.
JBL Consumer Products
THANK YOU FOR CHOOSING JBL

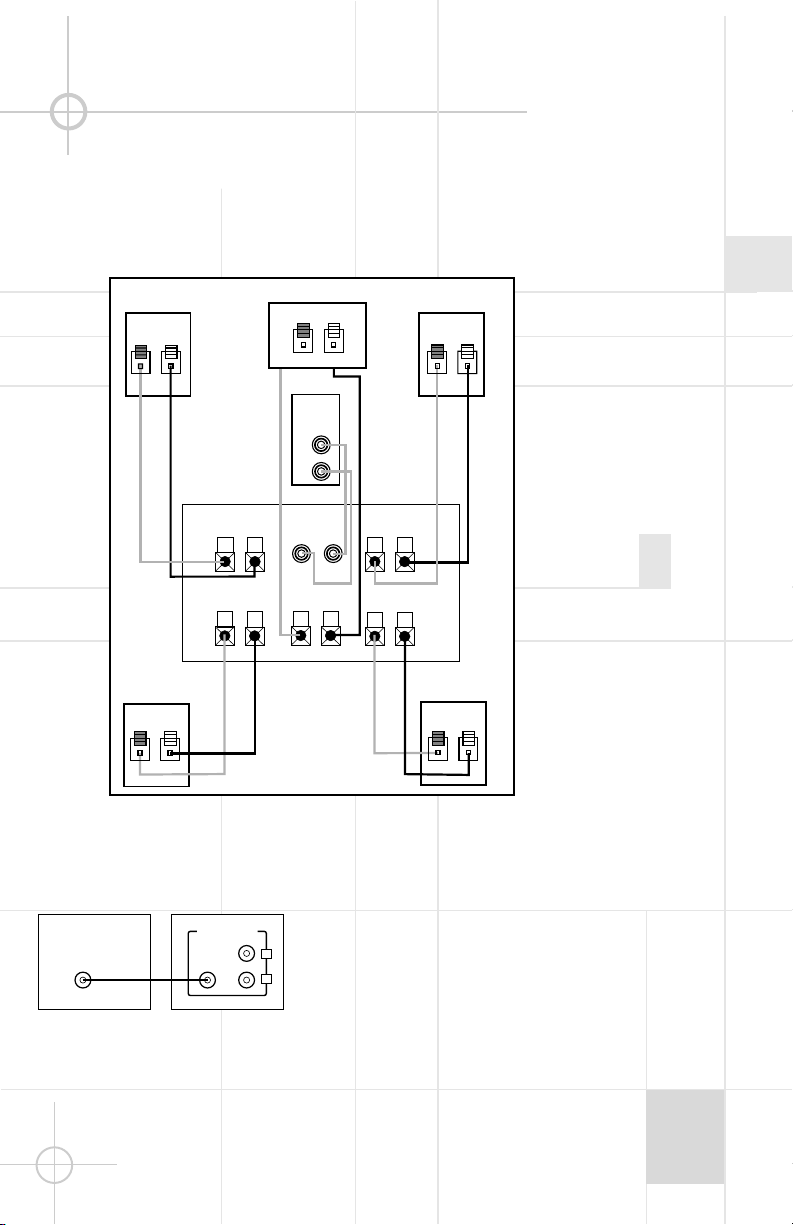

Two 6.1-meter (20-foot) speaker
cables for connection from
receiver to subwoofer.
Two 4.6-meter (15-foot) speaker
cables for connection from
subwoofer to front speakers.
Three 12.2-meter (40-foot)
speaker cables for connection
from receiver to left and right
rear satellites and center
speaker.

4
Subwoofer
Surround Speakers
1.52 – 1.83m
(5 – 6 ft.)
Front Speakers
0 –0.61m (0 –2 ft.)
The front speakers should be
placed the same distance from
each other as they are from
the listening position. They
should be placed at about the
same height from the floor as
the listeners’ ears will be, or
they may be angled toward the
listeners.
The center-channel speaker
should be placed slightly
behind the front left and right
speakers, and no more than
two feet above or below the
tweeters of the left and right
speakers. It is often conve-
nient to set the center speaker
on top of the television set, as
shown in the drawing. Use the
supplied support leg to aim it
toward the listener by screw-
ing the leg in to angle the
speaker up, or unscrewing the
leg slightly to angle the speak-
er down.
The two surround speakers
should be placed slightly
behind the listening position
and, ideally, should face each
other and be at a level higher
than the listeners’ ears. If that
is not possible, they may be
placed on a wall behind the lis-
tening position, facing forward.
The surround speakers should
not call attention to them-
selves. Experiment with their
placement until you hear a dif-
fuse, ambient sound accompa-
nying the main-program mater-
ial heard in the front speakers.
The low-frequency material
reproduced by the subwoofer
is mostly omnidirectional, and
this speaker may be placed in
a convenient location in the
room. However, the best repro-
duction of bass will be heard
when the subwoofer is placed
in a corner along the same
wall as the front speakers.
Experiment with subwoofer
placement by temporarily plac-
ing the subwoofer in the listen-
ing position and moving
around the room until the bass
reproduction is best. Place the
subwoofer in that location.
Center-Channel
Speaker
SPEAKER PLACEMENT

5
MOUNTING OPTIONS
Satellites and Surrounds
On shelves.
Wall-Mounting
Attach plate to wall. The
brackets should be placed,
if possible, so that the
screws will fasten into a
wooden wall stud. If that is
not possible, use properly
selected wall anchors.
The customer is respon-
sible for proper selection
and use of mounting hard-
ware, available through
hardware stores, to prop-
erly and safely wall-mount
the speakers.
On the wall. Wall brackets
are included.
Slide speaker onto support.
On optional stands (FS300).
Place speaker and support
on wall plate.

6
Separate and strip the ends
of the speaker wire as
shown. Speakers and elec-
tronics terminals have corre-
sponding (+) and (–) termi-
nals. Most manu-facturers of
speakers and electronics,
including JBL, use red to
denote the (+) terminal and
black for the (–) terminal.
The (+) lead of the speaker
wire is noted with a stripe. It
is important to connect both
speakers identically: (+) on
the speaker to (+) on the
amplifier and (–) on the
speaker to (–) on the ampli-
fier. Wiring “out of phase”
results in thin sound, weak
bass and a poor stereo
image.
With the advent of multi-
channel surround-sound sys-
tems, connecting all of the
speakers in your system with
the correct polarity remains
equally important in order to
preserve the proper ambi-
ence and directionality of the
program material.
SPEAKER CONNECTIONS
Connection Tips

7
Dolby* Pro Logic* (Non-Digital) – Speaker Level
Use this installation method for
Dolby Pro Logic appli-cations
(not Dolby Digital, DTS®or
other digital processing),
where the receiver/processor
does not have a subwoofer out-
put, or a volume-controlled pre-
amp (line-) level output:
Connect your receiver or ampli-
fier’s front left and right speak-
er terminals to the left and right
terminals on the subwoofer
that are marked “High Level
In.” Connect the left and right
terminals on the subwoofer
that are marked “High Level
Out” to the cor-responding ter-
minals on the back of your front
left and right speakers.
Connect your receiver or ampli-
fier’s center, left and right sur-
round-speaker terminals to the
corre-sponding terminals on
the back of your center, left and
right surround speakers.
Right Front
Right Surround
Left Front
Left Surround
Center
+ – + –
+ –
+ –
+ – + –
+ –
Left Front Center
+ –
Left Surround
Right Front
+ –
Right Surround
+ –
Subwoofer
Receiver
HIGH LEVEL
+ ––+
L R
OUT
IN

Dolby Pro Logic (Non-Digital) – Line Level
8
Use this installation method
for Dolby Pro Logic appli-
cations (not Dolby Digital, DTS
or other digital processing),
where the receiver/processor
is equipped with a subwoofer
output, or a volume-controlled
preamp (line-) level output:
Use RCA-type patch cords
to connect the line-level sub-
woofer outputs on your receiv-
er or amplifier to the line-level
inputs on the subwoofer.
IMPORTANT: Do not use the
LFE input on the subwoofer
with Dolby Pro Logic proces-
sors. Note: If your receiver or
amplifier only has one sub-
woofer output jack, then you
will need to use a Y-connector
(not included). Plug the male
end of the Y-connector into
your receiver or amplifier’s
subwoofer output jack, and
connect each of the two
female ends to separate RCA-
type patch cords. Finally, plug
the RCA-type patch cords into
the line-level inputs on the
subwoofer.
Connect each speaker to the
corresponding speaker termi-
nals on your receiver or ampli-
fier.
Use this installation method for
Dolby Digital, DTS or other dig-
ital surround processors:
Use the line-level input jack
marked “LFE” for the Low-
Frequency Effects channel.
Connect this jack to the LFE
output or subwoofer output
on your receiver or amplifier.
Connect each speaker to the
corresponding speaker termi-
nals on your receiver or ampli-
fier.
Make sure that you have con-
figured your surround-sound
processor for “Subwoofer
On.” The front left, front right,
center and rear speakers
should all be set to “Small.”
Dolby Digital or DTS (or Other Digital Surround Mode) Connection
LINE LEVEL IN
LFE INPUT
LFE OUT
L
R
SUBWOOFERRECEIVER
+ –
+ –
+ –
+ –
+ –
+ –
+ –
+ –+ –
+ –
Receiver
Subwoofer
Out
Left
Front
Left
Rear
Right
Front
Right
Rear
Subwoofer
R L
R
L
Center
Line-
Level
In
Right Surround
Right Front
Left Surround
Left Front Center

9

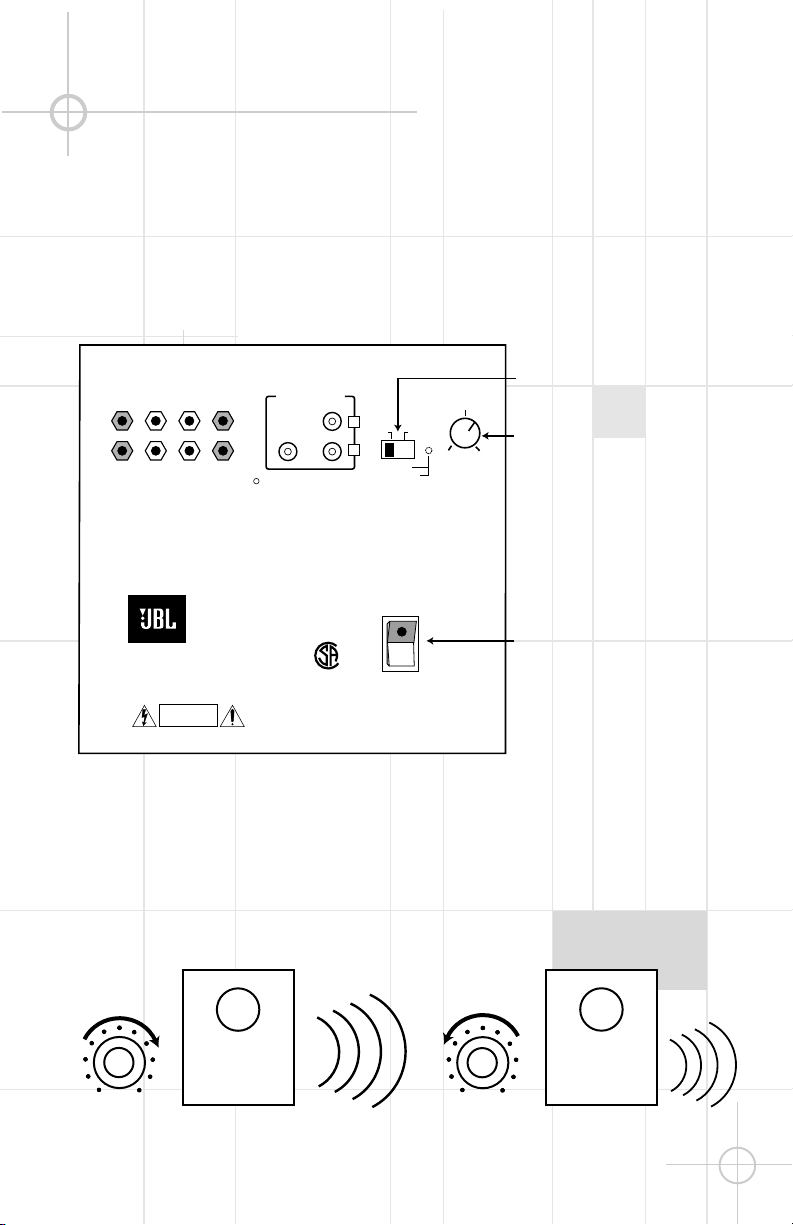

OPERATION
MIN MAX
Subwoofer
Level
MIN MAX
Subwoofer
Level
Move the Master Power
switch (marked “Power” ¡ ) to
the “•” (On) position to use the
subwoofer. The SCS135 sub-
woofer will automatically turn
itself on or go into standby
(sleep) mode when left in the
standby mode (“Auto/On”
switch ™ in the “Auto” posi-
tion). When your receiver or
amplifier is off, or is not send-
ing program material to the
subwoofer, the subwoofer will
be in standby mode. When the
sub-woofer senses an audio
signal, it will automatically turn
itself on. If the subwoofer does
not sense a signal after
approximately twenty minutes,
it will automatically go into
standby mode.
When the “Auto/On” switch
™
is switched to the “On” posi-
tion, the subwoofer will remain
on, whether or not program
material is playing.
If you will be away from home
for an extended period of time,
or if the subwoofer will not be
used, switch the Master Power
switch ¡ to the Off position.
Volume
POWER
HIGH LEVEL
+ ––+ SUBWOOFER
LEVEL
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
OUT
IN
L R LINE LEVEL IN
LFE
L
R
AUTO ON
MIN MAX
SUB 135
AC 230V~50Hz
200 Watts
£
¡
™
IMPORTANT: CONNECT STRIPED WIRE TO RED ( ) SPEAKERTERMINAL.
GREEN: ON
RED: STANDBY
+
Volume can be adjusted using
the Subwoofer Level Control £
(above), as shown below.

10
If there is no sound from any of
the speakers:
• Check that receiver/amplifier
is on and a source is playing.
• Check that the powered sub-
woofer is plugged in, its
Power switch ¡ is switched
on to the “•” position, and the
“Auto/On” switch ™ is either
in the “On” or “Auto” posi-
tion.
• Check all wires and connec-
tions between receiver/
amplifier and speakers. Make
sure all wires are connected.
Make sure none of the
speaker wires are frayed, cut
or punctured.
• Review proper operation of
your receiver/amplifier.
If there is no sound coming
from one speaker:
• Check the “Balance” control
on your receiver/amplifier.
• Check all wires and con-
nections between receiver/
amplifier and speakers. Make
sure all wires are connected.
Make sure none of the
speaker wires are frayed, cut
or punctured.
• In Dolby Digital or DTS
modes, make sure that the
receiver/processor is config-
ured so that the speaker in
question is enabled.
If there is no sound from the
center speaker:
• Check all wires and connec-
tions between receiver/
amplifier and speaker. Make
sure all wires are connected.
Make sure none of the
speaker wires are frayed, cut
or punctured.
• If your receiver/processor is
set in Dolby Pro Logic mode,
make sure the center speak-
er is not in phantom mode.
• If your receiver/processor
is set in Dolby Digital or DTS
mode, make sure the receiv-
er/processor is con-figured
so that the center speaker is
enabled.
If the system plays at low vol-
umes but shuts off as volume
is increased:
• Check all wires and connecti-
ons between receiver/ ampli-
fier and speakers. Make sure
all wires are connected.
Make sure none of the
speaker wires are frayed, cut
or punctured.
• If more than one pair of main
speakers is being used,
check the minimum imped-
ance requirements of your
receiver/amplifier.
If there is low (or no) bass
output:
• Make sure the connections
to the left and right “Speaker
Inputs” have the correct
polarity (+ and –).
• Make sure the subwoofer is
plugged into an active elec-
trical outlet.
• Make sure the powered sub-
woofer is plugged in and is
either in the “On” or “Auto”
position.
• In Dolby Digital or DTS
modes, make sure your
receiver/processor is config-
ured so that the subwoofer
and LFE output are enabled.
If there is no sound from the
surround speakers:
• Check all wires and connec-
tions between receiver/
amplifier and speakers. Make
sure all wires are connected.
Make sure none of the
speaker wires are frayed, cut
or punctured.
• Review proper operation of
your receiver/amplifier and
its surround-sound features.
• Make sure the movie or TV
show you are watching is
recorded in a surround-
sound mode. If it is not, check
to see if your receiver/ ampli-
fier has other surround
modes you may use.
• In Dolby Digital or DTS
modes, make sure your
receiver/processor is config-
ured so that the surround
speakers are enabled.
• Review the operation of your
DVD player and the jacket of
your DVD to make sure that
the DVD features the desired
Dolby Digital or DTS mode,
and that you have properly
selected that mode using
both the DVD player’s menu
and the DVD disc’s menu.
TROUBLESHOOTING

11
Staple sales invoice here.
