JCB Access
Electric Scissors
Quick Start Guide

2
Please see operator manual for full details.
> This Quick Reference Guide is to provide quick and simple information to the Operator
and does not include any health and safety aspects. In addition, because of our continual
development of machines, features described in this Quick Reference Guide may differ
from those on your machine. No errors and emissions be entirely ruled out.
> This Quick Reference Guide DOES NOT replace the Operators Manual. You MUST
read ALL the disclaimers and safety and other instructions in the Operators Manual
before initially operating this product. Accordingly, no legal claims can be entertained on
the basis of the data, illustrations or descriptions in this Quick Reference Guide.
> This machine should not be operated by any person who isn’t appropriately qualified or
had the appropriate training.
> Operation of this machine without periodic maintenance could cause it to malfunction.
For more information please contact your JCB Dealer.
Disclaimer

ELECTRIC SCISSORS
3
Intended Use ......................................................................................................................................4
Nomenclature ....................................................................................................................................5
Tie Down Points ................................................................................................................................6
Lifting Points ................................................................................................................................... 7-8
Operating Capabilities ........................................................................................................................9
Ground Controls ..............................................................................................................................10
Platform Controls ............................................................................................................................. 11
Emergency Controls .........................................................................................................................12
Operating from the Ground .............................................................................................................13
Operating from the Platform .............................................................................................................14
Extending Deck & Power to Platform ................................................................................................15
Machine Sensors...............................................................................................................................16
Daily Checks.....................................................................................................................................17
Charge Level & Charging ............................................................................................................18-20
Service Points ...................................................................................................................................21
Diagnostic Codes .......................................................................................................................22-23
Index

4
Please see operator manual for full details.
General
> Machine Type – Electric Scissor
> Self propelled machine with platform height of 15ft – 45ft (4.6m – 13.8m)
> Lead acid or lithium battery powered
Intended Use
> Machine intended to be used in normal conditions as detailed in the operators manual
> PPE may be required in certain applications/environments e.g. high silica concentration or asbestos
> The machine should not be operated by any person without appropriate qualifications, training
or experience of using this type of machine
> Prior to use, the machines suitability should be considered with regards to the intended
applications and any hazards which may be present
Intended Use

ELECTRIC SCISSORS
5
9 Models
S1530 E
S1930E
S2032E
S2046E
S2632E
S2646E
S3246E
S4046E
S4550E
S2032E
Scissor Platform height (ft)
ElectricWidth (in)
Nomenclature

6
Please see operator manual for full details.
REFER TO OPER ATORS MANUAL TR ANSPORTING MACHINE
There are tie down points around all four corners of the machine. Look for this decal.
Make sure locking pins are engaged during loading/ transport of the machine.
Operation
Transporting the Machine
42 9831/3200-3 42
Figure 31.
A
ALock pin
Driving the Machine onto the Transporting Vehicle/Trailer
1. Put the blocks at the front and rear of the trailer wheels.
2. Lower the ramps and check for suitability.
Refer to: Performance Dimensions (Page 90).
3. Check the condition and security of the trailer side rails to make sure that the machine cannot be driven
off the trailer.
4. Drive the machine onto the trailer and position it taking into account the load distribution.
5. Put blocks at the front and rear of all four wheels. Make sure they are secure in place.
6. Turn the machine off and remove the key.
7. Remove any loose items from the machine.
8. Measure the maximum height of the machine from the ground. Make sure the truck driver knows the
clearance height before he drives away.
9. If required remove the lock pins from all four corners of the platform and fold the guardrails.
10. Secure the machine to the trailer bed with suitable chains. Use the tie down points indicated by the decals.
A Lock Pin
Fig 1
Tie Down Points

ELECTRIC SCISSORS
7
REFER TO OPER ATORS MANUAL TR ANSPORTING MACHINE
Lifting by hoist
You must consider the location of the centre of gravity on the machine (see table on page 8),
when you lift the machine
1. Make the machine safe with the platform lowered
2. Check the extension platform, controller and chassis parts are correctly secured
3. Remove any loose items from the machine
4. Use the correct length of hoisting rope to prevent damage to the platform base & guard rail
5. Make sure the hoist rigging is in the correct position. Adjust the hoist rigging to prevent machine
damage and keep the machine in the level position.
Fig 2
X – X axis distance Y – Y axis distance
Lifting Points

8
Please see operator manual for full details.
Location of the centre of gravity
Lifting by forklift
Do not lift the machine from the side, lifting from the side may cause damage.
Forklift slots are located at the ladder side of the machine.
Machine Model X Axis Y Axis
S1530E 620mm 511m m
S1930E 604mm 540mm
S2032E 955mm 625mm
S2632E 956mm 672mm
S2046E 801mm 530mm
S2646E 806mm 570mm
S3246E 808mm 638mm
S4046E 815mm 676mm
S4550E 1,058mm 754mm
REFER TO OPER ATORS MANUAL TR ANSPORTING MACHINE
Fig 3
Operation
Lifting the Machine
39 9831/3200-3 39
Lifting the Machine
General
Lifting by Forklift
Do not lift the machine from the side. Lifting the machine from the side may cause machine damage.
1. Make the machine safe with the platform lowered.
2. Check the extension platform, controller and chassis parts are correctly secured.
3. Remove any loose items from the machine.
4. Keep the machine in the lowered position while lifting with the forklift.
5. Use the forklift slots at the ladder side at the end of the machine.
5.1. Align the forks with the forklift slots at the end of the machine.
5.2. Drive the forklift forwards until the forks carriage almost touches the ladder
5.3. When lifting the machine rotate the forks back slightly to ensure the machine will not slide off the forks.
Travel with the machine at the specified distance from the ground.
Length/Dimension/Distance: 0.4m
5.4. Level the forks before landing the machine.

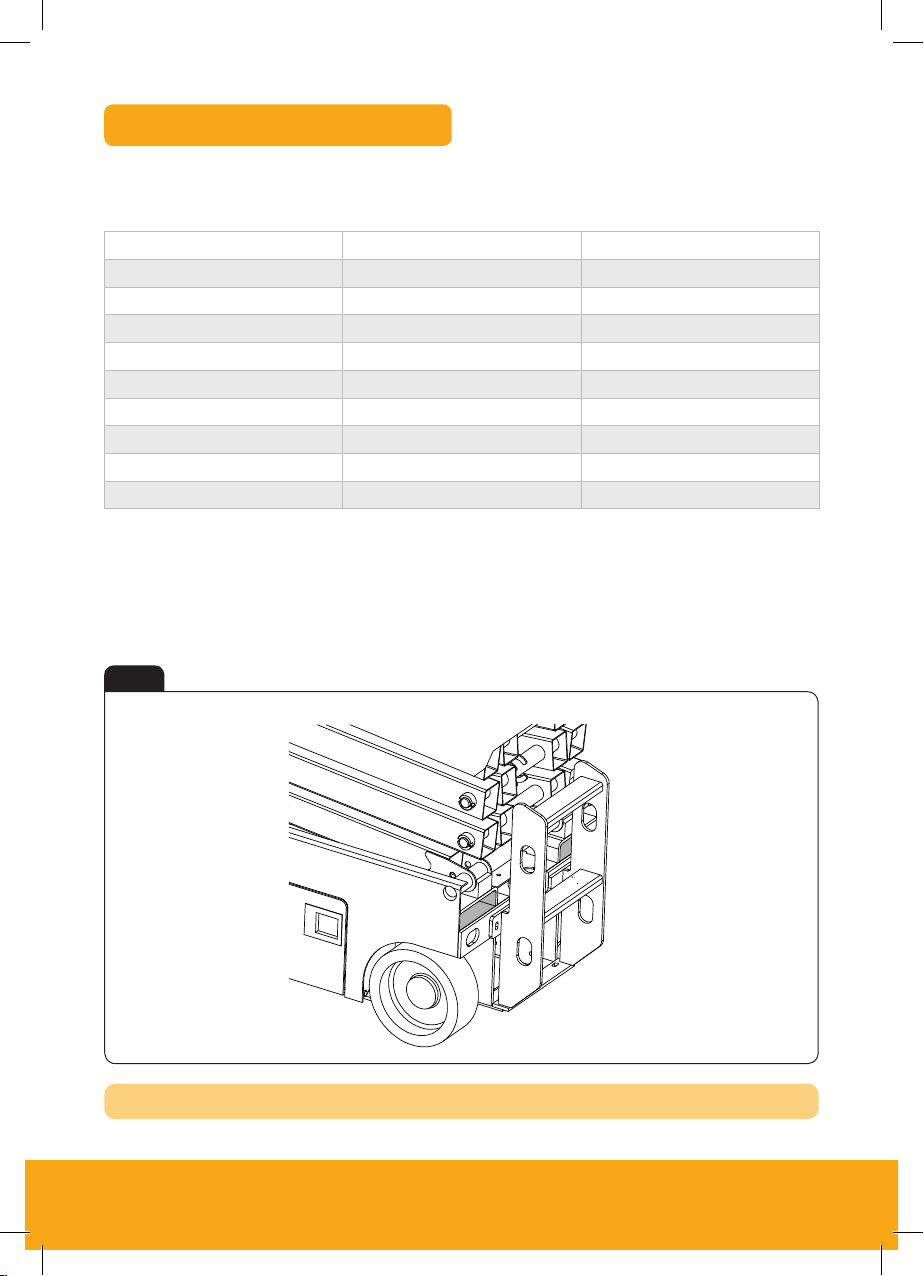

AForklift slots
Lifting by Hoist
1. Make the machine safe with the platform lowered.
2. Check the extension platform, controller and chassis parts are correctly secured.
3. Remove any loose items from the machine.
4. Use the correct length of hoisting rope to prevent damage to the platform base and guardrail.
5. Make sure the hoist rigging is in the correct position. Adjust the hoist rigging to prevent machine damage
and keep the machine in the level position.
Lifting Points

ELECTRIC SCISSORS
9
The machine has been designed to operate in atmospheric temperatures between -20ºC and 46ºC.
The machine is designed to be used on flat level surfaces. The machine will operate with a front/back
slope of up to 3º and a side slope of up to 1.5º. Exceeding these limits will trigger the tilt alarm.
The load capacity and wind rating of each machine can be found on the entry gate and also on the
deck plate next to the handbook box.
Fig 4
Operating Capabilities

10
Please see operator manual for full details.
Fig 5
A H o u r m e t e r
B Platform Raise / Lower Toggle Switch
C Emergency Stop
D Ground Controls / Off / Platform Controls Key Switch
A
B
C
D
Ground Controls

ELECTRIC SCISSORS
11
Fig 6
A L / R Steering
B Trigger Switch to enable operation
C Battery Level / Fault Code Display
D Platform / Drive Mode Buttons
E H o r n
F Speed Select
G Emergency Stop
A
B
C
E
G
D
F
Platform Controls

12
Please see operator manual for full details.
Fig 7

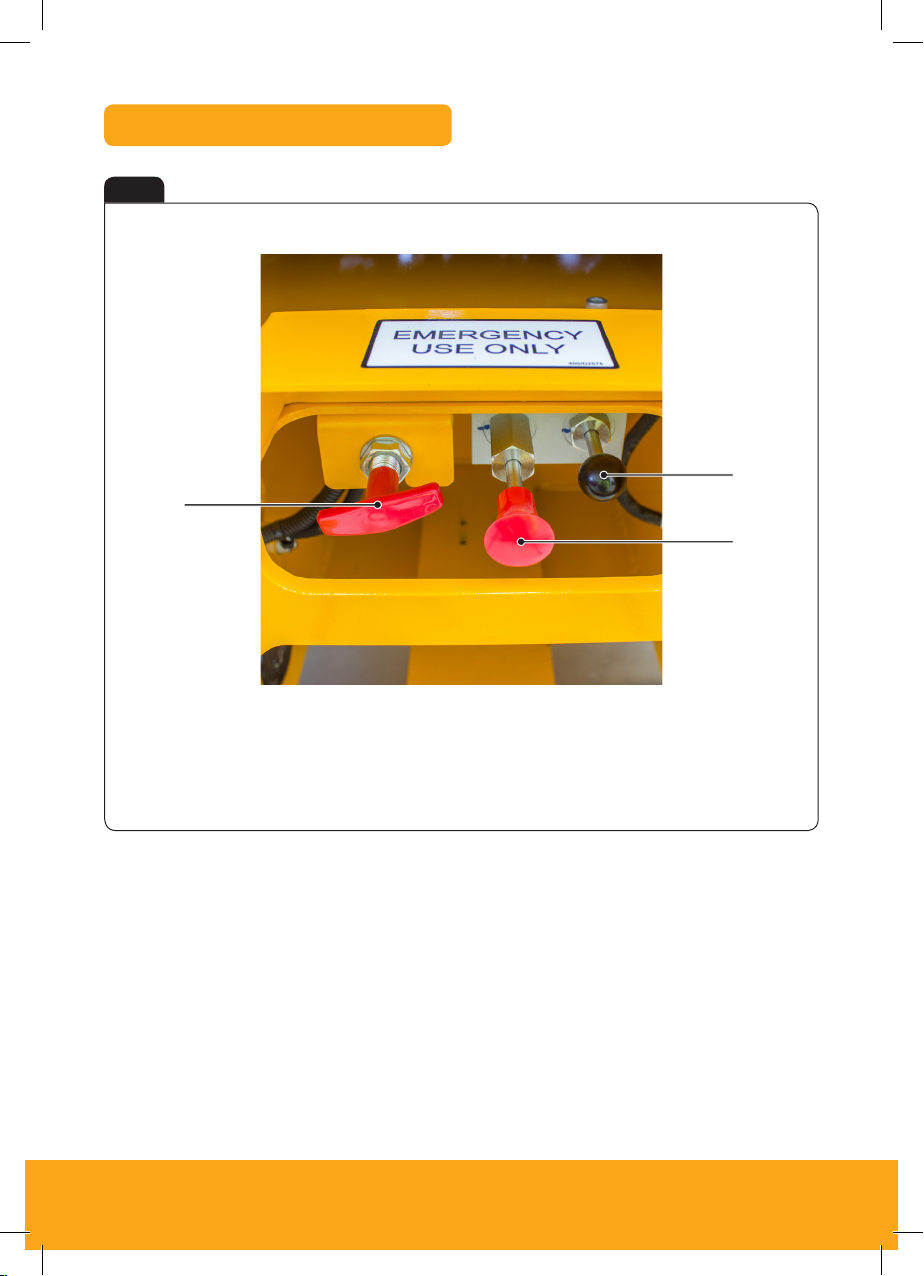

A Brake Release Lock
B Brake Release Pump
C Pull to lower
A
C
B
How to Release Brakes
1. Ensure machine can be controlled before releasing brakes
2. Push in brake release lock
3. Pump brake release until feels solid
4. Caution – machine is now un-braked
5. To reapply pull the brake release lock back out or operate any control on the joystick
Emergency Controls

ELECTRIC SCISSORS
13

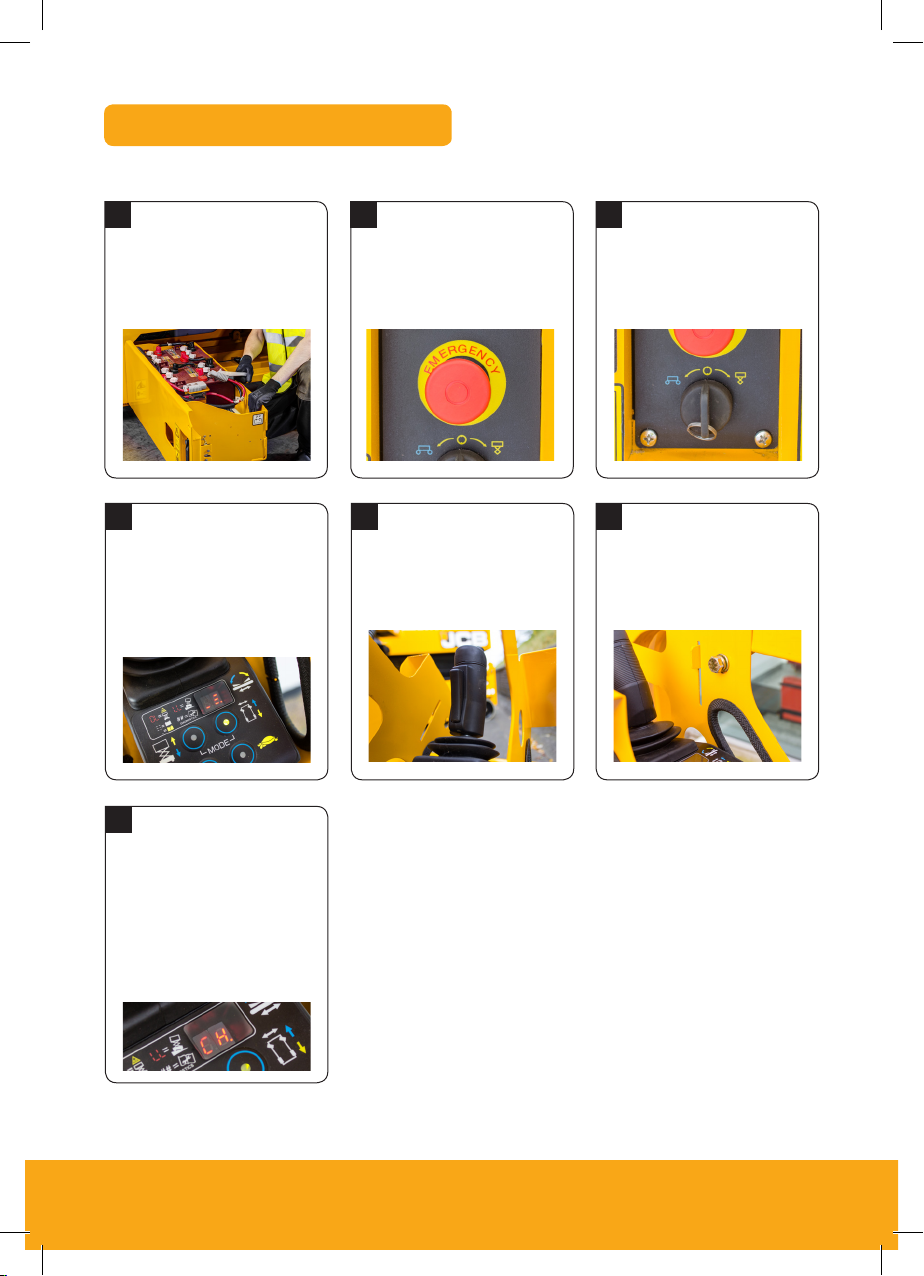

1
3
2
4
Connect Isolator
Switch Key Left
Pull E-Stops
Toggle Switch
The isolator is located within the battery tray
on the left hand side of the machine.
Turn the key switch left to enable
the ground controls.
Ensure both the ground controls and platform
controls E-stops are released.
Use the toggle switch to raise or lower
the platform as required.
Note: If the platform raise/lower fails to operate, ensure the key switch is in the correct position and all of the
emergency stops have been pulled to release.
Operating from the Ground

14
Please see operator manual for full details.
1 2 3
4 65
7
Connect Isolator
Trigger & Joystick
Pull E-Stops Switch Key Right
Cradle Release
Mode Select
Operate Machine
The isolator is located within
the battery tray on the left
hand side of the machine.
Pull the trigger on the back
of the joystick to enable
operation.
The cradle can be released
from the platform by
removing the bolt.
If CH is shown on the platform
controller, the key switch is in
the wrong position. The switch
must be on platform controls
to use them. The machine will
not operate whilst charging.
Choose from either lift/
lower or drive mode. Do not
attempt to operate prior to
charge status being shown.
Ensure both the ground
controls and platform controls
E-stops are released.
Turn the key switch right to
enable the platform controls.
Operating from the Platform

ELECTRIC SCISSORS
15
All JCB Electric Scissors are fitted with both power to platform and an extending deck as standard.
The extending deck is operated by the pedal on the deck. The power to platform is used by the
plug on the right hand side near the ladder and the power outlet in the basket (Photo for illustrative
purposes, plugs and sockets region specific).
Extending Deck & Power to Platform

16
Please see operator manual for full details.
Angle Sensor Tilt Sensor
Pressure Sensors
Pothole
Protection Switch
Limit Switches
Safety systems on the electric scissor range rely on various sensors positioned around the machines
linked to the on-board ECU.
Machine Sensors

ELECTRIC SCISSORS
17
Check
Operators Manual Check Condition
Safety Decals Check Condition
Hydraulic Oil Check Level / No Leaks
Battery Electrolyte Check Level / No Leaks
Electrical Harnesses Check Condition
Welds Check Condition
Machine Damage, Missing Parts Check Condition
Guard Rails Check Condition
Wheel Nut Split Pin Check Condition
Tilt Sensor Check Operation
Pothole Protection Check Operation
Ground Controls: Emergency Stop Check Operation
Ground Controls: Raise / Lower Toggle Check Operation
Ground Controls: Key Switch Check Operation
Emergency Lower Controls Check Operation
Platform Controls: Emergency Stop Check Operation
Platform Controls: Raise / Lower Check Operation
Platform Controls: Horn Check Operation
Platform Controls: Steering Check Operation
Platform Controls: Drive and Brake Check Operation
Limited Drive Speed (Check drive speed with platform raised) Check Operation
Daily Checks

18
Please see operator manual for full details.
The machine charge level is shown on the platform controller only when in platform mode.
A series of red bars are used to show the charge level, 6 being full, 1 being empty.
Full charge 30% Remaining
Charge battery low Battery too low. Charge now
Fig 8
Charge Level & Charging

ELECTRIC SCISSORS
19
The machine is charged using the plug on the left hand side, as viewed from the entry side of the
machine. Once plugged in, green LED lights will start to flash on the charger, viewed through the
charger viewing window.
Note: Only use the original charger installed to the machine with the original batteries. Charge the battery
in a well ventilated place. Use an appropriate grounded industrial power supply with correct AC (alternating
current) input voltage to charge.
If at any time a fault occurs when charging, three battery charge LEDs will blink at the same time.
Refer to the operators handbook immediately.
A
B
A Charge Point
B Charger Viewing Window
Fig 9
Charge Level & Charging

20
Please see operator manual for full details.
The flashing LED indicates the charge level. When all three LEDs are solid, the machine is fully charged.
Note: Only use the original charger installed to the machine with the original batteries. Charge the battery
in a well ventilated place. Use an appropriate grounded industrial power supply with correct AC (alternating
current) input voltage to charge.
If at any time a fault occurs when charging, three battery charge LEDs will blink at the same time.
Refer to the operators handbook immediately.
Fig 10
Charge Level & Charging
