Jefferson JEFMAGD42HD/110 User manual

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com 1
User Manual
v.1.4

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com
2

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com 3
CONTENTS
Introduction 4
Safety Guidelines 5
Specications 6
Operation Guide 6
Cleaning & Maintenance 7
Parts Diagram - Frame & Magnet Components 8
Parts List - Frame & Magnet Components 9
Parts Diagram - Motor 10
Parts List - Motor 11
Limited Warranty Statement 12
EC Declaration of Conformity 14
Environmental Protection 15
WEEE Waste Electrical and Electronic Equipment Statement 15
RoHS Directive 2011/65/EU 15
Important: Please read all these instructions before operating this product and save these instructions. This manual has been compiled by Jefferson Tools
and is an integrated part of the product with which it's enclosed and should be kept with it for the future reference.
This manual describes the purpose for which the product has been designed and contains all the necessary information to ensure its correct and safe use.
We recommend that this manual is read before any operation or, before performing any kind of adjustment to the product and prior to any maintenance
tasks. By following all the general safety instructions contained in this manual you will help to ensure operator safety and extend the potential lifespan of the
equipment.
All photographs and drawings in this manual are supplied by Jefferson Tools to help illustrate the operation of the product. Whilst every effort has been made
to ensure accuracy of information contained in this manual our policy of continuous improvement determines the right to make modifications without prior
warning.
Note: The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the equipment. Some
illustrations in this Instruction Manual may show details or attachments that differ from those on your own model. Contact your nearest Jefferson Dealer if
you are unsure about any information included in this manual or require any additional information about the safe use, operation maintenance, or repair of
this equipment.

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com
4
1. Introduction
This magnetic drill is designed for drilling holes in steel fabrication work. It is an ideal portable
drilling solution equally suited for use in building sites or the workshop environment and can be
used to cut in horizontal, vertical and overhead positions.
Power Cable
The magnetic drill uses an annular hole cutter (sometimes called a slugger bit) to cut clean and accurate holes
without pre-drilling or step drilling. After cutting through the steel the cutter produces a "slug" (a cylindrical
lump of steel) that falls from the centre of the cut.

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com 5
2. Safety Guidelines
Important: Ensure that you have read and
understand the information contained in this
manual before operating this equipment.
This appliance is not intended for use by persons
with reduced physical, sensory or mental
capabilities. The appliance must not be operated by
children or by any persons who have not been
instructed in the correct operation.
Children and pets should be kept away from the
working environment at all times during operation.
Please read these instructions carefully and
keep in a safe location for future reference.
Ensure that the manual is passed on should
ownership of the equipment change at any
time.
Contact your nearest Jefferson Dealer for advice on
correct usage, accessories (including compatible
detergents), servicing and replacement parts.
Do not modify this equipment for any other purpose
than those originally intended buy the manufacturer.
Ensure that the product is used in
accordance with the guidelines described
in this manual. Failure to do so can result in
personal injury and may void the warranty.
Ensure that you disconnect from the power supply
before carrying out any adjustments maintenance
or servicing on this equipment.
Working Environment
Ensure that the working environment is kept clear
and uncluttered. There should be plenty of light
available for safe operation.
Do not use this equipment in wet or windy
conditions or damp or wet conditions.
Do not use this equipment in the presence of
ammable liquid or gases.
Protect against electric shock by preventing
contact with earthed or ground surfaces (e.g. pipes,
radiators, cookers and refrigerators).
Jefferson recommend using a suitable residual
current device (RCD) for electrical safety when us-
ing this equipment.
Store idle tools when not in use in a dry and secure
location, out of reach of children.
Do not force the tool during operation or use
the equipment for a larger job than which it was
designed.
Personal Protection Equipment (PPE)
Do not wear loose clothing or jewellery during
operation incase they get caught in moving parts.
Wear protective hair covering to prevent long hair
getting caught up in the tool.
Ensure that suitable safety equipment is worn
during use these include:
•Safety glasses
•Ear defenders
•Protective gloves
Wear a hard hat (if working with magnetic drill
above head height to prevent injury from ejected
slugs after cutting). Use a face or dust mask if
cutting operations create dust. Non-slip, steel
toecap footwear is recommended.
Cutters are sharp. Wear gloves when installing or
removing cutter from the arbor. Do not grab a
rotating cutter.
Keep tools sharp and clean for better and safer
performance. Do not use dull or broken cutters.
Follow safety instructions for lubricating and
changing accessories (always check compatibility
of annular cutters before use). Inspect tool cords
periodically and, if damaged, have them repaired
by a qualied electrician or an authorised
Jefferson Repair Centre.

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com
6
3. Specications
Model Number: JEFMAGD42HD/110 JEFMAGD42HD/230
Maximum Core Drill Diameter: 42mm
Maximum Cutting Depth: 30mm
Input Voltage / Frequency: 110V 230V
Magnetic Adhesion: 15600N
Motor Power / Speed: 1700W
No Load Speed: 100-810rpm
Dimensions: 30 x 8 x 35cm
Weight: 12kg
1. Make sure the workpiece is suitable for magnetic adhesion and that both the surface of the workpiece and
the magnetic base of the drill are clean and free of dirt, grease and debris.
2. Secure the magnetic drill to the unit to workpiece with safety chain provided.
3. Position the drill by sliding it and gently feeding the arbor so that pilot pin is in contact with the centre of the
hole you need to cut.
4. Activate the magnet by pressing the magnet button to the ON position.
5. Turn the Feed Handle, raising the annular cutter until the pilot pin is above the work surface.
6. Open the cutting uid valve.
8. Make certain that the annular cutter is clear of the workpiece and turn the motor on by pressing the motor
button to the ON position.
9. Feed the cutter slowly onto the workpiece. Carefully establish a cutting depth of about 1/16" before using
the full force of the drill on the cut by turning the feed handle to lower the arbor as required.
10. Ease up on feed pressure as the cutter starts to break through the workpiece.
11. When you have completed the cut, turn off the motor by pushing the motor button into the STOP
position.
12. Turn feed handles to raise the arbor away from the hole. This will cause the slug to fall free (if it hasn’t
already) so take care to ensure it does not fall in a way that can cause bodily harm to the operator or any other
persons in the vicinity.
13. Turn the magnet OFF by pushing the magnet button to the OFF position. As the magnet de-activates the
base should lift up off the work surface.
14. Disconnect the equipment from the power source.
15. Remove any chips or debris from the cutter and the magnet wearing a pair of protective working gloves
and a set of pliers to protect your hands from sharp materials.
16. Disconnect the safety chain and carefully remove the drill to complete the procedure.
4. Operation Guide

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com 7
Important: The magnetic strength of the drill base is related to the thickness of the steel ,or other ferrous
metal, in the workpiece. Magnetic adhesion can also be affected by the cleanliness of the metallic surface
you are fixing to. Material that is clean and free from coatings will offer the best surface for the magnet.
Factors that can reduce the effectiveness of the magnet and safe operation of the equipment include:
•Coatings or paint layers on material
•Material less than 3/8” thick
•Workpieces with dirt, grease or debris between the magnet and the metallic surface
•Curved or uneven work surfaces (The surface of the workpiece should be flat. For pipe applications, a pipe
adapter should be used.)
•Workpieces that are smaller than the dimensions of the metallic base.
• Keep the machine, the cutter and electric cables clean from drilling debris.
• Always turn off the machine and unplug from the mains before carrying out any cleaning.
• Clean the motor by means of dry compressed air.
• Clean and grease any sliding surfaces regularly.
• Carbon brushes should be replaced after approximately 250 hours running time.
• When not in use the magnetic drilling machine should be stored securely in the transport case lying at in a
dry storage space.
Note: Excessive sparking may indicate the presence of dirt in the motor or worn out carbon brushes.
We recommend that you periodically check the brushes for wear and tear and replace them when they reach
6mm. Keep moving parts lubricated.
Maintenance, checks and repairs should only be made by qualied electricians or a Jefferson approved
technician. We recommend that the machine should be serviced after approximately 250 hours running time.
Only use genuine spare parts. A full list is available at the end of this manual. Contact your nearest
Jefferson dealer for further information.
5. Cleaning & Maintenance

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com
8

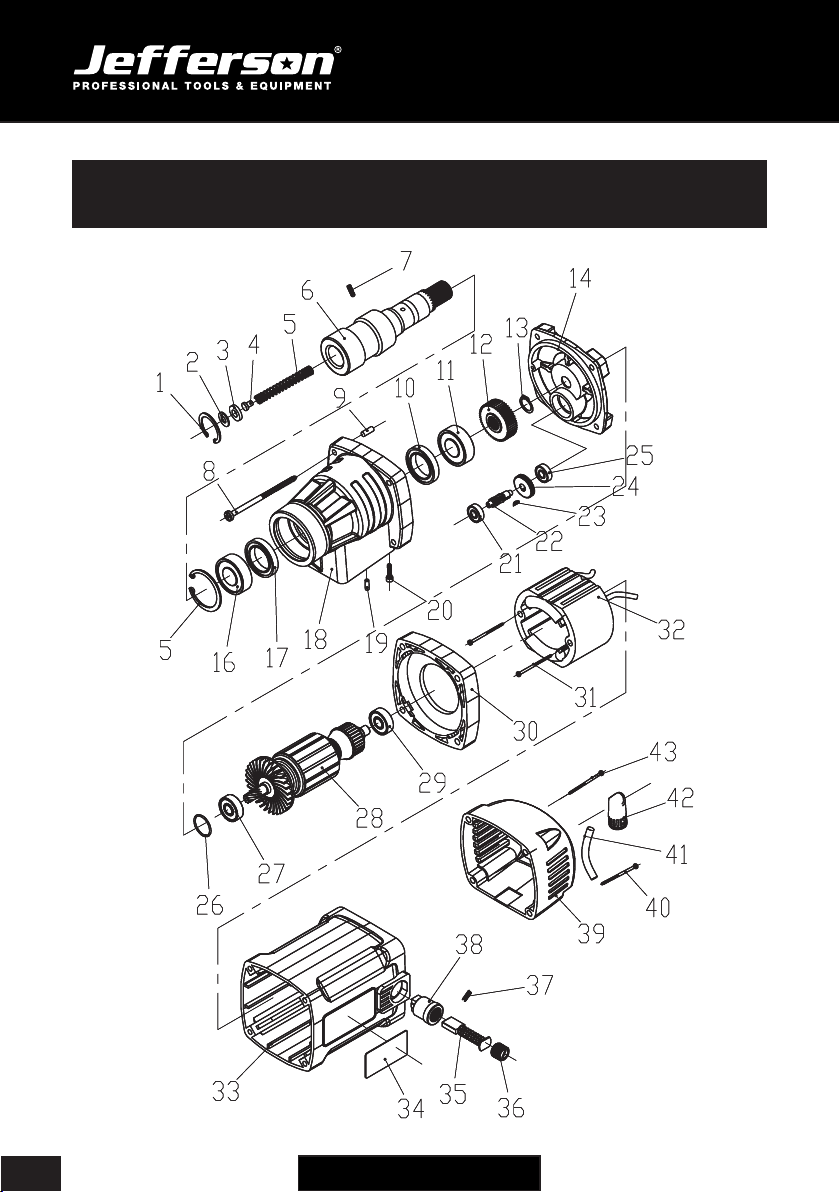

PARTS DIAGRAM - Frame & Magnet Components

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com 9
PARTS LIST - Frame & Magnet Components
# Description # Description
1Slidding Carriage Compl. 24 Nuts
2Rack 25 Screw
3Sleeve 26 Gland With Anti-Kink Nozzle
4Screw 27 Panel Plate
5Key For Guide Strip 28 Speed Controller
6Guide Strip 29 Switch
7Drill Frame 30 Front Pannel
8Pressure Bar 31 Stainless Screw
9E Circlip 32 Motor Switch
10 Stainless Washer 33 Speed Switch
11 Bearing 34 Fuse
12 Circlip, Outter 35 Circuit Board
13 Gear For Slidding Carraige 36 Circuit Board Holder
14 Plain Bearing 37 Screw
15 Pinion Shaft 38 Socket Head Cap Screws
16 Square Key 39 Socket Head Cap Screws
17 Socket Head Cap Screws 40 Magnet
18 Protection Sleeve 41 Slide Bar
19 Screw 42 Nuts
20 Handle 43 Socket Head Cap Screws
21 Plastic Handle 44 Back Panel
22 Power Line 45 Stainless Screw
23 Ground Line Lable 46 Socket Head Cap Screws

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com
10
PARTS DIAGRAM - Frame & Magnet Components

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com 11
PARTS LIST - Frame & Magnet Components
# Description # Description
1Circlip, Inner 24 Key
2Gasket 25 Gear For Armature
3Plastic Gasket 26 Bearing
4Key for Spring 27 Pressboard Washer
5Spring 28 Bearing
6Spindle 29 Armature
7Screw 30 Bearing
8Self-tapping screw 31 Air Conducting Ring
9Round Key 32 Self-Tapping Screw
10 Water seal 33 Stator
11 Bearing 34 Stator Shell
12 Gear 35 Nameplate
13 Circlip, Outter 36 Carbon Brush
14 Gear Cover 37 Carbon Brush Cover
15 Circlip, Inner 38 Screw
16 Bearing 39 Brush Holder
17 Water seal 40 Cap
18 Gear Box 41 Screw
19 Round Key 42 Tube
20 socket head cap screws 43 Protection Sleeve
21 Bearing 44 Self-Tapping Screw
22 Gear shaft for armature 45 Stainless Screw
23 Ground Line Lable 46 Socket Head Cap Screws

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com
12
Jefferson Professional Tools & Equipment, or hereafter "Jefferson" warrants its customers that its products will be free of defects in
workmanship or material. Jefferson shall, upon suitable notication, correct any defects, by repair or replacement, of any parts or
components of this product that are determined by Jefferson to be faulty or defective.
This warranty is void if the equipment has been subjected to improper installation, storage, alteration, abnormal
operations, improper care, service or repair.
Warranty Period
Jefferson will assume both the parts and labour expense of correcting defects during the stated warranty periods below.
All warranty periods start from the date of purchase from an authorised Jefferson dealer. If proof of purchase is unavailable from the end
user, then the date of purchase will be deemed to be 3 months after the initial sale to the distributor.
1 Year
• JEFMAGD42HD-110 • JEFMAGD42HD-230
90 Days
• All replacement parts purchased outside of the warranty period
Important: All parts used in the repair or replacement of warranty covered equipment will be subject to a minimum of 90 days cover or
the remaining duration of the warranty period from the original date of purchase.
Warranty Registration / Activation
You can register and activate your warranty by visiting the Jefferson Tools website using the following address:
www.jeffersontools.com/warranty and completing the online form. Online warranty registration is recommended as it eliminates the
need to
provide proof of purchase should a warranty claim be necessary.
Warranty Repair
Should Jefferson confirm the existence of any defect covered by this warranty the defect will be corrected by repair or replacement at an
authorized Jefferson dealer or repair centre.
Packaging & Freight Costs
The customer is responsible for the packaging of the equipment and making it ready for collection. Jefferson will arrange collection and
transportation of any equipment returned under warranty. Upon inspection of the equipment, if no defect can be found or the equipment
is not covered under the terms of the Jefferson warranty, the customer will be liable for any labour and return transportation costs
incurred.
These costs will be agreed with the customer before the machine is returned.
*Jefferson reserve the right to void any warranty for damages identified as being caused through misuse
Warranty Limitations
Jefferson will not accept responsibility or liability for repairs made by unauthorised technicians or engineers. Jefferson's liability under
this warranty will not exceed the cost of correcting the defect of the Jefferson products.
Jefferson will not be liable for incidental or consequential damages (such as loss of business or hire of substitute equipment etc.) caused
by the defect or the time involved to correct the defect. This written warranty is the only express warranty provided by Jefferson with
respect to its products.
Any warranties of merchantability are limited to the duration of this limited warranty for the equipment involved.
Jefferson is not responsible for cable wear due to flexing and abrasion. The end user is responsible for routine inspection of cables for
possible wear and to correct any issues prior to cable failure.
LIMITED WARRANTY STATEMENT

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com 13
Claiming Warranty Coverage
The end user must contact Jefferson Professional Tools & Equipment (Tel: [phone]) or their nearest authorised Jefferson
dealer where final determination of the warranty coverage can be ascertained.
Step 1 - Reporting the Defect
Online Method:
• Visit our website www.jeffersontools.com/warranty and complete the Warranty Returns form. You can complete the form online and
submit it to us directly or download the form to print out and return by post.
Telephone Method:
Contact your Jefferson dealer or sales representative with the following information:
• Model number
• Serial number (usually located on the specification plate)
• Date of purchase
A Warranty Returns form will be sent to you for completion and return by post or fax, together with details of your nearest authorised
Jefferson repair centre. On receipt of this form Jefferson will arrange to collect the equipment from you at the earliest convenience.
Step 2 - Returning the Equipment
It is the customer's responsibility to ensure that the equipment is appropriately and securely packaged for collection, together with
a copy of the original proof of purchase. Please note that Jefferson cannot assume any responsibility for any damage incurred to
equipment during
transit. Any claims against a third party courier will be dealt with under the terms & conditions of their road haulage association directives.
Please note: Jefferson will be unable to collect or process any warranty requests without a copy of the original proof of
purchase.
Step 3 - Assessment and Repair
On receipt, the equipment will be assessed by an authorised Jefferson engineer and it will be determined if the equipment is defective and
in need of repair and any repairs needed are covered by the warranty policy. In order to qualify for warranty cover all equipment presented
must have been used, serviced and maintained as instructed in the user manual.
Where repair is not covered by the warranty a quotation for repair, labour costs and return delivery will be sent to the customer (normally
within 7 working days).
Note: If the repair quotation is not accepted Jefferson Professional Tools & Equipment will invoice 1 hour labour time at £30 per hour
plus return carriage costs (plus VAT).
In cases where no fault can be found with the equipment, or, if incorrect operation of the equipment is identified as the cause of the
problem, a minimum of 1 hour labour at £30 per hour plus carriage costs will be required before the equipment will be despatched back
to the customer.
Any equipment repaired or replaced under warranty will normally be ready for shipment back to the customer within 7 working days upon
receipt of the equipment at an authorised Jefferson Repair centre (subject to part availability). Where parts are not immediately available
Jefferson will contact you with a revised date for completion of the repair.
General Warranty Enquiries
For any further information relating to Jefferson warranty cover please call [phone] or send your enquiry via email to
[email protected]
Disclaimer:
The information in this document is to the best of our knowledge true and accurate, but all recommendations or suggestions are made
without guarantee. Since the conditions of use are beyond their control, Jefferson Tools® disclaim any liability for loss or damage
suffered from the use of this data or suggestions. Furthermore, no liability is accepted if use of any product in accordance with this data
or suggestions infringes any patent. Jefferson Tools® reserve the right to change product specifications and warranty statements without
further notification. All images are for illustration purposes only.

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com
14
EC DECLARATION OF CONFORMITY
We, Tundra Industrial, as the authorised European Community representative of the manufacturer, declare that
the following equipment conforms to the requirements of the following Directives:
Directive: Description:
2014/30/EU (as amended) Electromagnetic Compatibility
2006/42/EC (as amended) Machinery Directive
2014/35/EU (as amended) Low Voltage Directive
2011/65/EU (as amended) RoHS Directive
Equipment Category: Magnetic Drill
Model Number: JEFMAGD42HD/110
JEFMAGD42HD/230
Signed by: Stephen McIntyre
Position in the company: Operations Director
Date: 26 June 2018
Name and address of
manufacturer or authorised
representative:
Jefferson Tools, Herons Way, Chester
Business Park, Chester, United
Kingdom, CH4 9QR
Telephone: [phone]
Fax: [phone]
Email: [email protected]

USER MANUAL V1.4
JEFMAGD42HD/110 •JEFMAGD42HD/230
42MM INDUSTRIAL MAGNETIC CORE DRILL
www.jeffersontools.com 15
WEEE Waste Electrical and Electronic Equipment Statement
Information on Disposal for Users of Waste Electrical & Electronic Equipment
This symbol on the product(s) and / or accompanying documents means that used electrical and electronic products
should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this
product(s) to designated collection points where it will be accepted free of charge.
For private households:
Dispose of this product at the end of its working life and in compliance with the EU Directive on Waste Electrical and Electronic
Equipment (WEEE). Contact your local solid waste authority for recycling information for this equipment.
Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the
environment, which could otherwise arise from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with you national legislation.
For business users in the European Union:
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union:
This symbol is only valid in the European Union. If you wish to discard this product please contact your local authorities or dealer and ask
for the correct method of disposal.
We hereby declare that this equipment has been tested and found to be compliant to RoHS Directive 2011/65/EU of the European
Parliament and the Council from 08/06/2011 on restriction of the use of certain hazardous substances in electrical and electronic
appliances.
Determination of levels of regulated substances in electrotechnical products, elements of Cadmium (Cd), Lead (Pb), Mercury (Hg),
Chromium (Cr) and Bromine (Br) contents were measured by XRF Spectroscopy and chemical conrmation test for RoHS restricted
substances.
ENVIRONMENTAL PROTECTION
Recycle any packaging and unwanted materials instead of disposing of them as waste. All tools, accessories and
packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the
environment. When the product becomes completely unserviceable, reaches the end of its working life and requires
disposal, drain off any uids (if applicable) into approved containers and dispose of the product and the uids according
to local regulations.
RoHS Directive 2011/65/EU - COMPLIANCY

Jefferson Tools,
Herons Way,
Chester Business Park,
Chester,
United Kingdom,
CH4 9QR
Tel. [phone]
Email: [email protected]
IMPORTANT! SAFETY FIRST!
Before attempting to use this product please read
all the safety precautions and operating instructions
outlined in this manual to reduce the risk of fire,
electric shock or personal injury.
www.jeffersontools.com
www.jeffersontools.com
