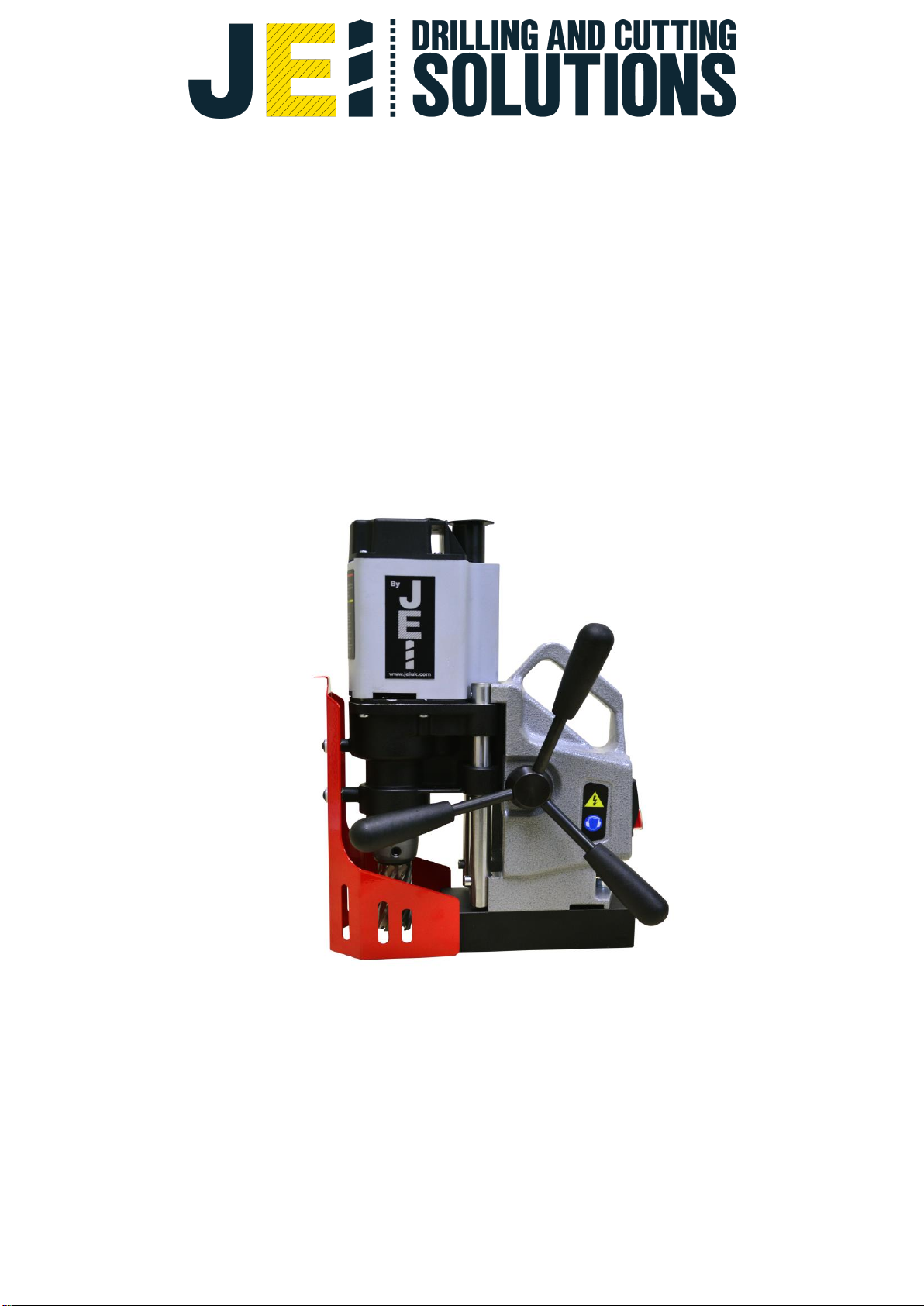

JEI DRILLING & CUTTING SOLUTIONS MINIBEAST User manual

UNIT 21 EMPIRE BUSINESS PARK, ENTERPRISE WAY
BURNLEY, LANCASHIRE, UK, BB12 6LT
TEL: [phone] EMAIL: [e-mail]
OPERATOR’S MANUAL
PORTABLE MAGNETIC
DRILLING MACHINE
M
MI IN NI IB BE EA AS ST T

WWW.JEIUK.COM
This document is protected by copyrights.
Copying, using, or distributing without permission of Ansa Group Ltd is prohibited.
Contents
1. General Information…………………………………………..………………….…..3
2. Safety Precautions…………………………………………..……………………….4
3. Start up and Operation……………………………………..………………………..5
3.1 Operating instructions before you begin………………………………………5
3.2 Before you cut…………………………...……………………………………….5
3.3 Ready to make the cut…………………………………………………………..6
4. Correct cutter usage………………………………………………...……………….7
3.4 After the cut………………………………………………………………………7
5. Wiring diagram…………..……………………………………………………………9
6. EC Declaration of conformity…………...…………………………………………10
7. Warranty Card No…………………………………………………………………..11

WWW.JEIUK.COM
This document is protected by copyrights.
Copying, using, or distributing without permission of Ansa Group Ltd is prohibited.
1. GENERAL INFORMATION
Model
MINIBEAST
Weight
10kg
Cutter Capacity
35mm Ø x2" depth of cut
Twist Drill Capacity
12mm with twist drill set
Motor
1010 watts
Height Min/Max
Min 307 / Max 377
Length
240mm
Width
166mm
RPM
Single Speed 350 RPM
Magnetic Base Dimensions
80mm x 160mm
Magnet Deadlift
(on 25mm plate)
980kg
Noise Level
Does not exceed 95dB
Vibration Level
Does not exceed 2,5m/s2
Voltage
110v or 240v

WWW.JEIUK.COM
This document is protected by copyrights.
Copying, using, or distributing without permission of Ansa Group Ltd is prohibited.
2. SAFETY PRECAUTIONS
1. Before starting, read this Operator’s Manual and complete proper occupational
safety and health training.
2. Machine must be used only in applications specified in Operator’s Manual.
3. Machine must be complete and all parts must be genuine and fully operational.
4. Power supply specifications must conform to those specified on rating plate.
5. Power supply socket must be equipped with grounding pin.
6. Never carry machine by cord or yank it to disconnect plug from socket. It may
cause power cord to break and result in electric shock.
7. Untrained bystanders must not be present near machine.
8. Before starting, check condition of machine and electrical installation, including
power cord, plug, control panel components, and milling tools.
9. Keep machine dry. Exposing it to rain, snow, or frost is prohibited.
10. Keep work area well lit, clean, and free of obstacles.
11. Never use machine near flammable fluids or gases, nor in explosive environments.
12. Never use blunt or damaged tools.
13. Use only tools recommended by manufacturer and specified in Operator’s Manual.
14. Before every use, inspect machine to ensure it is not damaged. Check whether
any part is cracked or improperly fitted. Make sure to maintain proper conditions
that may affect machine operation.
15. Always use safety goggles, hearing protection, gloves, and protective clothing
during operation. Do not wear loose clothing.
16. Do not touch moving parts or metal chips formed during drilling. Prevent objects
from being caught in moving parts.
17. After every use, remove metal chips from machine, particularly from drilling arbor.
Never remove metal chips with bare hands.
18. Maintain machine and tools with care. Cover steel parts with thin grease layer to
protect them against rust when not in use for a longer period.
19. Perform all maintenance work only with power cord unplugged from power socket.
20. Perform all repairs only in service center appointed by seller.

WWW.JEIUK.COM
This document is protected by copyrights.
Copying, using, or distributing without permission of Ansa Group Ltd is prohibited.
21. If machine falls on hard surface, from height, is wet, or has other damage that
could affect technical state of machine, stop operation and immediately send
machine to service center for inspection.
Minibeast drilling machine must be connected to "protected power source" which is
properly grounded. Improperly connecting the grounding wire can result in the risk of
electrical shock. Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the tool. Never
remove the grounding prong from the plug. Do not use tool if the cord or plug is
damaged, have it repaired before using. If the plug will not fit the outlet, have a
proper outlet installed by a qualified electrician. The Minibeast must be plugged into
an appropriate outlet, properly installed and grounded in accordance with all codes
and ordinances. If in doubt of proper grounding, call a qualified electrician.
3. STARTUP AND OPERATION
3.1 Operating instructions (Before you begin)
Remove all contents from the packaging and inspect to ensure no damage was
incurred during shipping. Your Minibeast package should include the following;
Spoke Handles Qty 3
Safety Chain Qty 1
4mm Allen Key Qty 1
3.2 Before you Cut
Before positioning the machine on work piece always make sure that:
WARNING! Read safety precautions before starting.
WARNING! Safety rules must be closely observed.

WWW.JEIUK.COM
This document is protected by copyrights.
Copying, using, or distributing without permission of Ansa Group Ltd is prohibited.
•Work piece is made of steel
•Thickness of steel is at least (10mm)
•Surface of Steel under the Magnet is flat
•Wipe, brush or sand down clean surface where you intended do use the
drilling machine, so that you remove rust, paint, dirt etc which would reduce
adhesive power of the electromagnetic base.
•Install Turbo-cutter in the machine before plugging it into mains, then plug in
and position where you wish to use it.
•Place the machine so that the tool is over the centre of the hole you intend to
make and turn the Magnetic Base ON.
3.3 Ready to Make the Cut
1. Insert the annular cutter in to the machine arbor, lining up the flats on the cutter
shank drive with the set screws on the arbor. Secure the set screws making sure
the screws are recessed in Arbor body.
The surface you are working on should be clean and level, free from rust, scale,
dirt and chips.
2. When using the annular cutter arbor fill coolant reservoir with a water-soluble
coolant.
3. Position the Minibeast on the work piece.
4. Lower cutter / drill to surface of materiel. When using cutter tool holder, coolant
flow starts when pilot pin is depressed. Lifting pilot pin off work surface will stop
coolant flow.
5. Place the drilling machine on the work piece, with pilot pin over the centre of the
hole to be cut.
6. Move the rocker switch located on the panel to the ON position. The switch will
illuminate to indicate DC power is going to the magnet.
7. Depress motor ON switch to start drill.
8. To start a cut, apply pressure until the cutter has established an external grove.
Then apply steady pressure through the remainder of the cut (Note: Do not peck

WWW.JEIUK.COM
This document is protected by copyrights.
Copying, using, or distributing without permission of Ansa Group Ltd is prohibited.
drill when using annular cutters). The tools are designed to evacuate chips when
drilling.
Correct Cutter Usage
IMPORTANT INFORMATION
Only use your Minibeast to cut through single layers of material when using standard annular
cutters.
Do not attempt to cut through multiple layers/stacks/laminates of material with your Minibeast
magnetic drilling machine using standard annular cutter. Once the first plate has been drilled, the
centre slug will retain in the cutter. Attempting to continue the cutting process will result in cutter
breakage, or can cause the magnet to break away from the surface, resulting in injury. (Note –
always secure the machine to the workpiece with the provided safety strap).
To achieve multiple layer cutting, please refer to JEI’s Multi Layer Cutter form, available for all
Turbo™types. This will allow the solid slugs to be retained in the cutter during the cut and be
safely ejected once the hole cutting process is completed. Please refer to your JEI distributor for
further details.
3.4 After the cut
1. After the cut, has finished, the slug should be expelled on the down stroke, if the
slug is not expelled after the cut, disconnect the machine from the power source
and remove the cutter from the arbor body, then expel the slug. (Caution: the
pilot should not be used to do this.

WWW.JEIUK.COM
This document is protected by copyrights.
Copying, using, or distributing without permission of Ansa Group Ltd is prohibited.
2. After the cut is finished return motor to the full upright position, depress motor
OFF button wait until motor fully stops. Move magnet switch to the OFF position
to release the magnetic base from the material.
SPARE PART DIAGRAMS AND PARTS LIST ARE AVAILABLE TO DOWNLOAD
FROM WWW.JEIUK.COM

WWW.JEIUK.COM
This document is protected by copyrights.
Copying, using, or distributing without permission of Ansa Group Ltd is prohibited.
Wiring Diagram

WWW.JEIUK.COM
This document is protected by copyrights.
Copying, using, or distributing without permission of Ansa Group Ltd is prohibited.
4. DECLARATION OF CONFORMITY
EC Declaration of Conformity
We
JEI DRILLING & CUTTING SOLUTIONS LTD
UNIT 21 EMPIRE BUSINESS
ENTERPRISE WAY
BURNLEY, LANCASHIRE, BB12 6LT
Declare with full responsibility that product:
MINIBEAST DRILLING MACHINE
which the declaration applies to is in accordance with the following standards:
is manufactured in accordance with the following standards:
•EN 62841-1:2015
•EN 55014-1:2017
•EN ISO 12100:2010
and satisfies the regulations of the guidelines: 2014/30/EU, 2014/35/EU, 2006/42/EC,
2011/65/EU, 2012/19/EU.
Burnley, 10 November 2011 ___________________________
David McFadden
Managing Director

WWW.JEIUK.COM
This document is protected by copyrights.
Copying, using, or distributing without permission of Ansa Group Ltd is prohibited.
5. WARRANTY CARD
WARRANTY CARD No.............
........................................................................... in the name of Manufacturer warrants
the Minibeast Drilling Machine to be free of defects in material and workmanship
under normal use for a period of 12 months from date of sale.
This warranty does not cover cutting tools, damage or wear that arise from
misuse, accident, tempering or any other causes not related to defects in
workmanship or material.
Date of production.........................................................................................................
Serial number................................................................................................................
Date of sale ...................................................................................................................
Signature of seller..........................................................................................................
1.05 / 1 February 2017
WE RESERVE THE RIGHT TO MAKE CORRECTIONS
AND MODIFICATIONS IN THIS MANUAL WITHOUT PRIOR NOTICE
