JENN-AIR®DETAILED PLANNING DIMENSIONS 1 of 3
8780FdZw0516
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All Jenn-Air®appliances are appropriately UL, CUL or CSA approved.
36" PRO-STYLE®DUAL-FUEL RANGES
JDRP536WP, JDRP436WP – 357⁄8" x 363⁄4" x 291⁄4"
PRODUCT DIMENSIONS
FRONT VIEW
TOP VIEW
O
N
A
B
CD
E
F
G
H
A
I
J
K
G
H
I
J
K
F
L
M*
A*
B*
C*
D*
E*
O
N
A
B
CD
E
F
G
H
A
I
J
K
G
H
I
J
K
F
L
M*
A*
B*
C*
D*
E*
MODEL #
JDRP536WP
JDRP436WP
in cm
AOverall width 357⁄891.1
BHeight of bullnose 21⁄45.5
CHeight of control panel 53⁄813.5
DSpace between door and control panel 7⁄82.0
EHeight of door 203⁄452.5
FHeight to top of handle 193⁄849.0
GSpace between door and lower panel 1 2.5
HHeight of lower panel 51⁄214.0
IDepth with control panel overhang 273⁄869.5
JDepth with handle 291⁄474.2
KDepth with door fully open 453⁄4116.2

JENN-AIR®DETAILED PLANNING DIMENSIONS 2 of 3
8780FdZw0516
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All Jenn-Air®appliances are appropriately UL, CUL or CSA approved.
DIMENSIONS AS INSTALLED
36" PRO-STYLE®DUAL-FUEL RANGES
JDRP536WP, JDRP436WP – 357⁄8" x 363⁄4" x 291⁄4"
O
N
A
B
CD
E
F
G
H
A
I
J
K
G
H
I
J
K
F
L
M*
A*
B*
C*
D*
E*
SIDE VIEW
MODEL #
JDRP536WP
JDRP436WP
in cm
A* Height to top of grates (min.) 363⁄493.3
B* Height to top of cooking surface (min.) 353⁄490.8
C* Height to top of door (min.) 273⁄869.5
D* Height to top of handle (min.) 257⁄865.7
E* Height to top of lower panel (min.) 57⁄814.9
FDepth with door fully open 453⁄4116.2
GDepth with handle 291⁄474.2
HDepth with control panel overhang 273⁄869.5
IDepth without control panel 231⁄259.5
JDepth between grates and wall 13⁄44.5
KDepth without door 245⁄862.5
LDepth with door 263⁄468.0
OPTIONAL ACCESSORIES
M* Height to top of 9" stainless steel
backsplash (min.) 443⁄4113.7
*Add 13⁄4" (4.4 cm) to the height dimension when leveling legs
are fully extended.

JENN-AIR®DETAILED PLANNING DIMENSIONS 3 of 3
8780FdZw0516
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All Jenn-Air®appliances are appropriately UL, CUL or CSA approved.

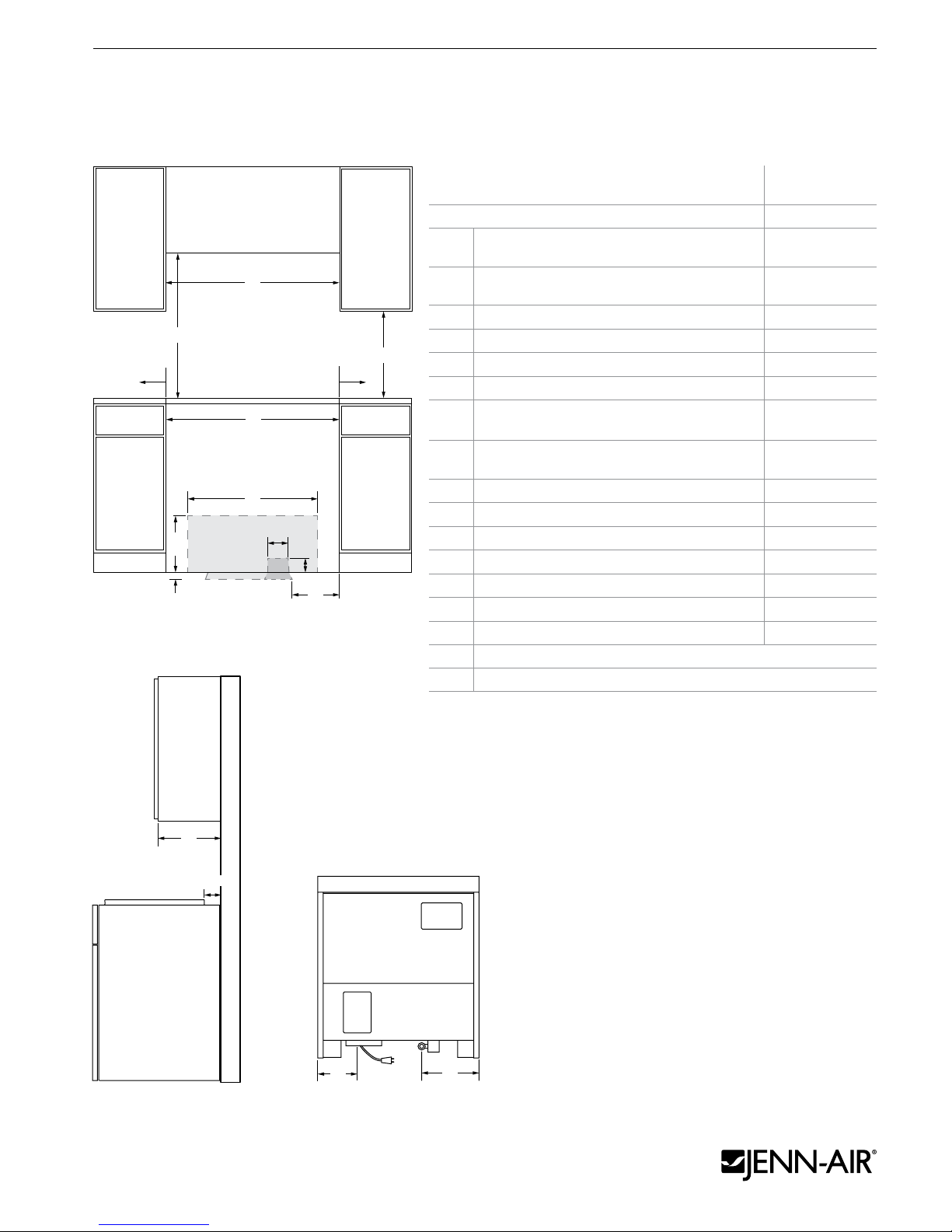

OPENING/CLEARANCE DIMENSIONS
36" PRO-STYLE®DUAL-FUEL RANGES
JDRP536WP, JDRP436WP – 357⁄8" x 363⁄4" x 291⁄4"
G*
L
H
A
BB
J
M**
Side
Cabinet
D
Ie
g
C
K
E
F
MODEL #
JDRP536WP
JDRP436WP
in cm
AWidth of combustible area above cooking
surface (min.) 36 91.4
BWidth from range to fixed wall or other
combustible material (min.) 6 15.2
CWidth of opening (min.) 361⁄492.1
DWidth of electrical installation area 28 71.1
EWidth of gas installation area 14 35.5
FWidth from side cabinet to gas installation area 6 15.2
G* Height to bottom of uncovered wood or metal
cabinet above cooking surface (min.) 42 106.7
HHeight to bottom of uncovered wood
or metal cabinet (min.) 18 45.7
IHeight of electrical installation area 15 38.1
JDepth of electrical and gas installation area 5 12.7
KHeight of gas installation area 3 7.6
LDepth of upper cabinet (max.) 13 33.0
M** Depth to wall (min.) 6 15.2
NWidth to electrical conduit 91⁄823.0
OWidth to gas inlet 143⁄836.5
eRecommended electrical access location
gRecommended gas supply line location
*If installing a hood or hood liner above the range, follow the hood or hood liner
instructions for dimensional clearances above the cooking surface.
**If back wall is constructed of a combustible material and a backsplash is not
installed, a 6" (15.2 cm) minimum clearance is required.
ELECTRICAL REQUIREMENTS
240 volt, 60 Hz, AC only, 40-amp fused, grounded circuit is required. A dedicated
circuit is recommended. A UL listed 40-amp power supply cord kit.
