Jenn-Air CCG2422 User manual

mmmJENN.AIR
Use and Care Manual
Sealed Gas Cooktops
Models CCG2422& CCG2522 l
I
Model CCG2422
Pnnte0inU.S.A. Cat,NO.CCGA2422UA
O1995Jenrt-AirCompany PartNo,210405A 11/95

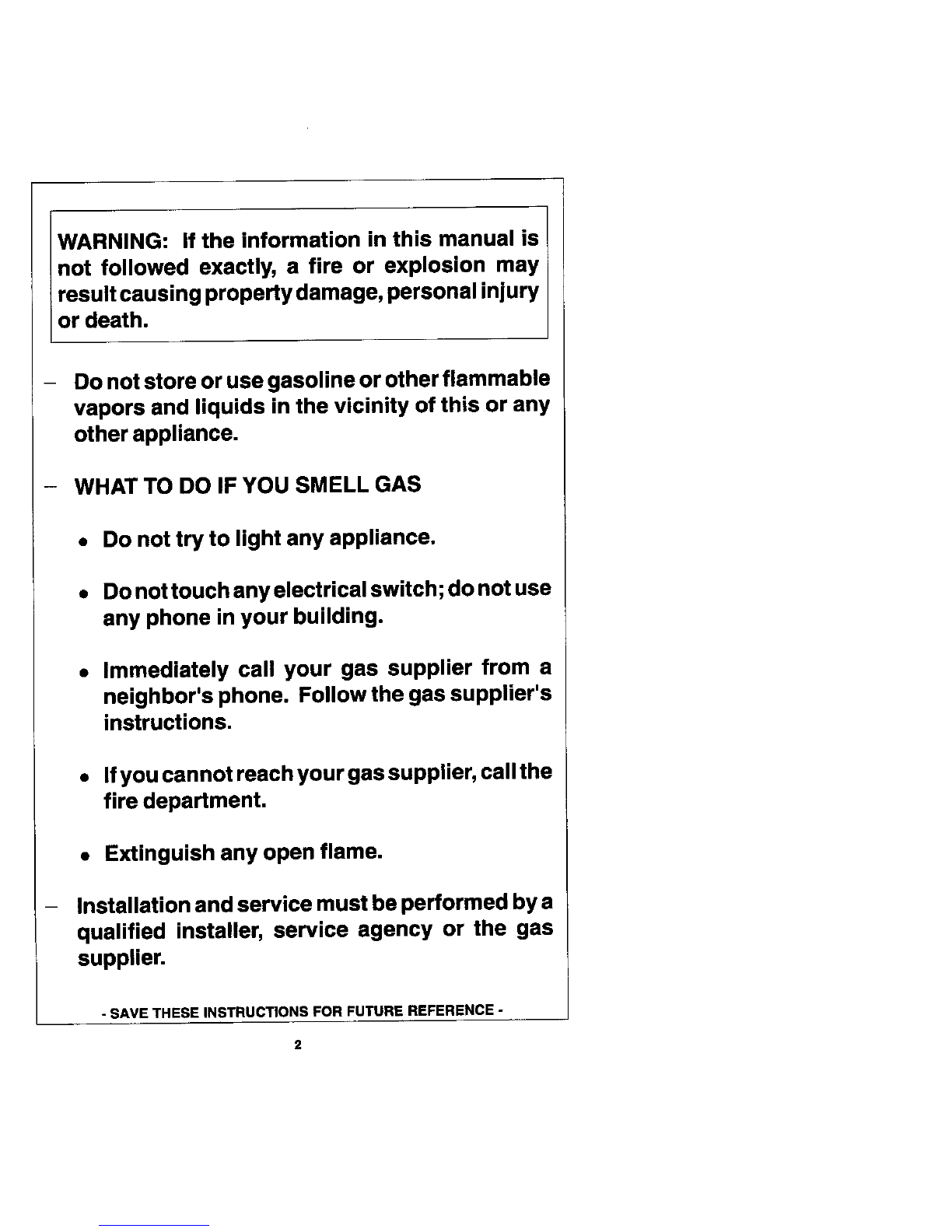

WARNING: If the information in this manual is
not followed exactly,a fire or explosion may
result causing property damage, personal injury
or death.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
•Do nottouch any electrical switch; do not use
any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•Ifyou cannot reach your gas supplier, call the
fire department.
•Extinguish any open flame.
- Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
-SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE-
2

Read before operating your cooktop
All appliances -regardlessof the manufacturer-have the potentialthrough
improperor carelessuseto create safety problems, Thereforethe following
safetyprecautionsshould beobserved:
1. Be sure yourapplianceisproperlyinstalledand groundedby a qualified
technician.
2.Neveruseyourapplianceforwarmingorheatingtheroom. Thiswarningis
basedonsafetyconsiderations.
3. Childrenshouldnotbeleftaloneor unattendedinareawhereapplianceis
in use. They shouldneverbe allowedto sit or standon any part ofthe
appliance,
4.Wear properapparel.Loose-fitting or hanging garments shouldnever
beworn whileusingtheappliance.
5. Do not repair or replaceany part ofthe appliance unlessspecifically
recommendedinthismanual. Allotherservicingshouldbe referredto an
authorizedJenn-AirServiceContractor.
6. Donotstorocombustiblematerials,gasolineorotherflammablevaporsand
liquidnearcooktop.
7. Donotusewaterongreasefires. Smotherfireorflameorusedrychemical
or foam-typeextinguisher.
8. Useonlydry potholders.Moistor damppotholderson hotsurfacesmay
resultinburnsfromsteam. Donotusea towelor otherbulkycloth.
9.Selectcookwarelargeenoughtoproperlycontainfoodandavoidboilovers
orspillovers.Thiswillsaveoncleaningandpreventhazardousaccumulations
offood,sinceheavysplatteringor spilloversleft on a cooktopcanignite.
Pansizeisespeciallyimportantindeepfatfrying,
10. Never leavecooktopunattended at Hi heat settings. Boilovercauses
smokingandgreasyspilloversthatmay ignite.
11. TYPEOF COOKWARE-Avoidpansthatareunstableandeasilytipped. In
choosingpans,lookforeasily-graspedhandlesthatwillstaycool,Pansthat
aretooheavywhenfilledwithfoodcanalsobeahazard, Ifpanhandlestwist
andcannotbetightened,discardthe pan.
12.HANDLES-Alwaysturnpanhandlestothesideorbackofthecooktop-not
out intotheroomwhere they are easilyhit, COOK3/VARE HANDLES
SHOULDBE TURNED INWARD AND NOT EXTEND OVER ADJACENT
SURFACEBURNERSto minimizeburns,ignitionof flammablematerials,
andspillagedueto unintentionalcontactwiththe cook'ware.
3

13. CAUTION - Donot store items ofinterestto children in cabinetsabove
cooktop-childrenclimbingonthecooktopto reachitemscouldbe seriously
injured.
14. Do nottouchsurfaceburnerareas orany areasnearburners. Duringand
afteruse,theseareasmaybehotenoughtocauseburns,Avoidcontactwith
theseareasby clothingor otherflammablematerialsuntilthey havehad
sufficienttimeto cool.
15. Do notheat unopenedfoodcontainers.Build-upof pressuremaycause
containerto burstand resultin injury.
16.Keepallcontrols"OFF"whenunitisnotinuse.
17. GREASE- Greaseisflammableand shouldbehandledcarefully. Never
leaveanycookingoperationunattended.Letfatcoolbeforeattemptingto
handleit. Do notallow greaseto collectaroundthe cooktop, Wipe up
spilloversimmediately.
18.Ifthecooktopisinstallednearawindow,properprecautionsshouldbetaken
topreventcurtainsfromblowingoverburnerscreatinga FIRE HAZARD.
19. Donotusealuminumfoiltolineburnerspilloverbowl. Restrictionofnormal
airflowmay resultin unsafeoperation.
20. Clean onlypartslisted in thismanualand useprocedures recommended.
21. Alwaysallowhotpansto coolin asafe place outofthe reachofsmall
children.
22. Afaintgas odormayindicateagasleak. Ifa gasodorisdetected,shutoff
the gassupplytothe cooktop. Callyourinstalleror localgas companyto
havethe possibleleakchecked.Never use amatch or other flame to
locate a gas leak.
23. Flamesizeshouldbeadjustedsoitdoesnotextendbeyondtheedgeofthe
cookware,Thisinstructionisbasedonsafetyconsideration.
24. This appliancehasbeen testedfor safe performanceusingconventional
cookware.Donotuseany devicesoraccessoriesthat are notspecifically
recommendedin this manual.Do notuse eyelidcoversfor the surface
burnersorstovetopgrills.The useofdevicesor accessoriesthat are not
expresslyrecommendedinthismanualcancreateserioussafetyhazards,
resultinperformanceproblemsandreducethelifeofthe componentsofthe
appliance.
25. Beforeservicingshutoff electricalpowersupplyto appliance.
26. Nevercovercontrolarea withdishtowel,potholders,etc., or aluminumfoil
whichcouldobstructcoolingandcombustionairfromenteringtheappliance
at the controlknobarea.

IMPORTANT SAFETY NOTICE AND WARNING
The California SafeDrinking Water and Toxic Enforcement Act of 1986
(Proposition65)requirestheGovernorofCaliforniatopublishalistofsubstances
knowntotheState of California tocause cancer or reproductiveharm,and
requiresbusinessestowarncustomersofpotentialexposurestosuchsubstances,
Usersofthisapplianceareherebywarnedthatburningofgascanresultin low-
levelexposuretosomeofthelistedsubstances,includingbenzene,formaldehyde
and scot, due primarilytotheincompletecombustion ofnaturalgas or liquid
petroleum (LP) fuels. Properly adjusted burners will minimize incomplete
combustion. Exposureto these substances can beminimized by properly
venting theburnersto theoutdoors.
WARNING
Electrical Grounding Instructions
Theapplianceisequippedwithathree-pronggroundingplugforyourprotection
againstshockhazardandshouldbepluggeddirectlyintoa properlygrounded
thtee-prongreceptacle,Donotcutorremovethegroundingprongfromthisplug,
Congratulationsonyourchoiceofa Jenn-Airsealedgascooktop.Yourcooktophas
sealedgasburnerswithautomaticreignition.Thechartbelowdescribesthedifference
betweenmodels. Cooktop Model#
30"
4bumera CCG2422
36"
5 burners CCG2522
Note: BTUratesarelistedonp,7.
Beforeyoubegincookingwithyournewcooktop,pleasetakeafewminutestoreadand
becomefamiliarwiththeinstructionsinthisbook.Shouldyouhaveanyquestionsabout
usingyourJenn-Airgascook'top,writetous. Besuretoprovidethemodelnumber.
Jenn-Air Customer Assistance
c/o Maytag CustomerService
P.O. Box 2370
Cleveland, TN 37320-2370
5

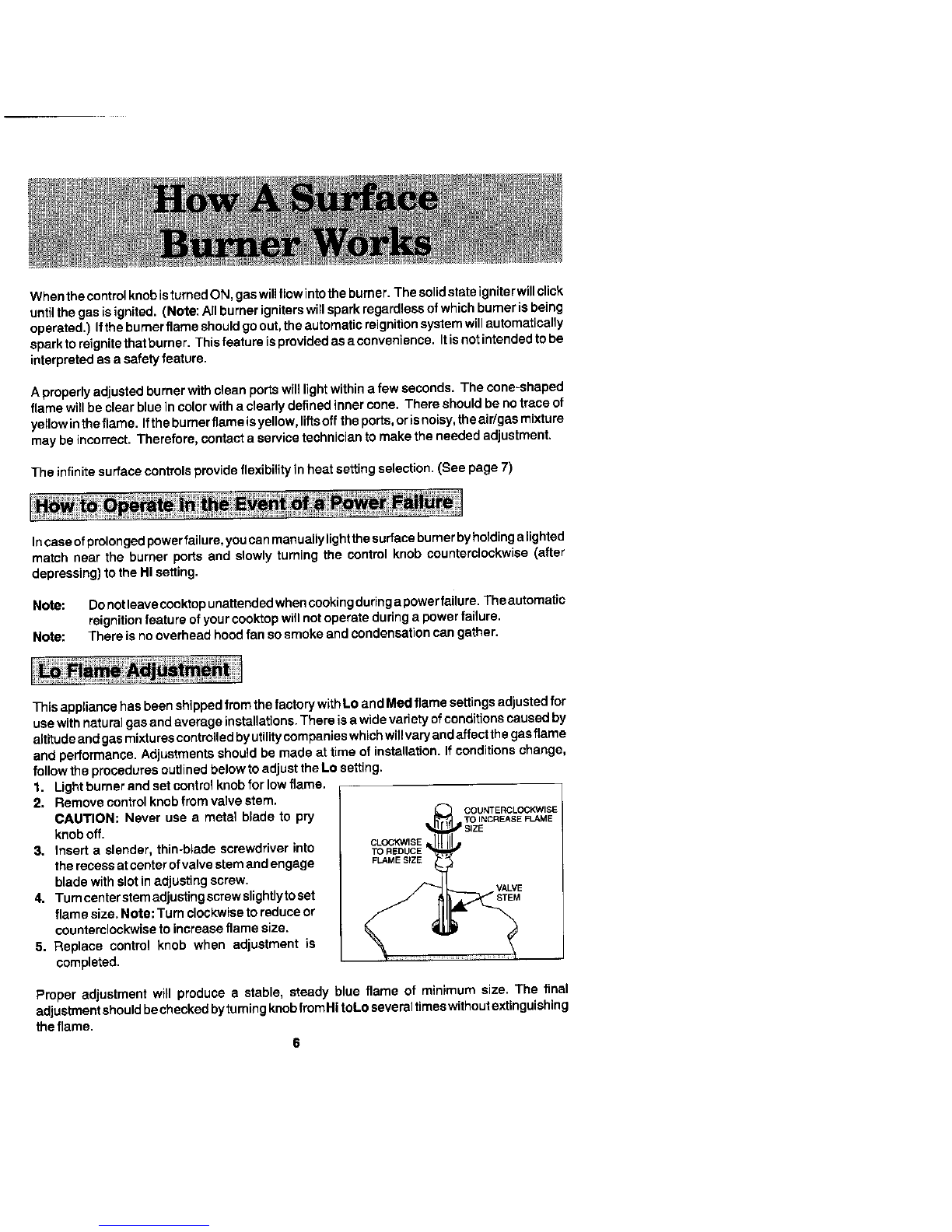

Whenthe controlknobisturnedON, gaswillflowintotheburner. The solidstateigniterwillclick
untilthegas isignited,(Note: Allburner igniterswinspark regardlessofwhichburnerisbeing
operated.) Iftheburnerflame shouldgoout,theautomaticreignitionsystemwillautomatically
sparkto reignitethatburner. Thisfeatureis providedasaconvenience. Itis notintended robe
interpretedas asafety feature.
A properlyadjustedburner withclean portswilllightwithinafew seconds. Thecone-shaped
flame willbe clearbluein colorwitha clearlydefined innercone. There shouldbe notraceof
yellowintheflame. Ifthebumerflameisyellow,liftsoff theports,orisnoisy, theair/gasmixture
may beincorrect. Therefore, contactaservicetechniciantomaketheneeded adjustment.
Theinfinitesurfacecontrolsprovideflexibilityinheat settingselection.(Seepage7)
Incaseofprolongedpowerfailure,youcan manuallylightthesurfaceburner byholdinga lighted
match near theburner ports and slowlyturning thecontrol knob counterclockwise (after
depressing)tothe HI setting.
Note: Donotleavecooktopunattendedwhencookingdudnga powerfailure.Theautomatic
reignitionfeatureofyour cooktopwillnotoperate duringa powerfailure.
Note: There isnooverhead hoodfansosmokeandcondensation can gather.
Thisappliancehas beenshippedfromthefactorywithLo and Mad flame settingsadjustedfor
usewith naturalgasand averageinstallations.There isawidevarietyofconditions causedby
altitudeandgas mixturescontrolledbyutilitycompanieswhichwillvaryandaffect thegasflame
and performance. Adjustments shouldbe madeat time ofinstallation. Ifconditionschange,
followtheproceduresoutlinedbelowtoadjusttheLo setting.
1. Lightburner and setcontrolknobfor low flame.
2,Removecontrolknobfrom valvestem.
CAUTION: Never use a metal bladeto pry
knoboff.
3. Insert a slender, thin-blade screwdriver into
the recessatcenterofvalvestemand engage
bladewithslot inadjustingscrew.
4. Tumcenterstemadjustingscrewsllghtlytoset
flamesize. Note: Turn clockwisetoreduceor
counterclockwisetoincreaseflamesize.
5.Replace controlknob when adjustmentis
completed.
Proper adjustment will producea stable, steady blue flameof minimum size. Thefinal
adjustmentshouldbechecked bytumingknobfromHItoLo severaltimeswithoutextinguishing
theflame.6

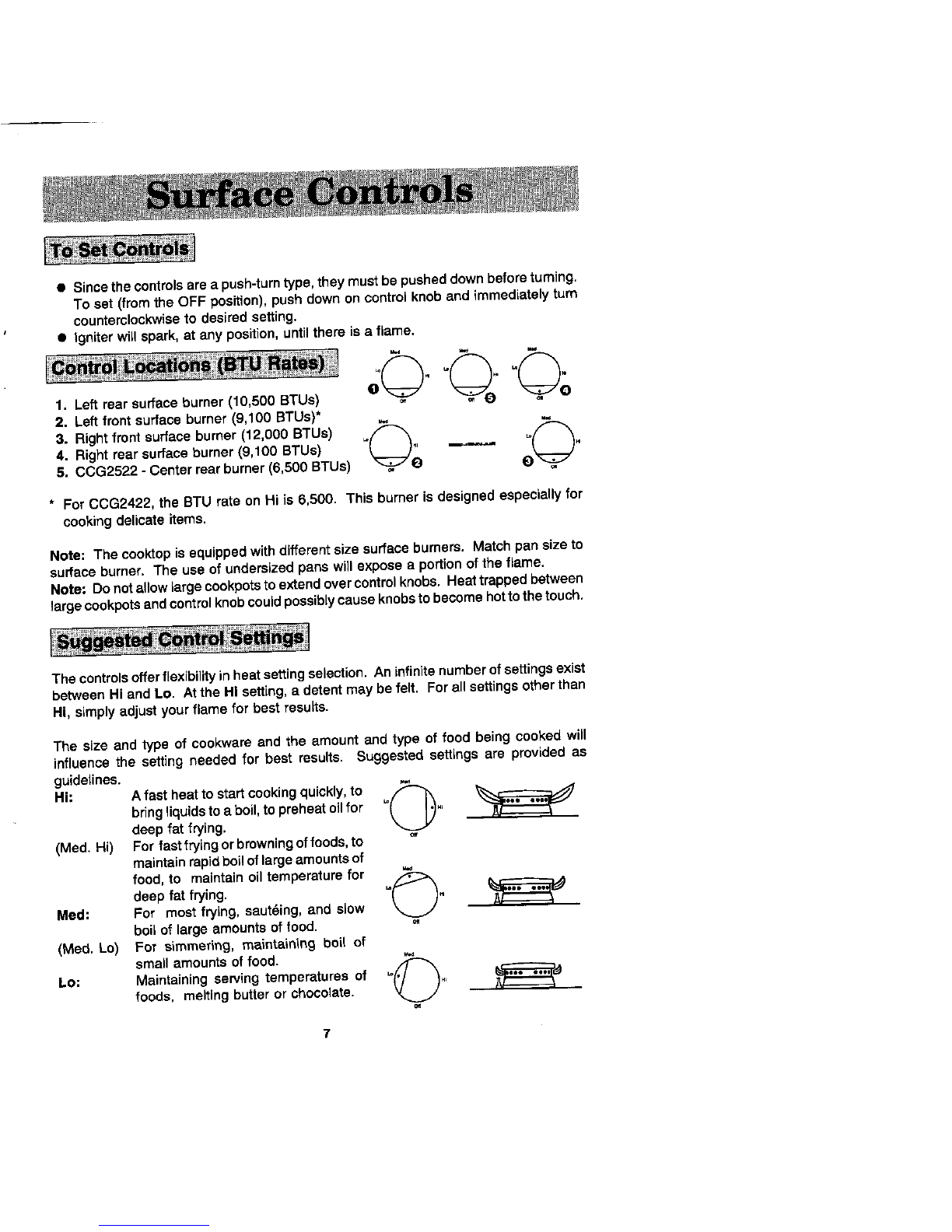

• Sincethecontrolsarea push-turntype,theymustbepusheddownbeforeturning.
Toset (fromthe OFFposition),pushdown oncontrolknob and immediatelyturn
counterclockwiseto desiredsetting.
• Igniterwillspark,at any position,untilthere isa flame.
1.Left rearsurfaceburner (10,500 BTUs) O "_'J_O
2. Left front surfaceburner (9,100BTUs)* m_d
3. Rightfrontsurfaceburner(12,000 I3TUs)(,'_
4. Rightrearsurfaceburner(9,100 BTUs) _ " "--'--"=" =
S.CCG2522 - Center rear burner (6,500BTUs)
• For CCG2422, the BTU rate on Hi is6,500. Thisburner is designed especially for
cooking delicate items.
Note; Thecooktop is equipped with different size surface burners.Match pan size to
surfaceburner. The useof undersizedpans willexposea portion ofthe flame.
Note:Donotallowlargeccokpotstoextendovercontrolknobs.Heattrappedbetween
largecookpotsandcontrolknobcouldpossiblycauseknobstobecomehottothetouch.
Thecontrolsofferflexibilityinheat settingselection.An infinite numberofsettingsexist
betweenHiandLo. Atthe HI setting,adetentmay befelt, Forall settings otherthan
HI, simplyadjustyourflame forbest results,
Thesizeand type of cookwara andtheamountand typeof foodbeingcookedwill
influencethesetting needed for best results. Suggested settings areprovidedas
guidelines,_Ja
HI.'A fast heatto startcookingquickly,to ._ _'_-.._,.-..----.-_....J)
bringliquidstoa boil,topreheatoilfor =_._,,
deepfat frying,o,
(Med.Hi) For fastfryingorbrowningoffoods,to
maintainrapidboiloflargeamountsof
food, to maintain oil temperaturefor _ , =
deepfat frying. =_,
Med: For mostfrying,saut6ing, and slow
boilof large amountsof food.
(Med. Lo) For simmering, maintainingboil of
small amountsoffood. "
LO; Maintainingservingtemperaturesof '_,_
foods, meltingbutterorchocolate.
7

To achieveoptimumcookingpedormance,usecookpotswithfiatbottoms,tightfitting
covers,and sized for thesurfaceburner.
The cooktopisequippedwith differentsize of surfaceburners.
Flamesize should be adjusted so it does not extend beyond the edge of the cookware.
Thisinstructionisbased onsafety considerations. Adjusting the sizeof the flameto fit
thesize of the cookware alsohelpsto save fuel.
Note; Donot allowlargecookpotstoextend overcontrol knobs. Heattrapped between
largecookpotsandcontrolknob couldpossiblycauseknobstobecomehottothetouch.
Important:Leavea minimumof1-1/2"between sideof cookpotand surrounding
Surfaces,suchascountertopbacksplashorsidewalls,toallowheattoescapetoavoid
possibledamagetotheseareas.
•Aluminumcookwareheats evenlyandquickly.Aslightlylargerflamesize canbe
used.The flamecanbeadjustedsoitcomestotheedgeofthe cookware.However,
the flame should NEVER be adjusted sothat it extends beyond the bottom ofthe
cookware.
• Stainlesssteel cookware with copper or aluminum cores heat evenly and fairly
quickly. Theflamesizeshould beadjustedto extend only halfway between center
and edge of the cookwarebottom for best results.
•Cast iron cookwareheatsslowly.
•Check manufacturer'srecommendations before usingporcelain on steel,porcelain
on cast iron,glass,glass/ceramic,earthenware, or other glazed cookpots.
If thecookwareiscovered,lessfuelwill beneeded;therefore,a lowerflamesize can
beused,
Note; Food will notcook anyfasterwhen morethan theamountof heatneededto
maintainagentleboilisused.

Checkthefollowinglistto besureaservicecall isreally necessary.
If surface burner falls to light:
• checktobesureunitisproperlyconnectedtopowersupply.
• checkfora blowncircuitfuse ora trippedmaincircuitbreaker.
• checkto be sureburneris correctlyratedfor yourtypeofgas.
• checktobesure burnerportsor ignitionportsare notclogged.
• checkto be sureigniterisclicking. If igniterdoesn'tclick,turncontrolknobOFF.
•check tobesure the burnerhead is correctly seatedonthe burnerbase,
Ifthe flame is uneven:
• burnerportsmay be clogged.
•flamesettingmay needto be adjusted.
Ifsurface burner flame lifts off the ports:
• contactan authorizedJenn-AirService Contractor.
If surface burner flame is yellow in color:
• contactanauthorizedJenn-AirServiceContractor.

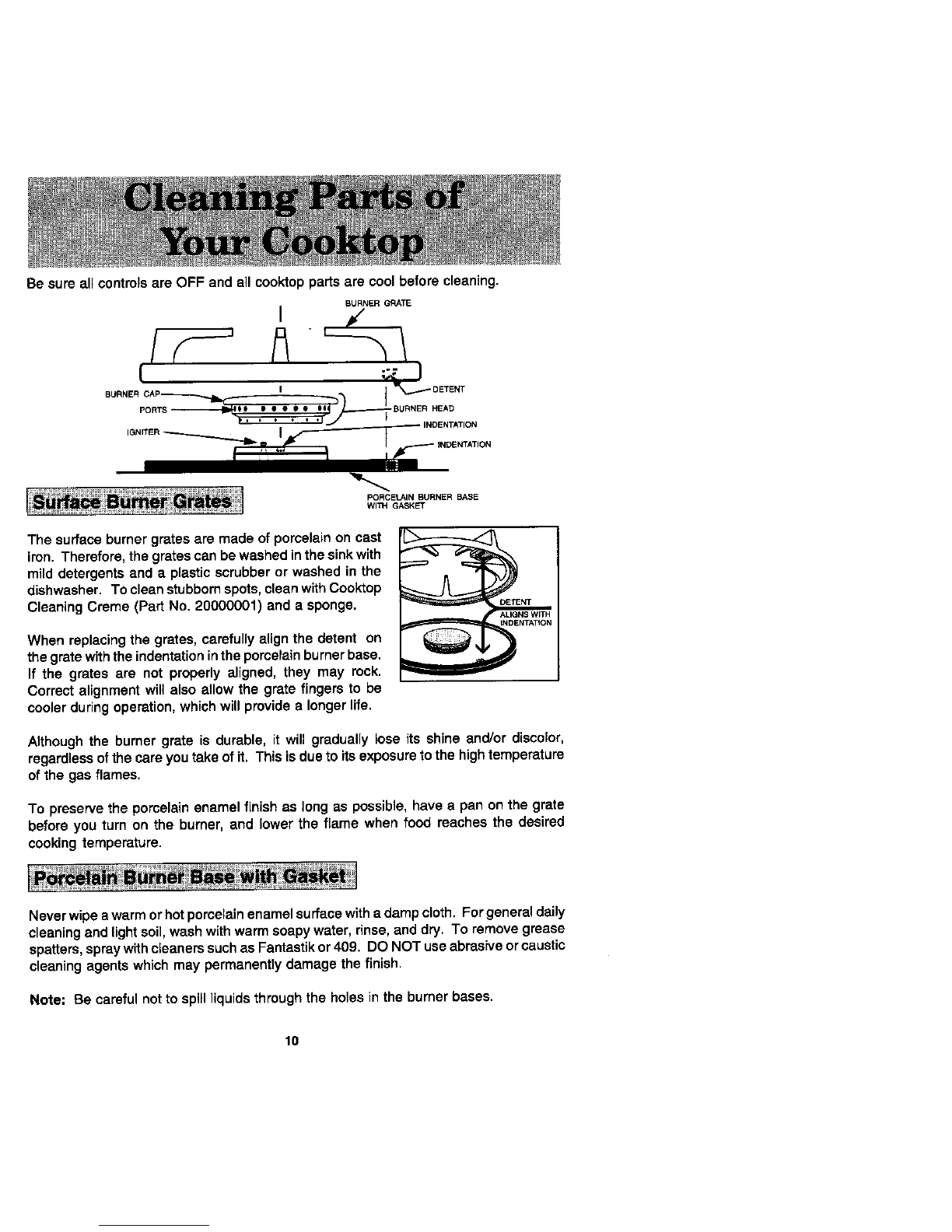

Besureall controlsareOFF andall cooktoppartsare cool before cleaning.
BURNER GRATE
i f
( o-- ]
PORTS .._ _$Ipt *••_ • *• •0 ,i_--_--_llt• BURNER HEAD
I_NIT_R ON
PORCELAIN BURNER BASE
WlT_GASKET
Thesurfaceburnergratesaremadeofporcelainon cast
iron.Therefore,thegratescanbewashedinthesinkwith
mild detergentsand a plasticscrubberor washed inthe
dishwasher. To cleanstubbornspots,cleanwithCooktop
CleaningCreme (PartNo. 20000001) and a sponge.
Whenreplacingthe grates,carefullyalignthedetent on
thegratewiththeindentationinthepomelainburnerbase.
If the grates arenot properly aligned, they may rock.
Correctalignmentwill also allow the gratefingers tobe
coolerduringoperation,whichwillprovidea longerlife.
Althoughthe burnergrate is durable, it willgraduallyloseits shineand/ordiscolor,
regardlessofthecareyoutake ofit. Thisisdueto itsexposuretothe hightemperature
ofthe gasflames.
Topreservetheporcelainenamel finishaslongaspossible, havea pan on thegrate
beforeyouturn onthe burner,andlowertheflamewhenfood reachesthedesired
cookingtemperature.
Neverwipeawarmorhotporoelainenamelsurfacewithadamp cloth. Forgeneraldaily
cleaningand lightsoil,washwithwarmsoapywater, rinse,anddry. To removegrease
spatters,spraywithcleanerssuchas Fantastikor409. DO NOTuseabrasiveorcaustic
cleaningagentswhich maypermanentlydamagethefinish.
Note: Becarefulnottospillliquidsthroughthe holesintheburnerbases.
10

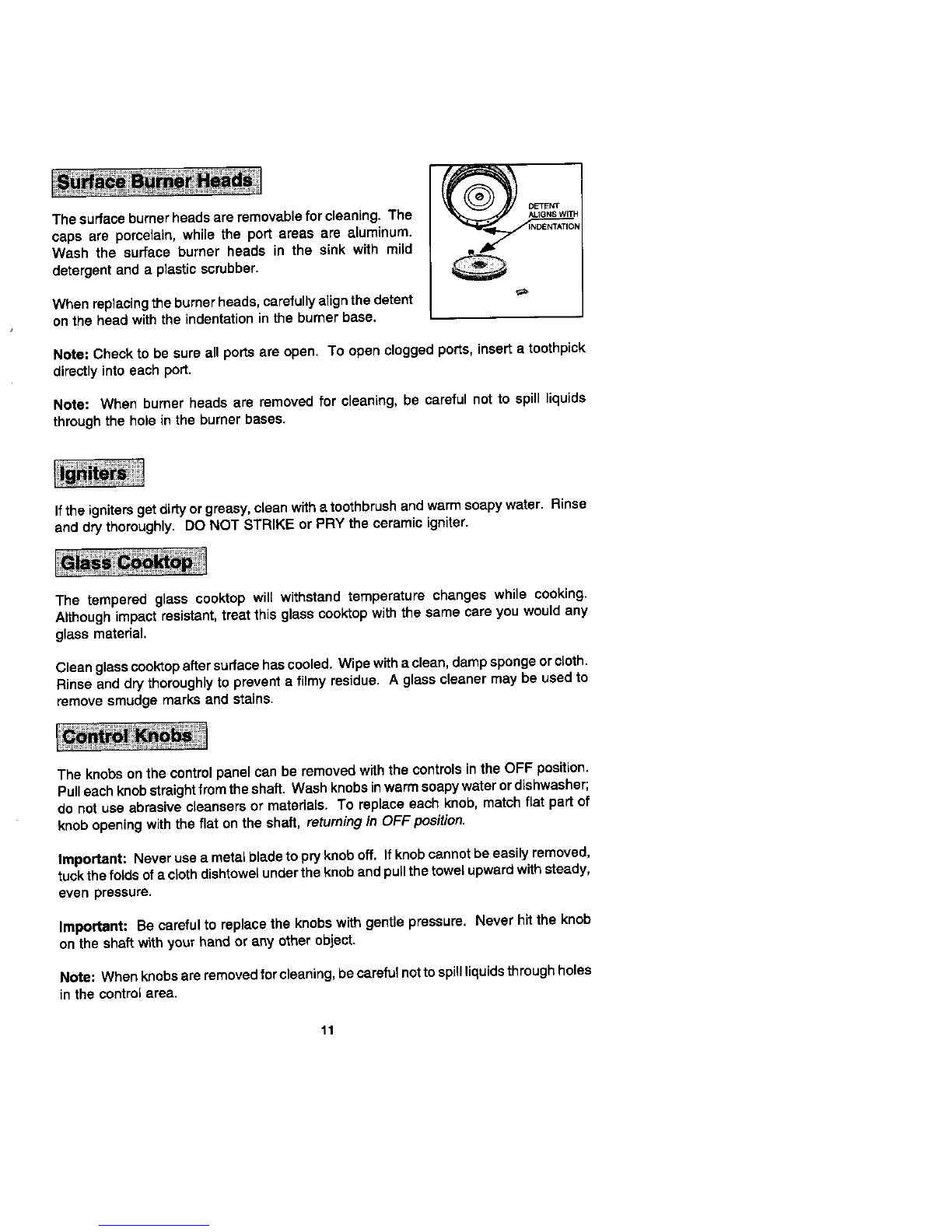

Thesurfaceburnerheadsareremovableforcleaning.The
caps are porcelain,while theport areas are aluminum.
Washthe surface burner heads inthe sink with mild
detergentand a plasticscrubber.
Whenreplacingtheburnerheads,carefullyalignthe detent
on theheadwiththeindentationin the burnerbase.
Note=Checkto besureall portsare open. To open cloggedports,insert a toothpick
directlyintoeach port.
Note: When burnerheads are removedforcleaning, be careful notto spill liquids
throughtheholeintheburnerbases.
If the igniterSgetdirtyor greasy,cleanwithatoothbrushand warmsoapywater. Rinse
anddrythoroughly.DO NOT STRIKE or PRY theceramicigniter.
Thetempered glass cooktop willwithstand temperature changes whilecooking.
Althoughimpactresistant,treatthisglasscooktopwith thesamecare youwouldany
glassmaterial.
Cleanglasscooktopaftersurfacehascooled.Wipewitha clean,dampspongeorcloth.
Rinseand dry thoroughlyto preventa filmy residue. Aglasscleanermay be usedto
removesmudgemarksand stains.
Theknobsonthe controlpanelcan be removedwiththecontrolsinthe OFF position.
Pulleachknobstraightfromtheshaft. Washknobsinwarmsoapywaterordishwasher;
do notuseabrasivecleansersor materials. To replaceeach knob,matchflat part of
knob openingwith thefiaton theshaft,returning in OFF position.
Important: Neveruse a metalbladetopry knoboff. Ifknobcannotbeeasilyremoved,
tuckthefoldsofaclothdishtowelundertheknobandpullthetowelupwardwithsteady,
even pressure.
Important: Be carefulto replacethe knobswithgentlepressure. Never hitthe knob
on the shaftwithyourhand or any otherobject.
Note=Whenknobsareremovedforcleaning,becarefulnottospillliquidsthroughholes
in thecontrolarea.
11
