Jenn-Air JIM158XXRS User manual

JENN-AIR_ICEMAKER
F.A,BRICADEHIELOJENN-AIR_
MACHINE.A.GLA(_ONSJENN-AIRTM
USE& CAREGUIDE
For questions about features, operation/performance, parts, accessories, or service, call:
1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.
In Canada, call: 1-800-807-6777, or visit our website at www.jennair.ca.
MANUAL DEUSOYCUIDADO
Si tiene preguntas respecto alas caracteristicas, funcionamiento, rendimiento, partes, accesorios o servicio tecnico, Ilame al:
1-800-JENNAIR (1-800-536-6247) o visite nuestro sitio de internet: www.jennair.com.
En CanadA, Ilame al: 1-800-807-6777, o visite nuestro sitio de internet: www.jennair.ca.
GUIDED'UTILISATIONETD'ENTRETIEN
Au Canada, pour assistance, installation ou service, composez le 1-800-807-6777 ou visitez notre site Web www.jennair.ca.
Table of Contents/[ndice/Table des matieres ...................................................................................... 2
_]ENN-AIR_
W10282142A

TABLEOF CONTENTS
ICE MAKER SAFETY ................................................................................... 3
INSTALLATION INSTRUCTIONS ............................................................... 3
Unpack the Ice Maker ............................................................................... 3
Location Requirements ............................................................................. 3
Electrical Requirements ............................................................................ 4
Water Supply Requirements ..................................................................... 4
Leveling ..................................................................................................... 5
Connect Water Supply .............................................................................. 5
Drain Connection ...................................................................................... 6
Ice Maker Door ......................................................................................... 7
Normal Sounds ......................................................................................... 8
ICE MAKER USE ......................................................................................... 8
How Your Ice Maker Works ..................................................................... 8
Using the Controls .................................................................................... 9
ICE MAKER CARE ....................................................................................... 9
Cleaning .................................................................................................... 9
Vacation and Moving Care ..................................................................... 11
TROUBLESHOOTING ............................................................................... 12
Ice Maker Operation ............................................................................... 12
Ice Production ......................................................................................... 12
Ice Quality ............................................................................................... 13
Plumbing Problems ................................................................................ 13
ASSISTANCE OR SERVICE ...................................................................... 13
WARRANTY ............................................................................................... 14
i'NDICE
SEGURIDAD DE LA FABRICA DE HIELO ............................................... 15
INSTRUCCIONES DE INSTALACION ...................................................... 15
Desempaque la fabrica de hielo ............................................................. 15
Requisitos de ubicaci6n ......................................................................... 16
Requisitos electricos ............................................................................... 16
Requisitos del suministro de agua ......................................................... 16
Nivelaci6n ................................................................................................ 17
Conexi6n del suministro de agua ........................................................... 17
Conexi6n del desagQe ............................................................................ 18
Puerta de la fabrica de hielo ................................................................... 19
Sonidos normales ................................................................................... 21
USO DE LA FABRICA DE HIELO ............................................................. 21
C6mo funciona su f&brica de hielo ........................................................ 21
Uso de los controles ............................................................................... 21
CUIBABO BE LA FABRICA BE HIELO .................................................... 22
Limpieza .................................................................................................. 22
Cuidado durante las vacaciones y mudanzas ....................................... 24
SOLUClON DE PROBLEMAS ................................................................... 25
Funcionamiento de la f&brica de hielo ................................................... 25
Producci6n de hielo ................................................................................ 25
Calidad del hielo ..................................................................................... 26
Problemas de plomeria .......................................................................... 26
AYUBA O SERVIClO TleCNICO ................................................................ 26
GARANTIA ................................................................................................. 27
TABLEDESMATIERES
SleCURITle DE LA MACHINE ._ GLAQONS ............................................. 28
INSTRUCTIONS D'INSTALLATION ......................................................... 28
Deballage de la machine a gla£_ons........................................................ 28
Exigences d'emplacement ..................................................................... 29
Specifications _lectriques ....................................................................... 29
Specifications de I'alimentation en eau.................................................. 29
Nivellement ............................................................................................. 30
Raccordement & la canalisation d'eau ................................................... 30
Raccordement au drain de vidange ....................................................... 31
Porte de la machine &glagons ............................................................... 32
Sons normaux ......................................................................................... 33
UTILISATION DE LA MACHINE AGLAQONS ........................................ 34
Fonctionnement de la machine a gla£_ons ............................................. 34
Utilisation des commandes .................................................................... 34
ENTRETIEN DE LA MACHINE A GLAQONS ........................................... 35
Nettoyage ............................................................................................... 35
Precautions & prendre avant les vacances ou un demenagement ....... 37
DlePANNAGE ............................................................................................. 38
Fonctionnement de la machine a gla£_ons ............................................. 38
Production de glagons ........................................................................... 38
Qualit6 des glagons ................................................................................ 39
Problemes de plomberie ........................................................................ 39
ASSISTANCE OU SERVICE ...................................................................... 39
GARANTIE .................................................................................................. 40
2

ICE MAKERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your ice maker, follow these basic
precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before cleaning.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Use two or more people to move and install ice maker.
SAVE THESE INSTRUCTIONS
INSTALLATIONINSTRUCTIONS
he ce Mc k®
Excessive Weight Hazard
Use two or more people to move and install ice maker.
Failure to do so can result in back or other injury.
Removing Packaging Materials
Remove tape and glue from your ice maker before using.
• To remove any remaining tape or glue from the exterior of the
ice maker, rub the area briskly with your thumb. Tape or glue
residue can also be easily removed by rubbing a small amount
of liquid dish soap over the adhesive with your fingers. Wipe
with warm water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. Do not use
chlorine bleach on the stainless steel surfaces of the ice
maker. These products can damage the surface of your ice
maker.
Cleaning Before Use
After you remove all of the packaging materials, clean the inside of
your ice maker before using it. See the cleaning instructions in the
"Ice Maker Care" section.
To ensure proper ventilation for your ice maker, the front side
must be completely unobstructed. The ice maker may be
closed-in on the top and three sides, but the installation
should allow the ice maker to be pulled forward for servicing if
necessary.
Installation of the ice maker requires a cold water supply inlet
of V4"(6.35 mm) OD soft copper tubing with a shutoff valve
and either a gravity-drain system or condensate pump to
carry the water to an existing drain.
Choose a well ventilated area with temperatures above 55°F
(13°C) and below 110°F (43°C). Best results are obtained
between 70°F (21°C) and 90°F (32°C).
The ice maker must be installed in an area sheltered from the
elements, such as wind, rain, water spray, or drip.

Wheninstallingtheicemakerunderacounter,followthe
recommendedopeningdimensionsshown.Placeelectrical
andplumbingfixturesintherecommendedlocationasshown.
NOTES:
• Be sure the power supply cord is not pinched between the
ice maker and the cabinet.
• Be sure the water supply line is not pinched between the
ice maker and the cabinet.
• Be sure the drain line (on some models) is not pinched
between the ice maker and the cabinet.
34 II
(86.4 cm)
Min.
341/2"
(87.6 cm)
Max.
281/2"
(72.4 cm)
cm)
I-_ 15"
(38.1 cm)
A. Recommended location for electrical
and plumbing fixtures
B. Floor level
A
B
Choose a location where the floor is even. It is important for
the ice maker to be level in order to work properly. If needed,
you can adjust the height of the ice maker by changing the
height of the leveling legs. See "Leveling."
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
It is recommended that a separate circuit, serving only your ice
maker, be provided. Use a receptacle which cannot be turned off
by a switch or pull chain.
IMPORTANT: If this product is connected to a GFCI (Ground Fault
Circuit Interrupter) equipped outlet, nuisance tripping of the power
supply may occur, resulting in loss of cooling. Ice quality may be
affected. If nuisance tripping has occurred, and if the condition of
the ice appears poor, dispose of it.
Recommended grounding method
The ice maker must be grounded. The ice maker is equipped with
a power supply cord having a 3 prong grounding plug. The cord
must be plugged into a mating, 3 prong, grounding-type wall
receptacle, grounded in accordance with the National Electrical
Code and local codes and ordinances. If a mating wall receptacle
is not available, it is the personal responsibility of the customer to
have a properly grounded, 3 prong wall receptacle installed by a
qualified electrician.
A cold water supply with water pressure of between 30 and
120 psi (207 and 827 kPa) is required to operate the ice maker. If
you have questions about your water pressure, call a licensed,
qualified plumber.
Reverse Osmosis Water Supply
IMPORTANT:
Reverse osmosis water filtration systems can be used only
with ice maker installations that have a gravity drain. A reverse
osmosis system is not recommended for ice makers that have
a drain pump installed.
• The pressure of the water supply coming out of a reverse
osmosis system going to the water inlet valve of the ice maker
needs to be between 30 and 120 psi (207 and 827 kPa).
If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).
NOTE: The reverse osmosis system must provide 1 gal. (3.8 L) of
water per hour to the ice maker for proper ice maker operation. If
a reverse osmosis system is desired, only a whole-house capacity
reverse osmosis system, capable of maintaining the steady water
supply required by the ice maker, is recommended. Faucet
capacity reverse osmosis systems are not able to maintain the
steady water supply required by the ice maker.
If the water pressure to the reverse osmosis system is less than
40 to 60 psi (276 to 414 kPa):
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
If you have questions about your water pressure, call a licensed,
qualified plumber.
Before you move your ice maker into its final location, it is
important to make sure you have the proper electrical connection:
A 115 Volt, 60 Hz., AC only, 15- or 20-amp electrical supply,
properly grounded in accordance with the National Electrical
Code and local codes and ordinances, is required.

Itisimportantfortheicemakertobelevelinordertowork
properly.Dependinguponwhereyouinstalltheicemaker,you
mayneedtomakeseveraladjustmentstolevelit.Youmayalso
usethelevelinglegstolowertheheightoftheicemakerfor
undercounterinstallations.
Tools needed:
Gather the required tools and parts before starting installation.
• 9" level
• Adjustable wrench
NOTE: It is easier to adjust the leveling legs if you have another
person to assist you.
1. Move the ice maker to its final location.
NOTE: If this is a built-in installation, move the ice maker as
close as possible to the final location.
Place the level on top of the product to see if the ice maker is
level from front to back and side to side.
2.
3. Push up on the top front of the ice maker, and then locate the
leveling screws that are on the bottom front of the ice maker.
4. Using an adjustable wrench, change the height of the legs as
follows:
• Turn the leveling leg to the right to lower that side of the
ice maker.
• Turn the leveling leg to the left to raise that side of the ice
maker.
NOTE: The ice maker should not wobble. Use shims to add
stability when needed.
5. Push up on the top rear of the ice maker and locate the
leveling legs that are on the bottom rear of the ice maker.
6. Follow the instructions in Step 4 to change the height of the
legs.
7. Use the level to recheck the ice maker to see that it is even
from front to back and side to side. If the ice maker is not
level, repeat steps 2 to 5. If the ice maker is level, go to the
"Connect Water Supply" section.
Read all directions before you begin.
IMPORTANT:
• Plumbing shall be installed in accordance with the
International Plumbing Code and any local codes and
ordinances.
• Use copper tubing or Whirlpool supply line, Part Number
8212547RP, and check for leaks.
• Install tubing only in areas where temperatures will remain
above freezing.
Tools needed:
Gather the required tools and parts before starting installation.
• Flat-blade screwdriver
• 7/le"and V2"open-end wrenches or two adjustable wrenches
•V4"nut driver
NOTE: Do not use a piercing-type or ¾e" (4.76 mm) saddle valve
which reduces water flow and clogs more easily.
Connecting the Water Line
1=
2.
Turn off main water supply. Turn on nearest faucet long
enough to clear line of water.
Using a V2"copper supply line with a quarter-turn shutoff valve
or the equivalent, connect the ice maker as shown.
NOTE: To allow sufficient water flow to the ice maker a
minimum V2"size copper supply line is recommended.
A
B
3.
4=
5.
A. Bulb
B. Nut
Now you are ready to connect the copper tubing. Use V4"
(6.35 mm) OD soft copper tubing for the cold water supply.
• Ensure that you have the proper length needed for the job.
Be sure both ends of the copper tubing are cut square.
Slip compression sleeve and compression nut on copper
tubing as shown. Insert end of tubing into outlet end
squarely as far as it will go. Screw compression nut onto
outlet end with adjustable wrench. Do not overtighten.
A. Compression sleeve
B. Compression nut C. Copper tubing
Place the free end of the tubing into a container or sink, and
turn on main water supply and flush out tubing until water is
clear. Turn off shutoff valve on the water pipe.
NOTE: Always drain the water line before making the final
connection to the inlet of the water valve to avoid possible
water valve malfunction.
Bend the copper tubing to meet the water line inlet which is
located on the back of the ice maker cabinet as shown. Leave
a coil of copper tubing to allow the ice maker to be pulled out
of the cabinet or away from the wall for service.

REAR VIEW SIDE VIEW
A
B
0
C
D
6.
7.
A. Water supply tube clamp
B. Vent hose (drain pump models only)
C. Inlet water tube clamp and supply
fine connector
D. Drain hose (drain pump models only)
Remove and discard the short, black plastic tube from the end
of the water line inlet.
Thread the nut onto the end of the tubing. Tighten the nut by
hand. Then tighten it with a wrench two more turns. Do not
overtighten.
NOTE: To avoid rattling, be sure the copper tubing does not
touch the cabinet's side wall or other parts inside the cabinet.
A B C D
A. Line to ice maker
B. Nut (purchased) C. Ferrule (purchased) D. Supplied line from ice maker
8. Install the water supply tube clamp around the water supply
line to reduce strain on the coupling.
9. Turn shutoff valve ON.
10. Check for leaks. Tighten any connections (including
connections at the valve) or nuts that leak.
Gravity Drain System
Connect the ice maker drain to your drain in accordance with all
state and local codes and ordinances. If the ice maker is provided
with a gravity drain system, follow these guidelines when installing
drain lines. This will help keep water from flowing back into the ice
maker storage bin and potentially flowing onto the floor causing
water damage.
• Drain lines must have a minimum of 5/8"(15.88 mm) inside
diameter.
Drain lines must have a 1" drop per 48" (2.54 cm drop per
122 cm) of run or 1/4"drop per 12" (6.35 mm per 30.48 cm) of
run and must not have low points where water can settle.
The floor drains must be large enough to accommodate
drainage from all drains.
The ideal installation has a standpipe with a 1V2"(3.81 cm) to
2" (5.08 cm) PVC drain reducer installed directly below the
outlet of the drain tube as shown. You must maintain a
1" (2.54 cm) air gap between the drain hose and the
standpipe.
It may be desirable to insulate the drain line thoroughly up to
the drain inlet.
I
"1
I
T
(4.8 cm)
I1" (2.54 cm)
23" C
(58.4 cm) D
2,,. li/2 ,,
(5 cm -3.8 cm)
A. Drain hose
B. 1" (2.54 cm) air gap
C. PVC drain reducer
D. Center of drain should be 23" (58.4 cm) from front of door,
with or without the 3/4"(1.91 cm) panel on the door. The
drain should also be centered from left to right (7_"
[18.56 cm] from either side of the ice maker).
Drain Pump System (on some models)
Connect the ice maker drain to your drain in accordance with the
International Plumbing Code and any local codes and ordinances.
NOTE: Ifthe drain hose becomes twisted and water cannot drain,
your ice maker will not work.
Connecting the Drain
After ensuring that the drain system is adequate, follow these
steps to properly place the ice maker:
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
6

Excessive Weight Hazard
Use two or more people to move and install ice maker.
Failure to do so can result in back or other injury.
2. Style 1 - For gravity drain system, push the ice maker into
position so that the ice maker drain tube is positioned over the
PVC drain reducer. See "Gravity Drain System."
Style 2 - For drain pump system connect the drain pump
outlet hose to the drain. See "Drain Pump System."
3. Recheck the ice maker to be sure that it is level. See
"Leveling."
4. If it is required by your local sanitation code, seal the cabinet
to the floor with an approved caulking compound after all
water and electrical connections have been made.
ce Mclkes ©oot
Tools needed:
Gather the required tools and parts before starting installation.
• 5/le"wrench • Flat putty knife
• 1/4"wrench • Phillips screwdriver
Hinge pin 5_6" Hex-head hinge screw
T
Handle screw End cap screw
Remove Door
1. Unplug ice maker or disconnect power.
2. Remove the handle screws and handle from the top of the
door (on some models). Keep the parts together and set them
aside.
3. Remove the hinge pin from the top hinge.
4. Remove the door from the hinges and screw the top hinge pin
back into the top hinge.
5. Remove the door skin (on some models) as follows:
• Remove the two screws from the top and bottom of the
door skin.
6.
• Remove the skin and the edge covers from the door. Keep
the parts together and set them aside.
Reverse the door end caps as follows:
• Remove the screw and end cap from the top corner. Move
it diagonally to the opposite side's bottom corner, keeping
the straight side of the end cap facing the front of the ice
maker.
Remove the screw and end cap from the bottom corner.
Move it diagonally to the opposite side's top corner,
keeping the straight side of the end cap facing the front of
the ice maker.
A B
D C
C D
B A
A. Top corner open (no end cap)
B. Beginning top corner end cap
C. Beginning bottom corner end cap
D. Bottom corner open (no end cap)
7. Place the door back into the skin, keeping the edge covers in
place. Replace the two screws in the top and bottom.
8. Set the door aside.
Reverse Hinges
1. Unscrew and remove the top hinge. Replace the screws in the
empty hinge holes.
2. Remove the screws from the bottom of the opposite side of
the ice maker cabinet. Turn the top hinge upside down so that
the hinge pin points up. Place the hinge on the bottom
opposite side of the ice maker and tighten screws.
3. Remove the plastic hinge pin sleeve from the "old" bottom
hinge and replace it on the new bottom hinge pin.
4. Remove the "old" bottom hinge screws and hinge. Replace
the screws in the empty hinge holes.
5. Remove the screws from the top of the opposite side of the
ice maker cabinet. Turn the hinge upside down so that the
hinge pin points down. Place the hinge on the top opposite
side of the ice maker and tighten the screws.
6. Remove the top hinge pin.
Replace Door
1. Place plastic hinge pin sleeve in the top hinge hole on the
door. Align the door with the top hinge hole and replace the
top hinge pin.
2. Replace the handle and handle screws (on some models).
Top Hinge
....... A
B
C
D
A. Hinge pin C. Hinge
B. Hinge pin sleeve D. Hex-head hinge screw

Bottom Hinge
L
A. Hex-head hinge screw C. Hinge
B. Hinge pin sleeve D. Hinge pin
Reverse Door Catch
1.
2.
3.
Remove the hole plugs from the opposite side of the door and
set aside.
Remove the screws from the magnetic door catch and replace
it on the opposite side of the door.
Push the hole plugs into place on the opposite side of the
door.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Your new ice maker may make sounds that are not familiar to you.
Because the sounds are new to you, you might be concerned
about them. Most of the new sounds are normal. Hard surfaces
such as floors, walls and cabinets can make the sounds seem
louder than they actually are. The following describes the kinds of
sounds that might be new to you and what may be making them.
• You will hear a buzzing sound when the water valve opens to
fill the water reservoir for each cycle.
• Rattling noises may come from the flow of the refrigerant or
the water line. Items stored on top of the ice maker can also
make noises.
The high-efficiency compressor may make a pulsating or high
pitched sound.
Water running over the evaporator plate may make a
splashing sound.
Water running from the evaporator plate to the water reservoir
may make a splashing sound.
As each cycle ends, you may hear a gurgling sound due to the
refrigerant flowing in your ice maker.
You may hear air being forced over the condenser by the
condenser fan.
During the harvest cycle, you may hear a "thud" when the ice
sheet slides from the evaporator onto the cutter grid.
When you first start the ice maker, you may hear water running
continuously. The ice maker is programmed to run a rinse
cycle before it begins to make ice.
ICE MAKERUSE
When you first start your ice maker, the water pan will fill and the
system will rinse itself before starting to make ice. The rinsing
process takes about 5 minutes.
Under normal operating conditions, the ice maker will cycle at
preset temperatures. The ice level sensor located in the ice
storage bin will monitor the ice levels.
IMPORTANT:
• If the water supply to the ice maker is turned off, be sure to set
the ice maker control to OFR
• The ice maker is designed to make clear ice from the majority
of water sources on a daily basis. If your results are
unsatisfactory, your water may need to be filtered or treated.
The Ice Making Process
1. Water is constantly circulated over a freezing plate. As the
water freezes into ice, the minerals in the water are rejected.
This produces a sheet of ice with a low mineral content.
4. Plug into a grounded 3 prong outlet.
8

2. When the desired thickness is reached, the ice sheet is
released and slides onto a cutter grid. The grid divides the
sheet into individual cubes.
3. The water containing the rejected minerals is drained after
each freezing cycle.
4. Fresh water enters the machine for the next ice making cycle.
5. Cubes fall into the storage bin. When the bin is full, the ice
maker shuts off automatically and restarts when more ice is
needed. The ice bin is not refrigerated, and some melting will
occur. The amount of melting varies with room temperature.
Service
The service light indicates when service is needed. Ifthe service
light turns on, turn the ice maker off and back on. If the service
light turns on again, call for service.
Clean/Reset
The Clean/Reset Status light will help you know when it is time to
clean your ice maker. The light will change to yellow. This tells you
it is almost time to clean your ice maker. It is recommended that
you clean the ice maker when the status light changes to red OR
ice production decreases significantly. To clean your ice maker,
see "Ice Maker System" in the "Cleaning" section.
ICE MAKERCARE
NOTE: As the room and water temperatures vary, so will the
amount of ice produced and stored. This means that higher
operating temperatures result in reduced ice production.
1.
2. To start the normal ice making cycle, press ON.
To stop ice maker operation, press OFR
On Speed Clean
Off ice Service Reset
O-O-O-O
NOTES:
• Pressing the ON/OFF switch does not shut off power to
the ice maker.
• Allow 24 hours to produce the first batch of ice. Discard
the first batch produced.
Speed Ice Mode
Select the Speed Ice feature when you have an upcoming need
for a large amount of ice and the ice bin is low or empty. The
Speed Ice mode will produce a greater quantity of ice in a24-hour
period.
• Press and hold SPEED ICE while the ice maker is on. The
indicator light will illuminate.
• Press and hold SPEED ICE again to turn off the Speed Ice
feature. The indicator light will turn off.
The ice making system and the air cooled condenser need to be
cleaned regularly for the ice maker to operate at peak efficiency
and to avoid premature failure of system components. See the
"Ice Maker System" and the "Condenser" sections.
Exterior Surfaces
Wash the exterior enamel surfaces and gaskets with warm water
and mild soap or detergent. Wipe and dry. Regular use of a good
household appliance cleaner and wax will help maintain the finish.
Do not use abrasive cleaners on enamel surfaces as they may
scratch the finish.
For products with a stainless steel exterior, use a clean sponge or
soft cloth and a mild detergent in warm water. Do not use abrasive
or harsh cleaners. Do not use chlorine bleach on the stainless
steel surfaces.
Ice Maker System
Minerals that are removed from water during the freezing cycle will
eventually form a hard scaly deposit in the water system. Cleaning
the system regularly helps remove the mineral scale buildup. How
often you need to clean the system depends upon how hard your
water is. With hard water of 15 to 20 grains/gal. (4 to 5 grains/
liter), you may need to clean the system as often as every
6 months.
NOTE: Use one 16 oz (473 mL) bottle of approved ice maker
cleaner. To order, call 1-800-JENNAIR and ask for Part Number
4396808. In Canada, call 1-800-807-6777.
1. Press the selector switch to OFF.
2. Wait 5 to 10 minutes for the ice to fall into the storage bin.
Remove all ice from the storage bin.
3. Unscrew the drain cap from the bottom of the water pan
located inside the storage bin as shown. Allow the water to
drain completely.
4. Replace the drain cap securely on the water pan. If the drain
cap is loose, water will empty from the water pan and you will
have either thin ice or no ice.
5. Read and follow all handling information on the cleaner bottle
before completing the steps below. Use one 16 oz (473 mL)
bottle of approved ice maker cleaner.

6. Pouronebottleofsolutionintothewaterpan.Fillthebottle
twicewithtapwaterandpouritintothewaterpan.
S.........
I -|\\ qo \ .......j
.......... 0_ ............................B
'_' .. C
A. Waterpan
B. Water pan thumb screws
C. Drain cap
7.
8.
Press the CLEAN button. See "Using the Controls." The light
will blink, indicating that the cleaning cycle is in process.
When the indicator light turns green (approximately
70 minutes), the cleaning cycle is complete. During the
cleaning cycle, the system will both clean and rinse itself.
After the cleaning cycle is complete, remove the drain cap
from the water pan. Look for any cleaning solution left in the
water pan. If cleaning solution drains from the water pan, you
should run the clean cycle again. Be sure to replace the drain
cap securely on the water pan. If the drain cap is loose, water
will empty from the water pan and you will have either thin ice
or no ice.
NOTE: Severe scale buildup may require repeated cleaning with a
fresh quantity of cleaning solution.
9. Push the selector switch to ON to resume ice production.
Condenser
A dirty or clogged condenser:
• Obstructs proper airflow.
• Reduces ice making capacity.
• Causes higher than recommended operating temperatures
which may lead to component failure.
Electrical Shock Hazard
Disconnect power before cleaning.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
1. Unplug ice maker or disconnect power.
2. Remove the two screws in the lower access panel and the two
screws from the base grille area of the front panel support.
3. Pull the bottom forward and then pull down to remove the
lower access panel.
@
4. Remove dirt and lint from the condenser fins and the unit
compartment with a brush attachment on a vacuum cleaner.
5. Replace the lower access panel using the four screws.
6. Plug in ice maker or reconnect power.
Interior Components
1. Unplug ice maker or disconnect power.
2. Open the storage bin door and remove any ice that is in the
bin.
3. Remove the drain cap from the water pan and drain
thoroughly. Replace the drain cap securely on the water pan. If
the drain cap is loose, water will empty from the water pan,
and you will have either thin ice or no ice.
4. Remove the two screws that hold the cutter grid cover in
place and remove the cutter grid cover.
5. Unplug the wiring harness from the left side of the cutter grid.
A. Cutter grid cover
B. Screws
6. Unplug the ice level sensor from the right side of the cutter
grid. Pull the ice level sensor down and forward away from the
cutter grid.
7. Remove the right-hand and left-hand screws. Lift the cutter
grid up and out.
NOTE: Make sure the plastic spacer from the right-hand side
of the cutter grid bracket stays with the cutter grid.
A. Cutter grid harness
B. Screw
C. Cutter grid
D. Ice level sensor harness
E. Plastic spacer
F. Screw
10

8=
g=
Remove the two thumb screws that hold the water pan in
place. Push down with one hand on the front of the pan while
pulling forward on the bottom back side.
B--
[ -|\\ _o \ -;
.............. g
A. Water pan
B. Water pan thumb screws
C. Drain cap
Remove, clean and replace the ice scoop and ice scoop
holder.
• After removing the ice scoop, remove the holder by
removing the two thumb screws.
Wash the ice scoop holder along with the other interior
components using the following instructions.
Replace the ice scoop holder by replacing the thumb
screws. /
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
To shut down the ice maker:
1. Unplug ice maker or disconnect power.
2. Remove all ice from storage bin.
3. Shut off the water supply.
4. Remove the two screws in the lower access panel and the two
screws from the base grille area of the front panel support.
Pull forward to remove the lower access 3anel.
@
A. Thumb screw
B. Ice scoop holder
10. Wash the interior components (cutter grid, exterior of hoses,
and water pan) and the storage bin, door gasket, ice scoop,
and ice scoop holder with mild soap or detergent and warm
water. Rinse in clean water. Then clean the same parts with a
solution of 1 tbs (15 mL) of household bleach in 1 gal. (3.8 L)
warm water. Rinse again thoroughly in clean water.
NOTE: Do not remove hoses. Do not wash plastic parts in
dishwasher. They cannot withstand temperatures above
145°F (63°C).
11. Replace water pan by pushing back on the bottom with one
hand while pushing up and back on the top. Secure the water
pan by replacing both screws.
12. Check the following:
• Drain cap from the water pan is securely in place. If the
drain cap is loose, water will empty from the water pan,
and you will have either thin ice or no ice.
• Hose from water pan is inserted into storage bin drain
opening.
13. Slide the cutter grid back into place and secure it by replacing
the right-hand screw and plastic spacer. Then tighten the left-
hand screw. Reconnect the cutter grid harness and the ice
level sensor harness.
14. Replace the cutter grid cover and the two screws.
15. Gently wipe the control panel with a soft, clean dishcloth using
warm water and a mild liquid dish detergent.
16. Plug in ice maker or reconnect power.
17. After cleaning, make sure that all controls are set properly and
that no control indicators are flashing.
5=
6=
7.
8.
Disconnect the inlet and outlet lines to water valve. Allow
these lines to drain and then reconnect to the valve.
Replace lower access panel and screws.
Drain water from water pan by removing the drain cap.
If the room temperature will drop below 32°F (0°C), water must
be removed from the drain line.
For ice makers with adrain pump installed:
• Plug in ice maker or reconnect power.
• Turn ice maker off and remove all remaining ice from ice
bin.
Pour 1 qt (0.95 L) of water into the ice bin near the drain
and let the ice maker stand for approximately 5 minutes.
This will allow the water in the bin to drain into the drain
pump so that the pump will remove the remaining water
from the ice bin and the drain pump.
• Unplug ice maker or disconnect power.
9. Before using again, clean the ice maker and storage bin.
10. Plug into a grounded 3 prong outlet.
NOTE: All components of the ice maker are permanently
lubricated at the factory. They should not require any additional
oiling throughout the normal life of the machine.
11

TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.
Your ice maker will not operate
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Is the power cord plugged in? Plug into a grounded 3prong
outlet.
is the control set to ON? Be sure that the control is set to
ON.
Has a household fuse blown, or has a circuit breaker
tripped? Replace the fuse or reset the circuit breaker. If the
problem continues, call an electrician.
Is the room temperature cooler than normal? Room
temperature must be above 55°F (13°C). Otherwise, bin
thermostat may sense cold room temperature and shut off
even though the bin is not full of ice. The ice maker may not
restart once it does shut off.
Does the green light come on when the Clean button is
pushed? The ice maker is receiving power but may need
cleaning. See "Cleaning."
Does the ice maker have adrain pump? If there was a large
amount of water added to the ice maker, wait a few minutes
for the drain pump to clear. If there is still water in the bin,
check to see whether the drain hose is kinked.
Ice maker seems noisy
•Is water being circulated through the ice maker? This is
normal operation. Water isadded once per ice-making cycle.
• Is the water in the reservoir overflowing? This is normal.
This overflow helps to purge minerals that were removed from
the water during the ice making process.
• Is there a "whooshing" sound? Check the following things:
• Make sure that the water supply is hooked up and turned
on.
• Make sure that the drain cap is tight and the water drain
pan pump is securely attached to the water pan.
Is there ice between the evaporator plate and the cutting
grid? Check that the ice maker is level. See "Leveling." If the
ice maker is level, and the problem persists, run a cleaning
cycle. See "Cleaning."
Ice maker runs but produces no ice
Is the control set to ON? Be sure that the control isset to
ON.
Is the water supply connected? Make sure the water supply
is properly connected and turned on.
Is the drain cap securely in place? If the drain cap is loose,
water will empty from the water pan, and you will have either
thin ice or no ice. Tighten the drain cap.
Is there debris in the drain tube? Clean the drain tube.
Is there a kink in the drain line? Be sure that there are no
kinks in the line.
Is the service light flashing on and off continually? Call for
service.
Ice maker runs but produces very little ice
Is the accelerated ice production feature turned on? This
feature increases the ice production rate to provide you with
more ice in the same amount of time. See "Using the
Controls."
12

•Is the room temperature hotter than normal? Room
temperatures of more than 90°F (32°C) will normally reduce
ice production.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Is the condenser dirty? Dirt or lint may be blocking the
airflow through the condenser. See "Condenser" in the
"Cleaning" section.
Is there scale buildup in the ice maker? If there iswhite
scale buildup in the ice maker's water or freezing system, you
should clean the ice maker. See "Interior Components" in the
"Cleaning" section.
Is the drain cap securely in place? If the drain cap is loose,
water will empty from the water pan, and you will have either
thin ice or no ice. Tighten the drain cap if it is loose.
Grid is not cutting ice sheets
Is the cutter grid securely in place? Check the cutter grid
harness plug to make sure the connection is intact. See
"Interior Components" section of "Cleaning" for instructions
on cutter grid removal.
C@ _£_;'__"__ _
Off taste, odor or gray color in the ice
•Is there unusually high mineral content in the water
supply? The water may need to be filtered or treated.
• Is there mineral scale buildup? Clean your ice maker. See
"Ice Maker System" in the "Cleaning" section.
• Are there food items stored in the ice bin? Do not store any
foods in the ice bin.
•Were all the packaging materials removed? Make sure that
all packaging materials were removed at the time of
installation.
Thin, soft or clumps of ice
Is there unusually high mineral content in the water
supply? The water may need to be filtered or treated.
Is there mineral scale buildup? Clean your ice maker. See
"Ice Maker System" in the "Cleaning" section.
Are there clumps of ice in the bin? If ice is not used regularly
it will melt and form clumps. Break the clumps with the ice
scoop provided.
Excessive Weight Hazard
Use two or more people to move and install ice maker.
Failure to do so can result in back or other injury.
•Is the drain hose aligned over the drain? Move the ice
maker to align the drain. See "Connect Water Supply."
NOTE: Service technicians cannot repair plumbing problems
outside of the ice maker. Call a licensed, qualified plumber.
ASSISTANCEOR SERVICE
If you need assistance or service, first see the "Troubleshooting"
section. Additional help is available. Call us at 1-800-JENNAIR
(1-800-536-6247} from anywhere in the U.S.A., or write:
Jenn-Air Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Information may also be obtained by visiting our website at
www.jennair.com.
In Canada, for assistance, installation or service, call us at
1-800-807-6777, or write:
Jenn-Air Brand Home Appliances
Customer eXperience Centre
200 - 6750 Century Ave.
Mississauga, Ontario L5N 0B7
In Canada, visit www.jennair.ca.
Please include a daytime phone number in your correspondence.
13

JENN-AIR ° ice Maker
PRODUCT MODEL NUMBER
JIM158XXR
Bectficak A 115Volt, 60 Hz.,AConly, 15- or 20-amp electricalsupply,
properly groundedin accordancewith the NationalElectricalCodeand local
codesand ordinances,is required.
It is recommendedthat aseparatecircuit, serving onlyyour ice maker,be
provided. Useareceptaclewhich cannotbeturned off byaswitch or pull
chain.
iMPORTANT:If this product is connectedto a GFCl(GroundFaultCircuit
Interrupter)equippedoutlet, nuisancetripping ofthe powersupply may
occur,resulting in loss of cooling. Foodquality andflavor maybeaffected. If
nuisancetripping hasoccurred,and if the condition of the food appearspoor,
disposeof it.
Water:A coldwater supply with water pressurebetween30 and120 psi
(207 and 827 kPa) is requiredto operateice makerand water dispenser.If
you havequestionsabout your water pressure,calla licensed,qualified
plumber.
ReverseOsmosis WaterSupply:
[] Reverseosmosis waterfiltration systems canbe usedonly with ice maker
installationsthat havea gravitydrain.A reverseosmosis system is not
recommendedfor ice makersthat havea drain pump installed.
[] Thepressureof the watercoming out ofa reverseosmosis system going
to the waterinlet valveof the ice makerneedsto be between30 and
120 psi (207 and 827 kPa).Ifa reverseosmosiswaterfiltration system is
connectedto your cold watersupply,the waterpressureto the reverse
osmosissystem needsto bea minimum of 40 to 60 psi (207 and
827 kPa).
Location:
[] Toensureproperventilation for your icemaker,the front sidemust be
completely unobstructed.Theice maker may beclosed-in onthe top and
three sides, but the installationshould allow the ice makerto bepulled
forward for servicingif necessary.
[] Installation of the ice makerrequiresa coldwater supply inletof ¼"
(6.35 mm) ODsoft coppertubing with a shutoff valveand eitheragravity-
drainsystem or condensatepumpto carrythe waterto an existingdrain.
[] Chooseawell ventilatedareawith temperaturesabove55°F(13°C) and
below 110°F(43°0). Bestresultsareobtainedbetween70°F(21°C)and
90°F(32%).
DRAIN REQUIREMENTS
CABINET OPENING DiMENSiONS
34"
(86.4era)
Min.
341_"
(87.6cm)
Max.
(38.1cm)
A. Recommendedlocation for
electricaland p/umbing fixtures.
B.Floor level
[] Besurethe powersupply cord is not pinchedbetweenthe icemakerand
the cabinet.
[] Besurethe water supply lineis not pinchedbetweenthe ice makerandthe
cabinet.
[] Besurethe drainline (onsome models) is not pinchedbetweenthe ice
maker andthe cabinet.
[] Choosea locationwherethe floor is even.It is importantfor the ice maker
to be levelin orderto work properly.
A
B
i c
......... D
A. Watersupply tubeclamp
B. Venthose(drain pump models only)
C.Inlet watertubeclamp and supply
line connector
D. Drainhose (drainpump models only)
!
I
I
17/8"
(4.8 cm)
I I
20"
(50.8 cm)
A. Drain hose
B. 1"(2.54cm)
air gap
C.PVCdrain
reducer
1" (2.54 cm)
C
D
2".11/2"
(5 cm -3.8 cm)
D. Centerof drain should be23" (58.4 cm)
from front of door, with or without the
¼"(1.91 cm) panel on the door. The
drain should also be centeredfrom left
to right (7/6" [18.56 cm] from either
side of the ice maker).
Drain: Either a gravity-drain system or
condensatepump to carry water to an
existing drain.
[] Drain lines must havea minimum of %"
(15.88 mm) inside diameter.
[] Drain lines must havea 1"drop per 48"
(2.54 cm drop per 122 cm) of run or¼"
drop per 12"(6.35 mm per30.48 cm)
of run and must not have low points
where water can settle.
[] Thefloor drains must be large enough
to accommodate drainage from all
drains.
[] The ideal installation has astandpipe
with a 1_" (3.81 cm) to 2" (5.08 cm)
PVCdrain reducer installed directly
belowthe outlet of the drain tube as
shown. You must maintain a 1" (2.54
cm) air gap betweenthe drain hose
andthe standpipe.
[] It may bedesirable to insulate the drain
linethoroughly upto the drain inlet.
Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation Ref.W10282142A
our products, we reserve the right to change materials and specifications without notice. Instructions packed with product. Specifications subject to change without notice. 11/5/10

JENN-AIRTM ICE MAKERWARRANW
LIMITED WARRANTY
For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or
furnished with the product, Jenn-Air brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter "Jenn-Air") will pay for factory
specified parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased.
Service must be provided by a Jenn-Air designated service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED
WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This limited warranty is valid only in the United States or Canada and
applies only when the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain
service under this limited warranty.
SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON SEALED REFRIGERATION SYSTEM PARTS
In the second through the fifth year from the date of purchase, when this major appliance is operated and maintained according to
instructions attached to or furnished with the product, Jenn-Air will pay for factory specified parts for the following components to correct
defects in materials or workmanship in the sealed refrigeration system that existed when this major appliance was purchased: compressor,
evaporator, condenser, dryer/strainer, and connecting tubing.
ITEMS EXCLUDED FROM WARRANTY
This limited warranty does not cover:
1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in
a manner that is inconsistent to published user or operator instructions and/or installation instructions.
2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair
house fuses, or to correct house wiring or plumbing.
3. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance
with electrical or plumbing codes, or use of products not approved by Jenn-Air.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results
from defects in materials or workmanship and is reported to Jenn-Air within 30 days from the date of purchase.
6. Any food or medicine loss due to refrigerator or freezer product failures.
7. Pickup and delivery. This major appliance is intended to be repaired in your home.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an
authorized Jenn-Air servicer is not available.
10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with
Jenn-Air's published installation instructions.
11. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or cannot be
easily determined.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not
allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives
you specific legal rights, and you also may have other rights that vary from state to state or province to province.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. JENN-
AIR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or
limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific
legal rights, and you also may have other rights that vary from state to state or province to province.
If outside the 50 United States and Canada, contact your authorized Jenn-Air dealer to determine if another warranty applies.
If you think you need repair service, first see the "Troubleshooting" section of the Use & Care Guide. If you are unable to resolve the problem
after checking "Troubleshooting," additional help can be found by checking the "Assistance or Service" section or by calling Jenn-Air. In the
U.S.A., call 1-800-536-6247. In Canada, call 1-800-807-6777. 6/09
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your major appliance
to better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label located on the product.
Dealer name
Address
Phone number
Model number
Serial number
Purchase date
14

SEGURIDAD DELAFABRICA DEHIELO
Su seguridad y la seguridad de los demos es muy importante.
Hemos incluido muchos mensajes importantes de seguridad en este manual yen su electrodomestico. Lea y obedezca siempre
todos los mensajes de seguridad.
Este es el simbolo de advertencia de seguridad.
Este simbolo le llama la atenci6n sobre peligros potenciales que pueden ocasionar la muerte o una lesi6n a
usted y a los demas.
Todos los mensajes de seguridad iran a continuaci6n del simbolo de advertencia de seguridad y de la palabra
"PELIGRO" o "ADVERTENCIA". Estas palabras significan:
Si no sigue las instrucciones de inmediato, usted puede
morir o sufrir una lesibn grave.
Si no sigue las instrucciones, usted puede morir o sufrir
una lesibn grave.
Todos los mensajes de seguridad le diran el peligro potencial, le diran c6mo reducir las posibilidades de sufrir una lesi6n y Io que
puede suceder si no se siguen las instrucciones.
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
ADVERTENOIA: Para reducir el riesgo de incendio, choque el6ctrico o lesiones personales al usar
la f&brica de hielo, siga estas precauciones b&sicas:
• Conecte a un contacto de pared de conexi6n a tierra de
3 terminales.
[] No quite el terminal de conexi6n a tierra.
• No use un adaptador.
• No use un cable electrico de extensi6n.
• Desconecte el suministro de energia antes de limpiarla.
• Desconecte el suministro de energia antes de darle
servicio.
[] Vuelva a colocar todos los componentes y paneles
antes de hacerla funcionar.
• Use dos o mas personas para mover e instalar la
fabrica de hielo.
GUARDE ESTAS INSTRUCCIONES
INSTRUCCIONESDEINSTALACION
Peligro de Peso Excesivo
Use dos o mas personas para mover e instalar
la fabrica de hielo.
No seguir esta instrucci6n puede ocasionar una
lesi6n en la espalda u otro tipo de lesiones.
C6mo quitar los materiales de empaque
No use instrumentos filosos, alcohol para fricciones, liquidos
inflamables, o productos de limpieza abrasivos para eliminar
los restos de cinta o goma. No use blanqueador con cloro en
las superficies de acero inoxidable de la fabrica de hielo.
Estos productos pueden da_ar la superficie de la fabrica de
hielo.
Limpieza antes del uso
Luego de quitar todos los materiales de empaque, limpie el
interior de su fabrica de hielo antes de usarla. Consulte las
instrucciones de limpieza en la seccion "Cuidado de la fabrica de
hielo".
Quite las cintas y la goma de su fabrica de hielo antes de usarla.
• Para eliminar los residuos de cinta o goma del exterior de la
fabrica de hielo, frote el Area energicamente con su dedo
pulgar. Los residuos de la cinta adhesiva o goma tambien
pueden quitarse frotando un poco de detergente liquido para
vajillas con los dedos. Limpie con agua tibia y seque.
15

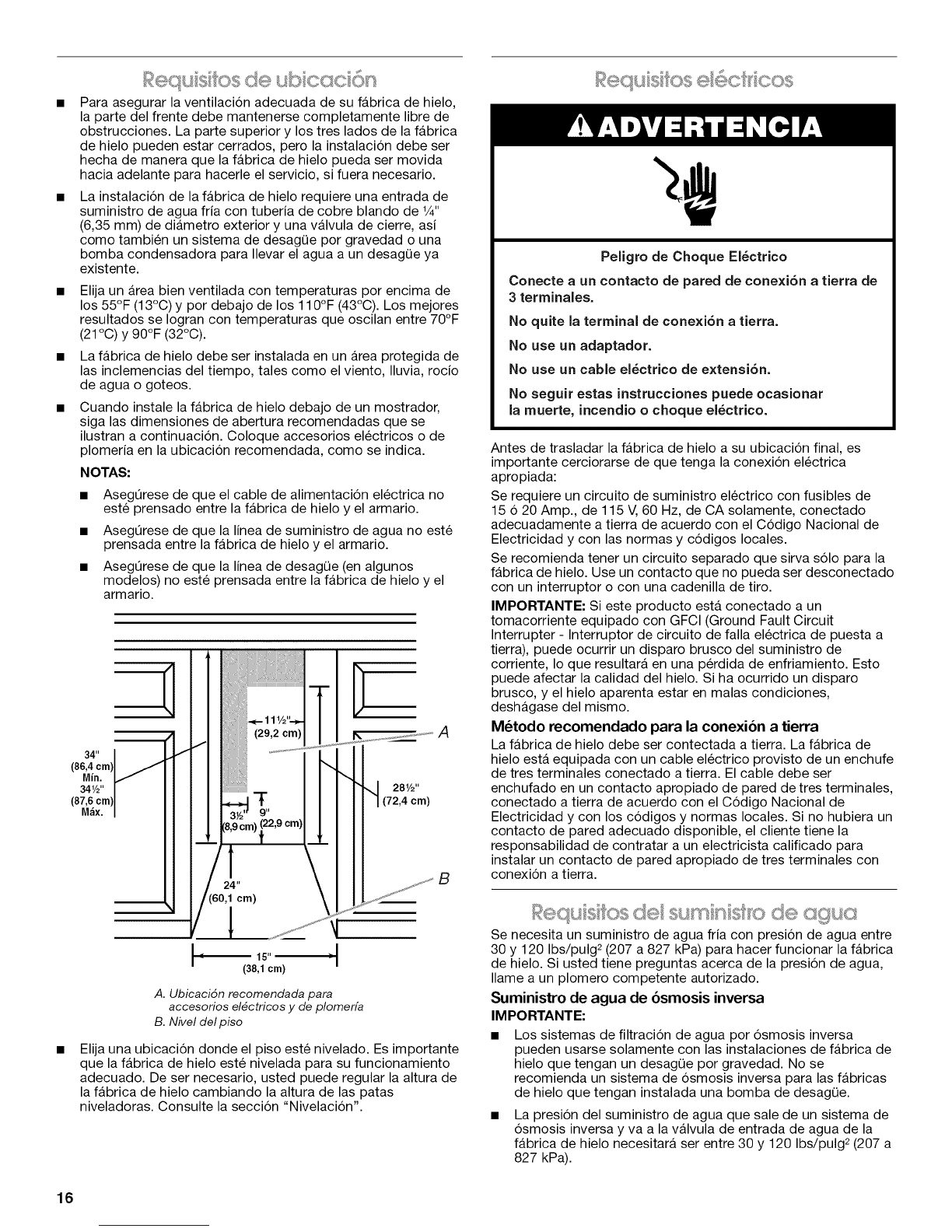

Para asegurar la ventilaci6n adeeuada de su fabrica de hielo,
la parte del frente debe mantenerse completamente libre de
obstrucciones. La parte superior y los tres lades de la fabriea
de hielo pueden estar cerrados, pero la instalaei6n debe ser
heeha de manera que la fabrica de hielo pueda ser movida
hacia adelante para hacerle el servicio, si fuera necesario.
La instalaci6n de la fabrica de hielo requiere una entrada de
suministro de agua fria con tuberia de cobre blando de V4"
(6,35 mm) de diametro exterior y una valvula de cierre, asi
come tambien un sistema de desagQe per gravedad o una
bomba condensadora para Ilevar el agua a un desagQe ya
existente.
Elija un Area bien ventilada con temperaturas per encima de
los 55°F (13°C) y per debajo de los 110°F (43°C). Los mejores
resultados se Iogran con temperaturas que oscilan entre 70°F
(21°C) y 90°F (32°C).
La fabrica de hielo debe ser instalada en un Area protegida de
las inclemencias del tiempo, tales come el viento, Iluvia, rocio
de agua o goteos.
Cuando instale la fabrica de hielo debajo de un mostrador,
siga las dimensiones de abertura recomendadas que se
ilustran a continuaci6n. Coloque accesorios electricos o de
plomeria en la ubicaci6n recomendada, come se indica.
NOTAS:
AsegQrese de que el cable de alimentaci6n electrica no
este prensado entre la fabrica de hielo y el armario.
AsegQrese de que la linea de suministro de agua no este
prensada entre la fabrica de hielo y el armario.
AsegQrese de que la linea de desagQe (en algunos
modelos) no este prensada entre la fabrica de hielo y el
armario.
34"
(86,4 cm)
Min.
34W'
(87,6 cm)
M_ix.
-1 /-
28V2"
(72,4 cm)
A
B
A. Ubicaci6n recomendada para
accesorios el_ctricos y de plomerfa
B. Nivel del piso
Elija una ubicaci6n donde el piso este nivelado. Es importante
que la fabrica de hielo este nivelada para su funcionamiento
adecuado. De ser necesario, usted puede regular la altura de
la fabrica de hielo cambiando la altura de las patas
niveladoras. Consulte la secci6n "Nivelaci6n".
F ®qts s ® @ct[ cos
Peligro de Cheque El_ctrico
Conecte a un contacto de pared de conexi6n a tierra de
3 terminales.
No quite la terminal de conexi6n a tierra.
No use un adaptador.
No use un cable el_ctrico de extensi6n.
No seguir estas instrucciones puede ocasionar
la muerte, incendio o cheque el6ctrico.
Antes de trasladar la fabrica de hielo a su ubicaci6n final, es
importante cerciorarse de que tenga la conexi6n electrica
apropiada:
Se requiere un circuito de suministro electrico con fusibles de
15 6 20 Amp., de 115 V,60 Hz, de CA solamente, conectado
adecuadamente a tierra de acuerdo con el C6digo Nacional de
Electricidad y con las normas y c6digos locales.
Se recomienda tener un circuito separado que sirva s61o para la
fabrica de hielo. Use un contacto que no pueda ser desconectado
con un interrupter o con una cadenilla de tire.
IMPORTANTE: Si este producto esta conectado a un
tomacorriente equipado con GFCI (Ground Fault Circuit
Interrupter - Interrupter de circuito de falla electrica de puesta a
tierra), puede ocurrir un disparo brusco del suministro de
corriente, Io que resultarA en una perdida de enfriamiento. Esto
puede afectar la calidad del hielo. Si ha ocurrido un disparo
brusco, y el hielo aparenta estar en malas condiciones,
deshagase del mismo.
M6todo recomendado para la conexibn a tierra
La fabrica de hielo debe ser contectada a tierra. La fabrica de
hielo esta equipada con un cable electrico provisto de un enchufe
de tres terminales conectado a tierra. El cable debe ser
enchufado en un contacto apropiado de pared de tres terminales,
conectado a tierra de acuerdo con el C6digo Nacional de
Electricidad y con los c6digos y normas locales. Si no hubiera un
contacto de pared adecuado disponible, el cliente tiene la
responsabilidad de contratar a un electricista calificado para
instalar un contacto de pared apropiado de tres terminales con
conexi6n a tierra.
IIequisi os del ...... "..... sb£rl[ISlRi} @@ tJ@
8e necesita un suministro de agua frJa con presi6n de agua entre
30 y 120 Ibs/pulg 2(207 a 827 kPa) para hacer funcionar la fabrica
de hJelo.8i usted tiene preguntas acerca de la presi6n de agua,
Ilame a un plomero competente autorizado.
Suministro de agua de 6smosis inversa
IMPORTANTE:
Los sistemas de filtraci6n de agua per 6smosis inversa
pueden usarse solamente con las instalaciones de fabrica de
hielo que tengan un desagQe per gravedad. No se
recomienda un sistema de 6smosis inversa para las fabricas
de hielo que tengan instalada una bomba de desagQe.
La presi6n del suministro de agua que sale de un sistema de
6smosis inversa y va a la valvula de entrada de agua de la
fabrica de hielo necesitarA ser entre 30 y 120 Ibs/pulg 2(207 a
827 kPa).
16

Si se conecta un sistema de filtracion de agua de osmosis inversa
al suministro de agua fria, la presion de agua al sistema de
osmosis inversa necesitara ser de un minimo de 40 a
60 Ibs/pulg 2 (276 a 414 kPa).
NOTA" El sistema de osmosis inversa debe suministrar 1 galon
(3,8 L) de agua por hora a la fabrica de hielo para que esta
funcione adecuadamente. Si se desea un sistema de osmosis
inversa, se recomienda solamente un sistema de osmosis inversa
con capacidad para toda la casa, que sea capaz de mantener el
suministro continuo de agua requerido por la fabrica de hielo. Los
sistemas de osmosis inversa con capacidad adecuada para grifos
no pueden mantener el suministro continuo de agua requerido por
la fabrica de hielo.
Si la presion del agua al sistema de osmosis inversa es menor de
40 a 60 Ibs/pulg 2(276 a 414 kPa):
• Verifique si el filtro de sedimentos en el sistema de osmosis
inversa esta bloqueado y reemplacelo si fuera necesario.
• Deje que se vuelva a Ilenar el tanque de almacenaje del
sistema de osmosis inversa despu6s del uso intenso.
Si tiene preguntas acerca de la presion del agua, Ilame a un
plomero competente autorizado.
Es importante que la fabrica de hielo este nivelada para que
funcione adecuadamente. Dependiendo del lugar donde instale la
fabrica de hielo, puede necesitar hacer varios ajustes para
nivelarla. Tambien puede usar las patas niveladoras para reducir
la altura de la fabrica de hielo para las instalaciones debajo de
mostradores.
Herramientas necesarias:
ReOna las herramientas y piezas necesarias antes de comenzar la
instalacion.
• Nivel de 9"
• Llave de tuercas ajustable
NOTA: Es mas facil ajustar las patas niveladoras si tiene otra
persona para ayudarlo.
1. Mueva la fabrica de hielo a su ubicacion final.
2=
NOTA: Siesta es una instalacion empotrada, mueva la fabrica
de hielo tan cerca de su ubicacion final como sea posible.
Coloque el nivel en la parte superior del producto para ver si la
fabrica de hielo esta nivelada desde adelante hacia atrAs y de
lado a lado.
3. Empuje hacia arriba en la parte superior frontal de la fabrica
de hielo y luego Iocalice los tornillos niveladores que se
encuentran en la parte inferior frontal de la fabrica de hielo.
4. Usando una Ilave de tuercas ajustable, cambie la altura de las
patas de la siguiente manera:
• Gire la pata niveladora hacia la derecha para bajar ese
lado de la fabrica de hielo.
• Gire la pata niveladora hacia la izquierda para levantar ese
lado de la fabrica de hielo.
NOTA: La fabrica de hielo no debe tambalearse. Use calzas
para agregarle estabilidad cuando sea necesario.
5. Empuje hacia arriba en la parte superior trasera de la fabrica
de hielo y Iocalice las patas niveladoras que se encuentran en
la parte inferior trasera de la fabrica de hielo.
6=
7.
Siga las instrucciones del paso 4 para cambiar la altura de las
patas.
Use el nivel para volver a verificar la fabrica de hielo y ver si
esta nivelada desde adelante hacia atras y de lado a lado. Si
la fabrica de hielo no esta nivelada, repita los pasos del 2 al 5.
Si lafabrica de hielo esta nivelada, proceda a la seccion
"Conexion del suministro de agua".
Lea todas las instrucciones antes de comenzar.
IMPORTANTE:
• Las instalaciones de plomeria deben efectuarse de
conformidad con el Codigo de plomeria internacional y los
codigos y ordenanzas de plomeria locales.
• Use tuberia de cobre o una linea de suministro de Whirlpool,
Pieza nQmero 8212547RP y revise si hay fugas.
• Instale la tuberia solo en Areas donde las temperaturas
permanezcan por encima del punto de congelacion.
Herramientas necesarias:
ReQna las herramientas y piezas necesarias antes de comenzar la
instalacion.
• Destornillador de hoja plana
• Llaves de extremo abierto de 7/le"y 1/2"o dos Ilaves de tuercas
ajustables
• Llave de tuercas de 1/4"
NOTA" No use una valvula perforadora ni de montura de 3/le"
(4,76 mm), las cuales reducen el flujo de agua y se obstruyen con
mayor facilidad.
Conexi6n de la tuberia de agua
1=
2.
Cierre el suministro principal del agua. Abra el grifo mAs
cercano el tiempo suficiente para limpiar la tuberia del agua.
Usando una linea de suministro de cobre de V2"con una
valvula de cierre de un cuarto de vuelta o una equivalente,
conecte la fabrica de hielo, como se muestra.
NOTA" Para permitir que haya suficiente flujo de agua hacia la
fabrica de hielo, se recomienda usar una linea de suministro
de cobre de W' como minimo.
A
B
3=
A. Bulbo
B. Tuerca
Ahora esta listo para conectar la tuberia de cobre. Use una
tuberia de cobre blando de 1/4"(6,35 mm) de diametro exterior
para el suministro de agua fria.
• AsegQrese de tener la Iongitud adecuada necesaria para
el trabajo. Cerciorese de que ambos extremos de la
tuberia de cobre esten cortados en angulo recto.
17

Deslice la manga de compresion y la tuerca de
compresion en la tuberia de cobre segQn se ilustra.
Introduzca el extremo de la tuberia en el extremo de salida
en angulo recto hasta donde sea posible. Atornille la
tuerca de compresion en el extremo de salida usando la
Ilave de tuercas ajustable. No ajuste demasiado.
A
A. Manga de compresi6n C. Tuberfa de cobre
B. Tuerca de compresi6n
4. Coloque el extremo libre de la tuberia en un recipiente o un
fregadero, abra el suministro principal del agua y deje correr el
agua por la tuberia hasta que el agua salga limpia. Cierre la
valvula de cierre del tubo de agua.
NOTA" Siempre desagQe la tuberia de agua antes de efectuar
la conexion final al orificio de entrada de la valvula de agua
para evitar un probable mal funcionamiento de la misma.
5. Doble la tuberia de cobre para poder encajarla en el orificio de
entrada de agua, que esta ubicado en la parte trasera de la
carcasa de la fabrica de hielo, segQn se ilustra. Deje un
serpentin de tuberia de cobre para permitir sacar la fabrica de
hielo del armario o alejarla de la pared para el servicio.
VISTA POSTERIOR
A
B
C
D
6.
7.
A.Abrazadera para la tuberfa del suministro de agua
B. Manguera de ventilaci6n (en modelos con bomba
de desag(_e solamente)
C. Abrazadera para el tubo de entrada de agua y
conector de la Ifnea de suministro
D. Manguera de desag(_e (en modelos con bomba
de desag(_e solamente)
Retire y descarte el tubo corto negro de plastico del extremo
de la entrada de la linea de agua.
Enrosque latuerca en el extremo de la tuberia. Apriete la
tuerca con la mano, y luego aprietela con la Ilave de tuercas
dos giros mas. No apriete demasiado.
NOTA" Para evitar ruidos molestos, asegQrese de que la
tuberia de cobre no toque la pared lateral de la carcasa u
otras partes dentro de la carcasa.
A B C
A. Tuberfa a la f_brica de hielo
B. Tuerca (comprada)
D
C. F_rula (comprada)
D. Lfnea provista de la
f#brica de hielo
8. Instale la abrazadera para tubos de suministro de agua
alrededor de la linea de suministro de agua, para reducir la
tension en el acoplamiento.
9. ABRA la valvula de cierre.
10. Revise si hay fugas. Ajuste las conexiones (incluso las de la
valvula) o tuercas que tengan fugas.
Sistema de desag_ie por gravedad
Conecte el desagQe de la fabrica de hielo a su desagQe, de
conformidad con todos los codigos y ordenanzas locales y
estatales. Si la fabrica de hielo viene con un sistema de desagQe
por gravedad, siga estas instrucciones cuando instale las lineas
de desagQe. Esto evitara que el agua regrese al deposito de
almacenaje de la fabrica de hielo y probablemente caiga en el
piso ocasionando da_os.
• Las lineas de desagQe deben tener un minimo de 5/8"
(15,88 mm) de diametro interno.
Las lineas de desagQe deben tener 1" de caida por cada 48"
(2,54 cm de caida por cada 122 cm) de recorrido o 1/4"de
caida por cada 12" (6,35 mm por cada 30,48 cm) de recorrido
y no deben tener puntos bajos donde el agua pueda
asentarse.
Los desagQes por el piso deben ser Io suficientemente
grandes para contener el agua de todos los desagQes.
La instalacion ideal tiene un tubo vertical con un reductor de
desagQe de PVC de 1V2"(3,81 cm) a 2" (5,08 cm), instalado
directamente debajo del orificio de salida del tubo de desagQe
segOn se ilustra. Usted debe mantener un espacio de aire de
1" (2,54 cm) entre la manguera de la bomba de desagQe y el
tubo vertical.
Seria ideal aislar la linea de desagQe completamente hasta el
orificio de entrada del desagQe.
VISTA LATERAL
T
17/8''
(4,8 cm) (2,54 cm)
23" C
(58,4 cm) D
2,,. 11/2,,
(5 cm -3,8 cm)
A. Manguera de desagDe
B. Espacio de aire de 1" (2,54 cm)
C. Reductor de desagDe de PVC
D. El centro del desagDe debe estar 23" (58,4 cm) desde el frente
de la puerta, con o sin el panel de 3/4" (1,91 cm) en la puerta. El
desagDe debe tambi_n estar centrado de izquierda a derecha
(75/16" [18,56 cm] de cada lado de la f#brica de hielo).
18

Sistemade la bomba de desagiJe (en algunos modelos)
Conecte el desagQe de la fabrica de hielo a su desagQe, de
conformidad con el Codigo de Plomeria Internacional y todos los
codigos y ordenanzas locales.
NOTA" Si la manguera de desagQe se retuerce y el agua no se
puede drenar, la fabrica de hielo no funcionara.
Conexi6n del desagiJe
Luego de asegurarse de que el sistema de desagQe es el
adecuado, siga estos pasos para colocar la fabrica de hielo en un
lugar apropiado:
Peligro de Choque EI6ctrico
Conecte a un contacto de pared de conexi6n a tierra de
3 terminales.
No quite la terminal de conexi6n a tierra.
No use un adaptador.
No use un cable el_ctrico de extensi6n.
No seguir estas instrucciones puede ocasionar
la muerte, incendio o choque el6ctrico.
1. Conecte a un contacto de pared de conexion atierra de
3 terminales.
Peligro de Peso Excesivo
Use dos o mas personas para mover e instalar
la fabrica de hielo.
No seguir esta instrucci6n puede ocasionar una
lesi6n en la espalda u otro tipo de lesiones.
2.
3.
4.
Estilo I - Para el sistema de desagQe por gravedad, empuje la
fabrica de hielo a su posicion de modo que el tubo de
desagQe de la fabrica de hielo este ubicado encima del
reductor de desagQe de PVC. Vea "Sistema de desagQe por
gravedad".
Estilo 2 - Para el sistema de bomba de desagQe, conecte la
manguera de salida de la bomba al desagQe. Vea "Sistema de
bomba de desagQe".
Vuelva a revisar la fabrica de hielo para asegurarse de que
este nivelada. Consulte la seccion "Nivelacion".
Si el codigo de sanidad local Io requiere, selle la carcasa al
piso con masilla de calafateo aprobada despu6s de haber
efectuado todas las conexiones electricas y de agua.
Herramientas necesarias:
ReQna las herramientas y piezas necesarias antes de comenzar la
instalacion.
• Llave de tuercas de s/le" • Cuchillo piano para
masilla
• Llave de tuercas de 1/4" • Destornillador Phillips
Pasador de la bisagra Torniflode cabezahexagonalde
5_6" para bisagra
Tornillode la manija Tornillo de la cubierta del
extremo
Sacar la puerta
1. Desenchufe la fabrica de hielo o desconecte el suministro de
energia.
2. Saque los tornillos de la manija y la manija de la parte superior
de la puerta (en algunos modelos). Guarde las partes juntas y
pongalas aparte.
3. Saque el pasador de la bisagra superior.
4. Saque la puerta de las bisagras y atornille nuevamente el
pasador de la bisagra superior en la bisagra superior.
5. Quite el revestimiento de la puerta (en algunos modelos) de la
siguiente manera:
• Quite los dos tornillos de la parte superior e inferior del
revestimiento de la puerta.
6.
• Quite el revestimiento y las cubiertas de los bordes de la
puerta. Mantenga las partes juntas y pongalas aparte.
Invierta las cubiertas del extremo de la puerta de la manera
siguiente:
• Quite el tornillo y la cubierta del extremo de la esquina
superior. Muevalo diagonalmente hacia la esquina inferior
opuesta, manteniendo el lado derecho de la cubierta del
extremo mirando hacia el frente de la fabrica de hielo.
Quite el tornillo y la cubierta del extremo de la esquina
inferior. Mu6valo diagonalmente hacia la esquina superior
opuesta, manteniendo el lado recto de la cubierta del
extremo mirando hacia el frente de la fabrica de hielo.
A B
D C
C D
/i
0
B A
A. Esquina superior abierta (sin la cubierta del extremo)
B. Cubierta del extremo al comienzo de la esquina superior
C. Cubierta del extremo al comienzo de la esquina inferior
D. Esquina inferior abierta (sin la cubierta del extremo) 19
