Use & Care Manual
Frost Free Refrigerators
MODELSJRT1960,JRT2160,JRTD229,
JRT199,JRT219,JRTF1960,JRTF2160
I
Model JRTD229
PrintedinU.S.A. PartNo._70304-1 Cat. No.STU1960UA
1996Jenn-Air 1/g6

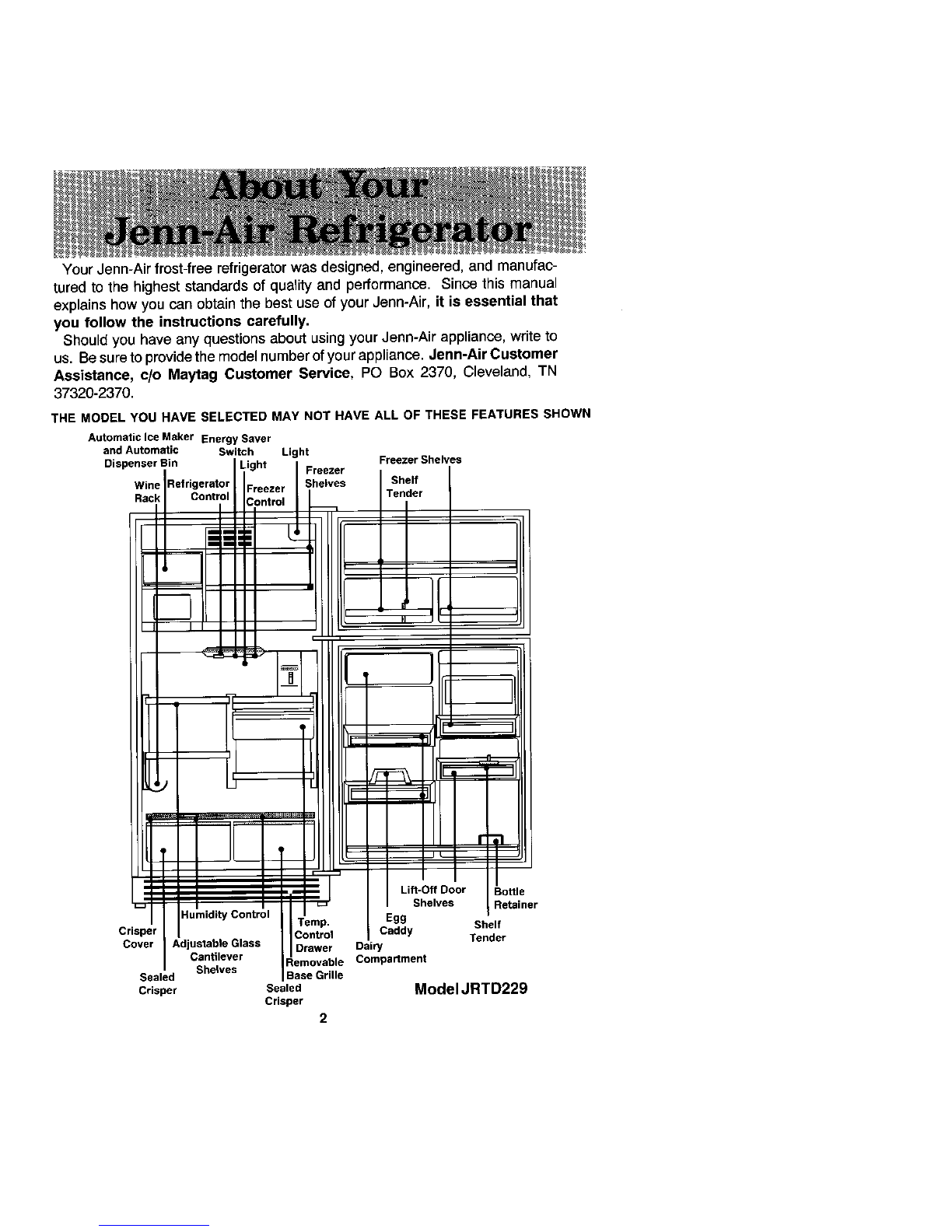

Your Jenn-Air frost-freerefrigerator was designed,engineered, and manufac-
tured to the highest standards of quality and performance. Since this manual
explains how you can obtain the best use of your Jenn-Air,it is essential that
you follow the instructions carefully.
Should you have any questions about using your Jenn-Air appliance, write to
us. Be sureto provide the model number of your appliance. Jenn-Air Customer
Assistance, c/o MaytagCustomer Service,PO Box2370, Cleveland,TN
37320-2370.
THE MODEL YOU NAVE SELECTED MAY NOT HAVE ALL OF THESE FEATURES SHOWN
Automatic Ice M_ker Energy Saver
and Automatic Switch Light
Dispenser Bin
RViinkRefrigernttr°;
Egg
Crisper Caddy
Cover Adjustable Glass Drawer Dairy Tender
Compartment
Sealed
CrisperSealed Model JRTD229
Crisper2

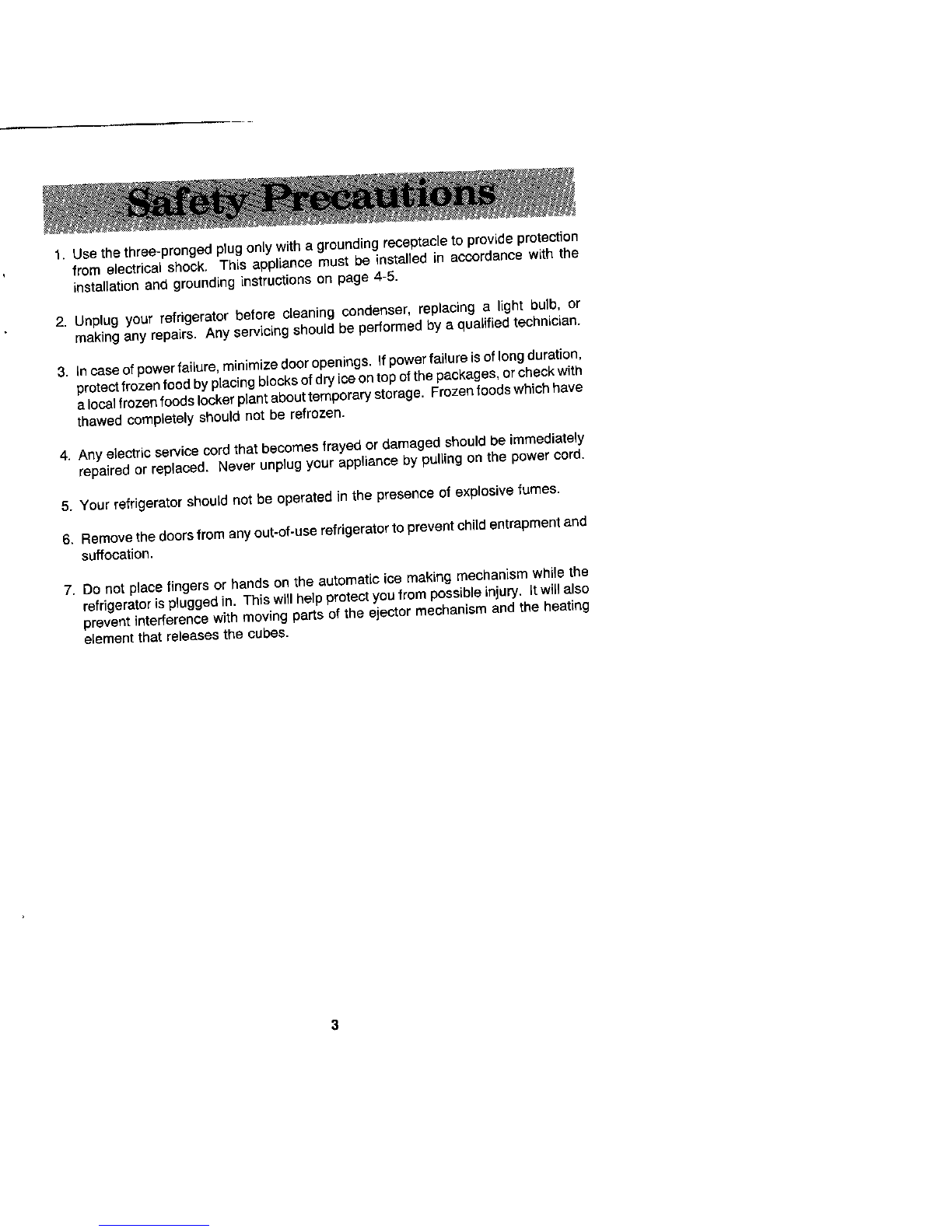

1.Use the three-pronged plug only with a grounding receptacle to provide protection
from electrical shock. This appliance must be installed in accordance with the
installation and grounding instructions on page4-5.
2. Unplug your refrigerator before cleaning condenser,replacing a light bulb, or
making any repairs. Any servicing shouLdbe performed by a qualified technician.
3. Lncase ofpowerfailure, minimizedoor openings. If powerfailure is oflong duration,
protectfrozenfood byplacing blocksofdry iceon topofthepackages, orcheckwith
alocal frozenfoodslocker plantabouttemporary storage.Frozenfoodswhich have
thawed completely should not be refrozen.
4. Any electric service cord that becomes frayed or damaged should be immediately
repaired or replaced. Never unplug your appliance by pulling on thepowercord.
5. Your refrigerator should not be operated in the presence of explosive fumes.
6. Removethe doorsfrom anyout-of-use refrigerator to prevent child entrapmentand
suffocation.
7. DOnot place fingersor hands on the automatic ice making mechanism while the
refrigerator is pluggedin. This will help protectyou from possible Lnjury.Ltwillalso
prevent interference with moving parts of theejector mechanism and the heating
element that releases the cubes.

If you are installing your new refrigerator yourself, pleasefollow these helpful sugges-
tions.
1. Remove base skids, i I-J]L[-j I
2. Remove all exterior and interior tape carefully and ,, ,_ll
retainold tape. Make a small pad of this tape to pick
offanyremainingtaperesidues. Thiswilleliminatethe
need to use dangerous Solventsof any kind.
3. Removeanddiscard thecantilevershelf packing clips
located just above each shelf where they hook onto
the frame. To remove the red plastic clip, wiggle it
sideways and pull straight out.
4. Select a locationforyour new refrigeratoraway from anyheatsources.Allow afree
flow of air through the front base grille.
5. Your model should not be installed where the room temperature will go below
55°,=. becauseJtwillnotrun frequently enoughtomaintain proper temperature in
the freezer.
To enhance its appearance, maintain efficient performance and for proper function of
the icemaker, your refrigerator should be level. Using a carpenter's level, check your
refrigerator to make sureit is levelfront to back and sideto side. The front wheels were
adjusted at the factory so the cabinet would be level. However, jarring in transit, or
standing the refrigerator on an unevenfloor may cause the cabinet to appear unlevel.
If leveling is necessary, remove the base grilleand adjust:
ModelsJRT199,JRT219, JRTD229TUaNCLOCKWISETO
RAISE CABINET CORNER
TOlockthecabinet in place, turn downone or I ._.
bothlockingfeet,located nearthefrontwheels. r-,
Rear leveler feet are not required.
ifthefloorisnotlevelanditisnecessarytoraise xt_
the rear of the cabinet,we suggest rolling the
rear wheels on to a piece of plywood or other TURN COUNTER-CLOCKWISE
shim material, ToLOWER CABINETCORNER

ModelsJRT1960,JRTF1960, JRT2160,JRTF2160: i _ I
The refrigerator has 4 wheels and aleveling I I , I
screwbeneatheachfront corneratthebaseof _- _ _L
thecabinet. To adjust,turnthe leveling screw
clockwisetoraiseorcounterclockwisetolower.

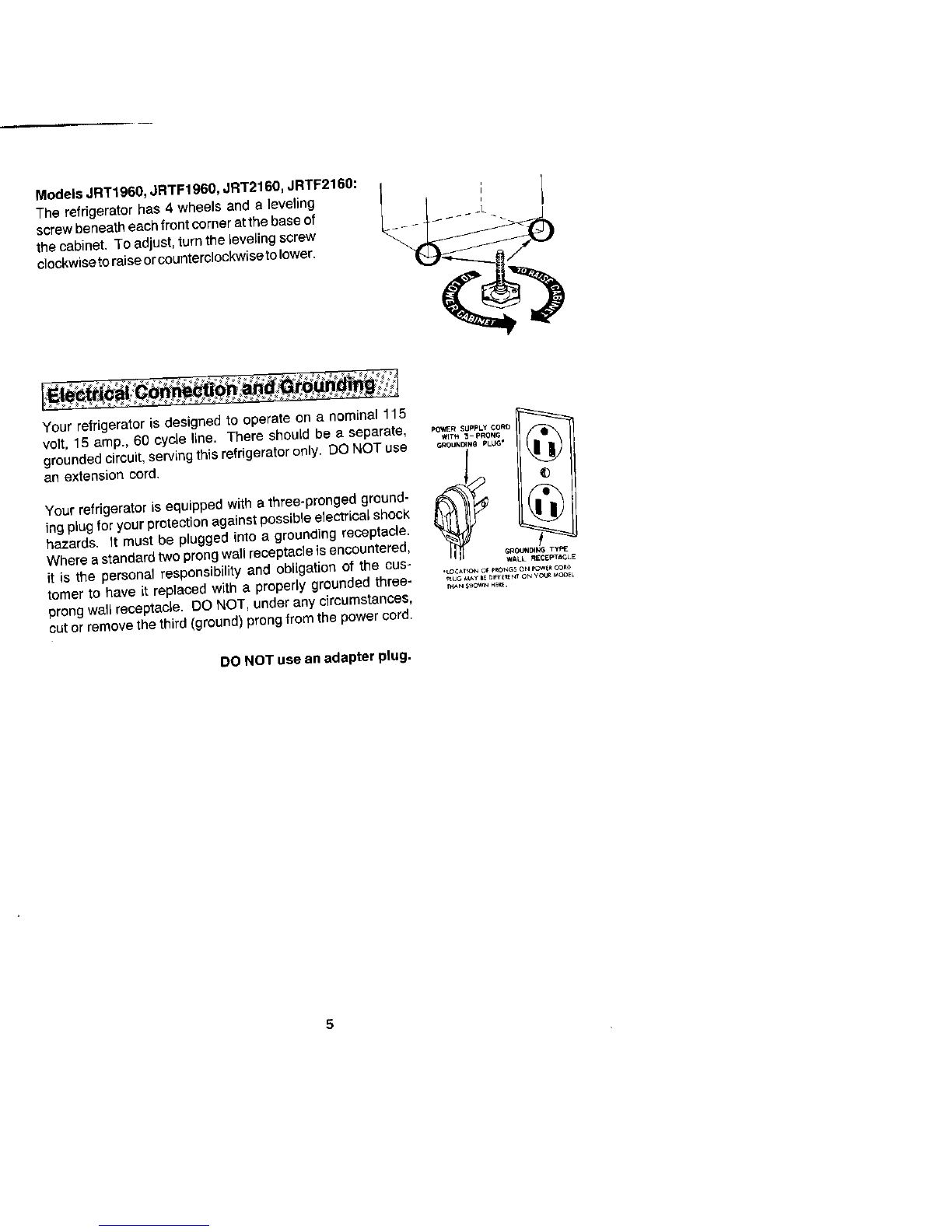

Your refrigerator is designed to operate ona nominal115 _
pQ_VER SUppLy CORO
volt, 15amp., 60 cycle line.Thereshould be a separate, ._t._-P.o.G •
groundedcircuit, serving this refrigerator only, DO NOTuse _o,_,_ p_.
Your refrigerator is equipped with a three-pronged ground-
ing plug for your protectionagainst possible electricalshock
hazards. Itmust beplugged into a grounding receptacle.
Where astandardtwo prongwaftreceptacleisencountered, _u.D,_ T_
it is the personalresponsibility and obligation ofthe cue- WALL.ECE.'.CLE
•LOCATIQN O_ p_NG$ OH pQV#_ _ORO
tomer to have it replaced with a properly grounded three- ,,o_,_,_o.,E,_o_oo,_oo_
TH_,NS_WN HE_t.
prong wall receptacJe. DO NOT,under any circumstances,
cut or remove the third (ground) prong from thepower cord.
DONOT useanadapter plug,

Your refrigerator may have been built with the doors hingedto the right orhingedto the
left.Refer to the following instructionsfor door reversal.
Phillips screwdriver 5/16'rSocket and ratchet Putty knife
End wrench (5/16") T25 Socket wrench
1. Turnthefresh food control toOFF,unplugthe refrigerator end remove allfood from
the interior.
2. Removethe handlesfrom the doors and set aside. The bottom mounting screwon
thelowerdoor handleis coveredwith a cap. Carefullypry itoutto exposethe screw.
Thecap shouldbe savedfor reassemblyafterthe handle is remounted. On the side
(front)ofthelowerdoorthat youaregoingtoinstallthe handle,removethe smallround
screwholeplugwith puttyknifeandpressitintothecorrespondingholeontheopposite
side of the door.
3. Usinga 5/16" socket and ratchetor end wrench, remove thescrews from the upper
hinge. Carefully lift thedoor (includingthe upper hinge) off ofthe center hinge and
placeiton a paddedsurface toprevent scratching. Avoidlosingthe spacerthat was
between the hinge and the cabinet top.
4. Usinga putty knife, prythe plug button cover from the plastic bushing atthe top of
the door.Savethe cover for future use.
5. Lift theupper hinge and the spacer washers from the door and install them at the
oppositecorner.
6. Positionthe plug button cover,saved from step 4,overthe old hinge bushing and
press it into place.
7. Pry out the 3 plastic plug buttons from the cabinet top and press them into the
oppositecorner.
8.Unscrewthehinge pinoutof thecenter hingeon thetopofthe lowerdoor. Carefully
liftthe lower dooroffthe lower hingeandplace iton a padded surface.Ifthe metal
hingepinpullsoutofthe lowerhingewhenthe door isremoved,pull itoutofthe door
bottom and press it back into the hinge.
9. With the T25 socket wrench and 5/16" socket and ratchet, removethescrews from
the center hinge and spacerfrom thecabinet. Transferthe two screws from theleft
endof thedivider barto the rightend. Installthe center hingeand spacer on the left
end of the divider bar the same way itwas installed on the right end. Tighten both
screws until they are just snug, then turn them one-half turn more.
10. Prythe plug cover from the plastic bushing at thetop of the lower door and press
into the plastic bushing on the opposite side of the door.
11. Remove the base grille by grasping at both ends and pulling it straight out.
12. Remove the hinge cover by squeezing both sides together.
13. Use a 5/16" socket and ratchet to remove the two screws from the bottom hinge.
Savethe spacer.
14. Pull the metal hinge pinfrom the side ofthe lower hinge and place it,includingthe
spacer washer, into the top hole. 6

15. Pryout the twoscrew holeplugbuttons onthe bottom leftside of the top doorand
lowerdoor. On some models,removethe door stops(metal plates) on the bottom
ofeachdoor andinstallthemon oppositesides. Pressintheplug buttonsintheholes
on the right side of both doors.
16. Setthelower dooronthe bottomhinge,making surethe hingepinentersthe bushing
in the door bottom.
17.While hoWtirtcjthe doer in a clesed positlen, take the canter hinge pin that was
removedin step8 and screw itthrough the left holeofthe center hinge and into the
bottomdoorbushing. Makesurethe longpingoes intothebottom doorandthe short
pin goes into the top door.
18. Setthe upper door on the center hinge, making sure the hinge pinenters the door
bushing. When you close the door, the gasket should hold it in place.
19. Making sureto usethesame number of spacersthat were originallyused beneath
theupper hinge,installthe hingemountingscrews. Beforetigbteningthesescrews,
make sure the top ofthe door is level with the cabinet top, and the spacebetween
the dooris equidistant acrossthe entirefront. Avoidover-tightening these screws.
Tighten both untilthey arejust snug, thenturn them in another one-half turn.

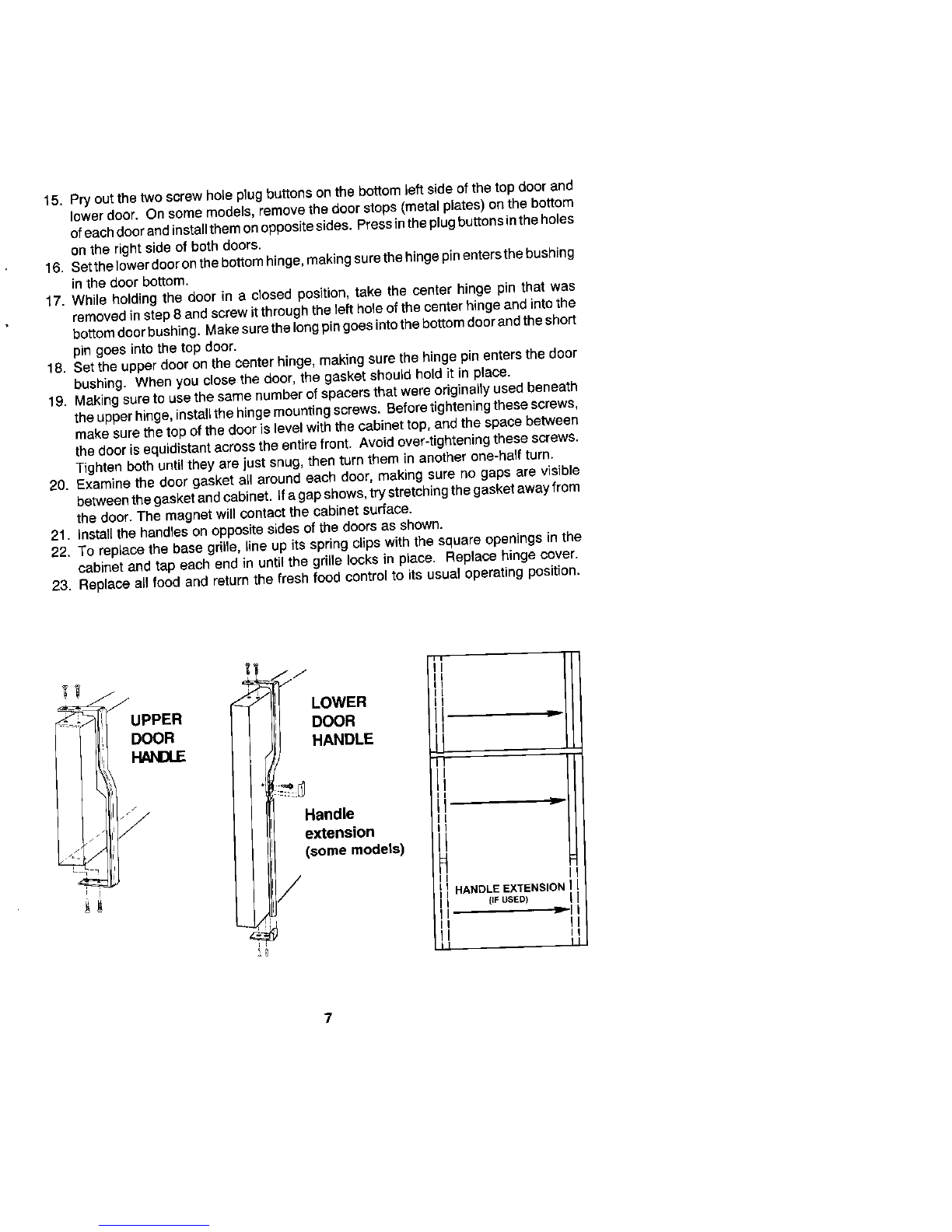

20. Examine the door gasket all around each door, making sure no gaps are visible
betweenthegasketandcabinet. Ifagapshows, trystretchingthegasketaway#om
the door.The magnet will contact the cabinet surface.
21.Insta}]the handles on oppositesides of the doors as shown.
22. To replace the base grille, line upits springclips with the square openings in the
cabinet and tap each end in until the grille locksin place. Replacehingecover.
23. Replace all food and returnthe fresh food control to its usual operating position.
17 j./ " I
_ J _ 7 LOWER
..... UPPER DOOR =
DOOR HANDLE II
_J
n
Handle
.I extension
._,_ /(some models)
/
I HANDLE EXTENSION I
[IF USED)

I
Your newrefrigerator has two controls. One for 9 is coldestI " $ " I
regulating the temperature in the fresh food com-
partment and one for the freezer. The fresh food
compartment and the freezer compartment con- Saves /_. ReducesExterior
Energy \/Moisture
trois are located at thetopfront of the fresh food
compartment. Turn both controls to "No. 5" to start U
m
your refrigerator. I
The"No.9"freezercontrolsettingisrecommended _ 9 is coldest
for short term use only.
Your refrigerator may run for several hours when you first start it. This is normal and
shouldn't be cause for alarm.
TOstart" Set fresh food coctrol on "5_
Set frsezer contmt on '¢J"
Changing either control will have some Tum_esh_,_to_e_
effect on thetemperature of the other com- Refrigerat°rtc*°WARM: h_lherrtumbe_
partment.Refngeratortoo COI O: Tum freshf°°d c°nt(°t t° l_e:c
/owernumb_.
Turn freezer con_-oltonext
tna day or two, you may decide that oneor F_zer_WARM: hlghernumbeK
both compartments should be colder or Fteezer_oOOLD Turn#eezeroontro/tonext
_wer number
warmer. If so, adjust the control(s) as
instructed in the accompanying chart. RefngeraterOFF Setfreshf°°dr_°ntroltoOFF.
IMPORTANT:Except when starting, do not changeeither controlmore than one number
at a time. Allow 24 hours for temperature to stabilize before resetting.
At times, the front surfaces of your refrigerator cabinet may bewarm to the touch. This
is a normal function of your refrigerator. This feature prevents moisture from condensing
on the outside of your refrigerator during humid weather. This condition may be
noticeable when you first start your refrigerator, during hot weather, and during
excessiveor lengthy door openings.

The Energy Saver switch controls a heater designed to prevent moisture acoumulation
between the refrigerator and freezer door frame. During humid weather,moisture
collects on objects that are cooler than the surrounding air. This condensation can be
eliminated by applying a small amount of heat to the surface upon which the water
accumulates.
Whenthe EnergySaver switch is on "Saves Energy",no heat is appliedto the surface.
It is saving both energy and money. If humidity increases and condensation appears,
turnthe EnergySaverswitohto "Reduces ExteriorMoisture". Be suretoturn theEnergy
Saver switch back to "Saves Energy" as the humidity dropsto save energy.
In areas of relatively high humidity,the Energy Saver Switch in the "Reduces
ExteriorMoisture"positionwillminimizeanycollection ofmoisture ontheoutside
surfaceof thecabinet.
Forefficientenergy use:
1. Besurethe refrigeratorislevelandventilationaround thefrontgrilleisnot blocked,
2. Checkdoorsealsoccasionallyfor leakage,Checkatvariousplaces,top,bottom,
and sides.
3,Checkthetemperature;avoid unnecessarycold settings.
4, Keep thefreezernear fullcapacity; lesscoldairis lost duringdooropenings.
5. Lethot dishescoolbeforeputtingintorefrigeratoror freezer,
6, Cover liquids; if uncovered, theunit mustwork longer.
7, Clean refrigerator condenser coils atleast twice a year.

To maintain the natural flavor, moisture,and nutrition of fresh foods, we recommend
that all dishes,trays, and containers of food be covered.

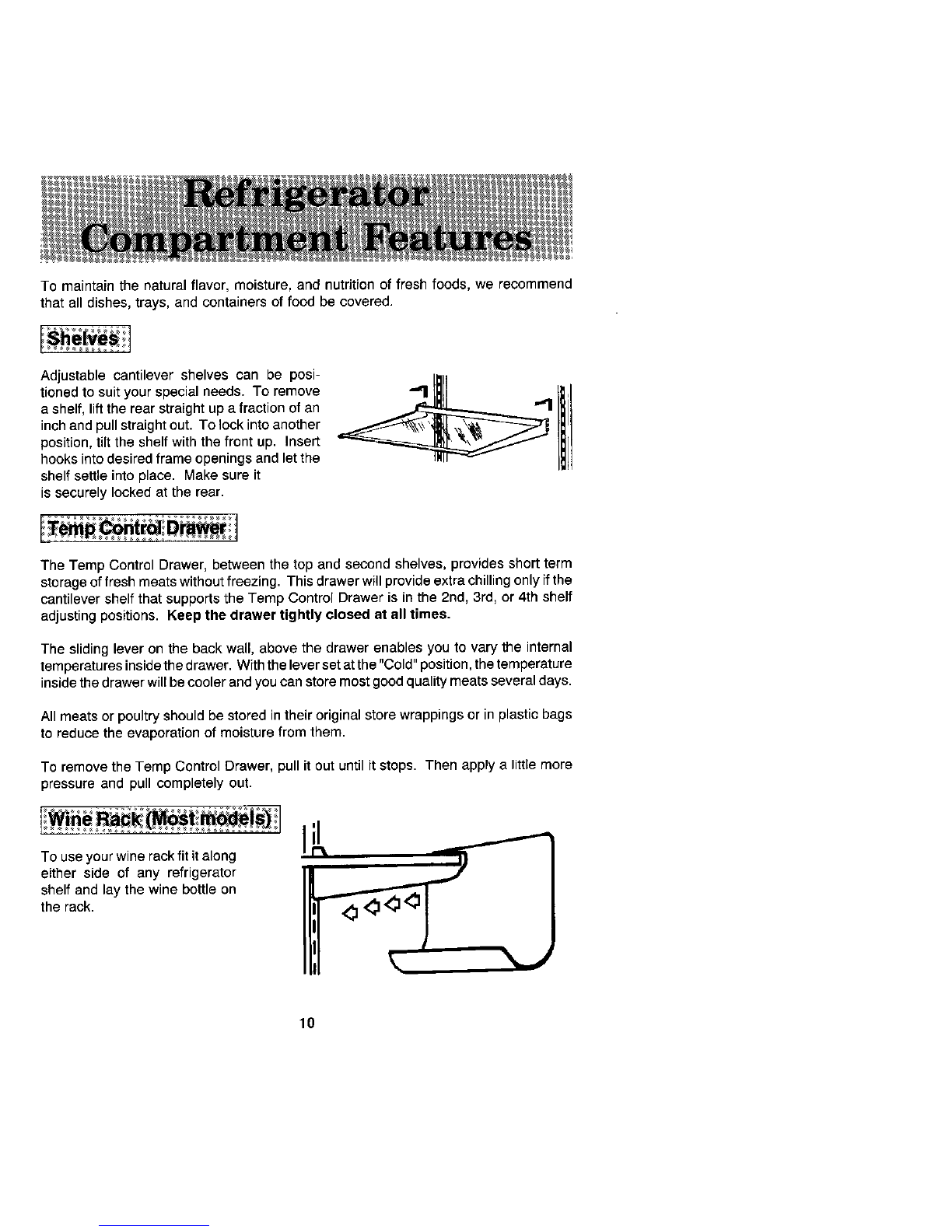

Adjustable cantilever shelves can be posi- _li_ll 1
tioned to suit your special needs. To remove
a shelf, lift the rear straight up a fraction of an
inchand pull straight out. To lock intoanother
position,tilt the shelf with the front up. Insert
hooks intodesired frame openings and letthe
shelf settle into place. Make sure it
is securely locked at the rear.
The Temp Control Drawer, between the top and second shelves, provides short term
storageof freshmeatswithoutfreezing. Thisdrawerwill provide extrachilling only ifthe
cantilever shelf that supports the Temp Control Drawer is in the 2nd, 3rd, or 4th shelf
adjusting positions. Keep the drawer tightly closed at all times.
Theslidingleveron theback wall, abovethedrawerenablesyouto varythe internal
temperaturesinsidethedrawer.Withtheleversetatthe"Cold"position,thetemperature
insidethedrawerwillbecoolerandyoucanstoremostgoodqualitymeatsseveraldays.
Allmeats orpoultryshouldbestoredintheiroriginalstorewrappingsor inplasticbags
toreducethe evaporationofmoisturefromthem.
To removetheTempControlDrawer,pull itout untilitstops. Then applya littlemore
pressureand pullcompletelyout.
To use your wine rack fititalong
either side of any refrigerator III ,,,/"
shelf and lay the wine bottle on
the rack.
10

TheSealed Crispersare idealfor storing vegetables andfruit. Keepyour crisperstightly
closedtoinsurefreshness. Storingleafyvegetables, such as celeryand lettucein plastic
bags, reduces moistureevaporation.
The crispers slide out for easy access to foods stored within. They are completely
removable for cleaning (hand wash onty) or for use elsewhere fn your kitchen,
Thecrisper cover alsoservesasa refrigerator storageshelf. Toremoveforcleaning,
push up on theglass cover from underneath and carefully remove.
Thehumiditycontrol leversare locatedon theshelf abovethe crisperdrawers. Theslide
control should generally be set atthe "Low" setting for fruits andthe "High" setting for
vegetables.
Occasionally, you may noticewater droplets on the back wall.This is normal.
Defrostwater isusedtomaintainhumiditylevelandhelpskeepfoodfreshlonger.
Excess water drains into the defrost pan beneaththe cabinet andevaporates.
11

Yourmodel has an egg caddythatfits securelyon a door shelf. Thiseggcaddy can be
removed and carried to your working area.
Doorgaskets are magnetized toinsure an air tight sealall around, These gaskets cling
to the cabinet front, once the doors are closed to within their magnetic range.
uo.oosveasteooer
position on the door. Liftthe shelfstraight up until it clears
the retainersonthedoor liner andpull straightout. Reverse
this procedure when replacing a shelf.
Some models have a bottle retainer located on the lower refrigerator door shelf. It
preventstallbottlesfromfallingoutwhenthedoorisopenedor closed. Thebottleretainer
can be adjusted to any position on the shelf by sliding sideways.
All models have aShelf Tender located on oneof therefrigerator doorshelves.It
provides upright storagefor packages or bottles. The Shelf Tender can be adjustedto
any position on the shelf by sliding sideways.
12

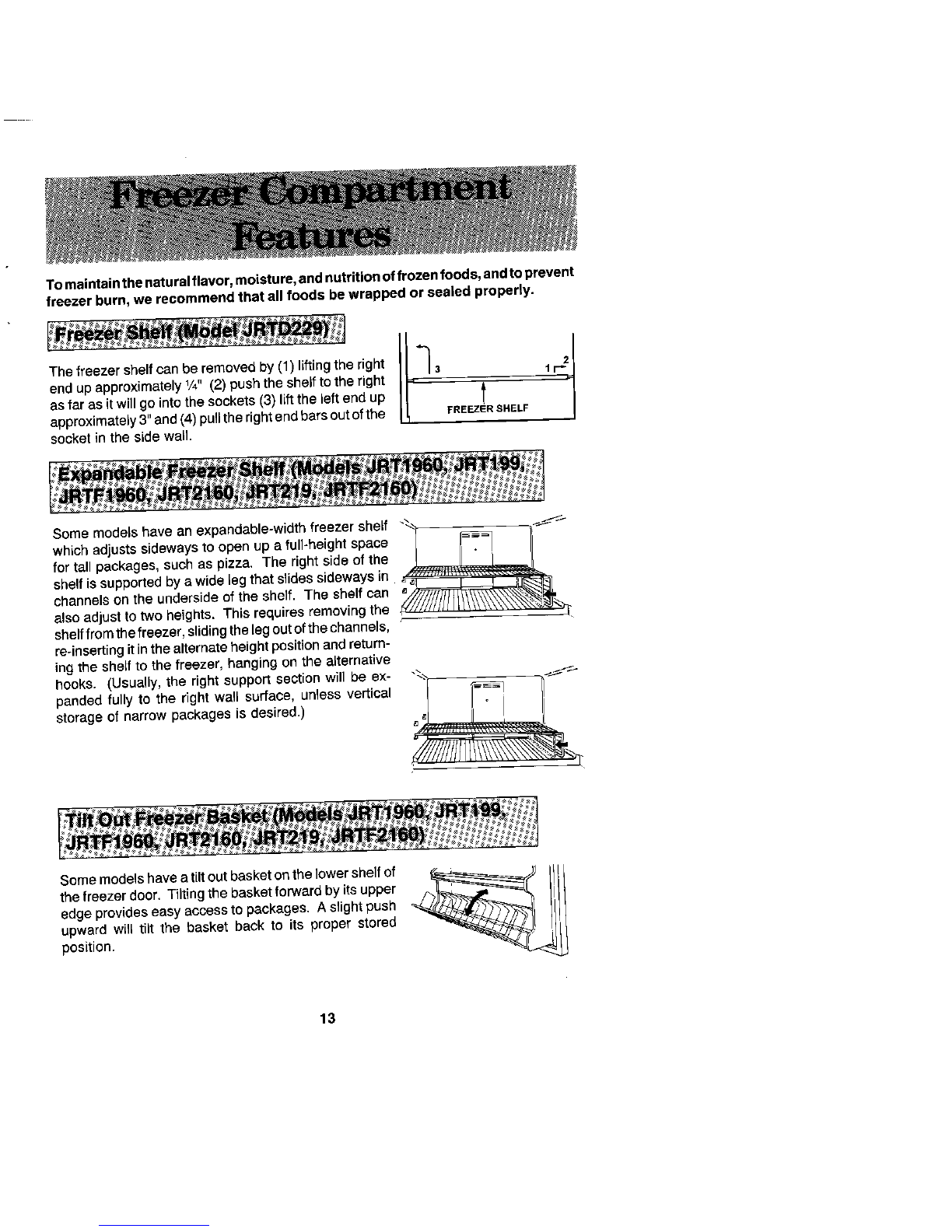

Tomaintainthenaturalflavor,moisture,andnutritionoffrozenfoods,andtoprevent
freezerburn,we recommend that all foodsbe wrapped orsealed properly.
end up approximately1/4"(2) pushthe shelfto the right
asfar as itwillgo into the sockets(3) lift theleft end up T
approximately3"and (4)pullthe rightendbarsoutofthe _ FREEZERSHELF
socket inthe side wall.
Some modelshavean expandable-width freezer shelf"_-_ _
which adjusts sideways toopen up afull-heightspace ] _ li
for tall packages,such as pizza. The right side of the _ _ ]l
shelf issupported by a wide leg that slides sideways in ._
channelson theundersideof theshelf. The sheff can__
also adjust to two heights. This requiresremoving the g//////I/I IIl\\\\\\\\\_\_;.;;_-----------------_J_-.,_
shelffromthefreezer,slidingthe legoutofthechannels,
re-insertingit inthe alternate heightposition and return-
ing the shelf to the freezer, hanging on the alternative
hooks(usua"Y'thedghtsupp°rtse=i°nw"'beex"L 11f-
panded fully to the right wall surface, unless vertical
storage of narrow packages is desired.)
Somemodelshave atiltout basketon thelower shelfof __ .P) Ill[
the freezer door. Tiltingthebasketforward by itsupper
edgeprovideseasyaccessto packages, A slight push
upward will tilt the basket back to its proper stored
position.
13

Your refrigerator comesequipped with ice cube traysand a storage bin (on most
models.) To release frozen cubes,hold the trays upside down and twist both ends.
Somemodels are designedsoan Automatic (oeMakercan beeasily installedwhenever
youwant it. Order theice makerkit numbershown on thelabel onthe cabinet back.The
kit containsinstallation instructions,water connection instructionsand other information
concerning the ice maker operation.
The water inlet tubingassembly requiredto complete thewater connectionto the water
valveislocated in thecrisper drawerina bag. Connecttheicemaker tothewater supply
as instructed in the separate Lnstructions,furnished with the refrigerator.
The automaticice maker is designed tofurnish a continual supply of icecubes. The
amount of ice produced depends on the temperature in the freezer section of your
refrigerator. The colderthe freezer section, the more ice isproduced. We suggestyou
start with yourrefrigerator and freezer controlsat their midsettings. In mostcases,this
is satisfactory.If the door to the refrigeratoror freezer is opened frequently or
temperatures in the kitchen areabnormally high, a colder setting may be necessary.
After your model has been installedand the water supply connected tothe ice maker,
it maytake 8 to 12 hoursbeforetheice makerfurnishes anyusable icecubes.The first
one or two harvests will probably contain undersized and irregular cubes because of
air in thesupply line. Theinitial harvestmay also contain impurities from the newwater
supply piping. Therefore,all cubes from the first two or three harvests should be
discarded.
Undercertain rarecircumstances,ice cubesmay be discolored,usually appearing with
a green-bluishhue. Thecause ofthis unusualdiscolorationis apparently acombination
offactors such as certain characteristics of local waters,household plumbing and the
accumulationofcoppersalts in an inactive water supply line which feeds the ice maker.
Continued consumption of such discolored ice cubes may be harmful to health. If such
discoloration is observed, discard the ice cubes and contact the dealer from whom the
ice maker or refdgerator was purchased.
Ice cubes that have been in the ice storage for a considerable length oftime may pick
up oft-flavor taste,stick together, and graduallybecome smaller.Wesuggestthat these
cubes bethrownaway. We also suggest using anopen boxof baking soda in the
refrigerator for food odor absorption.
Certainsounds mayaccompany thevariouscyclesof theice maker.Examplesare: (1)
themotormayhavea slighthum, (2)thecubeswillrattle asthey fall intoan emptystorage
bin, and (3) the water valve may click or "buzz" occasionally. All of these sounds are
normal and should be ignored. 14

Note: When dispensing icecubes,it is importantthat you use onlythe ice supplied by
thisicernaker.Icefrom anyothersourceoouldcauseanicejam. Ifthis happens,remove
and discard all icefrom the storage bin and any icelodged in theicechute.

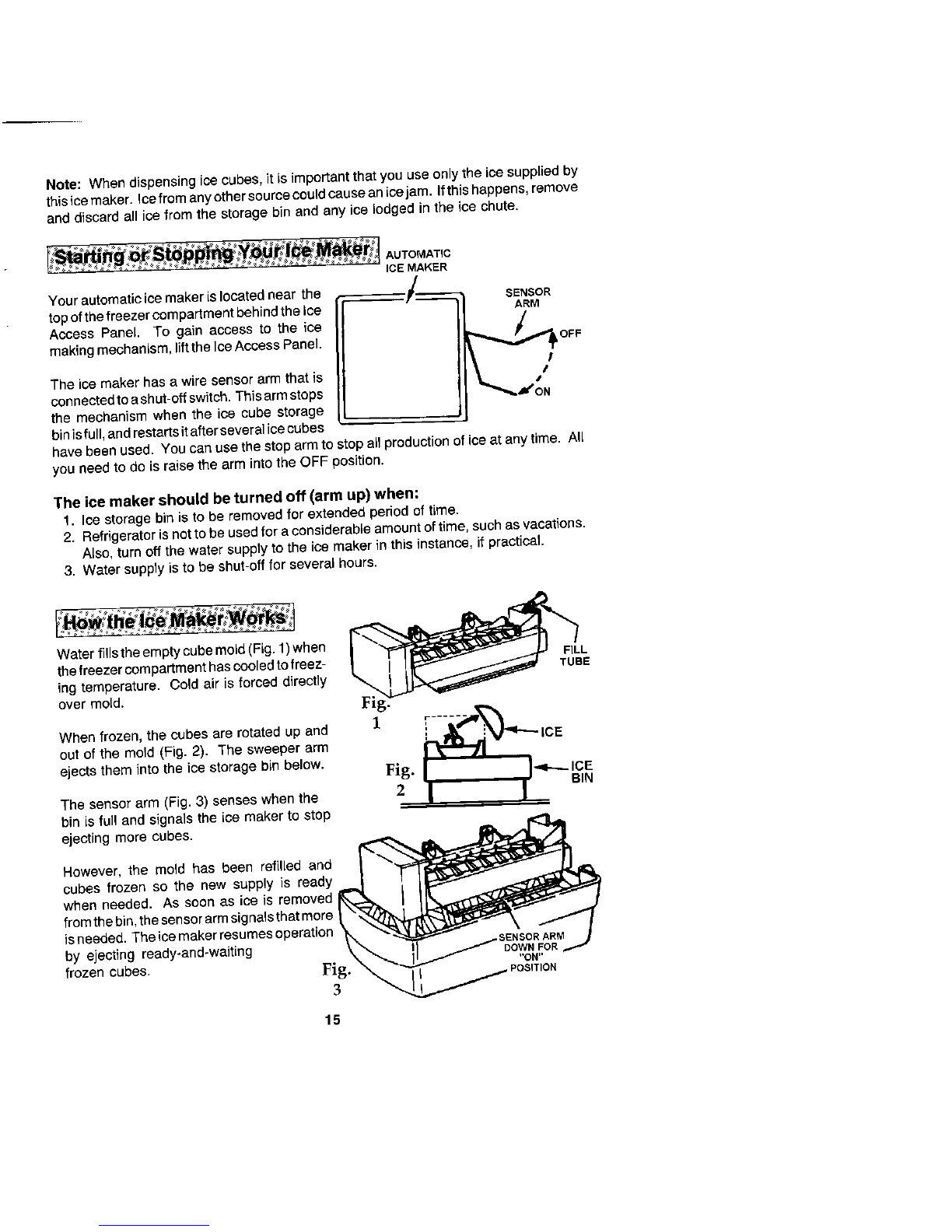

AUTOMATIC
ICE MAKER
Your automaticice makerislocated near the/SENSOR
topofthefreezercompartmentbehindtheIce ARM
Access Panel. To gain access to the ice p/_
makingmechanism,lift theIceAccess Panel. _ OFF
Theice maker hasawiresensor arm thatis
connectedtoashut-off switch.This armstops
the mechanism when the ice cube storage
binisfull, andrestartsitafterseveralicecubes
havebeen used.You canusethestoparm to stopallproductionofice at any time. All
you need to do is raise the arm intotheOFF position.
Theice maker should be turned off (armup) when;
1. Ice storage bin is to be removed for extended period of time.
2. Refrigeratorisnot tobeused fora considerableamount oftime,such asvacations.
Also, turn off thewater supply to the icemaker in this instance, if practical.
3. Water supply isto be shut-offfor several hours.
Water fillsthe emptycubemold (Fig.1)when _FILL
thefreezercompartmenthascooledtofreez-TueE
ing temperature.Cold air is forced direCtly _ i IL_¢_'_ p'-
over mold.
Whenfrozen, the cubes arerotated up and 1 ,_-_1_,_.
out of the mold (Fig. 2). The sweeper arm ICE
ejectsthem into the ice storage bin below. Fig.|]..,_----ICE
BIN
The sensorarm (Fig. 3)senseswhen the 2==J===_==_
bin is full and signals the ice maker to stop
ejecting more cubes, d_"'_ =_" _
However, themold has been refilled and
cubes frozen so thenew supply is ready
when needed. As soon as ice is removed
from thebin,thesensorarmsignalsthatmore
isneeded. Theicemakerresumesoperation
by eiecting ready-and-waiting
frozen cubes. Fig.
3
15

Lift thefront of the AutomaticDispenser bin and pull it straight out. Wash the bin
occasionally in mild soap and lukewarm water. To replace the bin,push it all the way
back untilthe bottom ofthe bin is behindthe raised edgeat the frontofthe shelfit rests
on. Make sure thetabs, atthe backof the bin,that turn the spiral auger are positioned
between the prongs from the auger motor.
Prevent ice cubes from missing your glass by holding it as
high as possible (just below the ice chute). Pressthe glass
against the padded lever at the left side ofthe fountain. To
stopdispensing ice,releasepressurejust enough to stopthe
dispensermotor and leavethe glassin placeto holdthe door
open untilicestopsfalling.With a littlepractice,youwill learn
to anticipate when to release pressure to prevent an un-
wanted dispense ofice, which occurs eachone and one half
seconds.
After installation, itmay take 1 to 2 days to fill the Automatic
Dispenser bin with ice cubes.
To dispensewater,press a container against the padded lever
atthe rightside ofthefountain. To stopthe waterflow, release
pressure. To minimize splashing, hold the container as high
as possible.
When you first operate your dispenser or after reconnecting
water toyour refrigerator,air will escapefrom the dispenserfor
a few minutesbeforewater begins toflow. Draw 10 glasses of
water and empty them in the kitchen sink. This will insure
complete filling of the reservoir with fresh water.
16

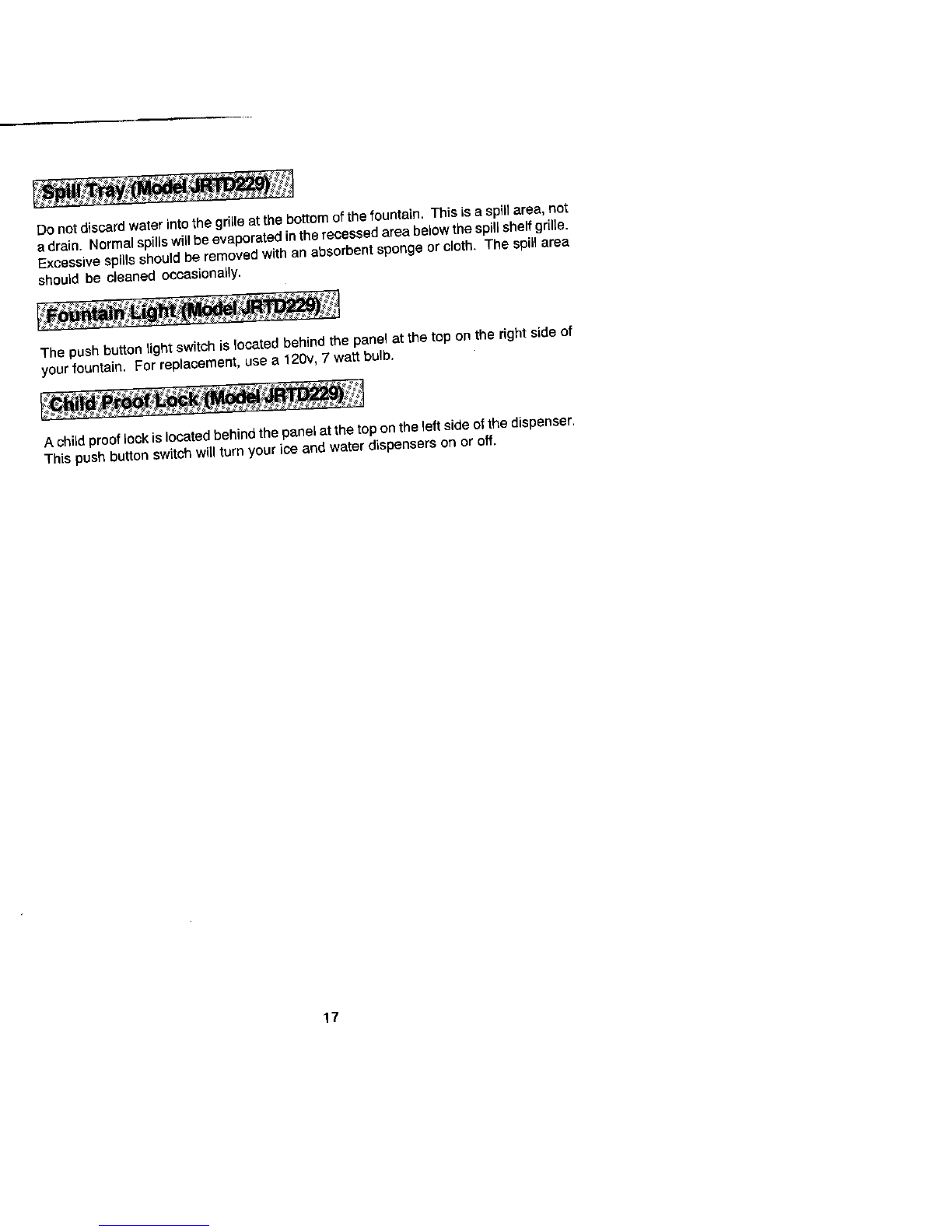

Donot discardwaterintothegrille atthebottomofthe fountain.This is a spillarea,not
adrain,Normalspil}swi}lbe evaporatedinthe recessedarea below thespil_shelf grille.
Excessivespills should be removed withan absorbent sponge orcloth.The spill area
should be cleaned occasiona}ly.
The push button light switch is located behind the panelat thetop on the right side of
yourfountain. For replacement,use a 120v, 7watt bulb.
Achi}dproof }ockis located behind thepanel atthetoponthe leftside ofthe dispenser.
Thispush button switch will turn your ice and water dispensers on or off.
17

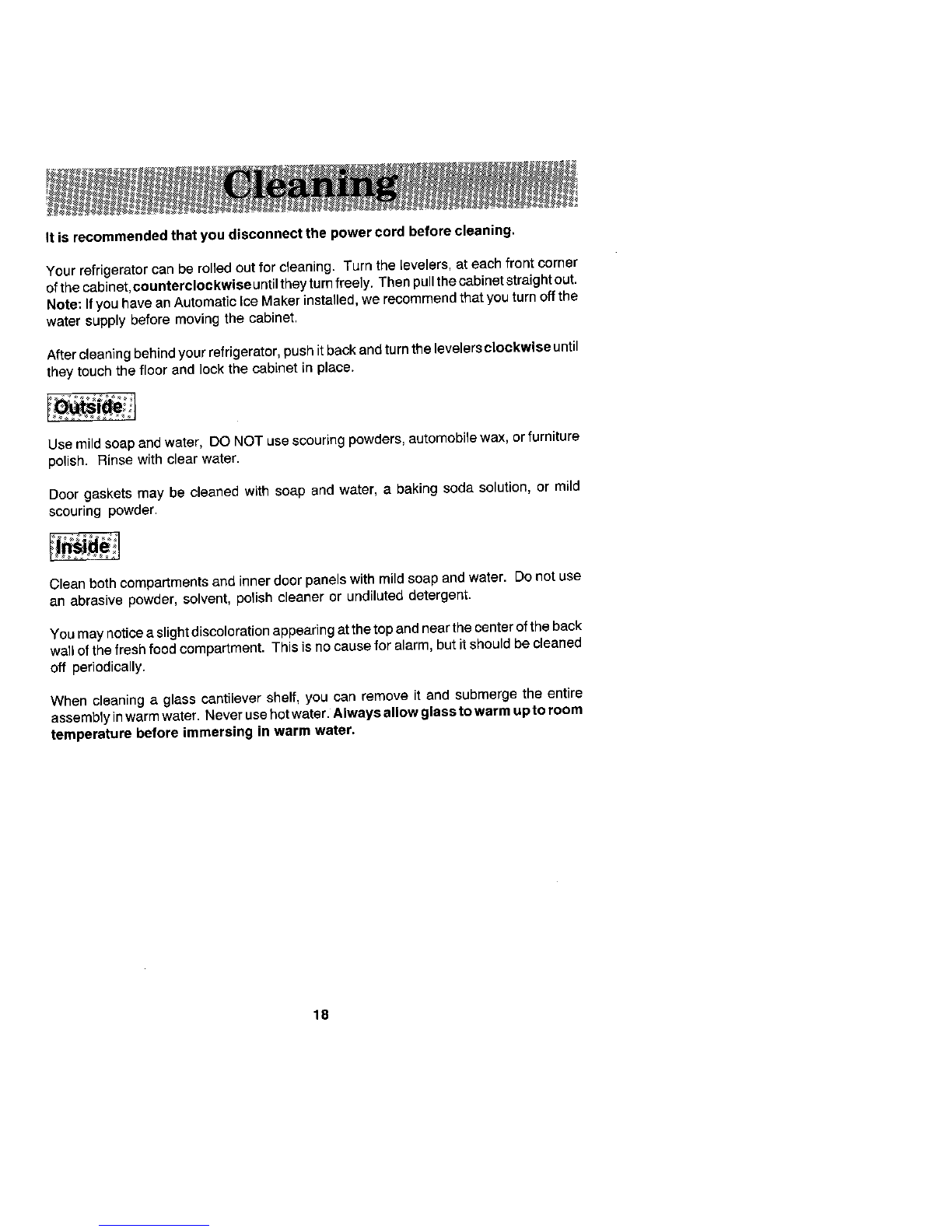

It isrecommendedthat you disconnect the powercord beforecleaning.
Your refrigeratorcan be roltedout for cleaning. Turn the levelers, at each front corner
ofthe cabinet,counterclockwise untilthey turnfreely. Thenpullthecabinet straightout.
Note: Ifyou havean Automatic Ice Makerinstalled,werecommendthat you turnoff the
water supply before moving the cabinet.
Aftercleaning behindyour refrigerator,push itbackand turnthe levelersclockwise until
they touch the floorand lock the cabinet inplace.
Use mild soapand water, DO NOT usescouring powders,automobile wax, or furniture
polish.Rinse with clear water.
Door gaskets may be cleaned with soap and water,a baking soda solution,or mild
scouring powder.
Clean bothcompartmentsand inner door panelswith mildsoap and water. Do not use
an abrasive powder, solvent, polish cleaner or undiluted detergent.
You may noticea slightdiscoloration appearingatthetop and nearthe centerofthe back
wallof thefreshfood compartment. This is no cause for alarm, but itshould be cleaned
off periodically.
When cleaning a glass cantilever shelf, you can removeit and submerge the entire
assemblyinwarm water. Neverusehotwater. Always allow glass to warm upto room
temperature before immersing in warm water.
18

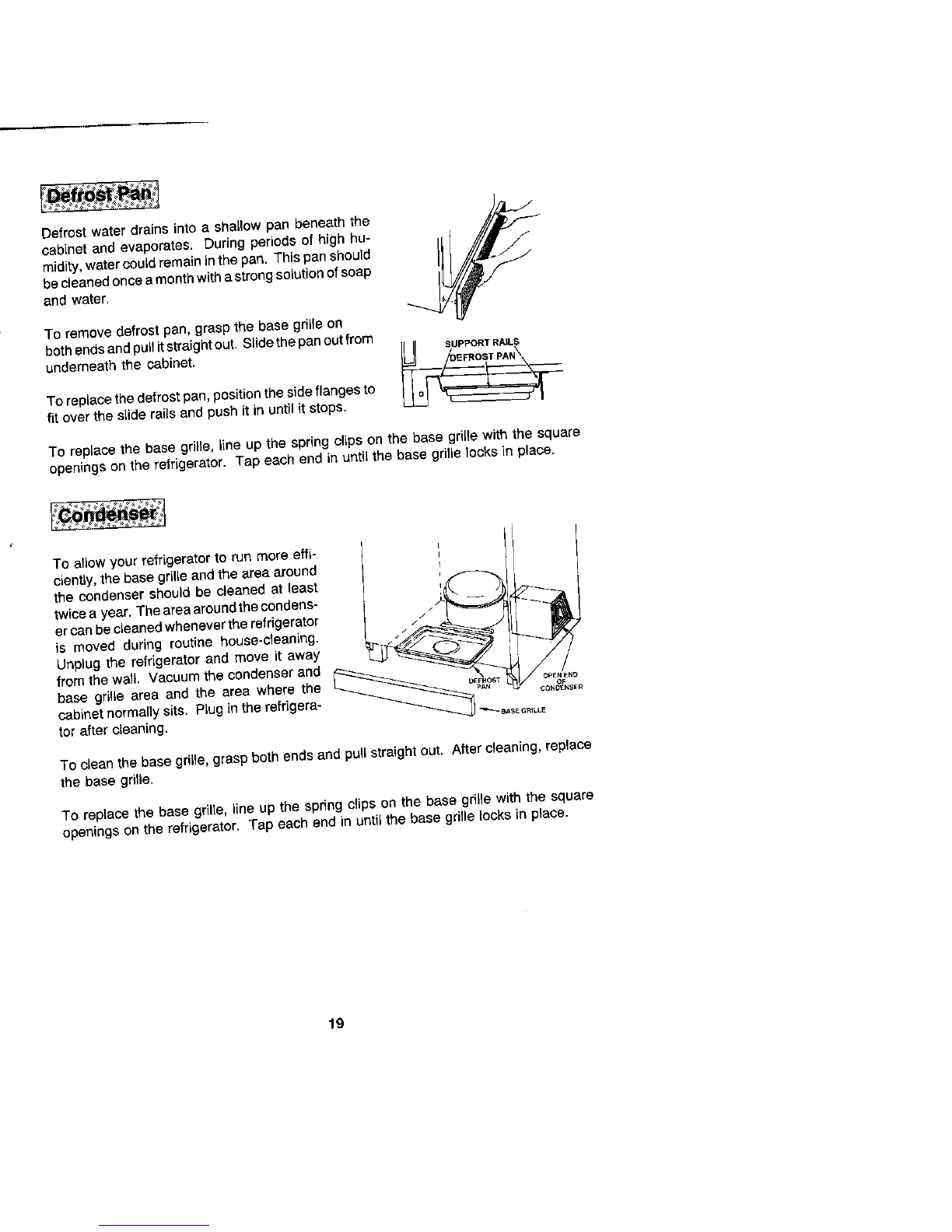

Defrostwaterdrainsintoa shaJIowpan beneaththe /'/_'/.-_ _
cabinet and evaporates. During periods of high hu- j_.___l
midity,water couldremainin the pan. Thispan should
be cleanedonceamonth with astrongsolutionofsoap
and water.
To removedefrost pan, grasp thebase gri}leon
bothendsandpull itstrafghtout. Slidethepan outfrom 1111 SUPPORTRALL_
underneath the cabinet. _,FROiT PAN__
To replacethe defrostpan,positionthe sideflanges to
fit over theslide railsand push it in until it stops.
Toreplace the base gdlte, line up the spring cfipson the base gdlle with the square
openingson the refrigerator. Tap each end in until the base grille locks in place.
To allowyour refrigerator to run moreeffi- I
cientiy, the basegrilleand theareaaround
the condenser should becleaned at least
twicea year. Theareaaroundthe condens-
er canbe cleanedwheneverthe refrigerator
is moved during routinehouse-cleaning.
Unplug therefrigerator and moveit away
from the wailVacuumthe condenser and
base grille area and the area where the _OEF"OST O_,E_
cabinetnormally sits. Plugin the reffigera- _A, _o_._
torafter cleaning. ""_.S_G,_Le
TOoJeanthe basegrille, grasp both ends andpull straightout. Aftercleaning,replace
the base grifle.
To replace the base grille,line up thespring clips on the base grille with the square
openingson the refrigerator.Tap each end inuntil the base grille locks inplace.
19

It isrecommendedthatyou disconnectthepowercordbeforereplacinglightbulbs.
Always usea 40 watt,standard base,appliance typebulb whenreplacing a light.
Replacefreezerbulbby:(1) usingtwohandsspreadeachsideofthelightcoveroutward
andpulltothefront;(2) unscrewandreplacebulb;(3)pushrighthandsideoflightcover
towardbackof freezerengagingthetabintotheslot. Thenpushleftsidetowardback
engagingtheleft tabintothe slot.
If you wi(ibe gone for a month or less, leave the controlknob at its usualsetting.
During 7ongerabsences, (a)remove allfood, (b) disconnect from electrical outJet,(c)
cleanthe refrigeratorthoroughly, including defrostpan, (d) leavedoors open to prevent
odor formation, e) turn off supply water for ice maker, if pra_ical.
20
