Plastic Utility Carts
Models PUC-3117 and PUC-3725
IMPORTANT SAFETY INSTRUCTIONS
•Review all instructions before assembling the cart.
•Improper assembly can cause personal injury and/or property damage.
•Maximum load is 500 lbs. distributed evenly. Do not overload cart.
•Do not step into or on the cart, or use it as a toy.
WARNING: This product can expose you to chemicals including lead which is known to the State of
California to cause cancer and birth defects or other reproductive harm. For more information go to http://
www.p65warnings.ca.gov.

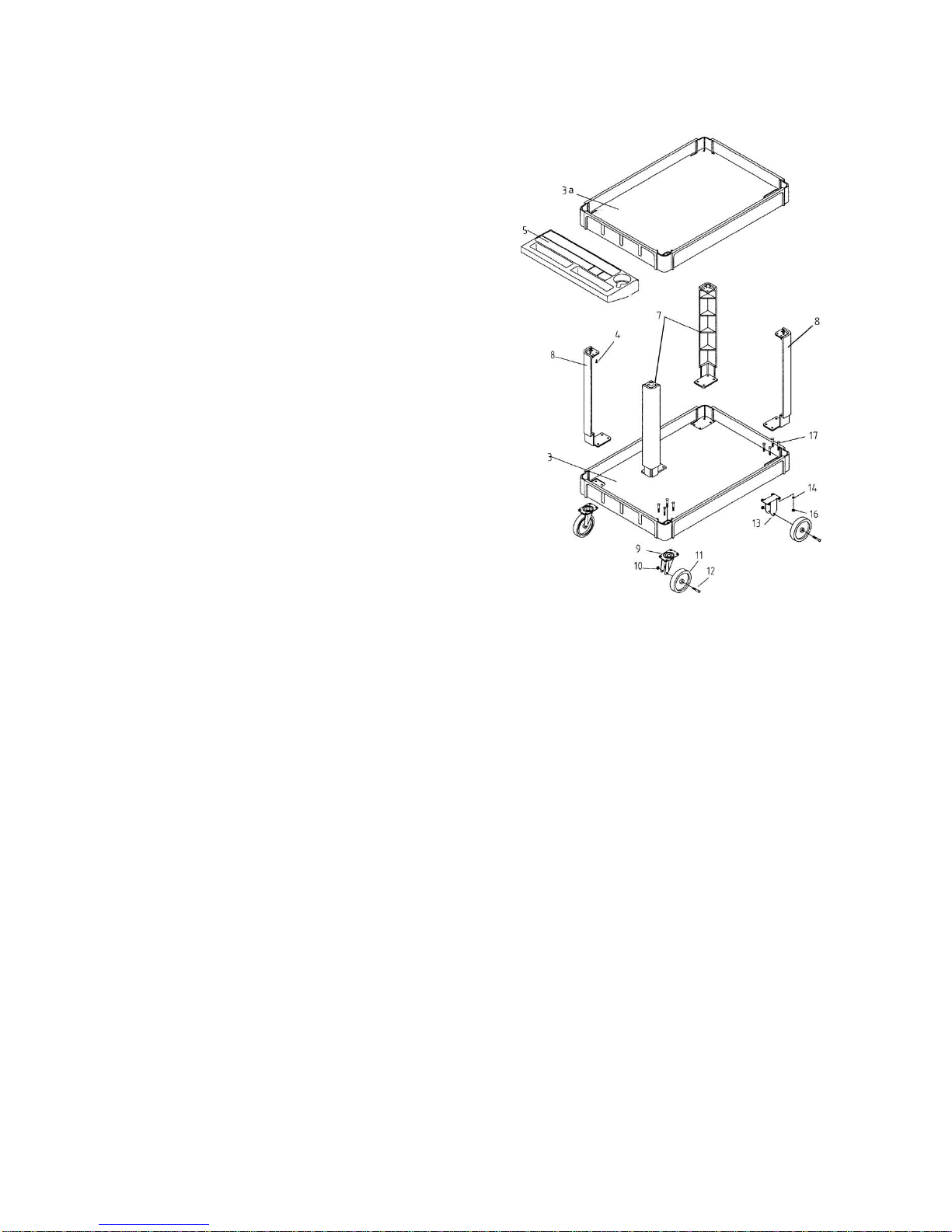

To assemble the cart, follow the illustrations below. You will need a cross-point screwdriver and a rubber or wood
mallet. Use the mallet to tap down the parts to ensure they are seated properly before fastening them with screws.
(NOTE: Numerals refer to parts list on reverse side of this sheet.)
JET
427 New Sanford Road Part No. M-140018
LaVergne, Tennesseee 37086 Revision C1 08/2018
Ph.: 800-274-6848 ECR 180826184358
www.jetttools.com Copyright © 2018 JET, a Division of JPW Industries, Inc.

Specifications: PUC-3117
Stock Number ..........................................140018
Maximum Capacity (lbs.)................................500
Platform Size (in.)(LxWxH)............31 x 17 x 4.33
Upper Platform Height (in.) ...........................33½
Height between Platforms (in.)....................19.68
Low Platform Height (in.)....................................6
Caster Size (in.)(O.D. x W) ..........................5 x 1
Overall Size (in.)(LxWxH)..........39¾ x 17 x 33½
Approx. Net Weight (lbs.).................................35
Approx. Shipping Weight (lbs.) ........................40
Specifications: PUC-3725
Stock Number ..........................................140019
Maximum Capacity (lbs.)................................500
Platform Size (in.)(LxWxH)....37.40 x 25½ x 4.33
Upper Platform Height (in.) ...........................33½
Height between Platforms (in.)....................19.68
Low Platform Height (in.)....................................6
Caster Size (in.)(O.D. x W) ..........................5 x 1
Overall Size (in.)(LxWxH)...........46 x 25½ x 33½
Approx. Net Weight (lbs.).................................45
Approx. Shipping Weight (lbs.) ........................50
Parts List
Index No. Part No. Description Size Qty
3a .............PUC3117-3a............Upper Platform (for model PUC-3117) .....................................................1
.................PUC3725-3a............Upper Platform (for model PUC-3725) .....................................................1
3 ...............PUC3117-3b ............Platform (for model PUC-3117) ................................................................1
.................PUC3725-3b ............Platform (for model PUC-3725) ................................................................1
4 ...............PUC3117-4 ..............Cross Head Screw.........................................M6x25..............................12
5 ...............PUC3117-5..............Handle (for model PUC-3117) ..................................................................1
.................PUC3725-5..............Handle (for model PUC-3725) ..................................................................1
7 ...............PUC3117-7a............Right Leg........................................................R........................................2
8 ...............PUC3117-8a............Left Leg..........................................................L.........................................2
9a .............PUC3117-SCA.........Swivel Caster Assembly (includes index no. 9 thru 12)............................2
9b .............PUC3117-FCA.........Fixed Caster Assembly (includes index no. 10 thru 13) ...........................2
9 ...............PUC3117-9 ..............Swivel Caster Mount.................................................................................2
10 .............TS-1541031.............Nylon Lock Hex Nut .......................................M8 .....................................4
11 .............PUC3117-11............Caster........................................................................................................4
12 .............PUC3117-12............Axle Bolt.........................................................M8 x 45..............................4
13 .............PUC3117-13............Fixed Caster Mount...................................................................................2
14 .............TS-2361081.............Lock Washer..................................................M8 ...................................16
16 .............TS-1540061.............Hex Nut ..........................................................M8 ...................................16
17 .............PUC3117-17 ............Special Screw ................................................M8 x 45............................16
