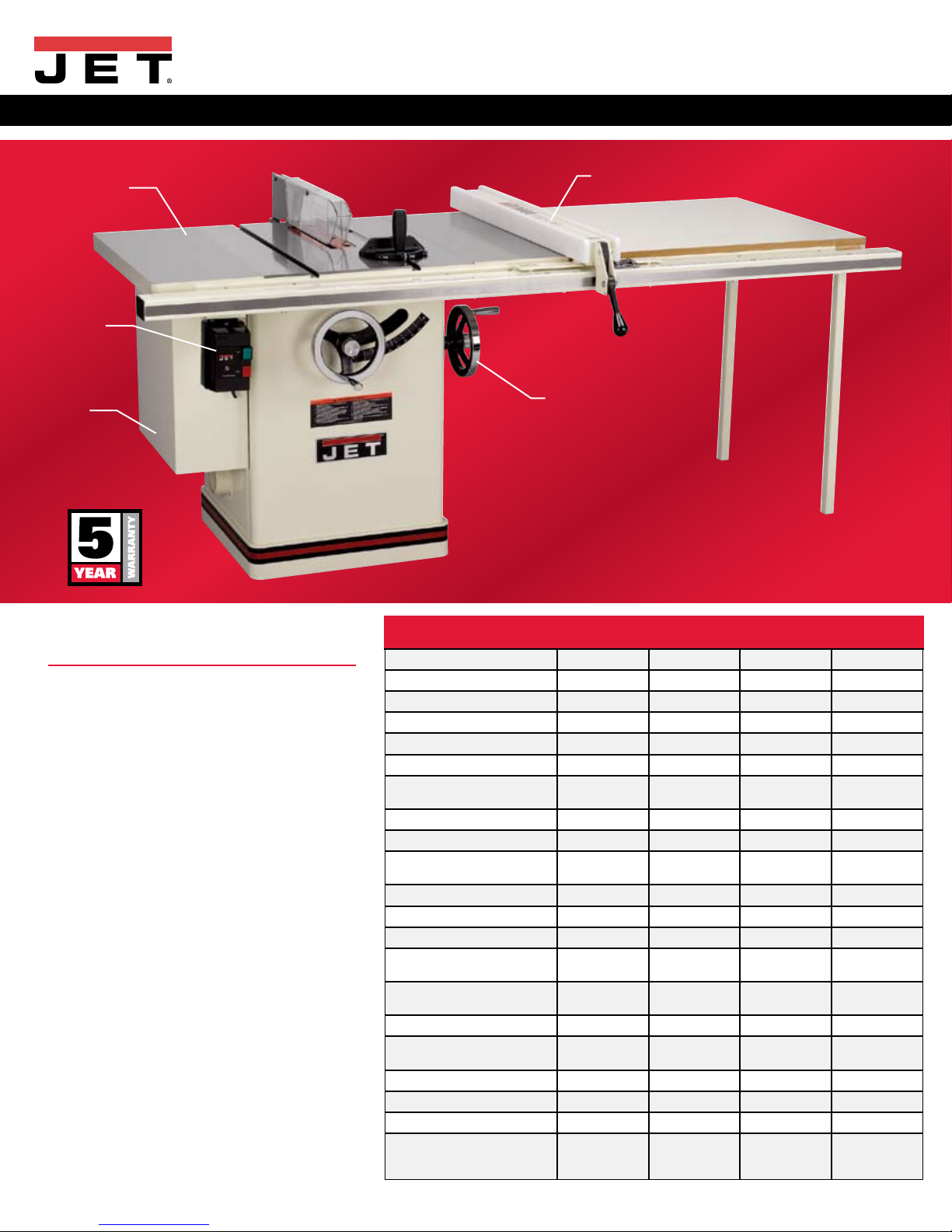

The brawny JET®12" Xacta®Saw is now available with a left-tilting arbor. Built with all
of the same quality and high-performance JET®is known for, this serious machine gives
users who prefer a left-tilting blade another choice when deciding which Xacta®Saw is
right for them. This machine complete with a JET®Xacta®Fence, a powerful 5HP motor,
huge cast iron trunnion, and industrial magnetic controls loves to flex its muscle with
precision never being compromised.

jettools.com
12" LEFT AND RIGHT TILT TABLE SAW
•EXCLUSIVE 50" commercial XACTA®Fence II with
T-square design
•Cast iron wings for a large, flat work surface
•Powerful 5HP, 3Ph motor makes even the toughest
cutting jobs a breeze
•Three matched V-belts deliver full power to the blade
•Rail-mounted magnetic switch is easy to reach and
provides overload protection
•One-piece closed stand channels dust through a
4" port for fast, clean dust collection
•Hinged motor cover on cabinet gives quick access to
the motor and belts
•Large, heavy-duty handwheels help you make
precise adjustments with less effort
•Built-in 4" port for dust collection
•See-through blade guard with splitter and anti-
kickback pawls helps protect operator while giving
a clear view of the material being cut
12" LEFT AND RIGHT TILT
TABLE SAW
STOCK
NUMBER
708536PK
RIGHT TILT
708537PK
LEFT TILT
708541PK
RIGHT TILT
708542PK
LEFT TILT
Model Number JTAS-12X50-1 JTAS-12XL50-5/1 JTAS-12X50-3 JTAS-12XL50-3
Net Weight (lbs.) 593 518 580 518
Blade Diameter (in.) 12 12 12 12
Arbor Diameter (in.) 1 1 1 1
Arbor Speed (RPM) 4200 4200 4200 4200
Maximum Depth of Cut (in.) 4 4 4 4
Maximum Depth of Cut at
45 Degrees (in.)
2-7/8 2-7/8 2-7/8 2-7/8
Maximum Rip Right of Blade (in.) 50 50 50 50
Maximum Rip Left of Blade (in.) 13 13 13 13
Table in Front of Saw Blade at
Maximum Depth of Cut (in.)
12 12 12 12
Maximum Width of Dado (in.) 13/16 13/16 13/16 13/16
Maximum Diameter of Dado (in.) 8 8 8 8
Table Height (in.) 34 34 34 34
Table Size with Standard
Extension (L x W/in.)
29 x 44 29 x 44 29 x 44 29 x 44
Table Size without
Extension (L x W/in.)
29 x 22 29 x 22 29 x 22 29 x 22
Dust Port Diameter (OD/in.) 4 4 4 4
Dust Collection Minimum
CFM Required
350 350 350 350
Motor HP 5HP 5HP 5HP 5HP
Motor Phase 1Ph 1Ph 3Ph 3Ph
Motor Voltage 230V 230V 230/460V 230/460V
Prewired
— —
460V* requires
optional switch
JTAS10-2238
460V* requires
optional switch
JTAS10-2238
Solid
Cast
Iron
Wings
Industrial
Magnetic
Controls
Sheet
Metal
Hinged
Motor
Cover
Large
Handwheel
Exclusive XACTA®Fence II
