JETBOX Blade User manual

user manual
JETBOX Blade

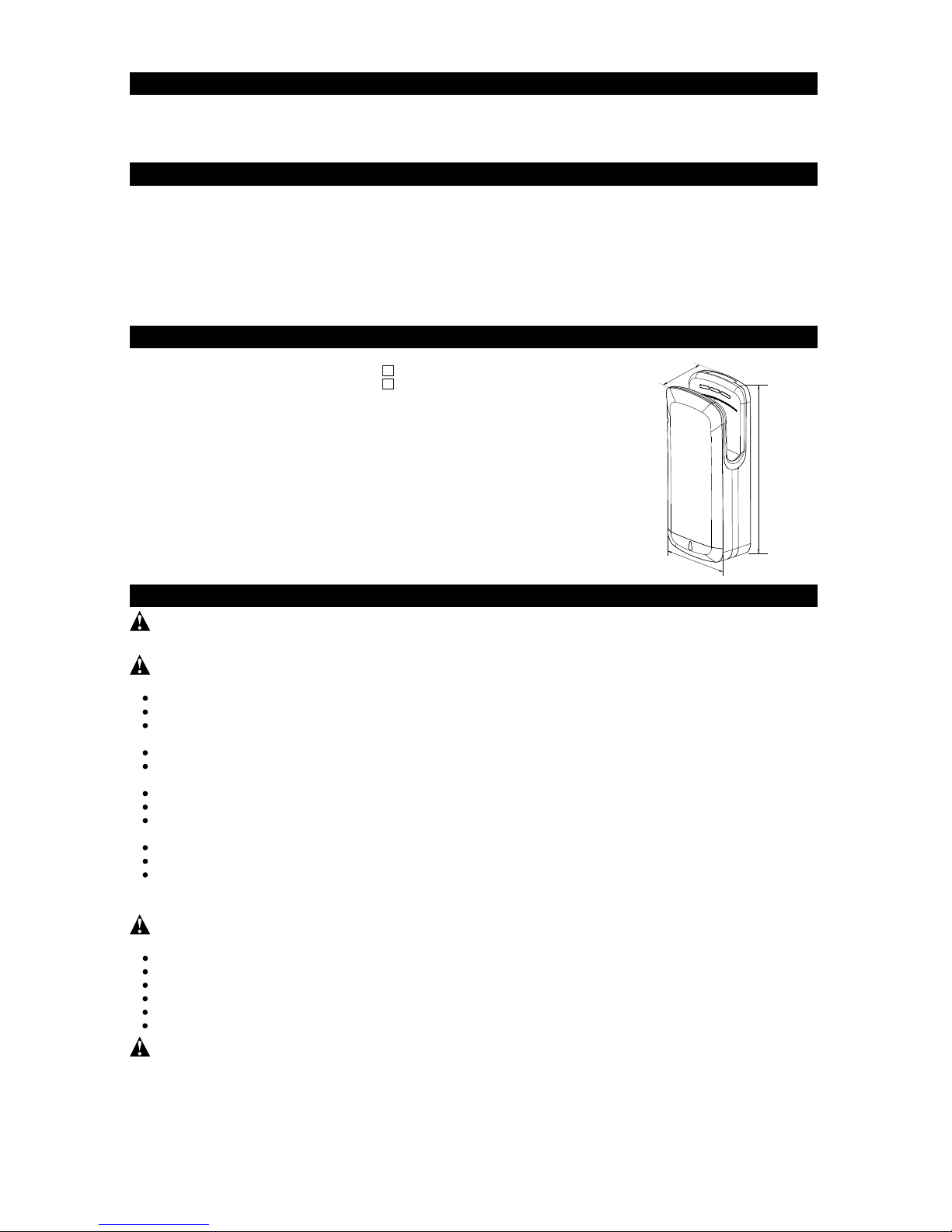

1. DESCRIPTION
2. ADANCE FEATURES
3. SPECIFICATIONS
4. SAFETY INFORMATION
3. SPECIFICATION
3. SPECIFICATION
Voltage:
Power/High Speed:
Power/Low Speed:
Air Temperature:
Air Velocity:
Air Flow:
Drying Time:
Protection Level:
Electric Isolation:
Motor:
Noise(at 1M):
Cabinet Material:
Net Weight:
Gross Weight:
3
DANGER Failure to disconnect the power source before installation or servicing can result in serious injury or
death from electric shock. Always disconnect the power source before servicing or installing the hand dryer.
WARNING When you dispose of an old appliance or any components, follow any local and national laws on
669MM
298MM
184MM
220V-240V 50/60Hz
110V-120V 60Hz
1650W-2050W(Heater on)/700W-800W(Heater off)
1450W-1850W(Heater on)/650W-700W(Heater off)
The hand dryer is a surface-mounted hand dryer powered by a brush motor, and delivers 1650 watts of drying power.
The dryer incorporates a replaceable HEPA filter and a reusable air intake prefilter.
An infrared sensor is used to automatically activate the dryer. The dryer is intended for use in commercial, industrial,
and office environments.
Slim, stylish design, improves washroom image.
Powerful motor for rapid dry-time, and drip-tray for safe and hygenic washroom environment.
25Seconds continuous timer protection.
Anti-splash design.
Cleaning required once per day.
Air is cleaned by UV sterilisation and easily-changed HEPA airfilter.
Substantial financial and eco savings by illiminating paper towel use.
Adjustable heat and power settings allow optimum comfort and economy in all environments.
15℃above room temperature
100M/S
130M /H
7-9S
IPX1
CLASS 1
Brush Motor at 22000RPM
70dB
ABS Plastic
7.5 KGS
9.1 KGS
WARNING Risk of fire, electric shock, personal injury or property damage are possible if local codes or safety
recommendations are not followed.
Do not use hand dryer for any purpose other than drying hands.
Carefully follow all instructions for installation on the enclosed installation template/instructions.
Installation should only be performed by qualified persons in compliance with all applicable national and local
codes and standards.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Always connect to a branch circuit with circuit breaker or fuse protection with an electrical rating greater than
the hand dryer’s rated amperage.
Use only the electrical power(voltage and frequency) specified for the model hand dryer being installed.
Each hand dryer must have a dedicated circuit.
For indoor use only. Do not use outdoors. Do not expose to rain, sun or extreme temperatures. Do not use near
source of water or extreme heat.
To limit a voltage drop, and insure efficient operation, the correct size cable must be used.
Repair work should only be performed by an authorized electrician.
This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been give supervision or instruction concerning use of the
appliance by a person responsible for their safety.
WARNING Risk of fire, electric shock, personal injury or property damage are possible if the following safety
precautions are not followed.
Repair work should use only genuine replacement parts.
Do not insert foreign objects in the unit or place heavy objects on the unit.
Do not use in corrosive environments or explosive atmospheres.
Do not use in extremely humid locations or near source of water.
Do not immerse appliance in water or other liquid.
Children should be supervised and must not play with the appliance.
disposal of electronic waste. This appliance must not be disposed together with the domestic waste. This
appliance must be disposed at an authorized place for recycling of electrical and electronic appliances.

5. UNPACKING / STANDARD ACCESSORIES
6. INSTALLATION
1. Remove all packing material. Recycling is recommended.
2. Carefully remove the hand dryer from the shipping carton, using care not to drop the appliance.
3. Inspect carefully for any damage that may have occurred during transit. Check for any loose, missing or damaged
parts. If the hand dryer is damaged or missing parts, promptly inform the dealer where you purchased it.
Standard items included with the hand dryer are:
Cleaning Brush
Installation Template
Manual
HEPA Filter
HEPA Filter
Water Collection Tray
Air Pre-filter
(Push back then down to open it)
Power Switch
Hot/Cold Switch
Speed Switch
Anti-theft screw
Power Supply Kit
Power Supply
Kit Cover
Mounting anchors
Wall Mounting Bracket
User Manual
11. Connect plug to power supply socket or turn on power.
CAUTION Improper mounting may result in personal injury or property damage.
1. Use the mounting template provided to mark the locations
for the 8 wall mounting anchors to attach the wall mounting
bracket to the wall.
2. It is recommended that at least 2 of the 6 mounting anchors
for the unit be fastened into a wall stud or support.
3. To use the hollow wall anchors included with the wall
mounting kit, pre-drill the wall in the marked locations
using a 6/25"(6mm) drill, insert the plastic anchors and tap
flush to the wall.
4. Complete the attachment of the wall mounting bracket to
the wall with the 6 mounting anchors.
5. If the hand dryer supplied with plug then hang it on bracket.
6. If the hand dryer is supplied without plug and please open
the power supply kit cover on hand dryer back then connect
it as follows <Power should be OFF>:
A. Connect the live wire(Coloured Brown, Red, or Black) to
the terminal block marked “L”.
B. Connect the neutral wire(Coloured Black, Blue) to the
terminal block marked “N”.
C. Connect the ground wire(Coloured Green&Yellow) to the
terminal block marked “E”.
Replace power supply kit cover then hang dryer on bracket.
7. Remove the water collection tray from the bottom of dryer,
and complete the attachment of the dryer with the remaining
2 anchors.
8. Set the Heater/Air Speed setting switches as required.
9. Replace the water collection tray.
10. Open the pre-filter to install the HEPA filter if necessary with
rubber ring side up.
JETBOX Blade 3

7. HOW TO USE
8. Maintenance and Cleaning Instructions
9. DIAGNOSTICS & REMEDIES
SYMPTOM
Hand dryer fails to start
Hand dryer turns on/off
erratically
Hand dryer locked
Clean sensor area inside the drying cavity.
CORRECTIVE ACTION
Model: Serial No.:
Distributor: Customer:
Address:
Tel No.: Fax No.:
Date of purchase:
The LED display provides information about the operation and servicing
needs of the hand dryer.
A. Drying time and welcome diagram B. Power indicator
C. Air sterilization indicator D. Self-check indicator
1. This hand dryer is equipped with removable intake air pre-filter and a replaceable HEPA filter.
2. Regularly check filter status is required. High traffic may require more frequent replacement of the HEPA filter.
3. The removable intake air pre-filter can be cleaned and re-used.
4. Replacement filters can be purchased through your dealer where you purchased the hand dryer.
5. HEAP filter is recommended to be cleaned by a vacuum cleaner.
The dryer is equipped with an ON/O FF Power Switch, Speed Control Switch and Hot/Cold Switch.
The factory default setting for the Power Switch “ON”, Speed Control Switch “HIGH” and Hot/Cold Switch “HOT”.
All the switches are located inside the dryer on the left side of the water collection tray. To access, remove the water
collection tray.
CAUTION on HEPA: Failure to replace a used / dirty HEPA filter can cause overheating of the hand dryer’s motor or
heat element and may invalidate your warranty. It is recommended to check it once per week.
CAUTION on Water Collection Tray: Check the water level regularly via the front viewer and empty as required. Clean
the tray and replace it. If the tray is overfull, it will overflow onto the floor and may present a slip hazard.
CLEANING
All surfaces of the hand dryer can be cleaned with a soft cloth and non-abrasive, non-caustic cleaning
solutions.A cleaning brush for the drain hole in the bottom of the drying cavity is provided.
Check power supply is turned on and the power switch on the hand dryer is on.
Check for foreign objects in the drying cavity that maybe blocking the sensors.
Insert hands a little further into the drying cavity to activate sensors.
1. Automatic, no-touch operation.
2. There is a blue LED light to guide user to the air flow.
3. The hand dryer will start automatically when hands are inserted.
4. Slowly move your hands up and down through the air stream for 7-10 seconds.
5. The hand dryer will stop automatically after hands are removed.
Heater will not work if ambient temperature is more than 25 C
Not hot air Check heater switch is on and fuse is intact.
Hand dryer will be locked if the supply voltage fluctuates by more than 15%. Turn off
the hand dryer for 10 minutes and then restart.
Low air speed Switch speed control to “H”. Check and clean filters.
For Seller: Signature :
10. LIMITED WARRANTY
This hand dryer has a 2 year warranty from the date of purchase for any manufacturing defect. It covers replacement
of defective parts except when caused by improper use of the hand dryer. It excludes motor brush replacement.
This warranty is only valid if the form card has been properly completed.
For any warranty claim you should contact your supplier.
4JETBOX Blade .

Jet Force Junior 5
Pre air filter
HEPA filter
Soft rubber ring
Hard plastic ring
Replace HEPA Filter and Clean Pre-filter
Replace water tray and uninstall hand dryer from wall
Water Tray
Water overflow pipe
to floor drain
Power ON/OFF
Air Hot/Cold
Speed High/Low
WARNING: Disconnect power at the service breaker or unplug the hand dryer before servicing &maintenance.
1. Press back then down to remove the pre-filter.
2. Take the HEPA filter out. When replacing the HEPA filter, ensure the soft rubber edge is uppermost.
3. Clean any dust from the pre-filter.
2 x anti-tamper screws
1. If there is a water overflow pipe connected, remove it.
2. Remove the tray by pulling it forward. Then undo the2 x anti-tamper screws.
3. First pull up then pull front to take hand dryer from wall. Do this carefully as the dryer weighs 11KG.
5. On reinstallation, before replacing the water tray, make sure the heater and speed switches are set as required.

Sensor Detector
&LED Light
circuit board
Display circuit board

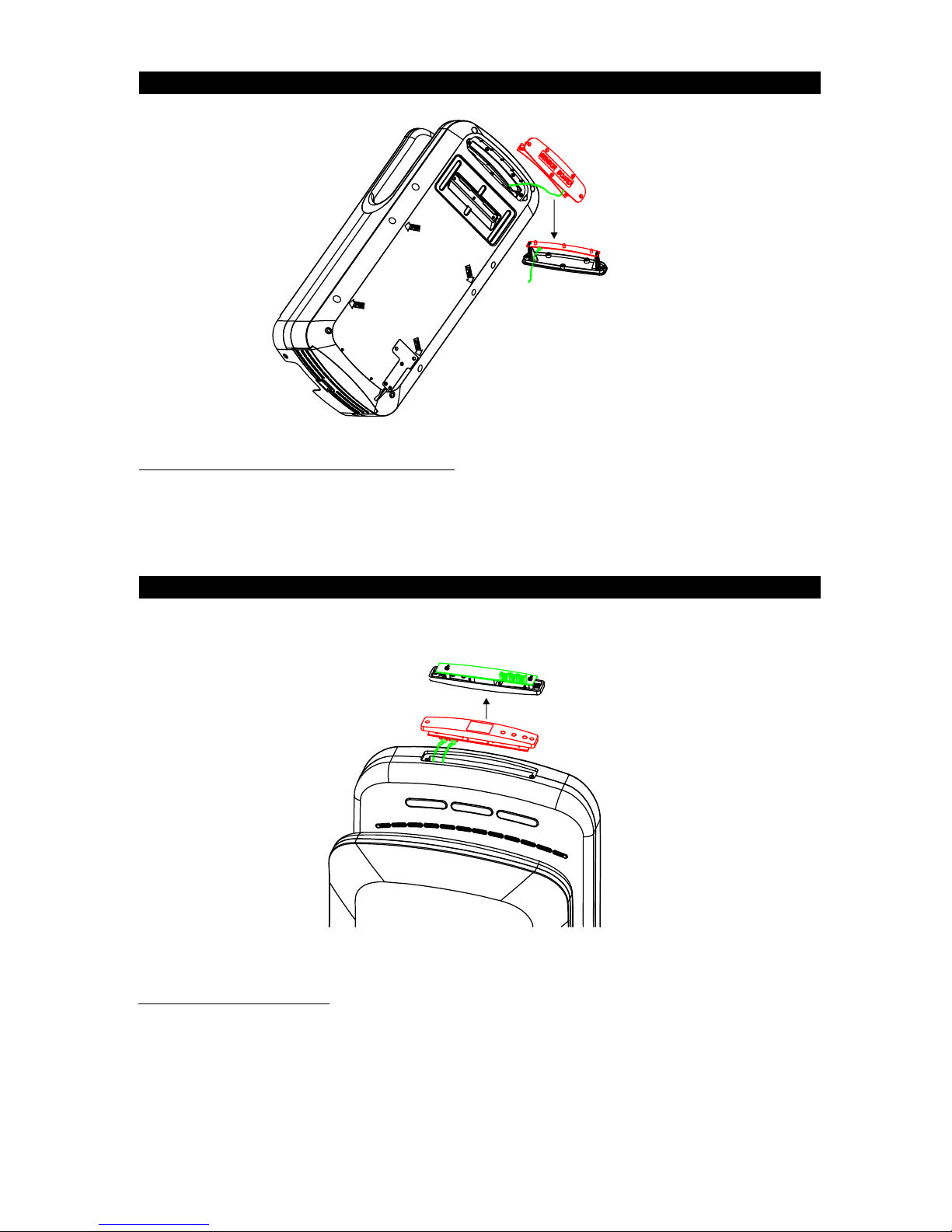

Replace Sensor Detector & LED Light Circuit Board
Replace Display Circuit Board
Replace Sensor Detector&LED Light Circuit Board:
1. Loosen screw on the sensor detector&LED light circuit board holder. Use a screwdriver to pull the cover a little to open it.
2. Take carefully remove the cover along with the circuit board. Take care of the wire connected to the circuit board.
3. Loosen the 2 screws on the circuit board and replace with the new one.
Replace Display Circuit Board:
1. Remove the sticker. Take care not damage the hand dryer edge.
2. Loosen the two screws on the timer circuit board holder. Use a screwdriver to pull the holder a little to open it.
3. Gently remove the holder and the circuit board will come out. Take care of the adjoining wire.
4. Loosen the two screws on the circuit board and replace with the new one.
5. It is recommended to also replace the sticker.
6JETBOX Blade

2 front cover screw
4 front
cover screw
Plastic locks

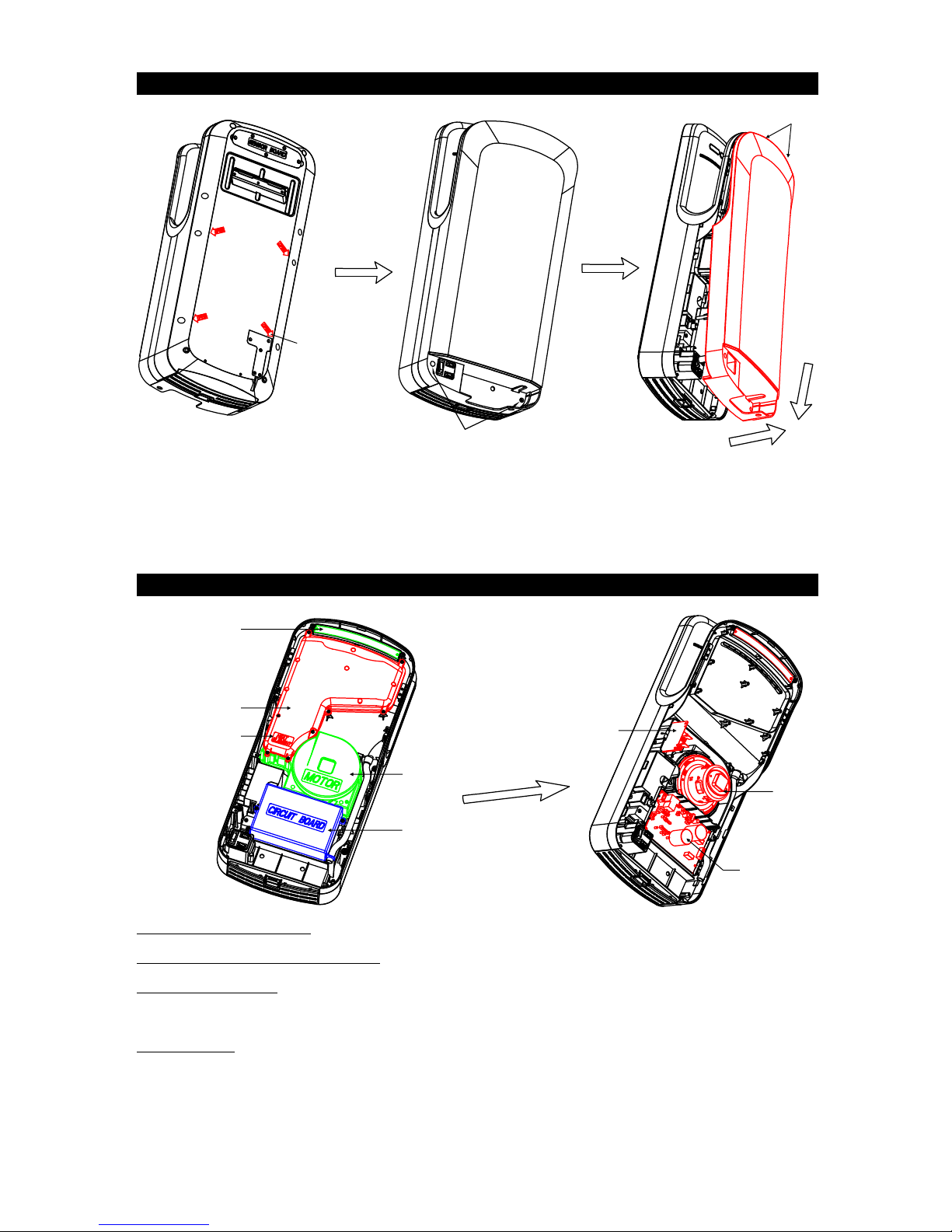

Open hand dryer front cover
Replace Main Circuit Board, Sensor Receiver Board, Motor, Heat Element
Sensor Receiver
Circuit Board
Heat element
Main Circuit
Board
1. Loosen the 4 front cover screws on hand dryer back base as per the arrows marked.
2. Loosen the 2 front cover screws on the hand dryer front &underside.
3. Pull the front cover up then back a little to remove it.
4. Pull the cover slowly and gently taking care of the plastic locks on the top side.
Air Chamber cover
Heat element
housing
Motor housing
Motor
Main circuit
board
housing
Replace Main Circuit Board: Remove circuit board cover and replace the circuit board.
Replace Sensor Receiver circuit board: .Undo the screw, remove the circuit board and replace.
Re
Remove the Air Chamber cover and Motor housing.
place Motor:
1. . Remove the motor and replace it.
2. Replace motor housing. Ensure the motor protection rubber and air seal rubber fits correctly.
3. Replace Air Chamber cover. Ensure the air seal rubber is seated correctly to avoid air leakage.
Replace Heat Element:
1. Move marked Air Chamber cover. Remove the heat element and fit the replacement.
2. Replace Air Chamber cover. Ensure the air seal rubber is seated correctly to avoid air leakage.
JETBOX Blade 7

Power
Terminal blocks
Hand Dryer by Brushless Motor Electric Diagram
Hand Dryer by Brush Motor Electric Diagram
