Jets Opal Wall Toilet TO615PO User manual

Jets™ Opal Wall Toilet Tel. [phone]
www.jetsgroup.com
Product No. TO615PO Doc. Rev.: 4 (2019-01-18)
1
Jets™ Opal Wall Toilet ensures optimal hygiene and comfort. High
quality porcelain in a wall mounted design compliments any
installation.
Features:
● Electronic bidet seat and cover.
● Low water consumption with reliable flush and discharge.
● High quality vitreous china bowl with excellent flushing.
Disclaimer
Note: Our products and services are offered and sold subject to Jets
Vacuum AS’ General Sales Conditions, copies of which will be
furnished upon request. Information provided herein is solely for
information purposes, does not constitute any warranty or
representation of any kind and is subject to change without notice.
We strive to reproduce product colors reasonably accurate. Without
prior written approval, this document or any part of may not be
reproduced in any form. Jets™, Vacuumarator™, Helivac™, VC™,
VOD™, CVS™ and Softsound™ are trademarks and/or registered
trademarks of Jets. © Jets AS. All rights reserved.
Technical Data
.............................................................................................................................................................................................................................................
Outside Dimensions 585 x 390 x 540 mm (LxWxH)
.............................................................................................................................................................................................................................................
Weight Approx. 28 kg
.............................................................................................................................................................................................................................................
General Tolerance Bowl dimensions ±3%
.............................................................................................................................................................................................................................................
Discharge Valve Outlet Outside diameter Ø 50 mm
.............................................................................................................................................................................................................................................
Water Connection ½" male BSP
.............................................................................................................................................................................................................................................
Generic Material Porcelain
.............................................................................................................................................................................................................................................
Coating Vitreous China
Operating Data
.............................................................................................................................................................................................................................................
Flushing Time 5 seconds
.............................................................................................................................................................................................................................................
Discharge Time 2 seconds
.............................................................................................................................................................................................................................................
Water Pressure 2-7 bar
.............................................................................................................................................................................................................................................
Operating Vacuum Recommended 30-55 % Vacuum
.............................................................................................................................................................................................................................................
Air Consumption Approx. 48 liters at 50% Vacuum
.............................................................................................................................................................................................................................................
Water Consumption 1L (3 bar)
.............................................................................................................................................................................................................................................
Temperature Range Minimum 1°C
to Maximum 60°C
(unless frost protection measures are taken)
.............................................................................................................................................................................................................................................
Note: Values may vary depending on selected components.
.
* Water Consumption 1L (3bar) listed above is factory set.
The water consumption can be adjusted between 0.4L
and 3.2L depending on water pressure, selected valve
and choice of nozzle on the VPC-V.

Jets™ Opal Wall Toilet Tel. [phone]
www.jetsgroup.com
Product No. TO615PO Doc. Rev.: 4 (2019-01-18)
2

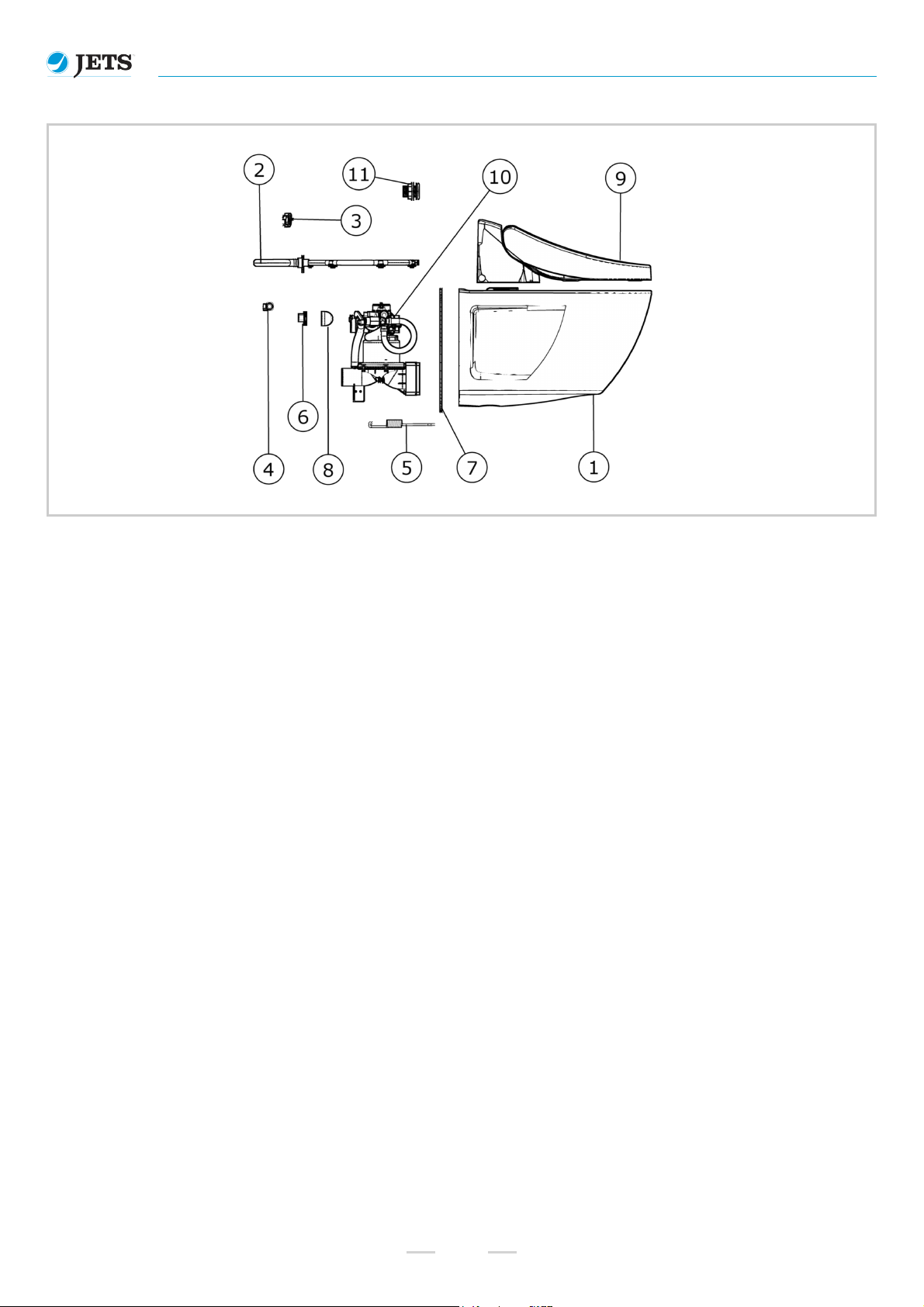

Components
1| Toilet Bowl JETS Opal Wall
.............................................................................................................................................................................................................................................
066607300*
2| Flushing Ring
.............................................................................................................................................................................................................................................
069513600*
3| Air Inlet
.............................................................................................................................................................................................................................................
069000401*
4| Hose Clip 13-20mm
.............................................................................................................................................................................................................................................
034233401*
5| Spring
.............................................................................................................................................................................................................................................
053531720*
6| Fastening Kit, wall
.............................................................................................................................................................................................................................................
069606400*
7| Coaming
.............................................................................................................................................................................................................................................
037609312*
8| Cap
.............................................................................................................................................................................................................................................
069606304*
9| Seat & Cover
.............................................................................................................................................................................................................................................
See selected product
10 | Valve
.............................................................................................................................................................................................................................................
See selected product
11 | Release Button
.............................................................................................................................................................................................................................................
See selected product
* Component/s avaliable as replacement parts.
Accessories
Construction Characteristics
Vacuum Breaker Kit
.............................................................................................................................................................................................................................................
034507320
Rubber Elbow, ø50 w/Hose Clip
.............................................................................................................................................................................................................................................
034505450
Rubber Sleeve, ø50 w/Hose Clip
.............................................................................................................................................................................................................................................
034505550
Rubber Elbow, ø50/ø60 w/Hose Clip
.............................................................................................................................................................................................................................................
034512802
Rubber Sleeve, ø50/ø60 w/Hose Clip
.............................................................................................................................................................................................................................................
034512902
Rag Hook, 15mm w/support
.............................................................................................................................................................................................................................................
034102902
Rag Hook, 25mm w/support
.............................................................................................................................................................................................................................................
034102904
Adapter, retrofit toilet
.............................................................................................................................................................................................................................................
069000306
Adapter, retrofit toilet
.............................................................................................................................................................................................................................................
069000307
Fastening Kit, wall - Land
.............................................................................................................................................................................................................................................
069606302
Pipe Packet
.............................................................................................................................................................................................................................................
034399400

Jets™ Opal Wall Toilet Tel. [phone]
www.jetsgroup.com
Product No. TO615PO Doc. Rev.: 4 (2019-01-18)
3
Dimension Drawings
A
.............................................................................................................................................................................................................................................
Approx. 410mm
B
.............................................................................................................................................................................................................................................
140mm
C
.............................................................................................................................................................................................................................................
320mm
D
.............................................................................................................................................................................................................................................
600mm
E
.............................................................................................................................................................................................................................................
Release button - normal height 700mm
F
.............................................................................................................................................................................................................................................
Approx. 980mm
G
.............................................................................................................................................................................................................................................
Release button - public toilet height 1050mm
H
.............................................................................................................................................................................................................................................
I + L
I
.............................................................................................................................................................................................................................................
60mm
J
.............................................................................................................................................................................................................................................
105mm
K
.............................................................................................................................................................................................................................................
15mm
L
.............................................................................................................................................................................................................................................
Minimum 40mm
M
.............................................................................................................................................................................................................................................
(outside exterior wall) 10mm
N
.............................................................................................................................................................................................................................................
Bolt length (outside exterior wall) 65mm
Fig 1-3 Pipe Connection Dimensions - All measurements given are based on use of a Jets™ rubber elbow/pipe sleeve (required between the
pipe and the valve).
Fig 4 Full wall cutout
This cutout should be used if the toilet valve protrudes from the bowl or if maintenance can be carried out from behind the toilet without
removing the toilet bowl from the wall.
Fig 5 Minimum wall cutout
This cutout should be used for the water connection/vacuum breaker/release button and outlet pipe and if the toilet bowl is to be
removed from the wall for maintenance.
Note: Values for the seat and cover height may vary depending on product selection.

Jets™ Opal Wall Toilet Tel. [phone]
www.jetsgroup.com
Product No. TO615PO Doc. Rev.: 4 (2019-01-18)
4
Important Health and Safety Information
Installation, operation and maintenance must be carried out in strict accordance with this guide and with all applicable regulations. For your own
protection and the protection of others, it is necessary to familiarize yourself with, and always follow, the contained safety and environmental
precautions for our products.
This manual is an integral part of the product/delivery. Always keep it in a safe place for future reference. It is entirely the owner’s responsibility to
ensure that all safety and environmental measures, in accordance with local, state and federal laws are followed. Jets Vacuum AS assumes no
responsibility for equipment damage, personal injury or death and/or delays that result from a lack of respect for the instructions for installation
and/or use as stated in this documentation. Disregarding these instructions may invalidate all warranties.
Safety information references are in accordance with Jets Vacuum AS documentation system. If you do not understand the warnings, stop work
immediately and contact Jets Vacuum AS (citing the safety reference number) for further clarification.
For further information about the included warnings or any other safety concerns please contact Jets Vacuum AS.
Safety Warning Symbols
General information to all users. Symbol denotes required personal protective equipment is required.
Symbol denotes required personal protective equipment is required. DANGER: Indicates an imminently hazardous situation which, if not avoided, will result
in death or serious injury or equipment damage.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury or equipment damage.
Important Health and Safety Warnings
1.1 Warning
Jets Vacuum AS recommend qualified person(s) in accordance with all applicable
codes and standards to carry out all installation work, electrical wiring, plumbing and
operate this product. Equipment damage, injury to personnel or death could result
from improper installation/use.
1.2 Warning
Be thoroughly familiar with the controls and the proper use of the equipment prior
to installing, starting or using the equipment. Know the equipment application,
limitations and potential hazards.
1.3 Warning
Failure to properly lift and support equipment can result in serious physical injury and/
or equipment damage. Lift equipment only at specifically identified lifting points or as
instructed in the current IOM. Note: Lifting devices (eyebolts, slings, spreaders, etc.)
must be rated, selected, and used for the entire load being lifted.
1.4 Caution
Safety equipment (PPE) necessary for the prevention of accidents at the
installation and operating site must be provided in accordance with local
regulations.
1.5 Personal Protective Equipment - Goggles
Wear safety glasses with side shields at all times when working with equipment.
1.6 Warning
Keep work area clean, uncluttered and ensure adequate lighting.
1.7 Warning
Keep other persons at a safe distance from work area.
1.9 Personal Protective Equipment - Gloves
Wear suitable protective gloves at all times when working with equipment.
2.14 Warning
The equipment safety is guaranteed only if used in compliance with the instructions
provided. Do not exceed the limits provided.
12.5 Notice
Use this equipment only in the manner intended by Jets Vacuum AS. If you have
questions after reading these instructions contact Jets Vacuum AS directly.
Delivery, Receipt of Goods and Transportation
Goods to be protected against shock, dust, humidity and frost. Suitable adequately dimensioned transporting equipment is to be used. Note that
the equipment may contain components that are easily damaged as a result of inappropriate handling. Jets Vacuum AS is not responsible for or
liable for delivery delays resulting from occurrences outside of Jets Vacuum AS' immediate control. On receipt of goods, check for visual damage.
Any damage detected after dispatch should be reported immediately to Jets Vacuum AS. Damages and/or discrepancies must be reported in
writing no later than eight (8) days after receipt of goods. Commissioning must be postponed until the equipment has been inspected. Do not
dispose of damaged items. Your direct supplier will advise you of the procedure to follow.
Storage
Unless otherwise specified, goods are to be stored in a dry environment between -30°C and +40°C prior to installation. The storage location must
be dust free, low humidity (≤95%) and be free from moisture. Keep clear of foreign objects.
Installation to End Use
Site to be a dry environment between +0°C and +60°C. Use in environments below 0°C requires use of antifreeze in liquids. The site location is to
be low vibration Vrms ˂0.2 mm/s) with vibration resistance to acceleration up to 0.7g. The site is to be dust free and protected from grinding and
welding. Goods are to be stored as per the instructions for delivery, storage and transport. A visual inspection is to carried out on receipt of goods
as well as at the time of installation to ensure that storage and transport conditions after receipt have not compromised the quality of the product/s.

Jets™ Opal Wall Toilet Tel. [phone]
www.jetsgroup.com
Product No. TO615PO Doc. Rev.: 4 (2019-01-18)
5
Pre-Installation
Standards and Regulations
To install a Jets™ product, it is first required that the room be prepared according to all local, state and federal standards and requirements.
Industry specific standards must also be met. Considerations that must be made include but are not limited to:
● Appropriate dimensioned drain pipes.
● Water barrier or membrane.
Installations required to meet AS/NZS 3500 series of Standards must adhere to the following:
(Ref: Australian and New Zealand Standards: AS/NZS 3500 - AS3500 Part 2 Sanitary Plumbing and Drainage )
● Discharge by a vacuum toilet system shall be regarded as "pumped discharge" and shall be pumped according to AS/NZ3500 "Pumped
Discharge" requirements.
● Installation of the vacuum toilet system shall be according to the requirements of AS/NZ 3500.2 Sanitary Plumbing and Drainage.
Tools and Training
No special tools other than those used in standard plumbing installations are required. No special training is required to install this product.
Water Barrier
Note that in some countries, and as per the majority of standards and regulations, it is prohibited to mount toilets directly onto the wall if mounting
requires that the water barrier be compromised. Check requirements according to local codes and standards before beginning any installation
work.
Pre-Installation Considerations
It is recommended that items such as wall mounted release buttons, drainage and piping etc. is installed prior to installation of the toilet.
The toilet is delivered with a fastening kit aimed at installation on existing wall mounted bolts. If you do not have existing wall mounted bolts, a
fastening kit that includes the mounting bolts may be purchased through your Jets Vacuum AS supplier.
Bolts should be installed on adequately dimensioned weight bearing studs or a suitable mounting frame. Ensure that mounting bolts are positioned
horizontally.
Connection with Mains Water
The toilet valve connection requires a 1/2" BSP standard connection. the water pressure must be a minimum of 2 bar and not exceed 7 bar.
Connection for Seat and Cover
A 1/2" cold water connection and a 230VAC power connection is required.
Connection placement is restricted by the hose and cord length. Refer to the data sheet for the seat and cover.
Backflow Prevention
Backflow Prevention
Please refer to local, state, federal and/or international regulations regarding the extent of backflow requirements for your specific installation.
For installations whereby the valve is to be connected to a drinking water supply, it is recommended that the water connection is installed with a
backflow prevention device. Please refer to the local regulations in your area. If backflow prevention is required in Australia, refer to AS/NZ3500.1
Backflow Prevention.
Pre-Installation Wall Preparation
The toilet is a wall mounted model which can be installed in locations where:
● a service hatch, cabinet or utilities room is available.
● the toilet bowl is to be removed from the wall for service.
For retrofit installations, contact your local approved supplier or Jets Vacuum AS for further information.

Jets™ Opal Wall Toilet Tel. [phone]
www.jetsgroup.com
Product No. TO615PO Doc. Rev.: 4 (2019-01-18)
6
Toilet Connections
Installation may vary depending on plumbing arrangements.
General Installation Information
To avoid leakage between the toilet valve and the toilet bowl, it is important that the pipe installation is properly clamped and aligned. Water hoses
must be secured with hose clips.
Installation
General Disclaimer
Drawings provided in the following examples are for illustration purposes only. Product details may vary from your individual purchase.
Installation Instructions
Toilet installation requires the following procedures to be carried out. For more specific technical details, refer to the individual data sheet. For
further information on any of the instructions supplied, any questions regarding installation or the products, please contact your local supplier or
Jets™ Service Department.
1
Prepare the Wall Mounting
Prepare the wall mounting as per the instructions above. Note that the
toilet may be mounted on appropriately positioned pre-existing mounting
bolts, bolts installed for the purpose of mounting this toilet or an
appropriately dimensioned mounting frame.
2
Install the toilet valve and spring
as per the products installation
instructions found in the products
technical data. Note: only for
deliveries supplied without a pre-
installed valve.
3
Move the toilet close to the wall.
Connect the ball valve from the toilet
valve to the water main.
Note: Do not over tighten.
4
Connect the release button to the toilet valve.
For connection information see the installation description provided in
the Release Button's technical data sheet.
5
The toilet is to be positioned with the
mounting bolts through the mounting
holes in the porcelain bowl.
6
When lowering the toilet bowl
into position on the bolts, ensure
that the valve outlet is securely
fitted in the outlet pipe in the wall.
7
Press the toilet firmly into the outlet
pipe to secure the connection.
8
The bowl should be even and
aligned with the wall surface.

Jets™ Opal Wall Toilet Tel. [phone]
www.jetsgroup.com
Product No. TO615PO Doc. Rev.: 4 (2019-01-18)
7
9
Fit the fastening kit to the mounting
bolts.
10
Note that two M12 nuts are
required to secure the toilet (not
supplied in the standard
delivery). Secure the nuts firmly
without over tightening.
11
Apply the cap's over the nuts.
12
Apply the coaming between the
finished wall surface and the
toilet bowl.
13
Slide the seat and cover onto the
mounting plate until it clicks in place.
(illustrations of the seat and cover
may vary from your individual
purchase).
Note: Jets™ Opal Toilet is delivered
with the mounting plate already
installed and adjusted on the toilet
bowl.
14
Connect the water hose to the
nipple on the seat and cover.
15
Plug in the power connection for the
seat and cover. Refer to the
manufacturers manual for operation
instructions, important safeguards,
safety information and maintenance
information for this product.
16
Completed.
17
Function Check to be Completed Prior to Use
1. Check that the inside of the toilet bowl is empty of packaging
material, etc.
2. Ensure that the discharge valve has been securely connected to the
outlet pipe.
3. Check that the water supply is connected and water pressure is
adequate.
4. Turn on the water supply.
5. Press the release button to activate the valve.
6. Check that the bowl fills with water.
7. Check that sufficient vacuum is created when activating the release
button to release the contents of the bowl.
8. Check that the water level in the bowl is restored.
9. Check that water is dispersed on the bowl surface by the flushing
mechanism.
10. Check that there are no water or air leaks.

Jets™ Opal Wall Toilet Tel. [phone]
www.jetsgroup.com
Product No. TO615PO Doc. Rev.: 4 (2019-01-18)
8
Service and Maintenance
Out of Use
The following procedures are to be followed if a toilet is to be out of use over a longer period of time (i.e. for cabins and recreational houses).
1. Close the water supply to the toilet.
2. Activate the release button to run a flush cycle, emptying the toilet of water.
3. The electronic bidet seat and cover must be unplugged and drained of water. Refer to the manufacturers operating manual for step by step
procedures for when the seat and cover will be out of use for extended periods of time.
4. CAUTION: This toilet is not intended for use in temperatures below freezing without appropriate antifreeze measures being taken. For
locations where freezing may occur, certain protection measures must be taken. For further information contact Jets Vacuum AS or your
nearest supplier for a copy of technical information regarding freezing protection measures.
5. CAUTION: Never use automotive antifreeze (ethylene glycol) in the toilet system.
6. Turn off the power.
NOTE: Failure to adequately protect the toilet system from damages may result in void of your warranty coverage.
NOTE: Jets Vacuum AS reserves the right to deny any warranty claim submitted if the claim is caused by freezing damage.
Cleaning Instructions
1. Mild soap or biological cleaners are recommended for cleaning the toilet bowl. See Jets™ product range for suitable cleaning solutions.
2. Do not use cleaners that create foam.
3. The toilet is to be cleaned regularly to maintain hygiene. Also note that maintaining water in the toilet bowl will prevent odors.
4. Do not use drain cleaner, bleach or other caustic cleaners. These types of cleaners can damage components in the toilet system and damage
the seat and cover.
5. For mineral scale buildup, we recommend use of Jets Vacuum AS biological descale products. Contact your Jets Vacuum AS supplier for
information.
6. The electronic bidet seat and cover is an electric appliance. Be careful not to let water seep inside or leave detergent in the gap between the
main unit and toilet bowl. When using a toilet cleaner to clean the toilet bowl, wash it off within 3 minutes and leave the toilet seat and toilet lid
open. Wipe off any cleaner that remains on the toilet bowl. If vapor from a toilet cleaner enters the main unit, it may cause a malfunction of the
seat and cover. Wipe the back of the seat and cover with a soft cloth tightly wrung out with water.
Spare Parts and Accessories
Available spare parts are indicated in the component list for the toilet. Spare parts and accessories can be ordered via your local Jets Vacuum AS
supplier. For multi-toilet installations, a complete recommendation for spare parts is available. Contact your Jets Vacuum AS supplier for details.
Service and Maintenance
Jets Vacuum AS provides all customers with 24 hour worldwide technical assistance. For urgent matters please contact Jets Vacuum AS service
department directly at [phone]. For other matters, please contact your nearest Jets Vacuum AS supplier.
1. Disassembly of the toilet must be carried out by a licensed professional.
2. All local, state and federal regulations regarding water barriers and plumbing must be adhered to.
3. Refer to the individual product data sheets for more specific information. Refer to the products troubleshooting information for general
maintenance.
4. It is recommended that service and maintenance routines be carried out in accordance with the information in this document.
When making enquiries, please have the following information available.
1. Toilet model number.
2. For valve enquiries: Valve serial number (the serial number identification is located on the label applied to the valve).
3. Part number, description, quantity (see the product component list for details).
Locating a Water Leak
Make a practice of regularly checking around the toilet, piping and pump for any signs of a water leak. Check for wetness, mold or foul smells, as
that might indicate a leak.
If you suspect a leak anywhere in your plumbing system, call in a professional to make a repair as soon as possible.

Jets™ Opal Wall Toilet Tel. [phone]
www.jetsgroup.com
Product No. TO615PO Doc. Rev.: 4 (2019-01-18)
9
Scheduled Maintenance
Interval Action Note
Regularly - dependent on frequency of
use.
Clean the toilet. Clean the toilet as per instructions provided in the products
technical information.
As required. Check for damage to equipment.
Replace or repair damaged equipment
and take measures to prevent future
damage to the system.
Note that frost or freezing may damage sanitary systems if
precautions have not been taken. Contact your nearest
Jets™ supplier for information on Jets™ range of frost
protection products for installations in cold climate
locations.
Troubleshooting
Jets Vacuum AS provides the following troubleshooting information to assist in resolving issues that may arise with your installation. For more
detailed information or assistance, please contact Jets Vacuum AS.
Problem Cause Action
Water is refilled in the
toilet, but the content is not
discharged
Loss of vacuum in the toilet system or
piping system.
Check the vacuum level to ensure that it is adequate.
Check the water level in the pump to ensure that it is
adequate.
Check the pipes and any connected equipment including
the valve, pump etc. for foreign objects. Remove any
blockages in the system.
Check that there is no damage to the piping system.
The normal water level in the toilet
bowl is reducing or low.
Low water pressure. Increase the water pressure.
Check the filter in the water connection or ball valve to
ensure that it is not blocked. Replace the filter if required.
The toilet bowl is slow to empty. The pump or pipes are blocked. Check for foreign objects and remove the blockage.
Build up of urine scale in the pipes
and/or pump.
Check for mineral scale build-up and descale the affected
areas. See Jets™ selection of cleaning products for this
purpose.
Air bubbles in the toilet bowl. Blocked pipe outlet. Check for blockages and remove. Note blockages may be
caused by freezing, etc.
Backflow in the installation. Check the pipes have been correctly installed.
The Non-return Valve on the discharge
line (if installed) is malfunctioning.
Clean the Non-return Valve.
If connected to a tank, the tank could
be full or the air overflow blocked.
Check that the air overflow is open.
Empty the tank.
