1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
 Intel® LGA1151 Skylake/Kabylake Processor (TDP 65W)
 Intel® Q170 Express Chipset
 Support DDR4-2133, 2 * SO-DIMM slot, up to 32GB memory
 Realtek ALC662VD Audio
 2 * Intel Giga LAN
 Support 4 * SATA III (6Gb/s), support RAID 0, 1, 5, 10
 Support 2 * DP/HDMI/LVDS, triple displays
 2 * External COM and 4 * internal COM
 4 * External USB3.0 & 2 * Internal USB1.1/2.0
 1 * mini-PCIe slot & 1 * PCIe x4 side-slot
 1 * SIM Card Holder
 9 ~ 24V DC IN power
 Support Watchdog Timer Technology
 1* TPM (onboard option)

2
1-2 Specification
Spec Description
Design  Mini-ITX ; PCB size: 17.0x17.0cm
Chipset  Intel Q170 Express Chipset
CPU Socket  Intel® LGA1151 Skylake/Kabylake Processor (TDP 65W)
* for detailed CPU support information please visit our website
Memory Slot
 2* DDR4 SO-DIMM slot
 Support DDR4 2133MHz SO-DIMM up to 32GB
 Support dual channel function
Expansion Slot
 1* Full-size Mini-PCIe slot
 1* PCIe x4 side-slot (4 * PCIe x1 combo signals)
 1* SIM Card Holder
Storage  4* SATAIII 6G/s ports with support for RAID 0/1/5/10 mode
Gigabit LAN Chip
 Integrated with 2* Intel Gigabit PCIe LAN chip
 Support Fast Ethernet LAN function of providing 10/100/1000Mb
ps
Ethernet data transfer rate
BIOS  128M AMI Flash ROM
Rear I/O
 1* HDMI
 2* DisplayPort
 2* RJ-45 port
 4* USB3.0
 1* Audio (Line-in, Line-out, MIC)
 2* Serial port (COM1/2: RS232/422/485)
 1* DC-input
Internal I/O
 2* USB2.0
 1* PS/2
 1* LVDS,
 1* Inverter
 4* Serial port

3
 4* SATAIII (6.0Gb/s)
 1* full size Mini PCIe
 1* GPIO header
 1* Chassis Intrusion
 1* Audio header
 1* SMBIS/I2C

4
1-3 Product Diagram
For NF697 Series:
DC Input
Connector
Display
Port
1
(Top)
Display
Port
2
(Bottom)
HDMI
(To
p)
COM1
(Bottom)
COM2
(Top)
RJ
-
45 LAN1
(Middle)
(Bottom)
USB3.0
(Middle)
(Bottom)
USB3.0
(Top)
RJ
-
45 LAN2
Line
-
IN
Line-OUT
MIC-IN
Connector
Audio
Header
USB 2.0
Header
COM Port
Headers
SIM Card Holder
Mini PCIe
DDR
4
SODIMM
Slots
PCIE1: Sideway
PCI Express x4 Slot
Intel Q170 Chipset
LGA 1151
CPU Socket
SATAIII
Ports
Inverter
2
LVDS
2

5
Chapter 2
Hardware Installation
2-1 Location of Internal Jumper and Connector
DC Input
Connector
Display
Port
1
(Top)
Display
Port
2
(Bottom)
HDMI
(Top)
COM1
(Bottom)
COM2
(Top)
RJ
-
45 LAN1
(Middle)
(Bottom)
USB3.0
(Middle)
(Bottom)
USB3.0
(Top)
RJ
-
45 LAN2
Line
-
IN
Line-OUT
MIC-IN
Connector
FP_USB1 COM Port
Headers
SIM Card Holder
Mini PCIe
DDR
4
SODIMM
Slots
PCIE1: Sideway
PCI Express x4 Slot
Intel Q170 Chipset
LGA 1151
CPU Socket
SATAIII
Ports
JBAT_OPEN
AT_MODE
JPMPE
JP
LCD
JPBKLT
JP
COM2
ATX
Power
C
onnector
SYSFAN
Header
CPU
FAN
Header
SATAPW
SPEAK PWRLED
SMBUS
Inverter
2
LVDS
2
COM3
COM4
COM5 COM6
GPIO_CON
JW_FP
SPDIF
LAN_LED
FP_AUDIO

6
2-2 Internal Jumper and Connector Setting

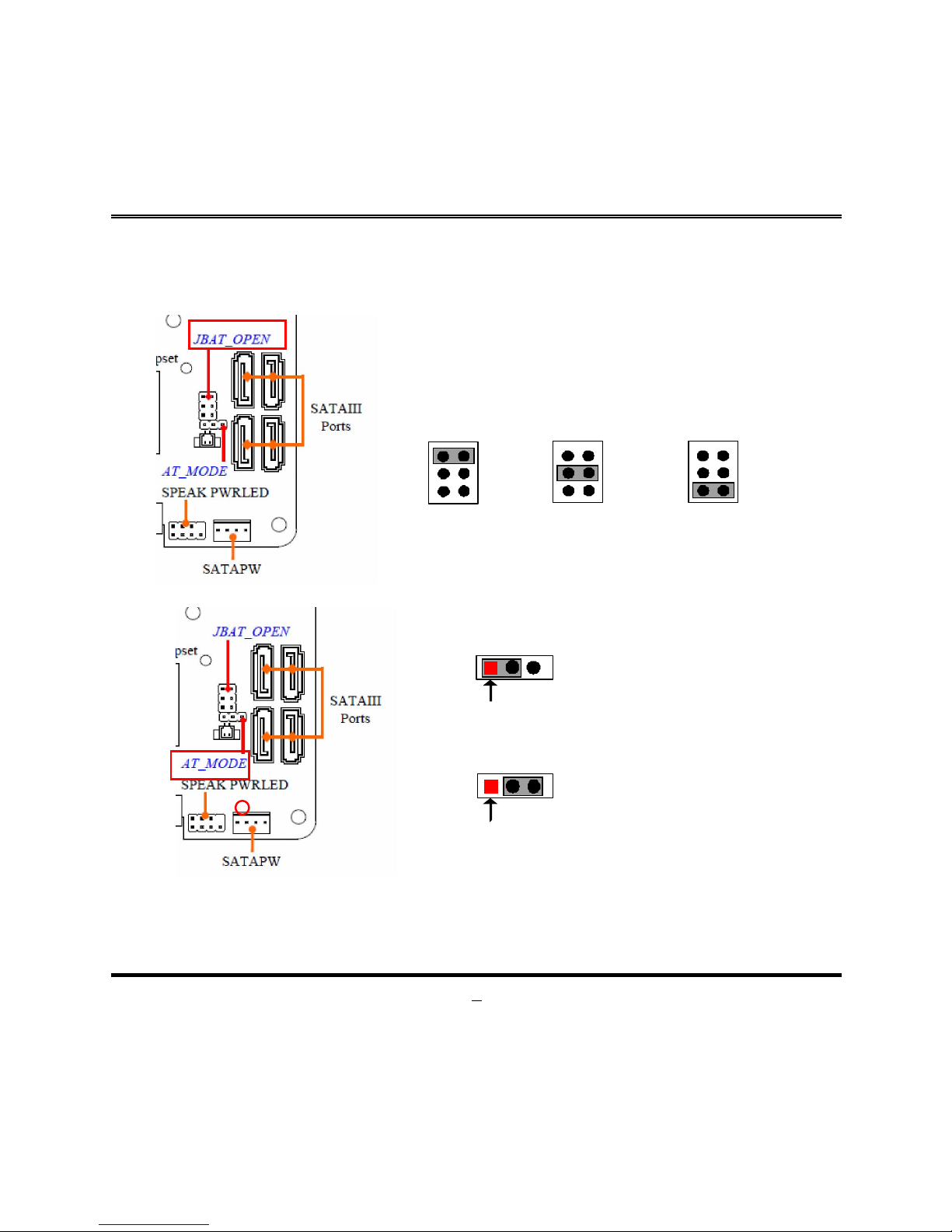

(1) JBAT_OPEN (6-pin): Clear CMOS, TXE Override, and Chassis Intrusion
Select
1-2 Closed:
Clear CMOS;
3-4 Closed:
TXE Disable;
4-6 Closed:
Chassis Intrusion
Header.
6
4
2
3
1
5
6
4
2
3
1
5
6
4
2
3
1
5
(2) AT_MODE (3-pin): AT/ATX Mode Select
2
-
3
C
losed
:
AT Mode
.
1-2 Closed: ATX Mode(Default)
；
Pin1
Pin1
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.

7

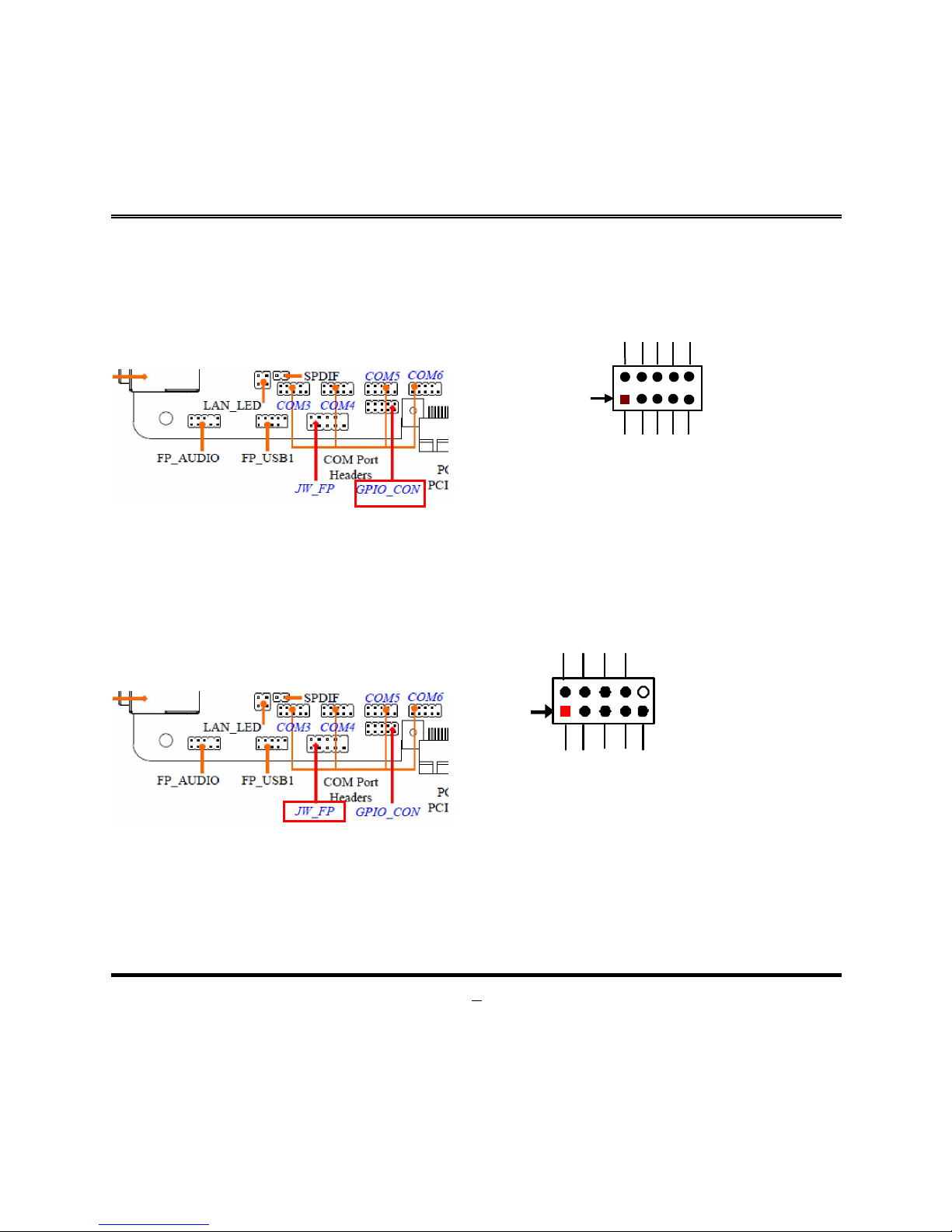

(3) GPIO_CON (10-pin): GPIO Header
9
GPIO
_
8
0
GND
GPIO_82
GPIO_84 GPIO_86
GPIO_81
GPIO_83
2
Pin 1
10
VCC
GPIO_85
GPIO_87
(4) JW_FP (9-pin): Front Panel Header
GND
HDD LED-
GND
RSSET-
PWR
SW
-
VCC
PWR LED+
PWR LED-
HDD LED+
Pi n 1
2
9
10

8
(5) JPMPE (3-pin): Mini PCI-E (MPE) Slot VCC 3.3V/3.3 VSB Select
2-3 Closed：MINI PCI-E VCC= 3.3VSB.
1-2 Closed：MINI PCI-E VCC= 3.3V;
1
3
1
3
(6) INVERTER2 (8-pin): INVERTER Back Light Select
Pin 1
LCD_ BKL T_EN
LCD_BKL T_PWM
BK LT_PWR
BKLT_PWR
GND
GND
BRTNSS_UP
BRTNSS_DN

9
(7) JPLCD(4-pin): LVDS VCC 3.3V/5V/12V Select
4-6 Closed:
VCC= 12V.
3-4 Closed:
VCC= 5V;
2-4 Closed:
VCC=3.3V(Default);
5
2
1
4
3
6
5
2
1
4
3
6
5
2
1
4
3
6
(8) JPBKLT (3-pin): LCD Back Light PWR Select
2-3 Close: 12V.
1-2 Close: 5V (Default);
1
3
1
3
(9) JPCOM2 (4-pin): COM 2 Port RI Select
5
-
6 C
losed
:
12V.
6
4
2
3-4 Closed:
5V;
2-4 Closed:
RI=RS232;
3
1
5
6
4
2
3
1
5
6
4
2
3
1
5

10
2-2-1 Connectors

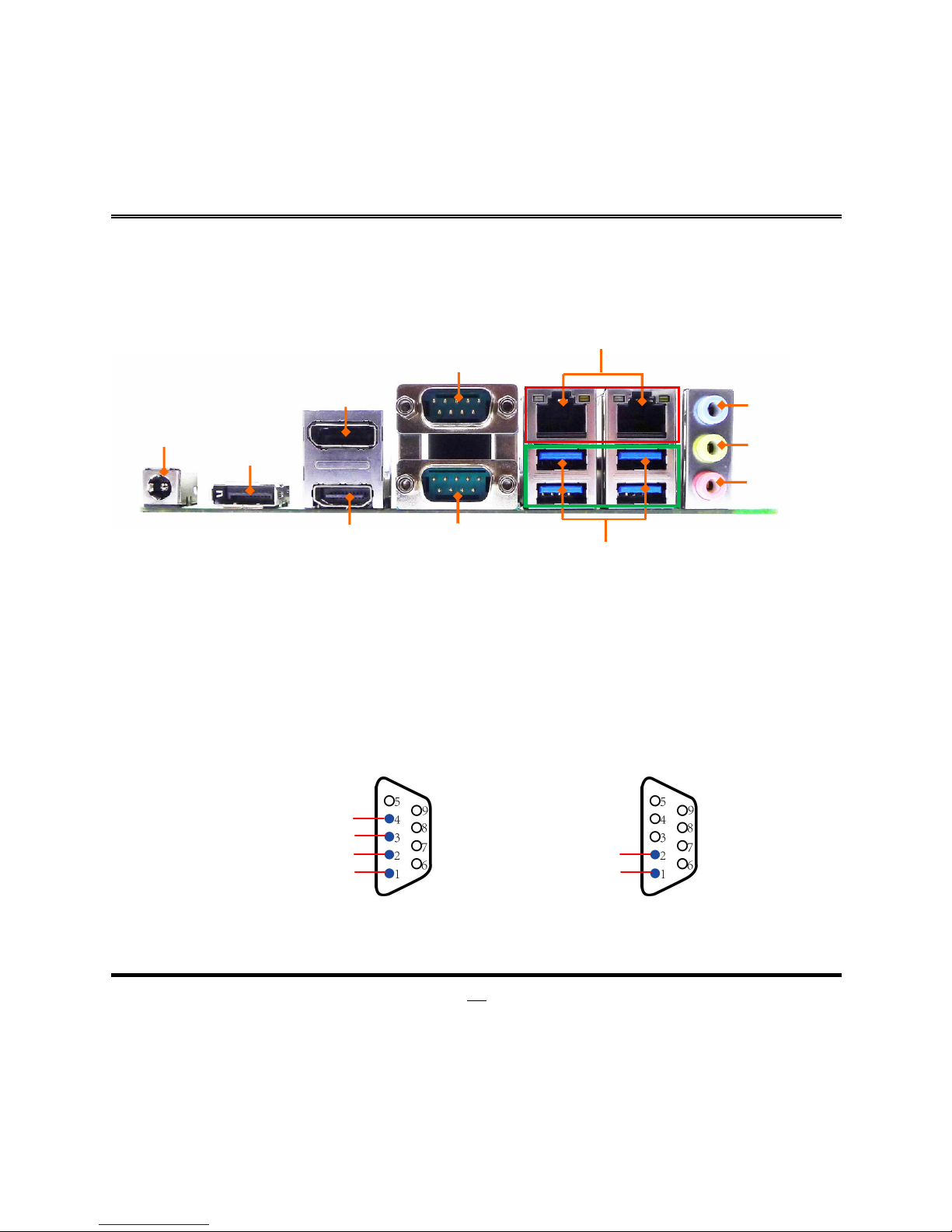

(1) Rear IO Connectors
COM1/COM2 (9-pin Block): RS232/422/485 Serial Port
COM1/COM2 port can function as RS232/422/485 port. In normal settings COM1/2
functions as RS232 port. With compatible COM cable COM1/2 can function as RS422
or RS 485 port.
User also needs to go to BIOS to set ‘Transmission Mode Select’ for COM1/ COM2
(refer to Page 27) at first, before using specialized cable to connect different pins of
this port.
For RS422 Mode
RS422 TX(B)
RS422 TX(A)
RS422 RX(A)
RS422 RX(B)
For RS485 Mode
RS485 D-(B)
RS485 D+(A)
HDMI
DisplayPort1
COM1
2 * RJ-45
DC IN
DisplayPort2
4 * USB3.0
Line-IN
Line-OUT
MIC-IN
COM2
UL2 UL1
UL2*2 UL1*2

11
Icon Name Function
DC-in 9-24V P
ower
Connector
For user to connect compatible power adapter to
provide power supply for the system.
Display Port To the system to corresponding display device
with compatible DP cable.
(Max. resolution Support : 4096*2304 @ 60Hz)
HDMI Port To connect display device that support HDMI
specification.
(Max. resolution Support : 3840*2160 @30Hz)
Serial Port Mainly for user to connect external MODEM or
other devices that supports
Serial Communications Interface.
COM1/2: RS232/422/485 Serial Port
RJ-45 LAN Port This connector is standard RJ-45 LAN jack
for
Network connection.
UL1: Intel® Ethernet Controller i219
UL2: Intel® Ethernet Controller i211
USB 3.0 Port To
connect USB keyboard, mouse or other
devices compatible with USB specification.
USB
3.0 ports supports up to 5Gbps data transfer rate.
Audio Connectors
BLUE : Line-in Connector
GREEN : Line-out Connector
PINK : MIC Connector

12
2-2-2 Headers
(1) SATA1/2/3/4 (7-pin): SATA III Port connector
These are high-speed SATAIII port that supports 6 GB/s transfer rate.
Pin No. Defnition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
(2) SATAPW (4-pin): SATA Hard Disk Power-out Connector
Pi n 1
+12V
GND
+5V
GND

13
(3) SPK-LED (7-pin): Speaker Power LED Header
SPEAK+
NC
SPEAK-
PWRLED+
Pin 1
NC
LED_VSB
PWRLED
-
Pin
2
Pin
7
Pin
8
(4) COM3/4/5/6 (9-pin): COM Port Header
MSIN- MSO- GND
MRTS
-
Pin 1
MDTR-
MCTS-
MR
I
-
Pin
6
Pin
5
Pin
10
MDCD-
MDSR
-

14

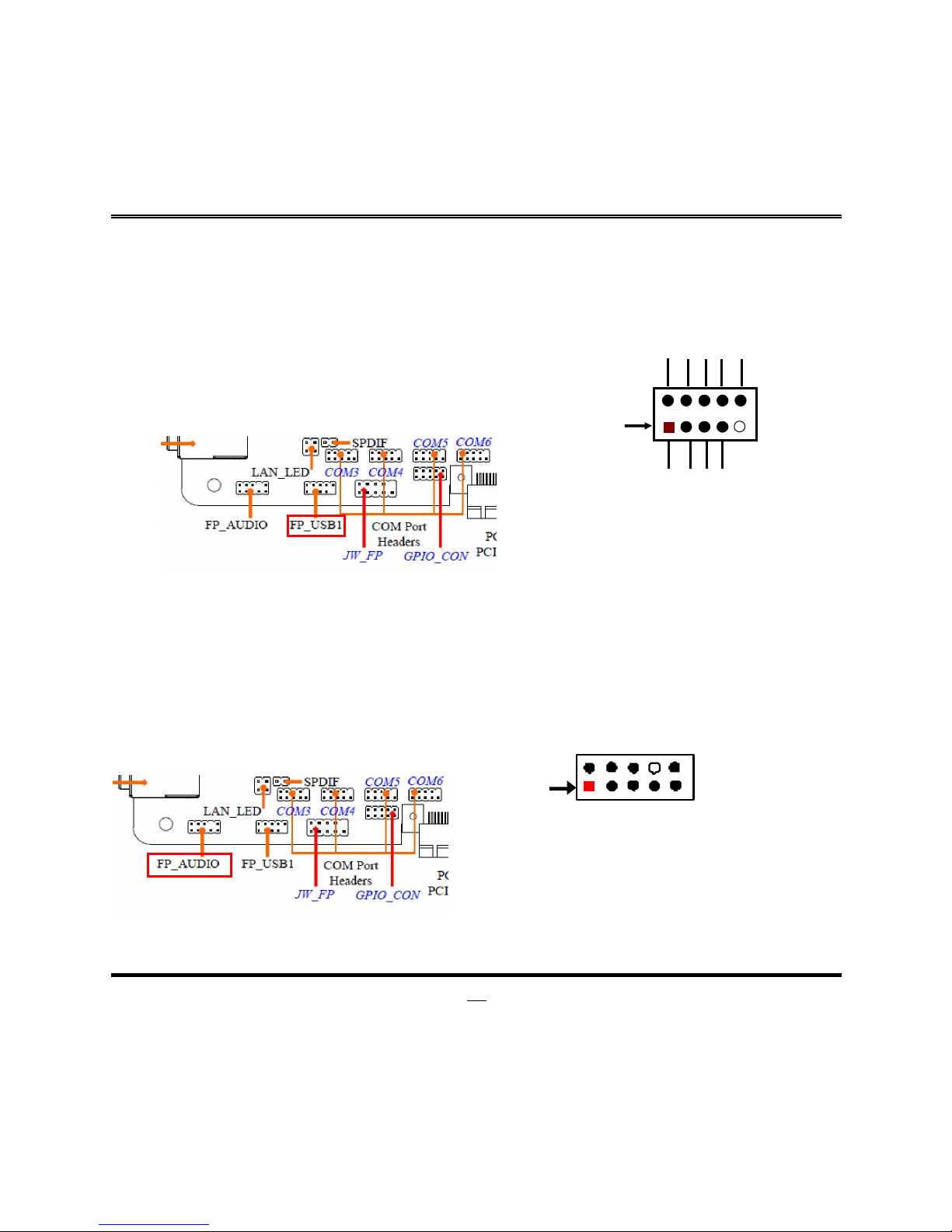

(5) FP_USB1 (9-pin): USB 2.0 Port Header
Pin 1
VCC
-DATA
GND
+DATA
VCC
NC
-DATA
GND
+DATA
2
9
10
(6) FP_AUDIO (9-pin): Line-In, Line-Out, MIC-In Header
This header connects to Front Panel Line-in, Line-out, MIC-In connector with cable.
MIC2_L MIC2_R
LINE_OUT_R
SENSE
MIC_JD
Pin 1
2
GND
DETECT
LINE_OUT_L
LINE_O UT_JD
9
10
NC

15
(7) SPDIF(2-pin): HDMI-SPDIF Out header
Pin1
SPDIF_OUT
GND
(8) LAN_LED (4-pin): LANLED Header
LAN2_LED_VCC
LAN1_ACT-
LAN 2_ACT -
LAN1_LED_VCC
Pi n 1
2
3
4
