1-1 Feature of Motherboard
Intel®Braswell series SoC Processor, with low power consumption never denies
high performance
Support DDR3L-1600, 2 * SO-DIMM slot, up to 8GB memory
Realtek ALC662VD Audio
2 * Realtek 8111H Giga LAN
Support 1 * SATA III (6Gb/s) & 1 * M.2 (M key 2242/2260)
Support HDMI/VGA/LVDS, triple displays
2 * External COM and 4 * internal COM
3 * External USB3.0 & 1 * External USB2.0 & 6 * Internal USB2.0
1 * Parallel port
1 * Mini-PCIe slot & 1 * PCIe x1 slot
1 * SIM Card Holder
ATX power

2
1-2 Specification
Spec
Description
CPU
Intel®Braswell *SoC CPU
*CPU model varies from different IPC options. Please consult your
dealer for more information of onboard CPU.
Memory 
2* Dual CH DDR3L 1600MHz SO-DIMM slot up to 8GB
Expansion Slot
1* Full-size Mini PCIe slot
1* PCIex1 Slot
1* M.2 (M Key 2242/2260)

1* SIM Card Holder
Storage 1* SATA III 6G/s Connector
LAN Chip
2* Realtek® 8111H GbE
Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Audio Chip Realtek ALC662VD HD Audio Codec integrated

Audio driver and utility included
BIOS 
AMI Flash ROM
Rear I/O
1* VGA
1* HDMI
2* RJ45, 10/100/1000 Mbps
3* USB3.0, 1* USB2.0 port
1* MIC, Line-in, Line-out port
2* COM ports ( COM1 support RS232/RS422/RS485)

1* Parallel port
Internal I/O
6* USB 2.0
1* PS/2
1* LVDS/inverter
4* Serial ports
1* SATA3 (6.0Gb/s)

1* Mini PCIe (Full-size)

3
1* M.2 (M key 2242/2260)
1* 8-bit GPIO
1* Chassis Intrusion
1* Audio Header
1* AT_ATX Mode
1* TPM (onboard option)
1* SIM Card Holder

1* SMBUS Header
Note:
1. The module for SODIMM1 and SODIMM2 should be DDR3L 1.35V SODIMM and not exceeding
8GB total capacity.
2. The SODIMM installed should be of or above the memory clock the model supported, otherwise the
board will not start.

4
1-3 Main Board Diagram
Top:
LPT
Bottom Left:
HDMI
Bottom Right:
VGA
Top:
RJ-45
LAN Port1
Middle:
USB2.0 Port
Bottom:
USB3.0 Port
Top:
COM1
Bottom:
COM2
Top:
RJ-45
LAN Port1
Middle/Bottom:
USB3.0 Ports
Top:
Line-In
Middle:
Line-Out
Bottom:
MIC
ATX Power
Connector
SYSFAN1 Header
CPUFAN Header
DDR3L
SODIMM1
SATA1
PS2KBMS
FP_USBSB2
JW_FP
FP_USBV1
FP_USBSB1
COM3
COM5
COM4
COM6
SPKER
PWRLED
DDR3L
SODIMM2
PCIE x1
INVERTER
FP_AUDIO
GPIO_CON
SIMCARD
LVDS
Mini-PCIe
M.2 SATA
SMBUS

5
Chapter 2
Hardware Installation
2-1 Location of Internal Jumper and Connector
ATX Power
Connector
Top:
LPT
Bottom Left:
HDMI
Bottom Right:
VGA
Top:
RJ-45
LAN Port1
Middle:
USB2.0 Port
Bottom:
USB3.0 Port
Top:
COM1
Bottom:
COM2
Top:
RJ-45
LAN Port1
Middle/Bottom:
USB3.0 Ports
Top:
Line-In
Middle:
Line-Out
Bottom:
MIC
SYSFAN1 Header
CPUFAN Header
DDR3L
SODIMM1
SATA1
PS2KBMS
SMBUS
FP_USBSB2
JW_FP
COM6
COM4
FP_USBSB1
COM5
COM3
FP_USBV1
DDR3L
SODIMM2
M.2 SATA
Mini-PCIe
LVDS
SIMCARD
GPIO_CON
FP_AUDIO
PCIE x1
INVERTER
SPKER
PWRLED
JBAT
LAN1_LED
JP1
JP2
JMD1
JMD2
JMD5
AT_MODE
COPEN
LAN2_LED

6
2-2 Internal Jumper and Connector Setting
(1) JBAT(6-pin): Clear CMOS / FLASH Select
5-6 Closed:
Flash Override.
6
4
2
3-4 Closed:
RTC Reset;
1-2 Open:
Normal (Default);
1-2 Closed:
Clear CMOS;
3
1
5
6
4
2
3
1
5
6
4
2
3
1
5
(2) COPEN (2-pin): Case Open Message Display Function Select
1-2 Open：
Normal (Default);
1
1-2 Closed：
Case Open.
1
Pin (1-2) Close: When Case Open function pin short to GND, the Case Open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
function. In this case if your case is removed, next time when you restart your
computer, a message will be displayed on screen to inform you of this.
(3) AT_Mode (3-pin): AT/ATX Mode Function Select
AT Mode.
Pin1
2-3 Closed:
ATXMode
(Default);
1-2 Closed:
Pin1
JBAT
COPEN
AT_MODE

7
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.
(4) JMD1/2/5 (4-pin): COM1/COM2/COM5 Port Pin9 Function Select
4-6 Closed:
12V.
3-4 Closed:
5V;
2-4 Closed:
RING (Default);
4
5
3
1
6
2
4
5
3
1
6
2
4
5
3
1
6
2

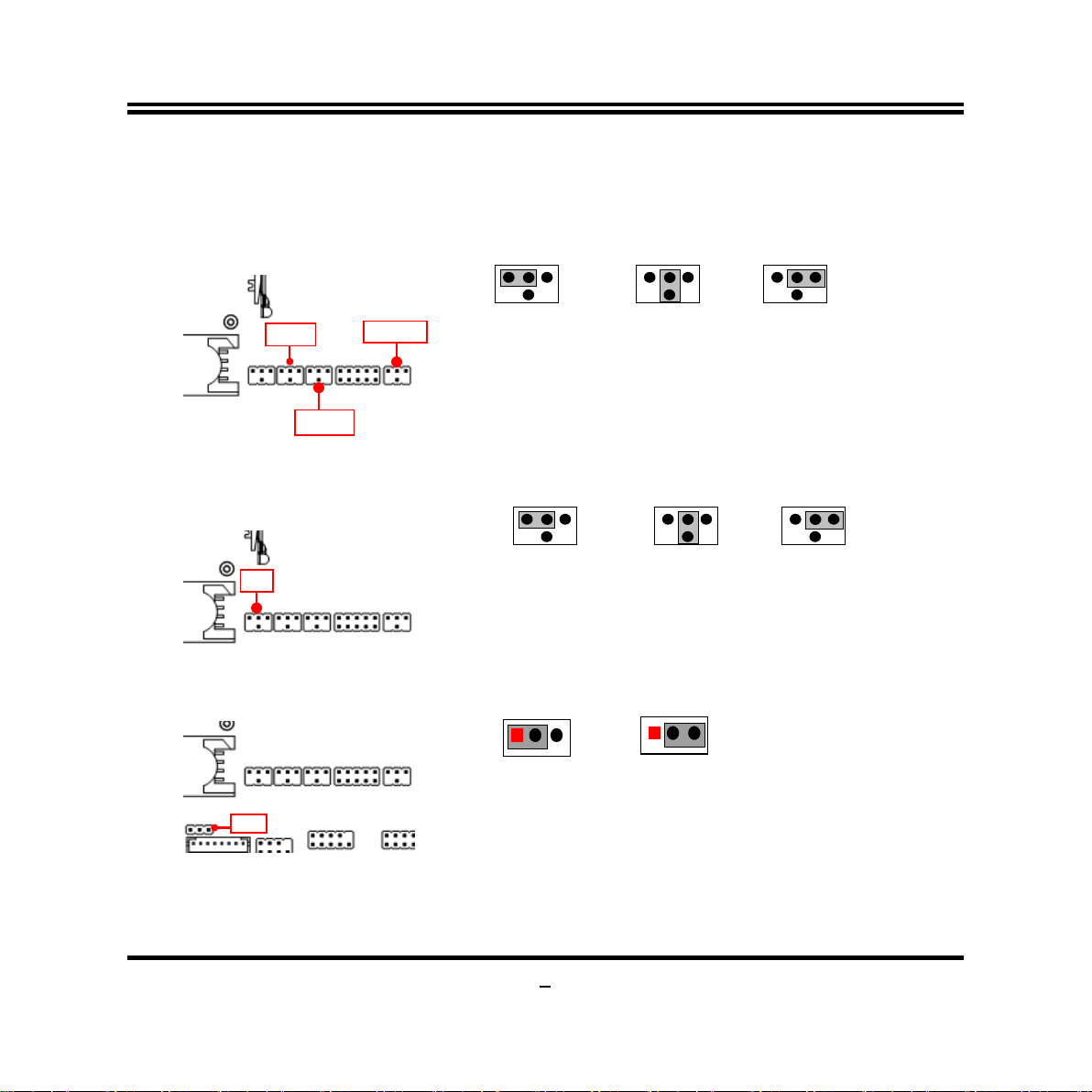

(5) JP2 (4-pin): LVDS Panel VCC 3.3V/5V/12V Select
4-6 Closed:
VCC= 12V.
3-4 Closed:
VCC= 5V;
2-4 Closed:
VCC=3.3V;
(Default);
4
5
3
1
6
2
4
5
3
1
6
2
4
5
3
1
6
2
(6) JP1 (3-pin): LVDS Backlight VCC 5V/12V Select
1-2 Closed:
5V (Default);
1
3
2
1
3
2
2-3 Closed:
12V.
JMD1
JMD2
JMD5
JP2
JP1

8
(7) LAN1_LED / LAN2_LED (2-pin): LAN LED Activity Function Select
LED+
1
2
LED-
2-2-1 Connectors
(1) Rear I/O Connectors
USB 2.0 Ports
RJ-45 Port1
Parallel Port
COM1 Port
HDMI Port
VGA Port
COM2 Port
USB 3.0 Port
USB 3.0 Port
RJ-45 Port2
Blue:
Line-IN
Green:
Line
-OUT
Pink:
MIC
LAN1_LED
LAN2_LED

9

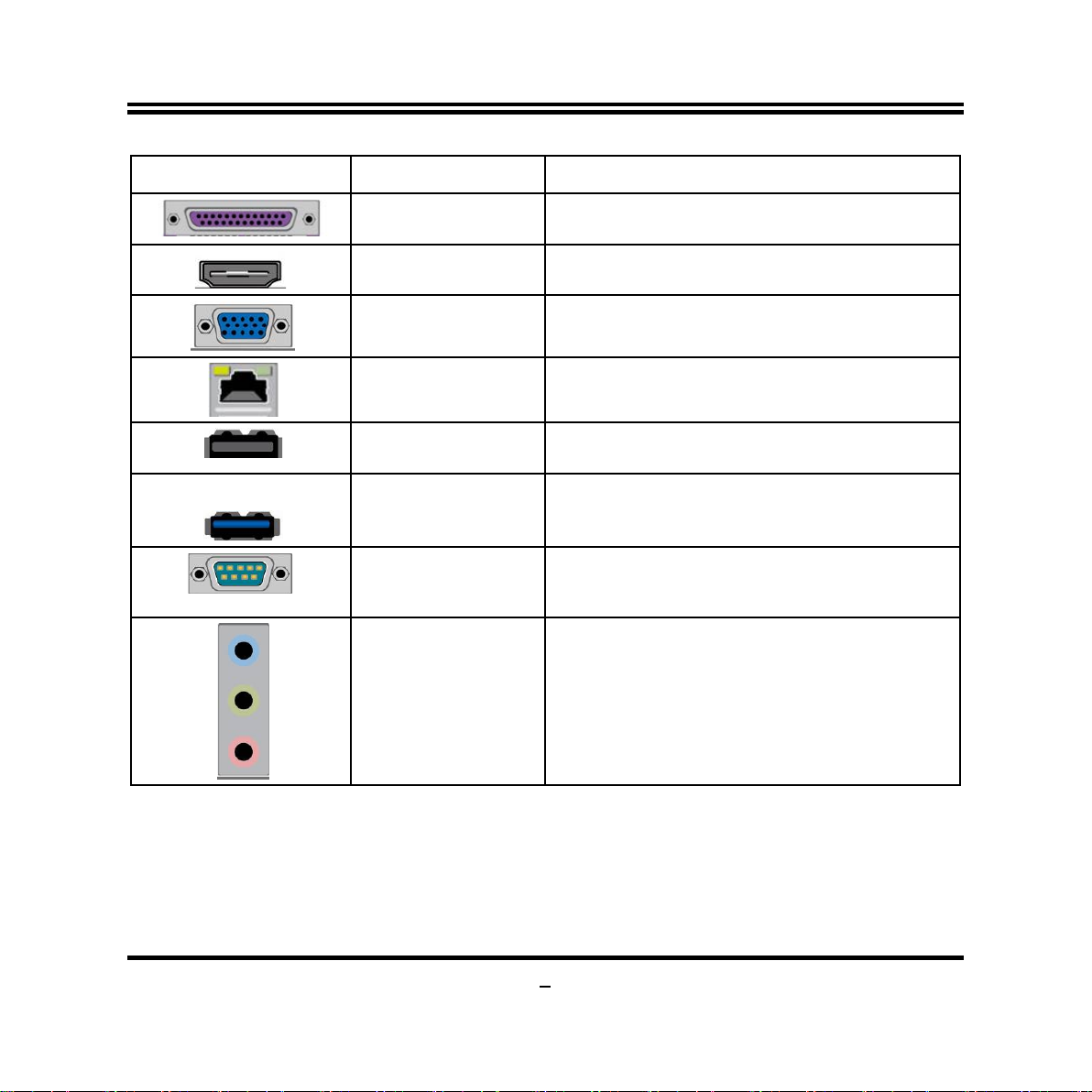

Icon Name Function
Parallel Port Also called LPT c
onnector. Mostly for user to
connect printer or scanner with parallel interface.
HDMI Port To connect display device that support HDMI
specification.
VGA Port T
o connect display device that support VGA
specification.
RJ-45 LAN Port This connector is standard RJ-45 LAN jack
for
Network connection.
USB 2.0 Port To
connect USB keyboard, mouse or other
devices compatible with USB specification.
USB 3.0 Port To
connect USB keyboard, mouse or other
devices compatible with USB specification. US
B
3.0 ports supports up to 5Gbps data transfer rate.
COM Port Mainly for user to connect external MODEM or
other devices that supports
Serial Communications Interface.
Audio Connectors
BLUE : Line-in Connector
GREEN : Line-out Connector
PINK : MIC Connector

10

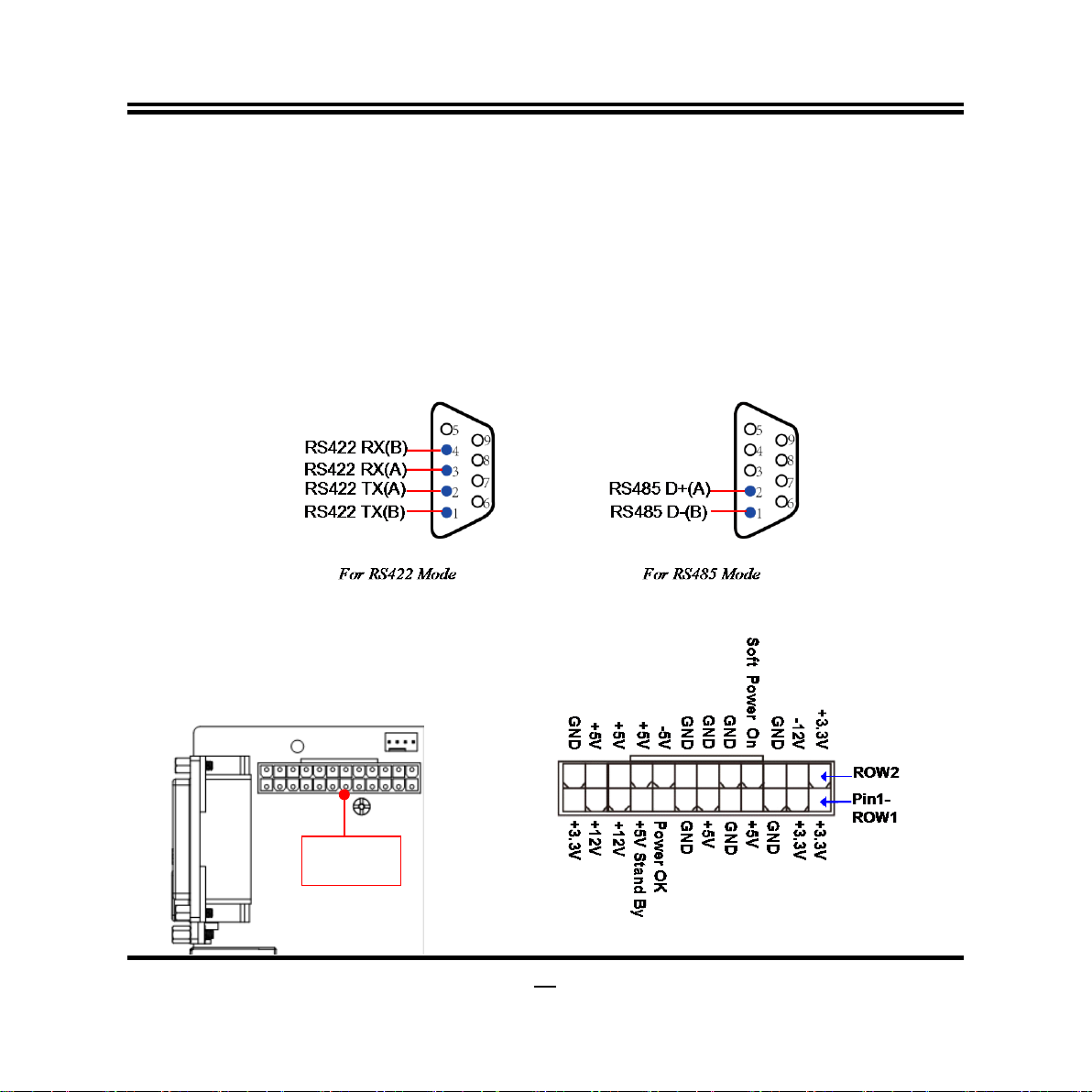

(2) COM1 (9-pin Block): RS232/422/485 Serial Port Connector
COM1 port can function as RS232/422/485 port. In normal settings COM1 functions
as RS232 port. With compatible COM cable COM1 can function as RS422 or RS 485
port.
User also needs to go to BIOS to set ‘Transmission Mode Select’ for COM1 (refer to
BIOS Setting) at first, before using specialized cable to connect different pins of this
port.
(3) ATXPWR (24-pin Block): ATX Power Header
ATX Power
Connector

11
(4) SATA1 (7-pin block):SATAIII Port connector
This connector is a high-speed SATAIII port that supports 6 GB/s transfer rate.
Pin No.
Defnition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
2-2-2 Headers
(1) SYSFAN1/ CPUFAN (4-pin): FAN Headers
SYSFAN1 Header
CPUFAN Header
SATA1

12
(2) PS2KBMS (6-pin): PS/2 Keyboard & Mouse Header
GND
KB_CLK
KB_DATA
Pin1
MS_DATA
VCC
MS_CLK
(3) SMBUS (5-pin): SMBUS Header
NC
DATA
CLK
Pin1
3VSB
GND
(4) FP_USBV1 (9-pin): USB 2.0 Port Header
POWER: NORMAL POWER (VCC5V) without wake up function
Pin 1
VCC
-DATA
+DATA
GND
VCC
-DATA
+DATA
GND
NC
PS2KBMS
SMBUS
FP_USBV1
FP_USBSB2
FP_USBSB1

13
(5) FP_USBSB1 / FP_USBSB2 (9-pin): USB 2.0 Port Header
POWER: STANDBY POWER (5VSB) with wake up function
Pin 1
VCC
-DATA
+DATA
GND
VCC
-DATA
+DATA
GND
NC
(6) JW_FP (9-pin): Front Panel Header
GND
HDD LED
-
GND
RSTSW
PWRBTN
VCC
PWR LED+
PWR LED-
HDD LED+
Pin 1
(7) COM3 / COM4 / COM5 / COM6 (9-pin): RS232 Serial Port Header
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
RI
Pin1
Pin6
FP_USBV1
FP_USBSB2
FP_USBSB1
JW_FP
COM5
COM6
COM3
COM4

14
(8) GPIO_CON (10-pin): GPIO Header
GPIO00
2
Pin1
GPIO02
GPIO30
GPIO32
GND
GPIO01
GPIO03
GPIO31
GPIO33
VCC
(9) SPEAK PWRLED (7-pin): SPEAKER and PWRLED Header
SPEAKER+
XX
XX
SPEAKER-
POWER LED+
POWER LED-
POWER LED-
Pin1
Pin2
(10) FP_AUDIO1 (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
LINEOUT_L
LINEOUT2_R
SENSE
GND
LINE_OUT_JD
DETECT
MIC2_L
MIC_JD
MIC2_R
Pin 1
2
GPIO_CON
SPEAK
PWRLED
FP_AUDIO

15
(11) LVDS (32-Pin): 24-bit dual channel LVDS Header
Pin 1
Pin 2
Pin NO.
Pin Define
Pin NO.
Pin Define
Pin 1
LVDSB_DATAN3
Pin 2
LVDSB_DATAP3
Pin 3
LVDS_CLKBN
Pin 4
LVDS_CLKBP
Pin 5
LVDSB_DATAN2
Pin 6
LVDSB_DATAP2
Pin 7
LVDSB_DATAN1
Pin 8
LVDSB_DATAP1
Pin 9
LVDSB_DATAN0
Pin 10
LVDSB_DATAP0
Pin 11
LVDS_DDC_DAT
Pin 12
LVDSA_DCC_CLK
Pin 13
XX
Pin 14
LVDS_DETECT-
Pin 15
GND
Pin 16
GND
Pin 17
LVDSA_DATAP3
Pin 18
LVDSA_DATAN3
Pin 19
LVDS_CLKAP
Pin 20
LVDS_CLKAN
Pin 21
LVDSA_DATAP2
Pin 22
LVDSA_DATAN2
Pin 23
LVDSA_DATAP1
Pin 24
LVDSA_DATAN1
Pin 25
LVDSA_DATAP0
Pin 26
LVDSA_DATAN0
Pin 27
LCD_VCC
Pin 28
XX
Pin 29
LCD_VCC
Pin 30
LCD_VCC
Pin 31
GND
Pin 32
GND
LVDS
