JETWAY R3288LC-2N Series User manual

R3288LC-2N Series
User’s Manual
P/N: G03-R3288LC-F
Revision: 2.0
Release date: October 1, 2019
Notice:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

i
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

ii
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION.......................................................................................iv
ITEM CHECKLIST .....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION.........................................................................................................2
1-3 PRODUCT DIAGRAM.................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 REAR I/O CONNECTORS ..........................................................................................6
2-2 INTERNAL CONNECTORS, HEADERS AND JUMPERS.........................................7
TABLE OF CONTENT

iii
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 40 centigrade is the suitable temperature. (The temperature comes from the
request of the chassis and thermal solution)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.

iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES ANDWE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
2.0 Second Edition October 1, 2019
Item Checklist
Motherboard

1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Rockchip® ARM Cortex A17 RK3288 Quad-core 1.8GHz
Onboard 2GB DDR3L 1333MHz DRAM
Onboard 8G Flash ROM (Max.64GB)
1 * Realtek GbE LAN
1*RS232, 2*UART,1*Debug
Support 6* USB2.0
Support 1* OTG (Co-lay with USB2.0)
1* HDMI, 1*eDP, 1* 24-bit Dual CH LVDS,1*MIPI DSI, 1*MIPI CSI
1 * Micro SD (TF) Card socket
Support 802.11 b/g/n 2.4G, BT-V4.0
Support Android 5.1 and Debian9.0 OS

2
1-2 Specification
Spec
Description
Size
120 * 72mm
CPU
Rockchip® ARM Cortex A17 RK3288 1.8GHz SoC
* for detailed CPU support information please visit our website.
PMU
Rockchip®RK808-B PMU
Memory
Onboard 2GB DDR3L 1333MHz DRAM
Expansion
1* Micro SD (TF) Card Socket (Max 64GB)
Storage
Onboard 8GB EMMC Flash ROM (Max. 64GB)
Network
1* Realtek RTL8211E-VB Gigabit LAN (Support Fast Ethernet LAN
function of providing 10/100/1000Mbps Ethernet data transfer rate)
1* Realtek RTL8723BS WIFI & Bluetooth module for 802.11b/g/n
2.4G WIFI &BT-V4.0
Rear I/O
1* 12V DC-IN Power Jack
2* USB 2.0 port (1 co-lay USB OTG function via Jumper select)
1* HDMI port
1* Audio (Line-out & MIC Combo)
1* RJ-45 port
1* Micro SD (TF) Card Socket (bottom)
Internal I/O
1* IR connector
1* Power switch/Recover/Reset connector
4* USB 2.0 connector
3* UART connector + 1* Debug connector
1* Speaker connector (3W amplifier)
1* MIPI DSI
1* MIPI CSI
1* 4-bit GPIO & I2C combo header block
1* eDP header
1* LVDS header &1* Inverter
1* EDP _VCC jumper &1* LVDS_VCC jumper
1* Backlight_PWR jumper
1*OTG/HOST select jumper

3
1-3 Product Diagram
Top View:
CPU
DRAM
DRAM
DRAM
DRAM
DSI: MIPI DSI
Wi-Fi & Bluetooth
Chip
CON38: MIPI CSI
CON33:
Power Switch/
Reset/ Recover
DCIN:
12V DC-In
Power Jack
HUB_USB2:
USB 2.0 Port
OTG:
OTG/ USB 2.0
Port
J3:
HDMI Port
ADUIO:
Line-out/MIC
Port
LAN:
RJ-45 LAN Port
CON1:
EDP
CON36:
UART/RS232/485
(Default: UART TTL)
CON39:
UART TTL
CON37:
RS232/UART TTL
(Default:RS232)
CON47:
Debug
INVERTER:
LVDS Inverter
GPIO:
GPIO & I2C
Header
HUB_USB3/ HUB_USB1/
HUB_USB4/HOST_USB:
4*USB 2.0
CON3:
LVDS
OTG_JP (Jumper):
USB/OTG Select
CON2 (Jumper):
EDP_VCC Select
CON44:
Speaker
CON25 (Jumper):
LVDS_VCC Select
CON31(Jumper):
Backlight_PWR VCC Select
CON6:
IR

4
Bottom View:
Rear Connectors:
P/N
Name
DCIN
12V DC–in Power Jack
HUB_USB2
USB 2.0 Port
OTG
USB 2.0 & OTG Port
J3
HDMI Port Connector
AUDIO
Audio Line-out & MIC Combo Jack
TF (Bottom)
Micro-SD (TF) Card Socket
LAN
RJ-45 LAN Port Connector
EMMC
J1:Micro_SD(TF)
Card Socket

5
Internal Connector, Headers & Jumpers:
P/N
Name
Description
CON6
IR Connector
3-pin Block
CON 33
Power Switch/Recovery/ Reset
Connector
4-pin Block
HUB_USB3/HUB_USB1/
HUB_USB4/HOST_USB
USB 2.0 Connector
4-pin Block
CON36
UART TTL/ RS232/ RS485 Connector
4-pin Block
CON39
UART TTL Connector
4-pin Block
CON37
RS232/UART TTL Connector
4-pin Block
CON47
Debug Connector
4-pin Block
CON44
3W Speaker Connector
4-pin Block
CON38
MIPI CSI Connector
15-pin Block
DSI
MIPI DSI Connector
15-pin Block
GPIO
GPIO & I2C Combo Header
10-pin Block
CON1
EDP Header
20-pin Block
CON3
LVDS Header
30-pin Block
INVERTER
LVDS Inverter
6-pin Block
CON2
EDP LCD_VCC Select Jumper
6-pin Block
CON25
LVDS LCD_VCC Select Jumper
6-pin Block
CON31
Backlight_PWR VCC Select Jumper
3-pin Block
OTG_JP
OSB/ OTG Select Jumper
4-pin Block

6
Chapter 2
Hardware Installation
2-1 Rear I/O Connectors
Icon
P/N
Name
Function
DCIN
12V DC-in
Power Jack
For user to connect compatible power adapter
to provide power supply for the system.
HUB_USB2
USB 2.0 Port
To connect USB keyboard, mouse or other
devices compatible with USB specification.
OTG
USB2.0/OTG
Port
To connect USB keyboard, mouse or other
devices compatible with USB specification, also
can function as USB OTG port for software
upgrade flash by jumper select.
J3
HDMI Port
To connect display device that support HDMI
specification.
AUDIO
Audio
Connector
Line-out & MIC audio jack.
TF
(Bottom)
Macro-SD (TF)
Card Socket
For user to insert compatible micro-SD (TF)
card into the socket.
Audio
DC-IN
RJ-45
LAN Port
Micro SD (TF)
Card Socket
USB 2.0
Port
USB 2.0/OTG
Port

7
LAN
RJ-45 LAN Port
This connector is standard RJ-45 LAN jack for
Network connection.

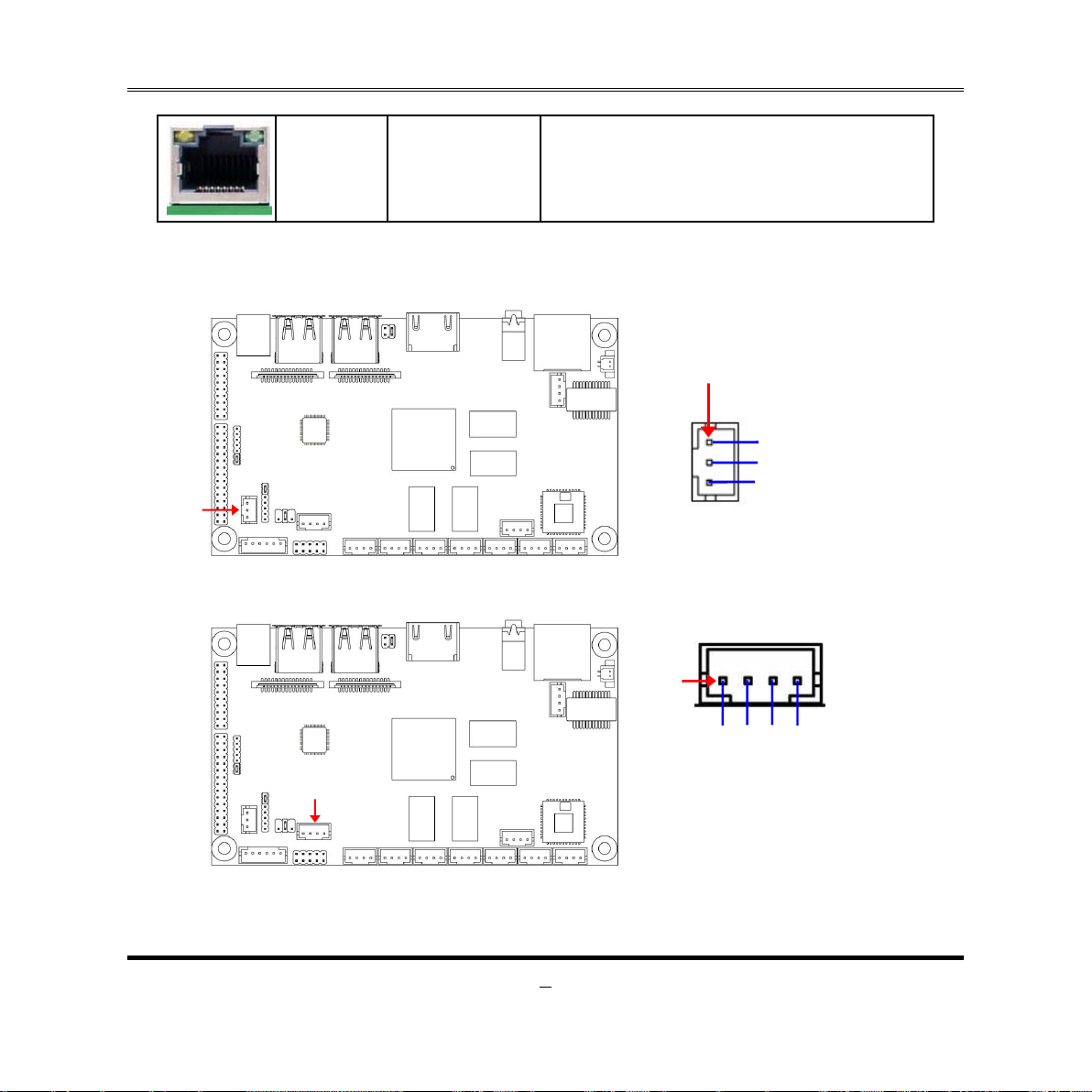

2-2 Internal Connectors, Headers & Jumpers
CON6 (3-pin): IR Connector
IR_IN
3V3
GND
Pin1
CON33 (4-pin): Power Switch& Recovery & Reset Connector
GND
RESET
RECOVER
Pin1
PWEON
CON6
CON33

8
HUB_USB3/HUB_USB1/HUB_USB4/HOST_USB (4-pin): USB 2.0
Connector
GND
DM
5V
Pin1
DP
CON36 (4-pin): UART TTL/ RS232/RS485 Connector
GND
RX
Pin1
TX
UART TTL/RS232
RS485
Pin1
5V
5V
B/Y
A/Y
GND
HUB_USB3
HUB_USB1
HUB_USB4
HOST_USB
CON36

9
CON39 (4-pin): UART TTL Connector
GND
TX
5V
Pin1
RX
CON37 (4-pin): RS232/UART TTL Connector
GND
TX
5V
Pin1
RX
CON39
CON37

10
CON47 (4-pin): Debug Connector
GND
TX
5V
Pin1
RX
CON44 (4-pin): 3W Speaker Connector
SPK_LOUT-
Pin1
SPK_LOUT+
SPK_ROUT+
SPK_ROUT-
CON47
CON44

11
CON38 (15-pin): MIPI CSI Connector
Pin1
Pin15
CON38
No.
Pin Define
1
VCC3V3
2
SDA
3
SCL
4
MCLK0
5
PDN0
6
GND
7
CLKP
8
CLKN
9
GND
10
D1P
11
D1N
12
GND
13
D0P
14
D0N
15
GND

12
DSI (15-pin): MIPI DSI Connector
Pin1
Pin15
DSI
No.
Pin Define
1
VDD
2
VDD
3
GND
4
SDA
5
SCL
6
GND
7
D0P
8
D0N
9
GND
10
CLKP
11
CLKN
12
GND
13
D1P
14
D1N
15
GND
GPIO (10-pin): 4-bit GPIO & I2C Combo Header Block
AD_IN2
GPIO7_B5
I2C1_SDA
GPIO7_B4
Pin1
GND
2
3V3
ADIN_0
9
10
GPIO7_B3
GPIO7_B6
I2C1_SCL
GPIO

13
CON1 (20-pin): EDP Header
Pin 2
Pin1
Pin Define
Pin No.
Pin No.
Pin Define
VDD
1
2
VDD
GND
3
4
BKLT_12V
EDP_TX0N
5
6
EDP_TX0P
EDP_TX1N
7
8
EDP_TX1P
EDP_TX2N
9
10
EDP_TX2P
EDP_TX3N
11
12
EDP_TX3P
GND
13
14
GND
EDP_AUXN
15
16
EDP_AUXP
LCD_EN
17
18
LCD_ADJ
BKLT_3V3
19
20
BKLT_5V
CON1

14
CON3 (30-pin): 24-bit dual channel LVDS Header
Pin 2
Pin 1
Pin Define
Pin No.
Pin No.
Pin Define
LVDS_VCC
1
2
LVDS_VCC
LVDS_VCC
3
4
GND
GND
5
6
GND
LVDSA_DATAN0
7
8
LVDSA_DATAP0
LVDSA_DATAN1
9
10
LVDSA_DATAP1
LVDSA_DATAN2
11
12
LVDSA_DATAP2
GND
13
14
GND
LVDSA_CLKN0
15
16
LVDSA_CLKP0
LVDSA_DATAN3
17
18
LVDSA_DATAP3
LVDSB_DATAN5
19
20
LVDSB_DATAP5
LVDSB_DATAN6
21
22
LVDSB_DATAP6
LVDSB_DATAN7
23
24
LVDSB_DATAP7
GND
25
26
GND
LVDSB_CLKN1
27
28
LVDSB_CLKP1
LVDSB_ DATAN8
29
30
LVDSB_DATAP8
CON3

15
INVERTER (6-pin): Inverter Connector
Pin1
GND
VDD
VDD
GND
LED_EN
LCD_ADJ
CON2 (6-pin): EDP LCD_VCC Select Jumper
3-4 Closed:
5V;
1-2 Closed:
12V;
5-6 Closed:
3.3V (Default).
Pin1
1
6
12V
5V
3.3V
1
6
1
6
6
2
3
4
5
2
3
4
5
2
3
4
5
INVERTER
CON2
