JETWAY G03-NC59-F User manual

TECHNICAL MANUAL
Of
Intel Braswell Series CPU
Based Mini-ITX M/B
NO. G03-NC59-F
Revision: 1.0
Release date: February 19, 2016
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

i
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

ii
ENVIRONMENTAL SAFETY INSTRUCTION ....................................................................... iii
USER’S NOTICE .................................................................................................................. iv
MANUAL REVISION INFORMATION ................................................................................... iv
ITEM CHECKLIST ................................................................................................................ iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ............................................................................ 1
1-2 SPECIFICATION .................................................................................................... 2
1-3 LAYOUT DIAGRAM ............................................................................................... 3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING................................................................................................. 8
2-2 CONNECTORS AND HEADERS ............................................................................ 12
2-2-1 CONNECTORS ......................................................................................... 12
2-2-2 HEADERS ................................................................................................. 15
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP................................................................................................. 21
3-2 BIOS MENU SCREEN ............................................................................................ 22
3-3 FUNCTION KEYS................................................................................................... 22
3-4 GETTING HELP...................................................................................................... 23
3-5 MEMU BARS.......................................................................................................... 23
3-6 MAIN MENU ........................................................................................................... 24
3-7 ADVANCED MENU ................................................................................................ 25
3-8 CHIPSET MENU..................................................................................................... 31
3-9 SECURITY MENU .................................................................................................. 33
3-10 BOOT MENU.......................................................................................................... 34
3-11 SAVE & EXIT MENU .............................................................................................. 36
TABLE OF CONTENT

iii
Environmental Safety Instruction
 Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
 0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
 Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
 The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
 Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.

iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition February 19, 2016
Item Checklist
 Motherboard
 DVD for motherboard utilities
 User’s Manual
 Cable(s)
 I/O Back panel shield

1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
 Onboard Intel® Braswell series SoC Processor, with low power consumption
never denies high performance
 On Board optional 2G/4G 1600MHz DDR3L DRAM (Optional)
 Support 1 * SATAIII (6Gb/s) Device
 Onboard 1* full-size Mini-PCIE & 1* half-size Mini-PCIE slot
 Onboard 1* full-size MSATA
 Support 2* HDMI & 1* DP or 1* LVDS multi-display
 Support USB 3.0 data transport demand
 Support SIM card socket
 Support CPU Over-Temperature protection
 Support CPU Over-Current/Under Voltage protection
 Amplifier implement to support 3W Speaker
 Support AT MODE function
 Support Watchdog function
 Compliance with ErP standard

2
1-2 Specification
Spec Description
Design  PCB size: 11.2 x 11.7 cm;
Embedded CPU
 Intel® Braswell *SoC CPU
*CPU model varies from different IPC options. Please consult your
dealer for more information of onboard CPU.
Memory  Onboard optional 2G/4G 1600MHz DDR3L DRAM
*DRAM varies from different IPC options by customized order.
Expansion Slot
 1* Full-size Mini-PCIE slot
 1* Halt-size Mini-PCIE slot
 1* SIM slot
Storage  1* SATA III 6G/s Connector
 1 * Full-size M-SATA slot
LAN Chip
 Integrated with 2* Realtek RTL8111G PCI-E Gigabit LAN chip
 Support Fast Ethernet LAN function of providing 10/100/1000Mbps
Ethernet data transfer rate
Audio Chip  HD Audio Codec integrated
 Audio driver and utility included
BIOS  AMI 64M Flash ROM
Multi I/O
Rear Panel I/O:
 3* USB 3.0 port
 2* RJ-45 LAN port
 1* Line-Out port
 1* MIC port
Front Panel I/O:
 1* 9V~24V DC-in system power Jack
 2* HDMI port
 1* Display port (Optional by order)
 1* Power switch button
Internal I/O Connectors& Headers:
 1 *4-pin SATA Power connector

3
 1 * Front panel header
 1 * 4-pin USB 2.0/1.1 header for 1* USB 2.0/1.1 port
 2* RS232 serial port header (COM1/COM2)
 1 *GPIO header
 2* LAN activity LED header (LAN1_LED/LAM2_LED)
 1* PS/2 Keyboard & mouse header
 1*SPEAK_CON header
 1 *24-bit Dual Channel LVDS header (Optional by order)
 1* LVDS inverter header (Optional by order)
* Note: Many PCs now include XHCI USB controllers which allow for the support of USB 3.0
and higher USB speeds. This inclusion of XHCI controllers has lessened the need for EHCI
USB controllers within platforms. However, legacy operating systems (OS) may not natively
recognize XHCI controllers. You might need to pre-install XHCI driver while desiring to install
a non-xHCI OS (ex.Windows* 7) on Intel platforms which do not include EHCI controllers.
Please contact your representative for more details.
1-3 Layout Diagram

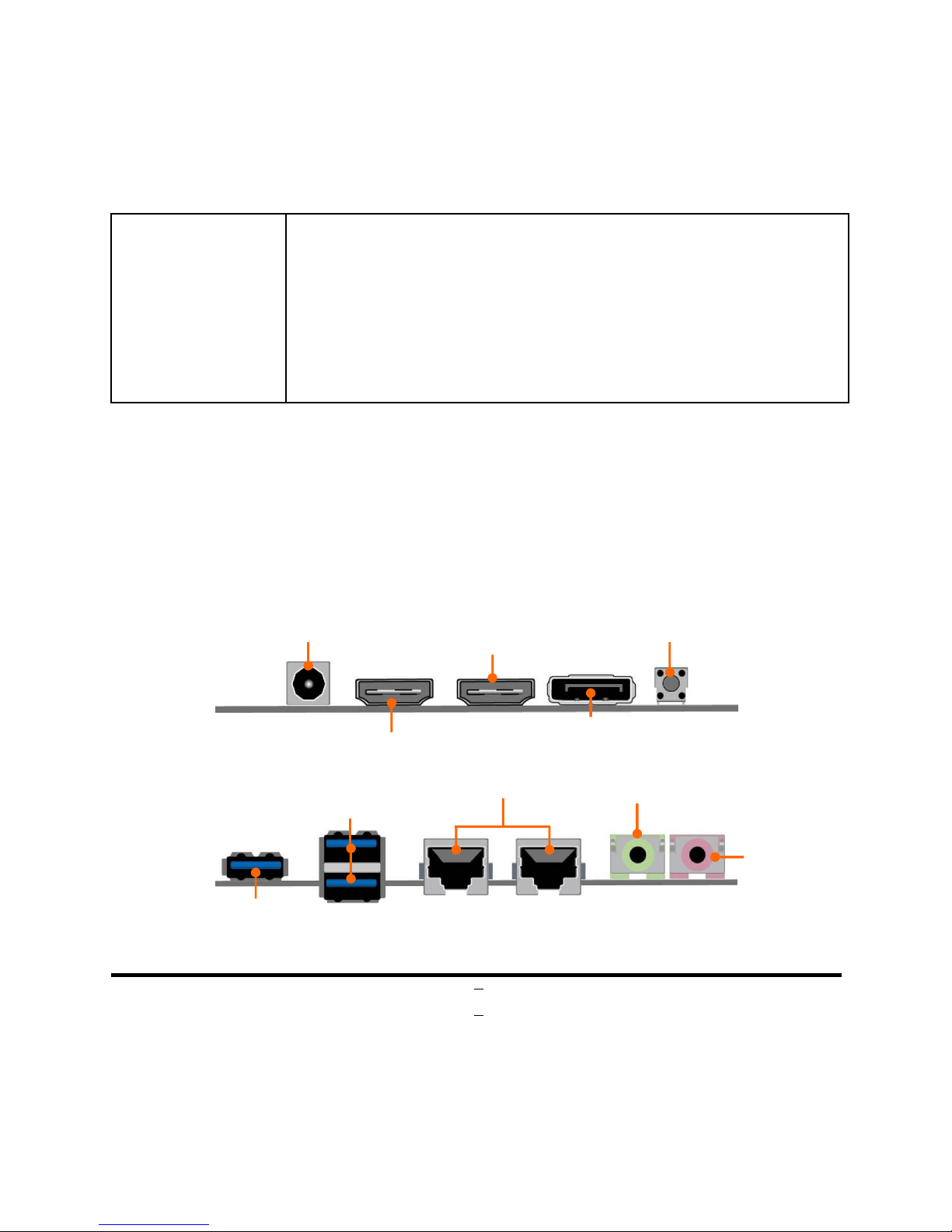

Front IO Diagram
Rear IO Diagram
*Note: Display port is optional by customized order; please refer to the model your purchase for
actual specifications.
MIC
Port
Line-Out Port
USB 3.0 Ports
RJ-45 LAN Ports
Power Switch
Button
HDMI2 Port
*Display
Port
HDMI1 Port
USB 3.0 Port
9V~24V DC
-
in
Power Jack

4
Motherboard Internal Diagram—Front
*Note: 1. Display port, LVDS and LVDS inverter are optional by customized order; 2.MD1 & MD2
DRAM is only optional for models come with 4G DRAM. 3. Please refer to the model your purchase
for actual specifications.
PS2 KB & MS Header
LVDS Inverter
*
LVDS
Header
MSATA Slot
Full-size
Mini-
PCIE
Slot
Half-size
Mini-
PCIE
Slot
USB 3.0 Port
USB 3.0 Ports
RJ-45
LAN Port (LAN1)
RJ-45
LAN Port (LAN2)
Power Switch
Button
Line-Out
Port
MIC Port
*
Display Port
HDMI1 Port
HDMI2 Port
USB 2.0 Header
12V DC
-
in
Power Jack
COM2
Header
SATA Hard Disk
Power
-
Out Connector
SATAII
Port
SPEAKER_CON
Header
COM1
Header
GPIO
Header
Front Panel
Header
LAN1_LED
Header
LAN2_LED
Header
MD1
MD2
MD3
MD4
* Onboard Optional DRAM 4G/2G

5
Motherboard Internal Diagram-Back
*Note: MDB3 & MDB4 DRAM is only optional for models come with 4G DRAM. Please refer to the
model your purchase for actual specifications.
SIM Card Slot
MD
B
1
MDB2
MDB3
MDB4
Intel CPU
* Onboard Optional DRAM 4G/2G

6

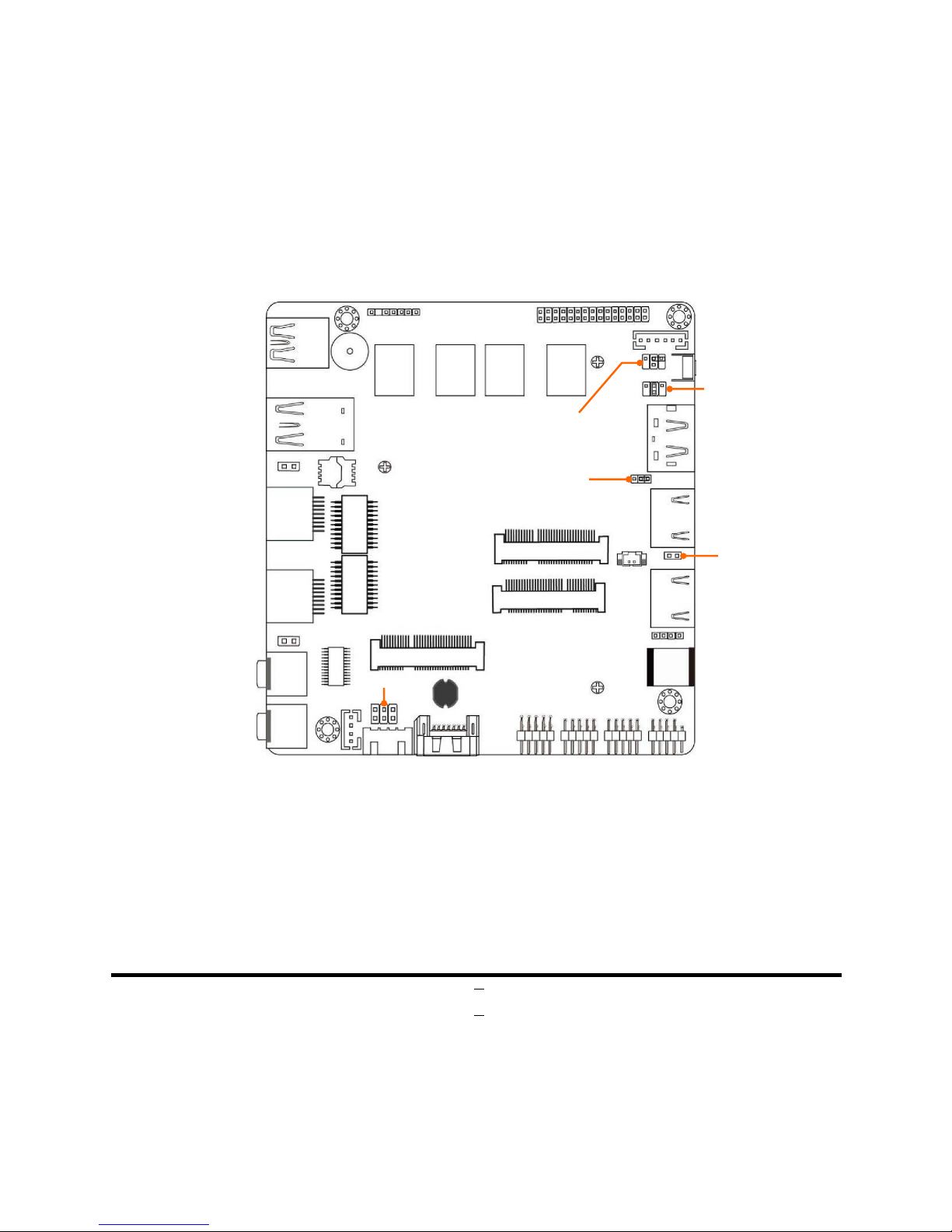

Motherboard Jumper Position
*Note: The pictures taken as illustration examples are mostly taken from the layout diagram for
NC59-U3160-4G series, unless otherwise stated. Actual specification may vary from different models.
Please refer to the model you purchase for sure.
JP1
JBAT
JP5
JP2
JP4

7
Jumper
Jumper
Name Description
JBAT Clear CMOS RAM Setting 2-pin Block
JP5 Pin (1&2): ATX Mode / AT Mode Select
Pin (3&4): RTC_RST Function Select
Pin (5&6): ODD Present Setting
6-Pin Block
JP1 Flash Override Function Select 3-pin Block
JP2 INVERTER Backlight VCC 3.3V/5V/12V Select 4-pin Block
JP4 LVDS Panel VCC 3.3V/5V/12V Select 4-pin Block
Connectors
Connector Name
DCIN1 9V~24V DC Power-in Connector
HDMI2/HDMI1 HDMI Port Connector X2
*DP (Optional) Display Port Connector
USB31/USB30 USB 3.0 Port Connector X3
LAN1/LAN2 RJ-45 LAN Connector X2
LINE_OUT Audio Line-Out Connector
MIC Audio MIC Connector
SATA SATAIII Connector
SATAPW SATA Power out Connector
MPE1 Half-size Mini-PCIE Slot
MPE2 Full-size Mini-PCIE Slot
MSATA Full-size Mini-SATA Slot
SIMB1 SIM Card Slot

8
Headers
Header Name Description
JW_FP Front Panel Hea
der(PWR LED/ HD
LED/Power Button /Reset)
8-pin Block
F_USB USB 2.0 Port Header 4-pin Block
COM1/COM2 RS232 Serial Port Header 9-pin Block
GPIO_CON GPIO Header 10-pin block
LAN1_LED/LAN2_LED LAN Activity LED Header 2-pin Block
PS2KBMS PS/2 Keyboard & Mouse Header 6-pin Block
SPEAKER_CON Speaker Header 4-pin Block
*LVDS (Optional) LVDS Header 30-pin Block
*INVERTER (Optional) LVDS Inverter 6-pin Block
*Note: Display port, LVDS and LVDS inverter are optional by customized order.
Chapter 2
Hardware Installation
2-1 Jumper Setting
JBAT (2-pin): Clear CMOS RAM Setting
1-2 Closed：Clear CMOS(One Touch).
1-2 Open: Normal;
1
1
JBAT → Clear CMOS

9
Pin (1&2) of JP5 (6-pin): ATX Mode/AT Mode Select
1
1-2 Open: ATX Mode Selected;
;
1-2 Closed: AT Mode Selected.
.
Pin (1&2) of JP5 → ATX/AT Mode Select
2
1
2
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.

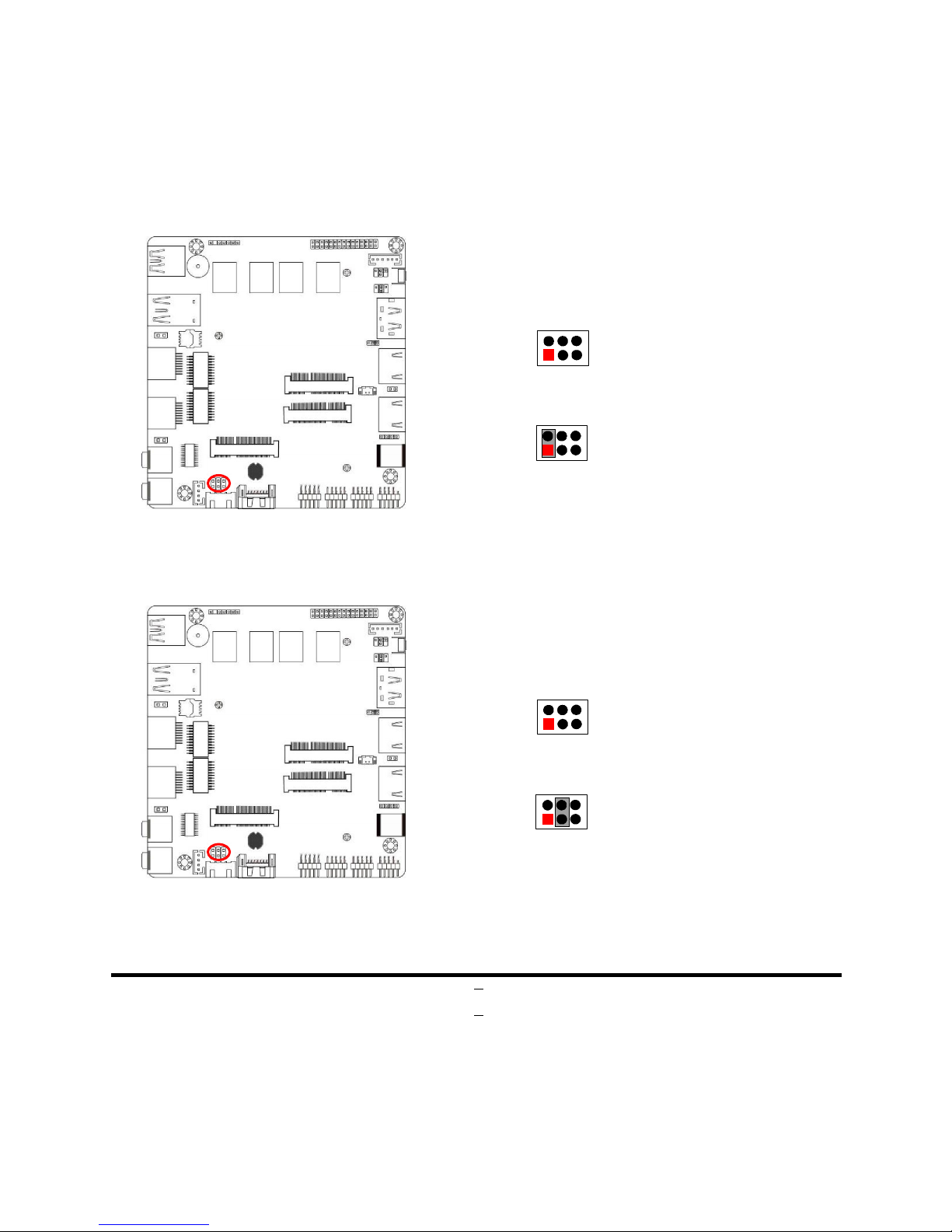

Pin (3&4) of JP5 (6-pin): RTC_RST Function Select
1
3-4 Open: Normal;
;
3-4 Closed: RTC_RST Function Selected.
Pin (3&4) of JP5 → RTC_RST
2
1
2
3
4
3
4

10
Pin (5&6) of JP5 (6-pin): ODD Present Function Select
1
5-6 Open: Normal;
;
5-6 Closed: ODD Present Selected.
Pin (5&6) of JP5 → ODD Present
2
1
2
3
4
3
4
5
6
5
6

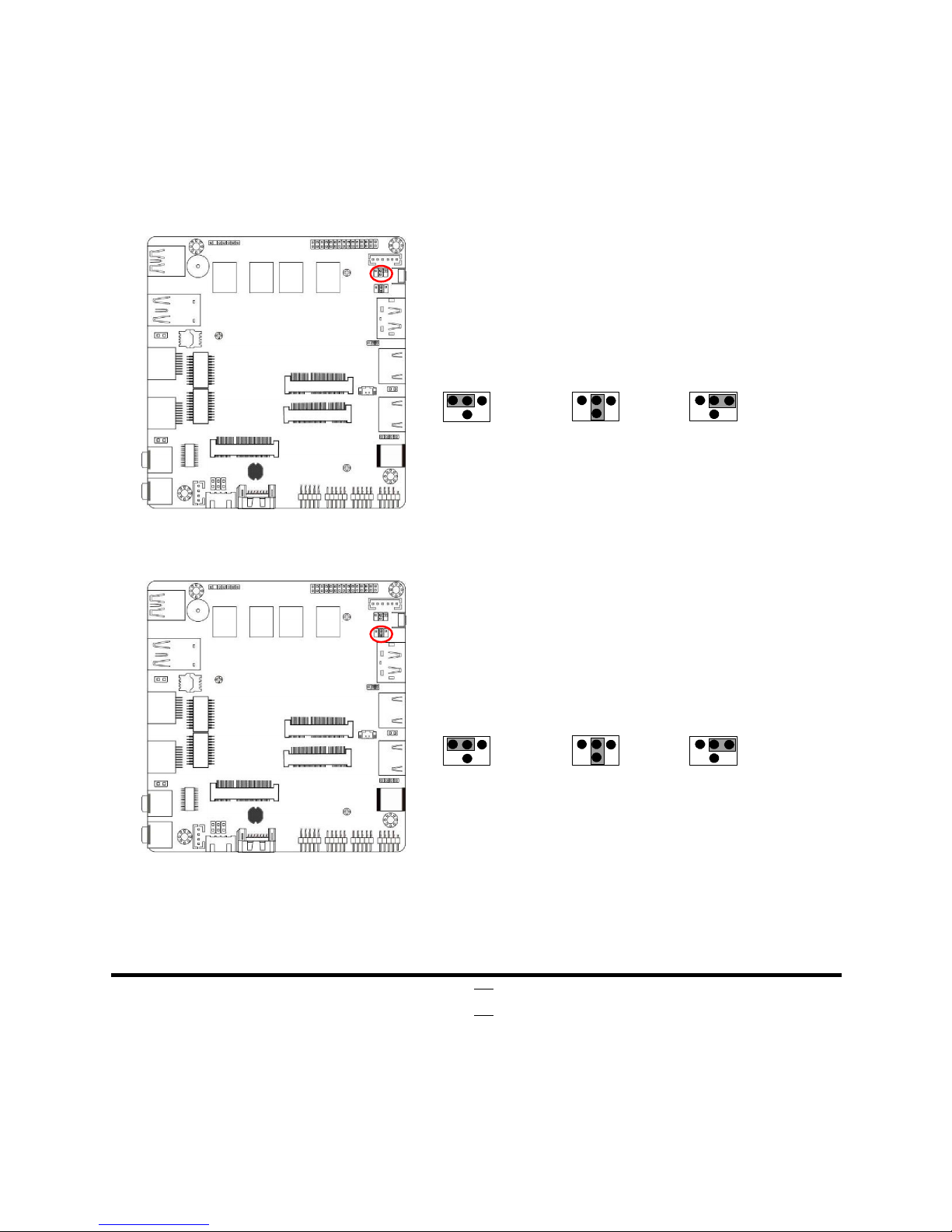

JP1 (3-pin): Flash Descriptor Security Override
1
1-2 Closed: Flash Descriptor Security Override;
1
3
2
-
3
Closed:
Normal(Default)
.
3
JP1 → Flash Desciptor Security Override

11
JP2 (4-pin): INVERTER Backlight VCC 3.3V/5V /12V Select
4-6 Closed:
Inverter Backlight
VCC= 12V.
6
4
2
3-4 Closed:
Inverter Backlight
VCC= 5V;
2-4 Closed:
Inverter Backlight
VCC= 3.3V;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
JP2 → INVERTER Backlight VCC
JP4 (4-pin): LVDS Panel VCC 3.3V/5V/12V Select
4-6 Closed: LVDS
VCC= 12V.
6
4
2
3-4 Closed: LVDS
VCC= 5V;
2-4 Closed: LVDS
VCC= 3.3V;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
JP4 → LVDS Panel VCC

12
2-2 Connectors and Headers
2-2-1 Connectors
Front IO Connectors:
Rear IO Connectors:
MIC Port
Line-Out Port
USB 3.0 Ports
RJ-45 LAN Ports
Power Switch
Button
HDMI2 Port
Display Port
HDMI1 Port
9V~24V DC
-
in
Power Jack
USB 3.0 Port

13
Icon Name Function
9V~24V DC-in Power
Jack Connector
For user to connect compatible power
adapter to provide power supply for the
system.
HDMI Port T
o connect display device that support HDMI
specification.
Display Port To the system to corresponding display
device with compatible display port cable.
USB 3.0 Port
To
connect USB keyboard, mouse or other
devices compatible with USB
specification.
USB 3.0 ports supports up to
5Gbps data
transfer rate.
RJ-45 LAN Port This connector is standard RJ-45
LAN jack
for Network connection.
Line-Out
Connector
For user to connect external speaker,
earphones, etc. to transfer system au
dio
output.
MIC Connector User can connect microphone device
to this
port.
*Note: Display port is optional by customized order.

14
(1) SATA:SATAIII Port connector
This connector is a high-speed SATAIII port that supports 6GB/s transfer rate.
Pin No. Defnition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
(2) SATAPW(4-pin): SATA Hard Disk Power-out Connector
Pin1
Pin No.
Definition
1 +5V
2 GND
3 GND
4 +12V

15
2-2-2 Headers
(1) JW-FP (8-pin): Front Panel Header
HDLED
RESET
HDDLED+
GND
PWRLED+
PWRBTN
GND
PWRLED-
HDDLED-
RSTSW
VCC
PWRBT
Pin 1
2
PWR LED
(2) F_USB (4-pin): USB 2.0 Port Header
Pin 1
GND
+DATA
VCC
-DATA
**Note: FP_USB header shares function with MPE1 half-size Mini-PCIE slot; user can only
choose one to use at one time.
