JIASHAN SUPERPOWER TOOLS SMA700 Installation guide

700 SAW BENCH
Certified Model: SMA700
ASSEMBLY & INSTRUCTION MANUAL
Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and
cleaning procedures. Keep this manual and the receipt in a safe and dry place for future reference.
SAVE THIS MANUAL
JIASHAN SUPERPOWER TOOLS CO., LTD
ADD: NO.391 HUIMIN ROAD, HUIMIN TOWN, JIASHAN COUNTY, ZHEJIANG, P.R.CHINA

- 2 -
Table of Contents
Important Safety Information ............................................................................. 3-7
Directions for Use and Specification......................................................................8
Machine Components Identification.......................................................................9
Operating Instruction ......................................................................................10-11
Noise Statement / Attention in Whole Life Cycle/ Common Failure.....................12
Assembly Instruction ...........................................................................................13
Change Saw Blade Step......................................................................................14
Maintenance and Servicing .................................................................................15
Parts Drawing......................................................................................................16
Parts List........................................................................................................ 17-18

- 3 -
1. In the operating process, fixed on a level surface in machine, the machine is the ground near
the level, maintain good, no loose materials (such as wood shavings, standard compound)
2. When found shields or saw blades failure shall immediately report
3. The safety measures to cleaning, maintenance and cleaning of wood and eliminate the risk of
fire dust
4. The case it's necessary, wear appropriate personal protective equipment; May include:
1) hearing protection facilities caused by reducing the risk of hearing loss;
2) breathing protection facilities to reduce the risk of harm inhalation of dust;
3) touch saw blades, the need to bring the protective gloves (where practicable, saw blade
should be put in a fixed things)
5. When no one in the machine when beside, should stop the machine operation
6. The correct use of sharp saw blades;
7. Ensure flange is applicable to the provisions of the manufacturers purpose;
8. When the machine is running, should stop in cutting area clear scraps or other artifacts
(special circumstances, can consider putting through to);
9. Make sure the machine operation must protective equipment and safety equipment in the right
place, has the good work order, and the correct maintenance
In this manual, on the labeling, and all other information provided with this product:
This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION, used with the safety alert symbol, indicates a
hazardous a situation which, if not avoided, could result in
minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
CAUTION, without the safety alert symbol, is used to address
practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
CAUTION
NOTICE
CAUTION
WARNING
DANGER

- 4 -
General Safety Warnings
WARNING Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in fire and/or serious injury.
Save all warnings and instructions for future reference.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate this machine in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust.
c. Keep children and bystanders away while operating this machine. Distractions can cause you to lose
control.
2. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating this machine. Do not
use while you are tired or under the influence of drugs, alcohol or medication. A moment of
inattention while operating may result in serious personal injury.
b. Use safety equipment. Always wear SAA approved eye protection. Safety equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Remove any adjusting key or wrench before turning the machine on. A wrench or a key left attached
to a rotating part of the machine may result in personal injury.
d. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
machine in unexpected situations.
e. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
f. If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of these devices can reduce dust-related hazards.
3. 700 SAW BENCH use and care
a. Use clamps (not included ) or other practical ways to secure and support workpiece to a stable
platform. Holding workpiece by hand or against your body is unstable and may lead to loss of control.
b. Do not force the 700 SAW BENCH. Use the correct 700 SAW BENCH for your application. The
correct machine will do the job better and safer at the rate for which it was designed.
c. Do not force material into Saw Blade when cutting. Apply moderate pressure, allowing the Saw Blade
to cut without being forced.
d. Shut off engine and keep the blade stop before making any adjustments, changing accessories, or

- 5 -
storing machine. Such preventive safety measures reduce the risk of starting the machine accidentally.
e. Store idle 700 SAW BENCH out of the reach of children and do not allow persons unfamiliar with
machine or these instructions to operate the machine. 700 SAW BENCHs are dangerous in the hands
of untrained users.
f. Maintain 700 SAW BENCH. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the machine’s operation. If damaged, have the machine
repaired before use. Many accidents are caused by poorly maintained machine.
g. Keep blade sharp and clean. Properly maintained cutting blade with sharp cutting edges are less likely to
bind and are easier to control.
h. Use the machine, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use this machine for operation
different from those intended could result in a hazardous situation.
4. Service
a. Have your machine serviced by a qualified repair person using only identical replacement parts. This
will ensure that the safety of the machine is maintained.
This machine vibrates during use. Repeated or long-term exposure to vibration may cause temporary or
permanent physical injury, particularly to the hands, arms and shoulders. To reduce the risk of vibration-related
injury:
1. Anyone using vibrating machine regularly or for an extended period should first be examined by a doctor
and then have regular medical check-ups to ensure medical problems are being caused or worsened from
use. Pregnant women or people who have impaired blood circulation to the hand, past hand injuries,
nervous system disorders, diabetes, or Raynaud’s Disease should not use this machine. If you feel any
medical or physical symptoms related to vibration ( such as tingling, numbness, and white or blue fingers ),
seek medical advice as soon as possible
2. Do not smoke during use. Nicotine reduces the blood supply to the hands and fingers, increasing the risk
of vibration-related injury.
3. Wear suitable gloves to reduce the vibration effects on the user.
4. Use tools with the lowest vibration when there is a choice between different processes.
5. Include vibration-free periods each day of work.
6. Grip machine as lightly as possible (while still keeping safe control of it ). Let the machine do the work.
7. To reduce vibration, maintain the machine as explained in this manual. If any abnormal vibration occurs,
stop use immediately.
VIBRATION SAFETY

- 6 -
1. Maintain labels on the machine. These carry important safety information.
2. Avoid unintentional starting. Prepare to begin work before operating the machine.
3. Industrial applications must follow OSHArequirements.
4. Check for damaged parts. Before using this product, carefully check that it will operate properly and
perform its intended function. Check for damaged parts and any other conditions that may affect the
operation of this product. Replace or repair damaged or worn parts immediately.
5. Do not use this tool for cutting metals or brittle materials. Do not cut dangerous materials, such as
asbestos which can cause harmful dust or vapors.
6. Allow the Saw Blade to spin up to full speed before feeding wood into it. When turning it off, allow the Saw
Blade to spin down and stop on its own. Do not press against the Saw Blade to stop it.
7. Never pass hands directly over the Saw Blade when cutting the workpiece.
8. Never attempt to remove material stuck in the moving parts of the 700 SAW BENCH while it is plugged in
and running.
9. Always feed the woodstock into the Saw Blade and against its rotation.
10. Make sure the woodstock is supported at all times while sawing. Use a Roller Stand (not provide) with
larger woodstocks if necessary.
11. Before trying new or complicated techniques, study the procedure, and practice with scrap wood.
12. Make sure the woodstock is free from loose knots, flaws, nails, and from any other foreign objects that
could damage the Saw Blade or cause ”kickback”.
13. Causes and operator prevention of “kickback”: Kickback is a sudden reaction to a pinched, bound, or
misaligned Saw Blade, causing an uncontrolled woodstock to lift up and out of the 700 SAW BENCH
toward the operator. When the Saw Blade is pinched or bound tightly by the kerf closing down, the Saw
Blade stalls and the motor reaction drives the tool rapidly back toward the operator. If the Saw Blade
becomes twisted or misaligned in the cut, the teeth at back edge of the Saw Blade can raise the workpiece
(walk-up), and eject it towards the operator. Kickback is a result of tool misuse and/or incorrect operating
procedures or conditions and can be avoided by taking proper precautions as given below:
zMaintain control of the woodstock at all times. Never allow the woodstock to rest on the moving
Saw Blade without holding on to it.
zWhen the Saw Blade is binding, or when interrupting a cut for ay reason, turn off the engine and
hold the woodstock motionless on the 700 SAW BENCH until the Saw Blade comes to a
complete stop.Never attempt to remove the woodstock from the 700 SAW BENCH or pull the
woodstock backward while the Saw Blade is in motion or kickback may occur. Investigate and
take corrective actions to eliminate the cause of Saw Blade binding.
zWhen restarting a woodstock on the 700 SAW BENCH, center the Saw Blade in the pre-cut kerf
and check that saw teeth are not engaged into the woodstock. If the Saw Blade is binging, the
woodstock may walk up or kickback from the workpiece as the 700 SAW BENCH is restarted.
zSupport large panels to minimize the risk of Saw Blade pinching and kickback. Large panels tend
to sag under their own weight. Supports must be placed under the panel and near the outer edge
of the panel.
SPECIFIC SAFETY WARNINGS

- 7 -
zDo not use dull or damaged Saw Blade. Unsharpened or improperly set Saw Blades produce a
narrow kerf causing excessive friction, Saw Blade binding and kickback.
zNever rip a woodstock that is twisted or warped, or does not have a straight edge to guide along
the Rip Fence.
zPush the wood stock past the Saw Blade prior to release.
14. Check all guards for proper operation before each use. Never disable any guards. Do not operate the 700
SAW BENCH if the Guard Assembly does not move freely and close instantly. Before each use, raise the
Guard Assembly and make sure it moves freely and does not touch the Saw Blade or any other part, in all
angles and depths of cut.
15. Always use the proper size and type of Saw Blade
16. Never perform layout, assembly, or setup work on the table of the 700 SAW BENCH when the machine is
running.
17. Always turn off the engine before performing any services, maintenance, or cleaning such as leaving the
work area, moving the tool from one location to another, changing Saw Blades, cleaning sawdust from the
unit, etcetera.
18. Before use, the 700 SAW BENCH should be placed on a flat, stable surface, capable of supporting the
weight of the tool and workpiece, and any additional pressure caused by working on it.
19. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator.

- 8 -
700 Saw Bench has advantage with compact structure, beautiful shape, small cover area, safe
and reliable use, quick sawing speed, no need to assemble before use, maintenance convenience
etc, and it is suitable for household sawing wood.
Engine……………............................13HP
Blade Size……………………………..Ø700x3.2mm
Maximum Cutting Diameter………….Ø270mm
Minimum Cutting Diameter…………..Ø25mm
Maximum Cutting Length……………1000mm
Minimum Cutting Length……………..100mm
Maximum RPM for Blade……………..1440RPM
Wheel/Tyre dimension………………...16”
Product Dimension…………………….1130Lx780Wx1250H mm
Net Weight……………………………...140kg
SPECIFICATION

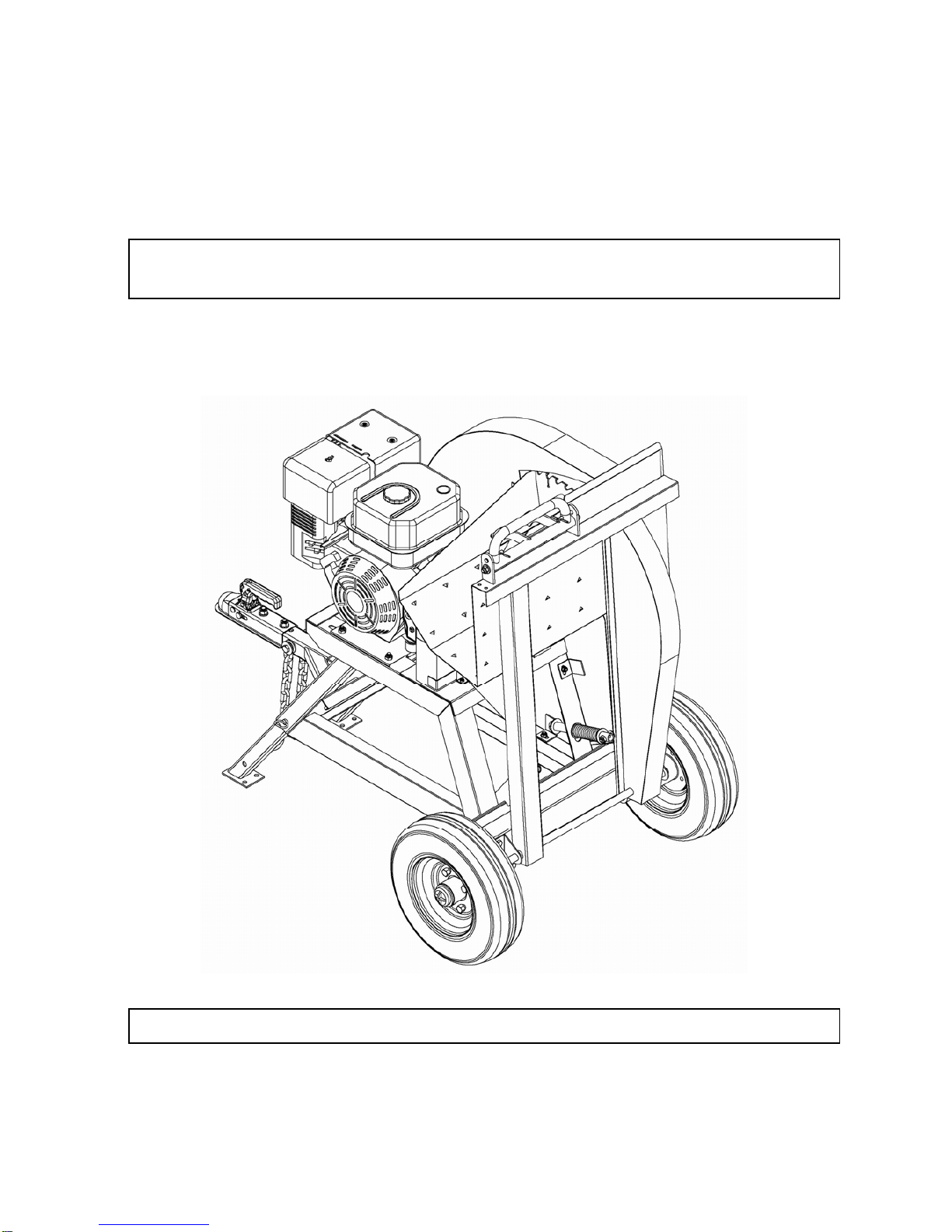

DIRECTIONS FOR USE

- 9 -
1). 50mm Coupler
2). Frame
3). 12V Battery
4). Wheel Assembly
5). Support Leg
6). Operating Platform
7). Large Cover
8). 13HP Electric Start Engine
9). Saw Bit
10). Belt Cover
11). Belt Tensioner

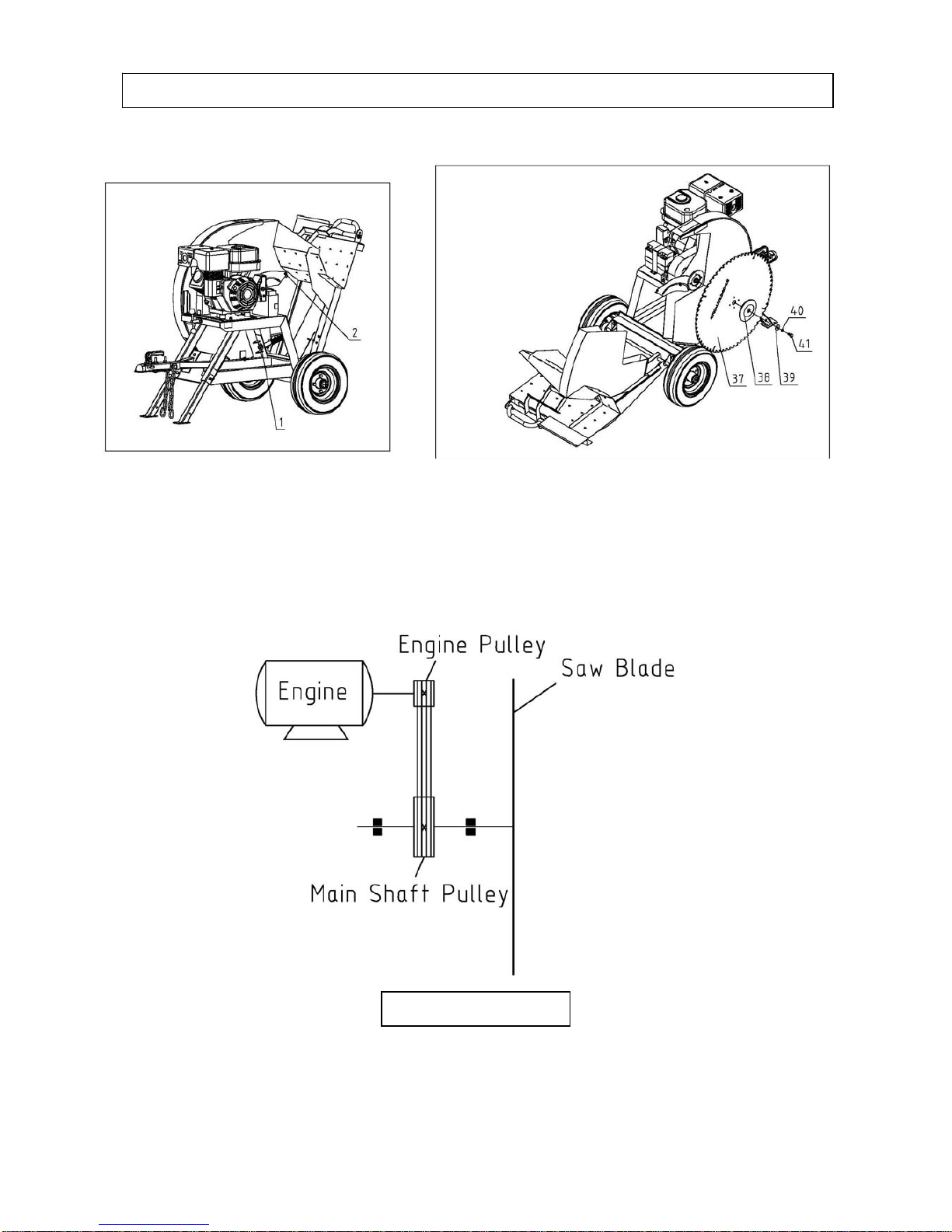

MACHINE COMPONENTS IDENTIFICATION

- 10 -
Towing the 700 SAW BENCH
1. When towing, hitch the coupler onto the connector of the tractor, then slide in the feet.
2. When arrive to the destination, slide out the feet, make the coupler separate from the connector.
Operating Zone
A. In the operating process, fixe machine on a level surface, the ground near the machine is level, maintain
good, no loose materials (such as wood shavings, standard compound)
B. Provide sufficient lighting or local lighting;
C. Inventory and finished products should be placed in near normal work of the operator location;
D. When no one beside the machine, should stop machine running;
E. When found safety covers or saw blades failure should report immediately;
F. Use safety measures to cleaning, maintenance and cleaning wood and dust to eliminate the risk of fire
dust;
G. Pay attention on the highest speed marked on the blades;
H. Always wear helmet, safety glasses, earflap, gloves and other preventer when operating.
I. Always operating by two people.
J. Do not cut the wood which is less than 100mm of the length.
OPERATING INSTRUCTION

- 11 -
Adjusting the Engine
1. Clockwise rotate the Threaded Rod M10x120 (#54), the engine move outward, the belt will be tighten.
2. Counterclockwise rotate the Threaded Rod M10x120 (#54), the engine move inward, the belt will be
loosen.
OPERATING INSTRUCTION

- 12 -
The figures quoted are emission levels and are not necessarily safe working levels. Whilst
there is a correlation between the emission and exposure levels, this cannot be used reliably to
determine whether or not further precautions are required. Factors that influence the actual level
of exposure of the workforce include the characteristics of the work room, the other sources of
noise etc. i.e. the number of machines and other adjacent processes. Also the permissible
exposure level can vary from country to country. This information, however, will enable the user
of the machine to make a better evaluation of the hazard and risk
1. For moving bearing should be added the lubricating oil regularly to reduce abrading.
2. After long time work, belt maybe relaxant, need to adjust tensioner screw to make belt tight.
3. Tensioner screw maybe rusted after long time, that causes adjust the engine difficultly, always
keep a little lubricating oil on the tensioner screw.
4. When find the blade is not in middle of trough of work table, need to adjust the work table.
1. The tooth blunt or damaged, makes wood section is rough, need to change a new circular saw
blade.
2. Bearing temperature too high will case machine problem, pay special attention to bearing
temperature and noise of bearing parts, if find anomaly to add lubricating oil.
NOISE STATEMENT
ATTENTION IN WHOLE LIFE CYCLE
COMMON FAILURE

- 13 -
Step 1:
1. Attach the Tow Bar Mounting Plate to the Rear Crossbeam using Hex Bolt M10x20 and Nylon Lock Nut
M10. (Please see picture 1)
Step 2:
1. Block up the machine higher than the radius height of wheel (21cm), and make sure the machine stable,
then slide out the feet.
2. Attach the Wheel Assembly to the Frame using Hex Bolt M10x70, Flat Washer Ø10 and Nylon Lock Nut
M10. (Please see picture 3)

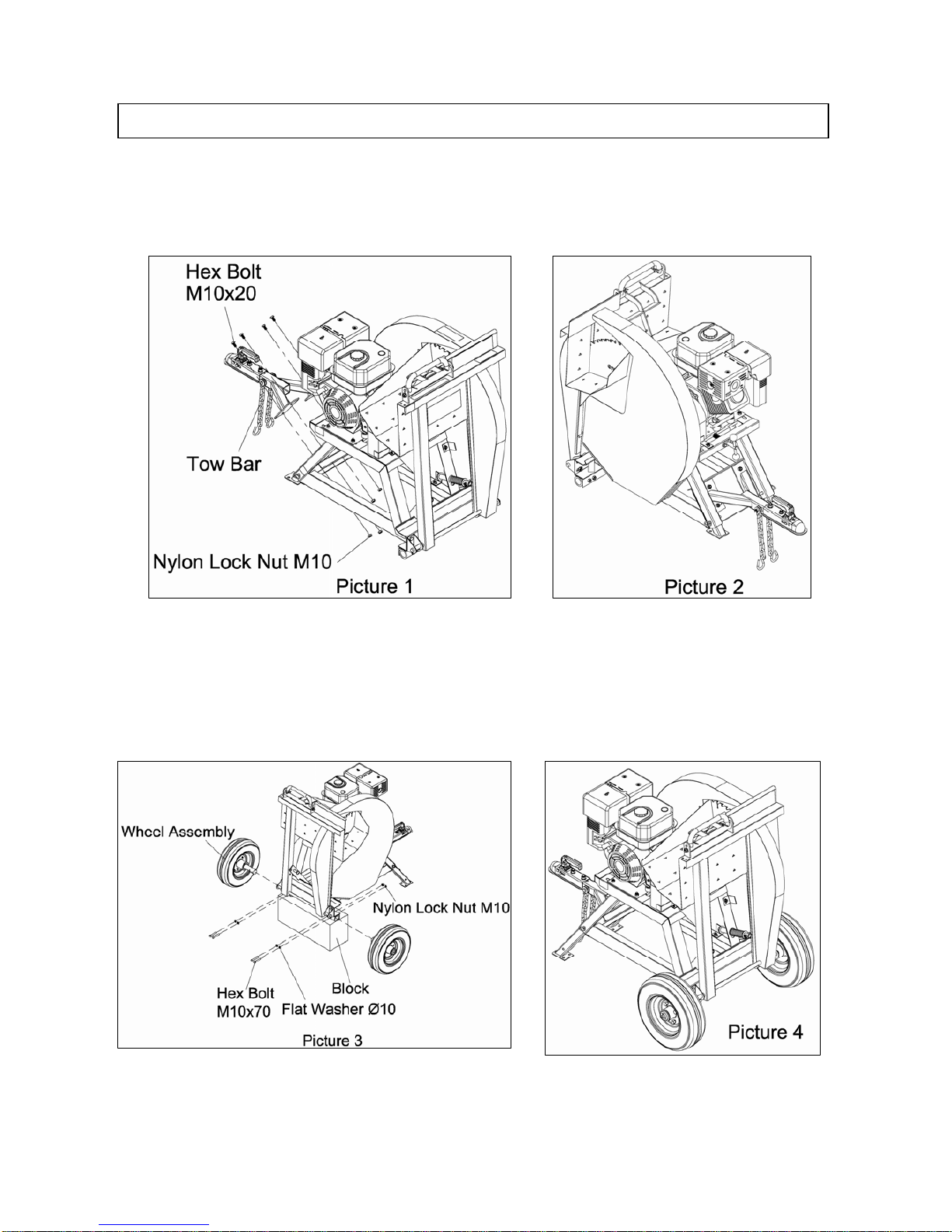

ASSEMBLY INSTRUCTIONS

- 14 -
1.See figure 1, take off the Hex Blot M6x30 and Lock Nut M6 on #1 Pull Rod and Lock Nut M8 on
position #2, put the work table on ground.
2. See figure 2, take off the saw blade and change it.
Schematic Diagram
CHANGE SAW BLADE STEP
Figure 1 Figure 2

- 15 -
Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem
corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general condition of the tool. Check for loose screws, misalignment or
binding of moving parts, cracked or broken parts, improper mounting of the Saw Blade and any other
condition that may affect its safe operation.
2. Remove cut-ff pieces and scraps from the Table before starting the 700 SAW BENCH. Before cutting,
ensure the machine is turned off. While the Saw Blade is completely stopped.
3. WARNING! Allowing sawdust, scraps, or other debris to accumulate can cause fire, resulting in
severe personal injury or property damage.
4. With a brush, soft cloth, or vacuum, remove all sawdust from the 700 SAW BENCH.
5. Do not use solvents to wipe off the 700 SAW BENCH, as damage may result. You may use a mild
detergent.
6. Once clean, lubricate all moving parts with a light oil.
7. When storing, keep the 700 SAW BENCH covered with a cloth cover.
MAINTENANCE AND SERVICING

- 16 -

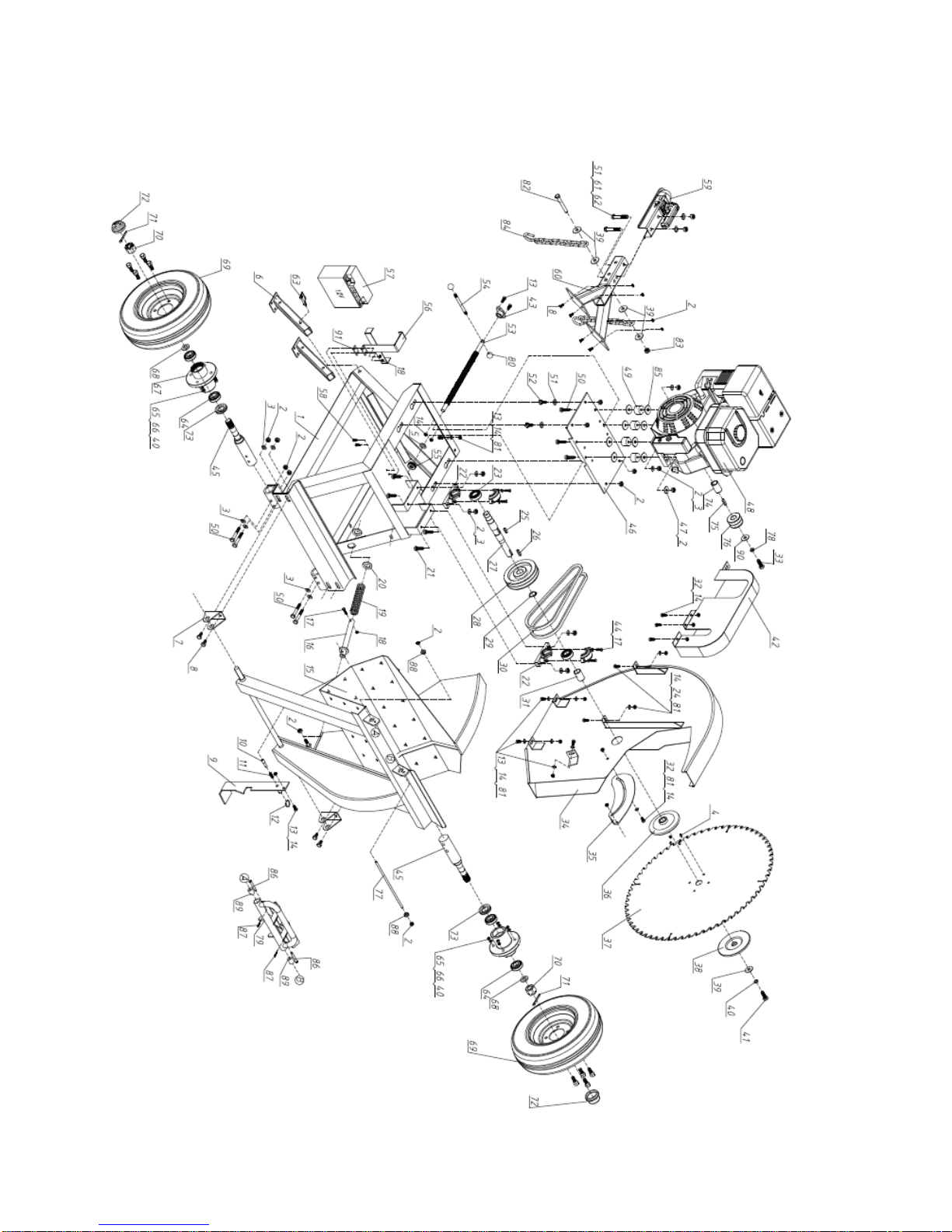

PARTS DRAWING

- 17 -
PARTS LIST
Part # Description QTY Part # Description QTY
1 Frame 1 31 Bearing Support Bushing 1
2 Nylon Lock Nut M10 27 32 Hex Bolt M8x16 4
3 Flat Washer Ø10 14 33 Hex Bolt M8x35 1
4 Round PinB8×8 4 34 Large Cover 1
5 Flat Washer Ø16 1 35 Long Slotted Plate 1
6 Rear Support Leg 2 36 Saw Blade Clamping Plate
(Inner) 1
7 Wheel Axle Base 2 37 Saw Blade 1
8 Hex Bolt M10x20 8 38 Saw Blade Clamping Plate
(Outer) 1
9 Support Leg 1 39 Big Flat Washer Ø12 5
10 Pawl 1 40 Lock Washer Ø12 9
11 Spring B 1 41 Hex Bolt M12x25 1
12 Key Ring 1 42 Belt Cover 1
13 Hex Bolt M8x20 7 43 Rear Crossbeam Base 1
14 Nylon Lock Nut M8 14 44 Lock Washer Ø6 4
15 Work Table 1 45 Wheel Axle 2
16 Pull Rod 1 46 Engine Mounting Plate 1
17 Hex Bolt M6x30 5 47 Big Flat Washer Ø10 2
18 Nylon Lock Nut M6 3 48 13HP Engine 1
19 Return Spring 1 49 Polyurethane Block 4
20 Flat Washer Ø22 2 50 Hex Bolt M10x70 8
21 Hex Bolt M10x35 4 51 Flat Washer Ø12 6
22 Bearing Base 2 52 Sliding Screw 4
23 Deep Groove Ball Bearing 2 53 Tensioner Screw 1
24 Hex Bolt M8x25 2 54 Threaded Rod M8x120 1
25 Key 8x25 1 55 Thrust Ball Bearing 1
26 Key C 8x32 1 56 Battery Pressure Plate 1
27 Main Shaft 1 57 Battery 1
28 Main Shaft Pulley 1 58 Hex Bolt M6x20 2
29 Retainer Ring Ø28 1 59 50mm Coupler 1
30 Vee Belt 2 60 Tow Bar 1

- 18 -
PARTS LIST
Part # Description QTY Part # Description QTY
61 Hex Bolt M12x70 2 77 Threaded Rod M10X350 1
62 Hex Nut M12 2 78 Lock Washer Ø8 1
63 Front Pin 2 79 Handle Assembly 1
64 Conical Roller Bearing 4 80 Bakelite Ball 2
65 Conical Hex Bolt M12x25 8 81 Big Washer Ø8 10
66 Hex Nut M12 8 82 Hex Bolt M12x90 1
67 Flange 2 83 Nylon Lock Nut M12 1
68 Flat Washer Ø20 2 84 Hook Chain 2
69 Wheel Assembly 2 85 Big Washer Ø10 8
70 Hex Nut M20x1.5 2 86 Pull Rod Pin 2
71 Cotter Pin Ø4x30 2 87 R Pin Ø3 2
72 Axle Cap 2 88 Nylon End Cap 2
73 Oil Seal 2 89 Nylon Bushing 2
74 Pulley Spacer Bushing 1 90 Big Washer 1
75 Key C 7x35 1 91 Adjusting washer 1
76 Engine Pulley 1
