Jiecang JC35VT Installation guide

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS
madeinChinaJiecangLinearMotionTechnologyCo.,Ltd.|www.jiecang.compage1of14
customerservice:sale[email protected]

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS
Thank you for purchasing the JC35VT TV lift. lease take time to identify all the parts and hardware prior to assembly.
Please all components on a padded/carpeted area to avoid damage. For safety, we recommend two people for
assembly.

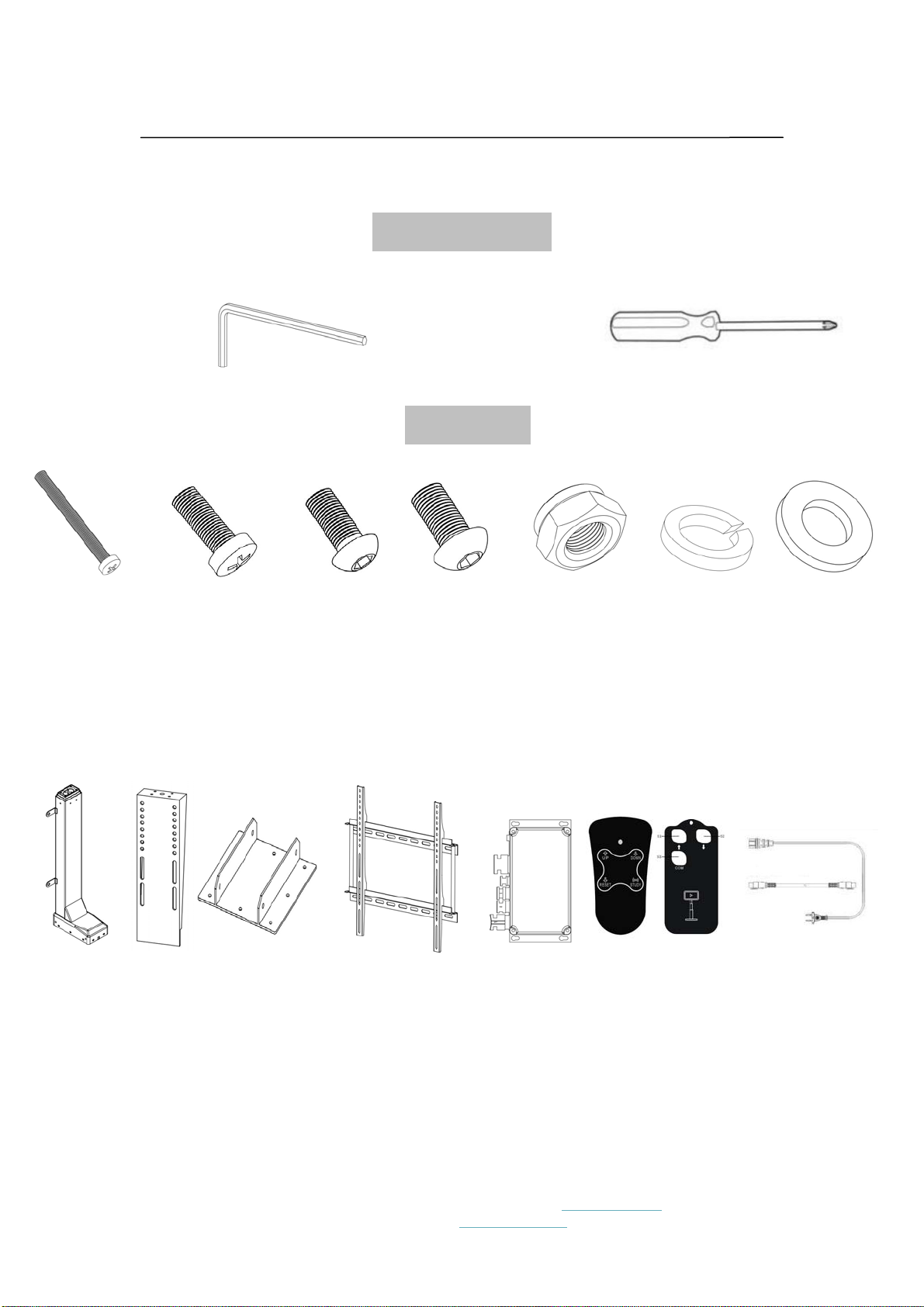

Tools Required
Allen Wrenches
M6 M8 Philips head screw
Hardware
8
Spring washers M6
4
Nuts M8
2
Screws M5×50
4
Screws M6×16
4
Hex Bolts
M8×16
8
Hex Bolts
M6×14
8
Washers M6
1
Mounting base
2
Connection cable
/ power cable
1
Remote
1
Handset
1
Control box
1
TV mounting bracket
1
Mountin
g
bracke
t
1
Column
madeinChinaJiecangLinearMotionTechnologyCo.,Ltd.|www.jiecang.compage1of14
customerservice:sale[email protected]

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS
No. Type Qty
1 Mounting base 1
2 Column 1
3 Washers M6 8
4 Spring washers M6 8
5 Hex Bolts M6x14 8
6 Screws M5x50 2
7 TV mounting bracket 1
8 Nuts M8 4
9 Mounting bracket 1
10 Screws M6x16 4
11 Screws M8X16 4
12 Connection cable and power
cable
2
13 Remote 1
14 Handset 1
15 Control box 1
madeinChinaJiecangLinearMotionTechnologyCo.,Ltd.|www.jiecang.compage1of14
customerservice:sale[email protected]

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS

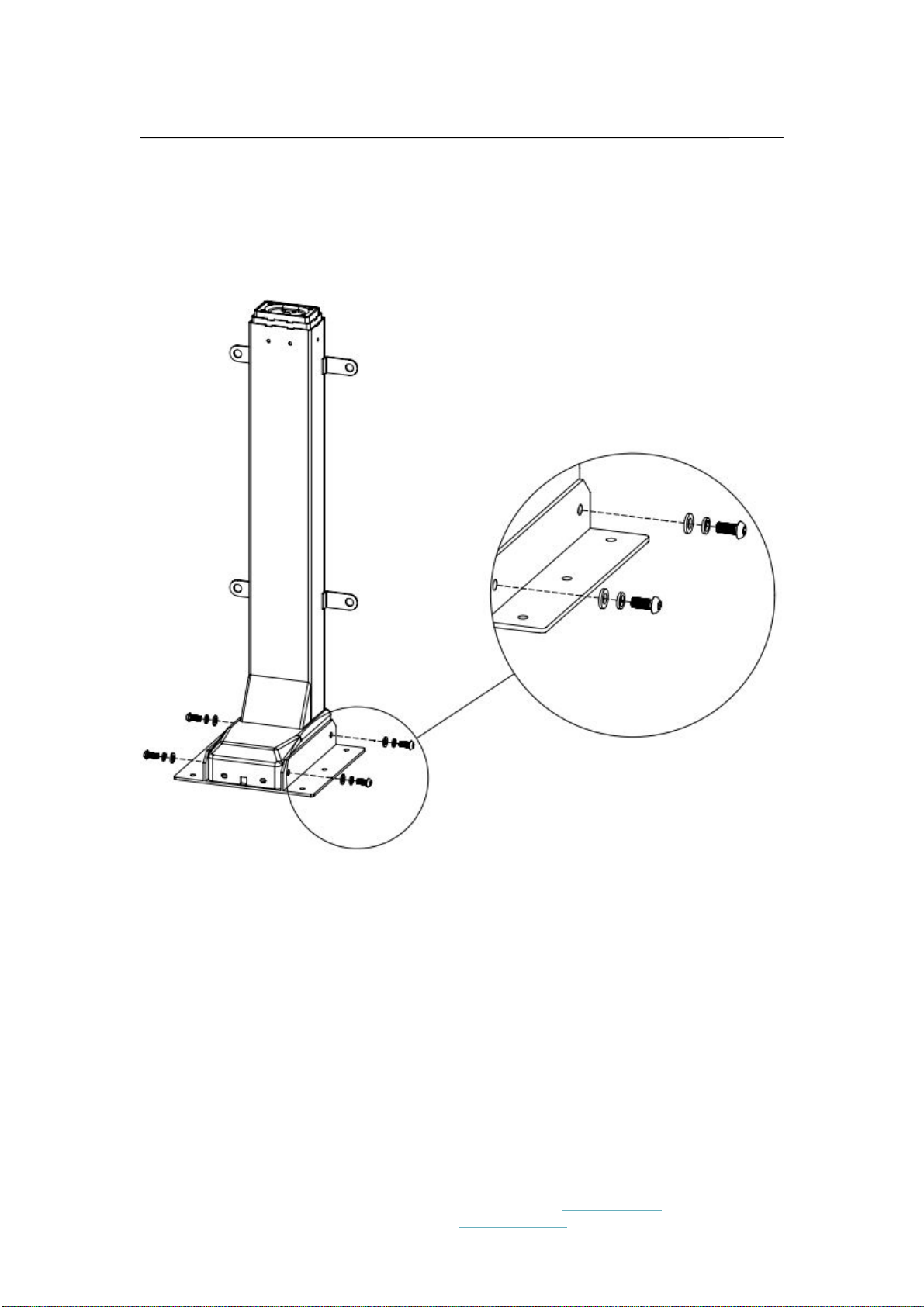

① Use 4 Hex Bolts M6x16, each with Spring washer and
Washer, to attach Bases to the bottom of the Column. Tighten the 4
Screws (2 per side).
madeinChinaJiecangLinearMotionTechnologyCo.,Ltd.|www.jiecang.compage1of14
customerservice:sale[email protected]

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS
② Use 4 Hex Bolts M6x16, each with Spring washer and
Washer, to attach Mounting bracket to the top of the Column.
Tighten the 4 Screws.
madeinChinaJiecangLinearMotionTechnologyCo.,Ltd.|www.jiecang.compage1of14
customerservice:sale[email protected]

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS

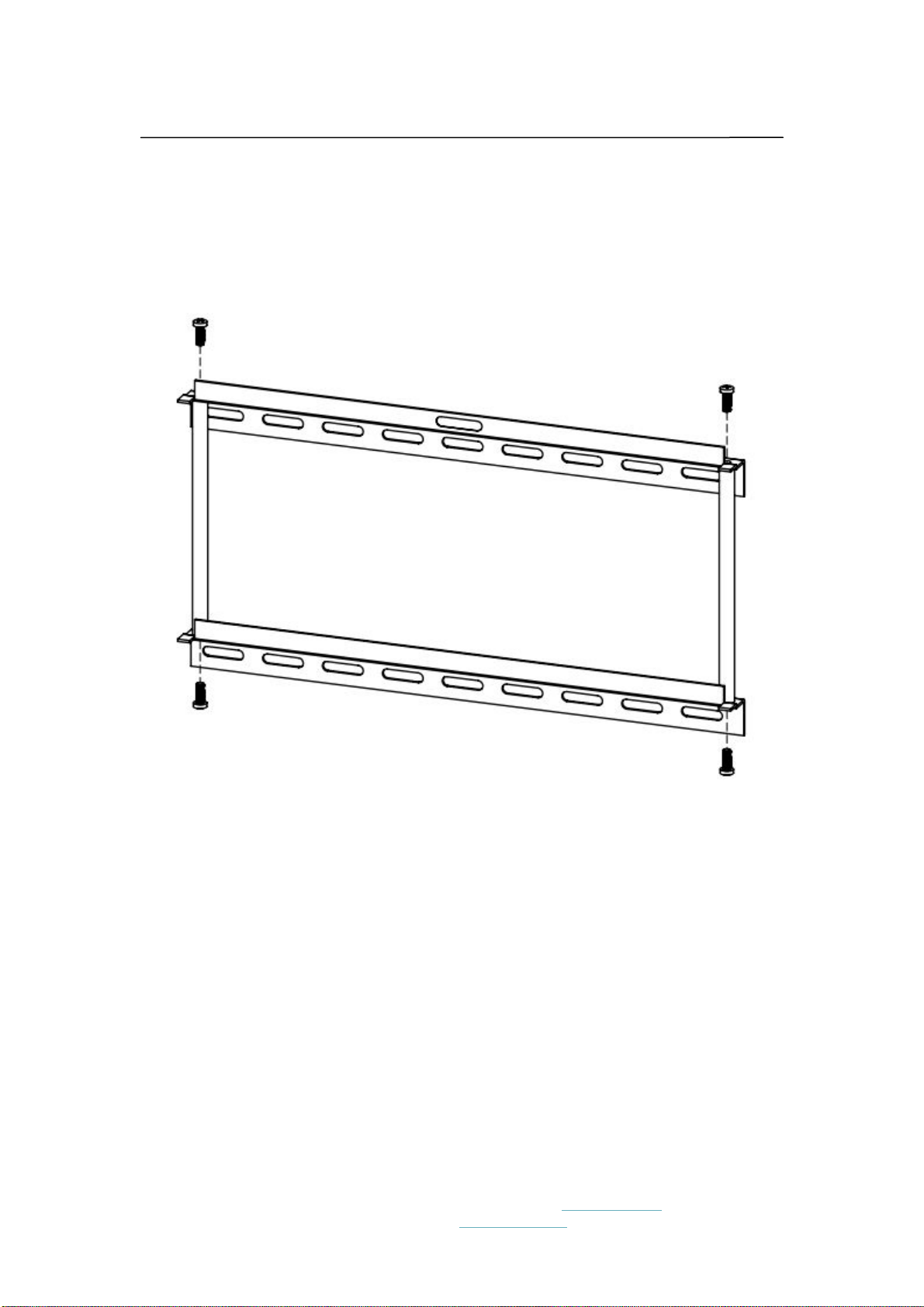

③ Use 4 Screws M6x16, to assemble the TV mounting
bracket as following.
madeinChinaJiecangLinearMotionTechnologyCo.,Ltd.|www.jiecang.compage1of14
customerservice:sale[email protected]

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS

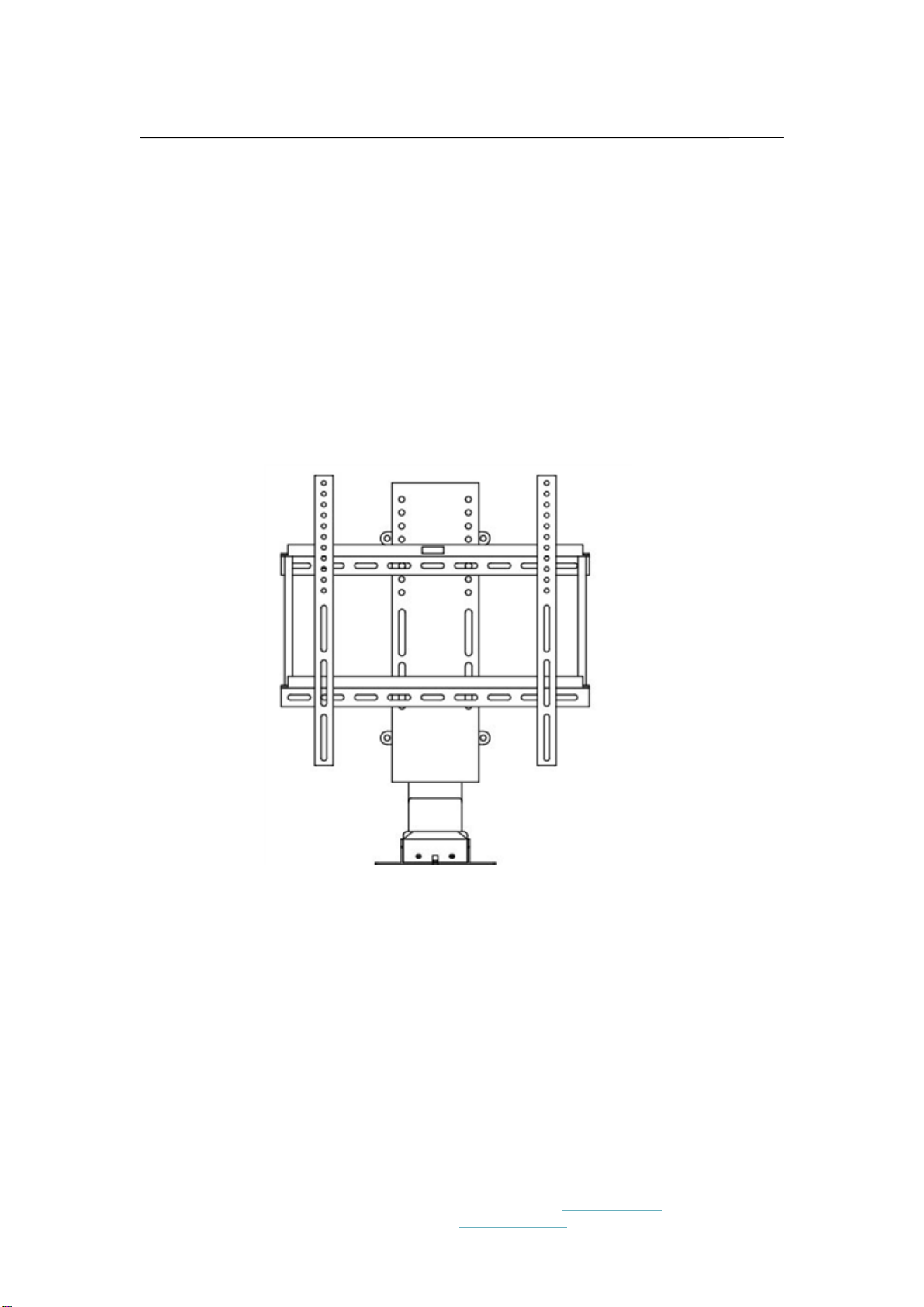

④ Use 4 Hex Bolts M8x16, each with Spring washer and
Washer, to attach TV mounting bracket on to the Mounting bracket.
Tighten the 4 Screws.
madeinChinaJiecangLinearMotionTechnologyCo.,Ltd.|www.jiecang.compage1of14
customerservice:sale[email protected]

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS

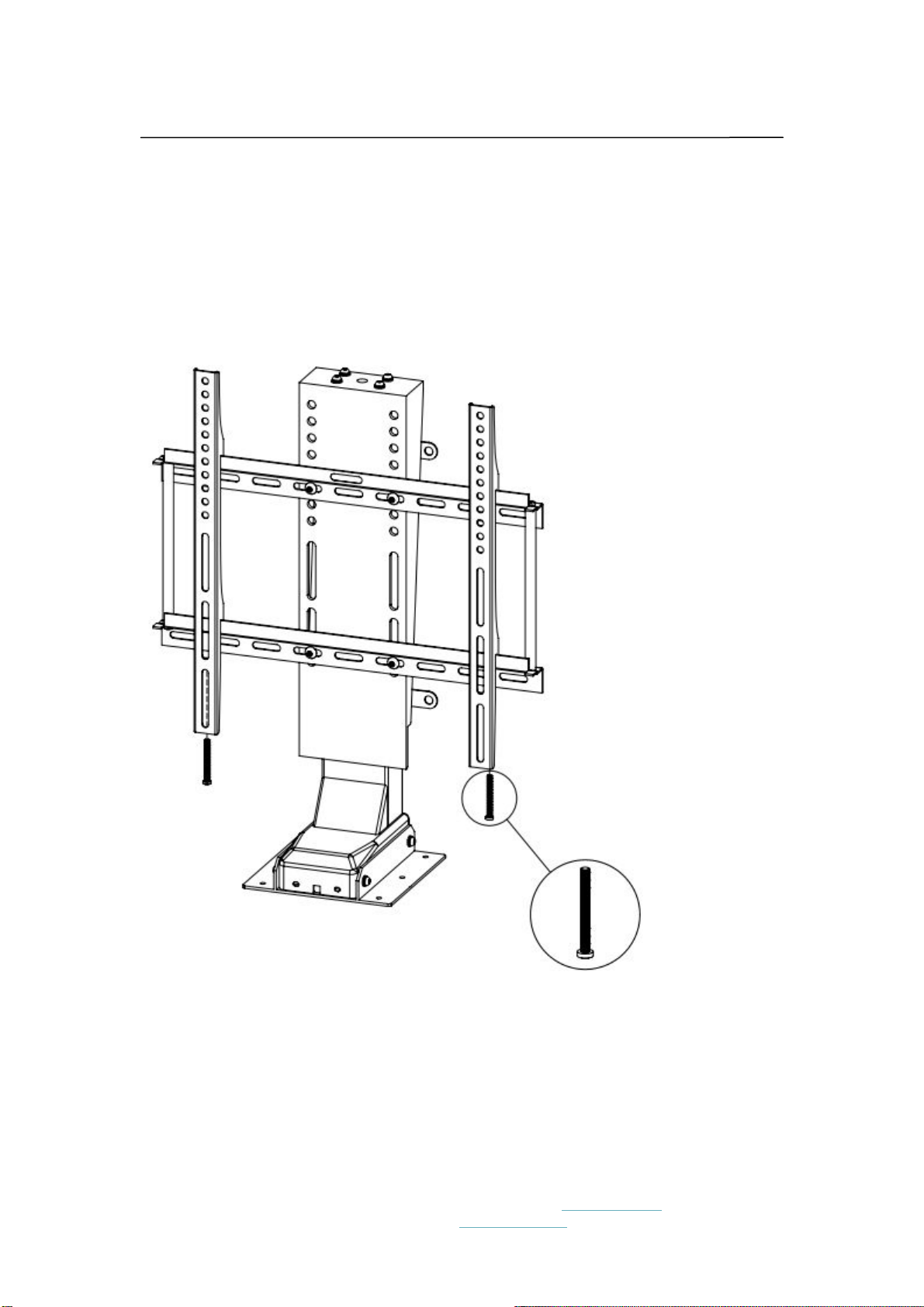

⑤ Secure another 2 parts of the TV mounting bracket onto the
backside of the TV set with 4 screws included with TV set. And then
hang the TV set onto the TV mounting bracket as following. Use 2
M5x50 screws to tighten on the bottom.
madeinChinaJiecangLinearMotionTechnologyCo.,Ltd.|www.jiecang.compage1of14
customerservice:sale[email protected]

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS

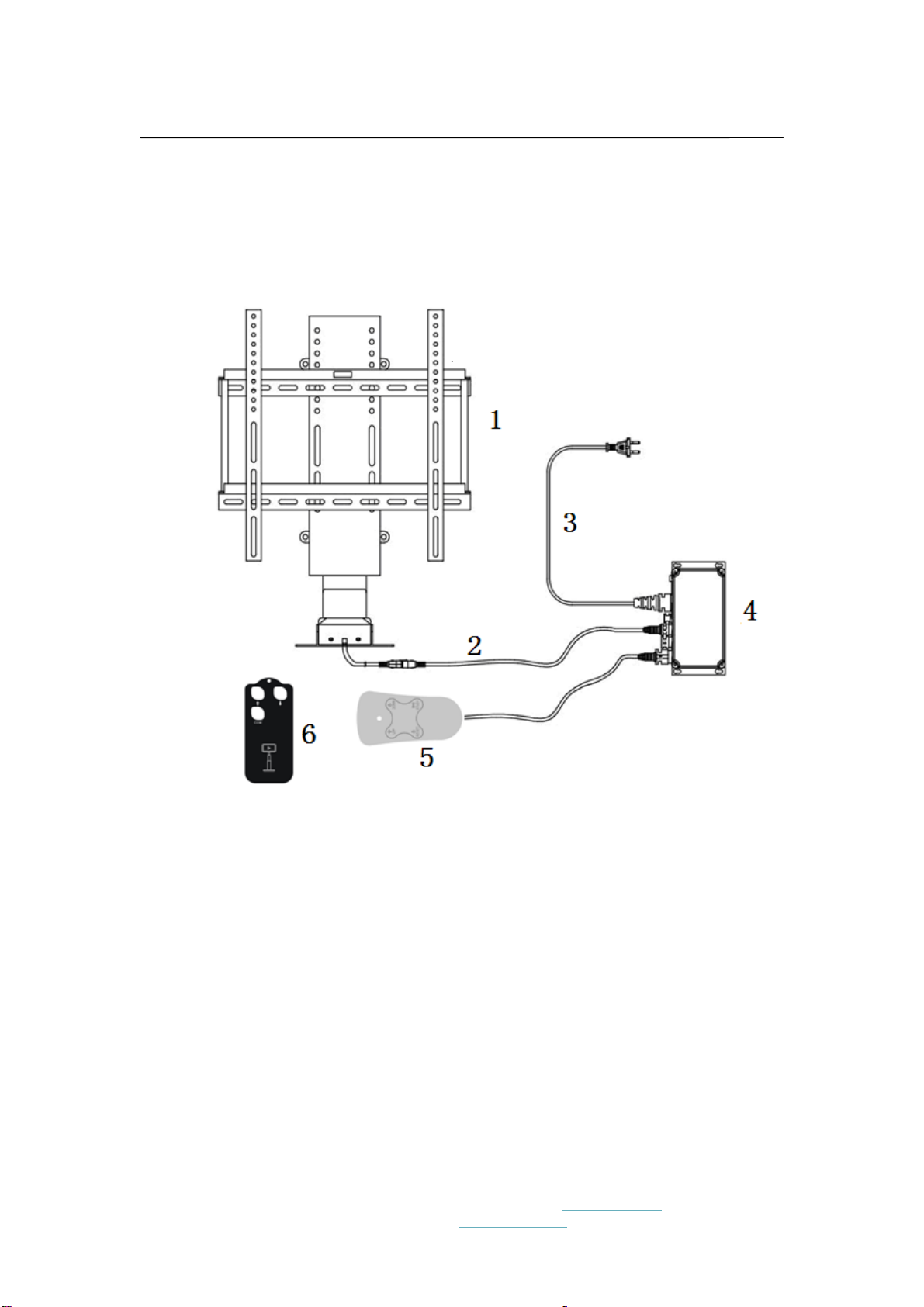

⑥ Connect the Wires as per the diagram below. Now your TV
lift is ready for use. (press the buttons of the handset and column
will move up/down)
⑦ Operating: You can use the remote or handset operate the
TV lift. (1) remote: Press S1+S3, TV lift move up, press S2+S3, TV
lift move down. (2) handset: Press UP button, TV lift move up,
press DOWN button, TV lift move down. (3) During the movement,
you can press any button on remote or handset (not the RESET
button on handset), TV lift stop at once.
madeinChinaJiecangLinearMotionTechnologyCo.,Ltd.|www.jiecang.compage1of14
customerservice:sale[email protected]

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS
⑧ Set the TOP and BOTTOM position:According to the
dimension of the TV set, you can reset the top and bottom position
of TV lift. Press UP button on handset, TV lift moves up. Press the
UP button (red) on control box, then you have the TOP position of
the TV lift. Press DOWN button on handset, TV lift moves down.
Press the DOWN button (black) on control box, then you have the
BOTTOM position of the TV lift. Now, you can only move the TV lift
from TOP and BOTTOM positions by handset and remote.
⑨ Reset the TOP and BOTTOM position: Sometime, you want
madeinChinaJiecangLinearMotionTechnologyCo.,Ltd.|www.jiecang.compage1of14
customerservice:sale[email protected]

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS
to reset the top position more higher than original TOP position and
bottom position more lower than original BOTTOM position. You
can do according to the following procedure.
Press UP button on handset and UP button on control box and
hold them together, TV lift moves up. You release these 2 buttons
when you find the new TOP position. Press DOWN button on
handset and DOWN button on control box and hold them together,
TV lift moves down. You release these 2 buttons when you find the
new DOWN position. Now, you can only move the TV lift from these
new TOP and BOTTOM positions by handset and remote.
⑩ Some other information:
(1) Frequency study: When you can not find the remote and
buy a new from your local distributor, the frequency of the new
remote perhaps not match with your control box. You should
STUDY the frequency between the remote and control box as
following procedure:
Press any button S1 (or S2 and S3) and STUDY button on
handset at the same time and hold them. Several seconds later,
the LED on handset will blink and you finish the frequency study.
You can use the new remote to operate this TV lift now.
madeinChinaJiecangLinearMotionTechnologyCo.,Ltd.|www.jiecang.compage1of14
customerservice:sale[email protected]
(2) Time protection: In order to prevent from “playing” with
the TV lift, there has time limit protection. You only can operate

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS
3 minutes on the TV lift in 20 minutes. If the operation time is too
long (more than 3 minutes), the system will stop to move and
LED on the control box will blink. You should wait for 20 minutes
or cutoff the power of the control box, and then you can operate
the TV lift again.
(3) RESET the system: If there has some problem of the
system, for example, the cable connection problem, the TV lift can
not move when you press the UP/DOWN buttons, you should try to
RESET the system as following procedure:
Warning: The TV lift will move to the zero position when
RESET. Be sure there is no obstruction under the TV set.
Reconnect the cables again. Turn off the power of the control
box and turn on the power again. Be sure the green LED on the
control box is light on.
madeinChinaJiecangLinearMotionTechnologyCo.,Ltd.|www.jiecang.compage1of14
customerservice:sale[email protected]

JC35VT TV lift
ASSEMBLINGINSTRUCTIONS
Press the RESET button on handset and hold it. After 5
seconds, TV lift will move down slowly and then to the zero position
and then move up 7 mm and stop. You finish the RESET procedure.
During the RESET procedure, you should hold the RESET button
and the LED light on the handset will blink during the RESET
procedure. The LED on the handset will turn off after finish the
RESET. You can operate the system now.
FEATURES:
Adjustable height: 570mm - 1220mm (type 1#); 810mm - 1810mm
(type 2#)
Lifting column speed: 30mm per second (no load)
Duty Cycle: 10%, max 2 minutes on / 18 minutes off
Remote distance: 5m
Warning: This products is warranted against manufacturing defects
for a period of two years.
