Jimu ZDrive ADAS User manual

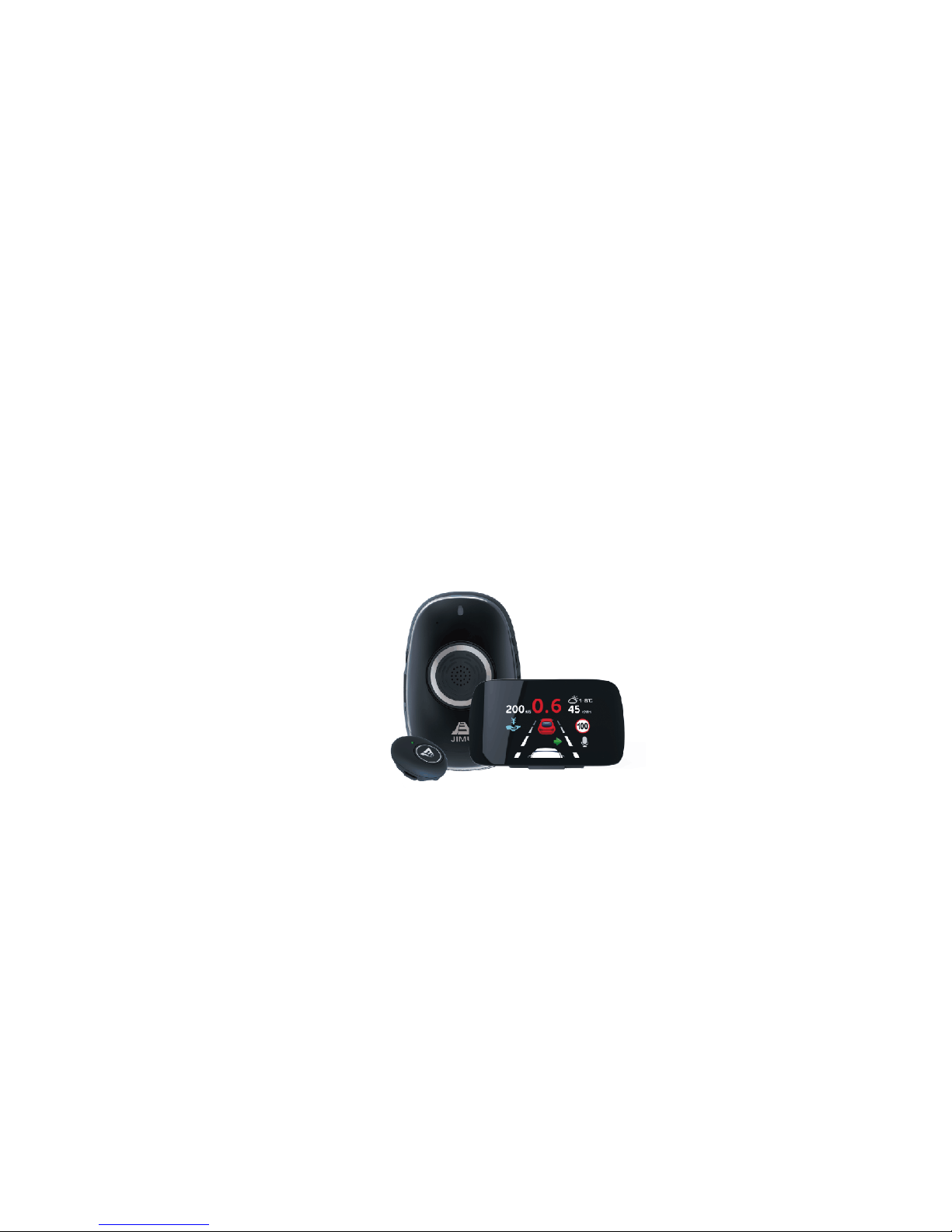

JIMU ZDrive ADAS Driver Assistant
User Manual

Introduction
JIMU ZDrive ADAS Driver Assistant, based on self-developed graphic processing technology, is capable of reducing collision accidents with
early warning when it detects potential collision dangers during driving, which also helps to improve users’ driving behaviors.
JIMU ZDrive features lane departure warning, forward collision warning, headway monitoring and warning, virtual bumper, front drive-off
warning, cloud radar detector, voice navigation, vehicle recording, in-car WiFi, one-touch snapshot, etc.
!

Features
Front Collision Warning
When there’s urgent tailgating danger due to car cut-in or front cars’ sudden deceleration, ZDrive will issue visual and auditory alerts.
Headway Monitoring and Warning
When your vehicle is too close to cars ahead, ZDrive will issue visual and auditory alerts. It works when car speed is above 4oKm/h.
Lane Departure Warning
When your vehicle drifts out of current lane without turn lights on, ZDrive will issue visual and audible alerts. It works when car speed is
above 5oKm/h.
Virtual Bumper
Virtual Bumper is designed to warn drivers of unintentional forward moving during a traffic jam, reducing the incidence of non-fatal “fender
bender” accidents in low speed environment.
Front Drive-Off Warning
When the vehicle in front of your car starts to move forward in a traffic jam or at the traffic light, ZDrive will give alerts if your car stays still
because of your inattention.
•Front Collision Warning
•Headway Monitoring and Warning
•Lane Departure Warning
•Virtual Bumper
•Front Drive-Off Warning
•Driving Behavior Analysis
•In-Car WiFi
•Cloud Radar Detector
•Voice Navigation
•One -Touch Snapshot

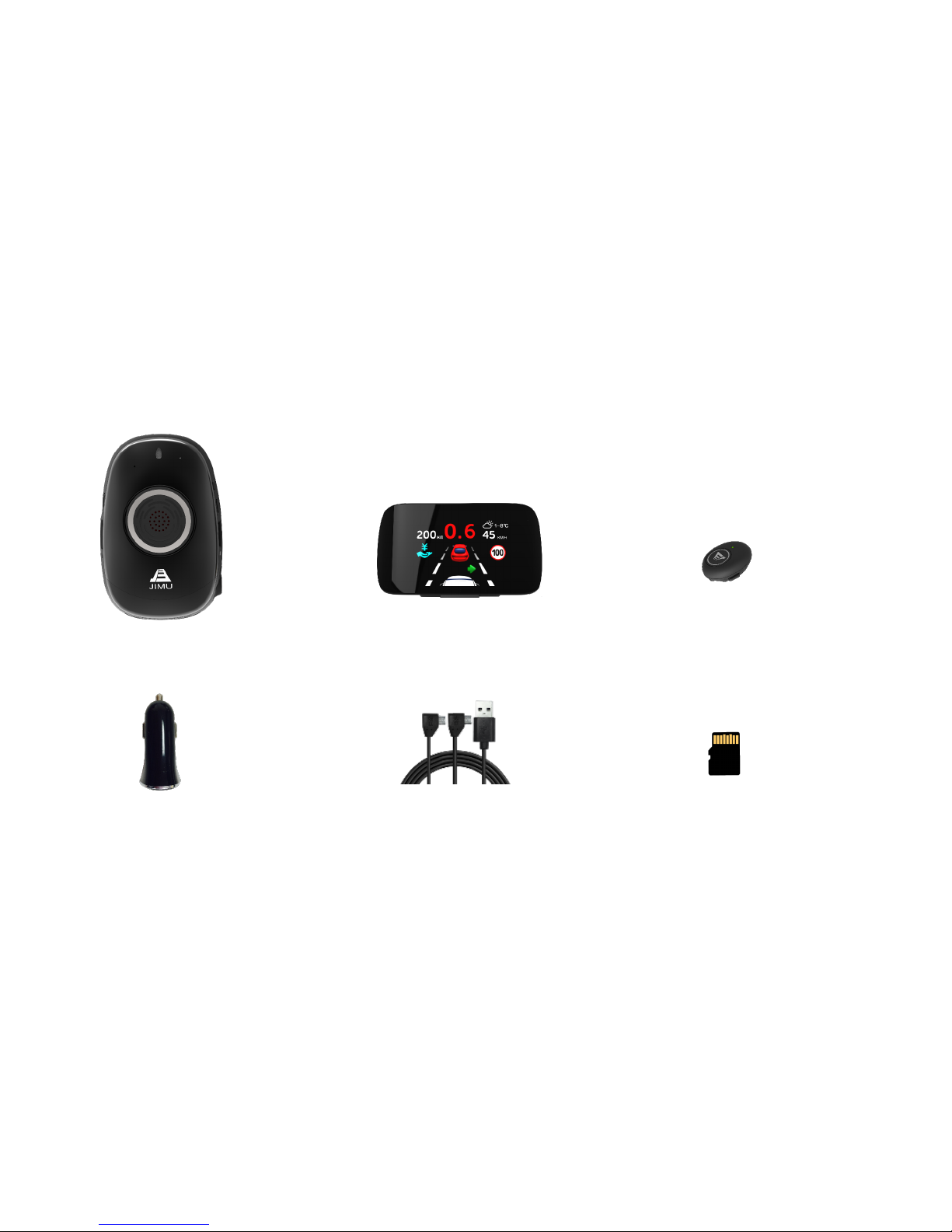

ZDrive Accessories
Main Unit
Display Unit
TF Card
Smart Sensor
Charger
Cable

Preparation
Before the installation, you are suggested to :
•Read this instruction
•Download the ZDrive APP in advance
•Find a car parked on a flat road with clear lane lines, and then park your car behind it with 3~5 meters distance.
Device Binding
Before install the device, you have to activate it following these steps :
1) Search “JIMU ZDrive” on Google play / App Store to download ZDrive App.
2) Register the app, and log in.
3) In the settings, find My Device, click to bind the device.
4) Input the IMEI / SN number, click on Bind. (SIM card activation is optional)
!

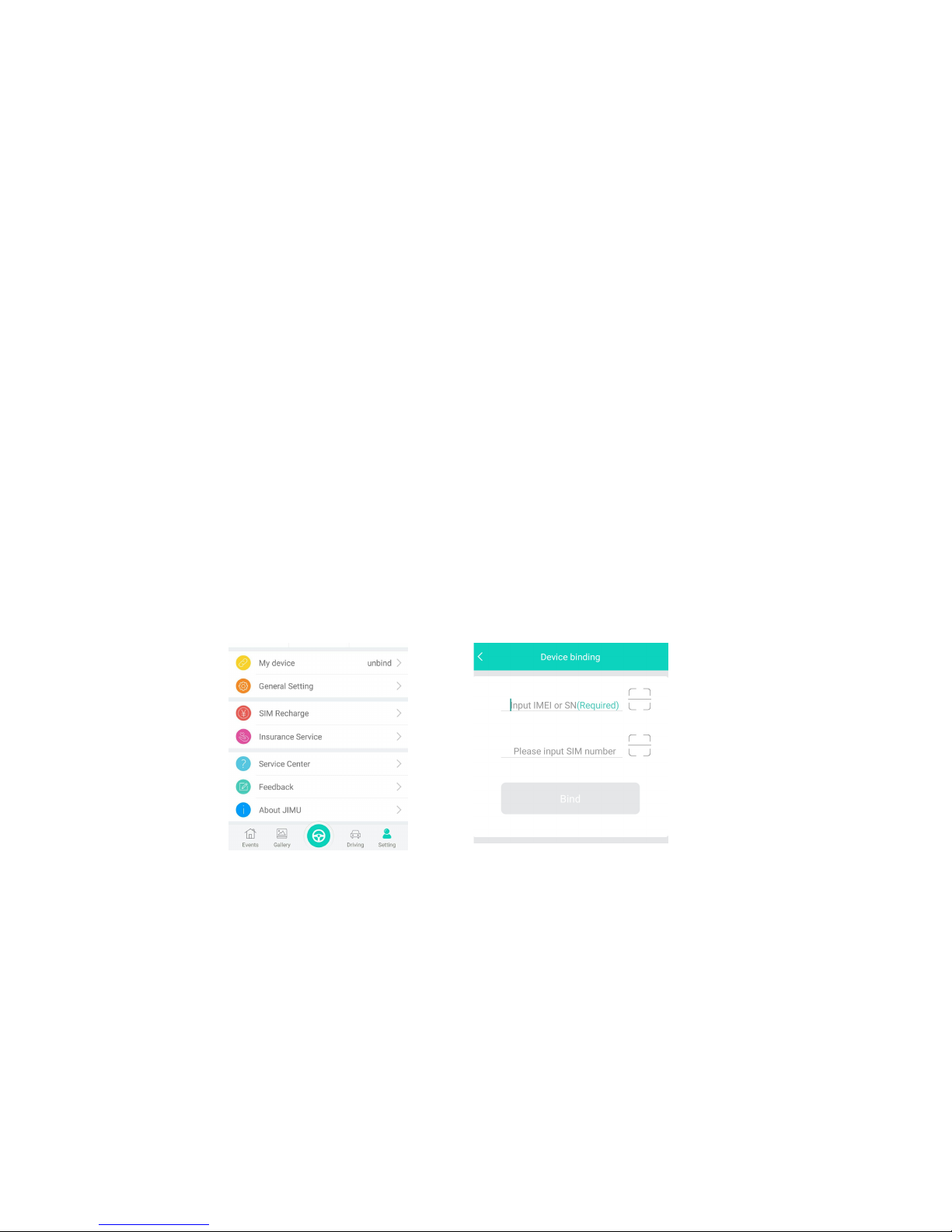

Click on My Device
Input IMEI / SN number

Device Installation
1) Insert SIM and TF card
2) Main Unit and Base Installation
Install the tubular spirit level on the base, and then fix the base to the middle of the windshield, as high as possible ,but ~4cm gap
to the top is suggested to be reserved for future uninstallation.
•Make sure the base is in horizontal with the help of spirit level, and then take the level down.
•Use lens cleaning paper to clean the camera lens, then close the Main Unit bottom to the base, slide down to fix it on the base.
Main Unit Installation

3) Display Unit Installation
Take off the sticker, and put it at a proper location that not influence drivers’ sight and the power cord could be properly connected.

4) Smart Sensor Installation
Open the back cover, put the battery in, and then place the sensor on the steering lever.
Make sure the sensor is on the top side of the lever, and the button is on driver’s side instead of passenger’s side.

5) Line Layout
Connect the main unit, and display screen, and power them on, then you will see a red dot on the bottom of the screen; lights on main unit
turn to blue.
Main Unit
Display Unit
Smart Sensor
Charger

6) Device Connection
Open ZDrive APP, click on【device connection】: select JIMU_XXXXX WiFi, and the default password is 123456789 if you’re prompted to
input one.
!

7) Camera Calibration
After device is connected, click on the 【+】mark on the APP to start camera calibration. Use the paddle to slightly adjust the camera screw,
make sure the green skyline on the screen could be align with the middle part of your front car’s rear windshield.
!
Use paddle to slightly adjust the camera
Recommended
Not Recommended

8) Display Unit Binding
Click on to go to devices settings, select Display Unit, and turn on【Display Unit Bind】. When the red dot on screen turns
green, the binding finishes.
!

9) Smart Sensor Calibration
In the Settings, select Sensor Calibration, then follow the instructions on the App to finish.
•First of all, press the button on the sensor to activate the calibration;
•Then activate the right turn signal, and press the sensor button;
•Reset the turn signal, and press the sensor button;
•Activate the left turn signal, and press the sensor button!

Other Settings
In the Settings, you should define your car type, ADAS warning frequency, and the enabling of some features before use.
Notes:
•Car Type : Define your car type before use, otherwise the warning precision
would be affected.#
•ADAS Warning : You could enable/disable some ADAS features here.#
•Warning Frequency Mode : 3 modes ( high / medium / low ) are available.
Related working conditions are listed below.#
(* In high frequency mode, the LDW will always be issued regardless of
the turn light status.)
FREQUENCY
HIGH
MEDIUM
LOW
FCW
CAR SPEED THRESHOLD
30 KM/H
40 KM/H
50 KM/H
FCW
ADVANCED WARNING TIME
1.0 SEC
0.8 SEC
0.6 SEC
LDW *
CAR SPEED THRESHOLD
40 KM/H
50 KM/H
60 KM/H

Specifications
Detection Parameters
Lane Marks
•Measurement accuracy: 3cm
•Lane mark types: Solid, Dashed, Double, Rumble marking, Road edge, Roadside fence
Vehicle Detections
•Detection range: 80m (70° lens, 1.0 MP)
•FAR (false alarm rate): 1/16H
•Vehicle types: Cars, SUV, Trucks, Van trucks, Hopper trucks, Buses, Tricycles, Motorcycles, Bicycles,
Electric bicycles, Flat cars, Special cars
JIMU Display Unit
Model
JMS_V2.0
Dimension
93.2mm x 50.2mm x 15.6mm
Display
2.4-in LC, 400nit
Electricity
DC 5V / 150mA output
Vehicle Recording
Image Res.
HD
Video Res.
HD
Smart Sensor
Battery Life
4-month (around 3-hour daily use)

NOTES
Before using JIMU ZDrive ADAS Driver Assistant ( hereinafter referred to as JIMU ZDrive ) , carefully read the following notes this user
manual contains.
Please note that JIMU ZDrive is not a substitute for safe and alert driving.
The JIMU ZDrive is advanced driver assistance system which alerts drivers to certain potentially dangerous situations. It does not replace
any functions drivers would ordinarily perform in driving a motor vehicle, nor do they decrease the need for drivers to stay vigilant and alerts
in all driving conditions, to conform to all safe driving standards and practices, and to obey all traffic rules and regulations.
While JIMU ZDrive represents a state of the art innovation in machine vision software and other technologies, it cannot and does not
guarantee 100% accuracy in the detection of vehicles, lane lines, and does not guarantee therefore the provision of any related audio or
visual warnings. In addition, road, weather and other conditions can adversely affect the JIMU ZDrive recognition and response capabilities.
Accordingly, drivers should not rely on JIMU ZDrive to assure their driving safety, but rather should continue to rely on safe driving practices.
Every effort has been made to ensure the accuracy of all information in this user manual. However, JIMU Intelligent makes no expressed or
implied warranty or representation base on the enclosed information. JIMU Intelligent reserves the rights to alter the equipment
specifications and descriptions in this publication without prior notice. !
