Jireh ODI-II User manual
CK0063 - Rev 03.3
53158 Range Road 224
Ardrossan, AB
Canada, T8E 2K4
1 INTENDED USE
The ODI-II is a mini encoder designed to provide the encoded position of two probes along the
scan axis.
2 SPECIFICATIONS
Clamp width: 45 mm (1.75 in)
Encoder wheel diameter: 20.37 mm (0.8 in)
Encoder resolution: 16.00 counts/mm (406.4 counts/inch)
Environmental sealing: Watertight (submersible), Contact JIREH for details
Weight: 0.36 kg (0.8 lb)
Operating environment: -20°C (-4°F) to 50°C (122°C)
3 MAINTENANCE
Wipe the scanner clean as required. Do not soak or submerge the scanner in cleaner or solvent
of any kind.
4 PREPARATION FOR USE

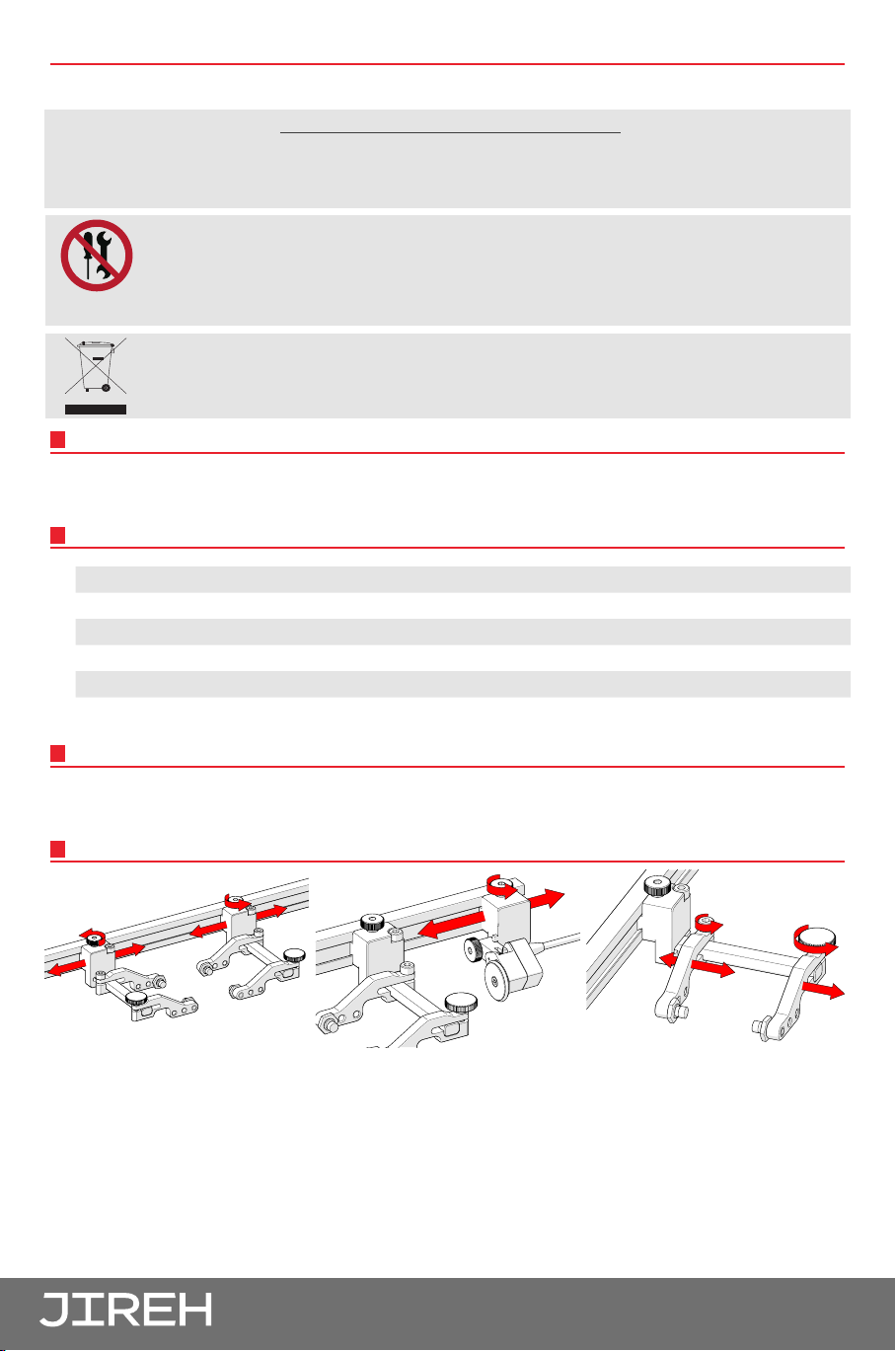

4.1. Probe Holder Setup
1. Loosening the probe holder adjustment knobs (Fig. 1) allow the probe holders to be
positioned along the frame bar.
2. The encoder position may be adjusted by loosening the encoder adjustment knob (Fig. 2).
3. Position the probe holder arms after loosening the arm clamp screw or probe holder arm
adjustment knob (Fig. 3).
4. Loosen the probe holder arm adjustment knob to remove the probe holder arm (Fig. 3).
Fig. 1 - Frame bar positioning Fig. 2 - Encoder positioning Fig. 3 - Probe holder arm adjustment
USER MANUAL
ODI-II
KEEP THIS MANUAL – DO NOT LOSE
THIS MANUAL IS PART OF THE ODI-II SYSTEM AND MUST BE RETAINED FOR THE
LIFE OF THE PRODUCT. PASS ON TO SUBSEQUENT OWNERS.
Ensure any amendments are incorporated with this document.
WARNING! DO NOT DISASSEMBLE. No user-serviceable parts.
Disassembling any of the components in this product, beyond the instructions in
this user manual, could void the regulatory certications and/or effect the safety
of the product.
The WEEE symbol indicates that the product must not be disposed of as
unsorted municipal waste, but should be collected separately.
CK0063 - Rev 03.3
780.922.4534
jireh.com
5. Place the wedge on the inner probe holder arm’s button and clamp in place with the outer
probe holder arm (Fig. 4). Tighten the probe holder arm adjustment knob.
4.2. Encoder Setup
1. Loosen the encoder’s thumb screw and lower the encoder wheel’s pivot joint towards the
scan surface (Fig. 5).
2. Tighten the encoder thumb screw and ensure adequate spring tension of the encoder wheel
to the scan surface (Fig. 6).
5 TROUBLESHOOTING
Encoder not
incrementing
Encoder wheel not in contact with
scan surface
Rotate pivot joint until wheel is in
contact with scanning surface and
spring joint is slightly depressed.
(see 4.2. Encoder Setup)
Encoder connector not properly
connected to scanning device
Check scanning devices instructions
to properly connect an encoder.
6 SPARE PARTS
1
7
2
3
5
46
8
9
Part # Description
1 CKS010-X-05 Base ODI-II (various encoder connector types)
2
3
4
5
6
7
8
BOM ID
CKS014 Yoke Clamping Mount
CKS015 Encoder Clamping Mount
CK0047-X Dovetail Slide Frame Bar (30 mm, various lengths available)
CK0018 Clamp Arm (70 mm, various lengths available)
CKS011-X-05 Encoder Assembly (various encoder connector types)
PHG0XX-BXX Probe Holder Arm Set (various styles available)
CK0064 Heat treated stainless steel encoder wheel
9CKA010 ODI-II Case
Fig. 4 - Mount wedge Fig. 5 - Lower encoder wheel Fig. 6 - Ensure spring tension
