FCC Compliance Statement
NOTE: This equipment has been tested and found to comply with
the limits of Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
this equipment.
Safety Considerations
• Install the receiver module in a dry, well-ventilated location that
does not interfere with your factory-installed systems. If a dry
environment is not available, a location that is not exposed to
heavy splashing may be used. Do not install where it will be directly
exposed to the elements.
• Securely mount the receiver module to avoid coming loose in the
event of a collision, sudden jolt or as a result of repeated vibrations
during normal use.
• While the remote transmitter is designed to be water-resistant, it
should never be submerged under water for prolonged periods or
subjected to high-pressure water spray.
• Do not mount the remote cradle or receiver module in an engine
compartment or areas of extreme heat. Areas exposed to a heater or
hot air should also be avoided.
• Check before drilling to make sure that you will not be drilling into
an exterior panel/hull, fuel tank, gas/brake line, wiring harness or
other vital system.
• Protect all wiring from sharp edges and wear by carefully routing
them, tying them down and using grommets and loom where
appropriate. Secure all wiring using cable ties or wire clamps,
as needed.
Installation Applications
This product is designed for operation in 12 volt, negative-ground
electrical systems. Using this product in systems with positive ground
and/or voltages other than 12 volts may result in damage to the
product and will void the warranty. This product is not certied or
approved for use in aircraft.
What is Included
(1) MMR-10W Remote Transmitter
(1) Remote Cradle
(2) Plastic cable ties
(1) Flat head screw
(1) User Manual
Also Included (MMR-10W only)
(1) MMR-10W Receiver Module
(2) Pan head screws
(1) Quick-release lanyard
Product Description

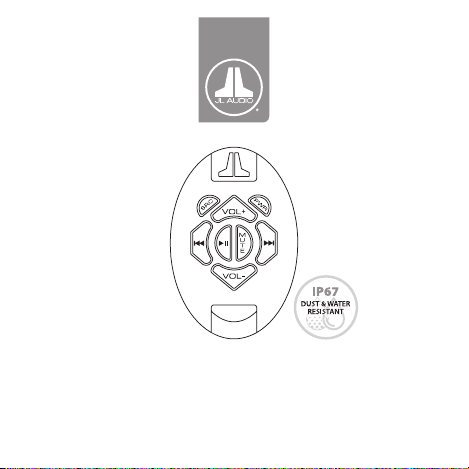

The MMR-10W is a wireless remote controller designed to add
handheld control functionality to MediaMaster® source units.
Utilizing state-of-the-art, 2.4 GHz wireless technology, the MMR-
10W permits control of your MediaMaster® source unit (with LED
signal conrmation), from up to 150 ft. (45 m) away. The MMR-10W
system consists of a hideaway receiver module and water-resistant
(IP67 rated) remote transmitter. The receiver module is designed to
connect directly to your MediaMaster® and is programmable, with
the ability to pair with up to ten MMR-10W remote transmitters.
A versatile mounting cradle is included, along with a lanyard for
convenient, on-the-go functionality.
IP67 Water Resistance Rating
The MMR-10W remote transmitter has been tested to withstand
immersion in water, up to 1 meter (3.28 ft.) deep, for up to 30 minutes.
Note: While designed to be water resistant, the remote should never
be submerged under water for prolonged periods or subjected to
activity that creates pressure on it that exceeds its depth rating.
Receiver Module Placement & Connection
While the MMR-10W receiver module can be mounted in any
orientation, its installation location should be considered to
optimize RF performance. For example, we recommend that you
avoid mounting the receiver module directly to metal surfaces or
to wire harnesses, especially those containing high-current circuits.
Mounting locations in close proximity to other electronics should also
be avoided to minimize wireless interference. Use the two supplied
pan head screws to mount the receiver module.
The receiver module is designed to connect directly to the 5-pin
“Remote” plug of your MediaMaster®. Use caution when mating
the connectors, as they are keyed and must be aligned to t
properly. Note: If a MMR-20 wired remote controller is installed
with your MediaMaster®, you may use a Y-adaptor (MMC-2Y)
(sold separately) to add/connect the MMR-10W receiver module.
If space directly behind your MediaMaster® is limited, you
may use a remote controller cable (MMC-6 or MMC-25) (each
sold separately) to extend the receiver module’s mounting
options. Once connected, make sure that cables are securely
routed using cable ties and wire clamps, keeping connections
away from areas where they could be submerged in water.
MediaMaster® Wireless Remote Controller
MMR-10W / MMR-10W-Remote
Remote Cradle Mounting

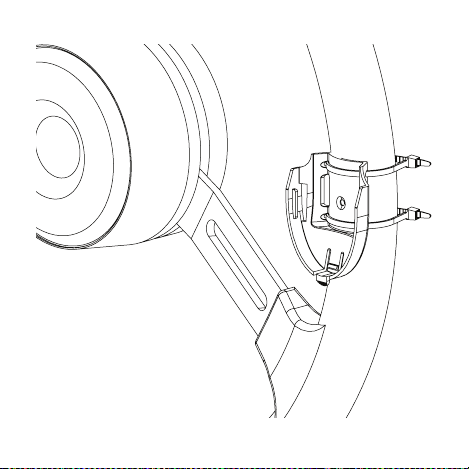

For convenience, a plastic cradle is included to mount the MMR-
10W remote transmitter. The base of the cradle is designed so it can
be installed on a at surface or a tubular structure, such as a pipe/
rail or steering wheel. Note: Select a location that does not interfere
with other factory installed devices or safety equipment. Refer to the
following installation examples for more information.
Surface Mount Example
Attach to a at surface using
the included at head screw.
Pipe/Rail Mount Example
Attach to a straight pipe/rail
using the included plastic
cable ties.
FCC Compliance Statement
NOTE: This equipment has been tested and found to comply with
the limits of Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
this equipment.
Safety Considerations
• Install the receiver module in a dry, well-ventilated location that
does not interfere with your factory-installed systems. If a dry
environment is not available, a location that is not exposed to
heavy splashing may be used. Do not install where it will be directly
exposed to the elements.
• Securely mount the receiver module to avoid coming loose in the
event of a collision, sudden jolt or as a result of repeated vibrations
during normal use.
• While the remote transmitter is designed to be water-resistant, it
should never be submerged under water for prolonged periods or
subjected to high-pressure water spray.
• Do not mount the remote cradle or receiver module in an engine
compartment or areas of extreme heat. Areas exposed to a heater or
hot air should also be avoided.
• Check before drilling to make sure that you will not be drilling into
an exterior panel/hull, fuel tank, gas/brake line, wiring harness or
other vital system.
• Protect all wiring from sharp edges and wear by carefully routing
them, tying them down and using grommets and loom where
appropriate. Secure all wiring using cable ties or wire clamps,
as needed.
Installation Applications
This product is designed for operation in 12 volt, negative-ground
electrical systems. Using this product in systems with positive ground
and/or voltages other than 12 volts may result in damage to the
product and will void the warranty. This product is not certied or
approved for use in aircraft.
What is Included
(1) MMR-10W Remote Transmitter
(1) Remote Cradle
(2) Plastic cable ties
(1) Flat head screw
(1) User Manual
Also Included (MMR-10W only)
(1) MMR-10W Receiver Module
(2) Pan head screws
(1) Quick-release lanyard
Product Description
The MMR-10W is a wireless remote controller designed to add
handheld control functionality to MediaMaster® source units.
Utilizing state-of-the-art, 2.4 GHz wireless technology, the MMR-
10W permits control of your MediaMaster® source unit (with LED
signal conrmation), from up to 150 ft. (45 m) away. The MMR-10W
system consists of a hideaway receiver module and water-resistant
(IP67 rated) remote transmitter. The receiver module is designed to
connect directly to your MediaMaster® and is programmable, with
the ability to pair with up to ten MMR-10W remote transmitters.
A versatile mounting cradle is included, along with a lanyard for
convenient, on-the-go functionality.
IP67 Water Resistance Rating
The MMR-10W remote transmitter has been tested to withstand
immersion in water, up to 1 meter (3.28 ft.) deep, for up to 30 minutes.
Note: While designed to be water resistant, the remote should never
be submerged under water for prolonged periods or subjected to
activity that creates pressure on it that exceeds its depth rating.
Receiver Module Placement & Connection
While the MMR-10W receiver module can be mounted in any
orientation, its installation location should be considered to
optimize RF performance. For example, we recommend that you
avoid mounting the receiver module directly to metal surfaces or
to wire harnesses, especially those containing high-current circuits.
Mounting locations in close proximity to other electronics should also
be avoided to minimize wireless interference. Use the two supplied
pan head screws to mount the receiver module.
The receiver module is designed to connect directly to the 5-pin
“Remote” plug of your MediaMaster®. Use caution when mating
the connectors, as they are keyed and must be aligned to t
properly. Note: If a MMR-20 wired remote controller is installed
with your MediaMaster®, you may use a Y-adaptor (MMC-2Y)
(sold separately) to add/connect the MMR-10W receiver module.
If space directly behind your MediaMaster® is limited, you
may use a remote controller cable (MMC-6 or MMC-25) (each
sold separately) to extend the receiver module’s mounting
options. Once connected, make sure that cables are securely
routed using cable ties and wire clamps, keeping connections
away from areas where they could be submerged in water.
MediaMaster® Wireless Remote Controller
MMR-10W / MMR-10W-Remote
Remote Cradle Mounting
For convenience, a plastic cradle is included to mount the MMR-
10W remote transmitter. The base of the cradle is designed so it can
be installed on a at surface or a tubular structure, such as a pipe/
rail or steering wheel. Note: Select a location that does not interfere
with other factory installed devices or safety equipment. Refer to the
following installation examples for more information.
Surface Mount Example
Attach to a at surface using
the included at head screw.
Pipe/Rail Mount Example
Attach to a straight pipe/rail
using the included plastic
cable ties.
FCC Compliance Statement
NOTE: This equipment has been tested and found to comply with
the limits of Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
this equipment.
Safety Considerations
• Install the receiver module in a dry, well-ventilated location that
does not interfere with your factory-installed systems. If a dry
environment is not available, a location that is not exposed to
heavy splashing may be used. Do not install where it will be directly
exposed to the elements.
• Securely mount the receiver module to avoid coming loose in the
event of a collision, sudden jolt or as a result of repeated vibrations
during normal use.
• While the remote transmitter is designed to be water-resistant, it
should never be submerged under water for prolonged periods or
subjected to high-pressure water spray.
• Do not mount the remote cradle or receiver module in an engine
compartment or areas of extreme heat. Areas exposed to a heater or
hot air should also be avoided.
• Check before drilling to make sure that you will not be drilling into
an exterior panel/hull, fuel tank, gas/brake line, wiring harness or
other vital system.
• Protect all wiring from sharp edges and wear by carefully routing
them, tying them down and using grommets and loom where
appropriate. Secure all wiring using cable ties or wire clamps,
as needed.
Installation Applications
This product is designed for operation in 12 volt, negative-ground
electrical systems. Using this product in systems with positive ground
and/or voltages other than 12 volts may result in damage to the
product and will void the warranty. This product is not certied or
approved for use in aircraft.
What is Included
(1) MMR-10W Remote Transmitter
(1) Remote Cradle
(2) Plastic cable ties
(1) Flat head screw
(1) User Manual
Also Included (MMR-10W only)
(1) MMR-10W Receiver Module
(2) Pan head screws
(1) Quick-release lanyard
Product Description
The MMR-10W is a wireless remote controller designed to add
handheld control functionality to MediaMaster® source units.
Utilizing state-of-the-art, 2.4 GHz wireless technology, the MMR-
10W permits control of your MediaMaster® source unit (with LED
signal conrmation), from up to 150 ft. (45 m) away. The MMR-10W
system consists of a hideaway receiver module and water-resistant
(IP67 rated) remote transmitter. The receiver module is designed to
connect directly to your MediaMaster® and is programmable, with
the ability to pair with up to ten MMR-10W remote transmitters.
A versatile mounting cradle is included, along with a lanyard for
convenient, on-the-go functionality.
IP67 Water Resistance Rating
The MMR-10W remote transmitter has been tested to withstand
immersion in water, up to 1 meter (3.28 ft.) deep, for up to 30 minutes.
Note: While designed to be water resistant, the remote should never
be submerged under water for prolonged periods or subjected to
activity that creates pressure on it that exceeds its depth rating.
Receiver Module Placement & Connection
While the MMR-10W receiver module can be mounted in any
orientation, its installation location should be considered to
optimize RF performance. For example, we recommend that you
avoid mounting the receiver module directly to metal surfaces or
to wire harnesses, especially those containing high-current circuits.
Mounting locations in close proximity to other electronics should also
be avoided to minimize wireless interference. Use the two supplied
pan head screws to mount the receiver module.
The receiver module is designed to connect directly to the 5-pin
“Remote” plug of your MediaMaster®. Use caution when mating
the connectors, as they are keyed and must be aligned to t
properly. Note: If a MMR-20 wired remote controller is installed
with your MediaMaster®, you may use a Y-adaptor (MMC-2Y)
(sold separately) to add/connect the MMR-10W receiver module.
If space directly behind your MediaMaster® is limited, you
may use a remote controller cable (MMC-6 or MMC-25) (each
sold separately) to extend the receiver module’s mounting
options. Once connected, make sure that cables are securely
routed using cable ties and wire clamps, keeping connections
away from areas where they could be submerged in water.
MediaMaster® Wireless Remote Controller
MMR-10W / MMR-10W-Remote
Remote Cradle Mounting
For convenience, a plastic cradle is included to mount the MMR-
10W remote transmitter. The base of the cradle is designed so it can
be installed on a at surface or a tubular structure, such as a pipe/
rail or steering wheel. Note: Select a location that does not interfere
with other factory installed devices or safety equipment. Refer to the
following installation examples for more information.
Surface Mount Example
Attach to a at surface using
the included at head screw.
Pipe/Rail Mount Example
Attach to a straight pipe/rail
using the included plastic
cable ties.
FCC Compliance Statement
NOTE: This equipment has been tested and found to comply with
the limits of Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
this equipment.
Safety Considerations
• Install the receiver module in a dry, well-ventilated location that
does not interfere with your factory-installed systems. If a dry
environment is not available, a location that is not exposed to
heavy splashing may be used. Do not install where it will be directly
exposed to the elements.
• Securely mount the receiver module to avoid coming loose in the
event of a collision, sudden jolt or as a result of repeated vibrations
during normal use.
• While the remote transmitter is designed to be water-resistant, it
should never be submerged under water for prolonged periods or
subjected to high-pressure water spray.
• Do not mount the remote cradle or receiver module in an engine
compartment or areas of extreme heat. Areas exposed to a heater or
hot air should also be avoided.
• Check before drilling to make sure that you will not be drilling into
an exterior panel/hull, fuel tank, gas/brake line, wiring harness or
other vital system.
• Protect all wiring from sharp edges and wear by carefully routing
them, tying them down and using grommets and loom where
appropriate. Secure all wiring using cable ties or wire clamps,
as needed.
Installation Applications
This product is designed for operation in 12 volt, negative-ground
electrical systems. Using this product in systems with positive ground
and/or voltages other than 12 volts may result in damage to the
product and will void the warranty. This product is not certied or
approved for use in aircraft.
What is Included
(1) MMR-10W Remote Transmitter
(1) Remote Cradle
(2) Plastic cable ties
(1) Flat head screw
(1) User Manual
Also Included (MMR-10W only)
(1) MMR-10W Receiver Module
(2) Pan head screws
(1) Quick-release lanyard
Product Description
The MMR-10W is a wireless remote controller designed to add
handheld control functionality to MediaMaster® source units.
Utilizing state-of-the-art, 2.4 GHz wireless technology, the MMR-
10W permits control of your MediaMaster® source unit (with LED
signal conrmation), from up to 150 ft. (45 m) away. The MMR-10W
system consists of a hideaway receiver module and water-resistant
(IP67 rated) remote transmitter. The receiver module is designed to
connect directly to your MediaMaster® and is programmable, with
the ability to pair with up to ten MMR-10W remote transmitters.
A versatile mounting cradle is included, along with a lanyard for
convenient, on-the-go functionality.
IP67 Water Resistance Rating
The MMR-10W remote transmitter has been tested to withstand
immersion in water, up to 1 meter (3.28 ft.) deep, for up to 30 minutes.
Note: While designed to be water resistant, the remote should never
be submerged under water for prolonged periods or subjected to
activity that creates pressure on it that exceeds its depth rating.
Receiver Module Placement & Connection
While the MMR-10W receiver module can be mounted in any
orientation, its installation location should be considered to
optimize RF performance. For example, we recommend that you
avoid mounting the receiver module directly to metal surfaces or
to wire harnesses, especially those containing high-current circuits.
Mounting locations in close proximity to other electronics should also
be avoided to minimize wireless interference. Use the two supplied
pan head screws to mount the receiver module.
The receiver module is designed to connect directly to the 5-pin
“Remote” plug of your MediaMaster®. Use caution when mating
the connectors, as they are keyed and must be aligned to t
properly. Note: If a MMR-20 wired remote controller is installed
with your MediaMaster®, you may use a Y-adaptor (MMC-2Y)
(sold separately) to add/connect the MMR-10W receiver module.
If space directly behind your MediaMaster® is limited, you
may use a remote controller cable (MMC-6 or MMC-25) (each
sold separately) to extend the receiver module’s mounting
options. Once connected, make sure that cables are securely
routed using cable ties and wire clamps, keeping connections
away from areas where they could be submerged in water.
MediaMaster® Wireless Remote Controller
MMR-10W / MMR-10W-Remote
Remote Cradle Mounting
For convenience, a plastic cradle is included to mount the MMR-
10W remote transmitter. The base of the cradle is designed so it can
be installed on a at surface or a tubular structure, such as a pipe/
rail or steering wheel. Note: Select a location that does not interfere
with other factory installed devices or safety equipment. Refer to the
following installation examples for more information.
Surface Mount Example
Attach to a at surface using
the included at head screw.
Pipe/Rail Mount Example
Attach to a straight pipe/rail
using the included plastic
cable ties.
FCC Compliance Statement
NOTE: This equipment has been tested and found to comply with
the limits of Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
this equipment.
Safety Considerations
• Install the receiver module in a dry, well-ventilated location that
does not interfere with your factory-installed systems. If a dry
environment is not available, a location that is not exposed to
heavy splashing may be used. Do not install where it will be directly
exposed to the elements.
• Securely mount the receiver module to avoid coming loose in the
event of a collision, sudden jolt or as a result of repeated vibrations
during normal use.
• While the remote transmitter is designed to be water-resistant, it
should never be submerged under water for prolonged periods or
subjected to high-pressure water spray.
• Do not mount the remote cradle or receiver module in an engine
compartment or areas of extreme heat. Areas exposed to a heater or
hot air should also be avoided.
• Check before drilling to make sure that you will not be drilling into
an exterior panel/hull, fuel tank, gas/brake line, wiring harness or
other vital system.
• Protect all wiring from sharp edges and wear by carefully routing
them, tying them down and using grommets and loom where
appropriate. Secure all wiring using cable ties or wire clamps,
as needed.
Installation Applications
This product is designed for operation in 12 volt, negative-ground
electrical systems. Using this product in systems with positive ground
and/or voltages other than 12 volts may result in damage to the
product and will void the warranty. This product is not certied or
approved for use in aircraft.
What is Included
(1) MMR-10W Remote Transmitter
(1) Remote Cradle
(2) Plastic cable ties
(1) Flat head screw
(1) User Manual
Also Included (MMR-10W only)
(1) MMR-10W Receiver Module
(2) Pan head screws
(1) Quick-release lanyard
Product Description
The MMR-10W is a wireless remote controller designed to add
handheld control functionality to MediaMaster® source units.
Utilizing state-of-the-art, 2.4 GHz wireless technology, the MMR-
10W permits control of your MediaMaster® source unit (with LED
signal conrmation), from up to 150 ft. (45 m) away. The MMR-10W
system consists of a hideaway receiver module and water-resistant
(IP67 rated) remote transmitter. The receiver module is designed to
connect directly to your MediaMaster® and is programmable, with
the ability to pair with up to ten MMR-10W remote transmitters.
A versatile mounting cradle is included, along with a lanyard for
convenient, on-the-go functionality.
IP67 Water Resistance Rating
The MMR-10W remote transmitter has been tested to withstand
immersion in water, up to 1 meter (3.28 ft.) deep, for up to 30 minutes.
Note: While designed to be water resistant, the remote should never
be submerged under water for prolonged periods or subjected to
activity that creates pressure on it that exceeds its depth rating.
Receiver Module Placement & Connection
While the MMR-10W receiver module can be mounted in any
orientation, its installation location should be considered to
optimize RF performance. For example, we recommend that you
avoid mounting the receiver module directly to metal surfaces or
to wire harnesses, especially those containing high-current circuits.
Mounting locations in close proximity to other electronics should also
be avoided to minimize wireless interference. Use the two supplied
pan head screws to mount the receiver module.
The receiver module is designed to connect directly to the 5-pin
“Remote” plug of your MediaMaster®. Use caution when mating
the connectors, as they are keyed and must be aligned to t
properly. Note: If a MMR-20 wired remote controller is installed
with your MediaMaster®, you may use a Y-adaptor (MMC-2Y)
(sold separately) to add/connect the MMR-10W receiver module.
If space directly behind your MediaMaster® is limited, you
may use a remote controller cable (MMC-6 or MMC-25) (each
sold separately) to extend the receiver module’s mounting
options. Once connected, make sure that cables are securely
routed using cable ties and wire clamps, keeping connections
away from areas where they could be submerged in water.
MediaMaster® Wireless Remote Controller
MMR-10W / MMR-10W-Remote
Remote Cradle Mounting
For convenience, a plastic cradle is included to mount the MMR-
10W remote transmitter. The base of the cradle is designed so it can
be installed on a at surface or a tubular structure, such as a pipe/
rail or steering wheel. Note: Select a location that does not interfere
with other factory installed devices or safety equipment. Refer to the
following installation examples for more information.
Surface Mount Example
Attach to a at surface using
the included at head screw.
Pipe/Rail Mount Example
Attach to a straight pipe/rail
using the included plastic
cable ties.
FCC Compliance Statement
NOTE: This equipment has been tested and found to comply with
the limits of Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
this equipment.
Safety Considerations
• Install the receiver module in a dry, well-ventilated location that
does not interfere with your factory-installed systems. If a dry
environment is not available, a location that is not exposed to
heavy splashing may be used. Do not install where it will be directly
exposed to the elements.
• Securely mount the receiver module to avoid coming loose in the
event of a collision, sudden jolt or as a result of repeated vibrations
during normal use.
• While the remote transmitter is designed to be water-resistant, it
should never be submerged under water for prolonged periods or
subjected to high-pressure water spray.
• Do not mount the remote cradle or receiver module in an engine
compartment or areas of extreme heat. Areas exposed to a heater or
hot air should also be avoided.
• Check before drilling to make sure that you will not be drilling into
an exterior panel/hull, fuel tank, gas/brake line, wiring harness or
other vital system.
• Protect all wiring from sharp edges and wear by carefully routing
them, tying them down and using grommets and loom where
appropriate. Secure all wiring using cable ties or wire clamps,
as needed.
Installation Applications
This product is designed for operation in 12 volt, negative-ground
electrical systems. Using this product in systems with positive ground
and/or voltages other than 12 volts may result in damage to the
product and will void the warranty. This product is not certied or
approved for use in aircraft.
What is Included
(1) MMR-10W Remote Transmitter
(1) Remote Cradle
(2) Plastic cable ties
(1) Flat head screw
(1) User Manual
Also Included (MMR-10W only)
(1) MMR-10W Receiver Module
(2) Pan head screws
(1) Quick-release lanyard
Product Description
The MMR-10W is a wireless remote controller designed to add
handheld control functionality to MediaMaster® source units.
Utilizing state-of-the-art, 2.4 GHz wireless technology, the MMR-
10W permits control of your MediaMaster® source unit (with LED
signal conrmation), from up to 150 ft. (45 m) away. The MMR-10W
system consists of a hideaway receiver module and water-resistant
(IP67 rated) remote transmitter. The receiver module is designed to
connect directly to your MediaMaster® and is programmable, with
the ability to pair with up to ten MMR-10W remote transmitters.
A versatile mounting cradle is included, along with a lanyard for
convenient, on-the-go functionality.
IP67 Water Resistance Rating
The MMR-10W remote transmitter has been tested to withstand
immersion in water, up to 1 meter (3.28 ft.) deep, for up to 30 minutes.
Note: While designed to be water resistant, the remote should never
be submerged under water for prolonged periods or subjected to
activity that creates pressure on it that exceeds its depth rating.
Receiver Module Placement & Connection
While the MMR-10W receiver module can be mounted in any
orientation, its installation location should be considered to
optimize RF performance. For example, we recommend that you
avoid mounting the receiver module directly to metal surfaces or
to wire harnesses, especially those containing high-current circuits.
Mounting locations in close proximity to other electronics should also
be avoided to minimize wireless interference. Use the two supplied
pan head screws to mount the receiver module.
The receiver module is designed to connect directly to the 5-pin
“Remote” plug of your MediaMaster®. Use caution when mating
the connectors, as they are keyed and must be aligned to t
properly. Note: If a MMR-20 wired remote controller is installed
with your MediaMaster®, you may use a Y-adaptor (MMC-2Y)
(sold separately) to add/connect the MMR-10W receiver module.
If space directly behind your MediaMaster® is limited, you
may use a remote controller cable (MMC-6 or MMC-25) (each
sold separately) to extend the receiver module’s mounting
options. Once connected, make sure that cables are securely
routed using cable ties and wire clamps, keeping connections
away from areas where they could be submerged in water.
MediaMaster® Wireless Remote Controller
MMR-10W / MMR-10W-Remote
Remote Cradle Mounting
For convenience, a plastic cradle is included to mount the MMR-
10W remote transmitter. The base of the cradle is designed so it can
be installed on a at surface or a tubular structure, such as a pipe/
rail or steering wheel. Note: Select a location that does not interfere
with other factory installed devices or safety equipment. Refer to the
following installation examples for more information.
Surface Mount Example
Attach to a at surface using
the included at head screw.
Pipe/Rail Mount Example
Attach to a straight pipe/rail
using the included plastic
cable ties.
FCC Compliance Statement
NOTE: This equipment has been tested and found to comply with
the limits of Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
this equipment.
Safety Considerations
• Install the receiver module in a dry, well-ventilated location that
does not interfere with your factory-installed systems. If a dry
environment is not available, a location that is not exposed to
heavy splashing may be used. Do not install where it will be directly
exposed to the elements.
• Securely mount the receiver module to avoid coming loose in the
event of a collision, sudden jolt or as a result of repeated vibrations
during normal use.
• While the remote transmitter is designed to be water-resistant, it
should never be submerged under water for prolonged periods or
subjected to high-pressure water spray.
• Do not mount the remote cradle or receiver module in an engine
compartment or areas of extreme heat. Areas exposed to a heater or
hot air should also be avoided.
• Check before drilling to make sure that you will not be drilling into
an exterior panel/hull, fuel tank, gas/brake line, wiring harness or
other vital system.
• Protect all wiring from sharp edges and wear by carefully routing
them, tying them down and using grommets and loom where
appropriate. Secure all wiring using cable ties or wire clamps,
as needed.
Installation Applications
This product is designed for operation in 12 volt, negative-ground
electrical systems. Using this product in systems with positive ground
and/or voltages other than 12 volts may result in damage to the
product and will void the warranty. This product is not certied or
approved for use in aircraft.
What is Included
(1) MMR-10W Remote Transmitter
(1) Remote Cradle
(2) Plastic cable ties
(1) Flat head screw
(1) User Manual
Also Included (MMR-10W only)
(1) MMR-10W Receiver Module
(2) Pan head screws
(1) Quick-release lanyard
Product Description
The MMR-10W is a wireless remote controller designed to add
handheld control functionality to MediaMaster® source units.
Utilizing state-of-the-art, 2.4 GHz wireless technology, the MMR-
10W permits control of your MediaMaster® source unit (with LED
signal conrmation), from up to 150 ft. (45 m) away. The MMR-10W
system consists of a hideaway receiver module and water-resistant
(IP67 rated) remote transmitter. The receiver module is designed to
connect directly to your MediaMaster® and is programmable, with
the ability to pair with up to ten MMR-10W remote transmitters.
A versatile mounting cradle is included, along with a lanyard for
convenient, on-the-go functionality.
IP67 Water Resistance Rating
The MMR-10W remote transmitter has been tested to withstand
immersion in water, up to 1 meter (3.28 ft.) deep, for up to 30 minutes.
Note: While designed to be water resistant, the remote should never
be submerged under water for prolonged periods or subjected to
activity that creates pressure on it that exceeds its depth rating.
Receiver Module Placement & Connection
While the MMR-10W receiver module can be mounted in any
orientation, its installation location should be considered to
optimize RF performance. For example, we recommend that you
avoid mounting the receiver module directly to metal surfaces or
to wire harnesses, especially those containing high-current circuits.
Mounting locations in close proximity to other electronics should also
be avoided to minimize wireless interference. Use the two supplied
pan head screws to mount the receiver module.
The receiver module is designed to connect directly to the 5-pin
“Remote” plug of your MediaMaster®. Use caution when mating
the connectors, as they are keyed and must be aligned to t
properly. Note: If a MMR-20 wired remote controller is installed
with your MediaMaster®, you may use a Y-adaptor (MMC-2Y)
(sold separately) to add/connect the MMR-10W receiver module.
If space directly behind your MediaMaster® is limited, you
may use a remote controller cable (MMC-6 or MMC-25) (each
sold separately) to extend the receiver module’s mounting
options. Once connected, make sure that cables are securely
routed using cable ties and wire clamps, keeping connections
away from areas where they could be submerged in water.
MediaMaster® Wireless Remote Controller
MMR-10W / MMR-10W-Remote
Remote Cradle Mounting
For convenience, a plastic cradle is included to mount the MMR-
10W remote transmitter. The base of the cradle is designed so it can
be installed on a at surface or a tubular structure, such as a pipe/
rail or steering wheel. Note: Select a location that does not interfere
with other factory installed devices or safety equipment. Refer to the
following installation examples for more information.
Surface Mount Example
Attach to a at surface using
the included at head screw.
Pipe/Rail Mount Example
Attach to a straight pipe/rail
using the included plastic
cable ties.
FCC Compliance Statement
NOTE: This equipment has been tested and found to comply with
the limits of Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
this equipment.
Safety Considerations
• Install the receiver module in a dry, well-ventilated location that
does not interfere with your factory-installed systems. If a dry
environment is not available, a location that is not exposed to
heavy splashing may be used. Do not install where it will be directly
exposed to the elements.
• Securely mount the receiver module to avoid coming loose in the
event of a collision, sudden jolt or as a result of repeated vibrations
during normal use.
• While the remote transmitter is designed to be water-resistant, it
should never be submerged under water for prolonged periods or
subjected to high-pressure water spray.
• Do not mount the remote cradle or receiver module in an engine
compartment or areas of extreme heat. Areas exposed to a heater or
hot air should also be avoided.
• Check before drilling to make sure that you will not be drilling into
an exterior panel/hull, fuel tank, gas/brake line, wiring harness or
other vital system.
• Protect all wiring from sharp edges and wear by carefully routing
them, tying them down and using grommets and loom where
appropriate. Secure all wiring using cable ties or wire clamps,
as needed.
Installation Applications
This product is designed for operation in 12 volt, negative-ground
electrical systems. Using this product in systems with positive ground
and/or voltages other than 12 volts may result in damage to the
product and will void the warranty. This product is not certied or
approved for use in aircraft.
What is Included
(1) MMR-10W Remote Transmitter
(1) Remote Cradle
(2) Plastic cable ties
(1) Flat head screw
(1) User Manual
Also Included (MMR-10W only)
(1) MMR-10W Receiver Module
(2) Pan head screws
(1) Quick-release lanyard
Product Description
The MMR-10W is a wireless remote controller designed to add
handheld control functionality to MediaMaster® source units.
Utilizing state-of-the-art, 2.4 GHz wireless technology, the MMR-
10W permits control of your MediaMaster® source unit (with LED
signal conrmation), from up to 150 ft. (45 m) away. The MMR-10W
system consists of a hideaway receiver module and water-resistant
(IP67 rated) remote transmitter. The receiver module is designed to
connect directly to your MediaMaster® and is programmable, with
the ability to pair with up to ten MMR-10W remote transmitters.
A versatile mounting cradle is included, along with a lanyard for
convenient, on-the-go functionality.
IP67 Water Resistance Rating
The MMR-10W remote transmitter has been tested to withstand
immersion in water, up to 1 meter (3.28 ft.) deep, for up to 30 minutes.
Note: While designed to be water resistant, the remote should never
be submerged under water for prolonged periods or subjected to
activity that creates pressure on it that exceeds its depth rating.
Receiver Module Placement & Connection
While the MMR-10W receiver module can be mounted in any
orientation, its installation location should be considered to
optimize RF performance. For example, we recommend that you
avoid mounting the receiver module directly to metal surfaces or
to wire harnesses, especially those containing high-current circuits.
Mounting locations in close proximity to other electronics should also
be avoided to minimize wireless interference. Use the two supplied
pan head screws to mount the receiver module.
The receiver module is designed to connect directly to the 5-pin
“Remote” plug of your MediaMaster®. Use caution when mating
the connectors, as they are keyed and must be aligned to t
properly. Note: If a MMR-20 wired remote controller is installed
with your MediaMaster®, you may use a Y-adaptor (MMC-2Y)
(sold separately) to add/connect the MMR-10W receiver module.
If space directly behind your MediaMaster® is limited, you
may use a remote controller cable (MMC-6 or MMC-25) (each
sold separately) to extend the receiver module’s mounting
options. Once connected, make sure that cables are securely
routed using cable ties and wire clamps, keeping connections
away from areas where they could be submerged in water.
MediaMaster® Wireless Remote Controller
MMR-10W / MMR-10W-Remote
Remote Cradle Mounting
For convenience, a plastic cradle is included to mount the MMR-
10W remote transmitter. The base of the cradle is designed so it can
be installed on a at surface or a tubular structure, such as a pipe/
rail or steering wheel. Note: Select a location that does not interfere
with other factory installed devices or safety equipment. Refer to the
following installation examples for more information.
Surface Mount Example
Attach to a at surface using
the included at head screw.
Pipe/Rail Mount Example
Attach to a straight pipe/rail
using the included plastic
cable ties.
2-Year Limited Warranty (U.S.A.)
Visit www.jlaudio.com for warranty details.
For Service Information in the U.S.A. please call JL Audio customer
service: (954) 443-1100 during normal business hours (Eastern Time)
JL Audio, Inc • 10369 N Commerce Parkway, Miramar, FL 33025
International Warranties:
Products purchased outside the United States of America are covered
only by that country’s distributor and not by JL Audio, Inc.
SKU# 011476 12-14-2016
Replacing the Battery
1. Remove the four screws from
the back of the remote.
2. Gently separate the front half
of the remote.
3. Lift and remove the
silicone keypad from
inside the remote.
4. Turn the remote over to
remove the circuit board.
The battery is installed on
the back of the circuit board.
5. Carefully remove the battery
from its holder and replace
with a CR2032 style battery
or equivalent.
6. Reassemble the remote to
ensure a watertight seal.
Receiver Module Programming
Note: The transmitter and receiver included with the MMR-10W
system are already paired.
Up to ten (10) MMR-10W Remote transmitters may be paired to a
single receiver module.
To Pair A New Transmitter (Required for MMR-10W-Remote)
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both and buttons on the transmitter, then
reconnect +12V power to your MediaMaster®.
3. Continue holding both and buttons for 5 to 10 seconds,
then release both buttons.
• If successful, the status LED will emit two quick ashes with any
button press.
• If unsuccessful, the status LED will emit two long ashes with any
button press.
4. Repeat steps 1 to 4 to pair additional transmitters (up to ten total).
LED Signal Conrmation
The MMR-10W transmitter is equipped with a red LED mounted
beneath the MUTE button.
The LED will ash once when any button is pressed, and then a second
time when the button is released to verify that the remote’s transmit-
ted signal was successfully received by the receiver module.
• Two short ashes indicate the signal was sent/received successfully.
• Two long ashes indicate the signal was sent, but not successfully
received. Possible failure causes include low battery level, out of
operating range, or the receiver module is not active (MediaMaster®
is turned OFF).
Remote Control Functions
Below is a list of MMR-10W command functions. The functionality
of some controls will vary depending on the current source and/or
last tuner selected. Note: The MediaMaster® source unit only accepts
commands from the MMR-10W when its display is on a Now Playing
Screen or in the SOURCE: Select menu screen:
PWR • Press to turn the source unit ON
• Press and hold for two seconds to turn the source unit OFF
SRC • Press to turn the source unit ON
• Press to cycle through sources (Last tuner/USB/Bluetooth®/AUX)
VOL+• Press to increase volume
VOL–• Press to decrease volume
MUTE
or • Press to mute/unmute audio (AM/FM/WB/SiriusXM®/AUX)
• Press to pause/resume the current selection (USB/Bluetooth®)
• Press to select the next Favorite (AM/FM/WB/SiriusXM®)
• Press to select the next track (USB/Bluetooth®)
• Press and hold to fast-forward (USB)
• Press to select the previous Favorite (AM/FM/WB/SiriusXM®)
• Press to select the previous track (USB/Bluetooth®)
• Press and hold to fast-rewind (USB)
Specications
Operating Frequency 2.4 GHz
Operating Range* Up to 150 ft. (45 m)
Operating Temperature -4 °F to +167 °F (-20 °C to +75 °C)
IP Rating (Transmitter) IP67
IP Rating (Receiver) IP65
Dimensions
(Transmitter)
2.99 in x 2 in x 1.07 in
76 mm x 50.8 mm x 27.2 mm
Dimensions
(Receiver)
4.02 in x 3.01 in x 1.42 in
102.1 mm x 76.5 mm x 36.1 mm
*Maximum operating range will vary based on installation specics and
transmitter battery level.
Steering Wheel Mount Example
Attach to a steering wheel using the
included plastic cable ties.
In case of misplaced transmitters, you may delete all remotes from the
receiver module’s memory.
Note: All paired transmitters will stop working after deletion.
Subsequent remote functionality will require each transmitter to be
paired with the receiver.
To Delete All Transmitters
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both VOL+and VOL–buttons on an
existing (paired) transmitter, then reconnect +12V power to
your MediaMaster®.
3. Continue holding both VOL+and VOL–buttons for 5 to 10
seconds, then release both buttons.
• If successful, the status LED will emit two long ashes with any
button press and the transmitter will no longer control your
MediaMaster®.
• If unsuccessful, the status LED will emit two quick ashes with
any button press and the transmitter will still control your
MediaMaster®.
2-Year Limited Warranty (U.S.A.)
Visit www.jlaudio.com for warranty details.
For Service Information in the U.S.A. please call JL Audio customer
service: (954) 443-1100 during normal business hours (Eastern Time)
JL Audio, Inc • 10369 N Commerce Parkway, Miramar, FL 33025
International Warranties:
Products purchased outside the United States of America are covered
only by that country’s distributor and not by JL Audio, Inc.
SKU# 011476 12-14-2016
Replacing the Battery
1. Remove the four screws from
the back of the remote.
2. Gently separate the front half
of the remote.
3. Lift and remove the
silicone keypad from
inside the remote.
4. Turn the remote over to
remove the circuit board.
The battery is installed on
the back of the circuit board.
5. Carefully remove the battery
from its holder and replace
with a CR2032 style battery
or equivalent.
6. Reassemble the remote to
ensure a watertight seal.
Receiver Module Programming
Note: The transmitter and receiver included with the MMR-10W
system are already paired.
Up to ten (10) MMR-10W Remote transmitters may be paired to a
single receiver module.
To Pair A New Transmitter (Required for MMR-10W-Remote)
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both and buttons on the transmitter, then
reconnect +12V power to your MediaMaster®.
3. Continue holding both and buttons for 5 to 10 seconds,
then release both buttons.
• If successful, the status LED will emit two quick ashes with any
button press.
• If unsuccessful, the status LED will emit two long ashes with any
button press.
4. Repeat steps 1 to 4 to pair additional transmitters (up to ten total).
LED Signal Conrmation
The MMR-10W transmitter is equipped with a red LED mounted
beneath the MUTE button.
The LED will ash once when any button is pressed, and then a second
time when the button is released to verify that the remote’s transmit-
ted signal was successfully received by the receiver module.
• Two short ashes indicate the signal was sent/received successfully.
• Two long ashes indicate the signal was sent, but not successfully
received. Possible failure causes include low battery level, out of
operating range, or the receiver module is not active (MediaMaster®
is turned OFF).
Remote Control Functions
Below is a list of MMR-10W command functions. The functionality
of some controls will vary depending on the current source and/or
last tuner selected. Note: The MediaMaster® source unit only accepts
commands from the MMR-10W when its display is on a Now Playing
Screen or in the SOURCE: Select menu screen:
PWR • Press to turn the source unit ON
• Press and hold for two seconds to turn the source unit OFF
SRC • Press to turn the source unit ON
• Press to cycle through sources (Last tuner/USB/Bluetooth®/AUX)
VOL+• Press to increase volume
VOL–• Press to decrease volume
MUTE
or • Press to mute/unmute audio (AM/FM/WB/SiriusXM®/AUX)
• Press to pause/resume the current selection (USB/Bluetooth®)
• Press to select the next Favorite (AM/FM/WB/SiriusXM®)
• Press to select the next track (USB/Bluetooth®)
• Press and hold to fast-forward (USB)
• Press to select the previous Favorite (AM/FM/WB/SiriusXM®)
• Press to select the previous track (USB/Bluetooth®)
• Press and hold to fast-rewind (USB)
Specications
Operating Frequency 2.4 GHz
Operating Range* Up to 150 ft. (45 m)
Operating Temperature -4 °F to +167 °F (-20 °C to +75 °C)
IP Rating (Transmitter) IP67
IP Rating (Receiver) IP65
Dimensions
(Transmitter)
2.99 in x 2 in x 1.07 in
76 mm x 50.8 mm x 27.2 mm
Dimensions
(Receiver)
4.02 in x 3.01 in x 1.42 in
102.1 mm x 76.5 mm x 36.1 mm
*Maximum operating range will vary based on installation specics and
transmitter battery level.
Steering Wheel Mount Example
Attach to a steering wheel using the
included plastic cable ties.
In case of misplaced transmitters, you may delete all remotes from the
receiver module’s memory.
Note: All paired transmitters will stop working after deletion.
Subsequent remote functionality will require each transmitter to be
paired with the receiver.
To Delete All Transmitters
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both VOL+and VOL–buttons on an
existing (paired) transmitter, then reconnect +12V power to
your MediaMaster®.
3. Continue holding both VOL+and VOL–buttons for 5 to 10
seconds, then release both buttons.
• If successful, the status LED will emit two long ashes with any
button press and the transmitter will no longer control your
MediaMaster®.
• If unsuccessful, the status LED will emit two quick ashes with
any button press and the transmitter will still control your
MediaMaster®.
2-Year Limited Warranty (U.S.A.)
Visit www.jlaudio.com for warranty details.
For Service Information in the U.S.A. please call JL Audio customer
service: (954) 443-1100 during normal business hours (Eastern Time)
JL Audio, Inc • 10369 N Commerce Parkway, Miramar, FL 33025
International Warranties:
Products purchased outside the United States of America are covered
only by that country’s distributor and not by JL Audio, Inc.
SKU# 011476 12-14-2016
Replacing the Battery
1. Remove the four screws from
the back of the remote.
2. Gently separate the front half
of the remote.
3. Lift and remove the
silicone keypad from
inside the remote.
4. Turn the remote over to
remove the circuit board.
The battery is installed on
the back of the circuit board.
5. Carefully remove the battery
from its holder and replace
with a CR2032 style battery
or equivalent.
6. Reassemble the remote to
ensure a watertight seal.
Receiver Module Programming
Note: The transmitter and receiver included with the MMR-10W
system are already paired.
Up to ten (10) MMR-10W Remote transmitters may be paired to a
single receiver module.
To Pair A New Transmitter (Required for MMR-10W-Remote)
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both and buttons on the transmitter, then
reconnect +12V power to your MediaMaster®.
3. Continue holding both and buttons for 5 to 10 seconds,
then release both buttons.
• If successful, the status LED will emit two quick ashes with any
button press.
• If unsuccessful, the status LED will emit two long ashes with any
button press.
4. Repeat steps 1 to 4 to pair additional transmitters (up to ten total).
LED Signal Conrmation
The MMR-10W transmitter is equipped with a red LED mounted
beneath the MUTE button.
The LED will ash once when any button is pressed, and then a second
time when the button is released to verify that the remote’s transmit-
ted signal was successfully received by the receiver module.
• Two short ashes indicate the signal was sent/received successfully.
• Two long ashes indicate the signal was sent, but not successfully
received. Possible failure causes include low battery level, out of
operating range, or the receiver module is not active (MediaMaster®
is turned OFF).
Remote Control Functions
Below is a list of MMR-10W command functions. The functionality
of some controls will vary depending on the current source and/or
last tuner selected. Note: The MediaMaster® source unit only accepts
commands from the MMR-10W when its display is on a Now Playing
Screen or in the SOURCE: Select menu screen:
PWR • Press to turn the source unit ON
• Press and hold for two seconds to turn the source unit OFF
SRC • Press to turn the source unit ON
• Press to cycle through sources (Last tuner/USB/Bluetooth®/AUX)
VOL+• Press to increase volume
VOL–• Press to decrease volume
MUTE
or • Press to mute/unmute audio (AM/FM/WB/SiriusXM®/AUX)
• Press to pause/resume the current selection (USB/Bluetooth®)
• Press to select the next Favorite (AM/FM/WB/SiriusXM®)
• Press to select the next track (USB/Bluetooth®)
• Press and hold to fast-forward (USB)
• Press to select the previous Favorite (AM/FM/WB/SiriusXM®)
• Press to select the previous track (USB/Bluetooth®)
• Press and hold to fast-rewind (USB)
Specications
Operating Frequency 2.4 GHz
Operating Range* Up to 150 ft. (45 m)
Operating Temperature -4 °F to +167 °F (-20 °C to +75 °C)
IP Rating (Transmitter) IP67
IP Rating (Receiver) IP65
Dimensions
(Transmitter)
2.99 in x 2 in x 1.07 in
76 mm x 50.8 mm x 27.2 mm
Dimensions
(Receiver)
4.02 in x 3.01 in x 1.42 in
102.1 mm x 76.5 mm x 36.1 mm
*Maximum operating range will vary based on installation specics and
transmitter battery level.
Steering Wheel Mount Example
Attach to a steering wheel using the
included plastic cable ties.
In case of misplaced transmitters, you may delete all remotes from the
receiver module’s memory.
Note: All paired transmitters will stop working after deletion.
Subsequent remote functionality will require each transmitter to be
paired with the receiver.
To Delete All Transmitters
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both VOL+and VOL–buttons on an
existing (paired) transmitter, then reconnect +12V power to
your MediaMaster®.
3. Continue holding both VOL+and VOL–buttons for 5 to 10
seconds, then release both buttons.
• If successful, the status LED will emit two long ashes with any
button press and the transmitter will no longer control your
MediaMaster®.
• If unsuccessful, the status LED will emit two quick ashes with
any button press and the transmitter will still control your
MediaMaster®.
2-Year Limited Warranty (U.S.A.)
Visit www.jlaudio.com for warranty details.
For Service Information in the U.S.A. please call JL Audio customer
service: (954) 443-1100 during normal business hours (Eastern Time)
JL Audio, Inc • 10369 N Commerce Parkway, Miramar, FL 33025
International Warranties:
Products purchased outside the United States of America are covered
only by that country’s distributor and not by JL Audio, Inc.
SKU# 011476 12-14-2016
Replacing the Battery
1. Remove the four screws from
the back of the remote.
2. Gently separate the front half
of the remote.
3. Lift and remove the
silicone keypad from
inside the remote.
4. Turn the remote over to
remove the circuit board.
The battery is installed on
the back of the circuit board.
5. Carefully remove the battery
from its holder and replace
with a CR2032 style battery
or equivalent.
6. Reassemble the remote to
ensure a watertight seal.
Receiver Module Programming
Note: The transmitter and receiver included with the MMR-10W
system are already paired.
Up to ten (10) MMR-10W Remote transmitters may be paired to a
single receiver module.
To Pair A New Transmitter (Required for MMR-10W-Remote)
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both and buttons on the transmitter, then
reconnect +12V power to your MediaMaster®.
3. Continue holding both and buttons for 5 to 10 seconds,
then release both buttons.
• If successful, the status LED will emit two quick ashes with any
button press.
• If unsuccessful, the status LED will emit two long ashes with any
button press.
4. Repeat steps 1 to 4 to pair additional transmitters (up to ten total).
LED Signal Conrmation
The MMR-10W transmitter is equipped with a red LED mounted
beneath the MUTE button.
The LED will ash once when any button is pressed, and then a second
time when the button is released to verify that the remote’s transmit-
ted signal was successfully received by the receiver module.
• Two short ashes indicate the signal was sent/received successfully.
• Two long ashes indicate the signal was sent, but not successfully
received. Possible failure causes include low battery level, out of
operating range, or the receiver module is not active (MediaMaster®
is turned OFF).
Remote Control Functions
Below is a list of MMR-10W command functions. The functionality
of some controls will vary depending on the current source and/or
last tuner selected. Note: The MediaMaster® source unit only accepts
commands from the MMR-10W when its display is on a Now Playing
Screen or in the SOURCE: Select menu screen:
PWR • Press to turn the source unit ON
• Press and hold for two seconds to turn the source unit OFF
SRC • Press to turn the source unit ON
• Press to cycle through sources (Last tuner/USB/Bluetooth®/AUX)
VOL+• Press to increase volume
VOL–• Press to decrease volume
MUTE
or • Press to mute/unmute audio (AM/FM/WB/SiriusXM®/AUX)
• Press to pause/resume the current selection (USB/Bluetooth®)
• Press to select the next Favorite (AM/FM/WB/SiriusXM®)
• Press to select the next track (USB/Bluetooth®)
• Press and hold to fast-forward (USB)
• Press to select the previous Favorite (AM/FM/WB/SiriusXM®)
• Press to select the previous track (USB/Bluetooth®)
• Press and hold to fast-rewind (USB)
Specications
Operating Frequency 2.4 GHz
Operating Range* Up to 150 ft. (45 m)
Operating Temperature -4 °F to +167 °F (-20 °C to +75 °C)
IP Rating (Transmitter) IP67
IP Rating (Receiver) IP65
Dimensions
(Transmitter)
2.99 in x 2 in x 1.07 in
76 mm x 50.8 mm x 27.2 mm
Dimensions
(Receiver)
4.02 in x 3.01 in x 1.42 in
102.1 mm x 76.5 mm x 36.1 mm
*Maximum operating range will vary based on installation specics and
transmitter battery level.
Steering Wheel Mount Example
Attach to a steering wheel using the
included plastic cable ties.
In case of misplaced transmitters, you may delete all remotes from the
receiver module’s memory.
Note: All paired transmitters will stop working after deletion.
Subsequent remote functionality will require each transmitter to be
paired with the receiver.
To Delete All Transmitters
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both VOL+and VOL–buttons on an
existing (paired) transmitter, then reconnect +12V power to
your MediaMaster®.
3. Continue holding both VOL+and VOL–buttons for 5 to 10
seconds, then release both buttons.
• If successful, the status LED will emit two long ashes with any
button press and the transmitter will no longer control your
MediaMaster®.
• If unsuccessful, the status LED will emit two quick ashes with
any button press and the transmitter will still control your
MediaMaster®.
2-Year Limited Warranty (U.S.A.)
Visit www.jlaudio.com for warranty details.
For Service Information in the U.S.A. please call JL Audio customer
service: (954) 443-1100 during normal business hours (Eastern Time)
JL Audio, Inc • 10369 N Commerce Parkway, Miramar, FL 33025
International Warranties:
Products purchased outside the United States of America are covered
only by that country’s distributor and not by JL Audio, Inc.
SKU# 011476 12-14-2016
Replacing the Battery
1. Remove the four screws from
the back of the remote.
2. Gently separate the front half
of the remote.
3. Lift and remove the
silicone keypad from
inside the remote.
4. Turn the remote over to
remove the circuit board.
The battery is installed on
the back of the circuit board.
5. Carefully remove the battery
from its holder and replace
with a CR2032 style battery
or equivalent.
6. Reassemble the remote to
ensure a watertight seal.
Receiver Module Programming
Note: The transmitter and receiver included with the MMR-10W
system are already paired.
Up to ten (10) MMR-10W Remote transmitters may be paired to a
single receiver module.
To Pair A New Transmitter (Required for MMR-10W-Remote)
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both and buttons on the transmitter, then
reconnect +12V power to your MediaMaster®.
3. Continue holding both and buttons for 5 to 10 seconds,
then release both buttons.
• If successful, the status LED will emit two quick ashes with any
button press.
• If unsuccessful, the status LED will emit two long ashes with any
button press.
4. Repeat steps 1 to 4 to pair additional transmitters (up to ten total).
LED Signal Conrmation
The MMR-10W transmitter is equipped with a red LED mounted
beneath the MUTE button.
The LED will ash once when any button is pressed, and then a second
time when the button is released to verify that the remote’s transmit-
ted signal was successfully received by the receiver module.
• Two short ashes indicate the signal was sent/received successfully.
• Two long ashes indicate the signal was sent, but not successfully
received. Possible failure causes include low battery level, out of
operating range, or the receiver module is not active (MediaMaster®
is turned OFF).
Remote Control Functions
Below is a list of MMR-10W command functions. The functionality
of some controls will vary depending on the current source and/or
last tuner selected. Note: The MediaMaster® source unit only accepts
commands from the MMR-10W when its display is on a Now Playing
Screen or in the SOURCE: Select menu screen:
PWR • Press to turn the source unit ON
• Press and hold for two seconds to turn the source unit OFF
SRC • Press to turn the source unit ON
• Press to cycle through sources (Last tuner/USB/Bluetooth®/AUX)
VOL+• Press to increase volume
VOL–• Press to decrease volume
MUTE
or • Press to mute/unmute audio (AM/FM/WB/SiriusXM®/AUX)
• Press to pause/resume the current selection (USB/Bluetooth®)
• Press to select the next Favorite (AM/FM/WB/SiriusXM®)
• Press to select the next track (USB/Bluetooth®)
• Press and hold to fast-forward (USB)
• Press to select the previous Favorite (AM/FM/WB/SiriusXM®)
• Press to select the previous track (USB/Bluetooth®)
• Press and hold to fast-rewind (USB)
Specications
Operating Frequency 2.4 GHz
Operating Range* Up to 150 ft. (45 m)
Operating Temperature -4 °F to +167 °F (-20 °C to +75 °C)
IP Rating (Transmitter) IP67
IP Rating (Receiver) IP65
Dimensions
(Transmitter)
2.99 in x 2 in x 1.07 in
76 mm x 50.8 mm x 27.2 mm
Dimensions
(Receiver)
4.02 in x 3.01 in x 1.42 in
102.1 mm x 76.5 mm x 36.1 mm
*Maximum operating range will vary based on installation specics and
transmitter battery level.
Steering Wheel Mount Example
Attach to a steering wheel using the
included plastic cable ties.
In case of misplaced transmitters, you may delete all remotes from the
receiver module’s memory.
Note: All paired transmitters will stop working after deletion.
Subsequent remote functionality will require each transmitter to be
paired with the receiver.
To Delete All Transmitters
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both VOL+and VOL–buttons on an
existing (paired) transmitter, then reconnect +12V power to
your MediaMaster®.
3. Continue holding both VOL+and VOL–buttons for 5 to 10
seconds, then release both buttons.
• If successful, the status LED will emit two long ashes with any
button press and the transmitter will no longer control your
MediaMaster®.
• If unsuccessful, the status LED will emit two quick ashes with
any button press and the transmitter will still control your
MediaMaster®.
2-Year Limited Warranty (U.S.A.)
Visit www.jlaudio.com for warranty details.
For Service Information in the U.S.A. please call JL Audio customer
service: (954) 443-1100 during normal business hours (Eastern Time)
JL Audio, Inc • 10369 N Commerce Parkway, Miramar, FL 33025
International Warranties:
Products purchased outside the United States of America are covered
only by that country’s distributor and not by JL Audio, Inc.
SKU# 011476 12-14-2016
Replacing the Battery
1. Remove the four screws from
the back of the remote.
2. Gently separate the front half
of the remote.
3. Lift and remove the
silicone keypad from
inside the remote.
4. Turn the remote over to
remove the circuit board.
The battery is installed on
the back of the circuit board.
5. Carefully remove the battery
from its holder and replace
with a CR2032 style battery
or equivalent.
6. Reassemble the remote to
ensure a watertight seal.
Receiver Module Programming
Note: The transmitter and receiver included with the MMR-10W
system are already paired.
Up to ten (10) MMR-10W Remote transmitters may be paired to a
single receiver module.
To Pair A New Transmitter (Required for MMR-10W-Remote)
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both and buttons on the transmitter, then
reconnect +12V power to your MediaMaster®.
3. Continue holding both and buttons for 5 to 10 seconds,
then release both buttons.
• If successful, the status LED will emit two quick ashes with any
button press.
• If unsuccessful, the status LED will emit two long ashes with any
button press.
4. Repeat steps 1 to 4 to pair additional transmitters (up to ten total).
LED Signal Conrmation
The MMR-10W transmitter is equipped with a red LED mounted
beneath the MUTE button.
The LED will ash once when any button is pressed, and then a second
time when the button is released to verify that the remote’s transmit-
ted signal was successfully received by the receiver module.
• Two short ashes indicate the signal was sent/received successfully.
• Two long ashes indicate the signal was sent, but not successfully
received. Possible failure causes include low battery level, out of
operating range, or the receiver module is not active (MediaMaster®
is turned OFF).
Remote Control Functions
Below is a list of MMR-10W command functions. The functionality
of some controls will vary depending on the current source and/or
last tuner selected. Note: The MediaMaster® source unit only accepts
commands from the MMR-10W when its display is on a Now Playing
Screen or in the SOURCE: Select menu screen:
PWR • Press to turn the source unit ON
• Press and hold for two seconds to turn the source unit OFF
SRC • Press to turn the source unit ON
• Press to cycle through sources (Last tuner/USB/Bluetooth®/AUX)
VOL+• Press to increase volume
VOL–• Press to decrease volume
MUTE
or • Press to mute/unmute audio (AM/FM/WB/SiriusXM®/AUX)
• Press to pause/resume the current selection (USB/Bluetooth®)
• Press to select the next Favorite (AM/FM/WB/SiriusXM®)
• Press to select the next track (USB/Bluetooth®)
• Press and hold to fast-forward (USB)
• Press to select the previous Favorite (AM/FM/WB/SiriusXM®)
• Press to select the previous track (USB/Bluetooth®)
• Press and hold to fast-rewind (USB)
Specications
Operating Frequency 2.4 GHz
Operating Range* Up to 150 ft. (45 m)
Operating Temperature -4 °F to +167 °F (-20 °C to +75 °C)
IP Rating (Transmitter) IP67
IP Rating (Receiver) IP65
Dimensions
(Transmitter)
2.99 in x 2 in x 1.07 in
76 mm x 50.8 mm x 27.2 mm
Dimensions
(Receiver)
4.02 in x 3.01 in x 1.42 in
102.1 mm x 76.5 mm x 36.1 mm
*Maximum operating range will vary based on installation specics and
transmitter battery level.
Steering Wheel Mount Example
Attach to a steering wheel using the
included plastic cable ties.
In case of misplaced transmitters, you may delete all remotes from the
receiver module’s memory.
Note: All paired transmitters will stop working after deletion.
Subsequent remote functionality will require each transmitter to be
paired with the receiver.
To Delete All Transmitters
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both VOL+and VOL–buttons on an
existing (paired) transmitter, then reconnect +12V power to
your MediaMaster®.
3. Continue holding both VOL+and VOL–buttons for 5 to 10
seconds, then release both buttons.
• If successful, the status LED will emit two long ashes with any
button press and the transmitter will no longer control your
MediaMaster®.
• If unsuccessful, the status LED will emit two quick ashes with
any button press and the transmitter will still control your
MediaMaster®.
2-Year Limited Warranty (U.S.A.)
Visit www.jlaudio.com for warranty details.
For Service Information in the U.S.A. please call JL Audio customer
service: (954) 443-1100 during normal business hours (Eastern Time)
JL Audio, Inc • 10369 N Commerce Parkway, Miramar, FL 33025
International Warranties:
Products purchased outside the United States of America are covered
only by that country’s distributor and not by JL Audio, Inc.
SKU# 011476 12-14-2016
Replacing the Battery
1. Remove the four screws from
the back of the remote.
2. Gently separate the front half
of the remote.
3. Lift and remove the
silicone keypad from
inside the remote.
4. Turn the remote over to
remove the circuit board.
The battery is installed on
the back of the circuit board.
5. Carefully remove the battery
from its holder and replace
with a CR2032 style battery
or equivalent.
6. Reassemble the remote to
ensure a watertight seal.
Receiver Module Programming
Note: The transmitter and receiver included with the MMR-10W
system are already paired.
Up to ten (10) MMR-10W Remote transmitters may be paired to a
single receiver module.
To Pair A New Transmitter (Required for MMR-10W-Remote)
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both and buttons on the transmitter, then
reconnect +12V power to your MediaMaster®.
3. Continue holding both and buttons for 5 to 10 seconds,
then release both buttons.
• If successful, the status LED will emit two quick ashes with any
button press.
• If unsuccessful, the status LED will emit two long ashes with any
button press.
4. Repeat steps 1 to 4 to pair additional transmitters (up to ten total).
LED Signal Conrmation
The MMR-10W transmitter is equipped with a red LED mounted
beneath the MUTE button.
The LED will ash once when any button is pressed, and then a second
time when the button is released to verify that the remote’s transmit-
ted signal was successfully received by the receiver module.
• Two short ashes indicate the signal was sent/received successfully.
• Two long ashes indicate the signal was sent, but not successfully
received. Possible failure causes include low battery level, out of
operating range, or the receiver module is not active (MediaMaster®
is turned OFF).
Remote Control Functions
Below is a list of MMR-10W command functions. The functionality
of some controls will vary depending on the current source and/or
last tuner selected. Note: The MediaMaster® source unit only accepts
commands from the MMR-10W when its display is on a Now Playing
Screen or in the SOURCE: Select menu screen:
PWR • Press to turn the source unit ON
• Press and hold for two seconds to turn the source unit OFF
SRC • Press to turn the source unit ON
• Press to cycle through sources (Last tuner/USB/Bluetooth®/AUX)
VOL+• Press to increase volume
VOL–• Press to decrease volume
MUTE
or • Press to mute/unmute audio (AM/FM/WB/SiriusXM®/AUX)
• Press to pause/resume the current selection (USB/Bluetooth®)
• Press to select the next Favorite (AM/FM/WB/SiriusXM®)
• Press to select the next track (USB/Bluetooth®)
• Press and hold to fast-forward (USB)
• Press to select the previous Favorite (AM/FM/WB/SiriusXM®)
• Press to select the previous track (USB/Bluetooth®)
• Press and hold to fast-rewind (USB)
Specications
Operating Frequency 2.4 GHz
Operating Range* Up to 150 ft. (45 m)
Operating Temperature -4 °F to +167 °F (-20 °C to +75 °C)
IP Rating (Transmitter) IP67
IP Rating (Receiver) IP65
Dimensions
(Transmitter)
2.99 in x 2 in x 1.07 in
76 mm x 50.8 mm x 27.2 mm
Dimensions
(Receiver)
4.02 in x 3.01 in x 1.42 in
102.1 mm x 76.5 mm x 36.1 mm
*Maximum operating range will vary based on installation specics and
transmitter battery level.
Steering Wheel Mount Example
Attach to a steering wheel using the
included plastic cable ties.
In case of misplaced transmitters, you may delete all remotes from the
receiver module’s memory.
Note: All paired transmitters will stop working after deletion.
Subsequent remote functionality will require each transmitter to be
paired with the receiver.
To Delete All Transmitters
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both VOL+and VOL–buttons on an
existing (paired) transmitter, then reconnect +12V power to
your MediaMaster®.
3. Continue holding both VOL+and VOL–buttons for 5 to 10
seconds, then release both buttons.
• If successful, the status LED will emit two long ashes with any
button press and the transmitter will no longer control your
MediaMaster®.
• If unsuccessful, the status LED will emit two quick ashes with
any button press and the transmitter will still control your
MediaMaster®.
2-Year Limited Warranty (U.S.A.)
Visit www.jlaudio.com for warranty details.
For Service Information in the U.S.A. please call JL Audio customer
service: (954) 443-1100 during normal business hours (Eastern Time)
JL Audio, Inc • 10369 N Commerce Parkway, Miramar, FL 33025
International Warranties:
Products purchased outside the United States of America are covered
only by that country’s distributor and not by JL Audio, Inc.
SKU# 011476 12-14-2016
Replacing the Battery
1. Remove the four screws from
the back of the remote.
2. Gently separate the front half
of the remote.
3. Lift and remove the
silicone keypad from
inside the remote.
4. Turn the remote over to
remove the circuit board.
The battery is installed on
the back of the circuit board.
5. Carefully remove the battery
from its holder and replace
with a CR2032 style battery
or equivalent.
6. Reassemble the remote to
ensure a watertight seal.
Receiver Module Programming
Note: The transmitter and receiver included with the MMR-10W
system are already paired.
Up to ten (10) MMR-10W Remote transmitters may be paired to a
single receiver module.
To Pair A New Transmitter (Required for MMR-10W-Remote)
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both and buttons on the transmitter, then
reconnect +12V power to your MediaMaster®.
3. Continue holding both and buttons for 5 to 10 seconds,
then release both buttons.
• If successful, the status LED will emit two quick ashes with any
button press.
• If unsuccessful, the status LED will emit two long ashes with any
button press.
4. Repeat steps 1 to 4 to pair additional transmitters (up to ten total).
LED Signal Conrmation
The MMR-10W transmitter is equipped with a red LED mounted
beneath the MUTE button.
The LED will ash once when any button is pressed, and then a second
time when the button is released to verify that the remote’s transmit-
ted signal was successfully received by the receiver module.
• Two short ashes indicate the signal was sent/received successfully.
• Two long ashes indicate the signal was sent, but not successfully
received. Possible failure causes include low battery level, out of
operating range, or the receiver module is not active (MediaMaster®
is turned OFF).
Remote Control Functions
Below is a list of MMR-10W command functions. The functionality
of some controls will vary depending on the current source and/or
last tuner selected. Note: The MediaMaster® source unit only accepts
commands from the MMR-10W when its display is on a Now Playing
Screen or in the SOURCE: Select menu screen:
PWR • Press to turn the source unit ON
• Press and hold for two seconds to turn the source unit OFF
SRC • Press to turn the source unit ON
• Press to cycle through sources (Last tuner/USB/Bluetooth®/AUX)
VOL+• Press to increase volume
VOL–• Press to decrease volume
MUTE
or • Press to mute/unmute audio (AM/FM/WB/SiriusXM®/AUX)
• Press to pause/resume the current selection (USB/Bluetooth®)
• Press to select the next Favorite (AM/FM/WB/SiriusXM®)
• Press to select the next track (USB/Bluetooth®)
• Press and hold to fast-forward (USB)
• Press to select the previous Favorite (AM/FM/WB/SiriusXM®)
• Press to select the previous track (USB/Bluetooth®)
• Press and hold to fast-rewind (USB)
Specications
Operating Frequency 2.4 GHz
Operating Range* Up to 150 ft. (45 m)
Operating Temperature -4 °F to +167 °F (-20 °C to +75 °C)
IP Rating (Transmitter) IP67
IP Rating (Receiver) IP65
Dimensions
(Transmitter)
2.99 in x 2 in x 1.07 in
76 mm x 50.8 mm x 27.2 mm
Dimensions
(Receiver)
4.02 in x 3.01 in x 1.42 in
102.1 mm x 76.5 mm x 36.1 mm
*Maximum operating range will vary based on installation specics and
transmitter battery level.
Steering Wheel Mount Example
Attach to a steering wheel using the
included plastic cable ties.
In case of misplaced transmitters, you may delete all remotes from the
receiver module’s memory.
Note: All paired transmitters will stop working after deletion.
Subsequent remote functionality will require each transmitter to be
paired with the receiver.
To Delete All Transmitters
1. Disconnect +12V power from your MediaMaster® by removing the
5-amp fuse from its fuse holder, unplugging its 4-pin power plug,
or switching o its +12V supply circuit.
2. Press and hold both VOL+and VOL–buttons on an
existing (paired) transmitter, then reconnect +12V power to
your MediaMaster®.
3. Continue holding both VOL+and VOL–buttons for 5 to 10
seconds, then release both buttons.
• If successful, the status LED will emit two long ashes with any
button press and the transmitter will no longer control your
MediaMaster®.
• If unsuccessful, the status LED will emit two quick ashes with
any button press and the transmitter will still control your
MediaMaster®.
Table of contents
Other JL Audio Remote Control manuals
