JLCooper Electronics TransportPro RS422 User manual

!
User Manual

TransportPro RS422 User Manual
2
TransportPro, SloMoPro, SloMo Mini, GangWay4, GangWay16, GangWay32, Edit Suite Series, ES-SloMo
and ES-450 are trademarks of JLCooper Electronics.
All other brand names are the property of their respective owners.
TransportPro RS422 User’s Manual, First Edition (May 7, 2019)
Part Number 932157
©2019 JLCooper Electronics, 142 Arena Street, El Segundo, CA 90245 USA
[phone]!FAX[phone]!www.jlcooper.com

Table of Contents
.........................................................................................................Introduction 4
.....................................................................................................................Features !4
...........................................................................................................Connecting 5
.....................................................................................Using your TransportPro 6
............................................................................................Identifying your recorder!6
...............................................................................................Using the TransportPro!7
....................................................................................................Manual Timecode Entry"10
............................................................................................One Touch Preset and Recall"10
.........................................................................................Storing a Preset Location!10
......................................................................................Recalling a Preset Location!10
.......................................................................................Using with GangWay4 11
...................................................................................................GangWay Controls !11
..........................................................................................Controlling the GangWay!12
........................................................................................Technical Information 13
........................................................................................................................Pinout!13
....................................................................................................................Deck Control"13
...................................................................................................GPI Inputs and Outputs "14
................................................................................................Command Reference!15
...................................................................................................Replacement Parts !16
...................................................................................................................Power Supply"16
..............................................................................................................Care and Service"16
...........................................................JLCooper Electronics Limited Warranty 17
TransportPro RS422 User Manual
3

Introduction
The TransportPro is a compact controller for News, Sports, Scoreboard and other
slow motion editing operations. It makes the operation of professional video
recorders quick and easy.
It’s a full-featured 4-machine editor and universal Jog/Shuttle remote for most VTRs
and disk based recorders. Its sleek design and low cost make it the perfect
addition to edit suites, remote trucks and field production applications.
TransportPro features include professional transport buttons, professional Jog
Wheel and Shuttle Ring for convenient picture search operations, a high quality T-
Bar to control Slow Motion effects, an easy to read 2 line by 16 character VFD
display for accurate editing, a numeric keypad, fast access function keys and an
integrated data and power cable to minimize workspace clutter.
The JLCooper TransportPro RS-422 is a remote control for VTRs and other
machines that support Sony 9 Pin "P2" protocol.
The TransportPro controls professional analogue and digital VTRs, modular digital
multitrack and disk-based VTR emulators.
The TransportPro features a smooth, weighted and optically encoded jog shuttle
wheel with concentric shuttle ring, and transport and function keys.
Features
The TransportPro allows the following control of your video recorder:
•Play
•Reverse Play
•Pause*
•Stop
•Record
•Jog Forward/Reverse
•Shuttle Forward/Reverse
•Rewind and Fast Forward
•Frame Advance
•Jump to Next/Previous Clip*
•Jump Ahead/Back 10 seconds*
•One touch instant recall
•Goto Manual Location
* Depends on the recorder detected by the TransportPro.
TransportPro RS422 User Manual
4

Connecting
Connecting the TransportPro is straightforward. Connect the large 25 pin D-Sub
connector to the rear of the TransportPro. Secure the connector the TransportPro
by screwing the lock screws into the connector. Connect each video device or
video server to the smaller 9 pin D-Sub connectors. Some video servers have more
than one connector, which allow simultaneous control of the recorder and player. In
these cases, connect each port to its own connector on the TransportPro.
Lastly, connect the TransportPro to a source of power. This can be either from the
power mains using the provided power supply or directly from 9-12 volts DC. The
connector is a 2.1mm coaxial power connector. The center pin is positive. A power
switch on the rear panel turns the TransportPro on or off.
Connecting the TransportPro in your system is rather straightforward and easy. The
TransportPro comes with an attached breakout cable. The end has 1 connector
that connects directly to a video recorder. A power connector allows the
connection of an AC power adapter.
TransportPro Connected To A Video Deck
TransportPro RS422 User Manual
5

Using your TransportPro
Identifying Your Recorder
As soon as the TransportPro is powered up, the controller continuously asks the
recorder for its Device ID. The TransportPro uses this response to adjust its
behavior to specific recorders.
The TransportPro also uses this Device ID to determine the frame rate of the
recorder. This is used for the Frame+1/Frame-1 function.
The TransportPro currently has specific functionality for the following recorders:
•Blackmagic Design HyperDeck Studio Series
•Aja Ki Pro Series
•Fast Forward Video Recorders
•VideoDevices PIX Series
•Datavideo HDR-60/70
•Sony XDCAM Series
•Atomos Shogun Studio
If the recorder responds with any other Device ID, the unit controls the recorder as a
generic Sony Betacam (BVW-75) recorder.
TransportPro RS422 User Manual
6

Using The TransportPro
TIMECODE DISPLAY
The TransportPro continuously asks the recorder selected for tally for its position.
The TransportPro will display the recorders position in the Timecode display on the
controller.
Nondrop frame timecode is indicated without a
period before the timecode as shown in the
screenshot at right.
Drop frame timecode is indicated with a period
before the timecode as shown in the
screenshot at right.
F-PLAY
Pressing this button causes the TransportPro to send the Play command.
Alternately, pressing and holding the Shift button while pressing the Play button will
cause the TransportPro to send the Record command.
This button illuminates when the video device reports back that it is playing or
recording.
SHIFT/RECORD
Pressing the SHIFT + F-Play button
causes the TransportPro to send the
Record command. This also known as
Crash Record. When the recorder enters
the record mode, the recorder will
respond accordingly and the
TransportPro will illuminate the Record
indicator. Conversely, when the recorder
exits the record mode, the recorder will
respond accordingly and the
TransportPro will extinguish the Record
indicator.
Note: Only the recorder selected for tally
is used to illuminate the Record
indicator.
When the recorder is in Record mode,
pressing the STOP button causes the
TransportPro to command the recorder
to stop recording.
R-PLAY
Pressing the R-PLAY button causes the
TransportPro to send the Variable
Reverse 1x command.
TC= 01:26:43:15
TC=.01:26:43:15
TransportPro RS422 User Manual
7

F-FWD, REWIND
Pressing the F-FWD/Rewind buttons causes the TransportPro to send the Fast
Forward and Rewind commands respectively.
STOP
Pressing the STOP button causes the TransportPro to stop the playback of video. If
the recorder is in Record mode, the TransportPro commands the recorder to stop
recording.
For the Atomos Shogun Studio, TransportPro sends the Stop command.
For all other recorders, TransportPro sends the Shuttle Forward 0x command. This
is also known as Pause or Still.
FRAME+1, FRAME-1
Pressing the Frame+1/Frame-1 buttons cause the TransportPro to retrieve the
current timecode from the recorder selected for tally, adds or subtracts one frame
from the timecode and commands the recorder to goto that new position.
CLIP/10 SEC+, CLIP/10 SEC-
For the Ki Pro, Sony XDCAM and VideoDevices PIX Series recorders, pressing the
Clip/10 Sec+ button causes the TransportPro to command the recorder to load the
next clip. Pressing the Clip/10 Sec- button causes the TransportPro to command
the recorder to load the previous clip.
For all other recorders, pressing these buttons causes the TransportPro to retrieve
the current timecode from the recorder selected for tally, adds or subtracts ten
seconds from the timecode and commands the recorder to goto that new position.
2/4/8/16X+, 2/4/8/16X-
Pressing the 2/4/8/16x+, 2/4/8/16x- buttons cause the TransportPro to send the
Shuttle Forward or Reverse 2x command. Subsequent presses cause the
TransportPro to increase the speed to 4x, 8x and 16x.
JOG WHEEL
Turning the center Jog wheel causes the recorder to play video slowly (slower than
play speed). Turning the Jog wheel clockwise causes the video to move forward.
Conversely, turning the Jog wheel counterclockwise causes the video to move
backwards. The Jog wheel has a range of forward 1/2x play speed to reverse 1/2x
play speed.
When the Jog wheel ceases moving, the TransportPro pauses the video playback.
The TransportPro also retrieves the current timecode from the recorder selected for
tally and commands all the selected recorders to goto that new position. This
allows all the selected recorders to pause at the same location.
As the Jog wheel is turned, the direction indicators above the Jog wheel will
illuminate based on the direction that the Jog wheel is being turned. Turning the
Jog wheel clockwise causes the right facing direction indicator to illuminate.
Conversely, turning the Jog wheel counterclockwise causes the left facing direction
indicator to illuminate. When the Jog wheel ceases moving, both direction
indicators are extinguished.
TransportPro RS422 User Manual
8

SHUTTLE RING
Turning the outer Shuttle ring causes the recorder to play video quickly (faster than
play speed). Turning the Shuttle ring clockwise from the center detent position
causes the video to move forward. Conversely, turning the Shuttle ring
counterclockwise from the center detent position causes the video to move
backwards. The Shuttle ring has a range of forward 10x play speed to reverse 10x
play speed.
When the Shuttle ring is moved to the center detent, the TransportPro pauses the
video playback. The TransportPro also retrieves the current timecode from the
recorder selected for tally and commands all the selected recorders to goto that
new position. This allows all the selected recorders to pause at the same location.
As the Shuttle ring is turned, the direction indicators above the Shuttle ring will
illuminate based on the direction that the Shuttle ring is being turned. Turning the
Shuttle ring clockwise causes the right facing direction indicator to illuminate.
Conversely, turning the Shuttle ring counterclockwise causes the left facing
direction indicator to illuminate. When the Shuttle ring is brought to the center
detent, both direction indicators are illuminated.
Note: The TransportPro uses the center detent position to calibrate the Shuttle ring. If the
TransportPro is powered up with the Shuttle ring out of the center detent position, the
Shuttle ring may not work as expected.
ON/OFF
This button allows the Jog wheel and Shuttle ring to be enabled or disabled. Tap
the button once to disable the Jog wheel and Shuttle ring. Tap the button again to
enable the Jog wheel and Shuttle ring.
GOTO
The TransportPro has the ability to cue the recorder to any arbitrary location that is
valid for the recorder. The TransportPro has two ways to cue the recorder.
•Manual Timecode Entry
•One Touch Preset and Recall

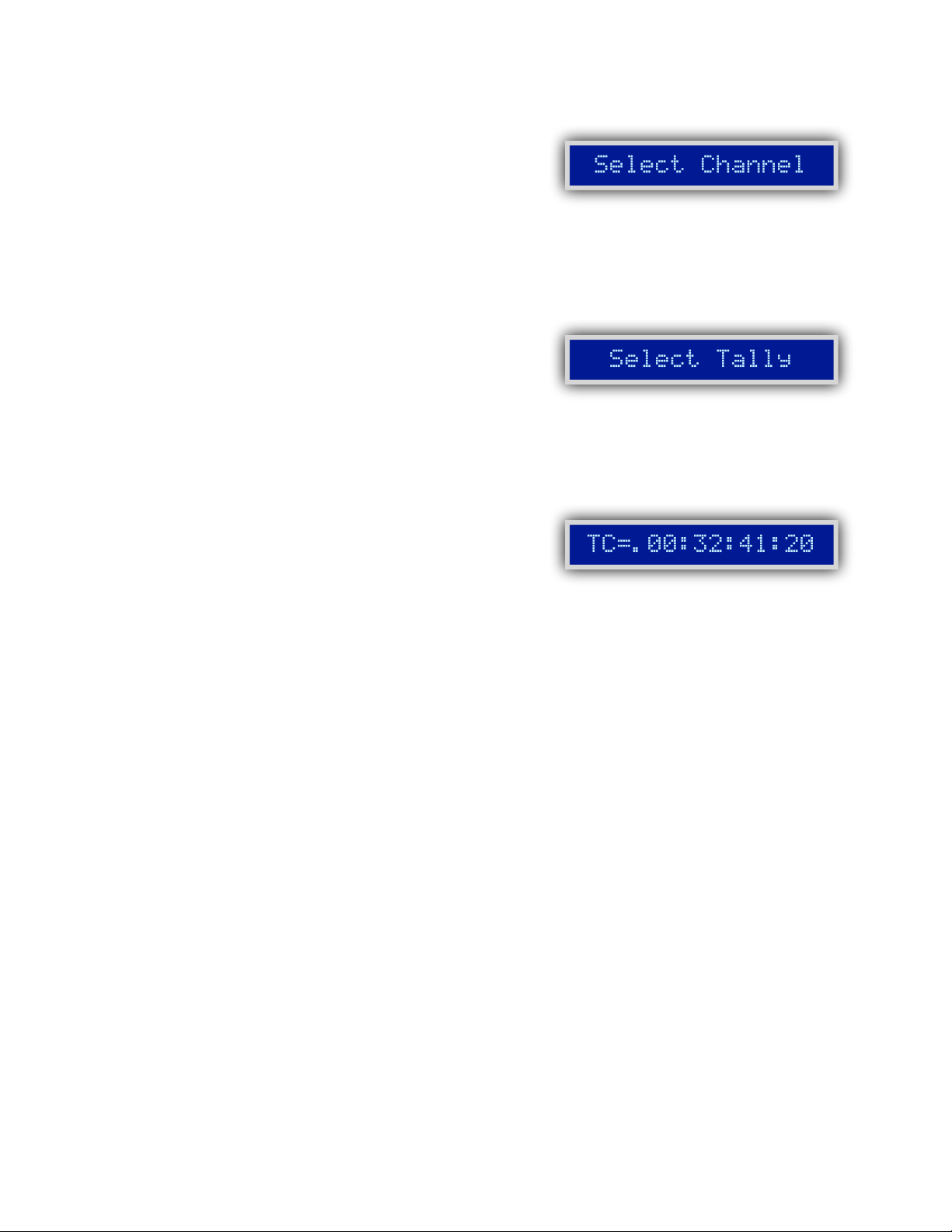

SELECT CHANNEL
This button is used with the optional GangWay4 to select the active ports. Pressing
the Select Channel button at the top left corner of the TransportPro will cause the
TransportPro to display “Select Channel”. Refer to the section on GangWay
operation.
1 - 4
These buttons are used with the optional GangWay4 to select the active ports.
Refer to the section on GangWay operation.
TALLY
This button is used with the optional GangWay4 to select the active ports. Refer to
the section on GangWay operation.
TransportPro RS422 User Manual
9

Manual Timecode Entry
The Manual Timecode Entry method allows you to manually enter a timecode and
have the TransportPro command the recorder(s) to go to that location.
To use the Manual Timecode Entry method, simply perform the following:
1. Press the GOTO button.
2. Enter the desired timecode using the
blue numbered buttons.
Note: Any leading zeros do not need to be entered.
3. To compete the locate operation, press
the ENTER button. The TransportPro will
command the recorder(s) to go to that
location.
One Touch Preset and Recall
The One Touch Preset and Recall method allows you to store a location and later
recall that location. When the location is recalled, the TransportPro will command
the recorder(s) to go to that location. Up to 7 locations can be stored. Locations
can be stored regardless of the mode that the recorder is in. Locations will be
remembered even after the TransportPro is powered off.
Storing a Preset Location
Store Locate #5To store a location for later
recall, press and hold the SHIFT button, then
tap one of the location buttons (LOC1 - LOC7).
Recalling a Preset Location
Goto Locate #5To recall a location, press the
GOTO button, then tap one of the location
buttons (LOC1 - LOC7).
Goto : : :
Goto 02:15:37:16
Goto Locate
Store Locate #5
Goto Locate #5
TransportPro RS422 User Manual
10

Using with GangWay4
The TransportPro is able to remotely control the GangWay4.
To use the GangWay4 with the TransportPro, simply connect the TransportPro to
the rear panel controller port of the GangWay4 as shown below.
Connecting the GangWay4 to the TransportPro and 4 video
recorders
GangWay Controls
When GangWay Operation is enabled in the menu, the Machine Control buttons
and LEDs are repurposed to control the GangWay4 (Ports 1-16 only). In this case,
the functions of the buttons and LEDs are as follows:
Select Channel
Pressing this button enters the GangWay4 configuration mode. In this mode,
the Select Channel LED will illuminate and the VFD will show and the 1 - 4 LEDs
will show the GangWay4 routing.
Tally
Pressing this button allows you to select the port, which provides Tally
information (timecode, status) to the TransportPro. In this mode, the Tally LED
will illuminate and the 1 - 4 LEDs will show the GangWay4 Tally routing.
1 - 4
These numbered switches allow the user to enable a slave device connected to
the corresponding numbered port on the rear panel. This allows commands
from the controller port to be routed to the selected numbered port(s).
When the Set Tally button is not pressed,
#A button illuminates when the port is selected for control.
#A button is extinguished when the port is not selected for control.
Then the Set Tally button is pressed,
#A button illuminates when the port is selected for Tally.
#A button is extinguished when the port is not selected for Tally.
TransportPro RS422 User Manual
11

Controlling the GangWay
Select Channel
To control the GangWay4, simply press the
Select Channel button. The display will show
Select Channel and indicate the selected
decks by illuminating buttons 1 -4.
To toggle the selection of a deck, press a numbered button.
Select Tally
To select the deck that shows it’s timecode
on the TransportPro, press and hold the Tally
button then press a numbered button. The
TransportPro will indicate the deck selected
for Tally by illuminating buttons 1 -4.
Exiting GangWay Mode
To exit the GangWay4. mode, simply press
the Select Channel button so the
TransportPro displays the timecode from the
selected deck.
Select Channel
Select Tally
TC=.00:32:41:20
TransportPro RS422 User Manual
12

Technical Information
Pinout
Deck Control
The pinout of the 9 pin D Subminiature connectors is shown in the following table.
TransportPro
Direction
Recorder
1
Ground
Ground
2
Receive A (-)
←
Transmit A (-)
3
Transmit B (+)
→
Receive B (+)
4
Ground
Ground
5
Not used
Not used
6
Ground
Ground
7
Receive B (+)
←
Transmit B (+)
8
Transmit A (-)
→
Receive A (-)
9
Ground
Ground
Pinout of 9 Pin D-Subminiature Connector
For Deck Control
Pinout of 9 Pin D-Subminiature Connector
For Deck Control
Pinout of 9 Pin D-Subminiature Connector
For Deck Control
Pinout of 9 Pin D-Subminiature Connector
For Deck Control
Pin Identification of 9 Pin D-Subminiature
Connectors
TransportPro RS422 User Manual
13

GPI Inputs and Outputs
The table below details the pinout of the GPI connector on the rear panel of the
TransportPro.
Transport Switch
1
Fast Forward
2
Stop
3
Rewind
4
-
5
Ground
6
Play
7
R-Play
8
Shift
9
-
Pinout of 9 Pin D-Subminiature Connector
For GPI Inputs/Outputs
Pinout of 9 Pin D-Subminiature Connector
For GPI Inputs/Outputs
The GPI Inputs/Outputs mirror the function of the common transport switches. The
function of each GPI Inputs/Outputs is shown in the diagram below. The
maximum voltage on the GPI pins is +5 volts.
74HC165
GPI Input/Output
+ 5 Volts
4700 Ohm
Transport
Switch
TransportPro RS422 User Manual
14

Command Reference
The table below lists the various command messages that the TransportPro sends
to the recorder. The specific messages may vary based on the actual recorder
detected.
Function
Command
STOP
21 13 00
F-PLAY
20 01
R-PLAY
21 22 40
F-FWD
20 10
REWIND
20 20
RECORD
20 02
FRAME+/-1
24 31 <ff> <ss> <mm> <hh>
+/-10 SECONDS
24 31 <ff> <ss> <mm> <hh>
+2/4/8/16X
21 13 <speed>
-2/4/8/16X
21 23 <speed>
JOG FORWARD
21 11 <speed>
JOG REVERSE
21 21 <speed>
SHUTTLE FORWARD
21 13 <speed>
SHUTTLE REVERSE
21 23 <speed>
GOTO
24 31 <ff> <ss> <mm> <hh>
TIMECODE REQUEST
61 0C 03
STATUS REQUEST
61 20 11
DEVICE ID REQUEST
00 11
Function Commands
Function Commands
TransportPro RS422 User Manual
15

Replacement Parts
If replacement parts are needed, you can order them directly from JLCooper
Electronics.
You can contact us at the following email address:
[e-mail]
You can also contact us at the following phone number:
[phone]
Power Supply
The TransportPro uses a power supply that is rated at 9 volts DC at 500mA. The
connector is a barrel connector that is 11mm long, has a outer diameter of 5.5mm
and center diameter of 2.1 mm. Connector is positive polarity.
If you you need to order a replacement, you can order it directly from us. The
JLCooper part number is 561036.
Care and Service
If properly cared for, your TransportPro should provide years of trouble-free
performance. While the TransportPro is built in a rugged metal enclosure, please
avoid dropping the TransportPro or hard banging on the keys.
Clean with a soft cloth dampened with window cleaner. Do not allow liquids or
foreign matter to get inside the unit.
There are no user-serviceable parts in the TransportPro. Please refer to the really
fine print following for detailed warranty and service information.
11mm
5.5mm outside
2.1mm inside
TransportPro RS422 User Manual
16

JLCooper Electronics Limited Warranty
JLCooper Electronics ("JLCooper") warrants this product to be free of defects in materials
or workmanship for a period of 12 months from the date of purchase. This warranty is
non-transferable and the benefits apply only to the original owner. Proof of purchase in the
form of an itemized sales receipt is required for warranty coverage. To receive service
under this warranty, customers in the United States should contact the JLCooper factory
at [phone] and talk to a service technician. If necessary, a Return Authorization
number may be issued. For our customers outside the United States, it is recommended
that you first contact your Dealer or Distributor, since they may offer their own service or
support policy. If local support is not obtainable, please send a FAX to JLCooper's Service
Department at [phone] with a detailed description of the service required. Upon
issuance of return authorization, the product should be packed in the original shipping
materials and shipped prepaid and insured to: Service Department, JLCooper Electronics,
142 Arena Street, El Segundo, CA 90245. Please include the following: copy of the sales
receipt, your name and address (no P.O. Boxes, please), a brief description of the problem,
and any other related items discussed with the service department and considered
necessary to evaluate the product or effect a repair. The return authorization number must
be clearly written on the outside of the package. JLCooper will, at its option, without
charge for parts or labor, either repair or replace the defective part(s) or unit. Shipping
costs, duties, customs, brokerage and other fees to and from JLCooper are not covered
by this warranty. JLCooper's normal repair turn around time at the factory is approximately
10 business days from receipt of product to shipping. Your actual turn around time will
include return shipping. Actual turn around time will vary depending upon many factors
including the repeatability of the customer's reported complaint, the availability of parts
required for repair, the availability of related products needed to evaluate the product if
necessary. Priority services are available at additional cost. These should be discussed
with the service representative at the time the return authorization is issued. This warranty
provides only the benefits specified and does not cover damage, defects or repairs
needed as result of acts beyond the control of JLCooper including but not limited to:
abuse, damage by accident or negligence, damage from using incorrect power supply,
modification, alteration, improper or abnormal use, unauthorized servicing, tampering,
ingress of foreign matter or failure to operate in accordance with the procedures outlined in
the owner's manual; nor for natural or man-made events such as, but not limited to
flooding, lightning, tornadoes, earthquake, fire, civil unrest, war, terrorism, etc.
THE DURATION OF ANY OTHER WARRANTIES, WHETHER IMPLIED OR EXPRESS,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY, IS
LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. JLCOOPER
HEREBY EXCLUDES INCIDENTAL AND CONSEQUENTIAL DAMAGES, INCLUDING BUT
NOT LIMITED TO: LOSS OF TIME, INCONVENIENCE, DELAY IN PERFORMANCE OF
THIS WARRANTY, THE LOSS OF USE OF THE PRODUCT OR COMMERCIAL LOSS, AND
FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OF MERCHANTABILITY
APPLICABLE TO THIS PRODUCT. JLCOOPER SHALL NOT BE LIABLE FOR DAMAGES
OR LOSS RESULTING FROM THE NEGLIGENT OR INTENTIONAL ACTS OF THE
SHIPPER OR HIS CONTRACT AFFILIATES. THIS WARRANTY SHALL BE GOVERNED BY
THE LAWS OF THE STATE OF CALIFORNIA.
TransportPro RS422 User Manual
17
