JLL VENTUS 3 User manual

INSTRUCTION MANUAL
Please read this book thoroughly before operating the rower.

CONTENTS
2. ASSEMBLY
Preparing the site
Diagram
Content listing
Box contents
Tools pack
VENTUS 3 assembly
Storing the rowing machine
Adjusting the pedal straps
Moving the machine
Monitor angle
Monitor conguration
Monitor specications
Units
Specications
Functions
p. 11
p. 11
p. 12
p. 12
p. 13
p. 14
p. 16
p. 16
p. 16
p. 16
p. 17
p. 17
p. 18
p. 18
p. 18
1. SAFETY INSTRUCTIONS
Important safety information
User safety precautions
Prior to use
During use
Exercise safety precautions
Facility safety precautions
Warning stickers
p. 8
p. 9
p. 9
p. 9
p. 9
p. 9
p. 10
Exploded diagram
Parts list
p. 4
p. 6

Manual mode
Program mode
Body fat
Watt mode
Heart rate band
Heart rate mode
User mode
Recovery mode
Bluetooth
Testing the rower operation
3. OPERATION
Preventive maintenance activities
Rower cleaning
3 easy steps to clean your rower
4. MAINTENANCE
p. 19
p. 19
p. 20
p. 21
p. 21
p. 22
p. 22
p. 23
p. 23
p. 23
p. 24
p. 25
p. 25
Contact information
Disclaimer
5. ADDITIONAL INFORMATION
p. 26
p. 26

4
1
EXPLODED DIAGRAM

5

6
PARTS LIST
NO. DESCRIPTION QTY NO. DESCRIPTION QTY
1 Inner hex pan head bolt
M8*42*15*S6
235 Inner hex pan head bolt
M6*16*10
4
2 Transportation wheel 2 36 Rail upper cover 1
3 Washer d8*16*1.5 16 37 Rail bottom cover 1
4 Nylon nut M8*H7.5*S13 6 38 Rail support 1
5 End cap 60.5*17 4 39 Bolt M8*16*S14 4
6 Front bottom tube 1 40 Saddle 1
7 Nut M8 4 41 U baffle plate 2
8 Adjustable foot pad 52*18 4 42 Left support plate of seat 2
9 Square neck bolt
M8*73*20*H5
2 43 Bolt M8*135*15*S14 3
10 Arc washer d8*20*2*R30 8 44 Chain bolt M6*40*10*2.5 4
11 Spring washer d8 12 45 Chain U seat 4
12 Cap Nut M8 2 46 Nylon Nut M6*H6*S10 5
13 Cross pan head bolt M5*10 4 47 Spacer d8*15*4 6
14 End cap 1 48 Bearing 608Z 10
15 Display 1 49 Roller 45*38*22 4
16 Extension Wire 2 50 Spacer 14*8.3*30 2
17 Handlebar Seat 1 51 Roller 33*106*22 1
18 Cross pan head bolt
M5*10*8.5
252 Flange nut M10*1*H9.5*S15 4
19 Foam grip 2 53 Hexagonal thin nut
M10*1*H5*S17
4
20 End cap 32*17 2 54 Bearing 6000-2RS 5
21 Handlebar 1 55 Cross pan head screw
ST4.2*13*7
16
22 Bolt M8*20*S13 4 56 Aliminium sheet 4
23 Washer d8*20*2 5 57 Fan 1
24 Inner hex pan head bolt
M8*20*S5*13
11 58 Flywheel shaft 1
25 Cross pan head self drilling
screw ST4.2*16*8
22 59 Magnetic plate 1
26L/R Guide rail cover 1 pair 60 L sheet metal 1
27 Main frame 1 61 Magnetic plate sheet 1
28 Pedal strap 2 62 Hex bolt M6*16*S10 1
29 Pedal 2 63 Fan wheel shaft sleeve 1
30 Pedal seat 1 64 Round magnet 24*5 2
31 Cross pan head screw M4*12 4 65 Spring 1.2*15*48*N9 1
32 Aliminium guide rail 2 66 Bushing 32*3.3*28*16*14 2
33 Rail 1 67 Display post 1
34 Limiter 4 68 Knob 14*81.5*M8*S6 1

7
NO. DESCRIPTION QTY NO. DESCRIPTION QTY
69 Bolt M6*55*15*S10 1 91 Tension wire 1
70 Circlips for shaft 2 92 Adapter 1
71 Pulley 45*35 1 93L/R Front cover 1
pair
72 Belt wheel shaft 1 94L/R Rear cover 1
pair
73 Corrugated washer d10 1 95 Support pad of housing 1
74 Belt 6PJ290 1 96 Rubber ring 1
75 Belt wheel 112*61.5 1 97 Screw ST4.2*16*8 12
76 Bearing 16003-2RS 2 98 Washer D5*16*1.5 4
77 Bearing 35*d17*16 1 99 Cross pan head screw
M4*10*8
7
78 Mesh belt wheel 1 100 Chuck for steel net cover 7
79 Circlips for hole D35 1 101 Chuck for steel net cover 7
80 Fixing axle for mesh belt 1 102 Left steel net cover 1
81 Bearing 6300-2RS 1103 Right steel net cover 1
82 Mesh belt 1 104 Rubber ring 2
83 PC board for mesh belt
wheel
1 105 IP frame 1
84 Axle for mesh belt wheel 1
85 Volute spring 1 A Spanner S5 1
86 Outer PC board 1 B Wrench S13-14-15 1
87 Outer cover for mesh belt
wheel
1
88 Sensor 2
89 Sensor holder 1
90 Motor 1

8
Safety Instructions
Please pay attention to the following instructions before operating this rowing machine.
IMPORTANT SAFETY INFORMATION
Thank you for choosing our product. To ensure your health and safety, please use
this equipment as advised. It is important to read this entire manual before
assembling and using the equipment. Safe and effective use can only be achieved
if the equipment is assembled, maintained and used in accordance to the manual.
It is your responsibility to ensure that all users of the equipment are informed of all
warnings and precautions.
1. Before starting any exercise program, you should consult a health professional
to determine if you have any medical or physical conditions that could put your
health and safety at risk or prevent you from using the equipment properly. A
health professional’s advice is essential if you are taking medication that affects
your heart rate, blood pressure or cholesterol level.
2.Be aware of your body’s signals. Incorrect or excessive exercise can damage your
health. Stop exercising if you experience any of the following symptoms: pain,
tightness in your chest, irregular heartbeat, lightheadedness, dizziness or
feelings of nausea. If you do experience any of these conditions, you should
consult a health professional before continuing with your exercise program.
3.Keep children and pets away from the equipment. The equipment is designed for
adult use only.
4.Use the equipment on a solid, flat level surface with a protective cover for your
floor or carpet. To ensure safety, the equipment should have at least 2 feet (61 cm)
of free space all around it.
5.Ensure that all nuts and bolts are securely tightened before using the equipment.
The safety of the equipment can only be maintained if it is regularly examined for
damage and/or wear and tear.
6.Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming
from the equipment during exercise, discontinue use of the equipment
immediately. Please contact JLL Fitness on 0800 6123 988 for advice on how to
resolve the issue.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing
that may become entangled in the equipment.
8.Do not place fingers or objects into the moving parts of the equipment.
1

9
USER SAFETY PRECAUTIONS
PRIOR TO USE
• Assemble the rower according to the instruction manual.
• Consult your doctor before beginning any exercise program.
• Read instructions.
• Read warning labels.
• Read emergency stop procedures.
• Maximum user weight is 120kg/ 18.8 St.
• Inspect unit. If damaged, DO NOT USE.
• Ensure every bolt and screw is securely tightened.
DURING USE
• DO NOT use for stretching and DO NOT attach straps or other devices.
• DO NOT allow children aged 12 or younger to be on or near the machine.
• Stop exercising if you feel faint, dizzy, or encounter pain.
• Keep all clothing and accessories clear of moving parts.
EXERCISE SAFETY PRECAUTIONS
• Use sports clothes and gym shoes.
• This model should only be used at home, DO NOT use for commercial purposes.
FACILITY SAFETY PRECAUTIONS
• DO NOT operate this machine in damp or wet locations.
• Use caution when getting on or off the rower.
• Check the rowing machine for worn or loose components before each use. DO NOT
use until worn or damaged parts are replaced.
• Maintain regularly. Refer to Preventive Maintenance chapter.
• DO NOT use the rower if: (1) the machine is not working adequately or (2) the rower
has been dropped or damaged.
• DO NOT use the rower outdoors.
9.The maximum weight capacity of this unit is 120 kg.
10. To avoid bodily injury and/or damage to the product or property, ensure to follow
safe procedures for lifting and moving the item.
11. Your product is intended for use in cool, dry conditions. You should avoid storage
in extreme cold, hot or damp areas as this may lead to corrosion and other related
problems.
12. This equipment is designed for indoor home use only, it is not intended for
commercial use.

10
• Read the instruction manual completely before using the rower.
• Ensure all users wear appropriate footwear on JLL®equipment.
• Set up and operate the rowing machine on a level surface. DO NOT operate in small
restricted areas or on plush carpet.
• As far as possible provide the following clearances: 0.5 m at each side and 2 m
at the back. Be sure your machine is clear of walls, equipment and other hard
surfaces.
• DO NOT modify the unit in any way. Any modifications will void the warranty.
• All the data displayed by the monitor is for reference purposes only.
Warning stickers indicate a potentially hazardous situation which, if not avoided, could
result in death or serious injury. Carefully read the following caution and warning labels
before using the unit.
WARNING STICKERS
DO NOT touch any moving parts during use.
Children and pets must be kept away from machine at all times.
Appropriate clothing MUST be worn whilst exercising.
Please consult a doctor or health professional before undertaking any exercise or
health regime.
WARNING

11
Assembly
2
To find the ideal location to set up this rowing machine, ensure that:
• Area is well illuminated and well ventilated.
• Surface is level.
• There is enough space to access the unit and emergency dismount. If it is possible,
keep the following clearances: 0.5 m at each side and 2 m at the back.
• The rowing machine is placed in an environment with a relative humidity range of 30-
50%. Please ensure the temperature is kept constant. Do not use in a moist or damp
environment as this may impact on the integrity and performance of the machine.
PREPARING SITE

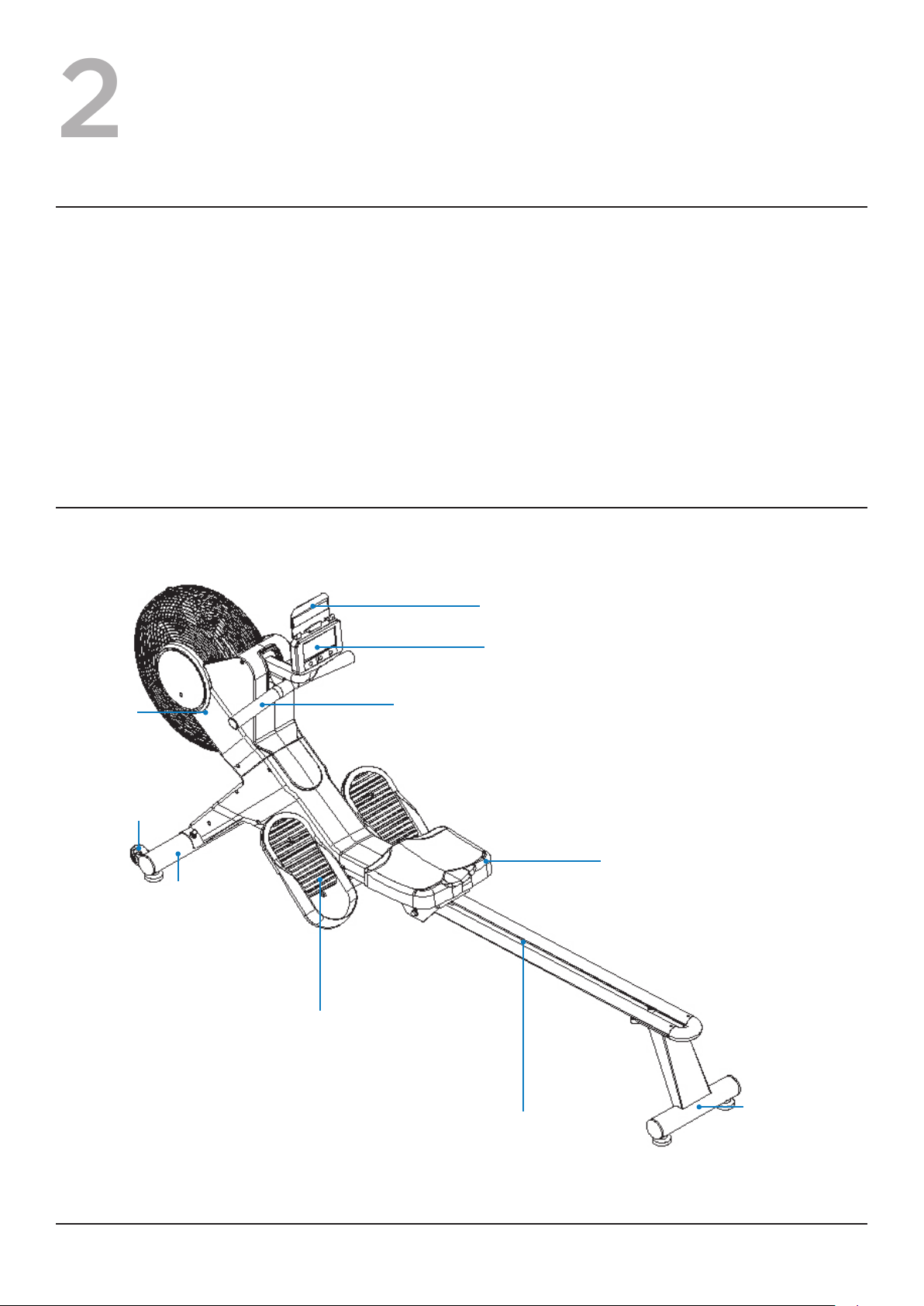

DIAGRAM
Handlebar
Monitor
Foot Plates
Saddle
Rear Stabilizer
Front Stabilizer
Main Base
Slideway
Device Stand
Transport Wheel

12
CONTENT LISTING
See diagram (pg.4) and content listing (below) for rower box contents. See Customer
Service chapter for contact information if any parts are missing.
BOX CONTENTS
Rower Main Base
Tools Pack2
Front Stabilizer
Manual
Slideway
Rear Supporter Guide Rail Covers
Rail Cover
Pedals
Monitor
Tablet Holder
Saddle
Pedal Seats
Power Cable

13
Spring Washer
x4
Flat
Washer
x4
Hex Allen Key
x1
Multi-Tool
x1
M8 Inner Hex Pan Head
Bolts
x4
Limiters
x2

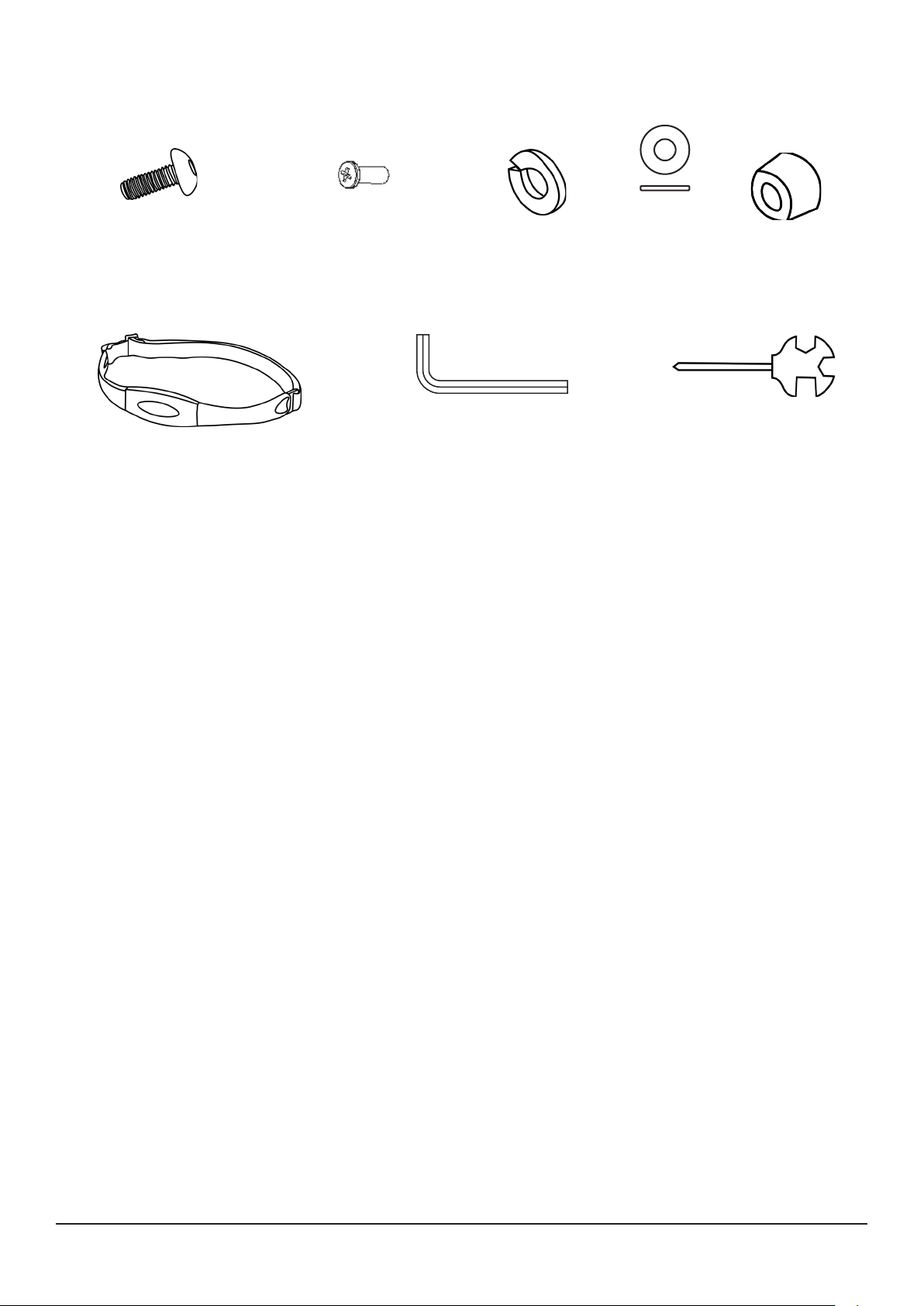

TOOLS PACK
M6 Inner Hex Pan Head
Bolts
x2
Heart Rate Band
x1

14

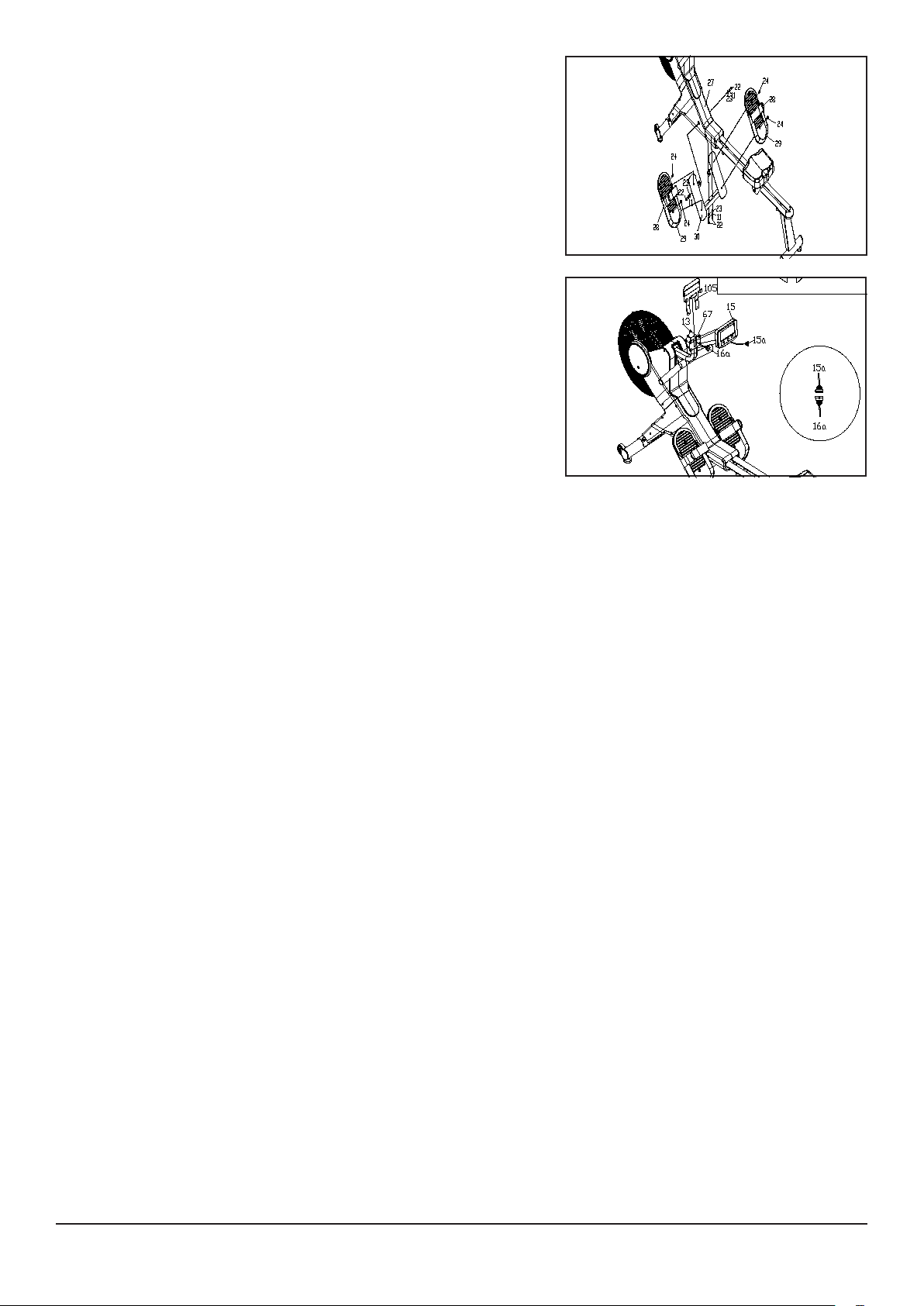

VENTUS 3 ASSEMBLY
The rower has been assembled and tested at the factory, so you shouldn’t have any
problems putting all the parts together. Components are designed to fit together, and
only basic tools are required for the assembly process. Inside the box you will find a Tools
Pack (Hex Allen Key, Spanner, Washers and Bolts). See previous page.
To assemble your JLL VENTUS 3 please follow these easy steps:

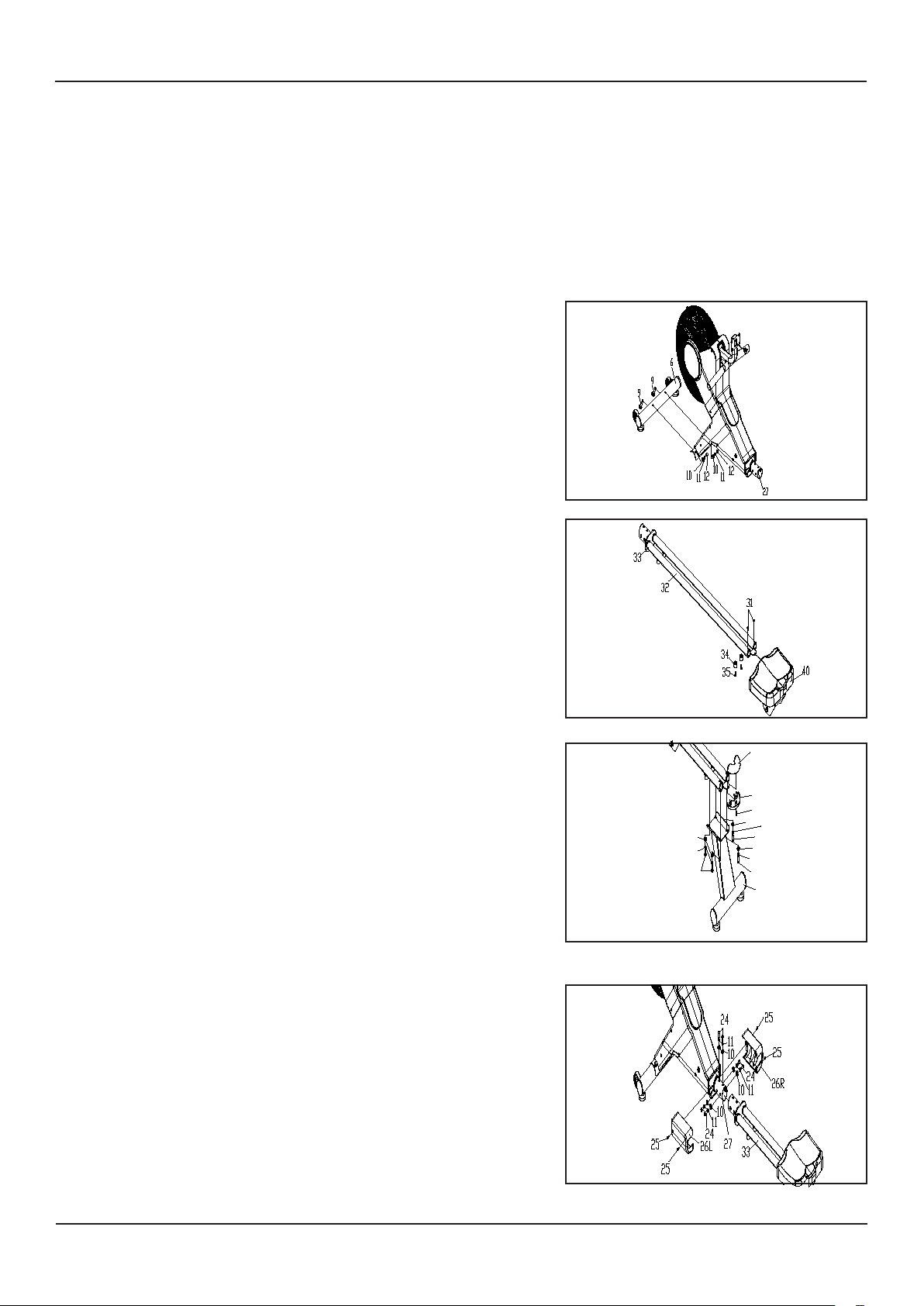

STEP 1
Start by removing the two square neck bolts (9),
arc washers (10), spring washers (11) and nuts (12)
in the mainframe (27) and use them to attach the
front stabiliser (6).
STEP 2
Next, remove the two cross pan head screws (31)
from the end of the slideway. Slide the saddle onto
the frame and reattach the screws.
Then attach the two limiters (34) on the underside
of the slideway using two bolts (35) from the tools
pack.
STEP 3
Split the rail cover (36/37) into two pieces by
removing the screw (25). Then attach it over the
end of the slideway and secure using the screw just
removed.
Fix the rear supporter (38) to the underside of the
slideway using four Allen head bolts (24), flat
washers (3) and spring washers (11).
STEP 4
Remove the bolts (24) and washers (10+11) from the
mainframe (27).
Split the guide rail cover (26L/R) apart by removing
the screws (25).
Attach the slideway to the mainframe using the bolts
and washers removed earlier and then secure the
guide rail covers over the top using the screws.
36
37
25
311
24
3
11
24
24
11
3
33
38

15
STEP 5
Remove the bolts (22) and washers (11+23) from the
mainframe (27).
Attach the pedal seats (30) to either side of the base
using these bolts, then add the pedals (29) on top
using two bolts (24) for either side.
STEP 6
Pull out the extension wire (16a) from the display
post (67) and connect it to the wire (15a) from the
monitor (15).
Return the wires back into the post and secure the
monitor to the post with the IP frame (105) in
between the two using the screws found in the back.
Lastly insert the power adapter into the front of the
machine and plug into a power socket.

16

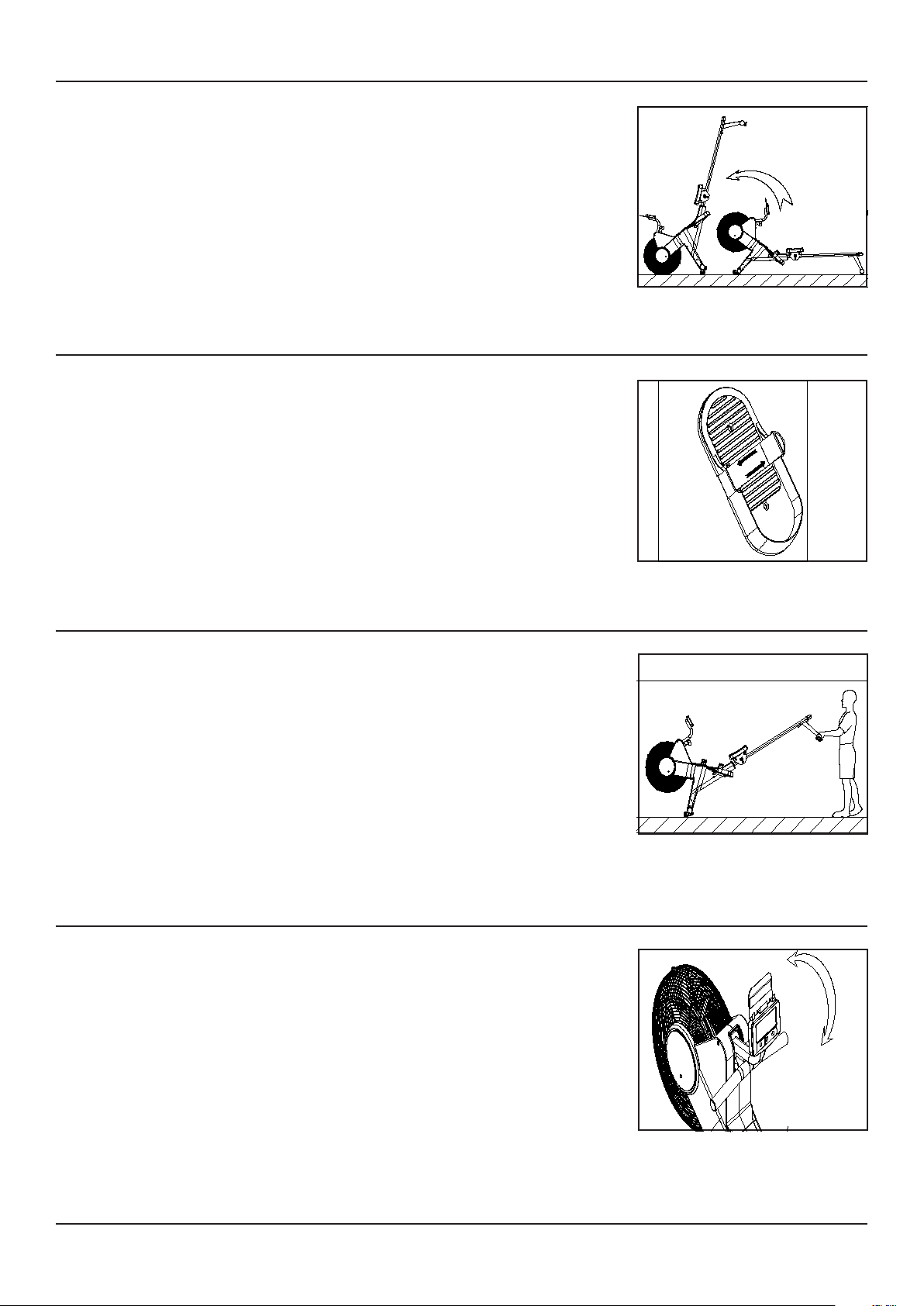

STORING THE ROWING MACHINE
When not in use, you can save space by tilting the
machine upright.
MOVING THE MACHINE
There are a set of transport wheels on the front
stabiliser. Lift the rear stabiliser until the front wheels
touch the ground and roll to your desired location.
MONITOR ANGLE
You can adjust the angle of the monitor by pivoting
it up or down on the arm from the base. The angle
may need to be changed due to the users height or
the amount of light within a room reflecting off the
screen.
ADJUSTING THE PEDALS STRAPS
The length of the straps can be adjusted to suit the
users foot size. Use the red hoop at the end of the
strap to pull the velcro tighter across your foot until
you feel it is secure.
FIG
A
FIG
B

17

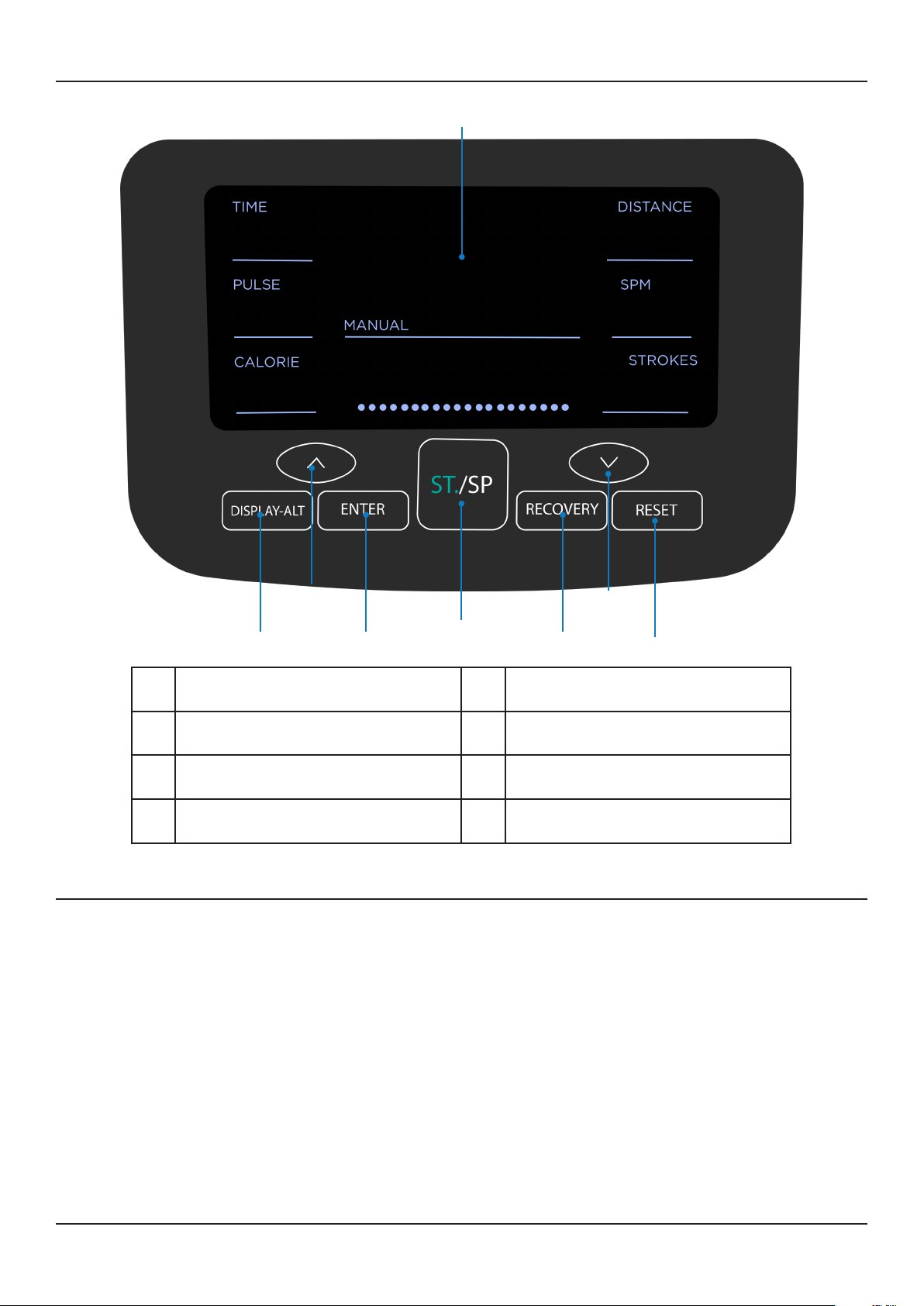

MONITOR CONFIGURATION
1
1LCD display 2Display-Alt Button
3Up Button 4Enter Button
5Start/Stop Button 6Recovery Button
7Down Button 8Reset Button
2
3
456
MONITOR SPECIFICATIONS
Time.........................................................................................................................00:00 - 99:59 MIN:SEC
Time 500M............................................................................................................00:00 - 99:59 MIN:SEC
Stroke...................................................................................................................................................0 - 9999
Calorie..................................................................................................................................................0 - 9999
Distance............................................................................................................................................0 - 99999
Total Strokes...................................................................................................................................0 - 99999
Pulse......................................................................................................................................................40 - 240
SPM..........................................................................................................................................................0 - 999
Watts........................................................................................................................................................0 - 899
8
7

18
SPECIFICATIONS
Display LCD Monitor: Time, Time 500M, Calorie, Distance, Strokes, Strokes Total,
Pulse, SPM, Watts
Storage Built-in transport wheels.
Resistance Air and Electro-Magnetic Resistance
Saddle Foam filled seat with free movement up and down the slideway.
Pedals Wide platform pedals
Handlebars Foam padded handles
Colour Black and Red
Maximum User Weight 120kg
Occupying Area 220 cm (Length) x 49.5 cm (Width) x 95 cm (Height)
Packaging Dimensions 119.5 cm (Length) x 28 cm (Width) x 87 cm (Height)
Gross Weight 39kg
Net Weight 33.8kg
Height Weight Pulse Cal Distance SPM Watts
CM KG BPM KCAL M STROKES/
MIN
W
UNITS
TIME: Counts the duration of your workout.
TIME 500M: Calculates your average 500 meter time. Shares the same segment as time.
STROKES: Counts the strokes completed during your workout.
CALORIE: Counts the estimated calories burnt while exercising.
STROKES TOTAL: Displays the total number of strokes since the machine has been used.
DISTANCE: Displays the distance covered in kilometers throughout your workout.
PULSE: Displays your current heart rate during your workout. The pulse measurement
will only function with a chest belt system.
SPM: Counts the average strokes per minute during your workout.
WATTS: Calculates the power generated by your workout, shares the same window as
SPM.
FUNCTIONS

19
3

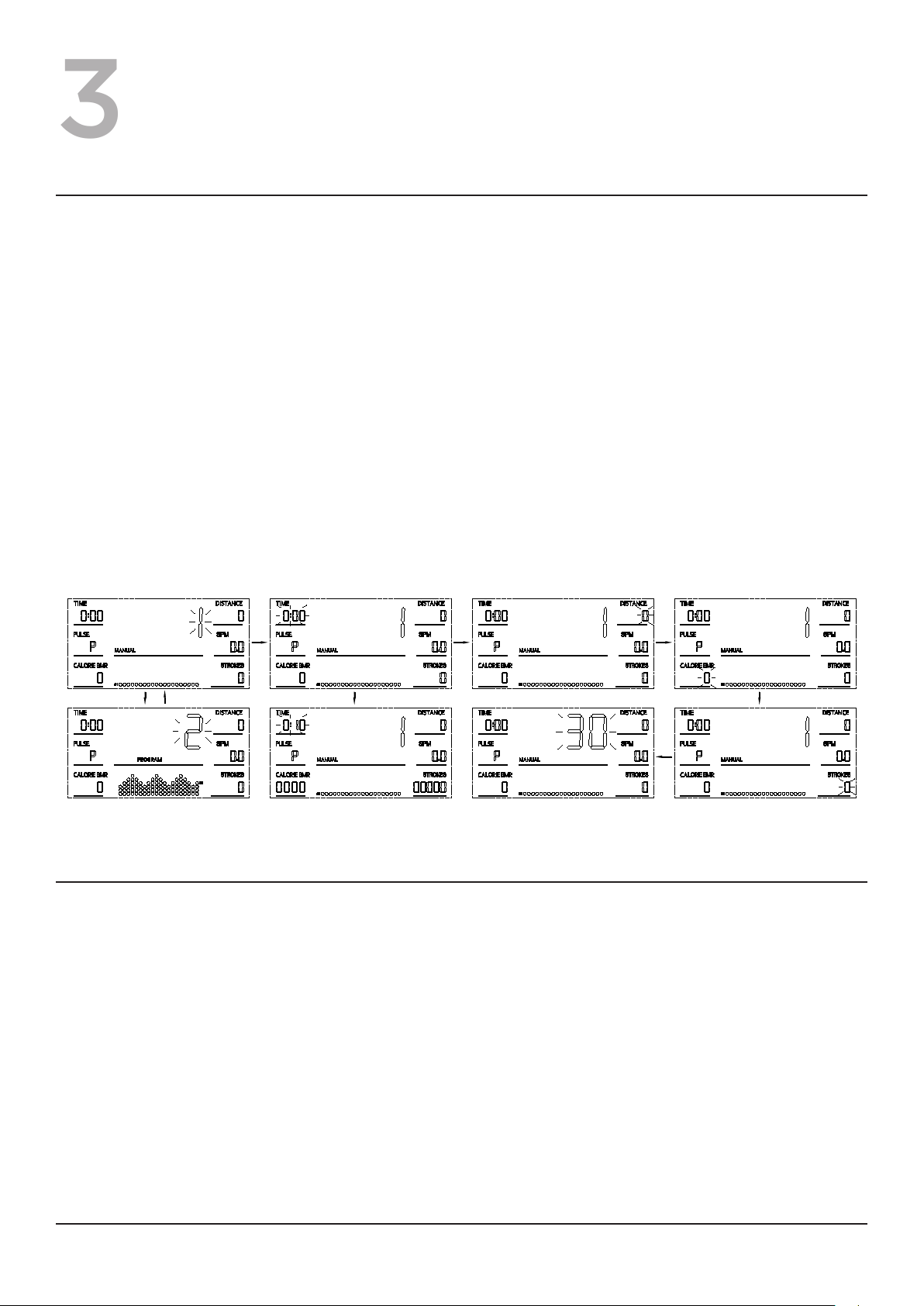

Operation
1. Press the “START/STOP” key then begin your workout to begin a manual mode
and see all of your data, or press the “ENTER” key to enter the setting mode.
2. In setting status, press the “ENTER” key to choose setting items with the relevant
flashing windows for TIME, DISTANCE, CALORIE, STROKES and AGE.
3. Press the “UP” or “DOWN” keys to change the digits and press the “ENTER” key to
move to the next item.
4. Automatically exits the setting status when all operations are complete, or press
the “START/STOP” key in the setting status to start a workout directly.
5. The magnetic resistance can be adjusted using the “UP” or “DOWN” keys during
your manual workout.
6. If TIME, DISTANCE, CALORIES or STROKES have been set, then the
corresponding value will count down to 0, the program will be STOP after this.
7. Press the “START/STOP” key to STOP the program during your workout.
MANUAL MODE (PROGRAM 1)
1. Press the “UP” key to scan through the selection of programs between 2-12. At the
bottom of the screen the chart will show the pattern and intensity of each.
2. Press the “START/STOP” key to begin a program.
3. Throughout the program the magnetic resistance will automatically change while
the monitor displays all your data. However, you can also manually change the resistance
whilst in a program from level 1 to 16. The dots on the chart at the bottom of the monitor
will change in height according to the resistance level.
PROGRAM MODE (PROGRAMS 2-12)
ENTER ENTER ENTER
ENTERUPUP
ENTER
DOWN

20
1. After exercising press the “UP” key to scan through the programs til you reach 13.
2. Press the “ENTER” key to choose setting items with the relevant flashing windows
for GENDER, HEIGHT, WEIGHT and AGE. Use the “UP” and “DOWN” keys to change the
digits and press “ENTER” after each one.
3. Press the “START/STOP” key to start the test and make sure the chest strap is
attached. Then the display will show your body fat reading 8 seconds later.
4. You should keep your body relaxed and your heart rate calm during this process.
BODY FAT (PROGRAM 13)
Gender/Age Underweight Healthy Slightly
Overweight
Overweight Obese
Male <30 < 14 14 - 20 20.1 - 25 25.1 - 35 > 35
Male >30 < 17 17 - 23 23.1 - 28 28.1 - 38 > 38
Female <30 < 17 17 - 24 24.1 - 30 30.1 - 40 > 40
Female >30 < 20 20 - 27 27.1 - 33 33.1 - 43 > 43
Gender Low Medium Slightly High High
Male <13% 13% - 25.9% 26% - 30% >30%
Female <23% 23% - 35.9% 36% - 40% >40%
B1 B2 B3 B4 B5 B6 B7 B8 B9
Skinny Thin Slightly
Thin
Slim Healthy Slightly Overweight Overweight Obese Obesity
B.M.I (BODY MASS INDEX)
BODY FAT
BODY TYPE
